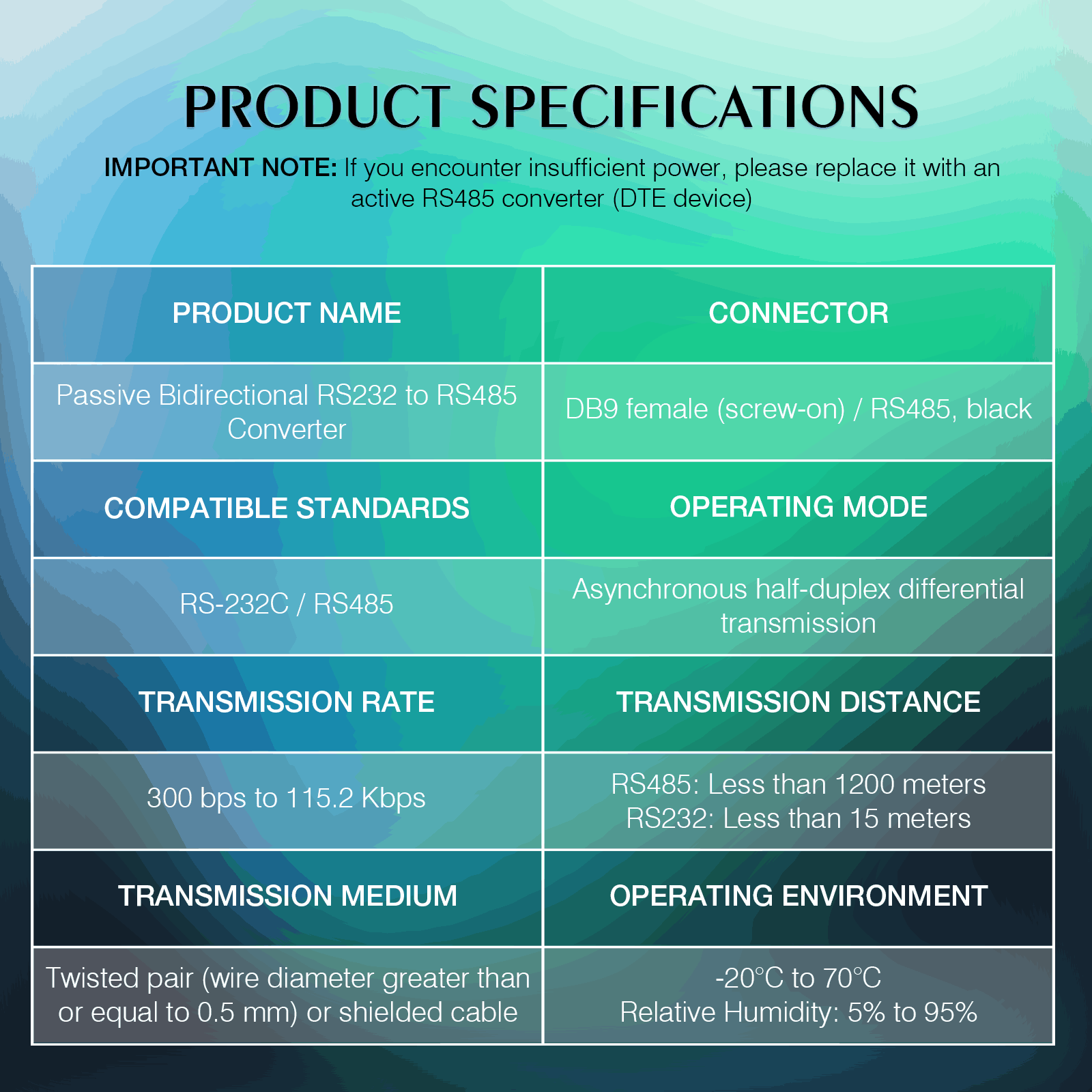

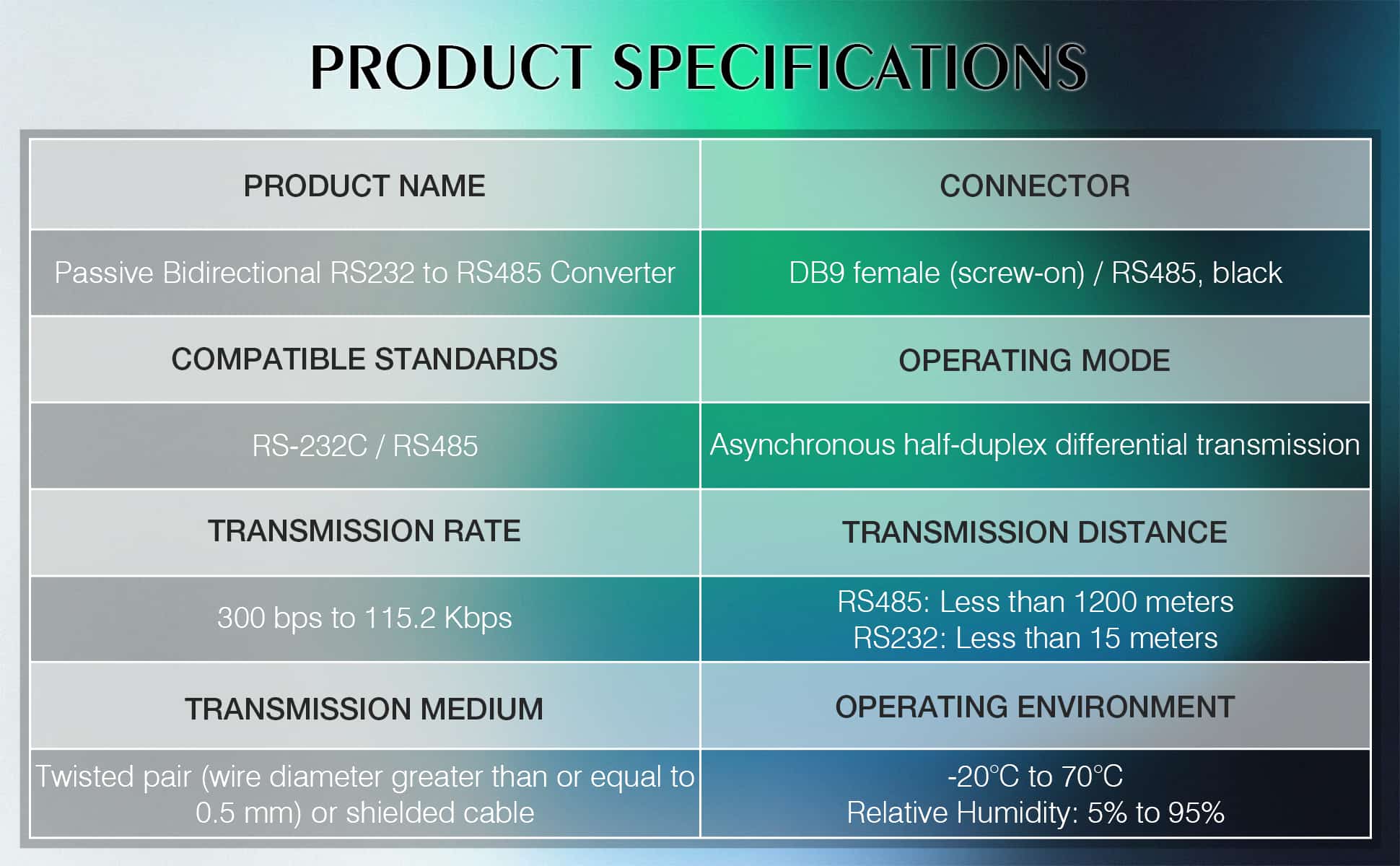

SPECIFICATION

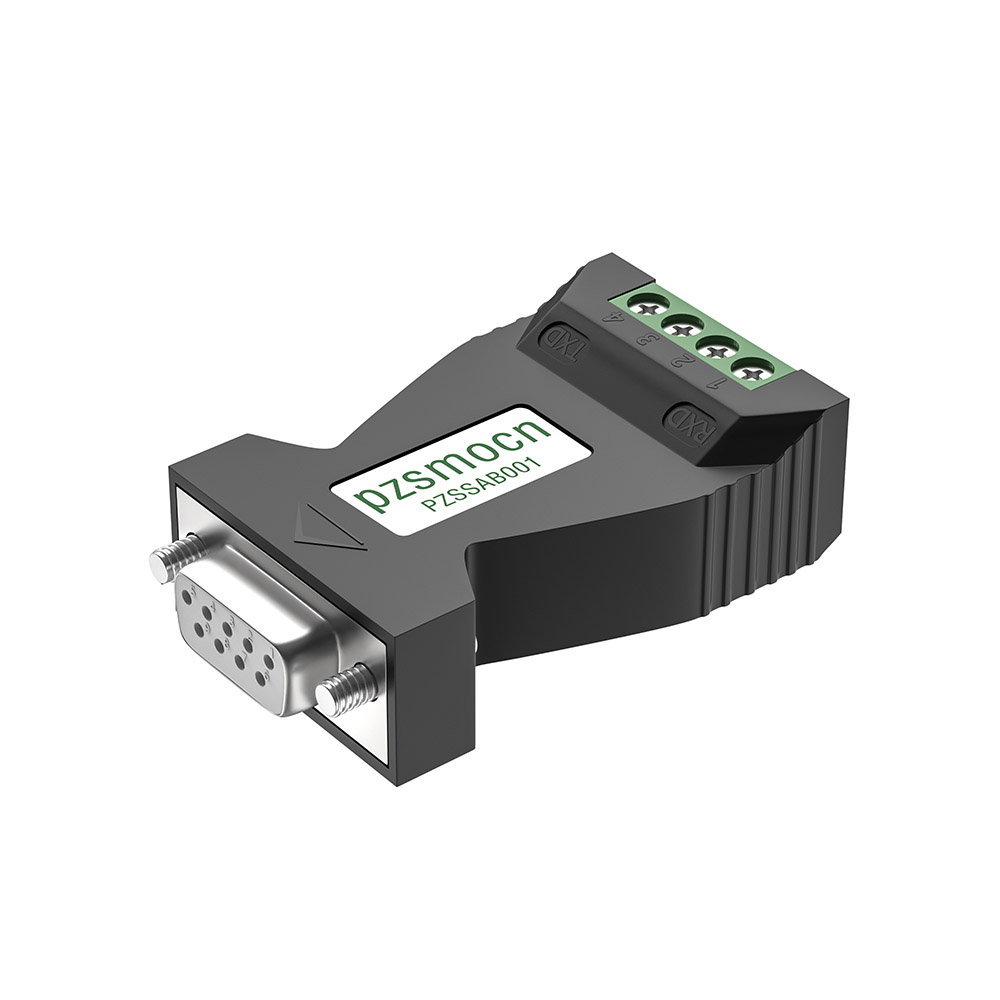

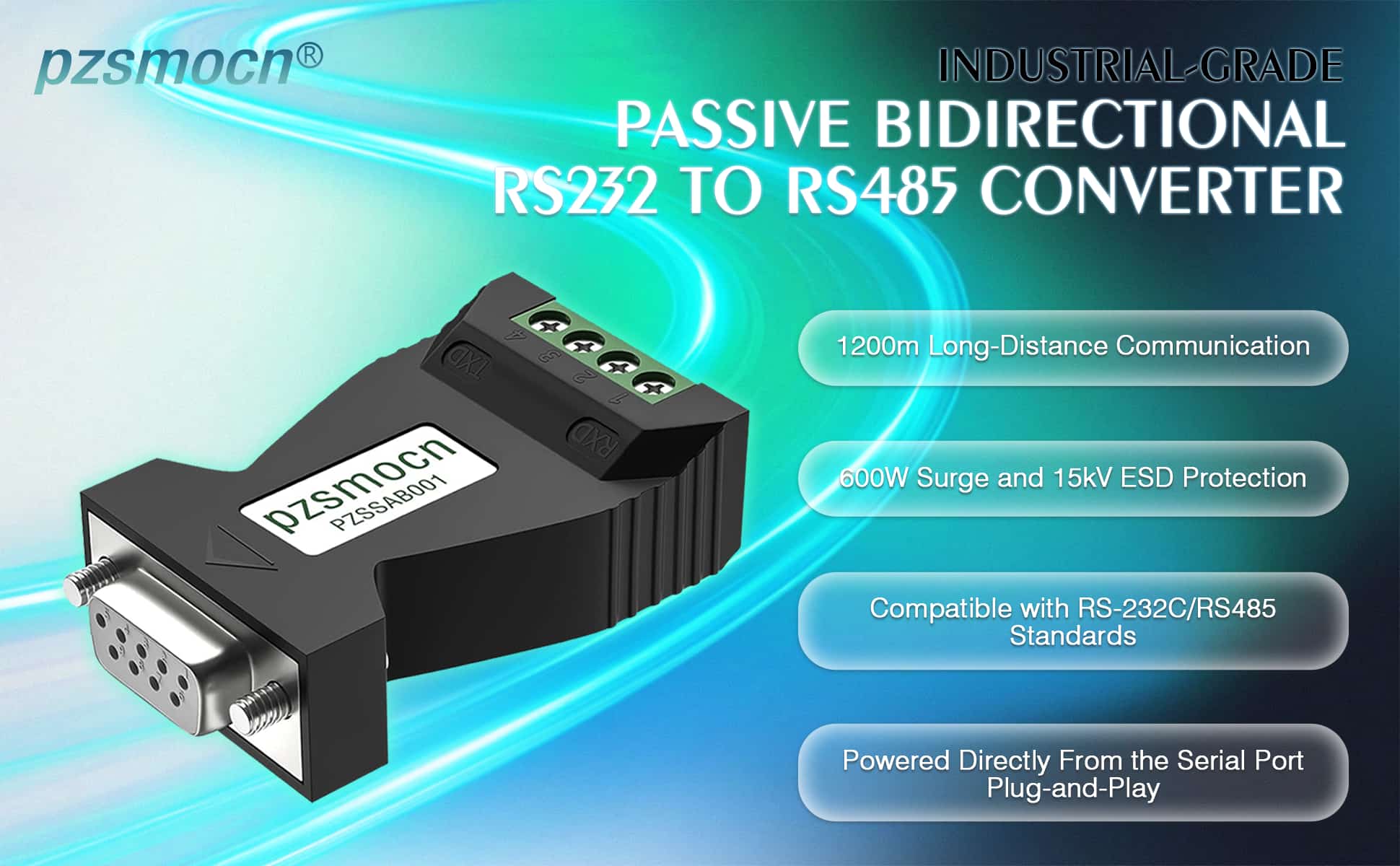

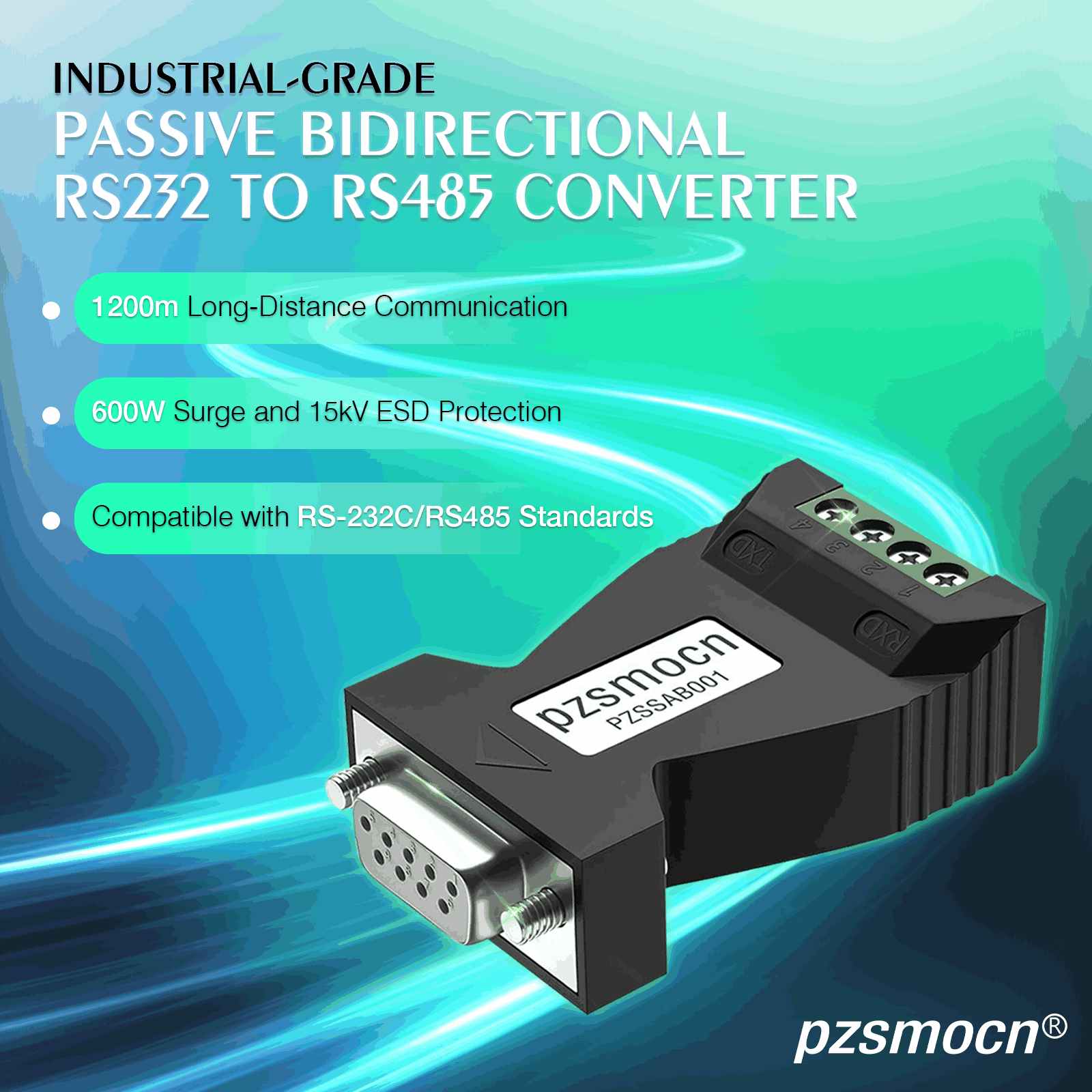

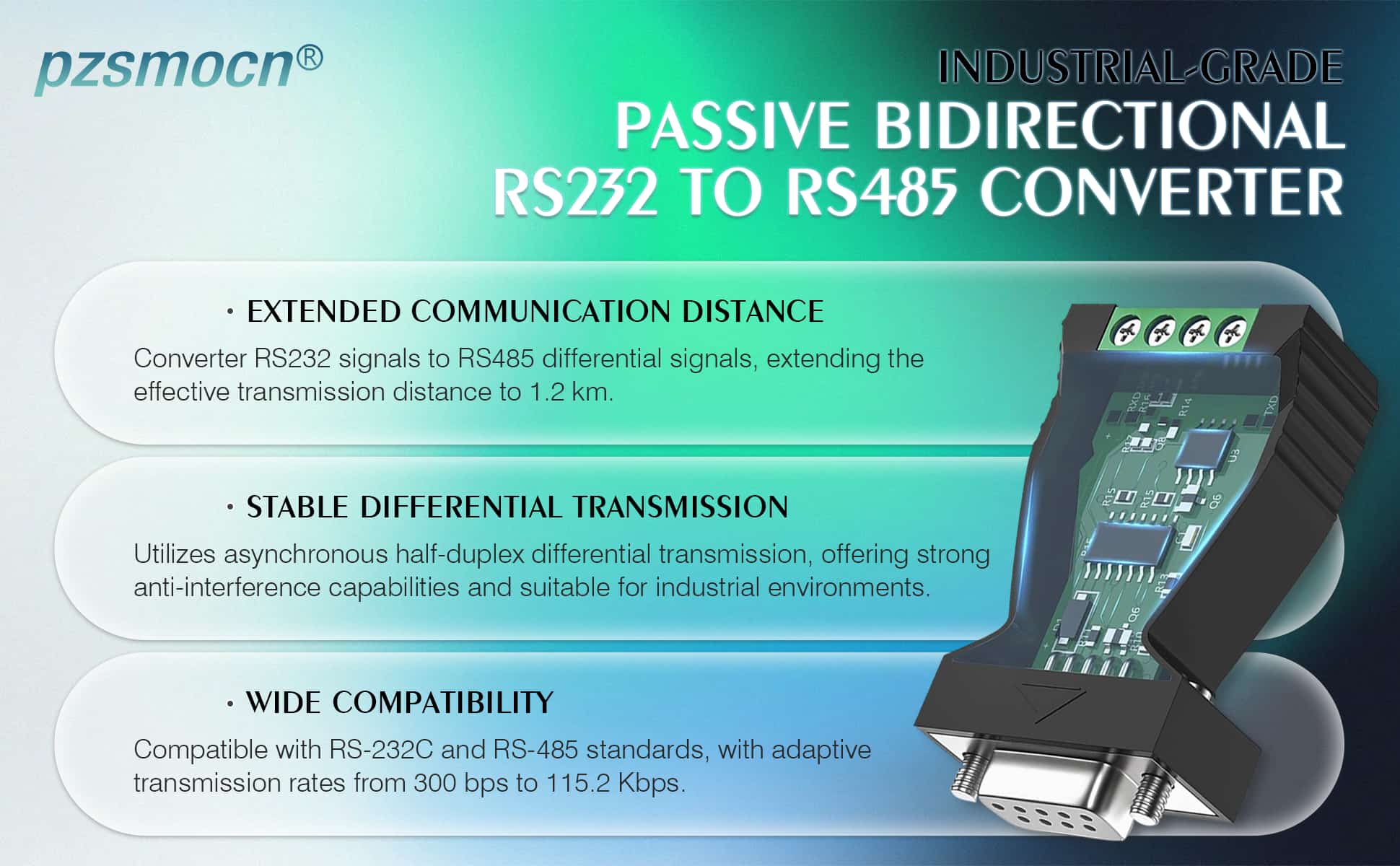

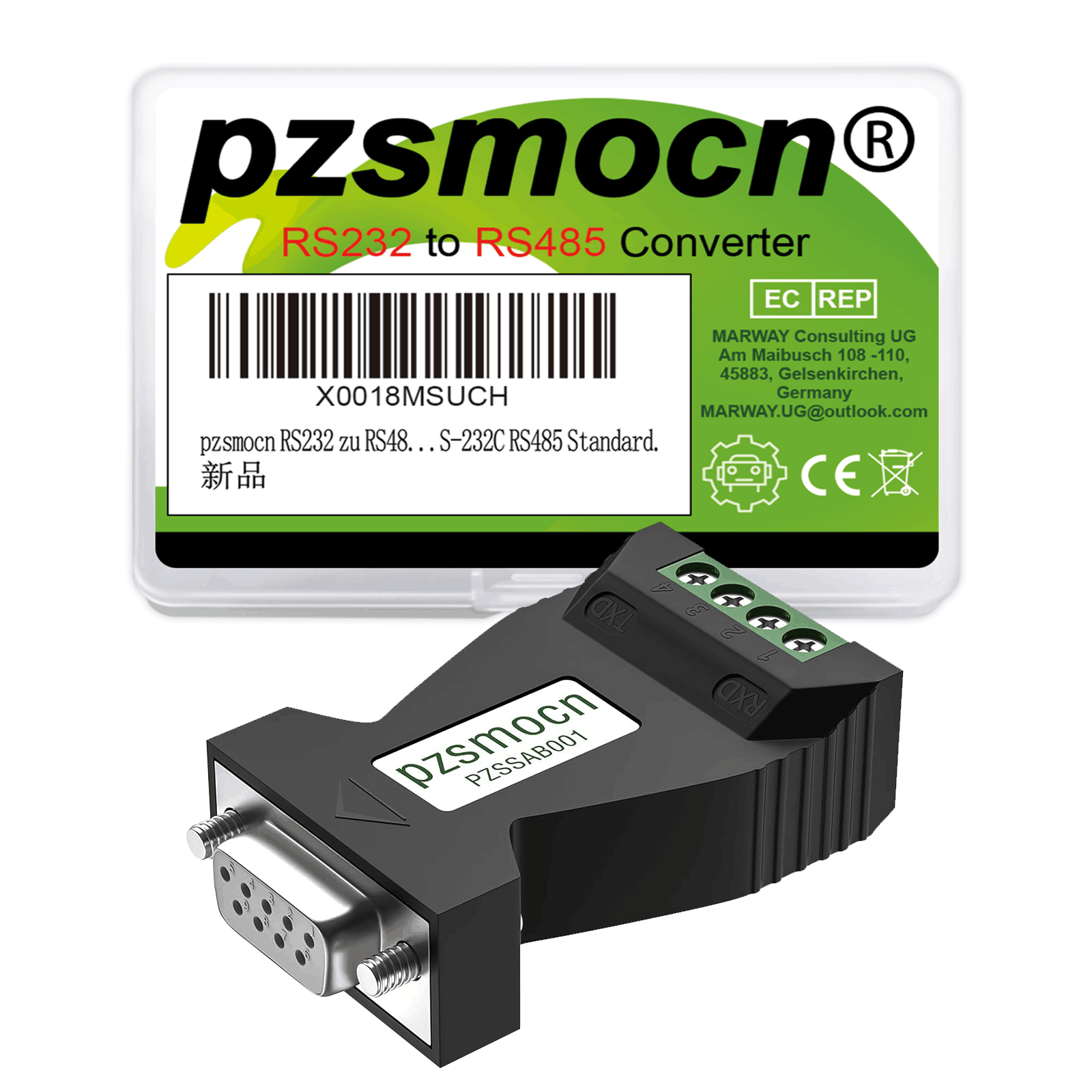

• Product Name: RS232 to RS485 passive two way converter

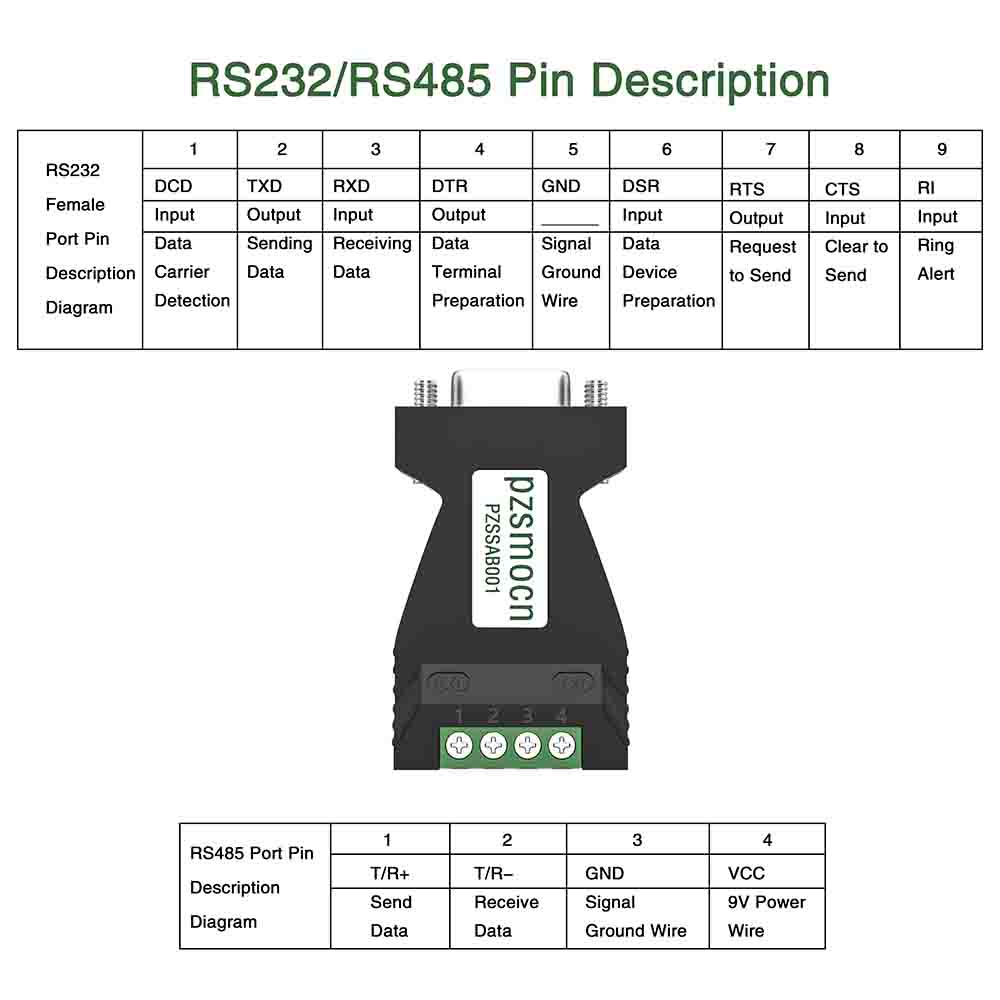

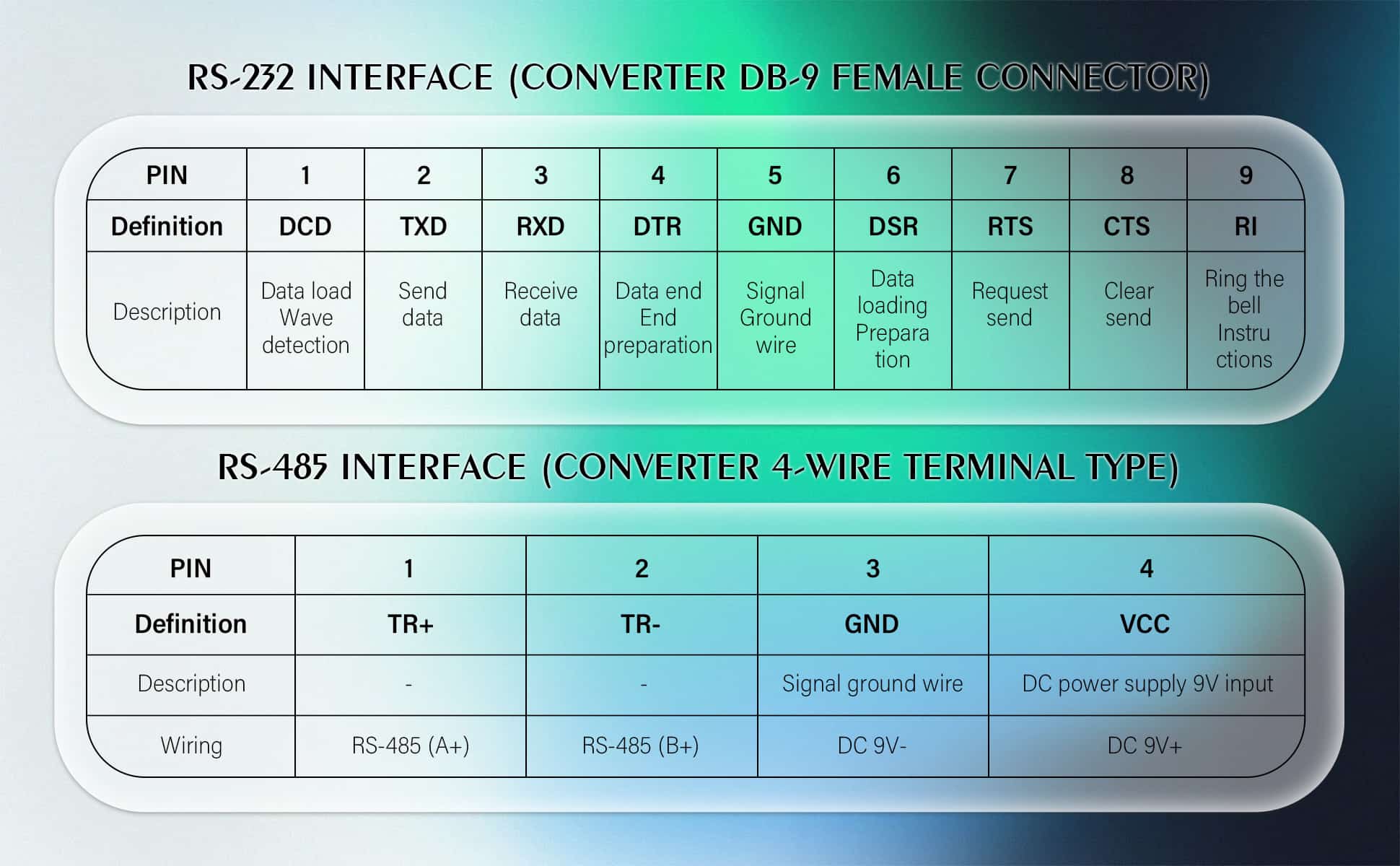

• Specification: DB9 female (threaded) / RS485, black
• Interface Characteristics: Compatible with EIA / TIA's RS-232C and RS-485 standards

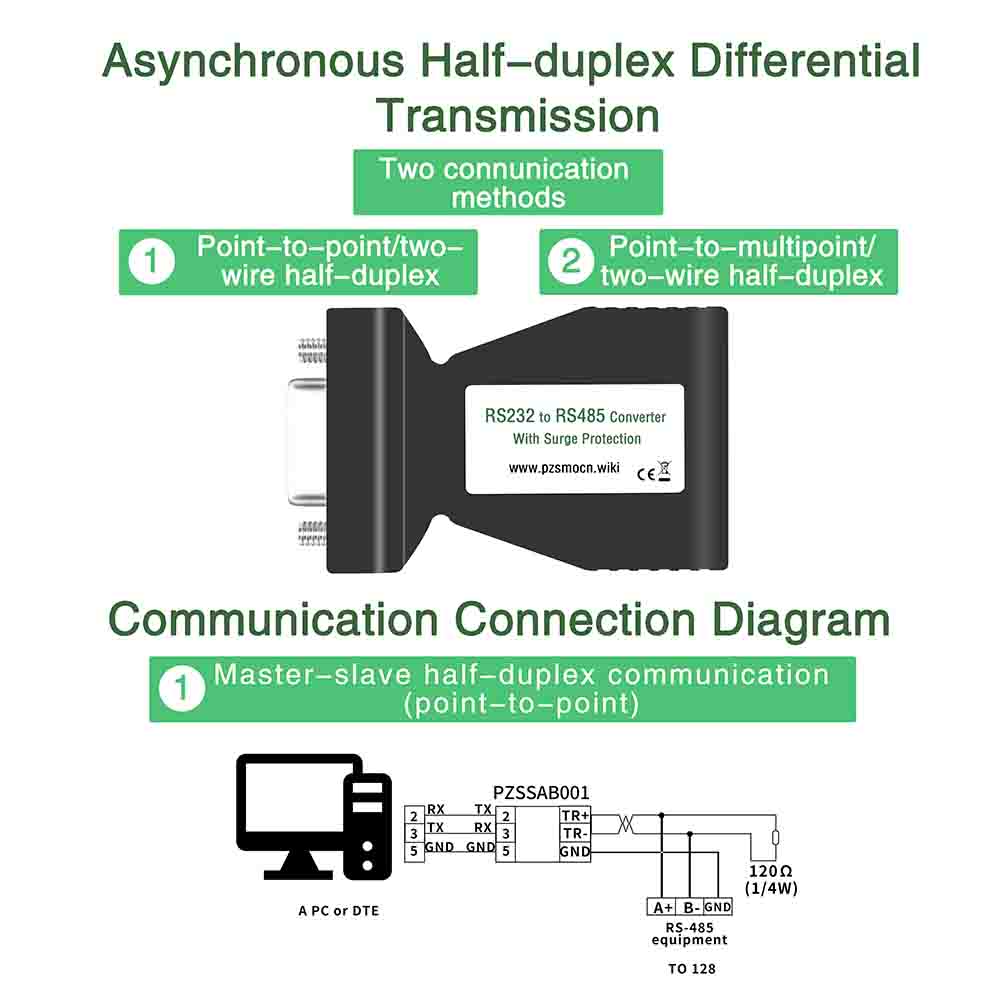

• Working Mode: asynchronous half-duplex differential transmission
• Transmission Rate: 300bps to 115.2Kbps
• Transmission Medium: twisted pair wire (wire diameter Plus/Minus 0.5MM) or shielded wire

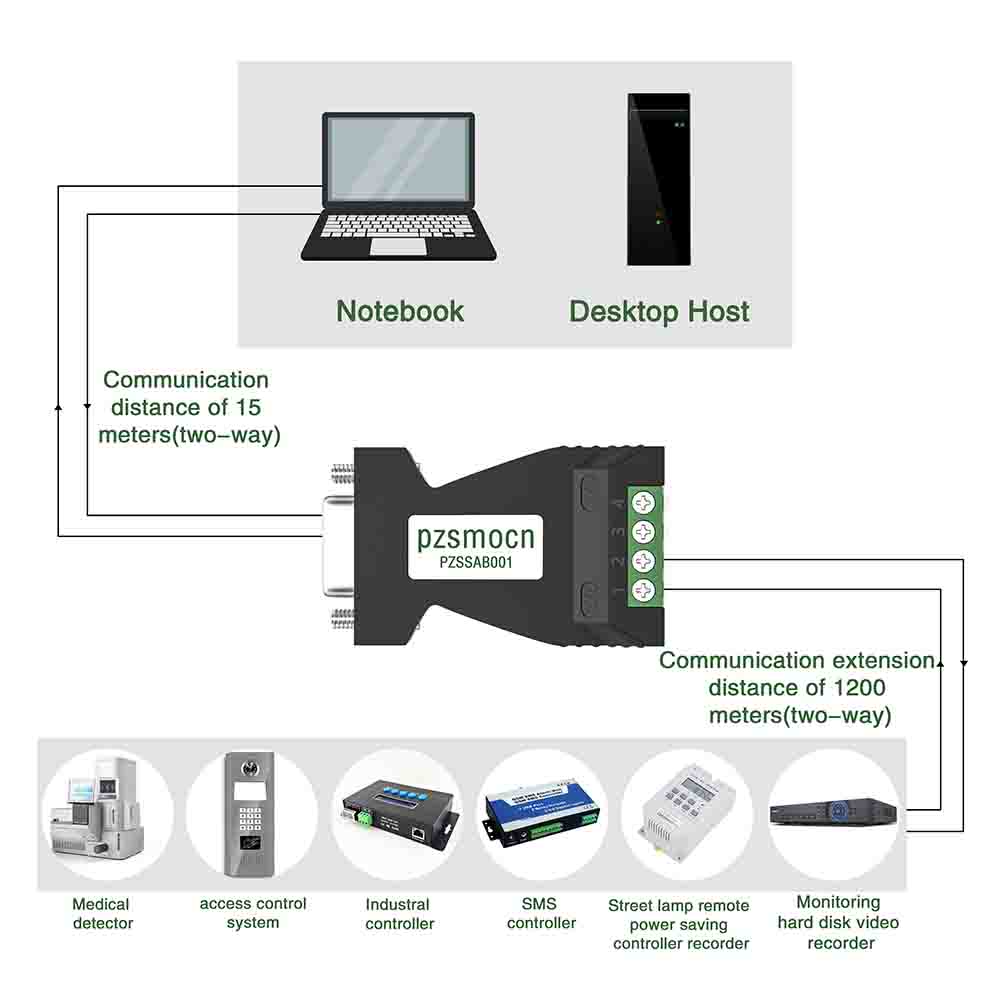

• Transmission Distance: RS485 end is less than 1200 meters; RS232 end is less than 15 meters

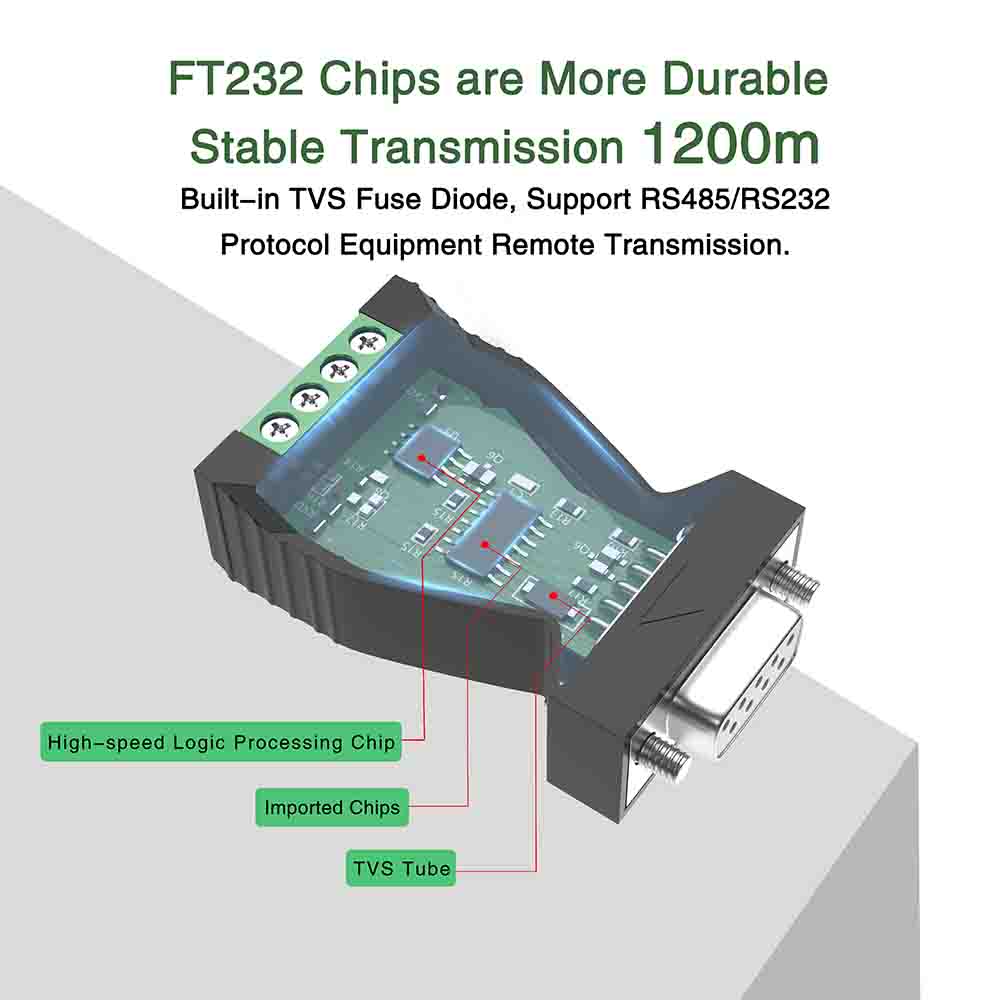

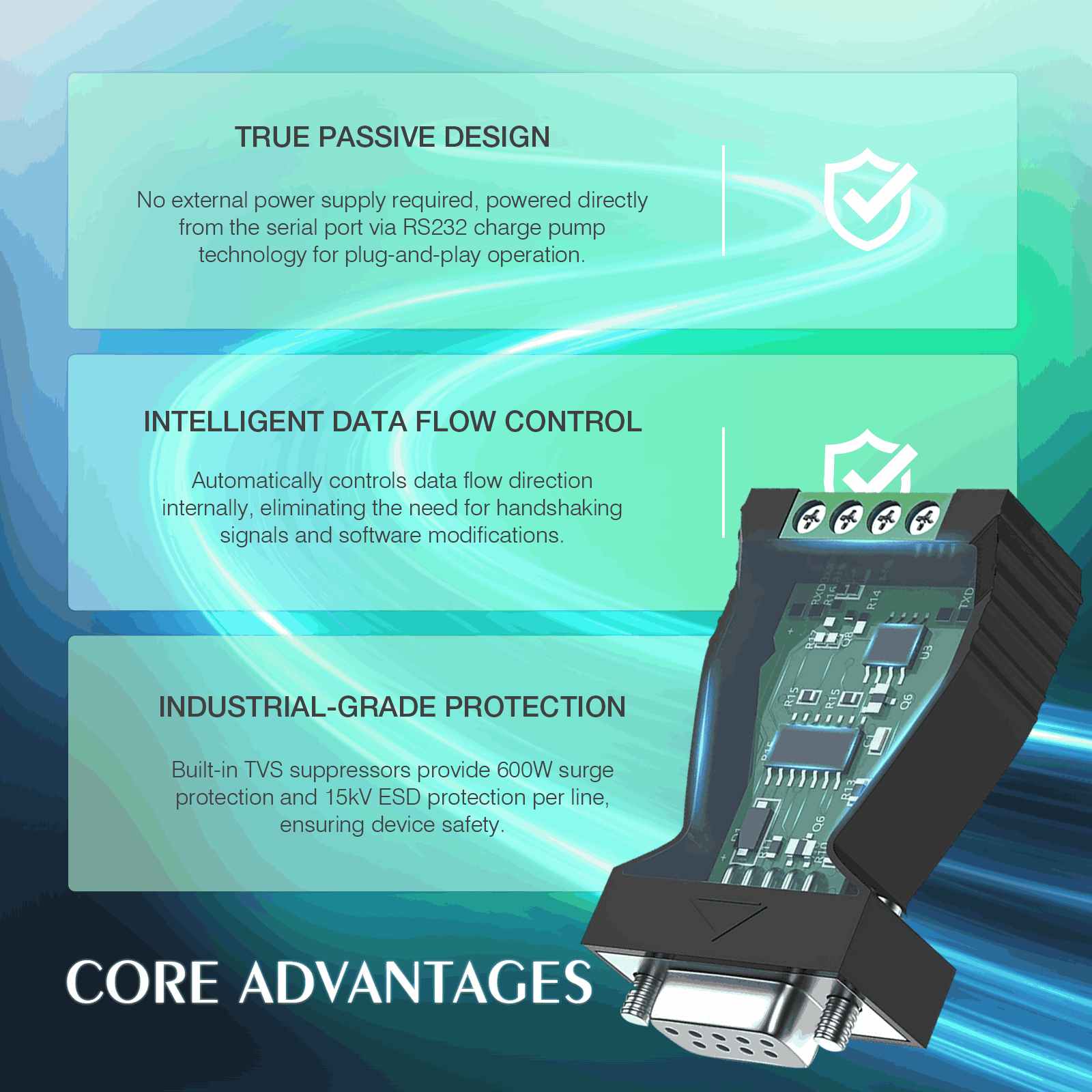

• Safety Protection: RS485 interface 60OW lightning surge protection per line
• Working Environment: -20 to +70 degrees Celsius, relative humidity 5 percent to 95 percent
