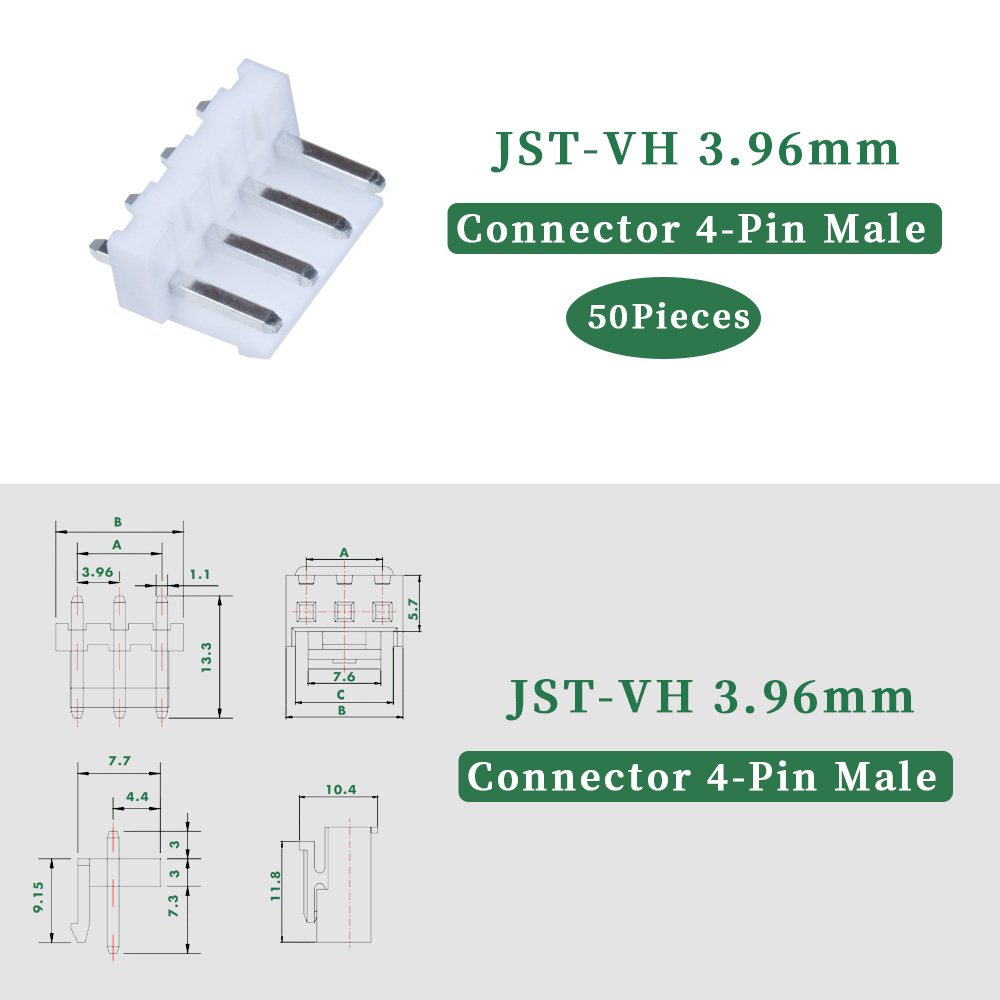

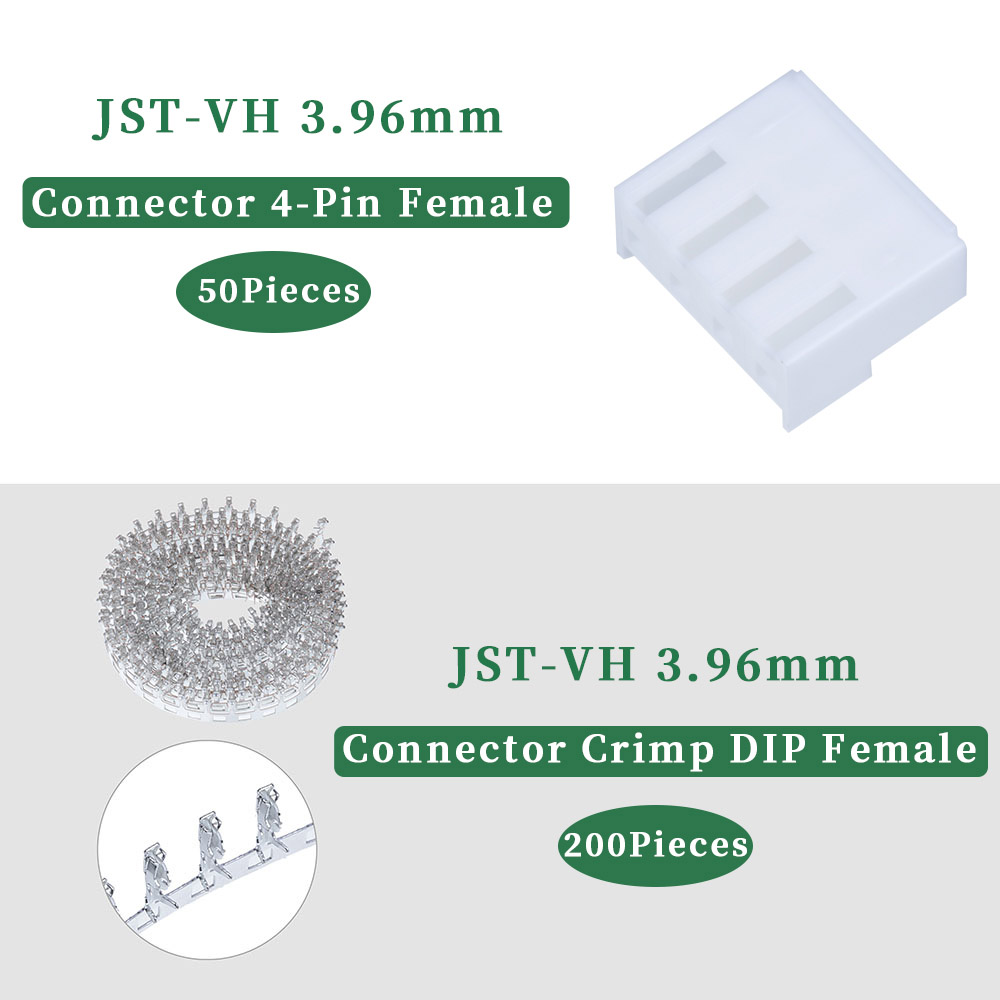

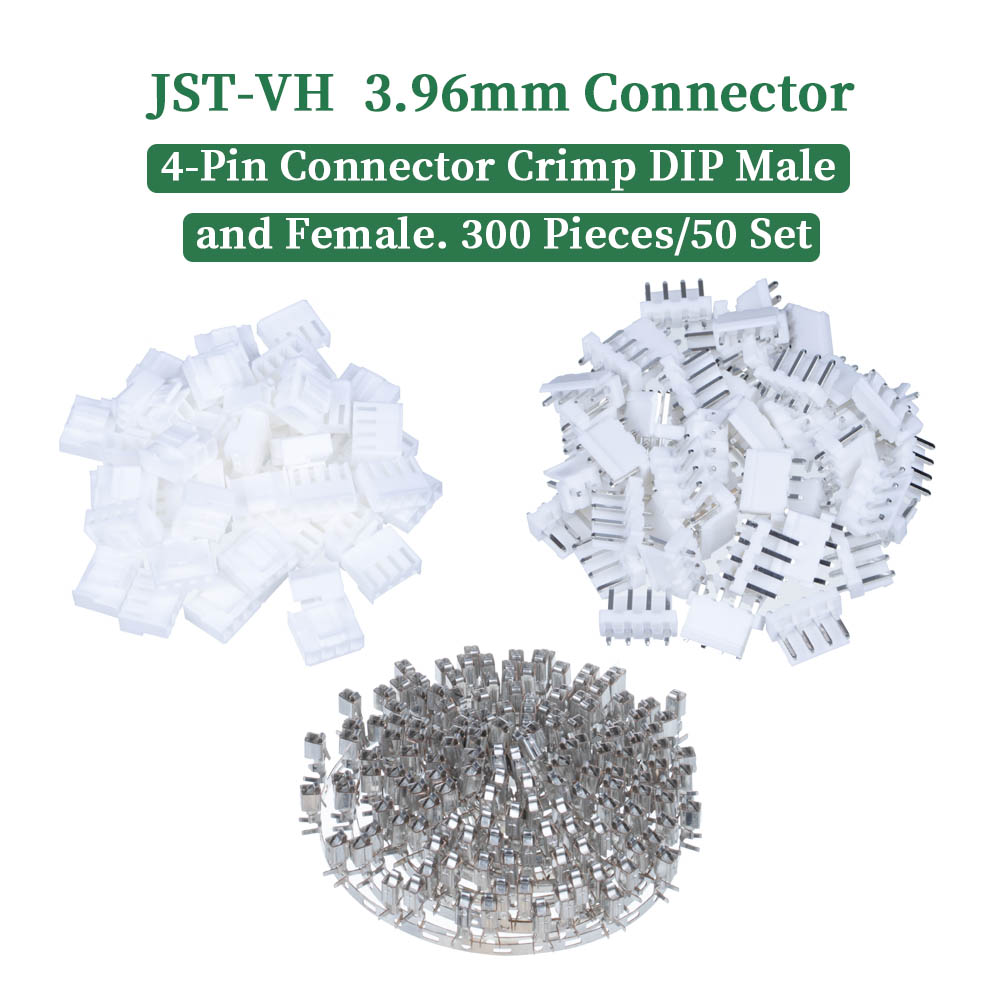

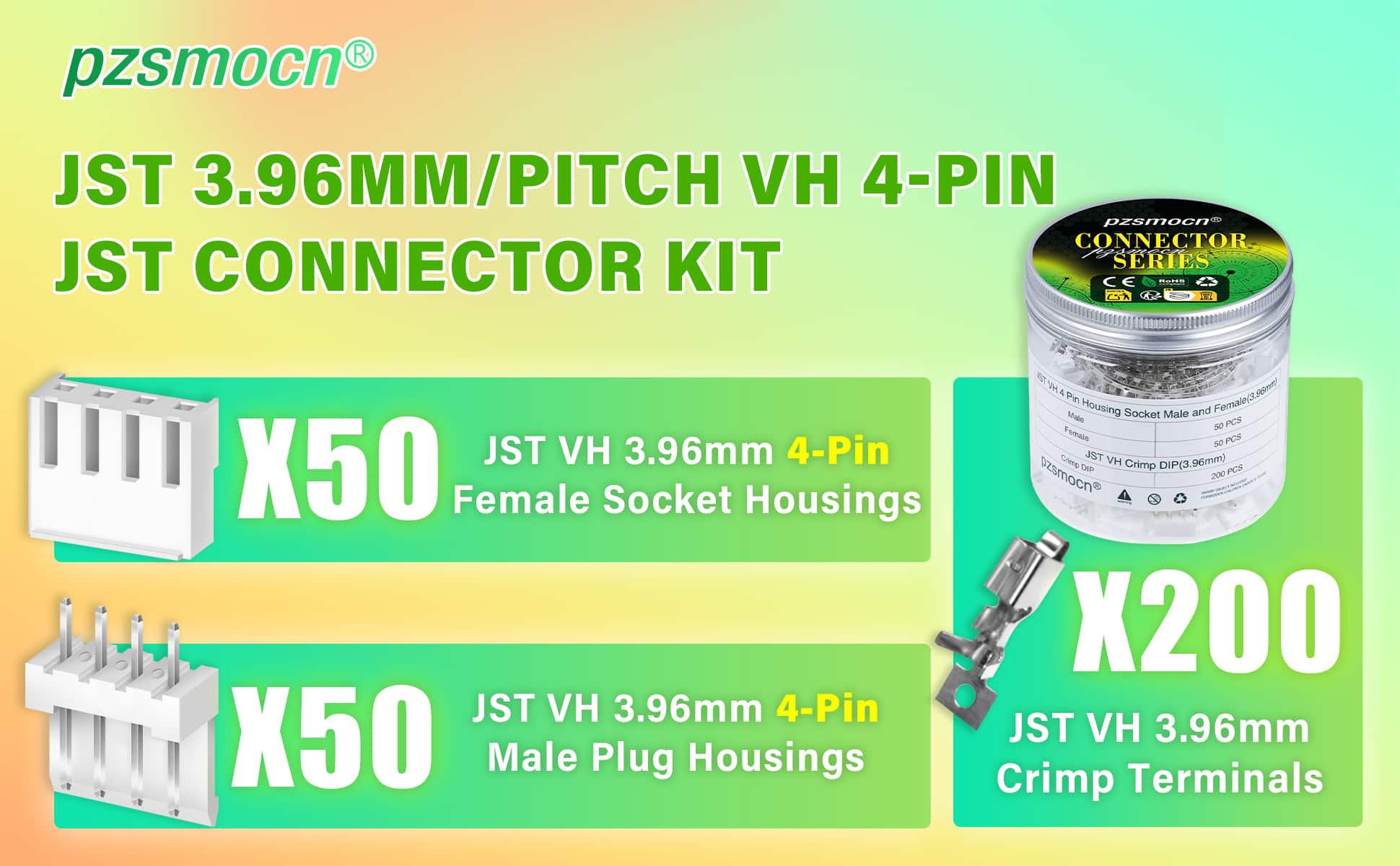

JST VH Connector 3.96 mm 4-Pin
SKU
PZSJTSVH4PinA
Part No.
PZSJTSVH4PinA
Brand
pzsmocn
$
5
.78
Pin：

2P

2P SMT

3P

3P SMT

4P

4P SMT

Quantity
In Stock
Share:
10+
$
5
.49
Save 5%
50+
$
5
.26
Save 9%
100+
$
5
.09
Save 12%
200+
$
4
.91
Save 15%
500+
$
4
.62
Save 20%
Related Products:

Product details

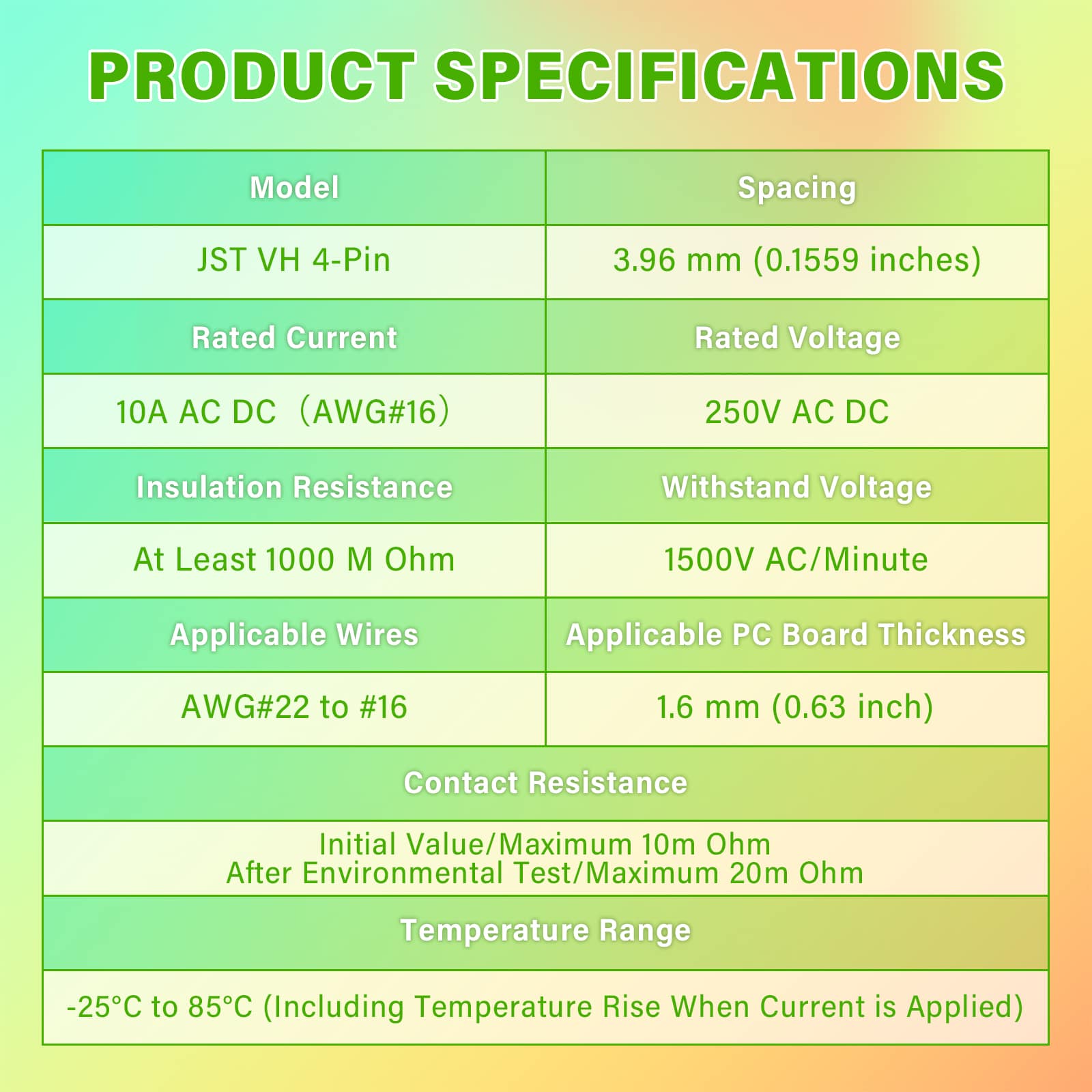

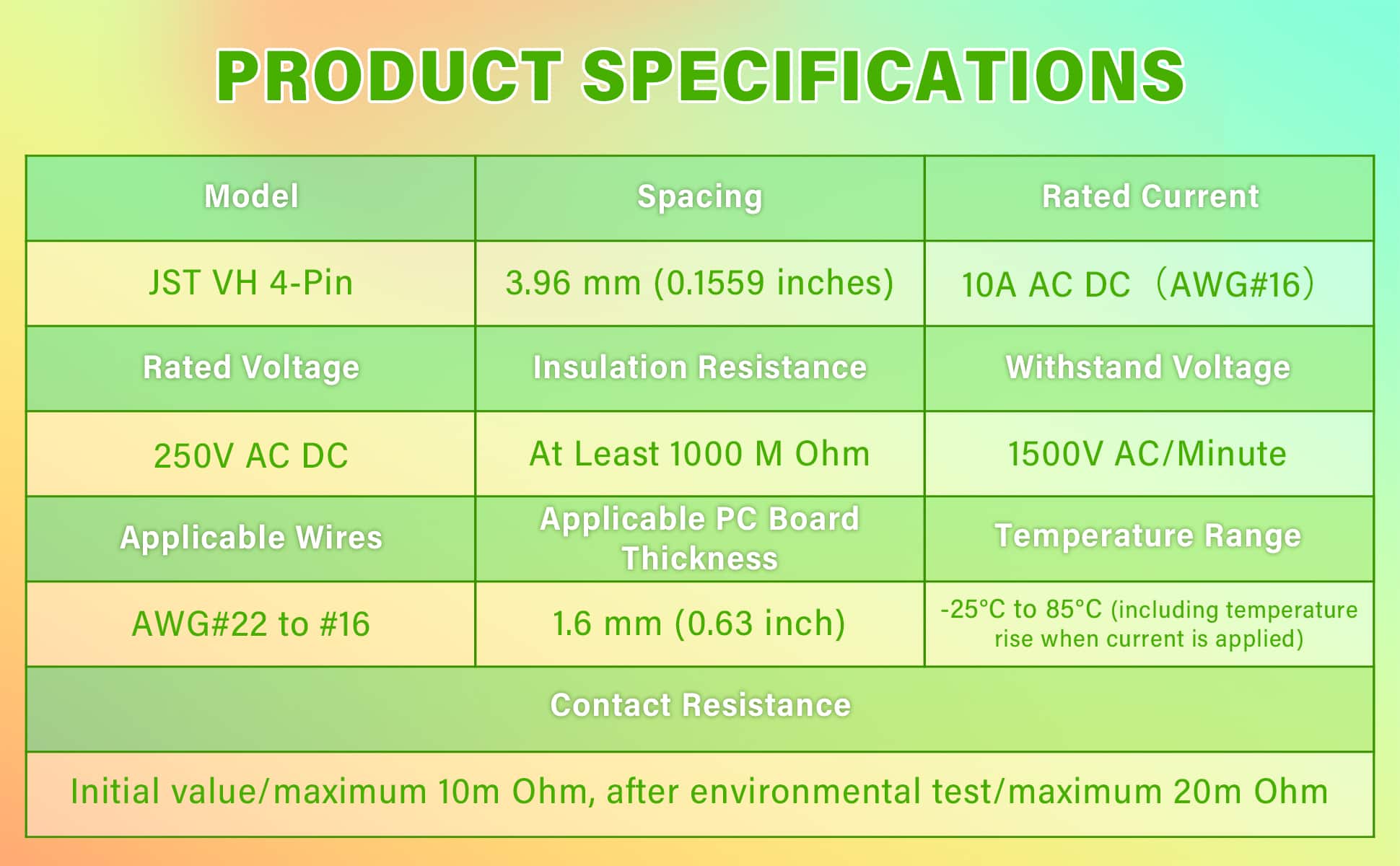

SPECIFICATION

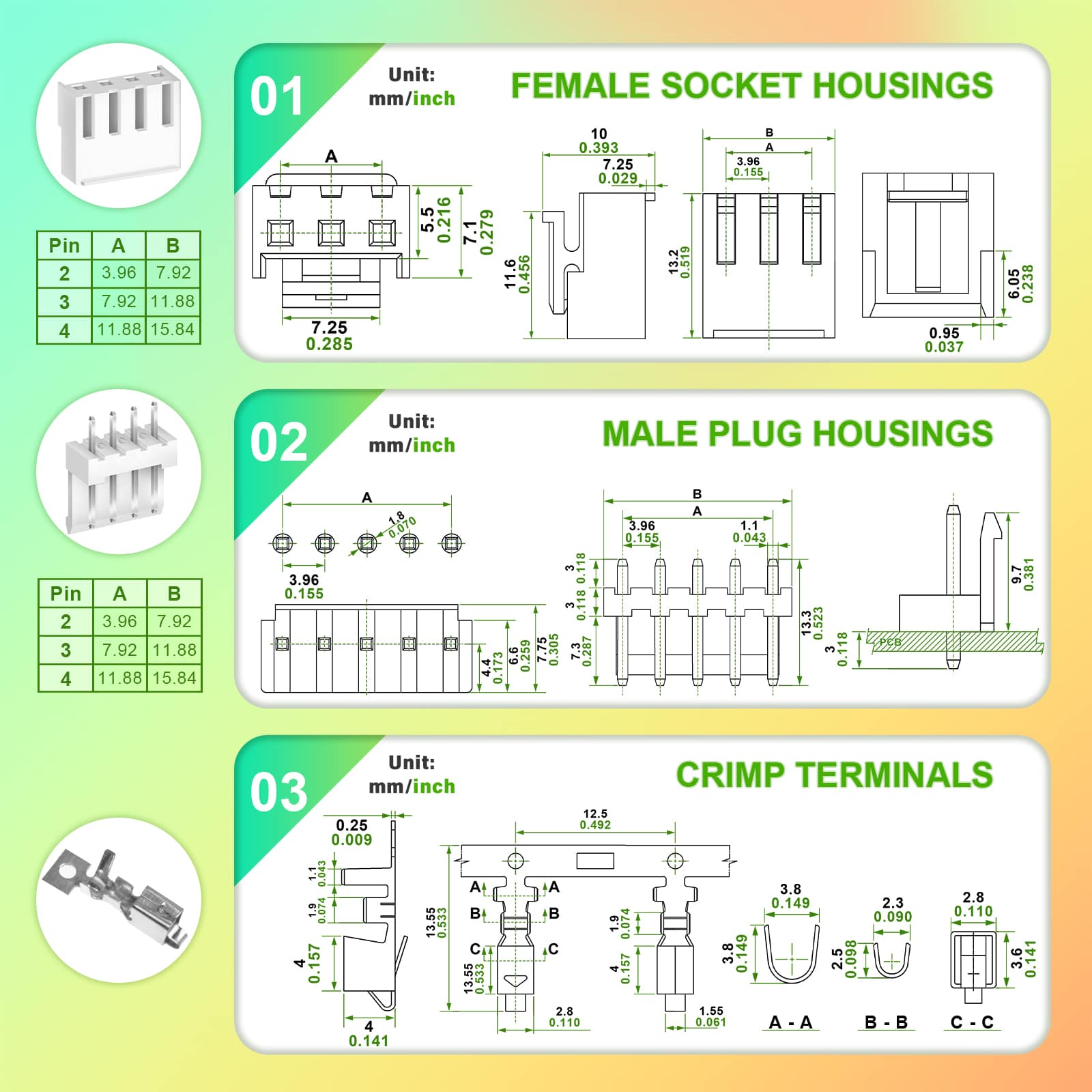

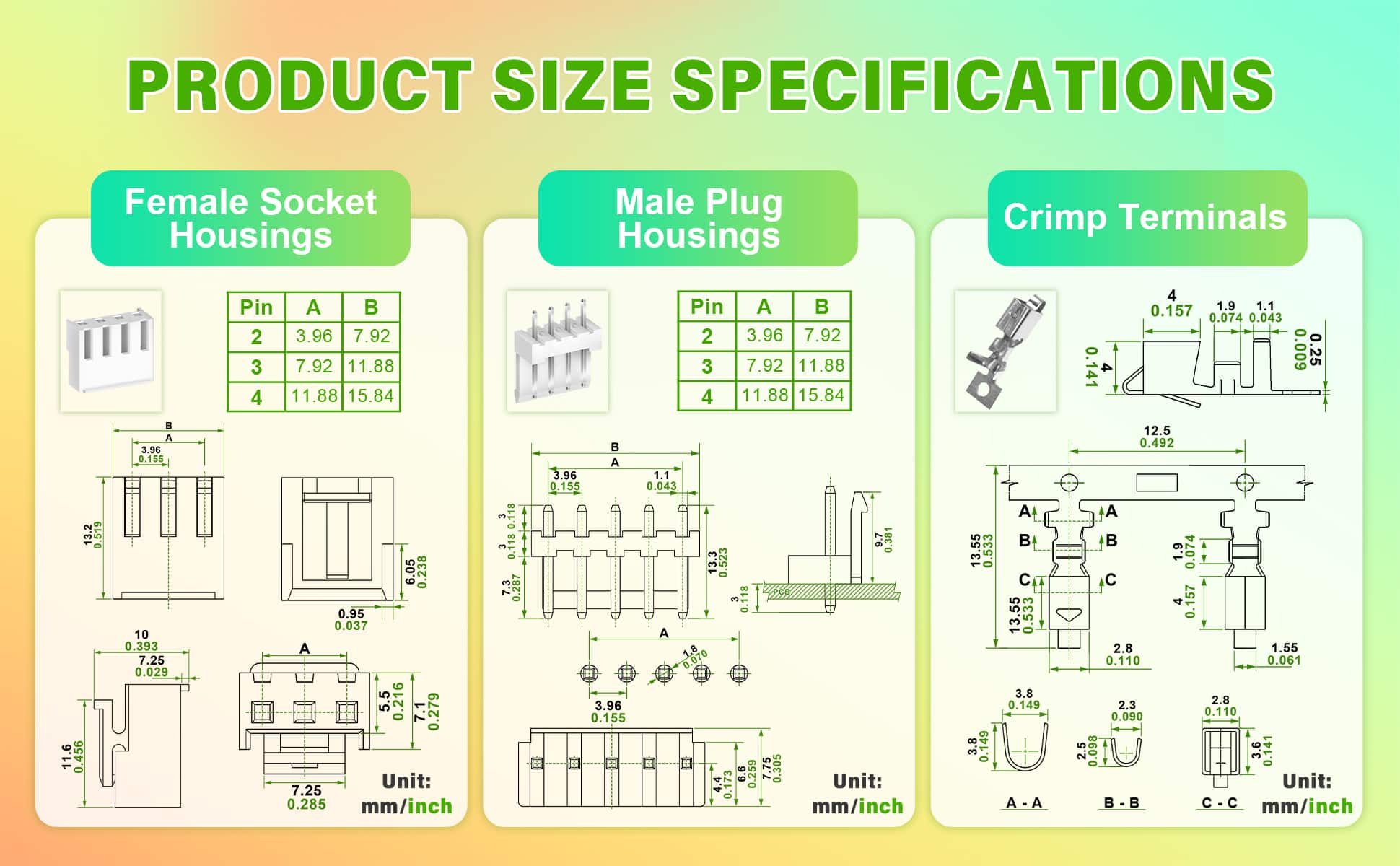

  • Pitch: 3.96 mm (0.1559 inch)
  • Current rating: 10A AC,DC (AWG #16)
  • Voltage rating: 250V AC,DC
  • Insulation resistance: 1000 M Ohm min.
  • Withstanding Voltage: 1500V AC/minute
  • Applicable Wire: AWG#22 to #16
  • Applicable PC Board Thickness: 1.6 mm (0.63 inch)
  • Contact resistance: Initial value/10m Ohm max, After Environmental Testing/20 m Ohm max.
  • Temperature Range: -25 Degree Celsius to 85 Degree Celsius(including temperature rise in applying electrical current)

JST VH 3.96 mm Pitch Connector-PZSJTSVH4PinA-8.jpgJST VH 3.96 mm Pitch Connector-PZSJTSVH4PinA-9.jpgJST VH 3.96 mm Pitch Connector-PZSJTSVH4PinA-10.jpgJST VH 3.96 mm Pitch Connector-PZSJTSVH4PinA-11.jpgJST VH 3.96 mm Pitch Connector-PZSJTSVH4PinA-12.jpgJST VH 3.96 mm Pitch Connector-PZSJTSVH4PinA-13.jpg
