PZSJTS-CHSMT3PinA

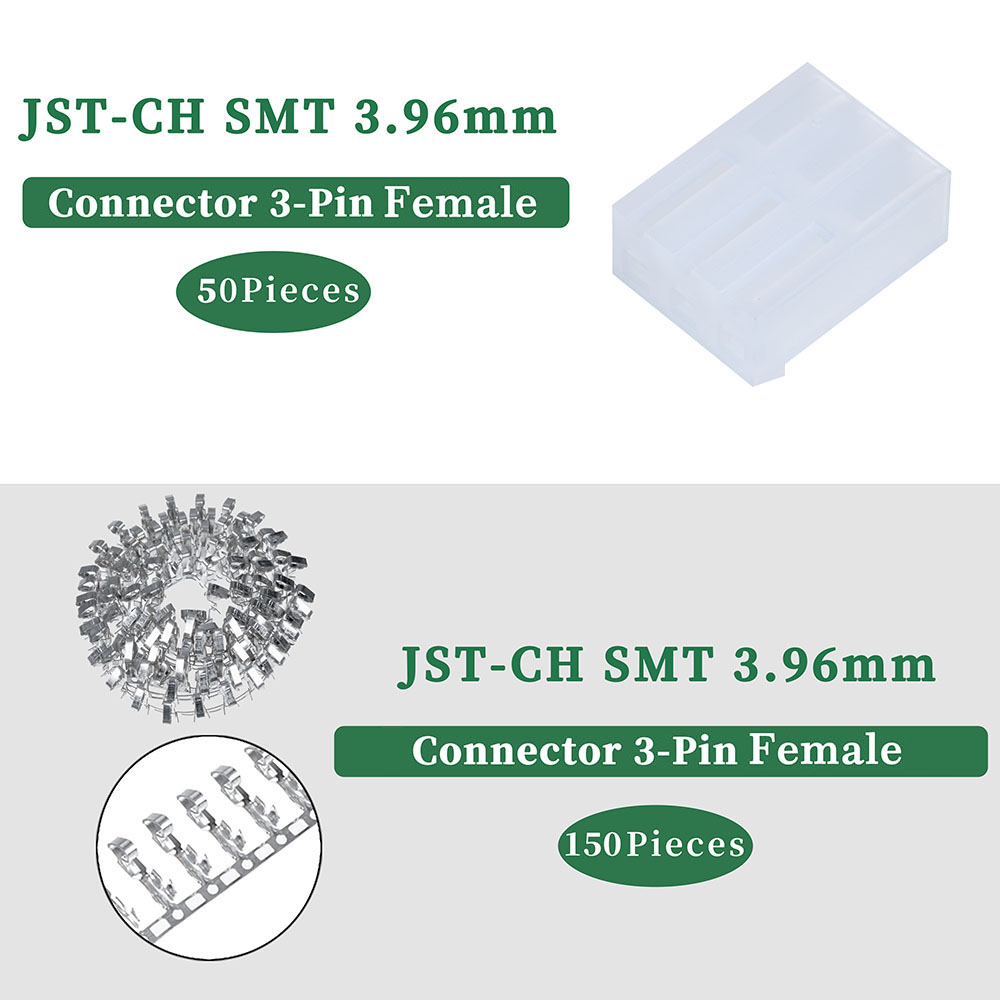

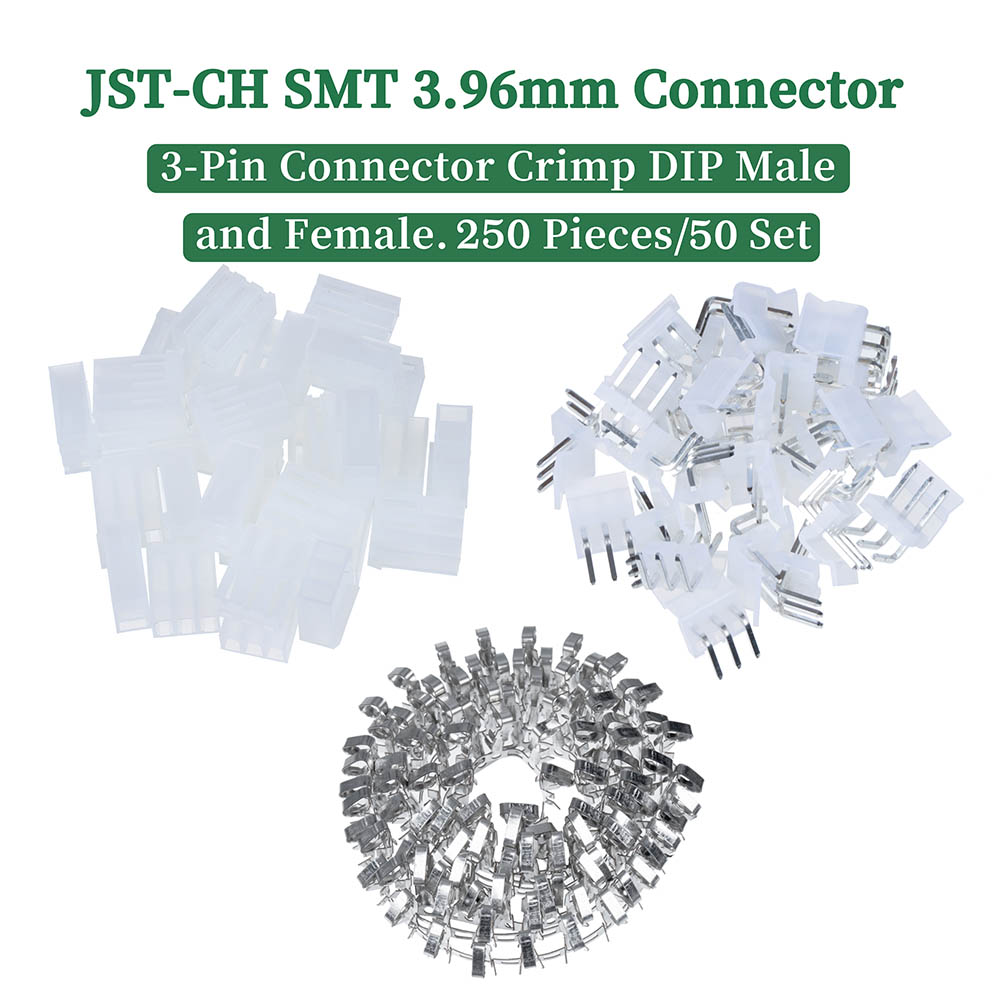

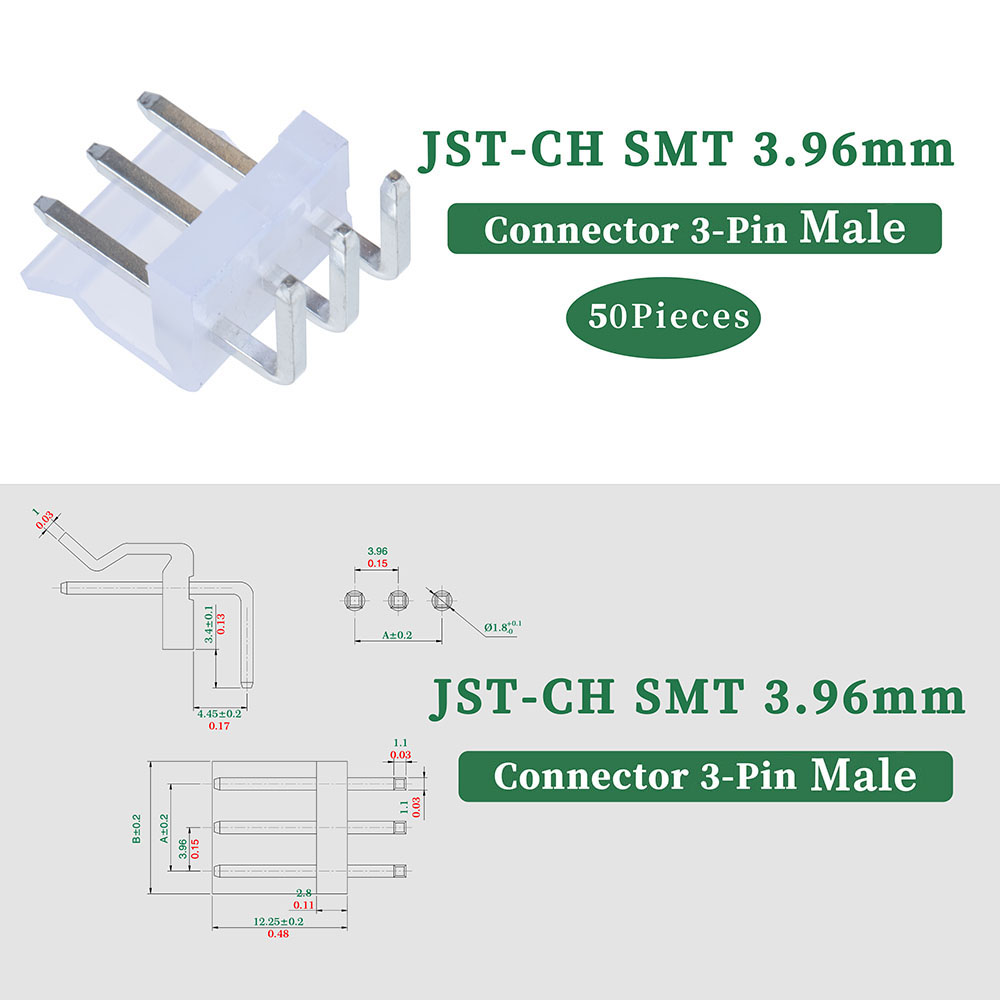

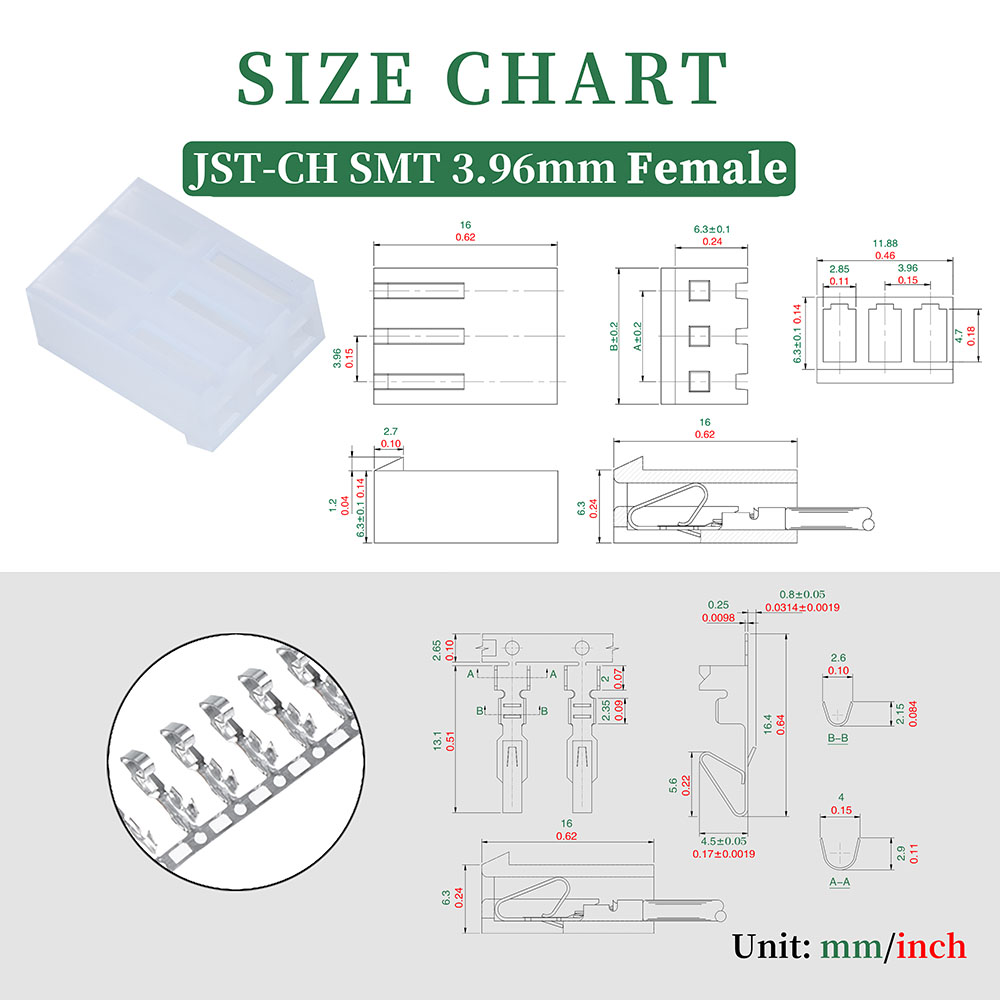

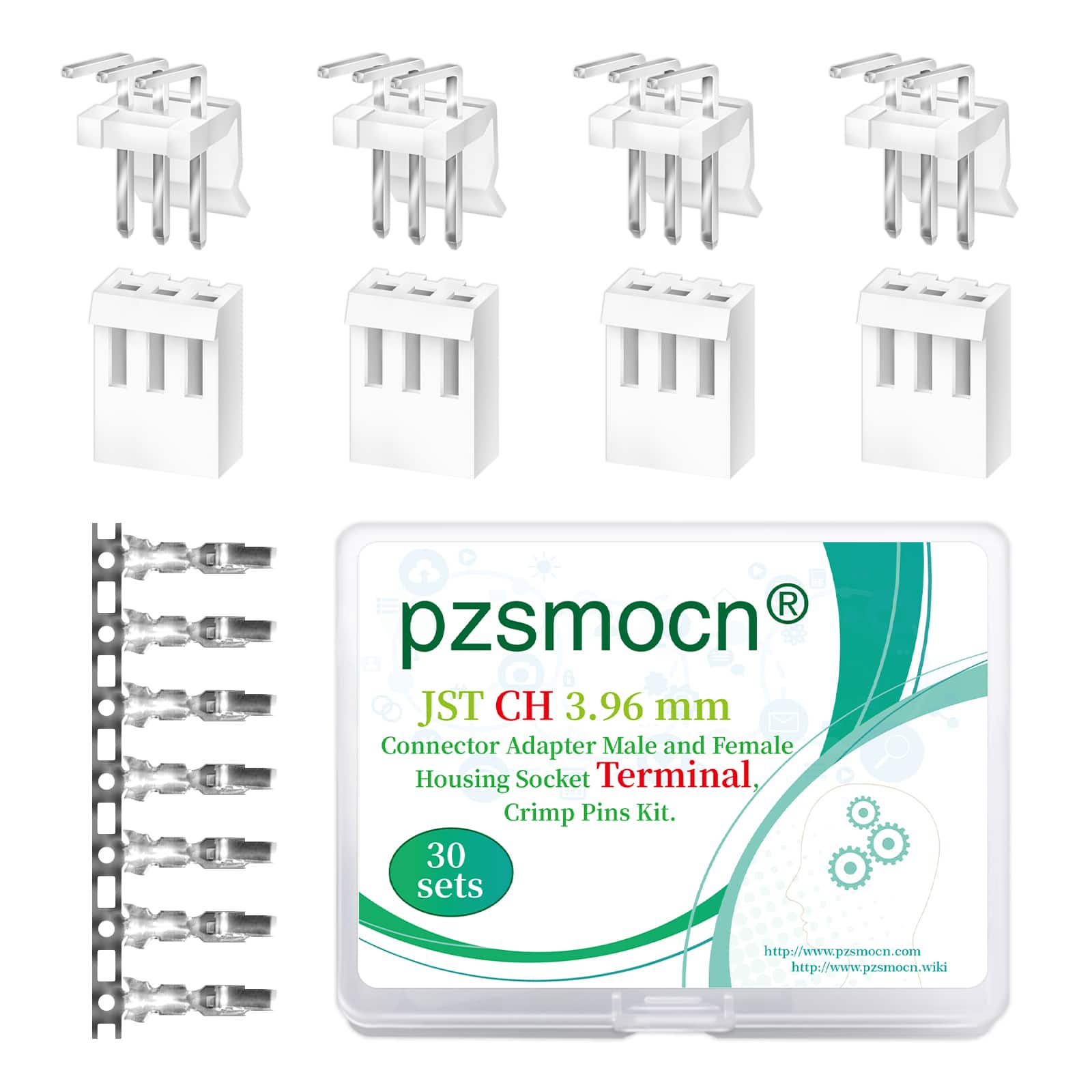

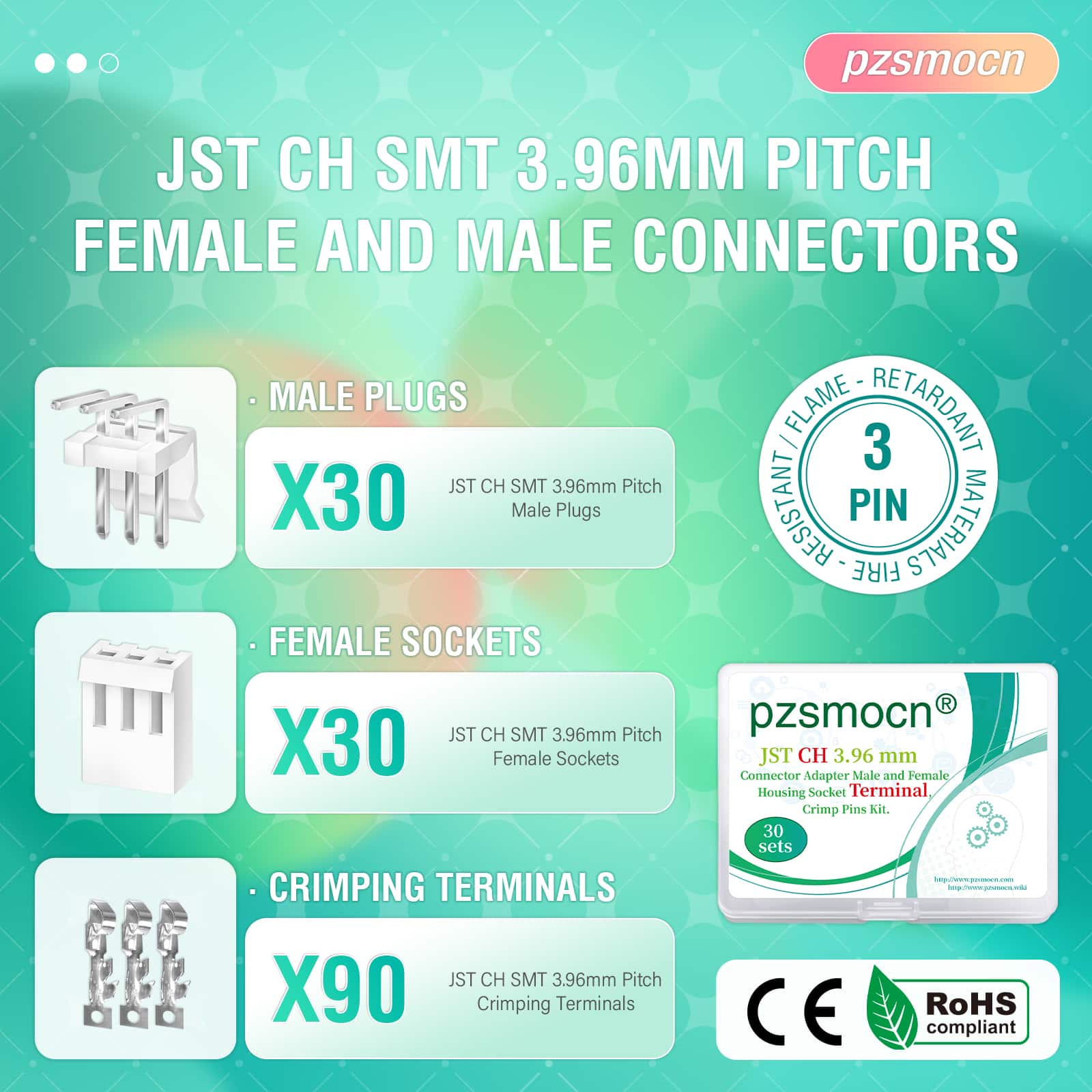

JST CH Connector 3.96 mm 3-Pin SMT
SKU
PZSJTS-CHSMT3PinA
Part No.
PZSJTS-CHSMT3PinA
Brand
pzsmocn
6
.18
Pin：

2P

2P SMT

3P

3P SMT

4P

4P SMT

Quantity
In Stock
Share:
10+
5
.87
Save 5%
50+
5
.62
Save 9%
100+
5
.44
Save 12%
200+
5
.25
Save 15%
500+
4
.94
Save 20%
Related Products:

Product details

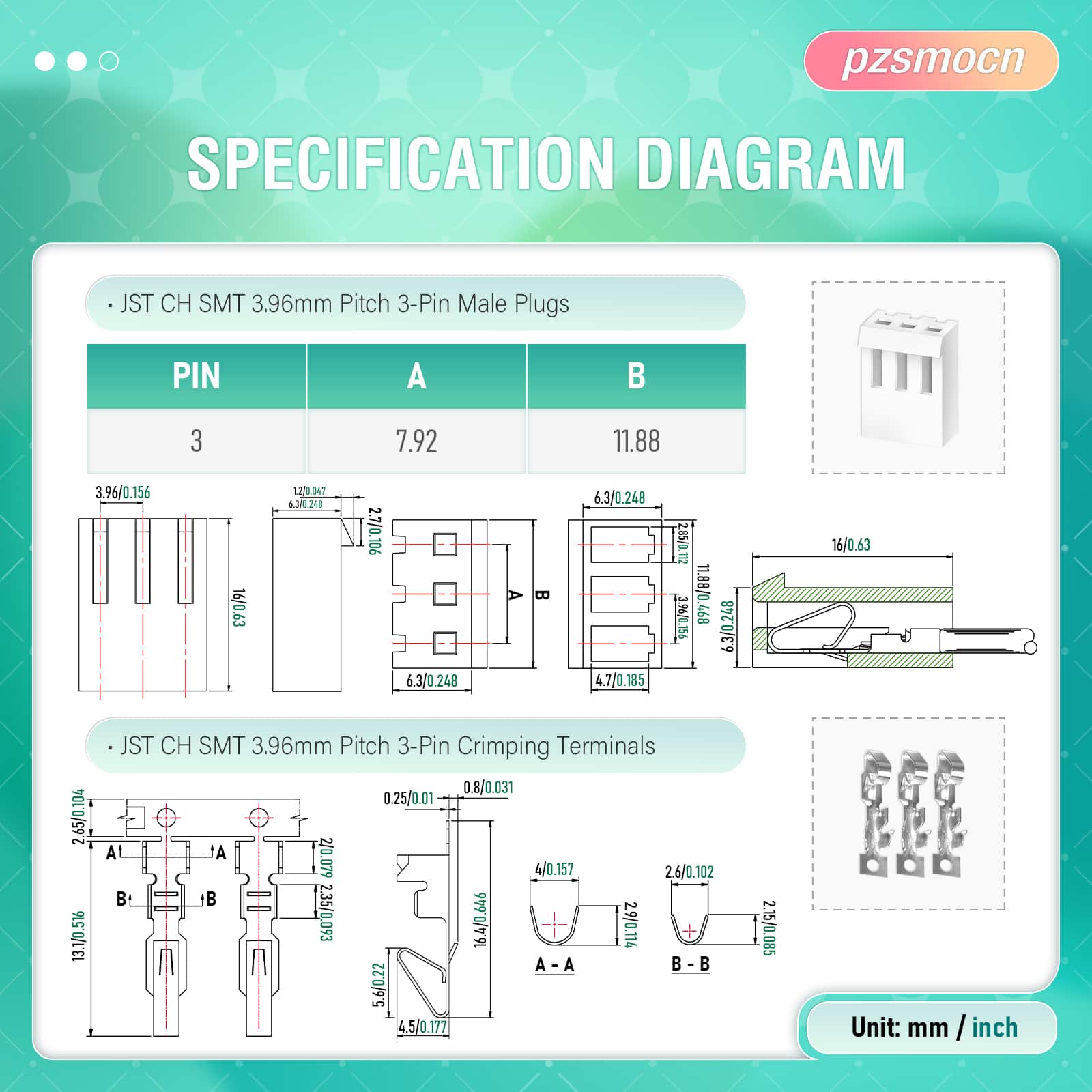

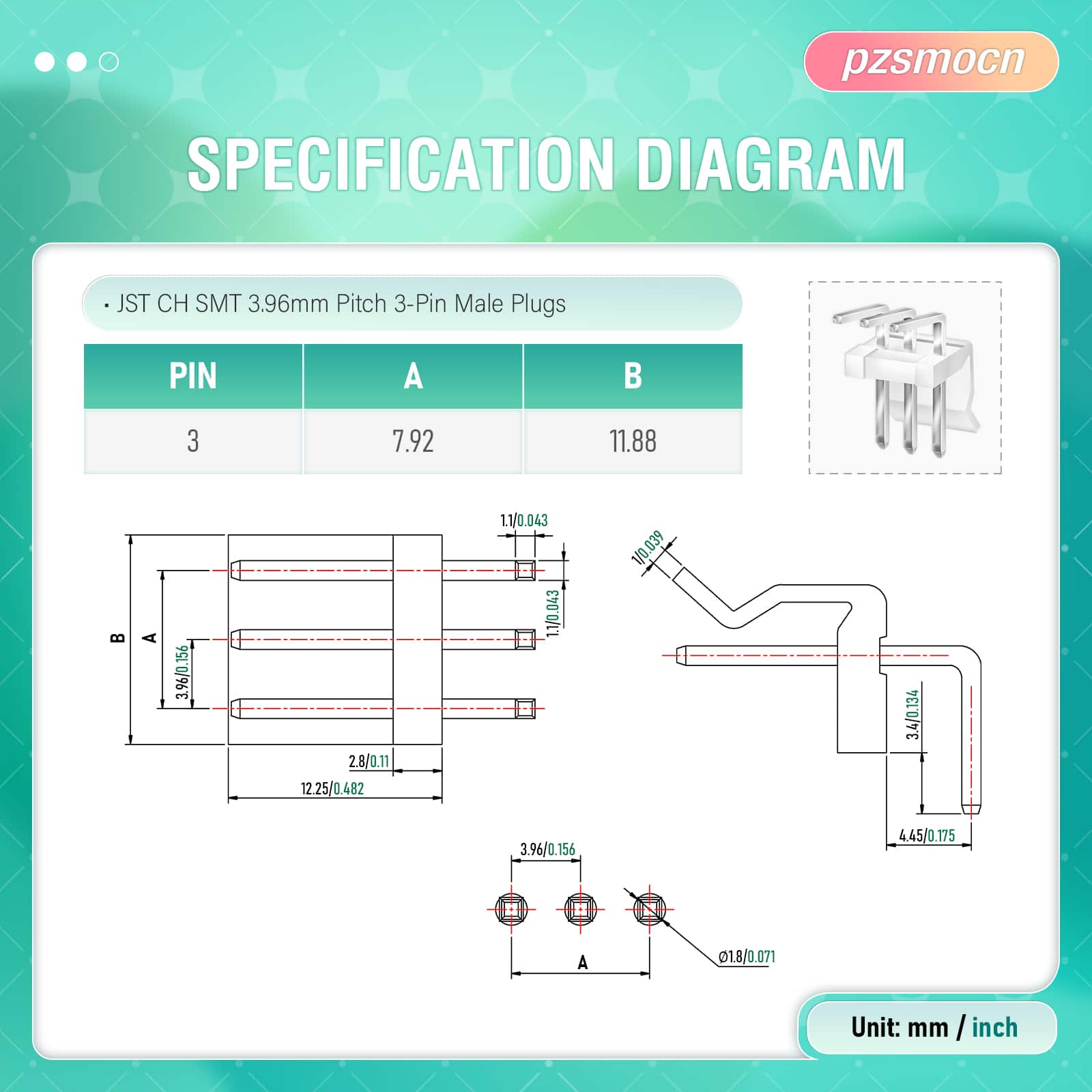

SPECIFICATION

  • Pitch: 3.96 mm (0.1559 inch)
  • Current rating: 10A AC,DC (AWG #16)
  • Voltage rating: 250V AC,DC
  • Insulation resistance: 1000 M Ohm minimum
  • Withstanding Voltage: 1500V AC/minute
  • Applicable Wire: AWG#22 to #16
  • Applicable PC Board Thickness: 1.6 mm (0.63 inch)
  • Contact resistance: Initial value/10m Ohm maximum, After Environmental Testing/20 m Ohm maximum
  • Temperature Range: -25 Degree Celsius to + 85 Degree Celsius(including temperature rise in applying electrical current)

JST CH 3.96 mm Pitch Connector-PZSJTS-CH2PinA-7.jpgJST CH 3.96 mm Pitch Connector-PZSJTS-CH2PinA-8.jpgJST CH 3.96 mm Pitch Connector-PZSJTS-CH2PinA-9.jpgJST CH 3.96 mm Pitch Connector-PZSJTS-CH2PinA-10.jpgJST CH 3.96 mm Pitch Connector-PZSJTS-CH2PinA-11.jpgJST CH 3.96 mm Pitch Connector-PZSJTS-CH2PinA-12.jpg
