The terminal connector is an accessory product used to realize electrical connection, It builds a bridge of communication between blocked or isolated circuits in the circuit, so that the current can flow and the circuit can realize the predetermined function. Terminal connectors are an indispensable part of electronic equipment. Observing along the path of current flow, you will always find one or more connectors.

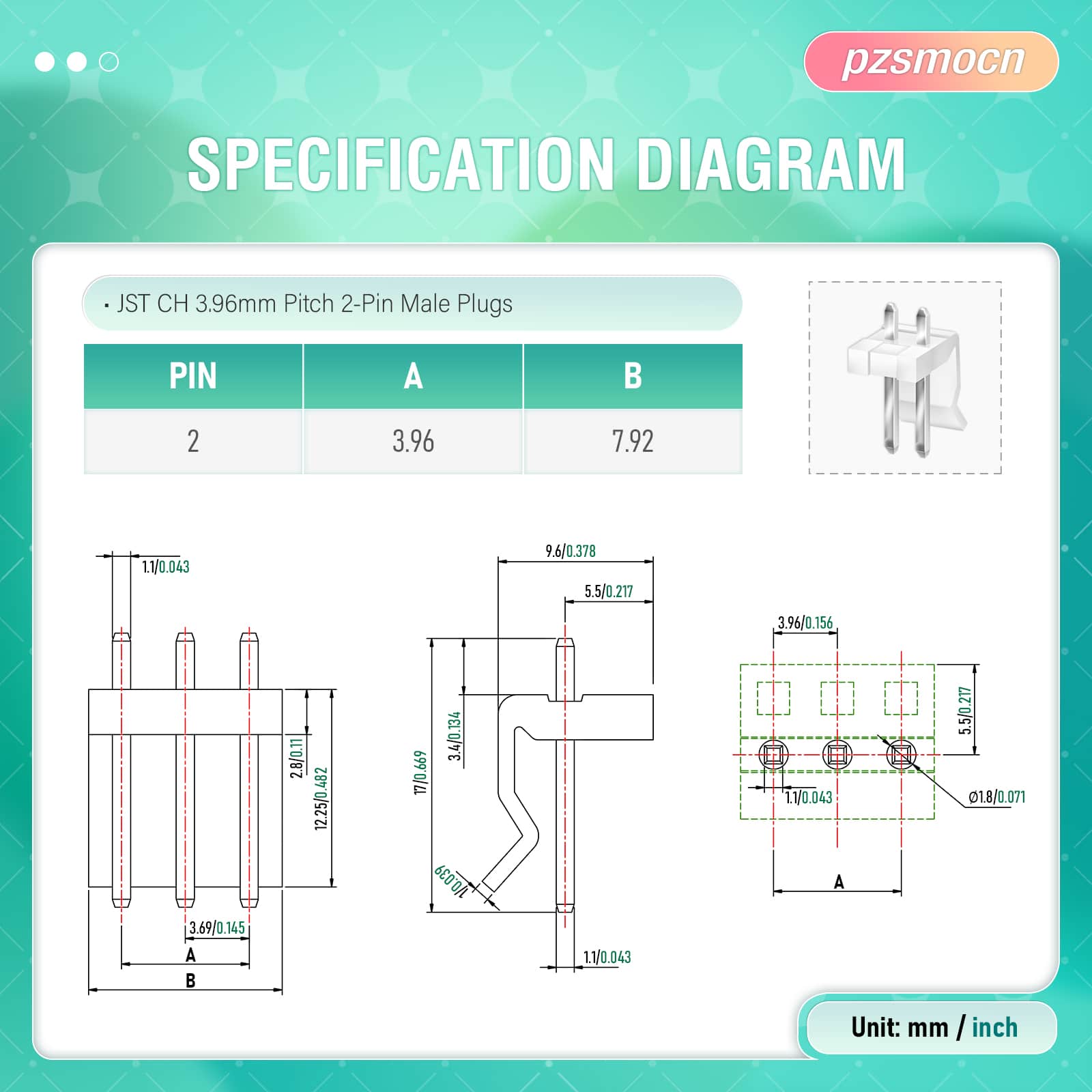

SPECIFICATION

• Pitch: 3.96 mm (0.1559 inch)
• Current rating: 10A AC,DC (AWG #16)
• Voltage rating: 250V AC,DC
• Insulation resistance: 1000 M Ohm min.
• Withstanding Voltage: 1500V AC/minute
• Applicable Wire: AWG#22 to #16
• Applicable PC Board Thickness: 1.6 mm (0.63 inch)
• Contact resistance: Initial value/10m Ohm max, After Environmental Testing/20 m Ohm max.
• Temperature Range: -25 Degree Celsius to + 85 Degree Celsius(including temperature rise in applying electrical current)

DISTRIBUTION LIST

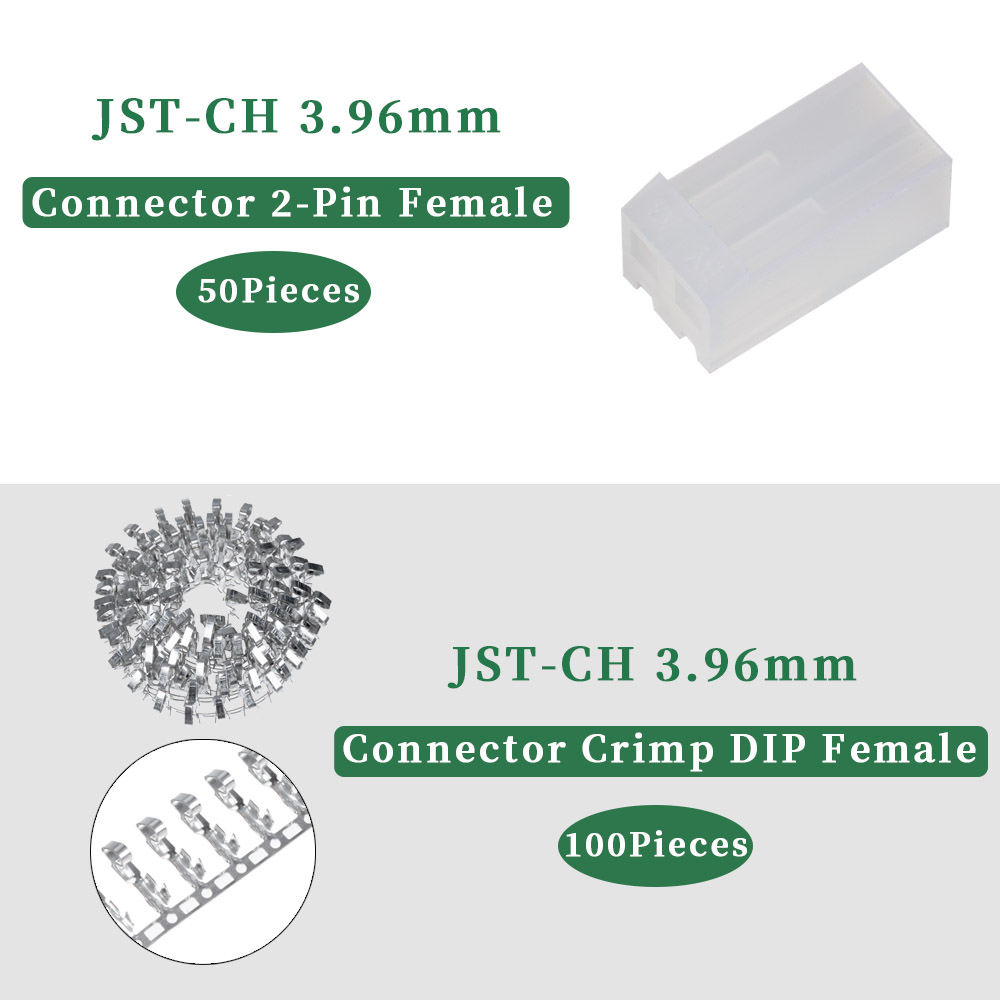

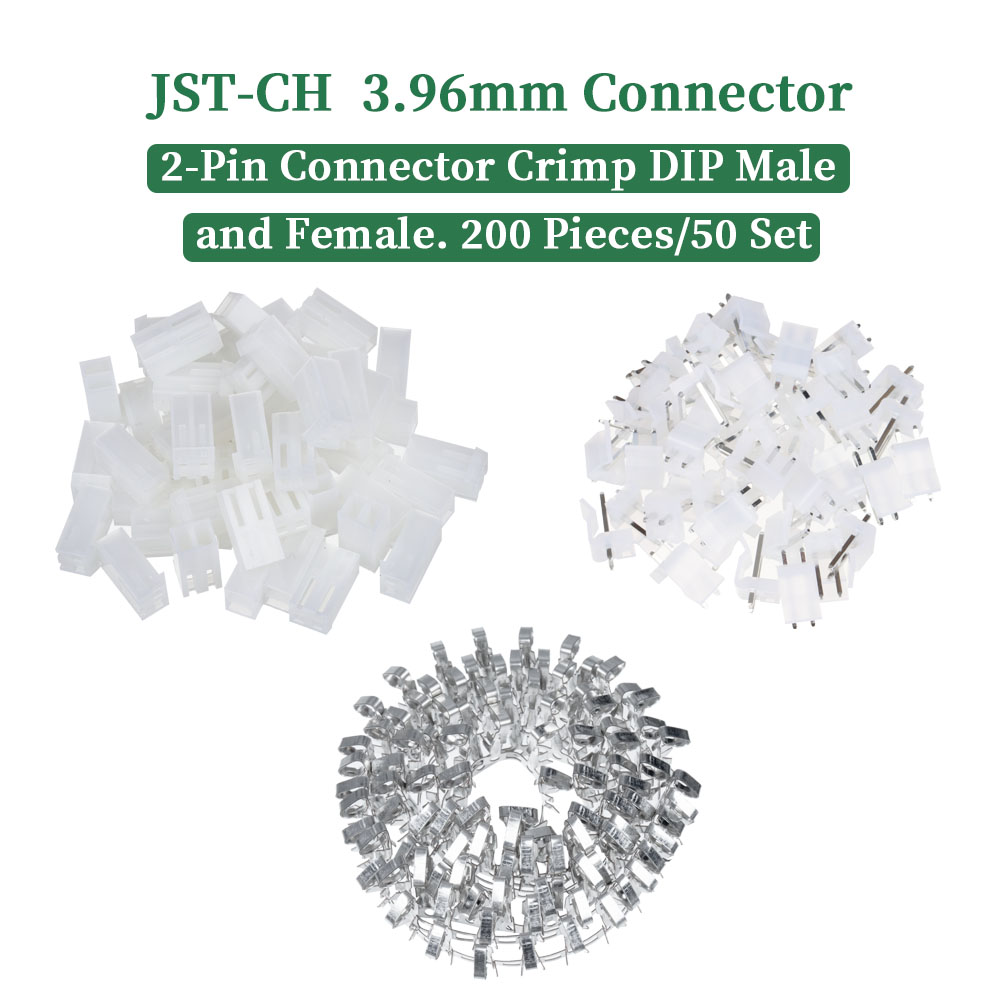

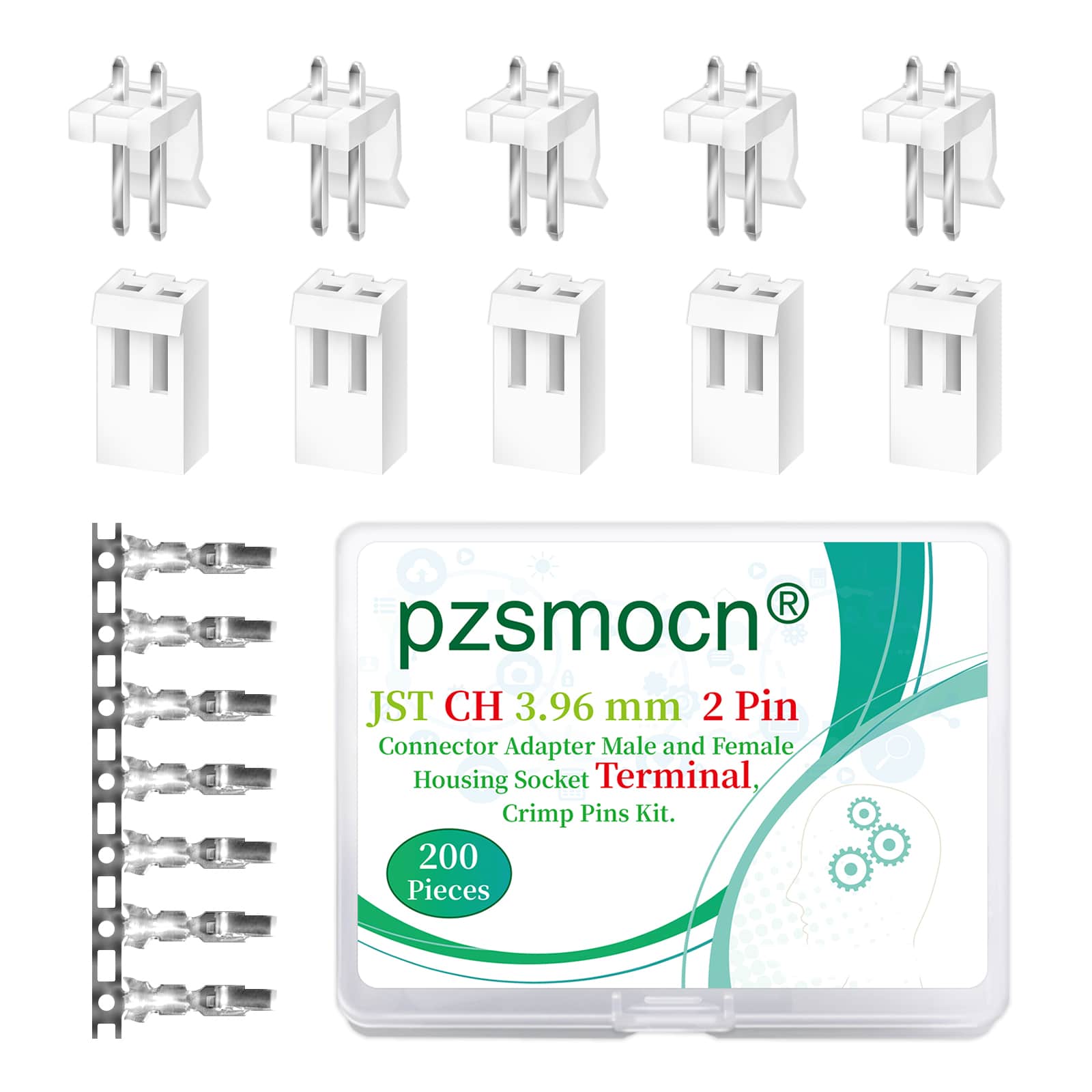

1 * JST CH 3.96 mm 2-Pin Connector Kit (50 Sets / 200 Pcs)
