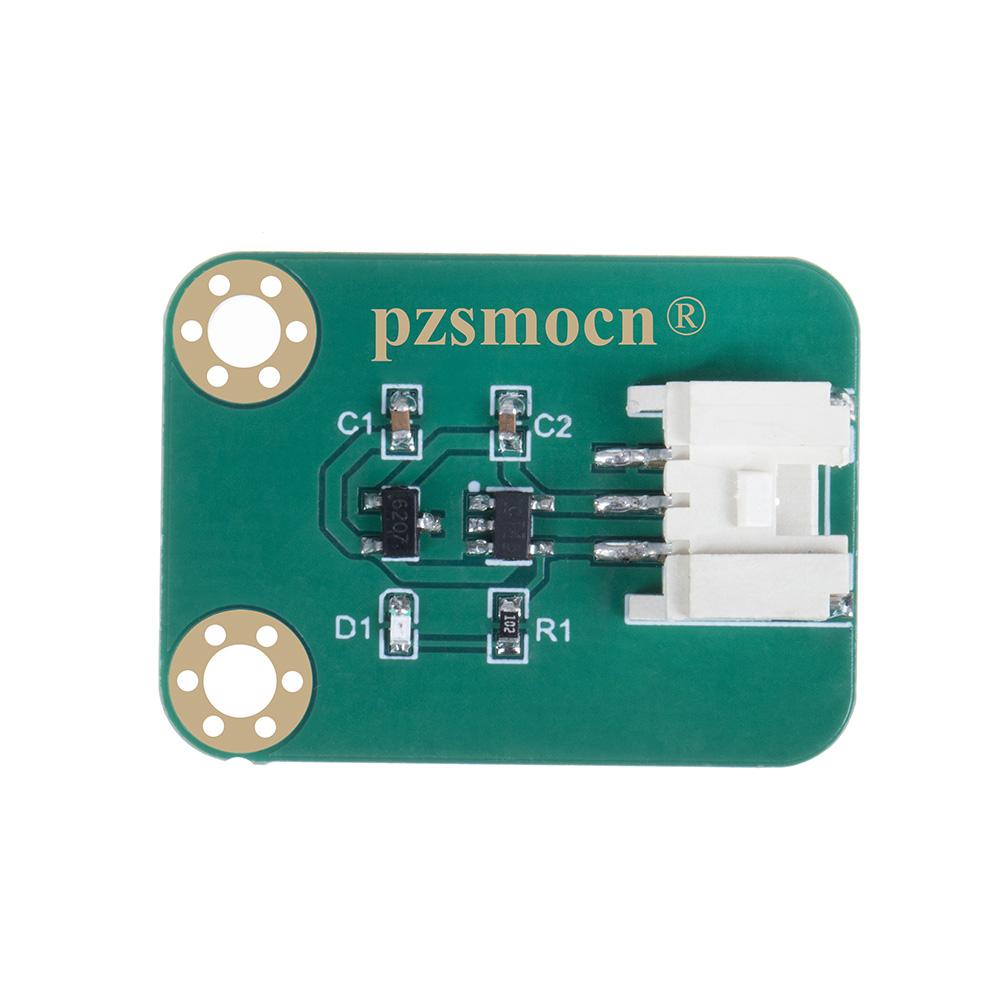

The magnetic sensor based on the Hall induction principle can be used to detect magnetic materials (magnets), regardless of polarity, and the range can reach about 3cm (the detection range is related to the strength of magnetism). It has the advantages of being sensitive to magnetic field, simple structure, small size, wide frequency response, large output voltage change and long service life.

Wiki: http://www.pzsmocn.wiki/index.php/Hall_Sensor_SKU:_PZSHED0001

Standard

• Working Voltage: 3.3V to 5V
• Output Signal: usually output low level, output high level when magnetism is detected (at the same time the onboard LED is on)

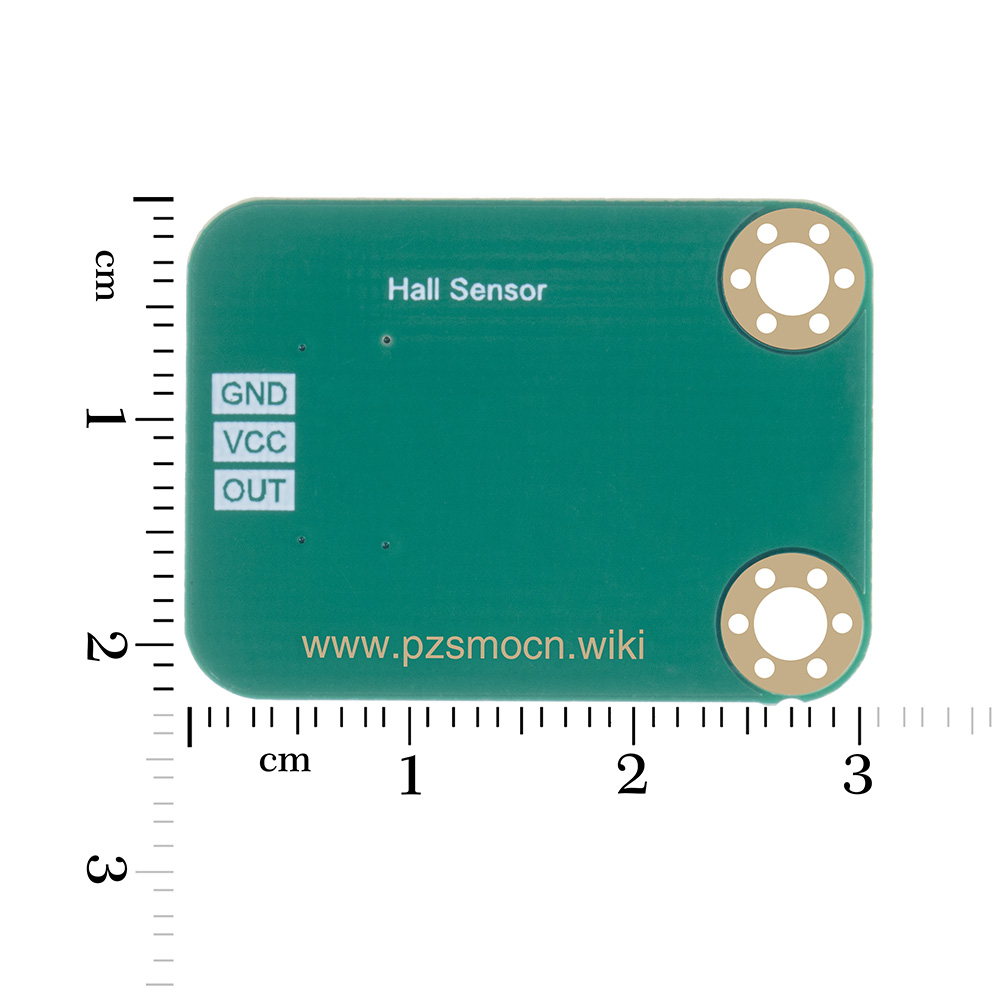

• Product Size: 30mm * 22.0mm
• Fixing Hole Size: 3mm

Delivery List

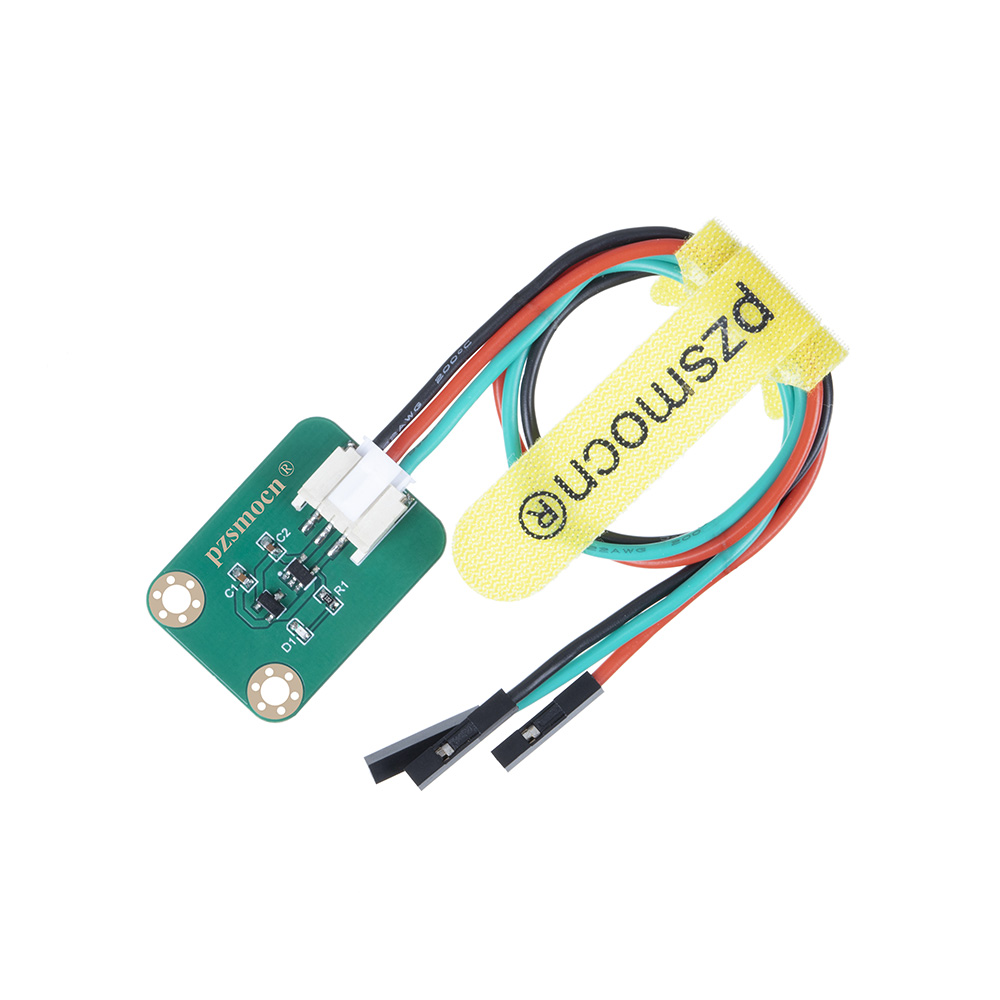

1 * Hall Sensor

1 * JST 3 Pin to 2.54mm DuPont Cable
