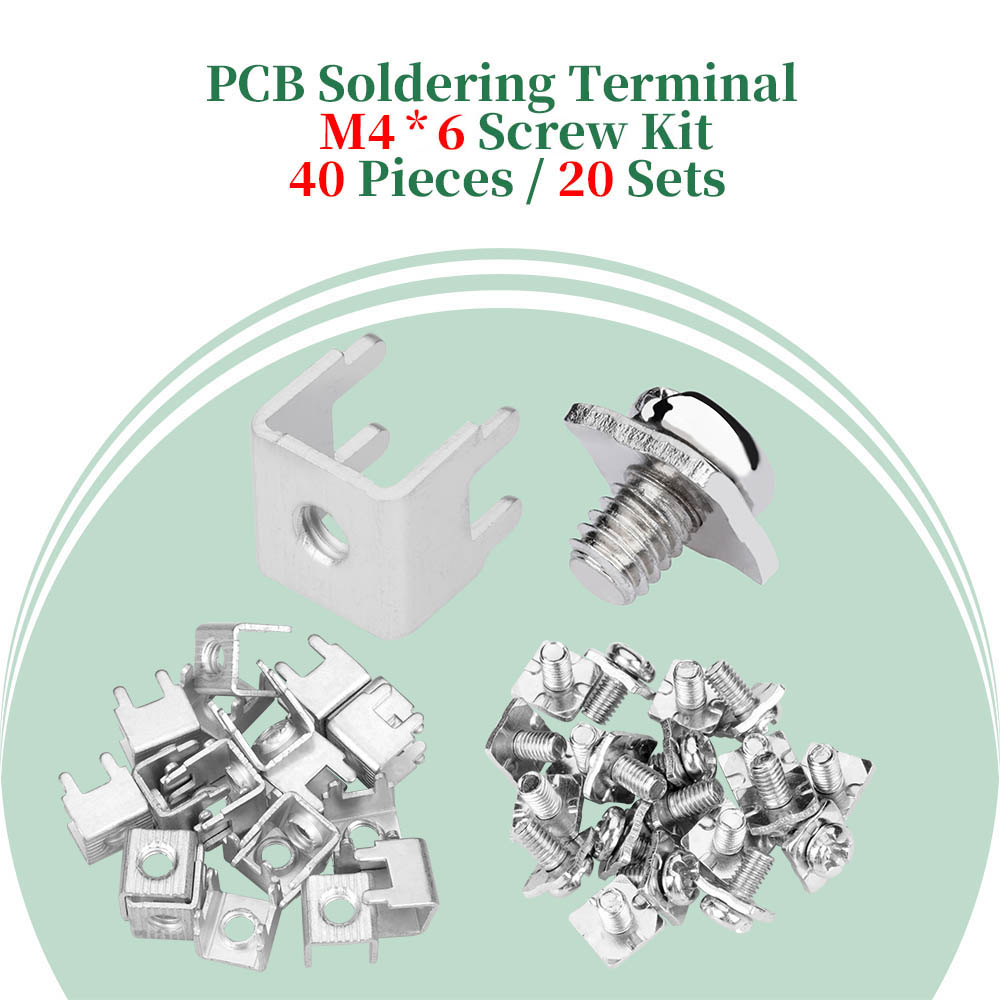

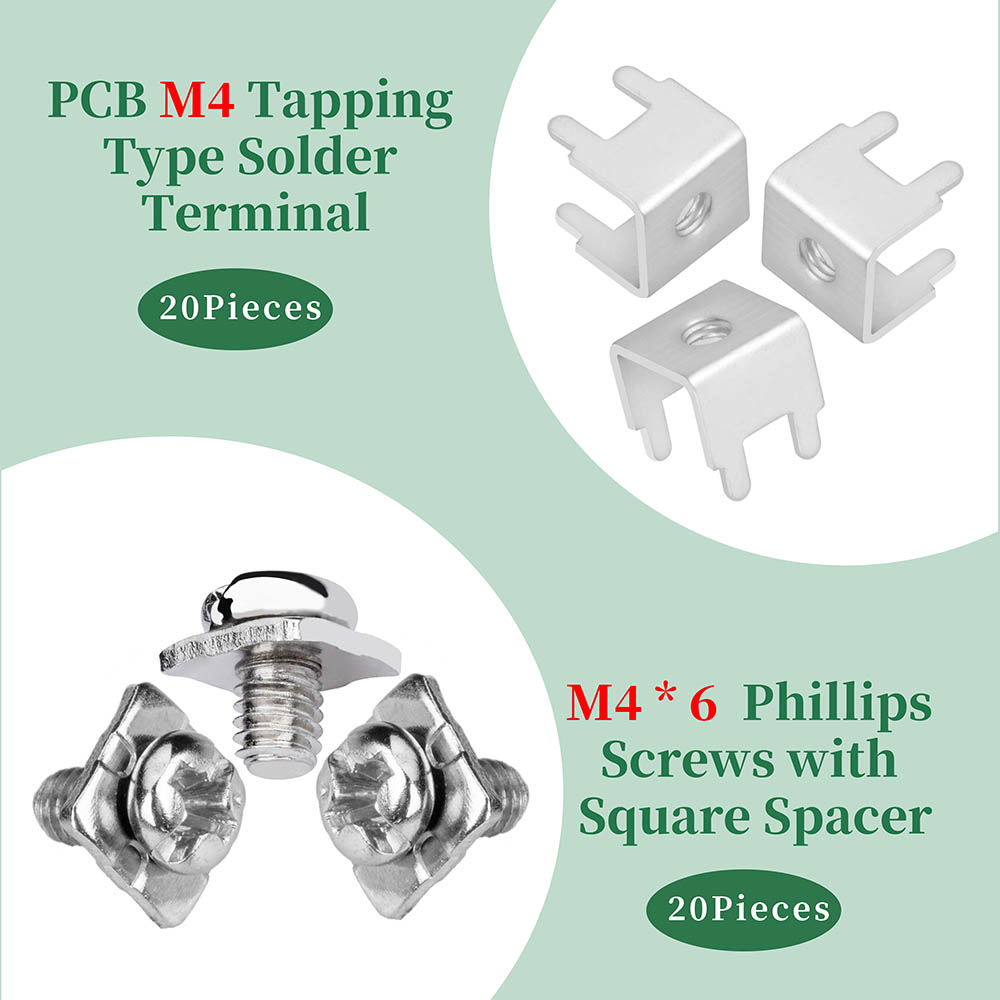

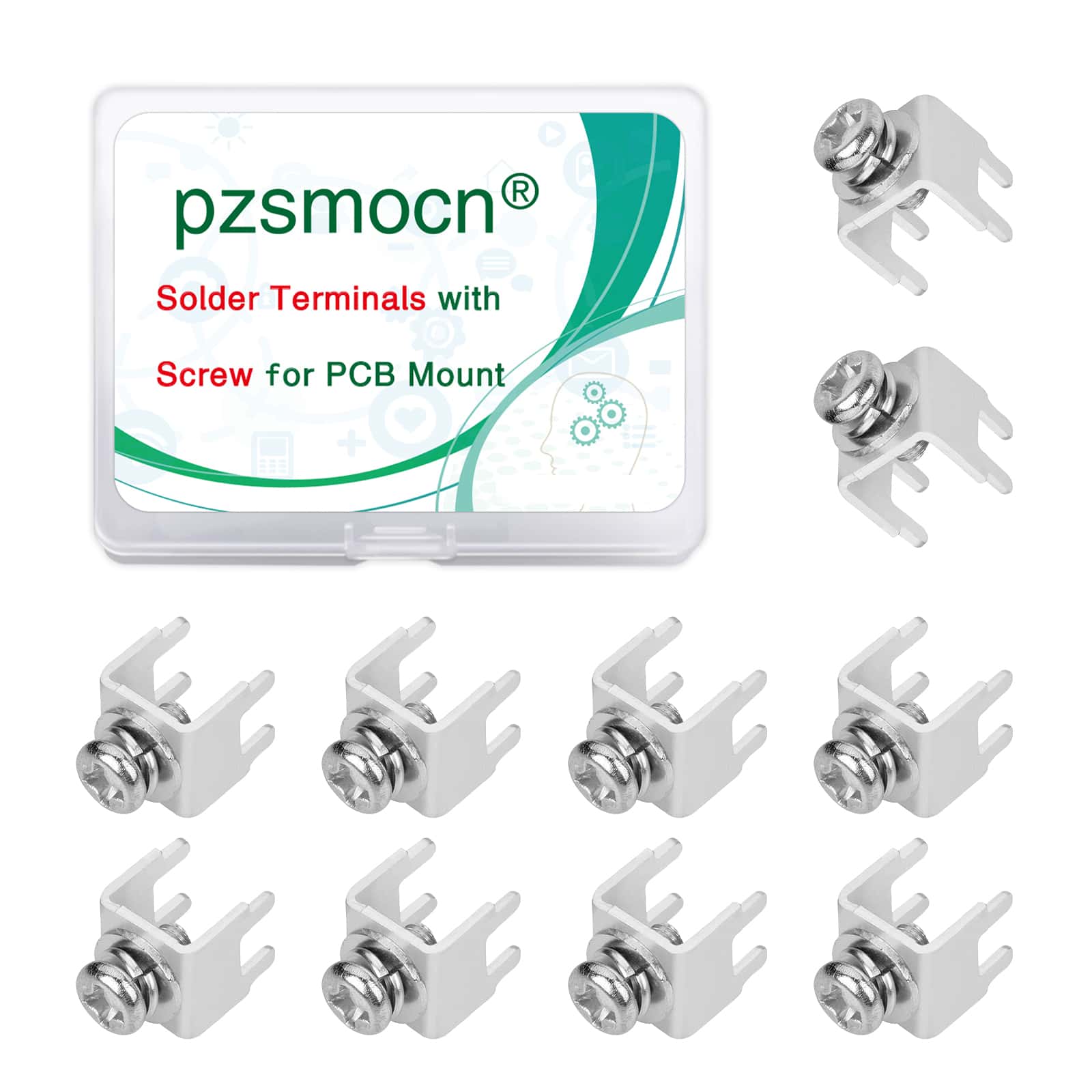

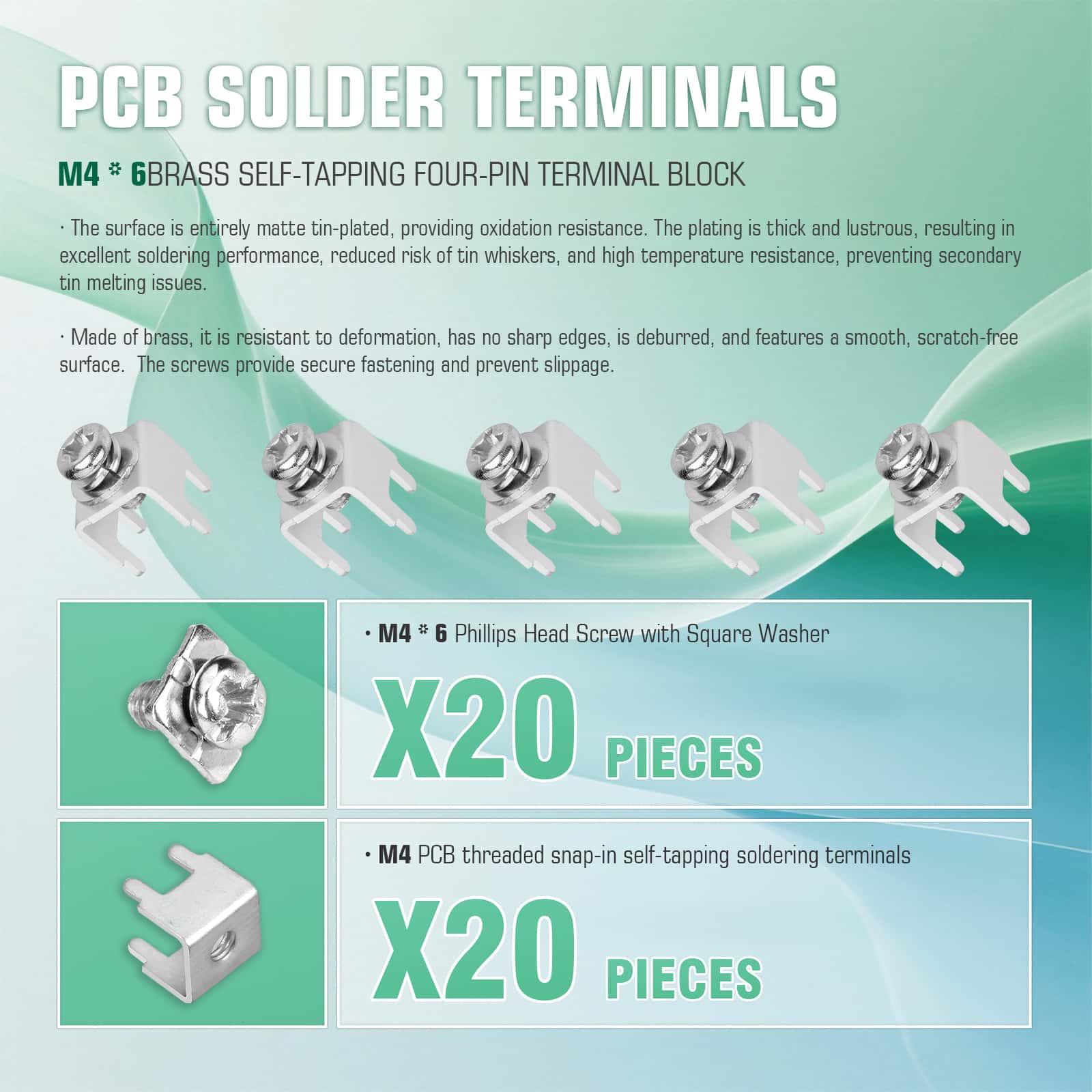

PCB Tapping Type Soldering Terminal and M4 * 6 Phillips Screw with Square Spacer Kit
5
.29
10+
5
.03
Save 5%
50+
4
.81
Save 9%
100+
4
.66
Save 12%
200+
4
.5
Save 15%
500+
4
.23
Save 20%
Product details

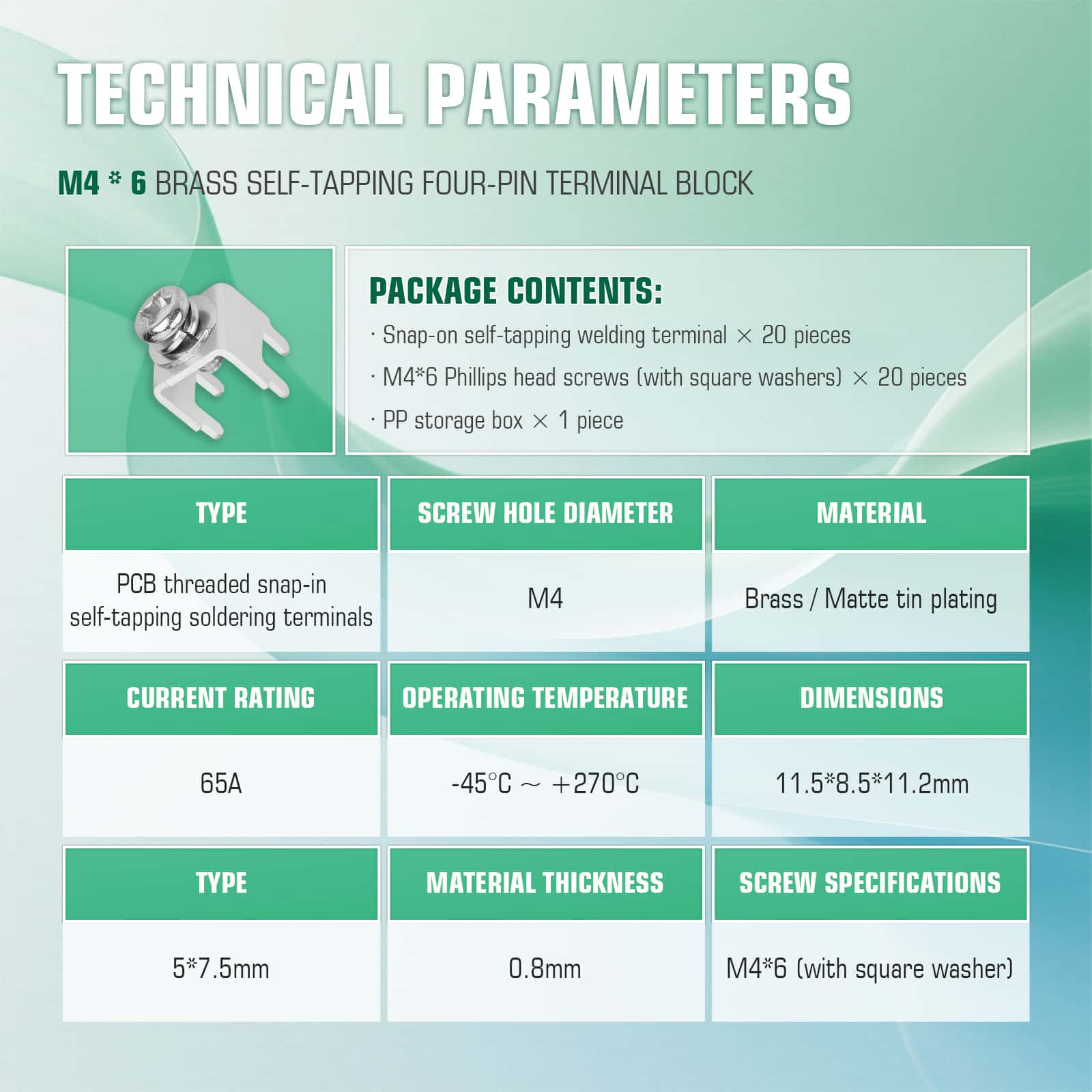

SPECIFICATION
- Type: PCB Tapping Type
- Screw Hole: M4

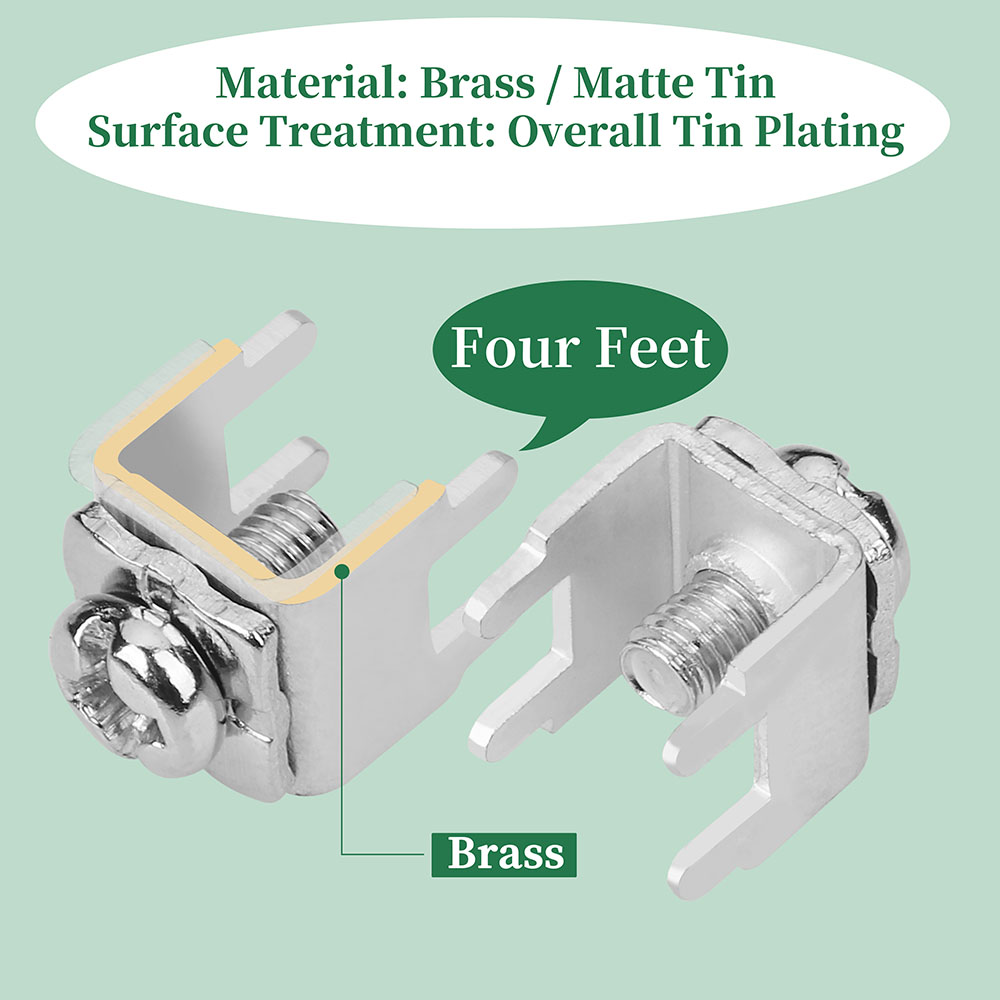

- Material: Brass / Matte Tin
- Surface Treatment: Overall tin plating

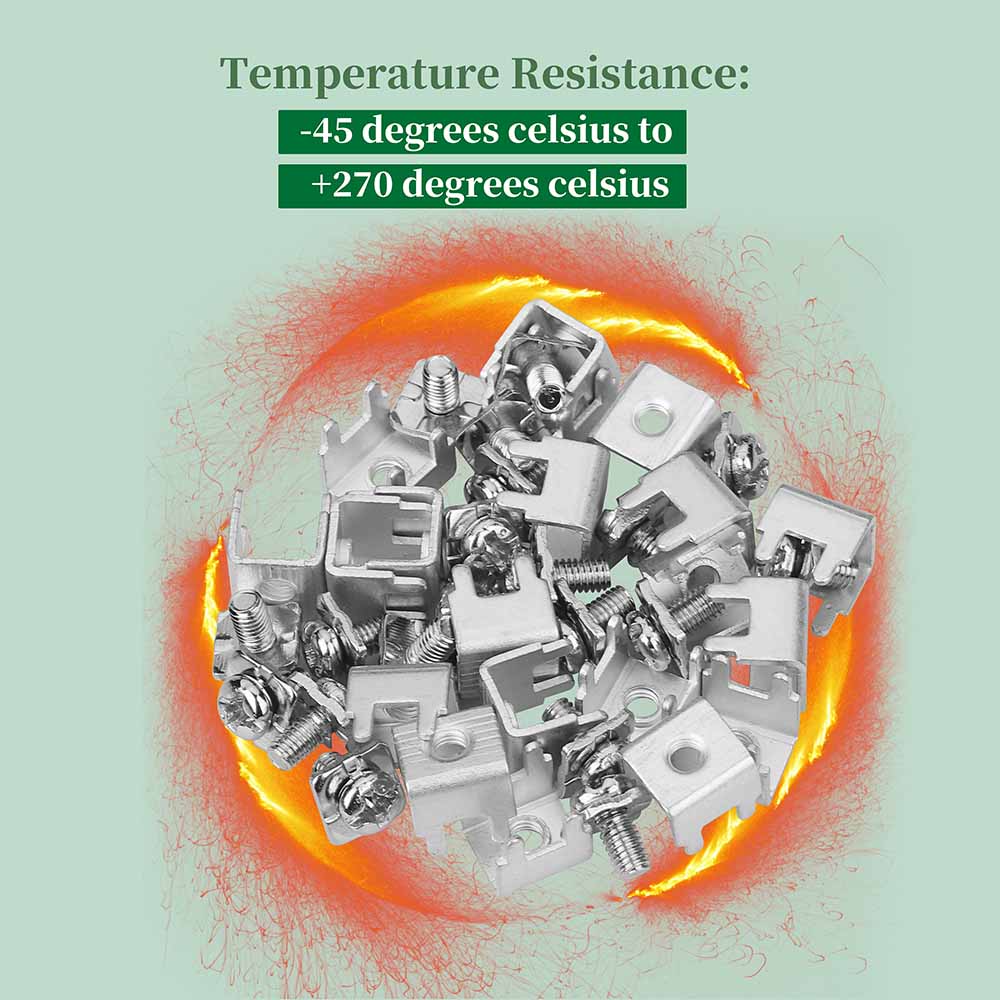

- Temperature Resistance: -45 degrees Celsius to +270 degrees Celsius
- Current: 65 amps
- Features: no deformation, no scratches, no sharp edges, deburring

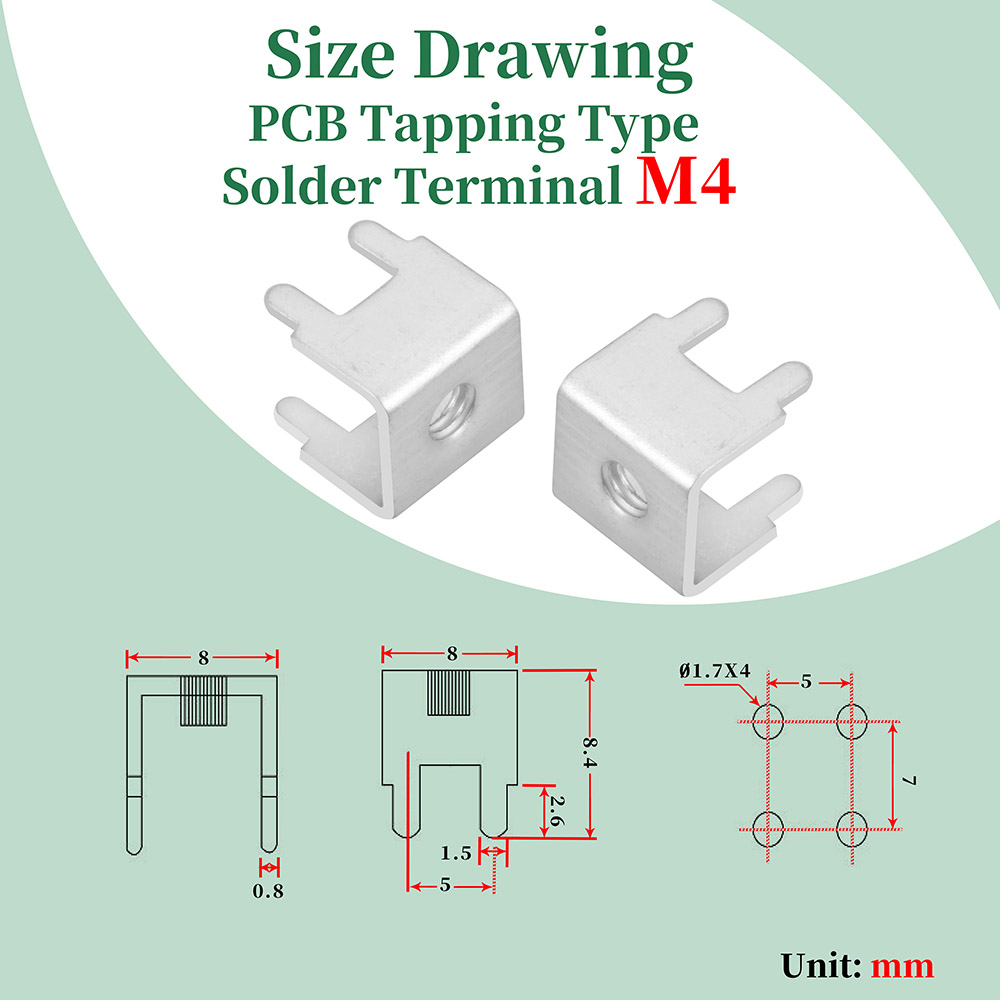

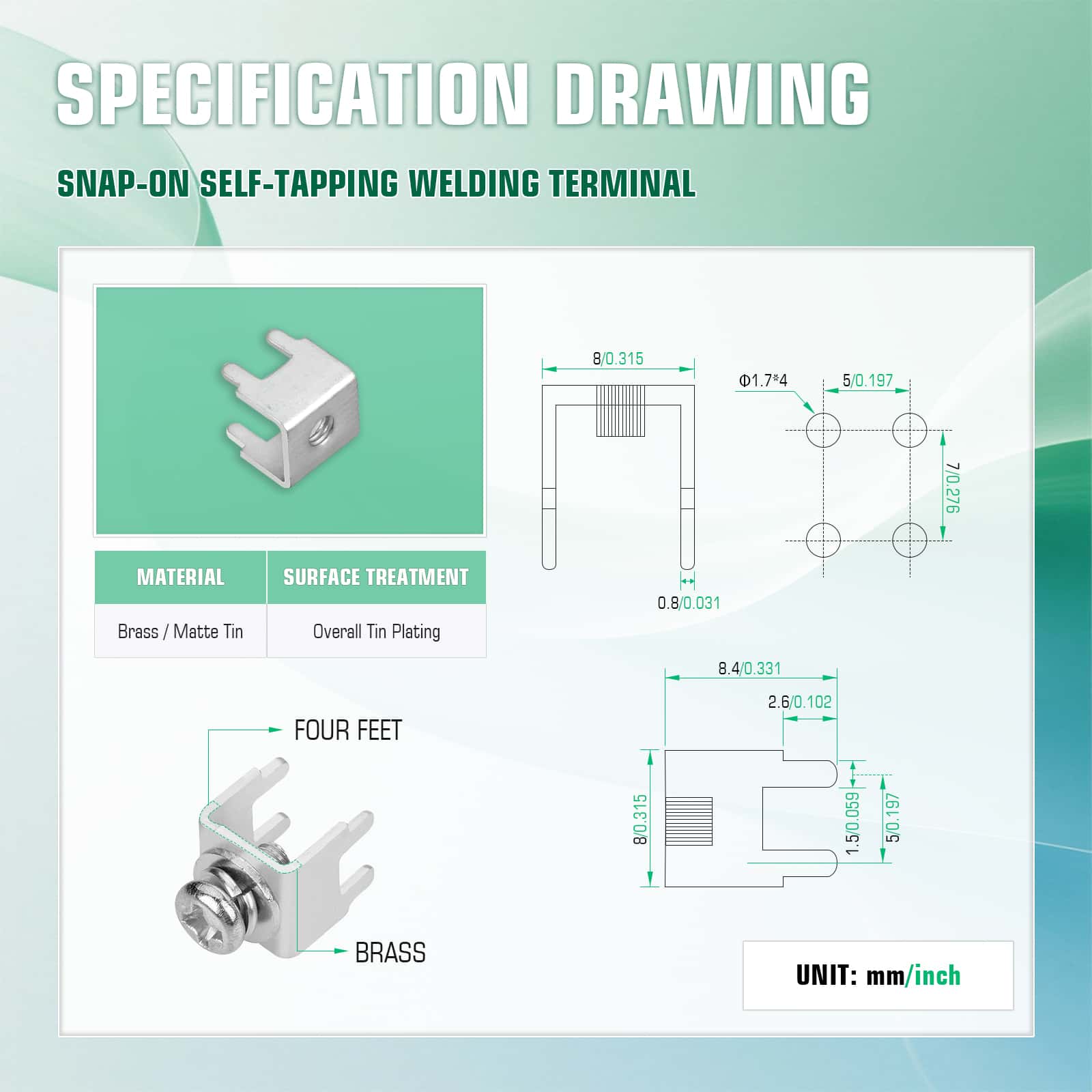

- Dimensions: 8 * 8 * 8.4 mm ( 0.31 * 0.31 * 0.33 inch )
- Foot Pitch: 5 * 7 mm ( 0.20 * 0.28 inch )
- Material Thickness: 0.8 mm ( 0.03 inch )

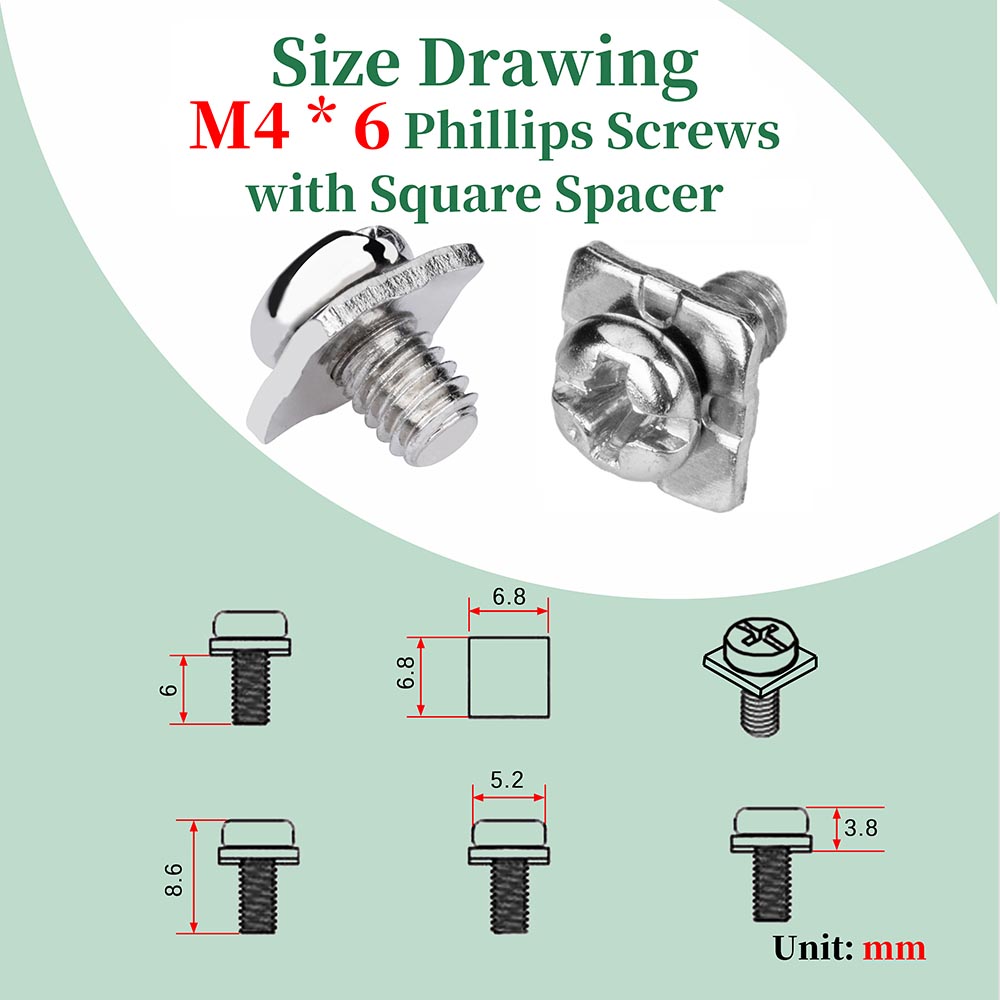

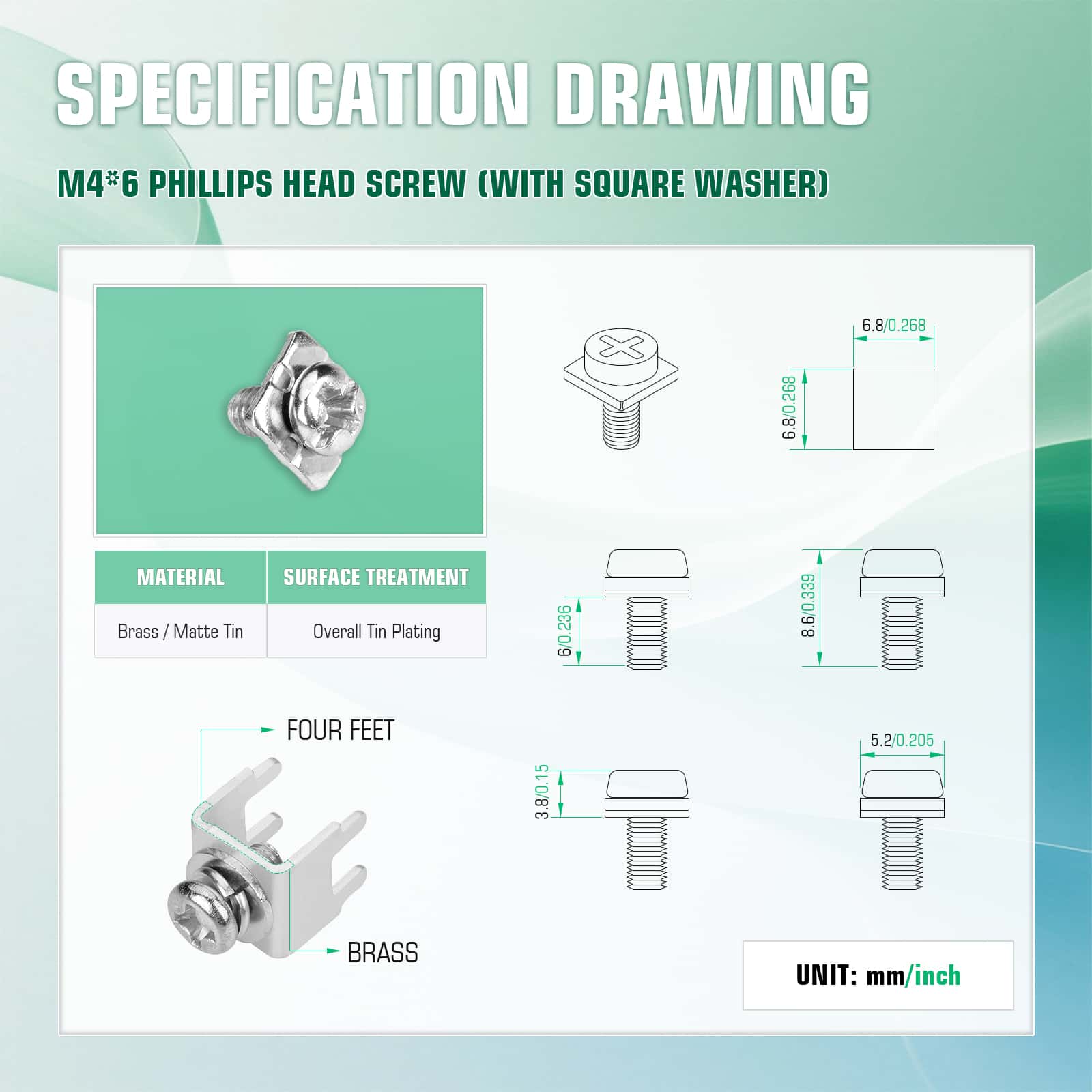

- Screw Size: M4 * 6
