The terminal connector is an accessory product used to realize electrical connection, It builds a bridge of communication between blocked or isolated circuits in the circuit, so that the current can flow and the circuit can realize the predetermined function. Terminal connectors are an indispensable part of electronic equipment. Observing along the path of current flow, you will always find one or more connectors.

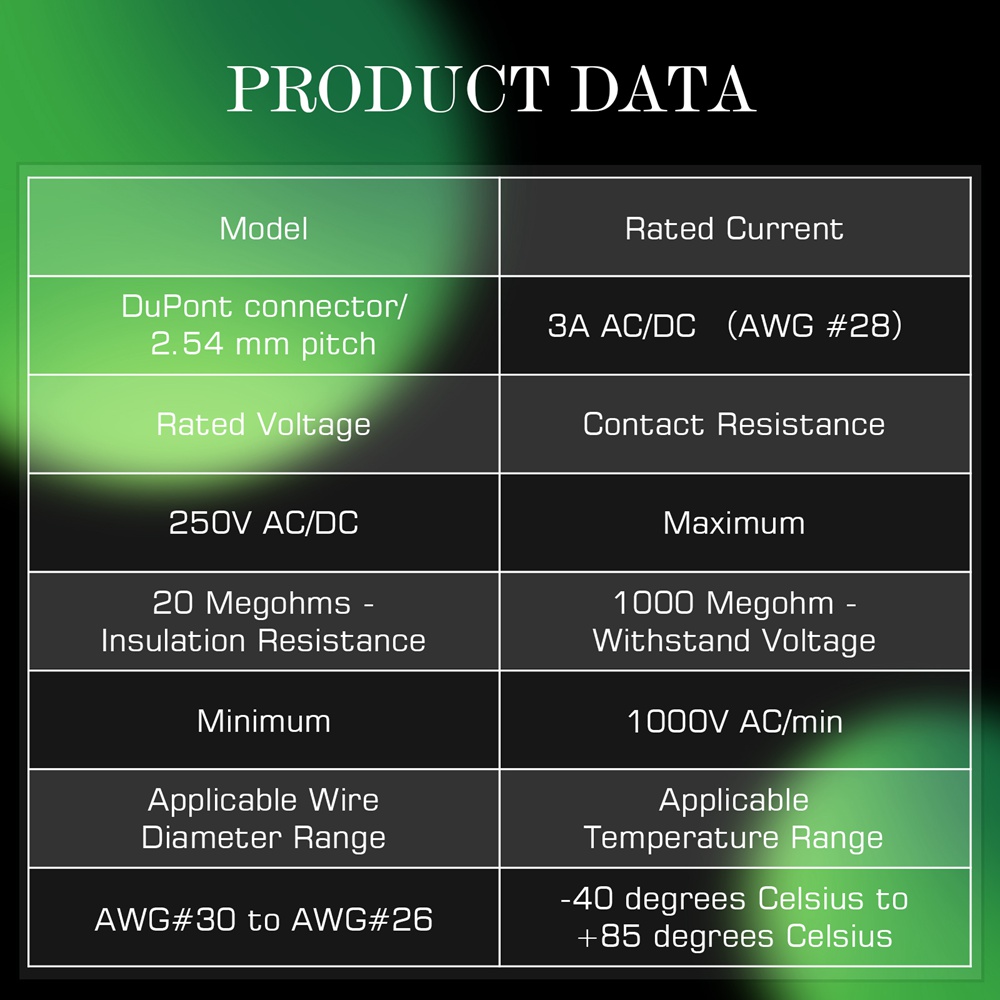

SPECIFICATION

• Model: DuPont Connector/2.54 mm Pitch
• Rated Current: 3A AC/DC (AWG #28)
• Rated Voltage: 250V AC/DC
• Contact Resistance: 20 Megohm max
• Insulation Resistance: 1000 Megohm min
• Withstand Voltage: 1000V AC / Minute
• Applicable Wire Range: AWG#30 to AWG#26
• Applicable Temperature Range: -40 Degree Celsius to +85 Degree Celsius

DISTRIBUTION LIST

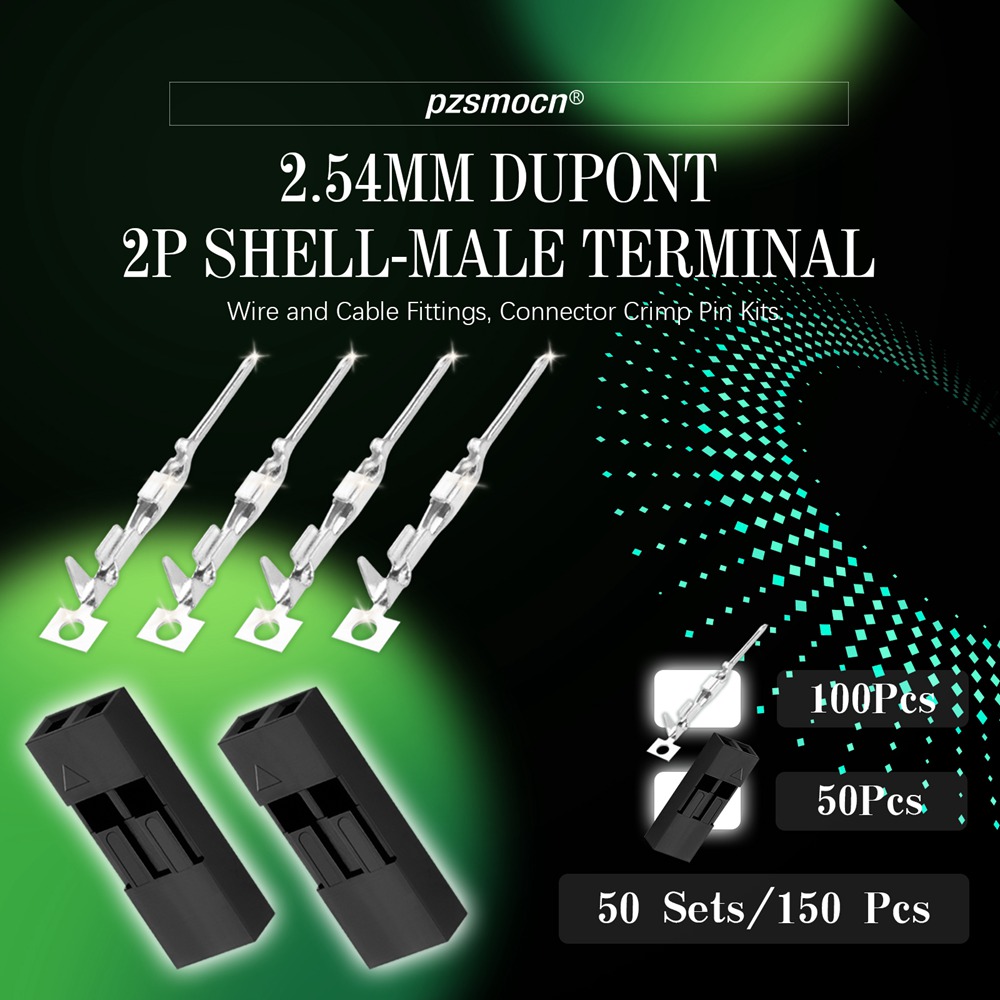

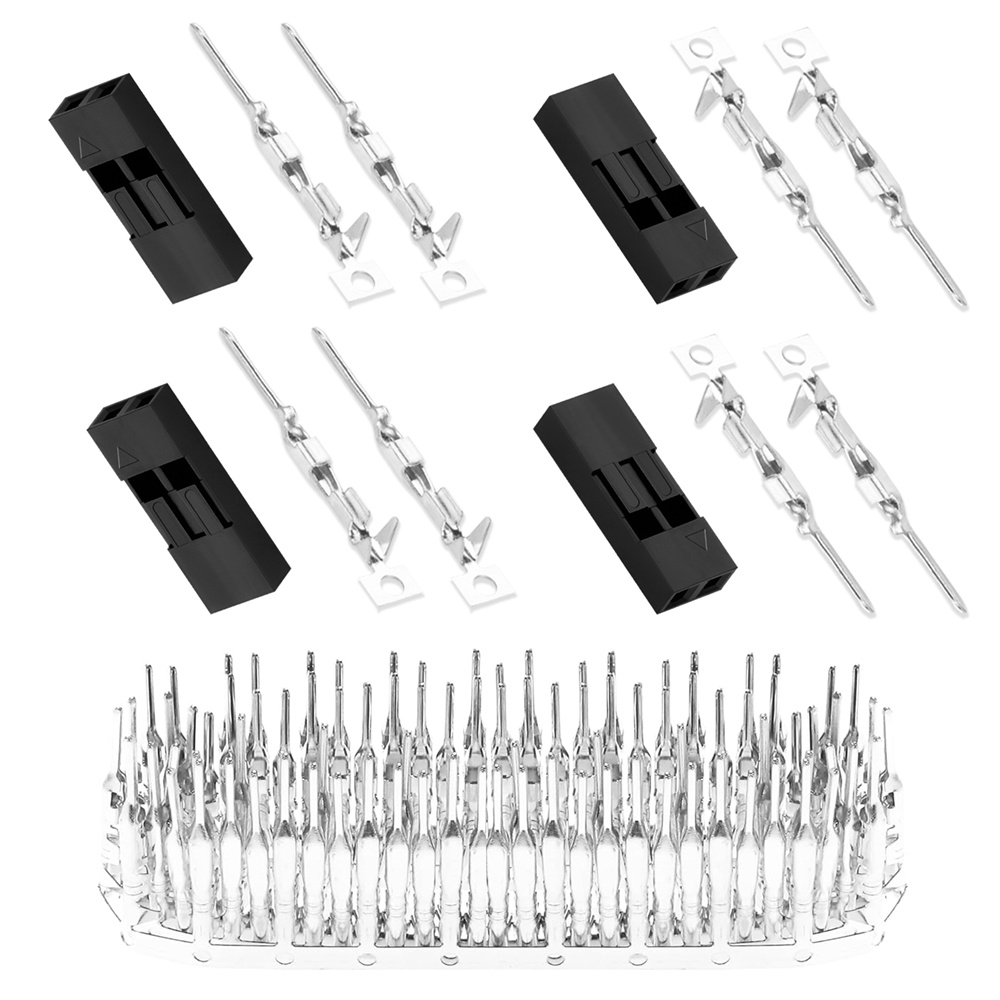

1 * 2.54 mm DuPont 2-Pin Male Connector Kit (50 Sets / 150 Pcs)
