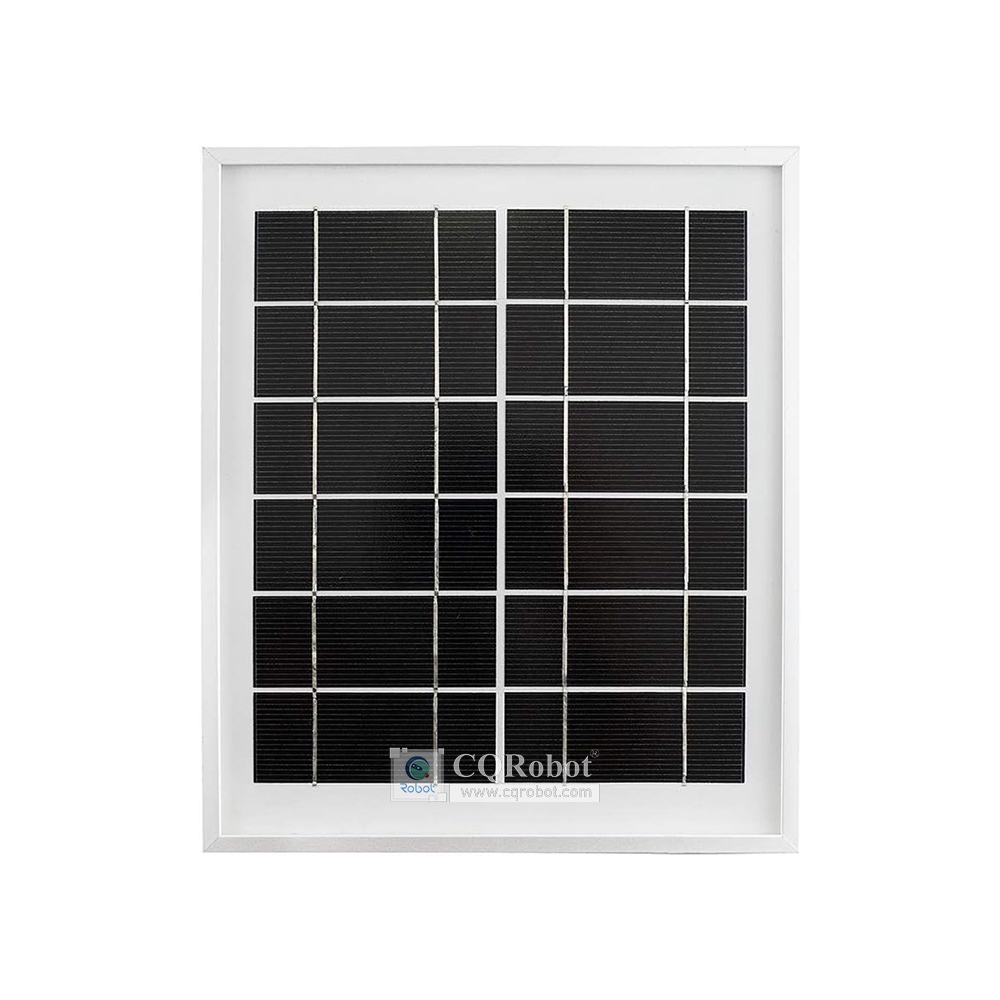

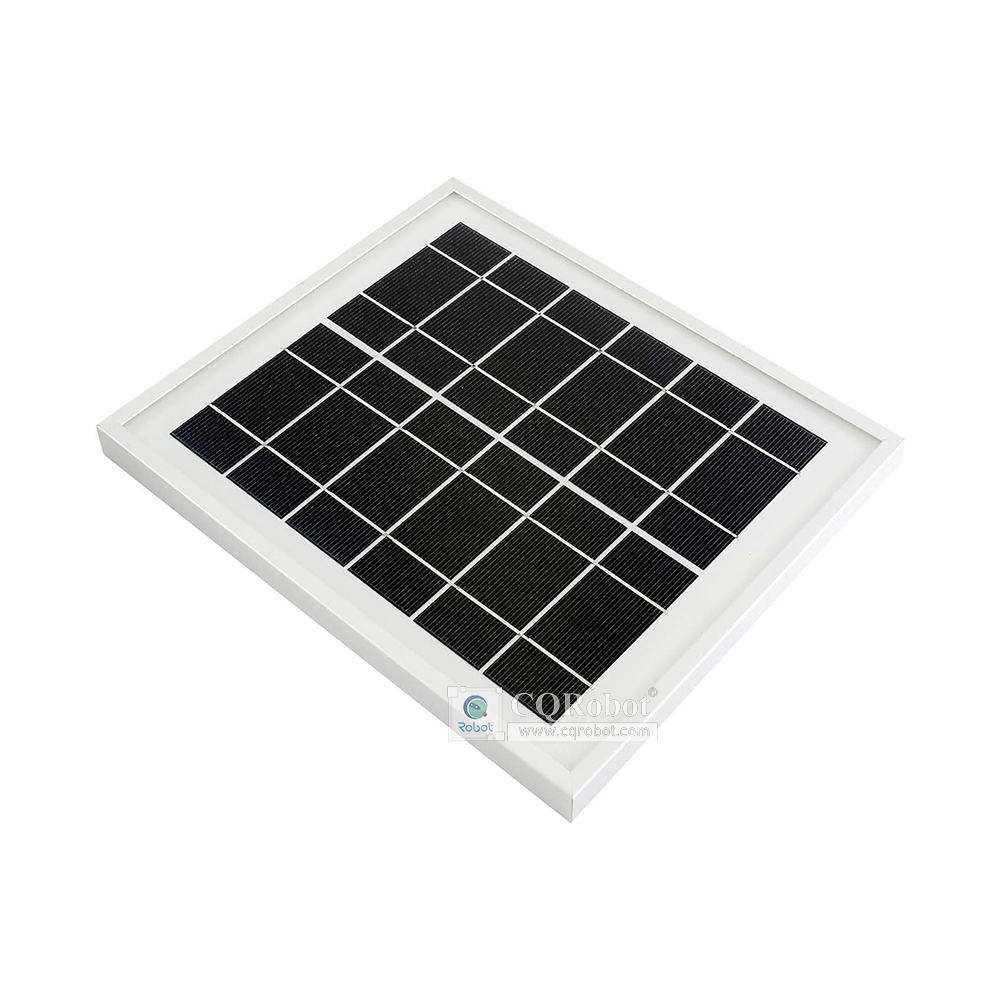

INTRODUCTION

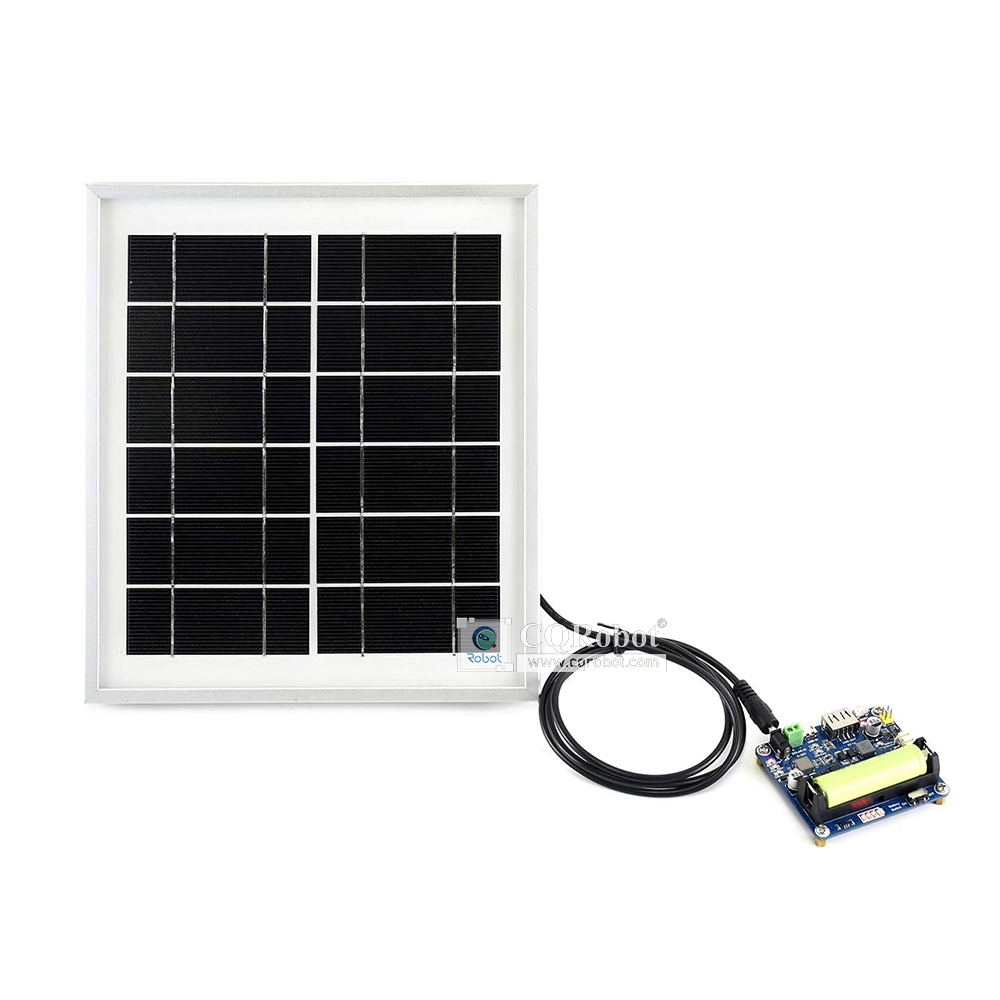

This solar panel can be connected to a power management module or other control board that supports charging or powering a 6V solar panel. compatible with Solar Power Manager.

SPECIFICATION

• Solar cell type: 156 monocrystalline cell
• Surface: toughened glass
• Frame material: anodic oxidation aluminum alloy
• Back board material: 0.25mm PET
• Power: 5.0W ± 5%
• Operating voltage: 6.0V ± 5%
• Operating current: 833mA ± 5% (max)
• Open circuit voltage: 7.2V ± 5%
• Short circuit current: 916mA ± 5%

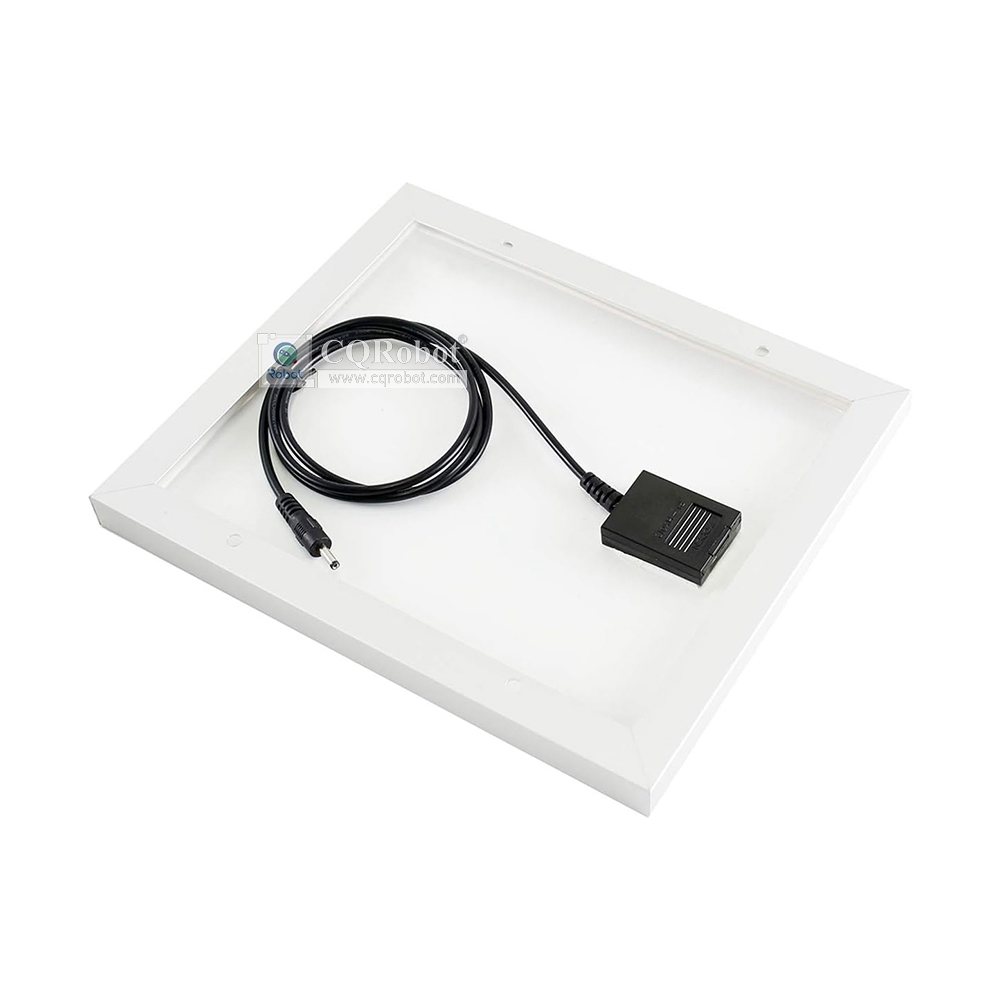

• Cable: DC plug, OD 3.5mm ID 1.35mm

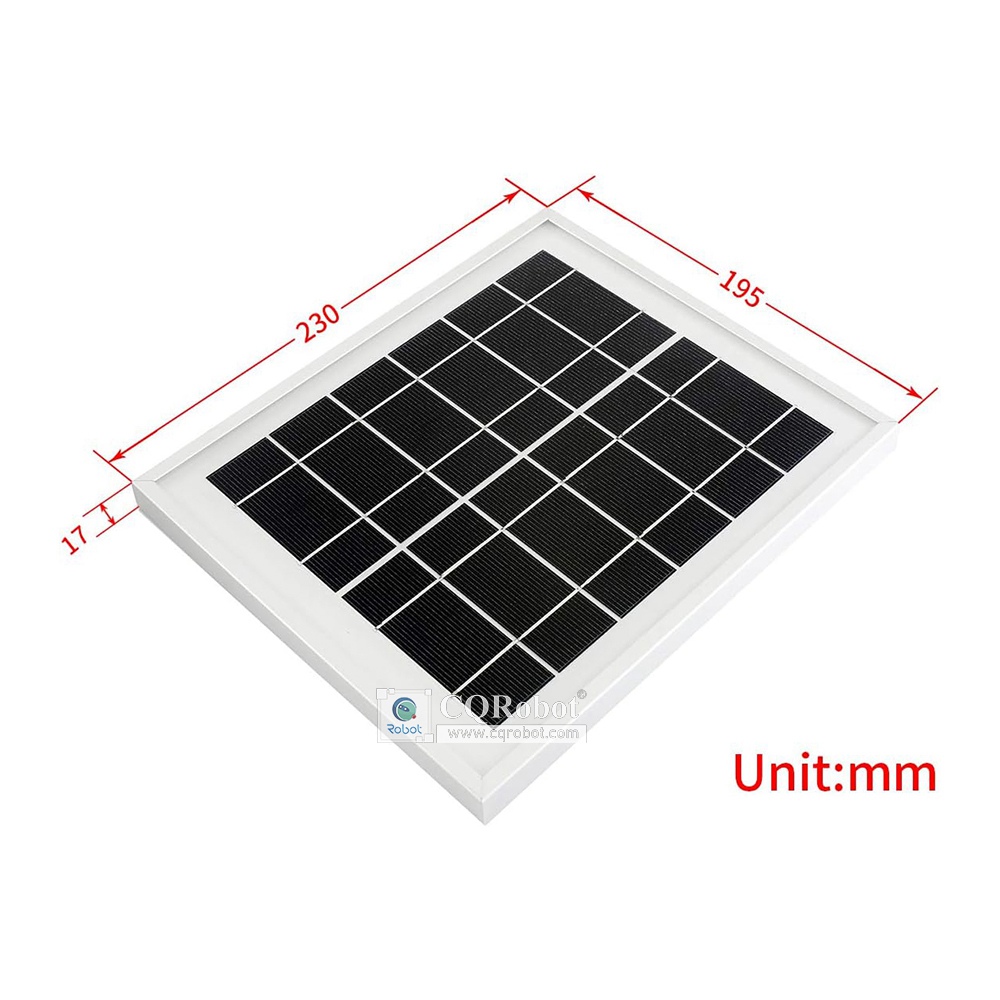

• Outline dimensions: 230.0 × 195.0 × 17.0mm

Note: specifications above are tested on standard condition: 1000W/m2 radiation intensity, 25℃, AM1.5 air quality.

PACKAGE CONTENT

1 * Solar Panel (6V 5W)

Note: the Solar Power Manager is NOT included.
