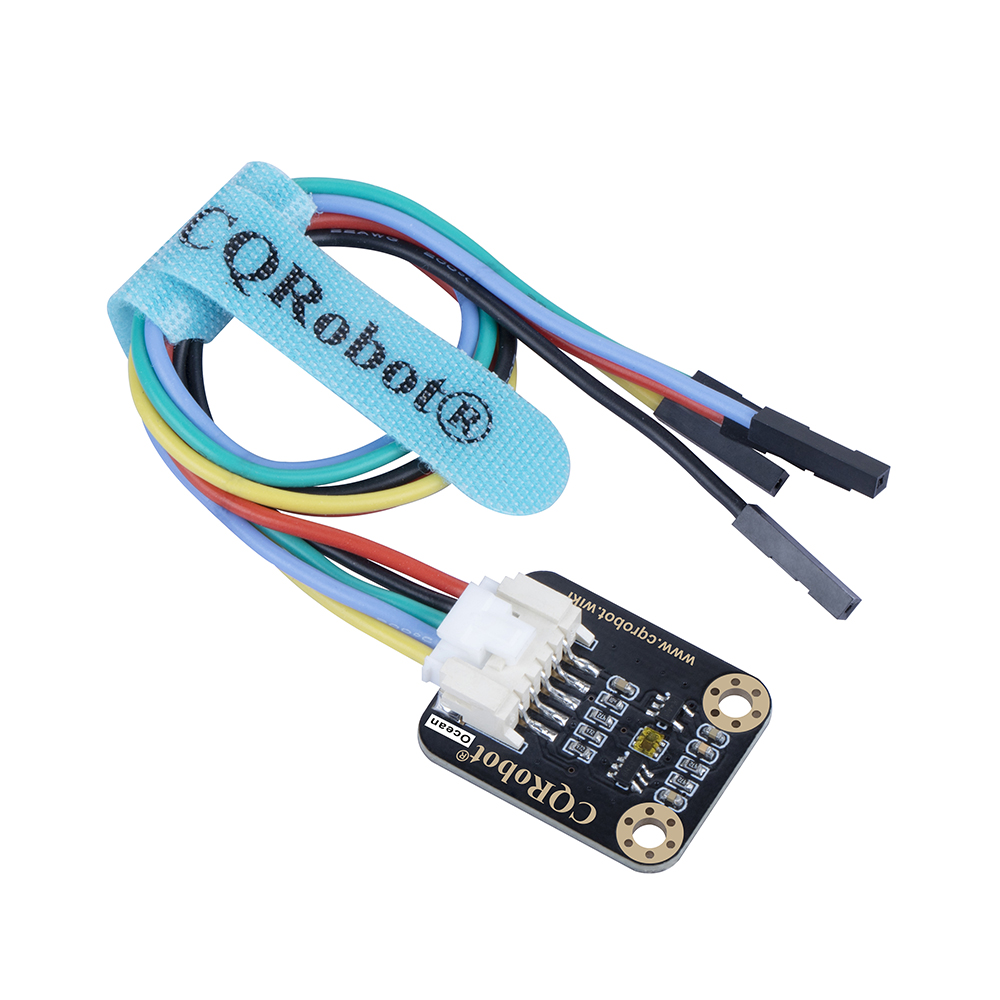

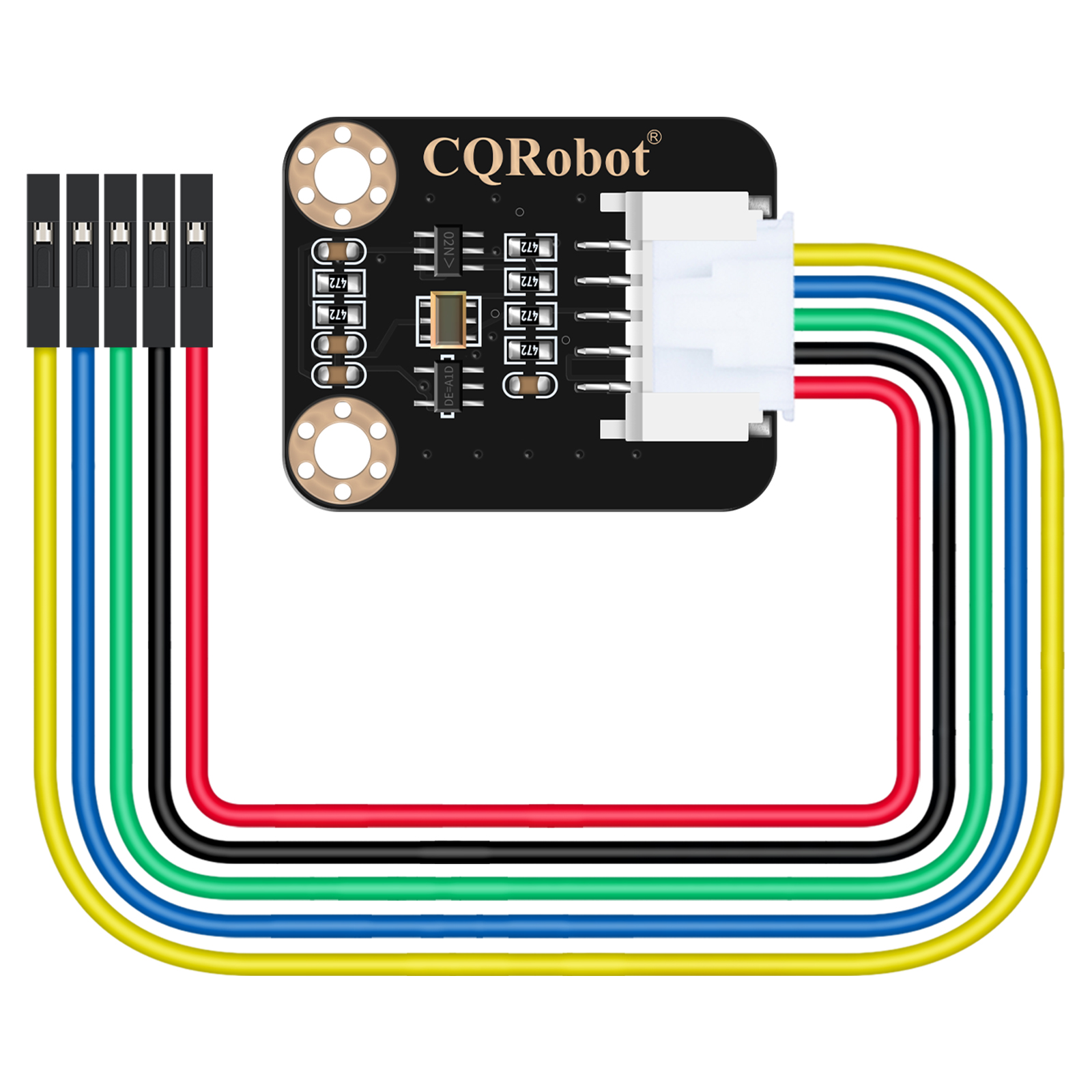

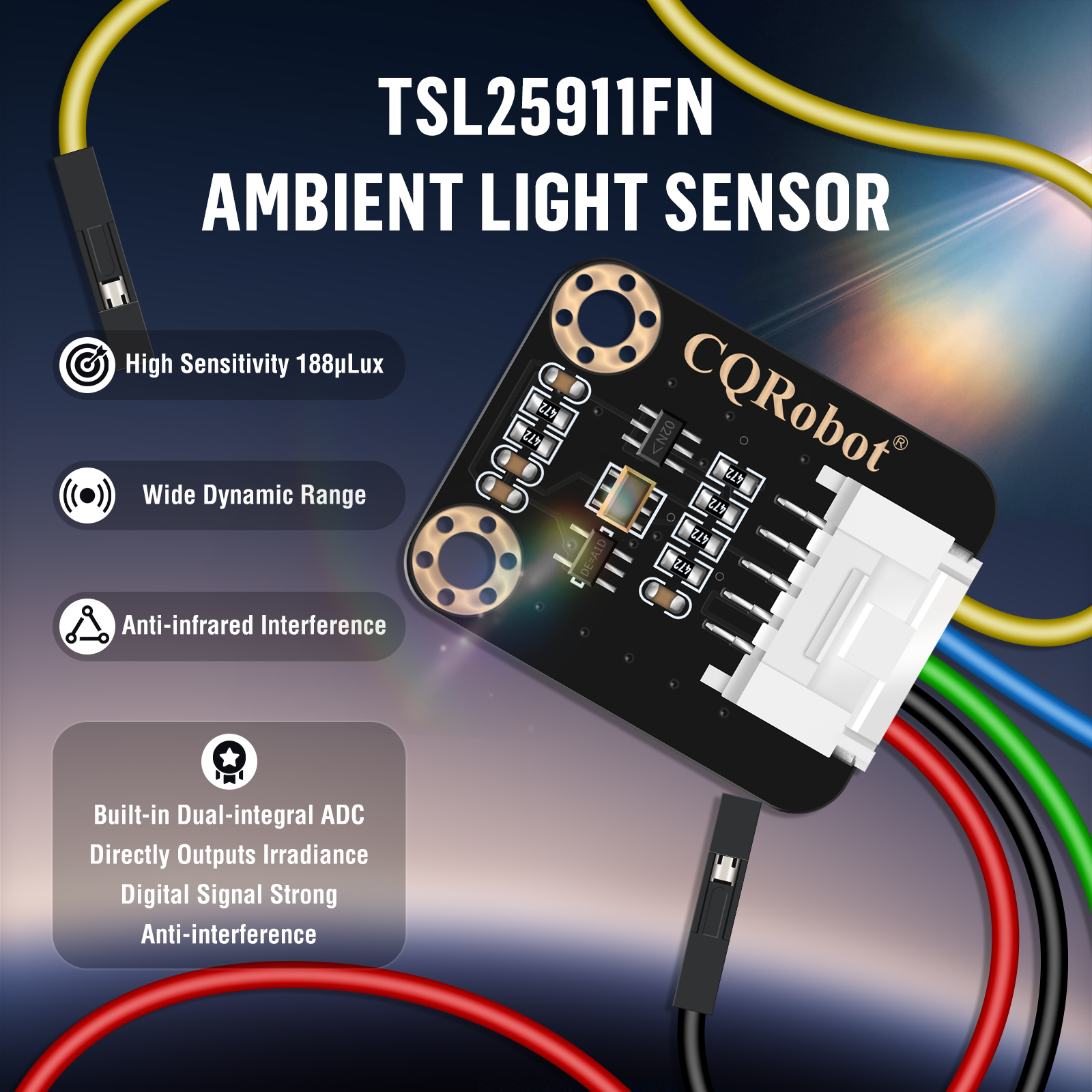

TSL25911FN Ambient Light Sensor for Arduino ,Raspberry Pi and STM32
SKU
CQRTSL25911
Part No.
CQRTSL25911
Brand
CQRobot
6
.27
Quantity
In Stock
Share:
10+
5
.96
Save 5%
50+
5
.71
Save 9%
100+
5
.52
Save 12%
200+
5
.33
Save 15%
500+
5
.02
Save 20%
Related Products:

Product details

SPECIFICATION

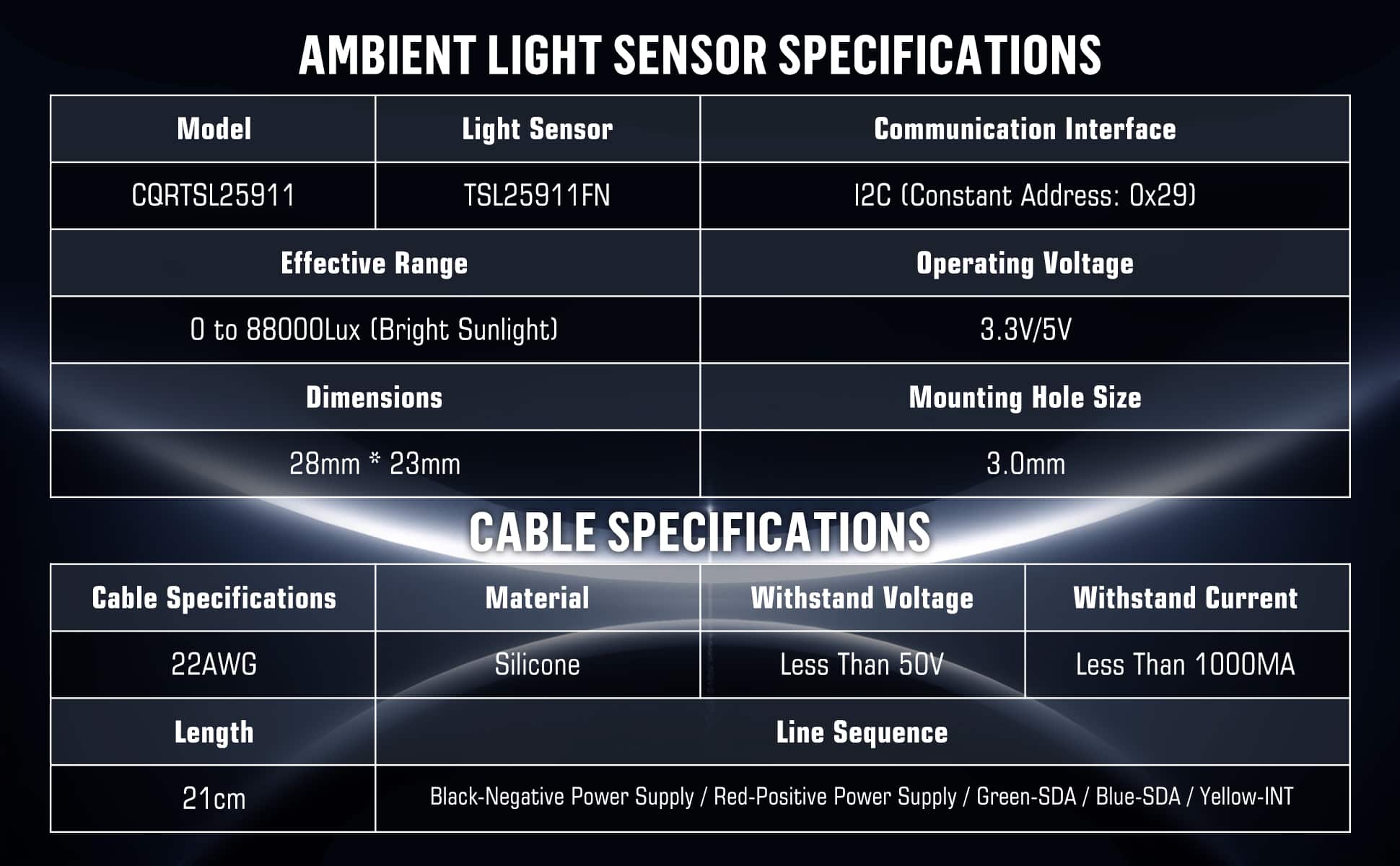

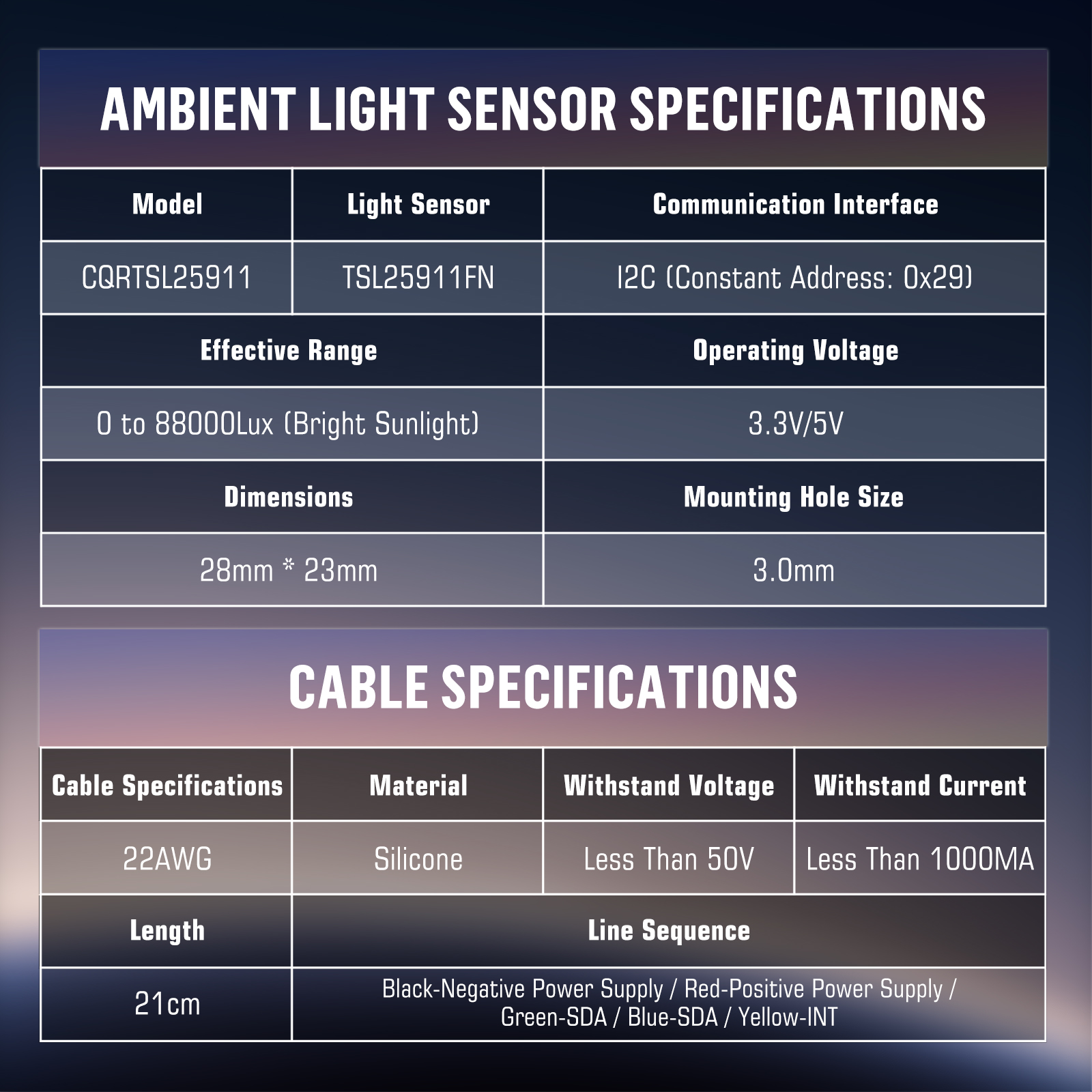

Ambient Light Sensor Specifications

  • Model: CQRTSL25911
  • Light sensor: TSL25911FN
  • Communication interface: I2C (constant address: 0x29)
  • Effective range: 0 to 88000Lux (Bright Sunlight)
  • Operating voltage: 3.3V/5V

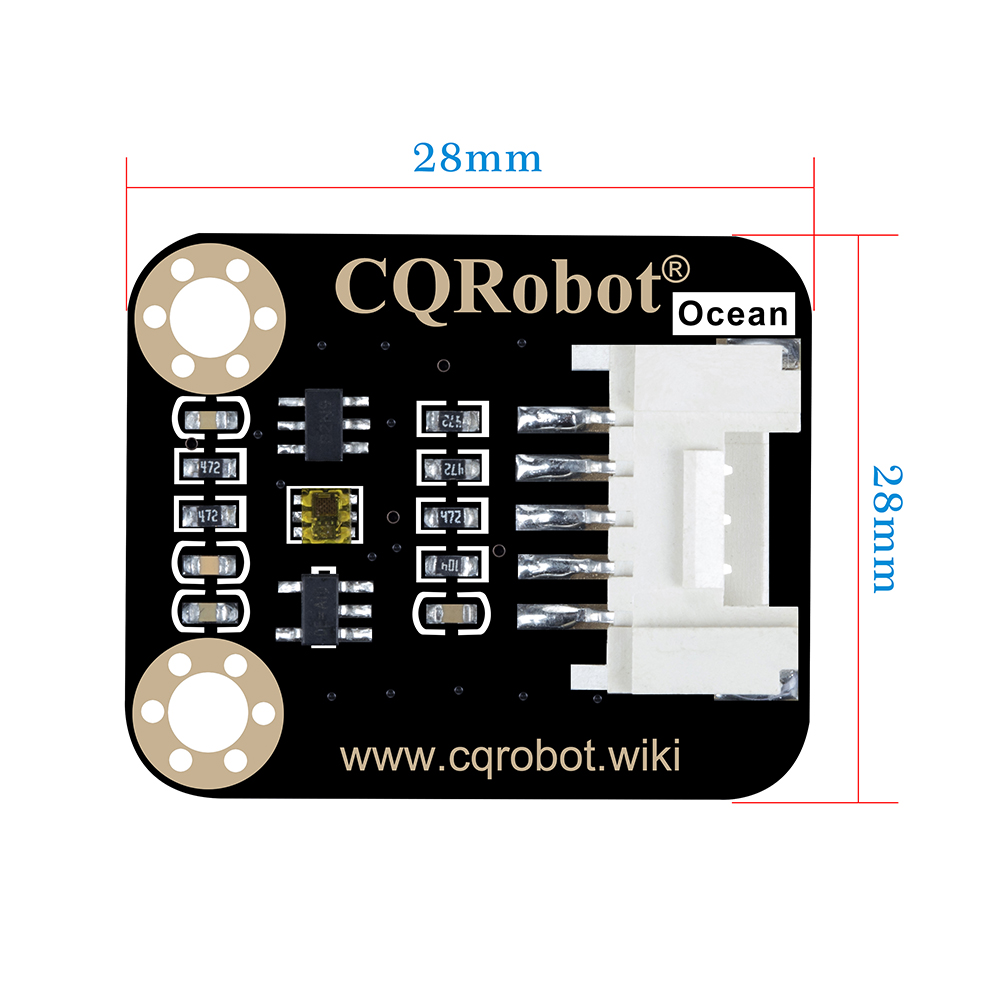

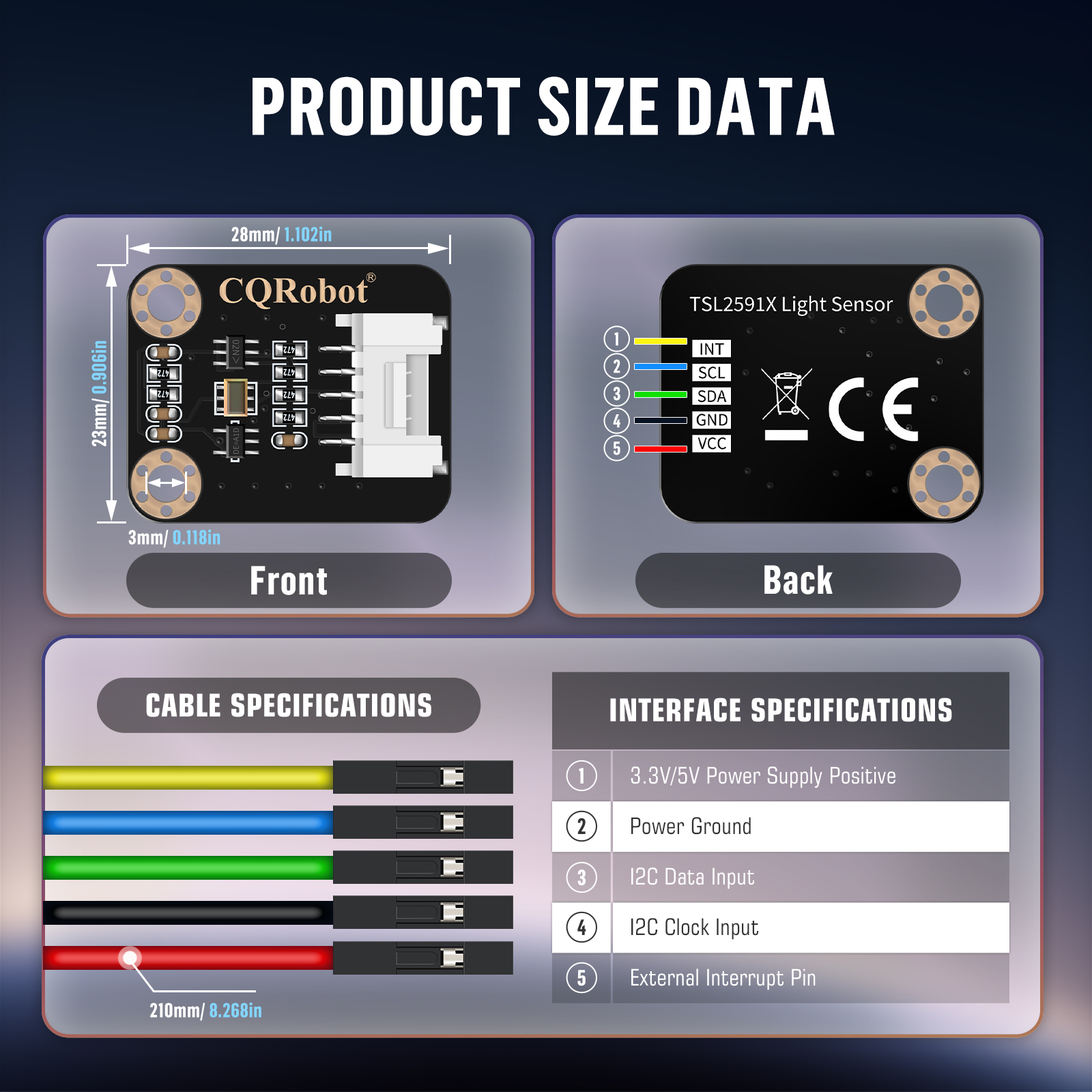

  • Dimensions: 28mm * 28mm
  • Mounting hole size: 3.0mm

Interface Cable Specifications

  • Cable specifications: 22AWG
  • Material: Silicone
  • Withstand Voltage: Less Than 50V
  • Withstand Current: Less Than 1000MA

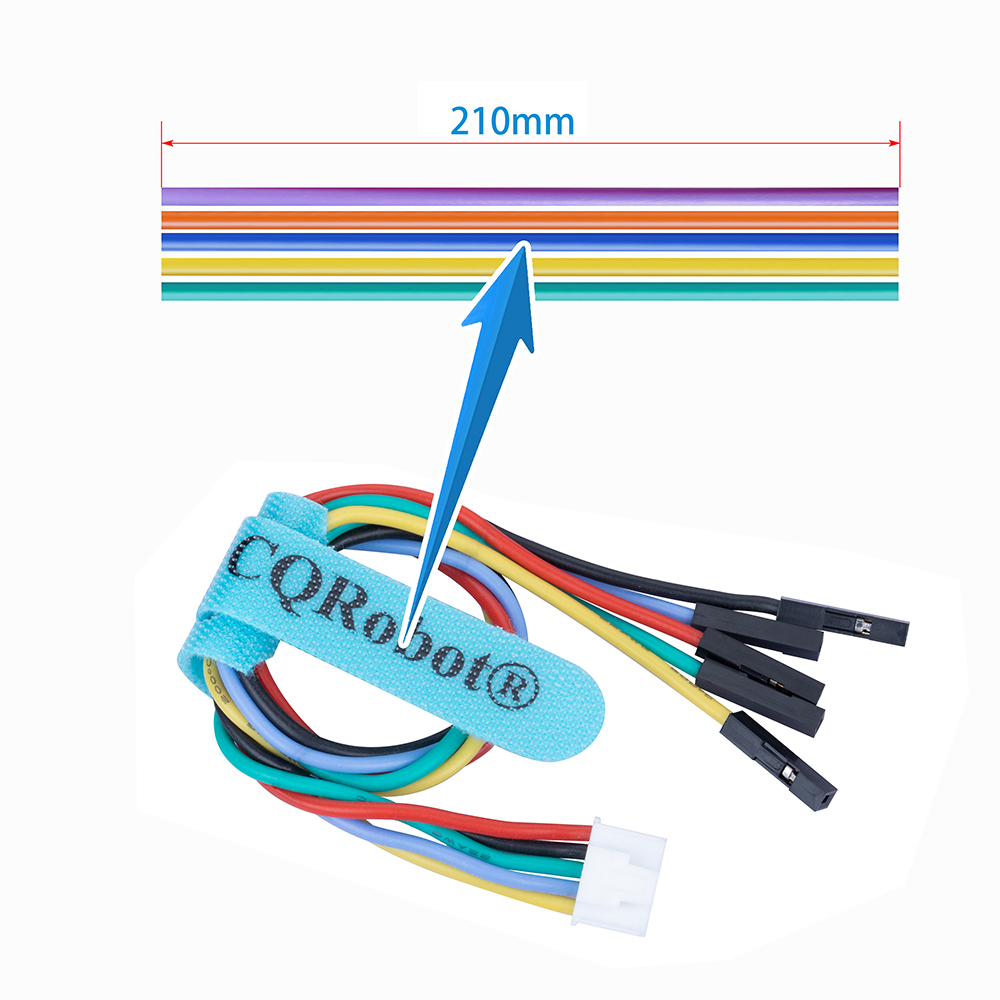

  • Length: 21cm

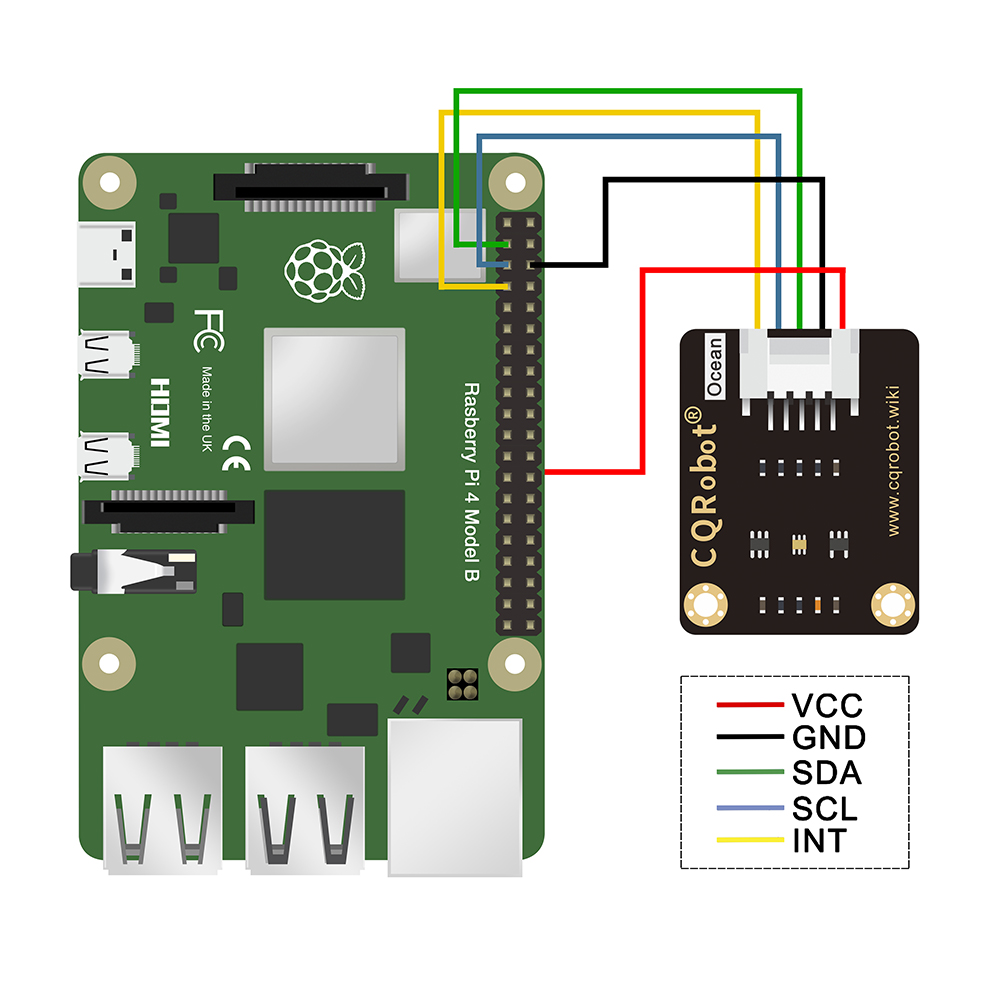

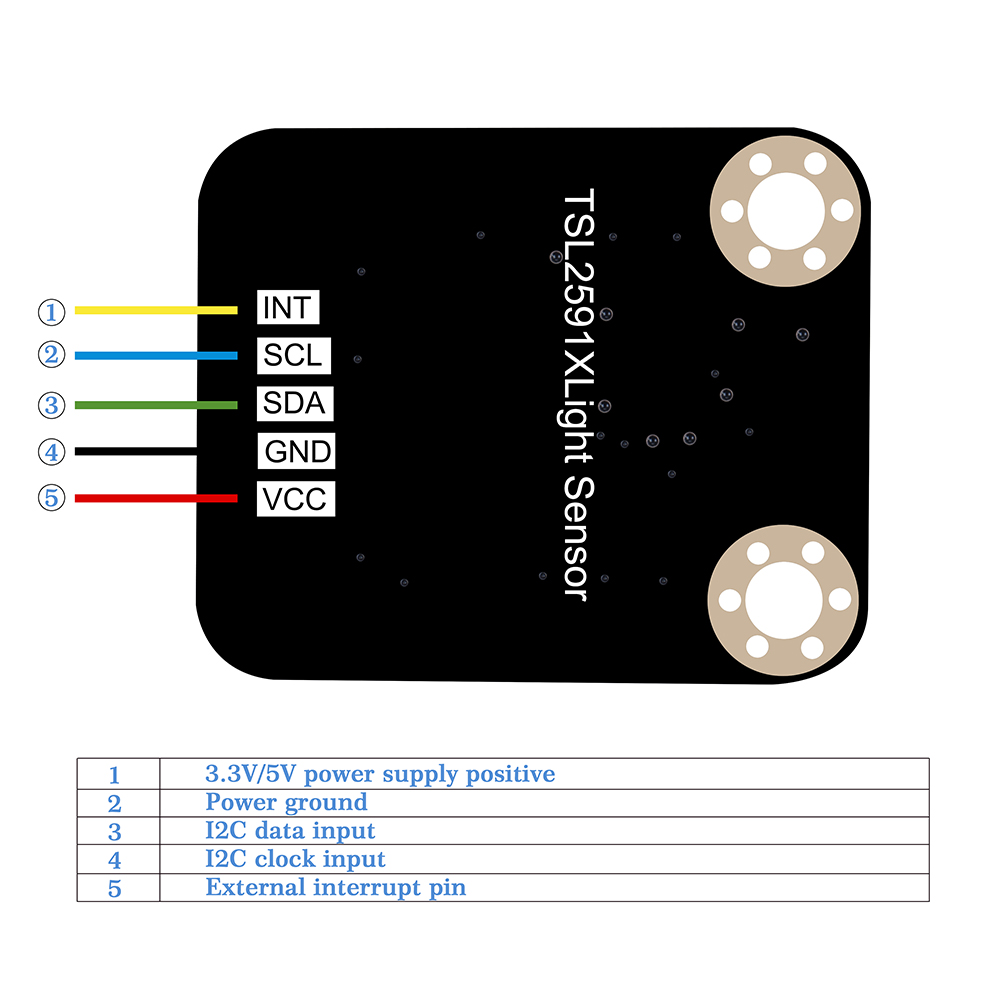

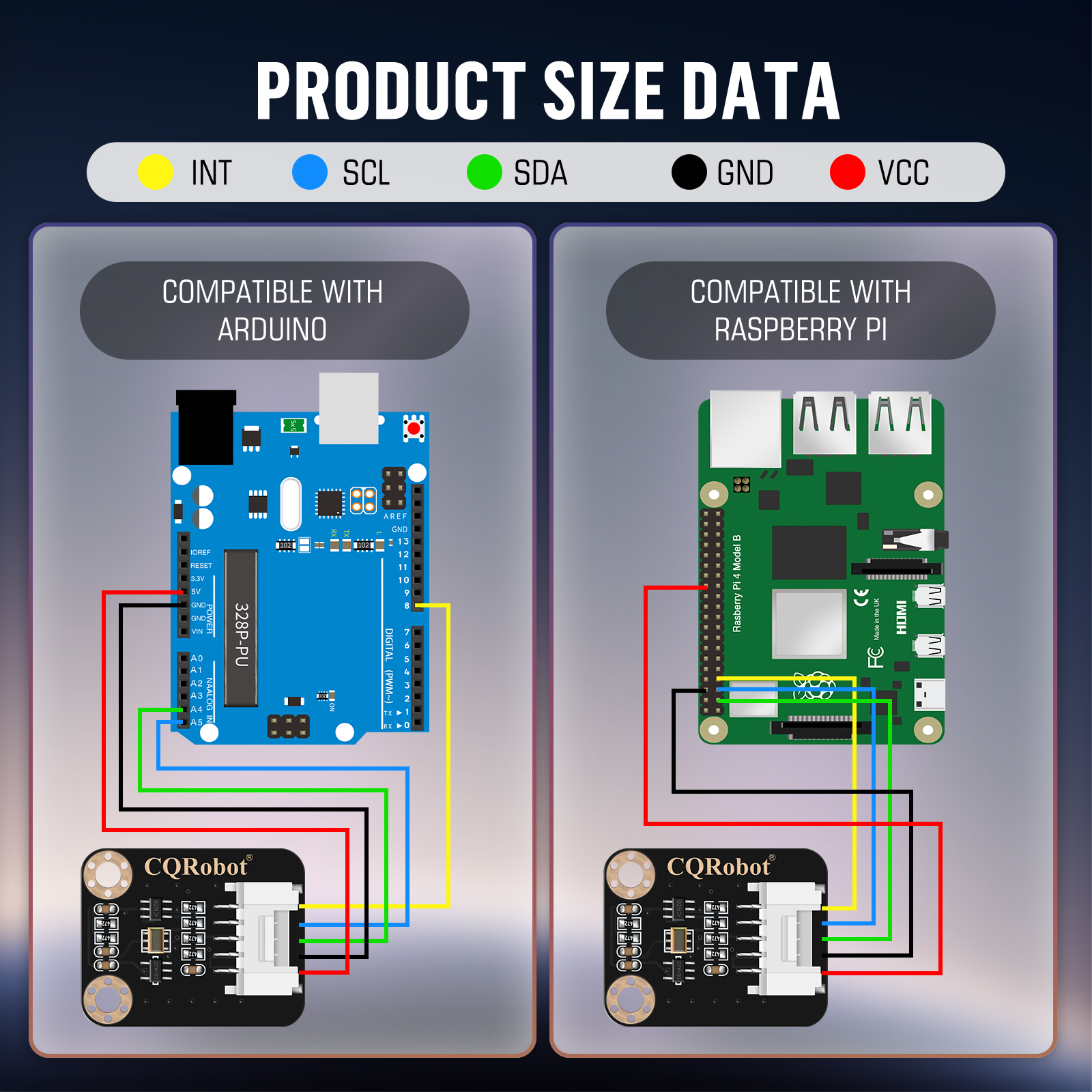

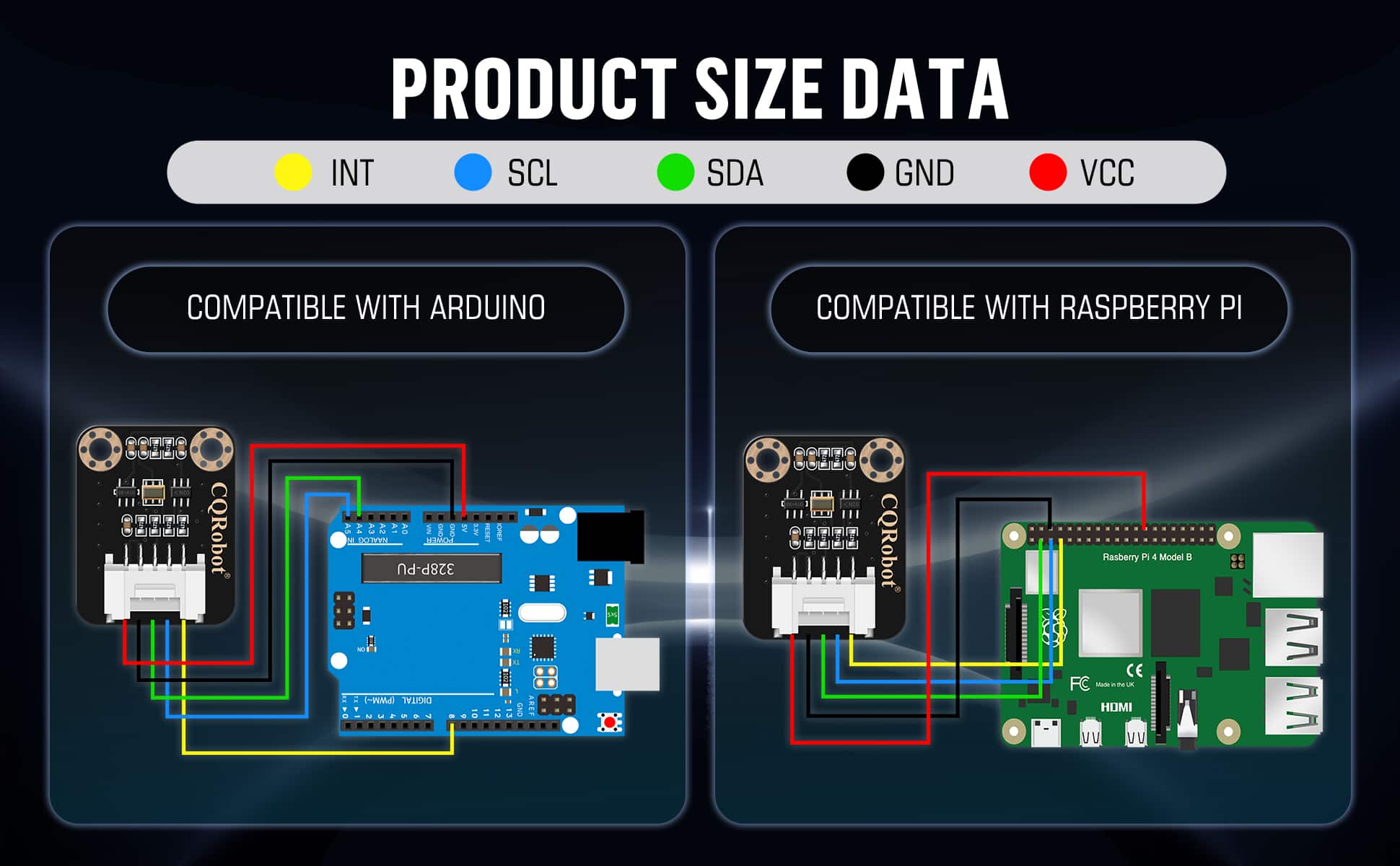

  • Line Sequence: Black-Negative Power Supply, Red-Positive Power Supply, Green-SDA, Blue-SDA, Yellow-INT.

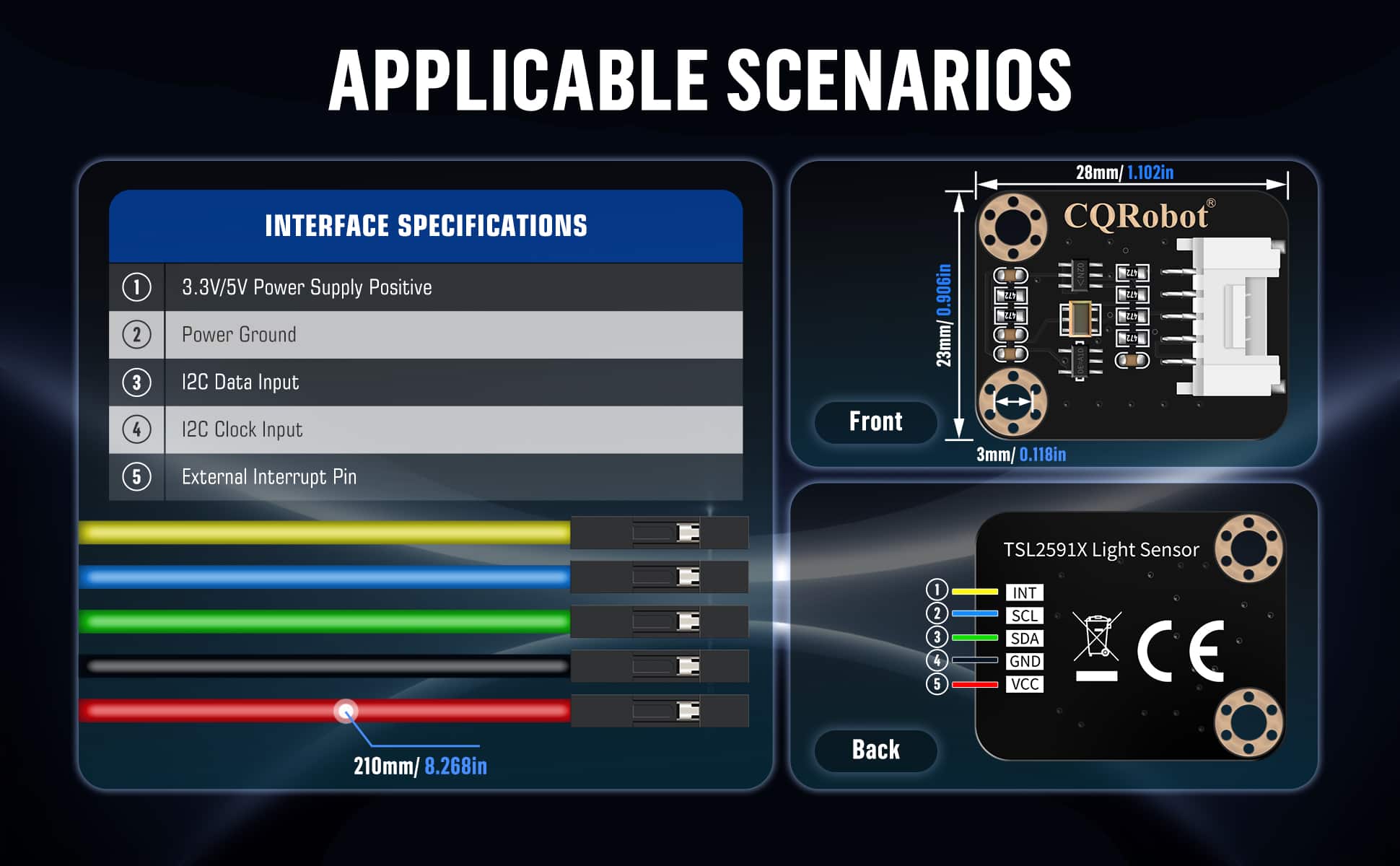

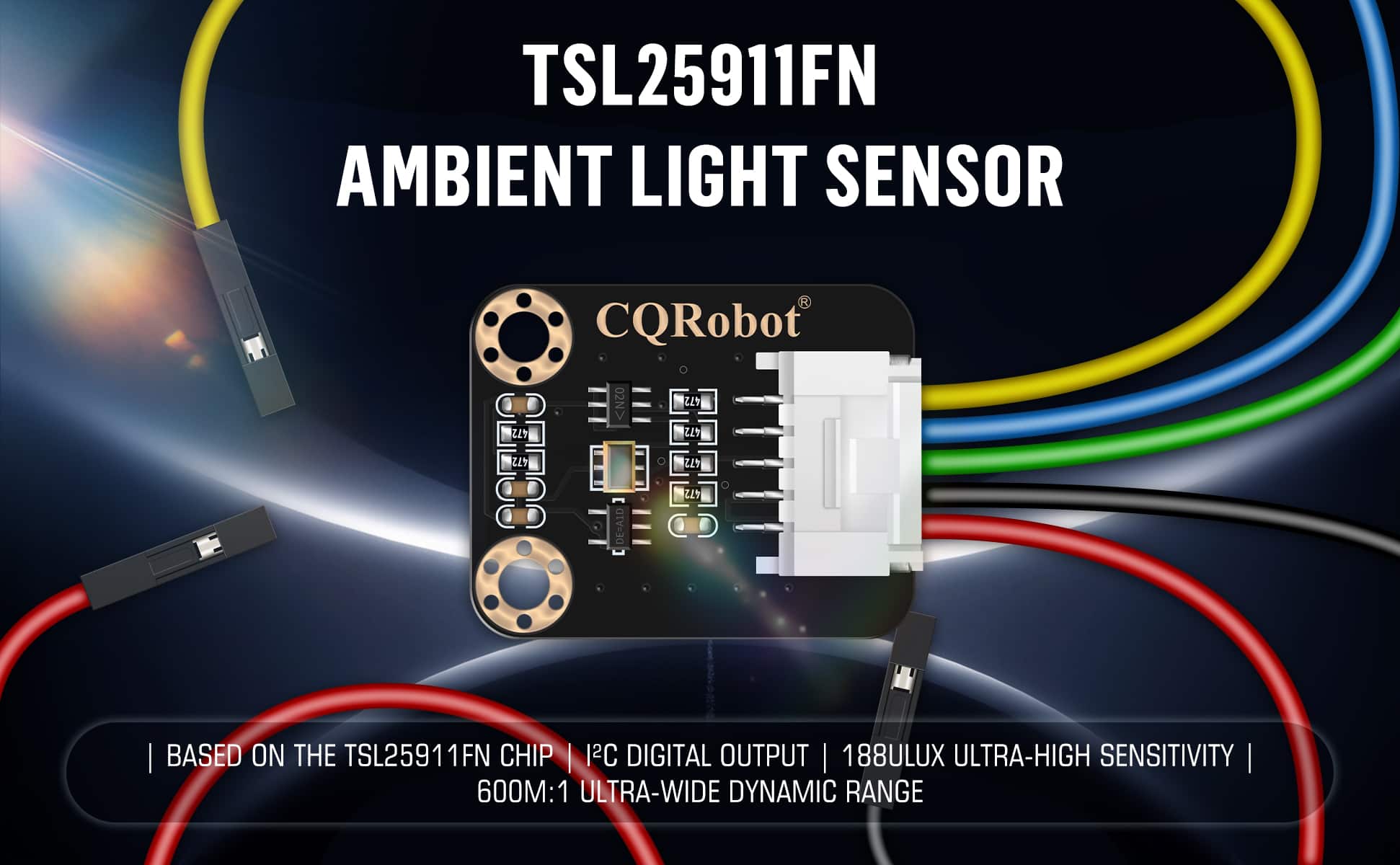

sensor -CQRTSL25911-7.jpgsensor -CQRTSL25911-8.jpgsensor -CQRTSL25911-9.jpg
