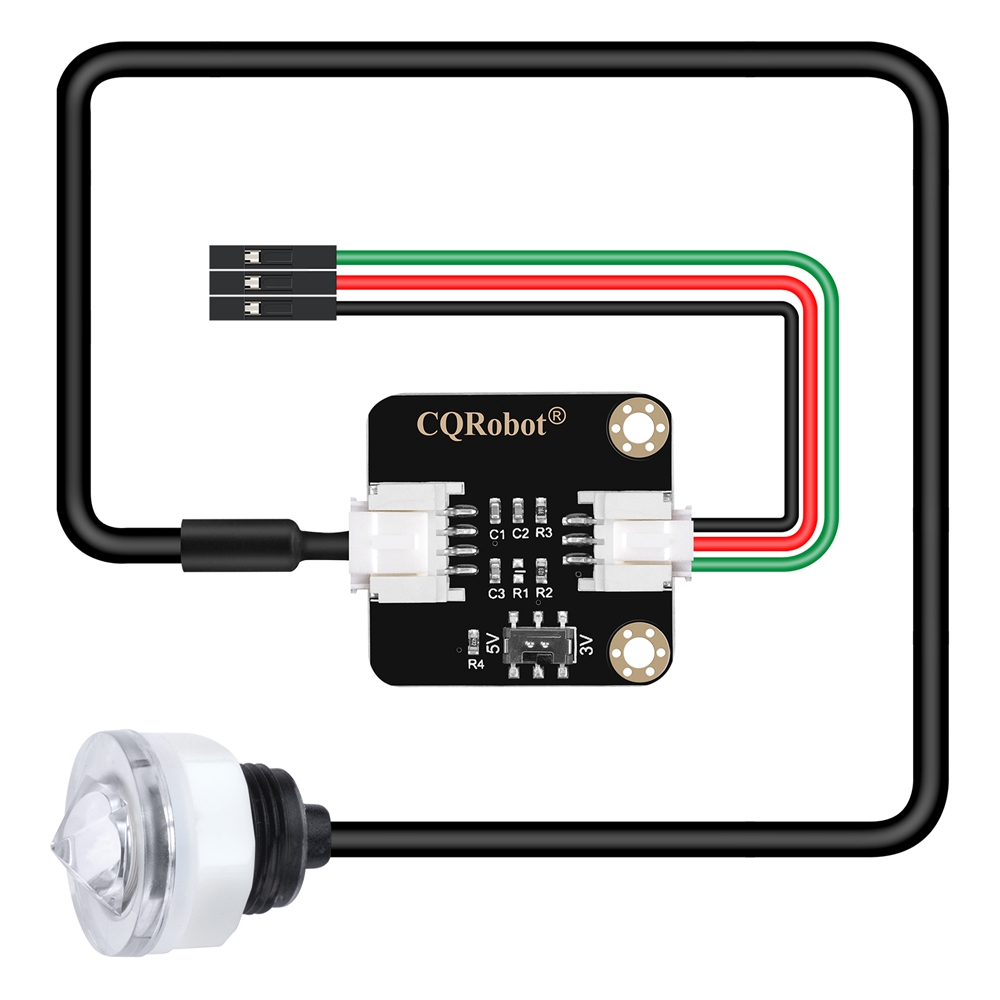

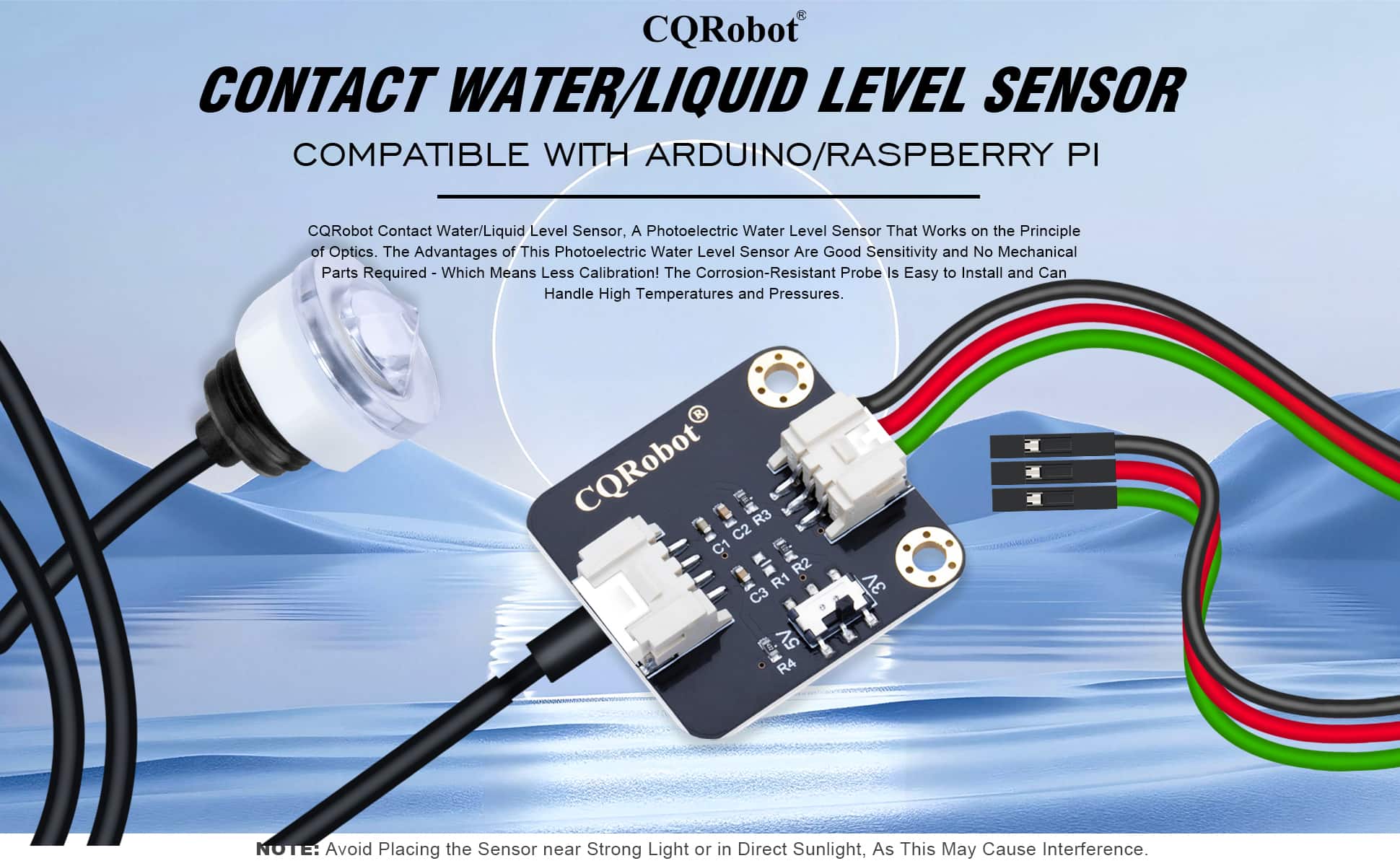

Contact Water / Liquid Level Sensor for Arduino and Raspberry Pi
$
8
.99
10+
$
8
.54
Save 5%
50+
$
8
.18
Save 9%
100+
$
7
.91
Save 12%
200+
$
7
.64
Save 15%
500+
$
7
.19
Save 20%
Product details

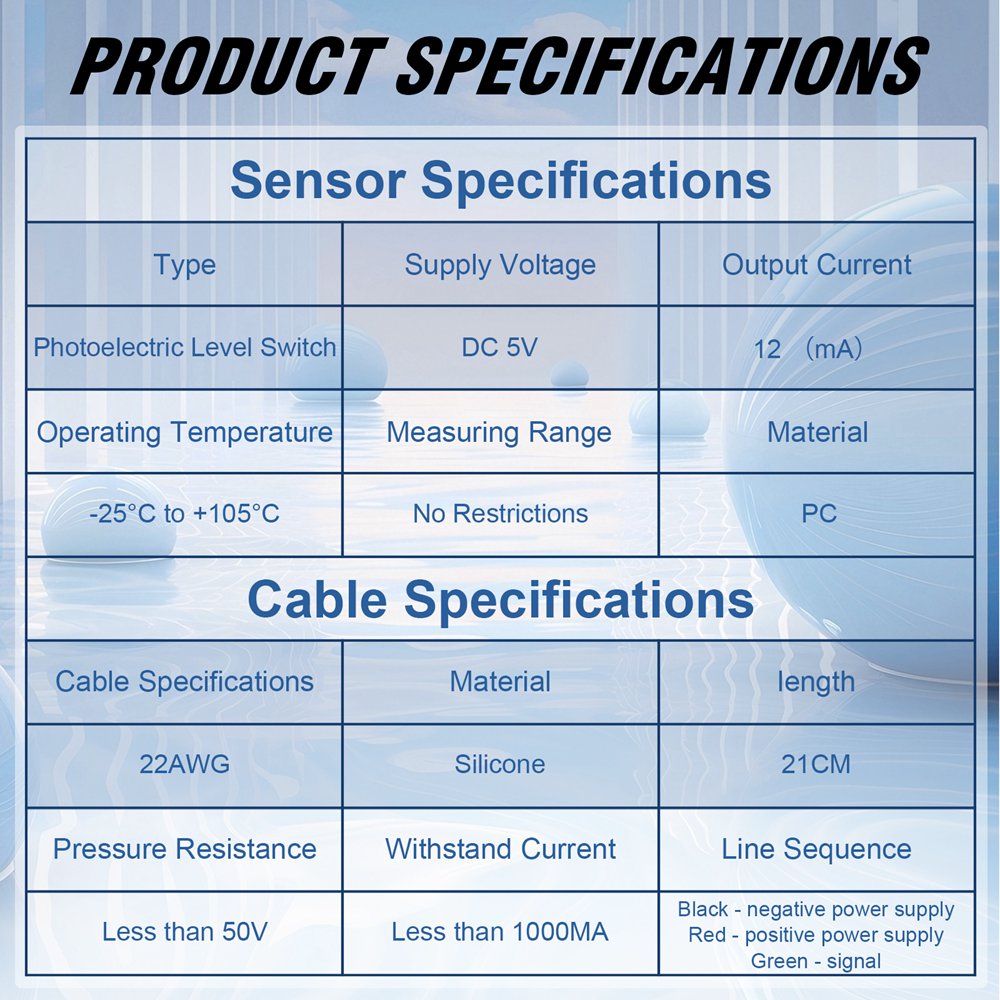

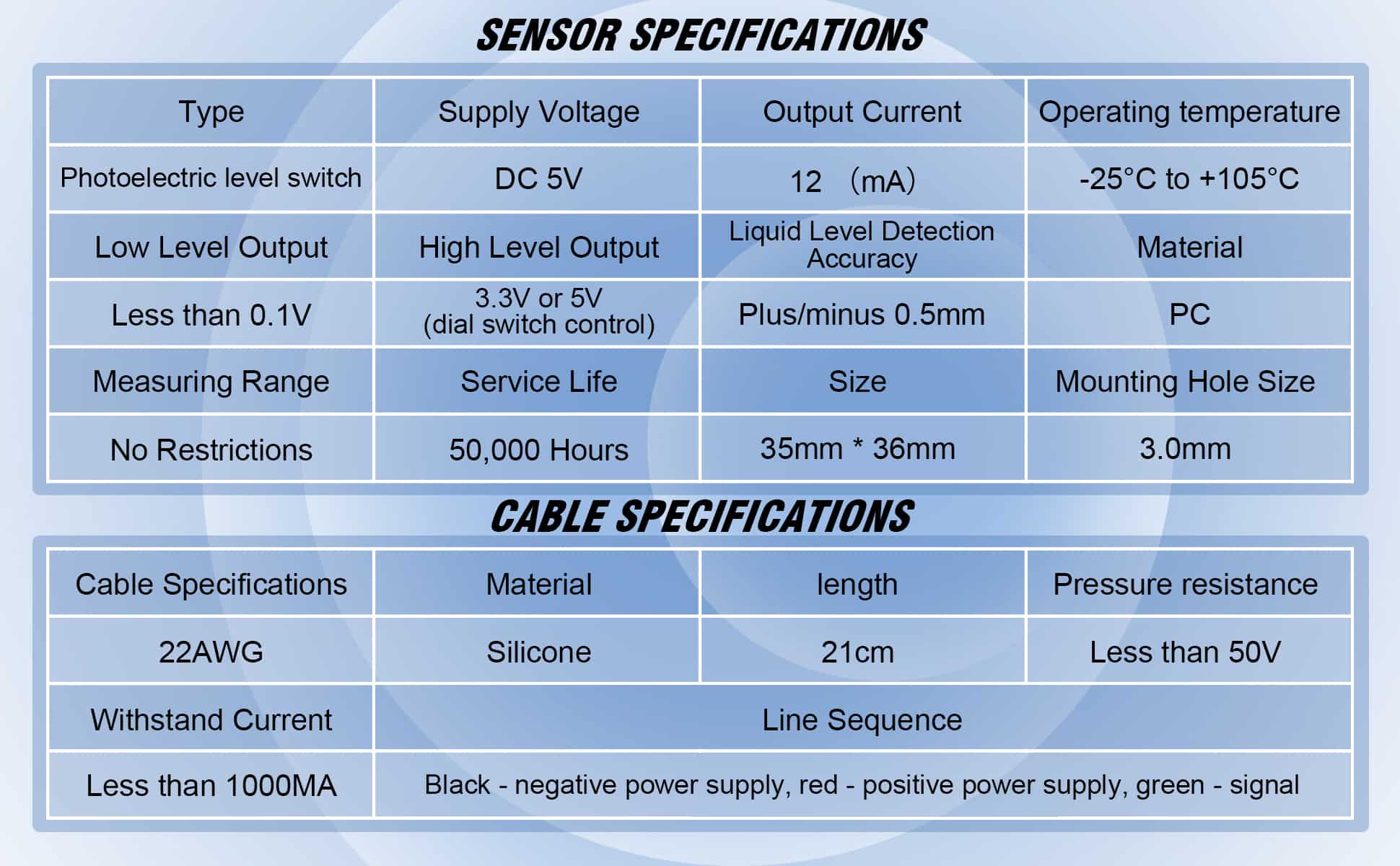

SPECIFICATION
- Type: Photoelectric Level Switch
- Power Supply Voltage: DC 5V
- Output Current: 12 (mA)

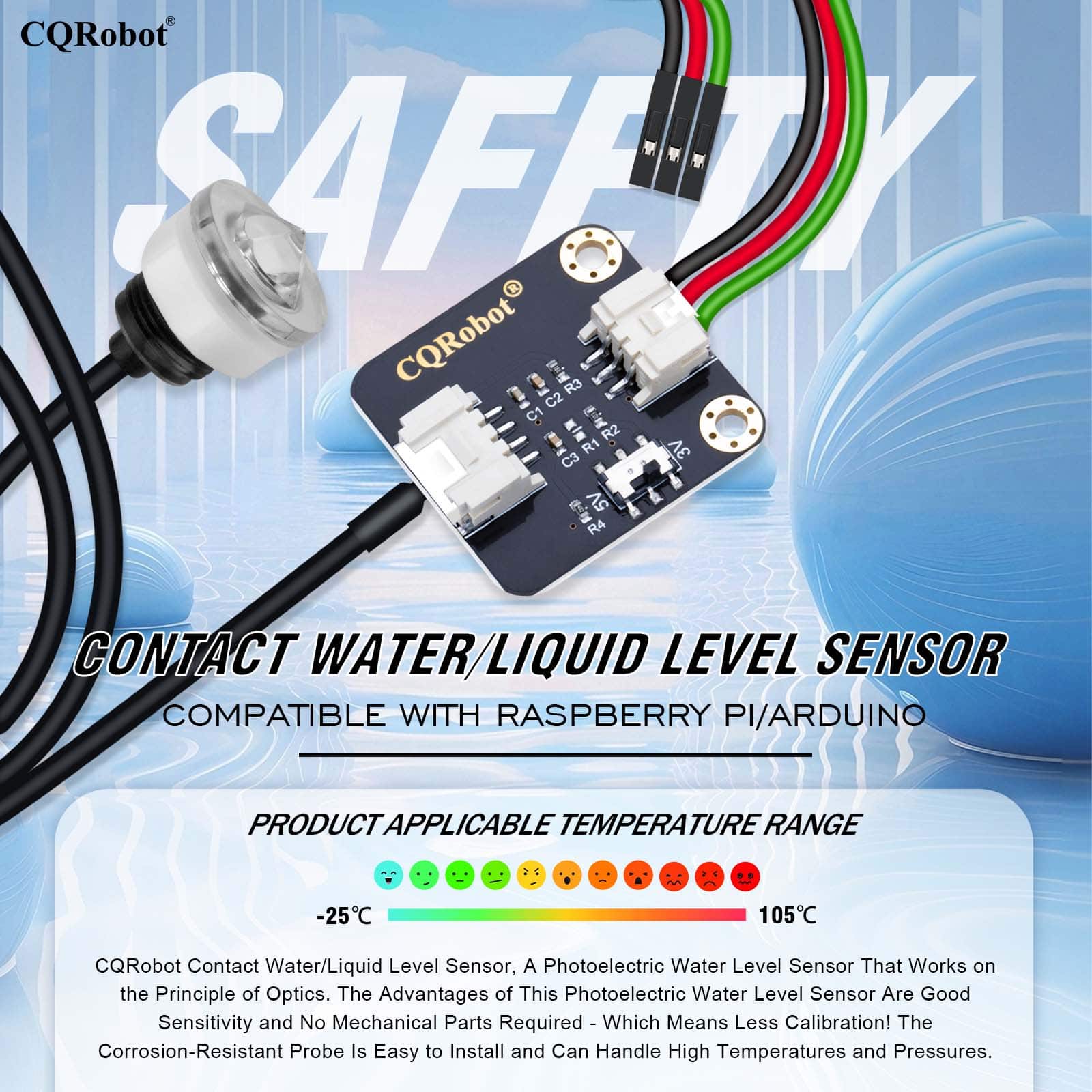

- Working Temperature: -25 Degree Celsius to +105 Degree Celsius
- Low Level Output: Less Than 0.1V

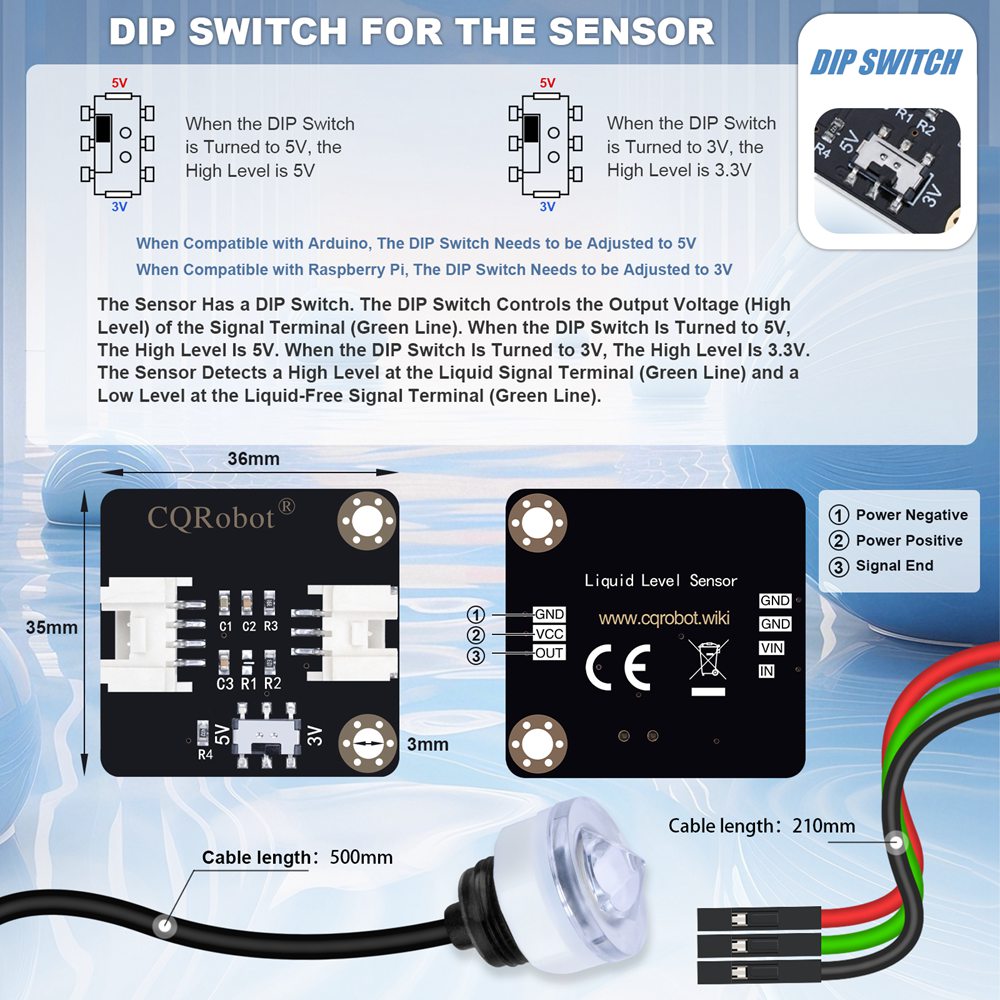

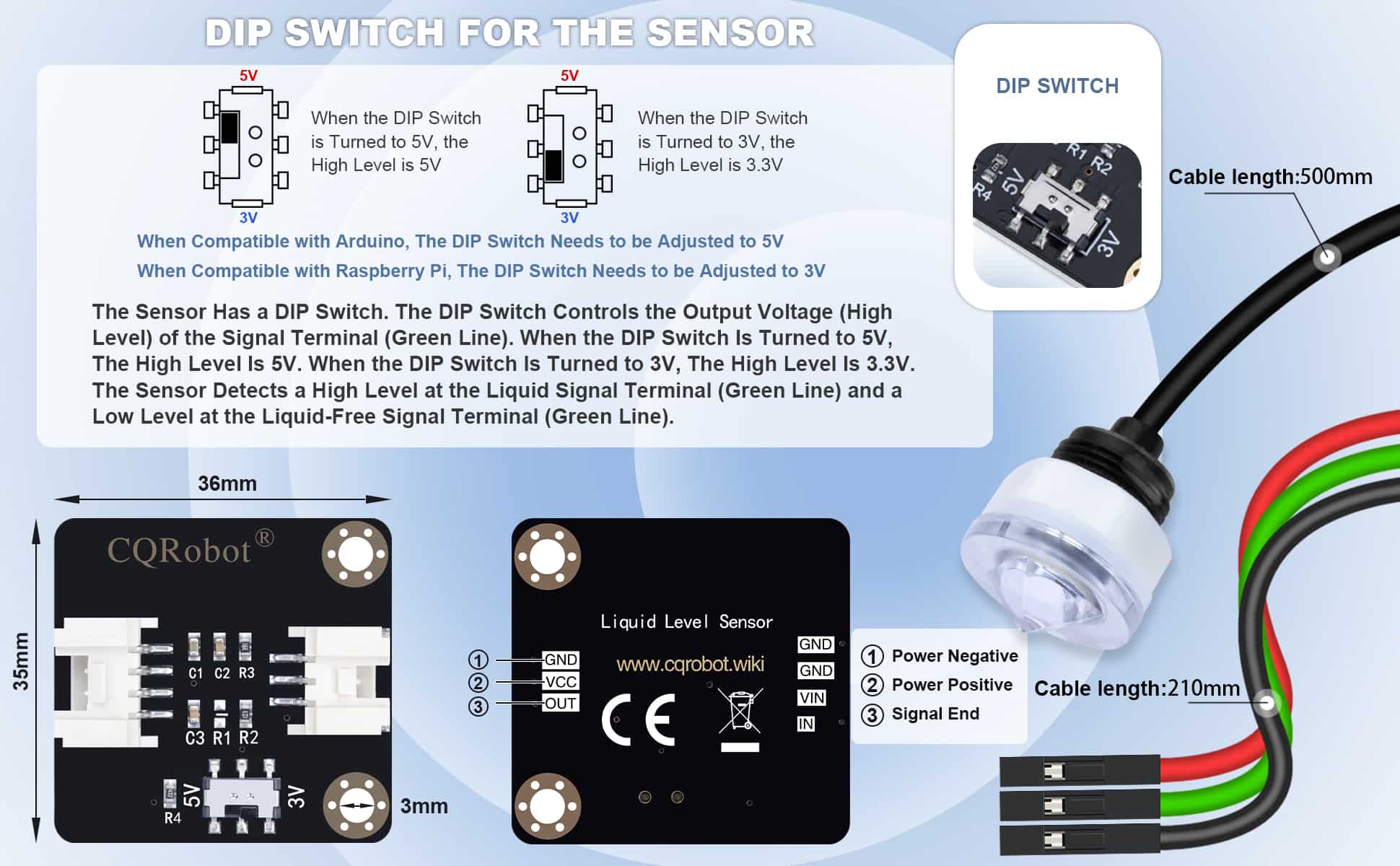

- High Level Output: 3.3V or 5V (Dial Switch Control)
- Liquid Level Detection Accuracy: Plus/Minus 0.5mm
- Material: PC
- Measuring Range: NO Limit
- Life: 50,000 Hours
- Scope of Application: Water Level Control and Protection of Electrical Products
- Probe Line Length: 50cm
- Dimension: 35mm * 36mm
- Mounting hole size: 3.0mm
