Specifications

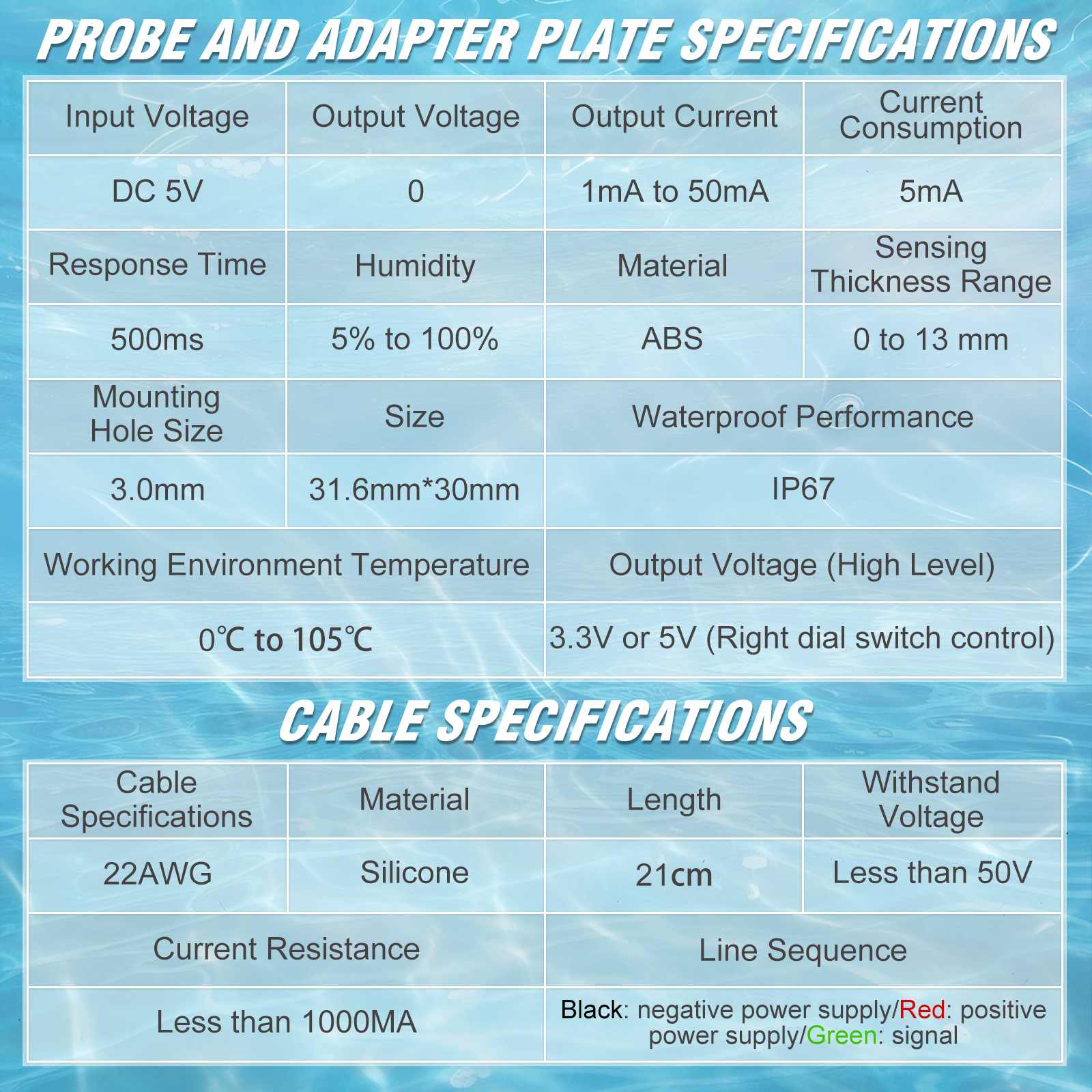

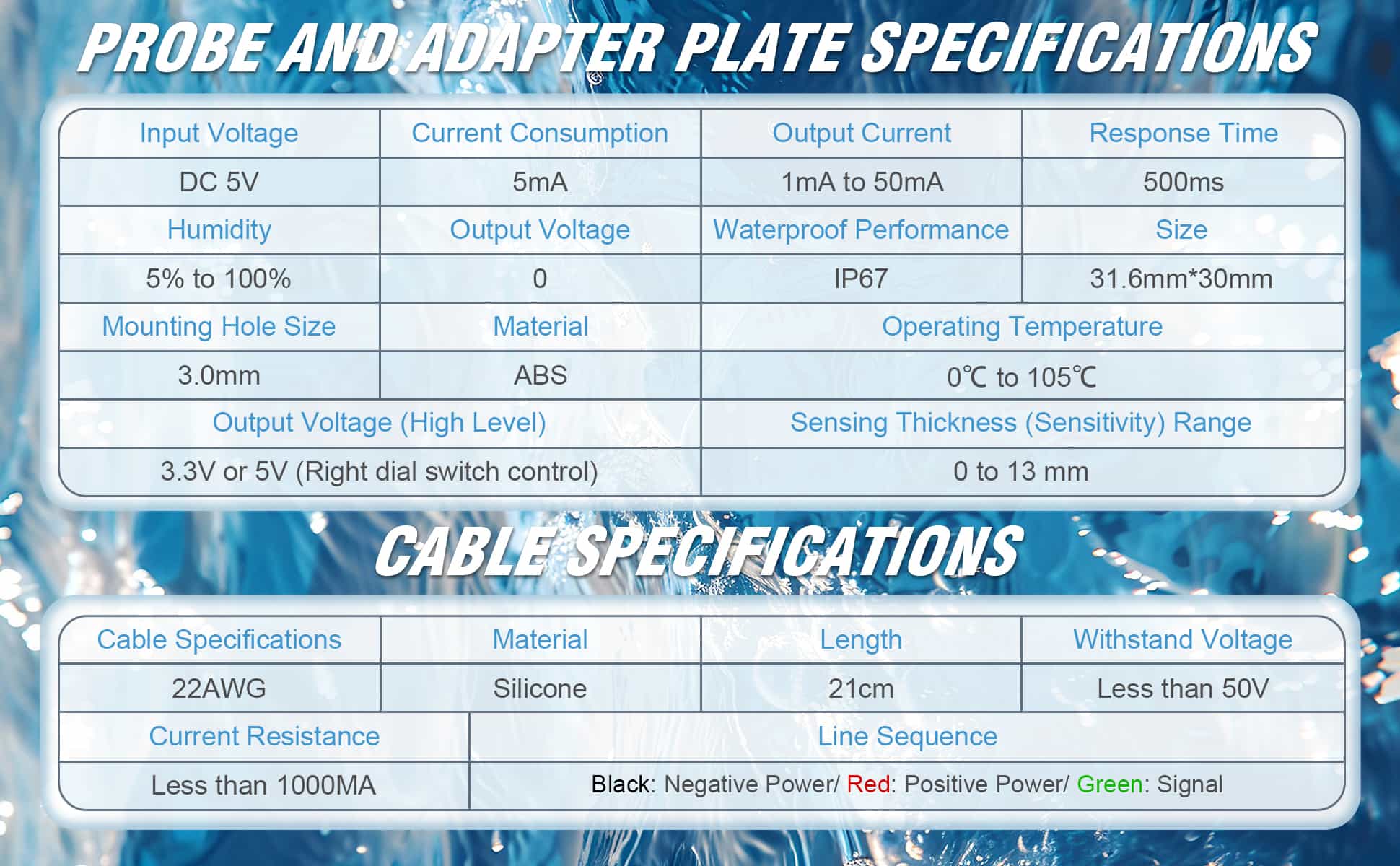

Sensor Probe and Adapter Specifications

• Input Voltage: DC 5V
• Current Consumption: 5mA

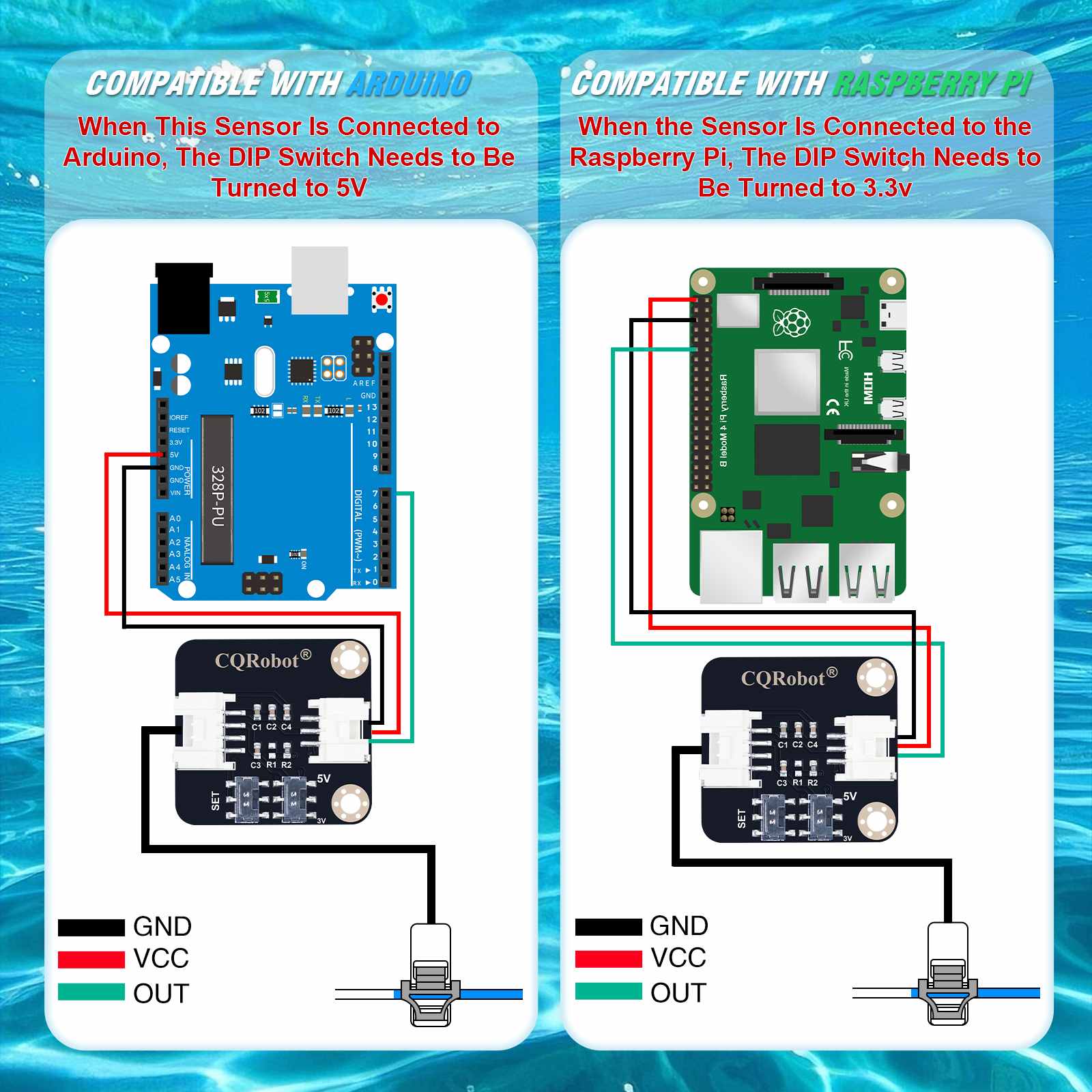

• Output Voltage (high level): 3.3V or 5V (controlled by the right dip switch)
• Output Voltage: 0
• Output Current: 1mA to 50mA
• Response Time: 500ms
• Working Environment Temperature: 0 to 105 degrees Celsius
• Sensing Thickness (sensitivity) range: 0 to 13 mm
• Humidity: 5% to 100%
• Material: ABS
• Waterproof Performance: IP67

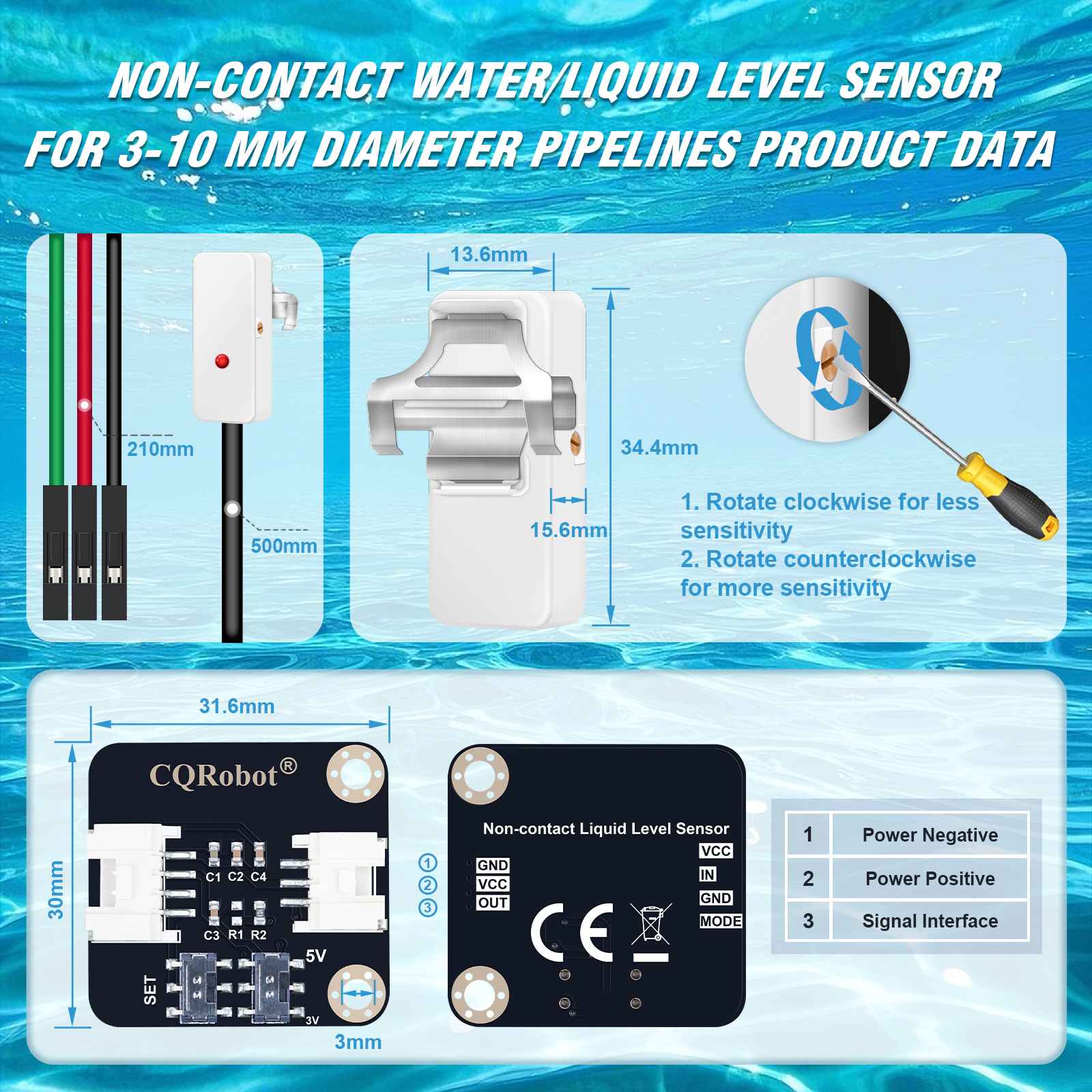

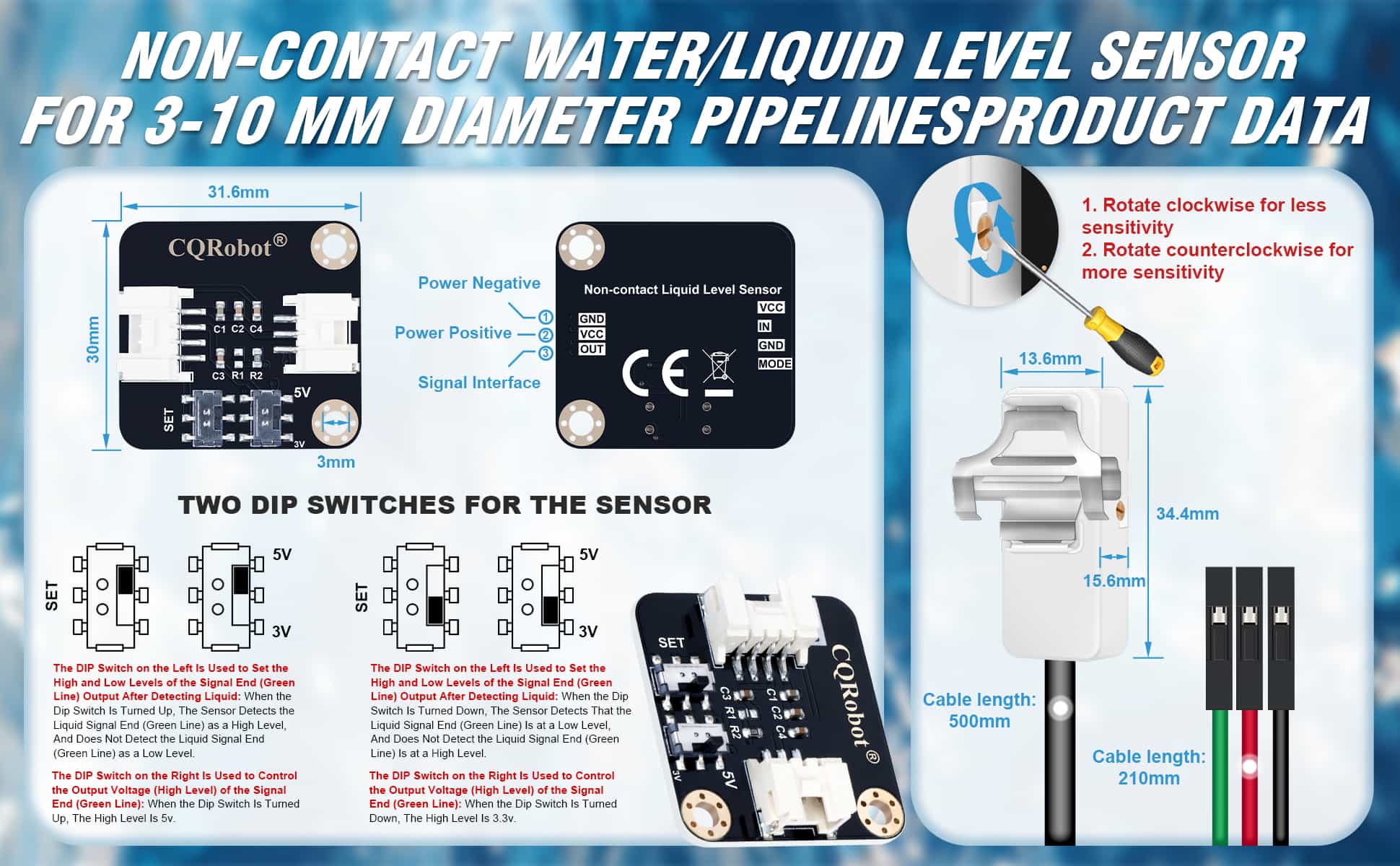

• Size: 31.6mm*30mm
• Mounting Hole size: 3.0mm

Interface Cable Specifications

• Cable specifications: 22AWG
• Material: Silicone
• Length: 21 cm
• Withstand Voltage: less than 50V
• Withstand Current: less than 1000MA

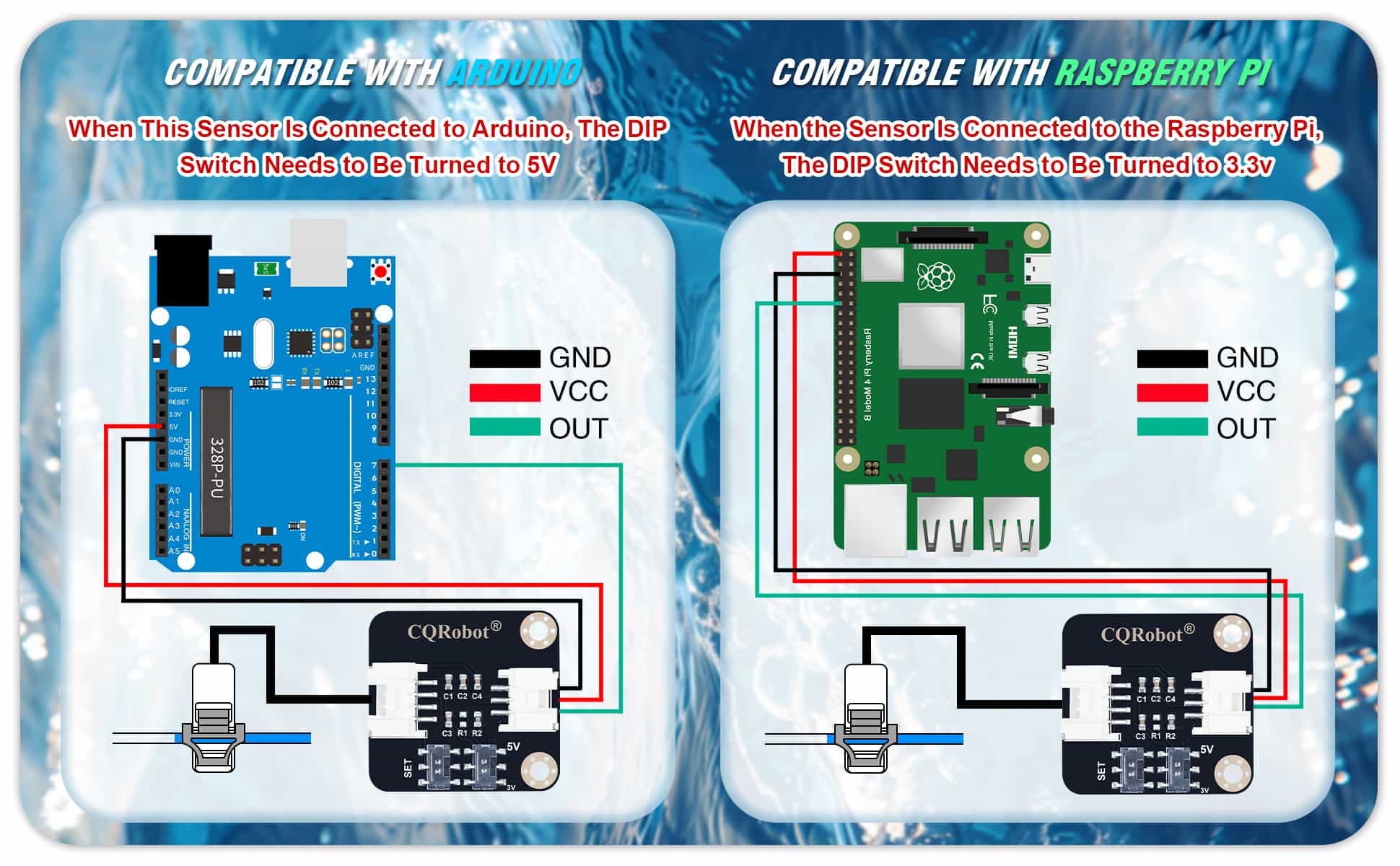

• Line Sequence: black-negative power, red-positive power, green-signal
