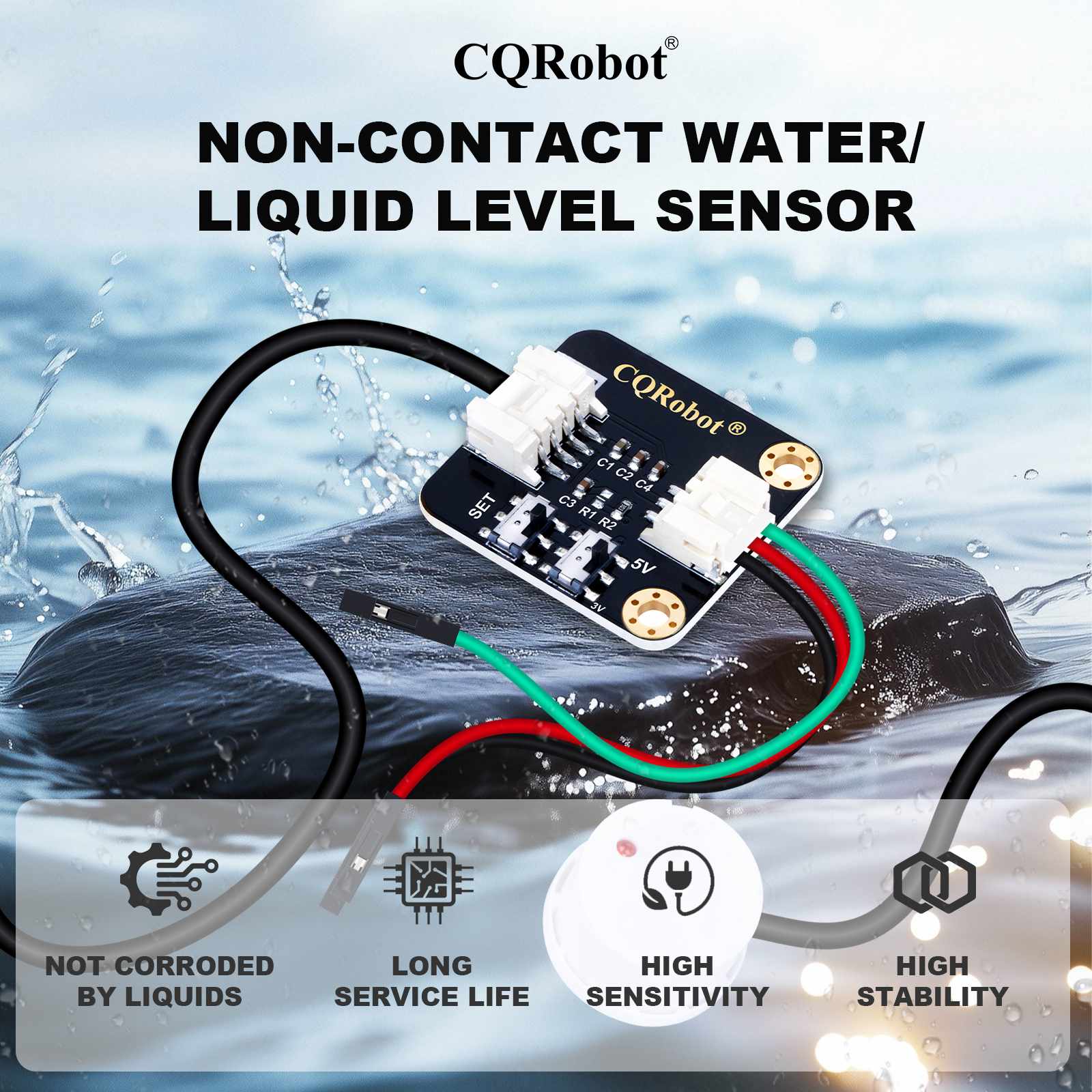

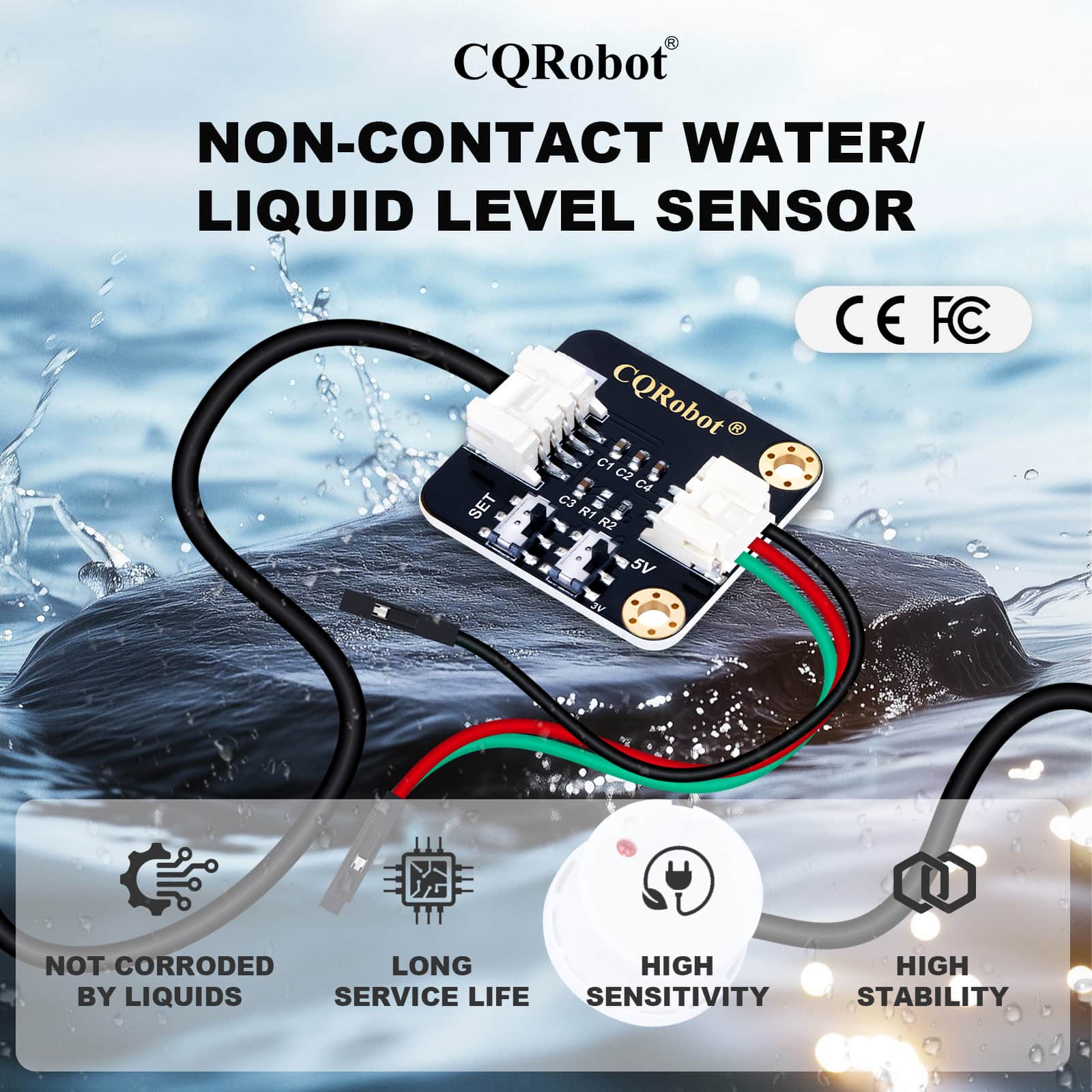

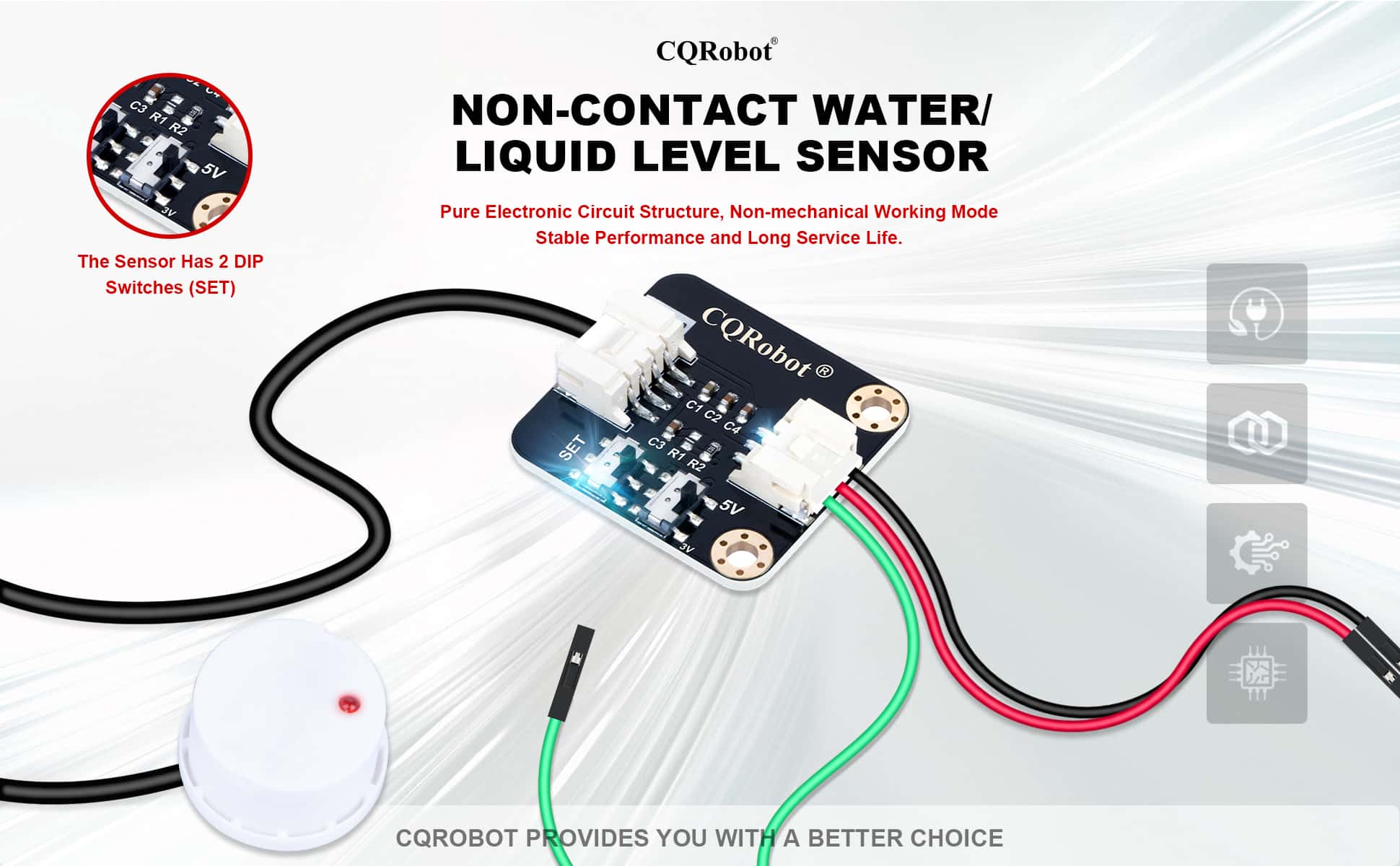

Non-Contact Water / Liquid Level Sensor for Arduino and Raspberry Pi
$
11
.99
10+
$
11
.39
Save 5%
50+
$
10
.91
Save 9%
100+
$
10
.55
Save 12%
200+
$
10
.19
Save 15%
500+
$
9
.59
Save 20%
Product details

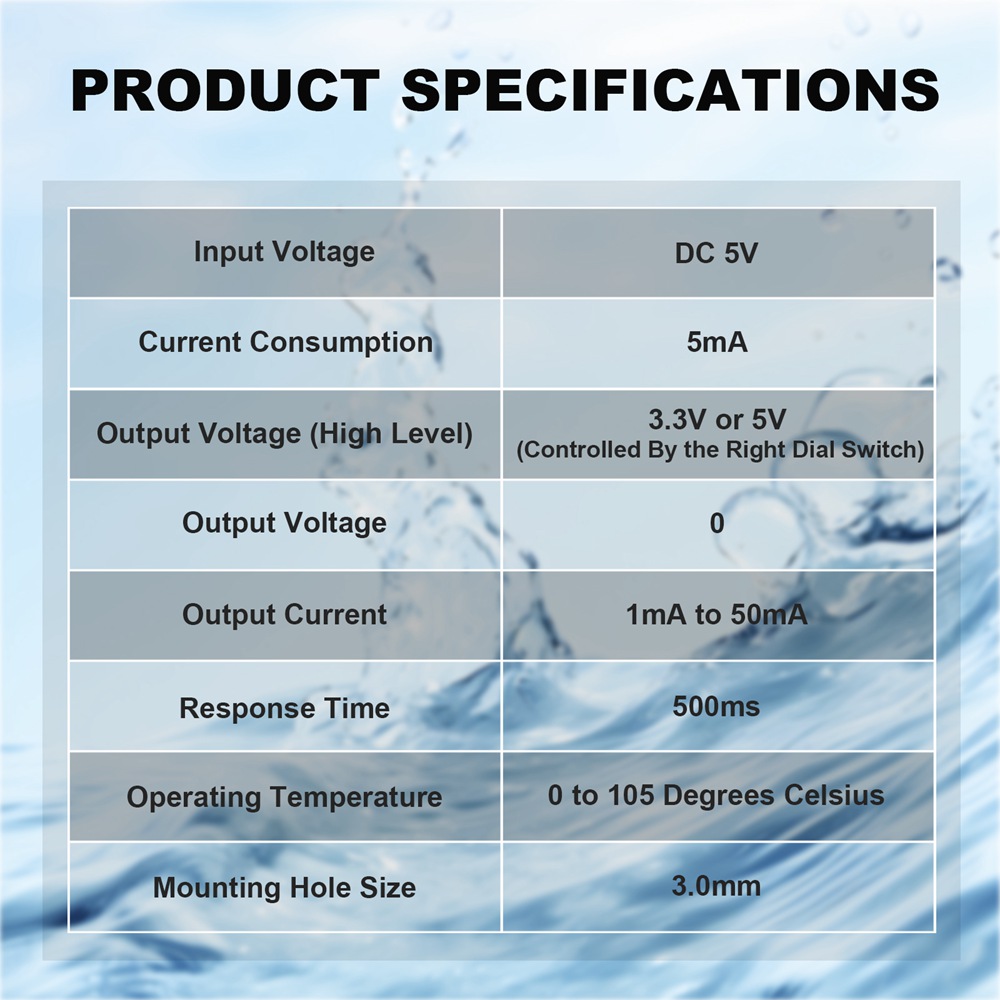

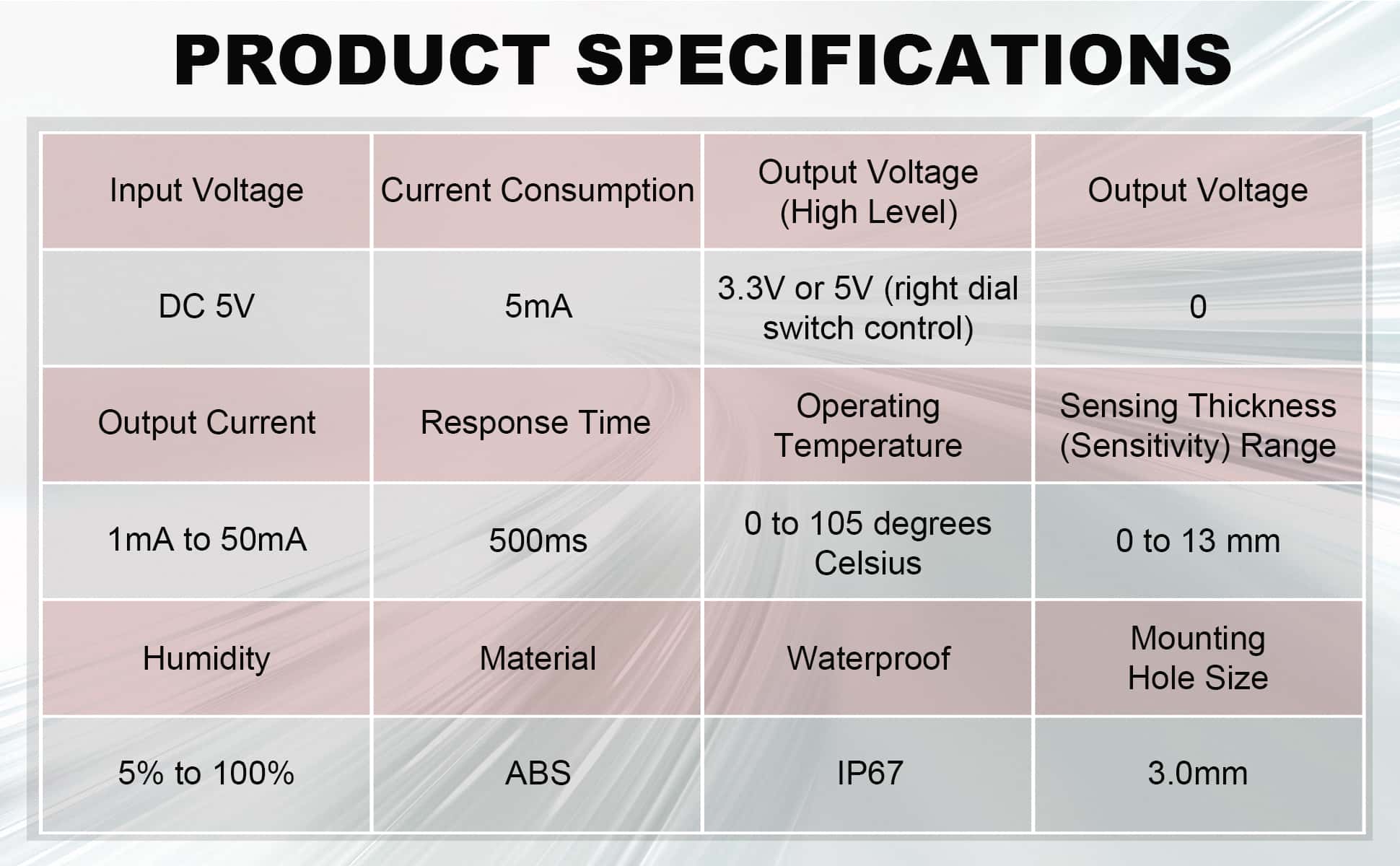

SPECIFICATIONS
Sensor Probe and Adapter Specifications
- Input Voltage: DC 5V
- Current Consumption: 5mA

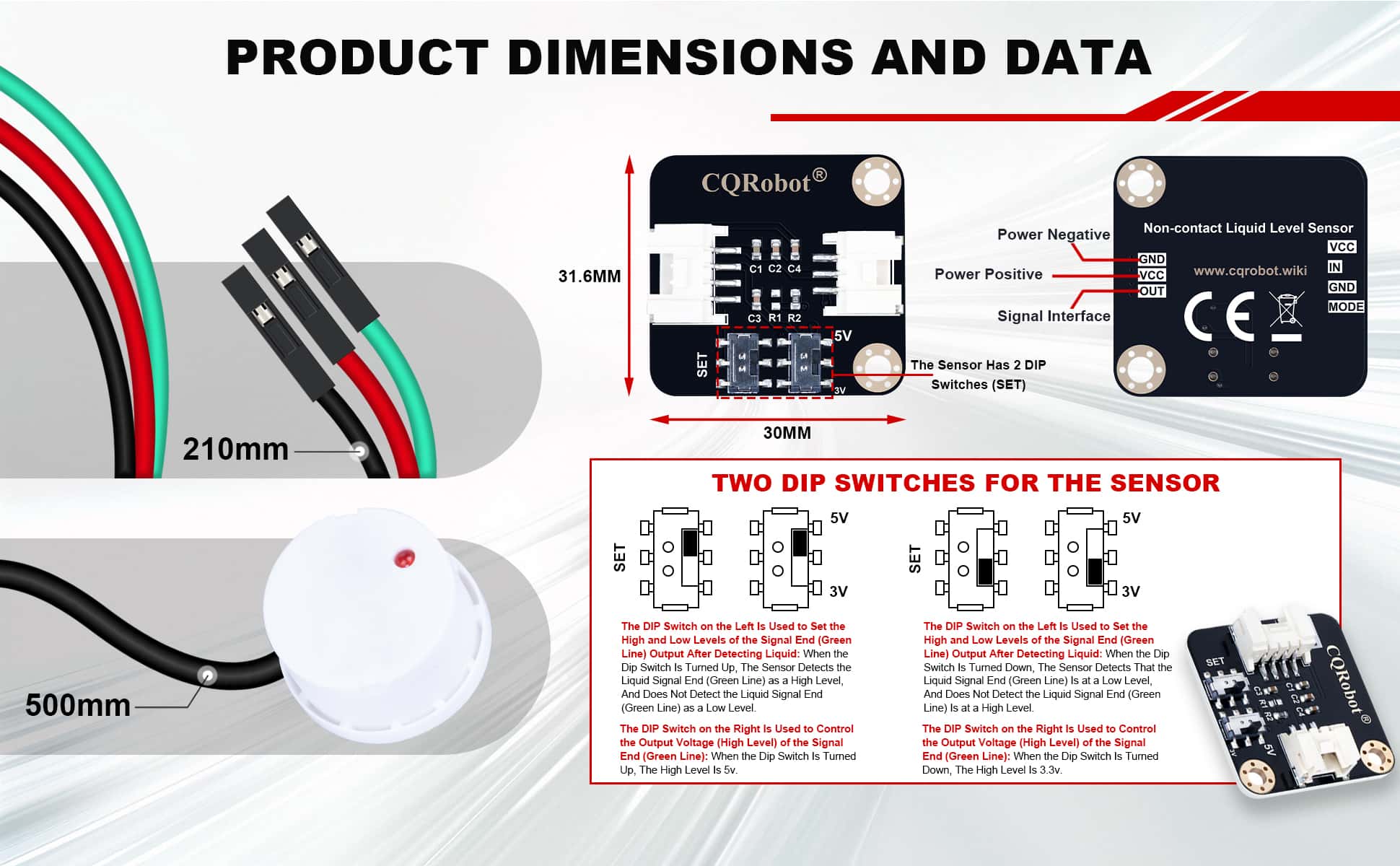

- Output Voltage (High Level): 3.3V or 5V (Right Dial Switch Control)
- Output Voltage: 0
- Output Current: 1mA to 50mA
- Response Time: 500ms
- Working Environment Temperature: 0 to 105 Degree Celsius
- Induction Thickness (Sensitivity) Range: 0 to 13 mm
- Humidity: 5% to 100%
- Material: ABS
- Waterproof Performance: IP67

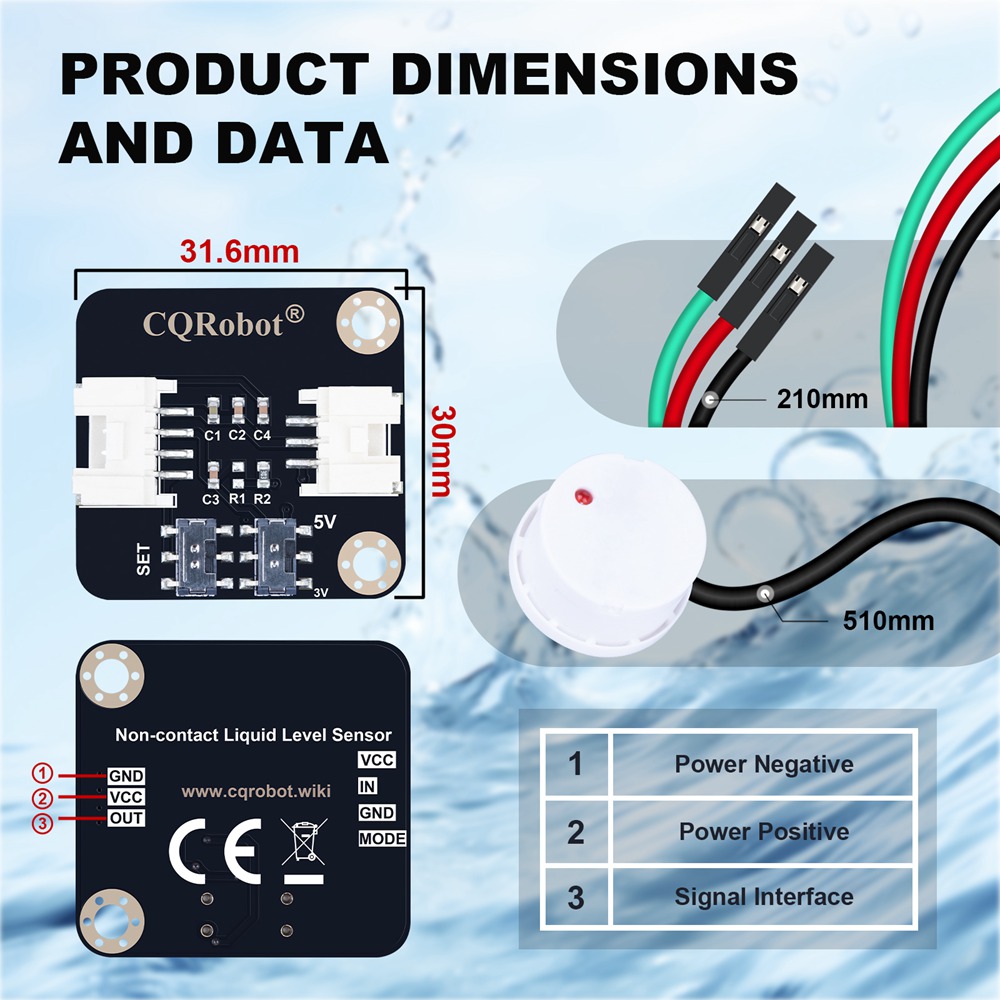

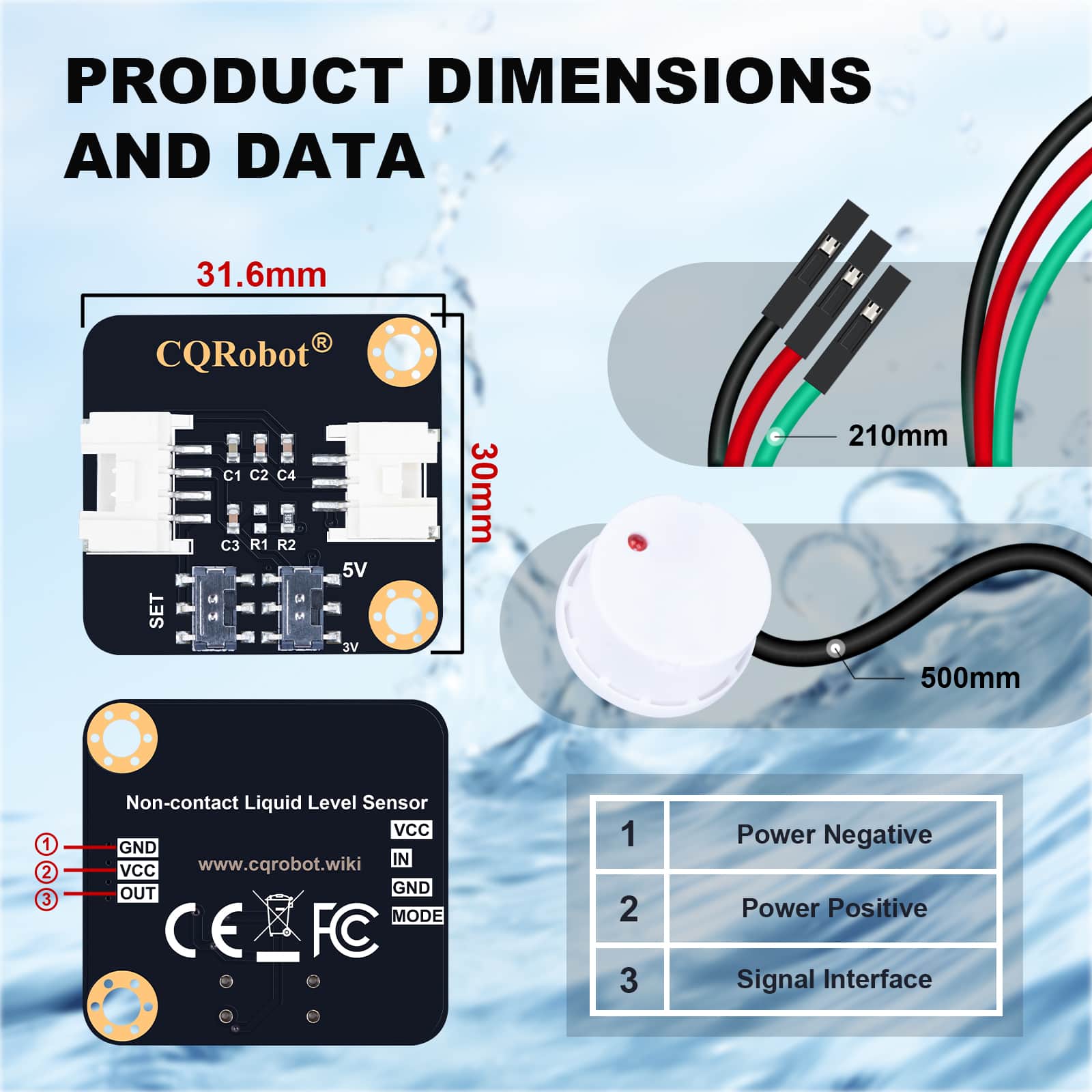

- Dimension: 31.6mm * 30mm
- Mounting hole size: 3.0mm
Interface Cable Specifications
- Cable Specifications: 22AWG
- Material: Silicone
- Length: 21cm
- Withstand Voltage: Less Than 50V
- Withstand Current: Less Than 1000MA

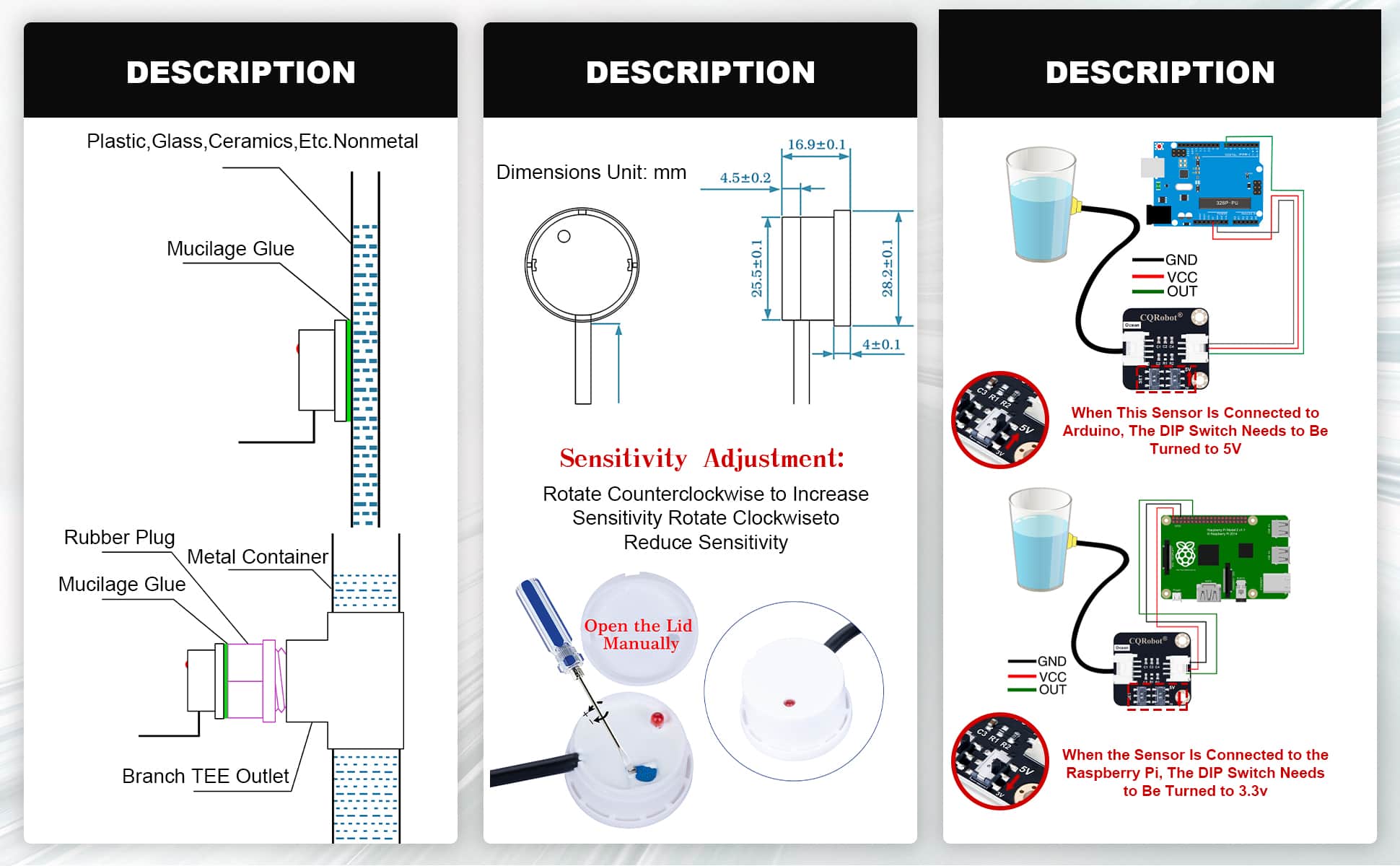

- Line Sequence: Black-Negative Power Supply, Red-Positive Power Supply, Green-Signal.
