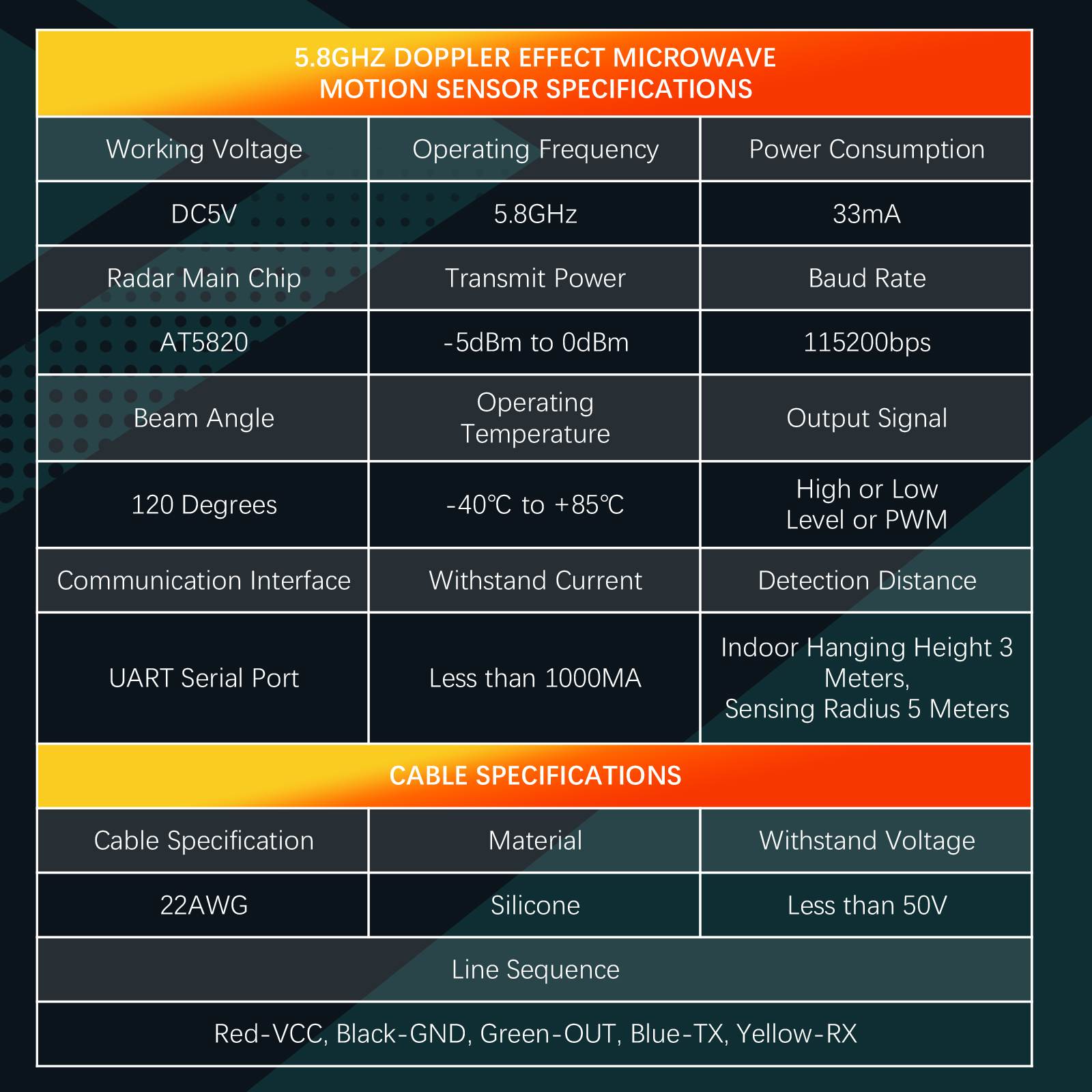

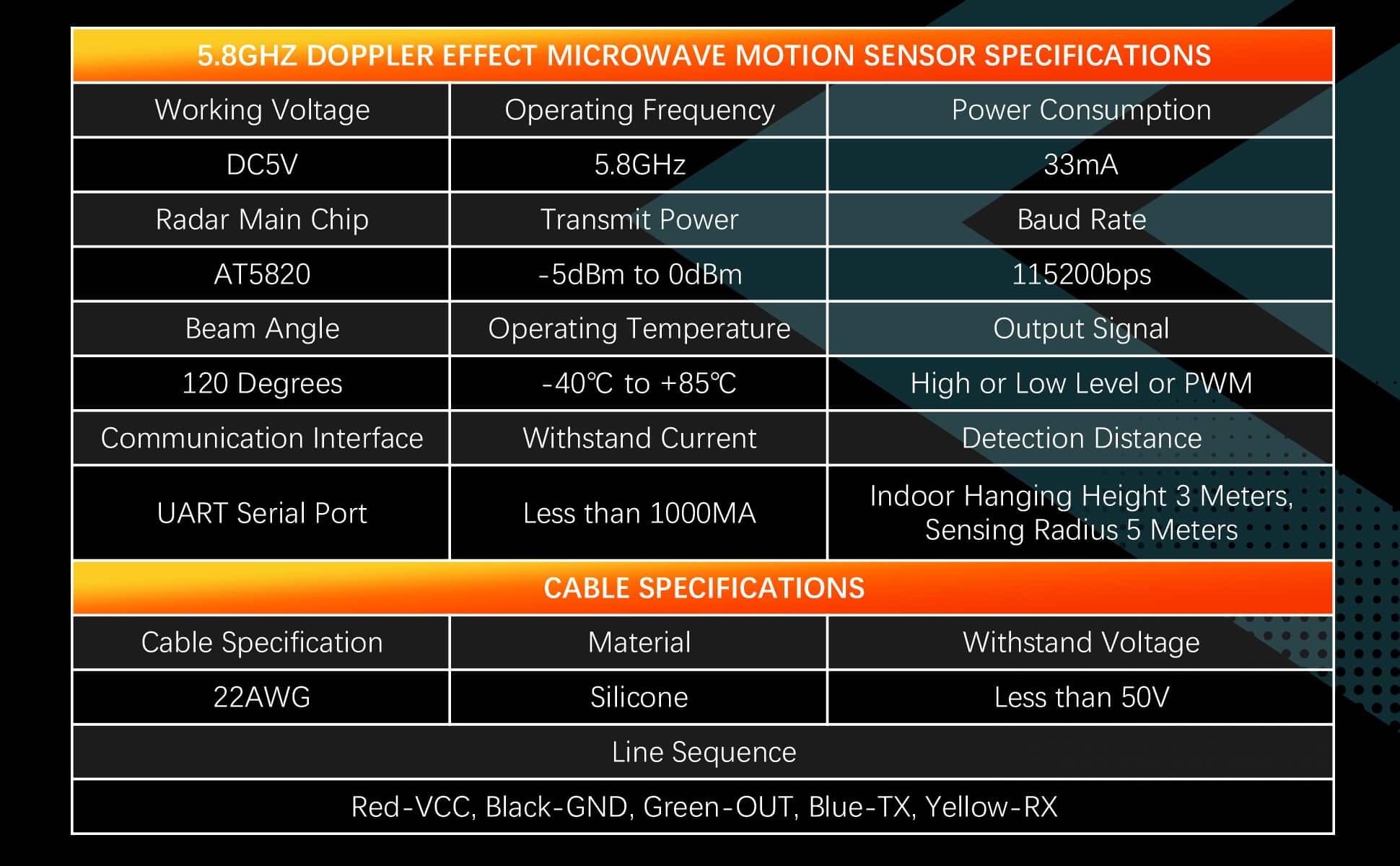

SPECIFICATION

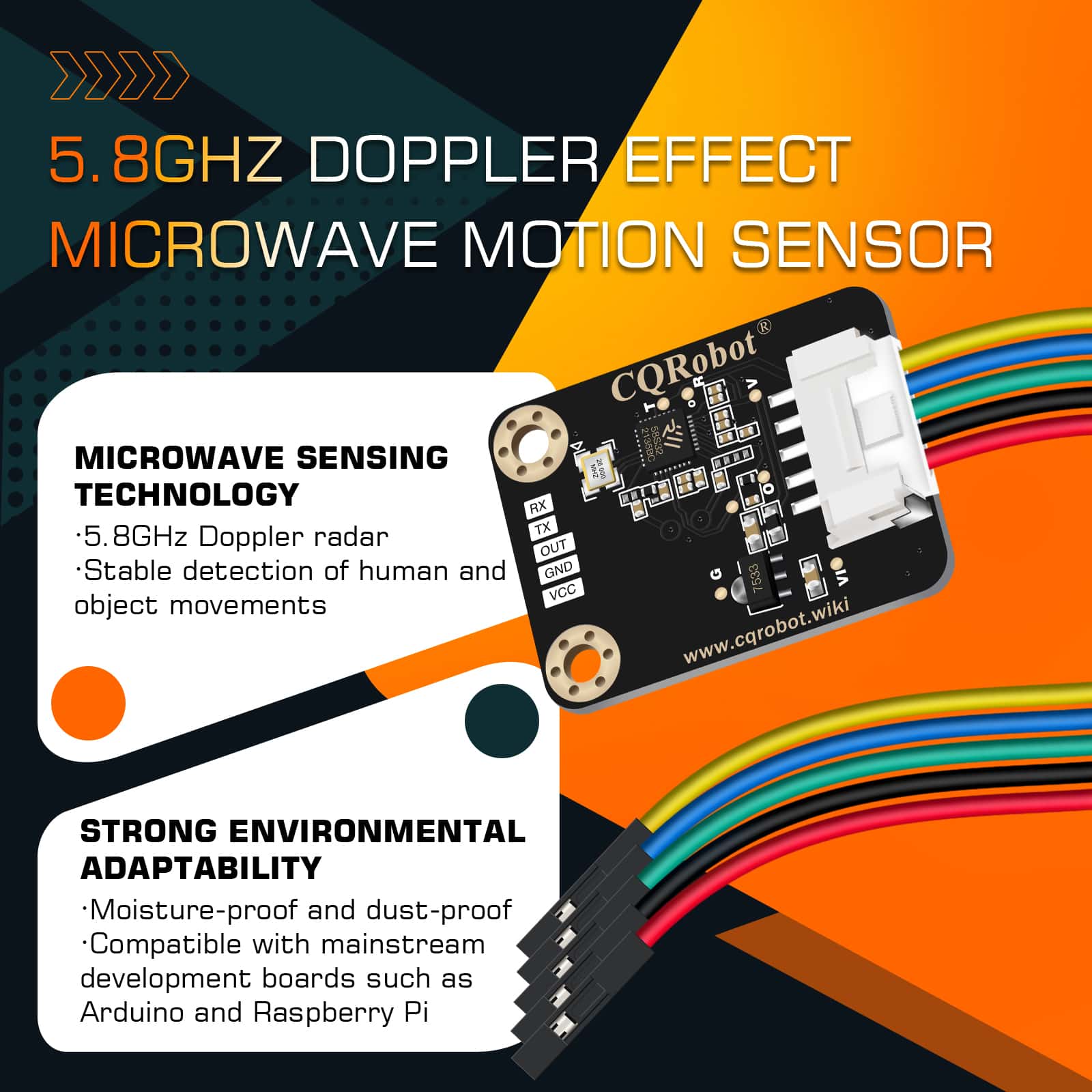

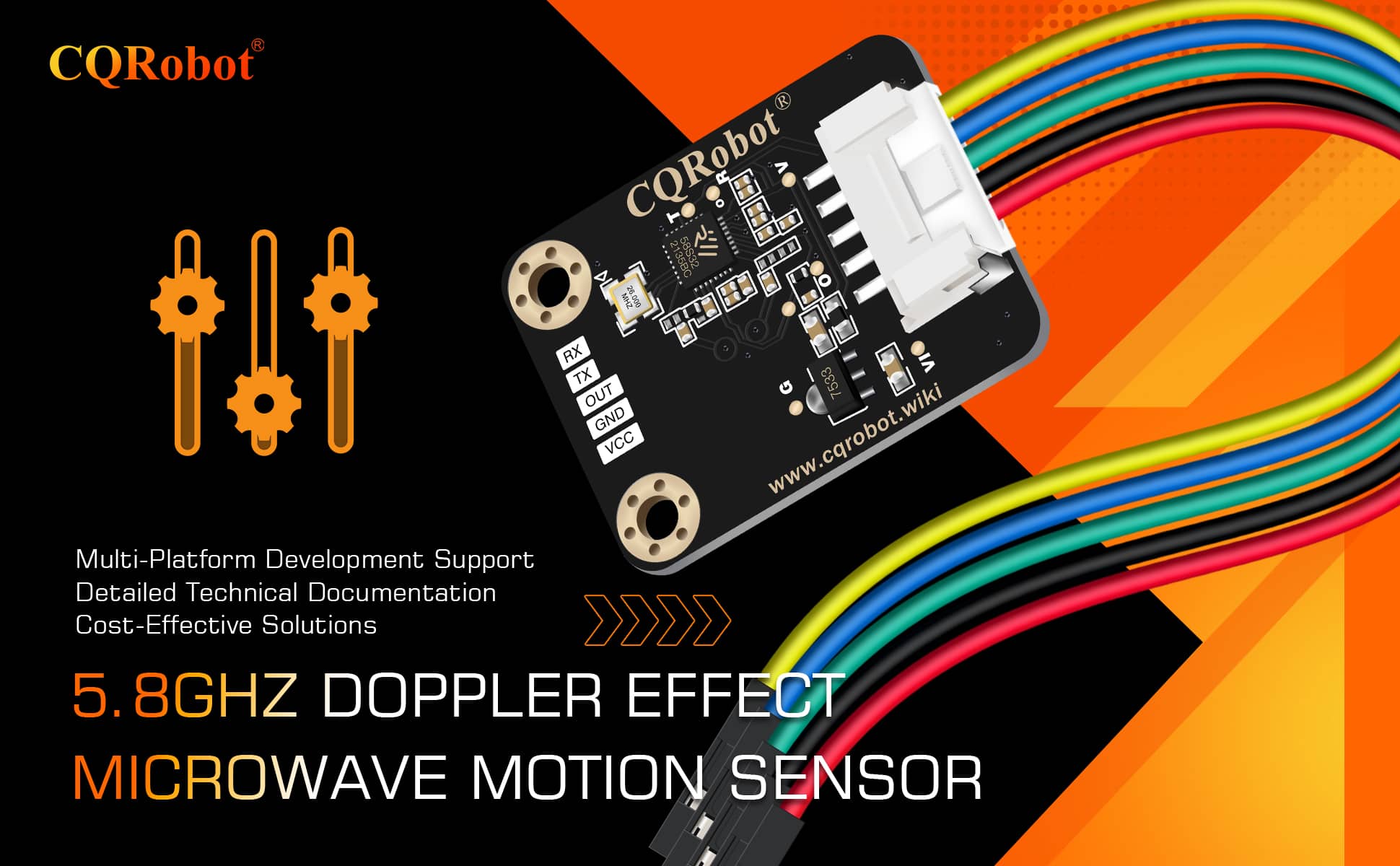

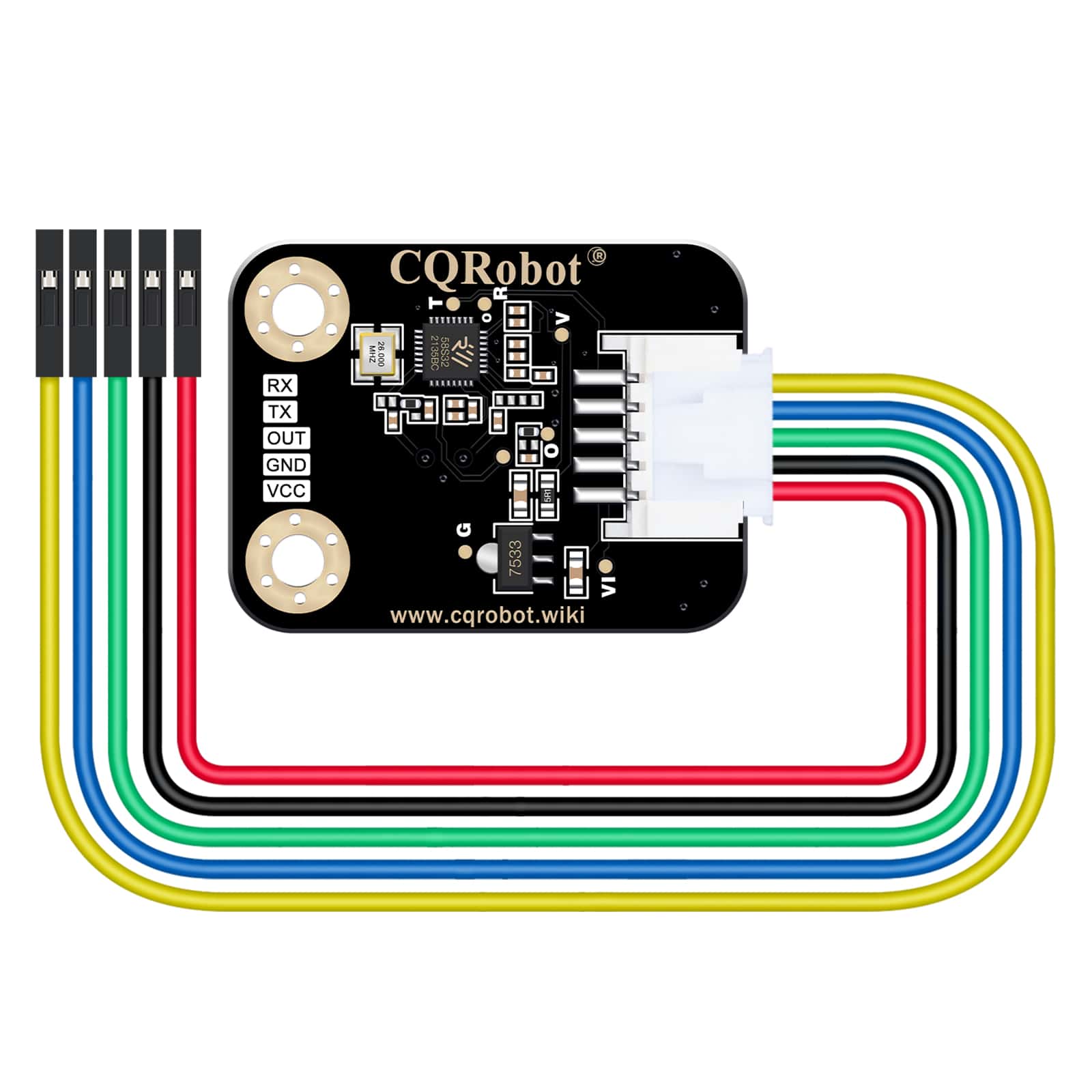

5.8GHz Doppler Effect Microwave Motion Sensor

• Working Voltage: DC5V
• Operating Frequency: 5.8GHz
• Radar Main Chip: AT5820
• Transmit Power: -5dBm to 0dBm
• Power Consumption: 33mA
• Baud Rate: 115200bps
• Beam Angle: 120 Degrees
• Operating Temperature: -40 Degree Celsius to +85 Degree Celsius
• Output Signal: High and Low Level or PWM
• Communication Interface: UART Serial Port
• Detection Distance: Indoor Hanging Height 3 Meters, Sensing Radius 5 Meters

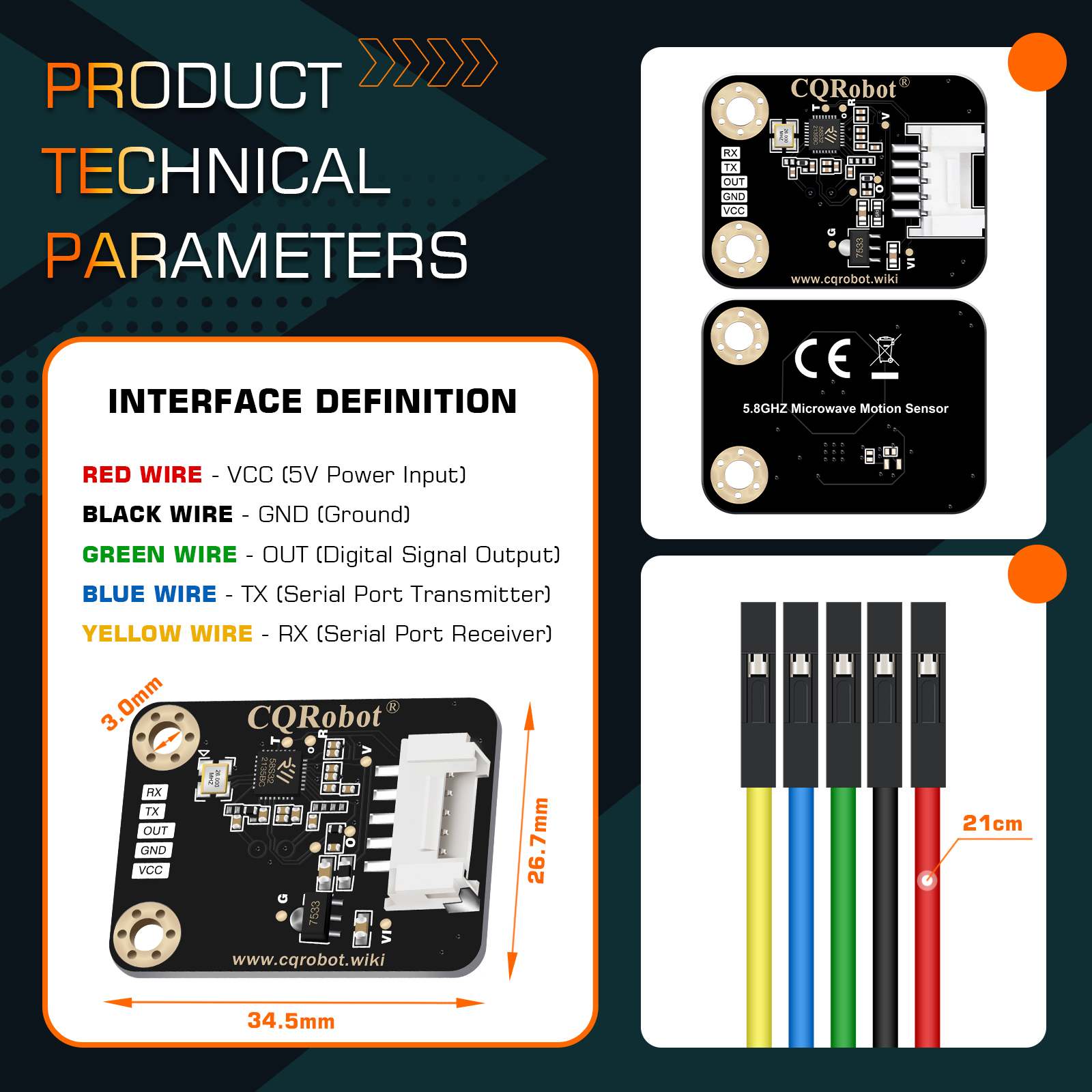

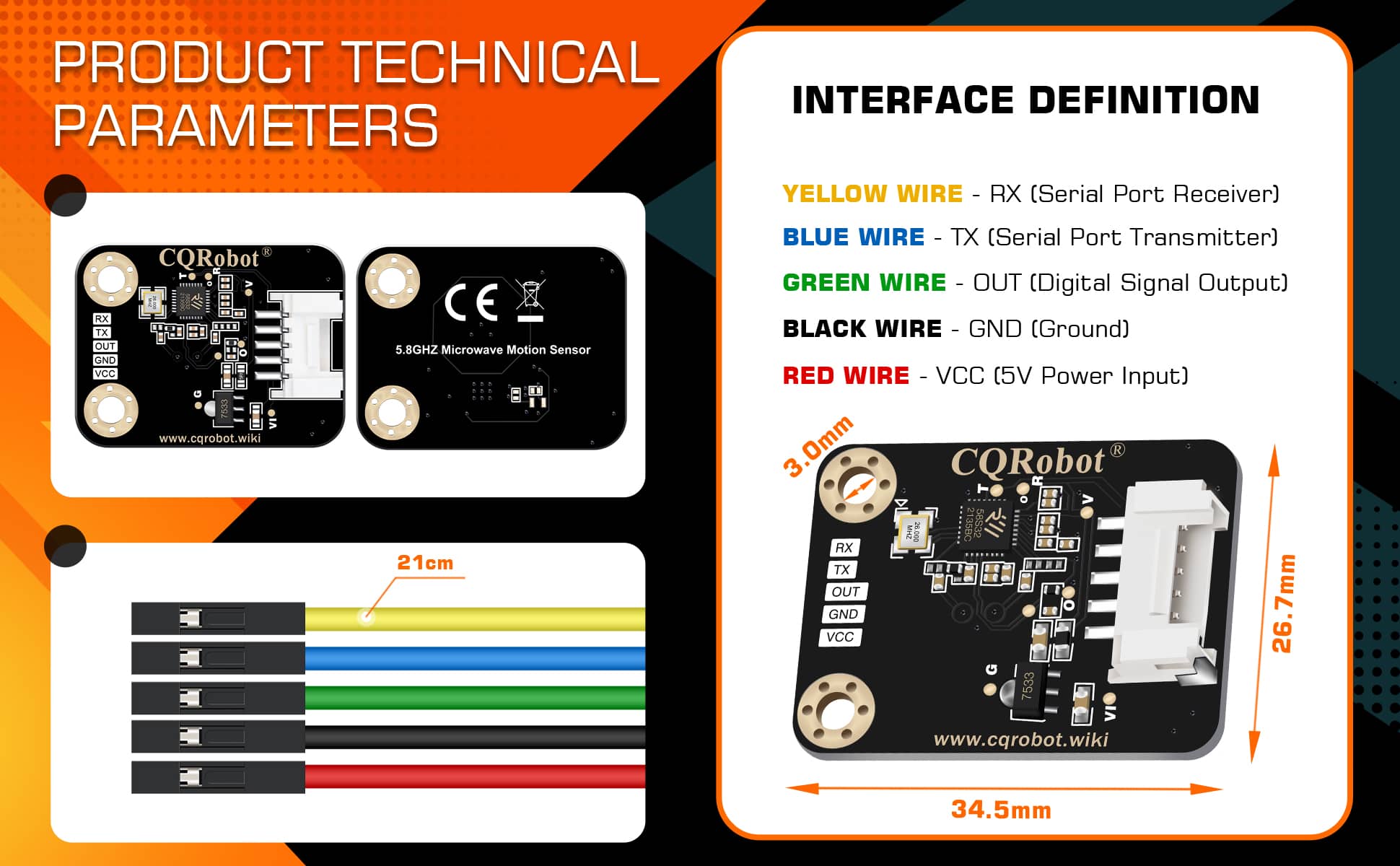

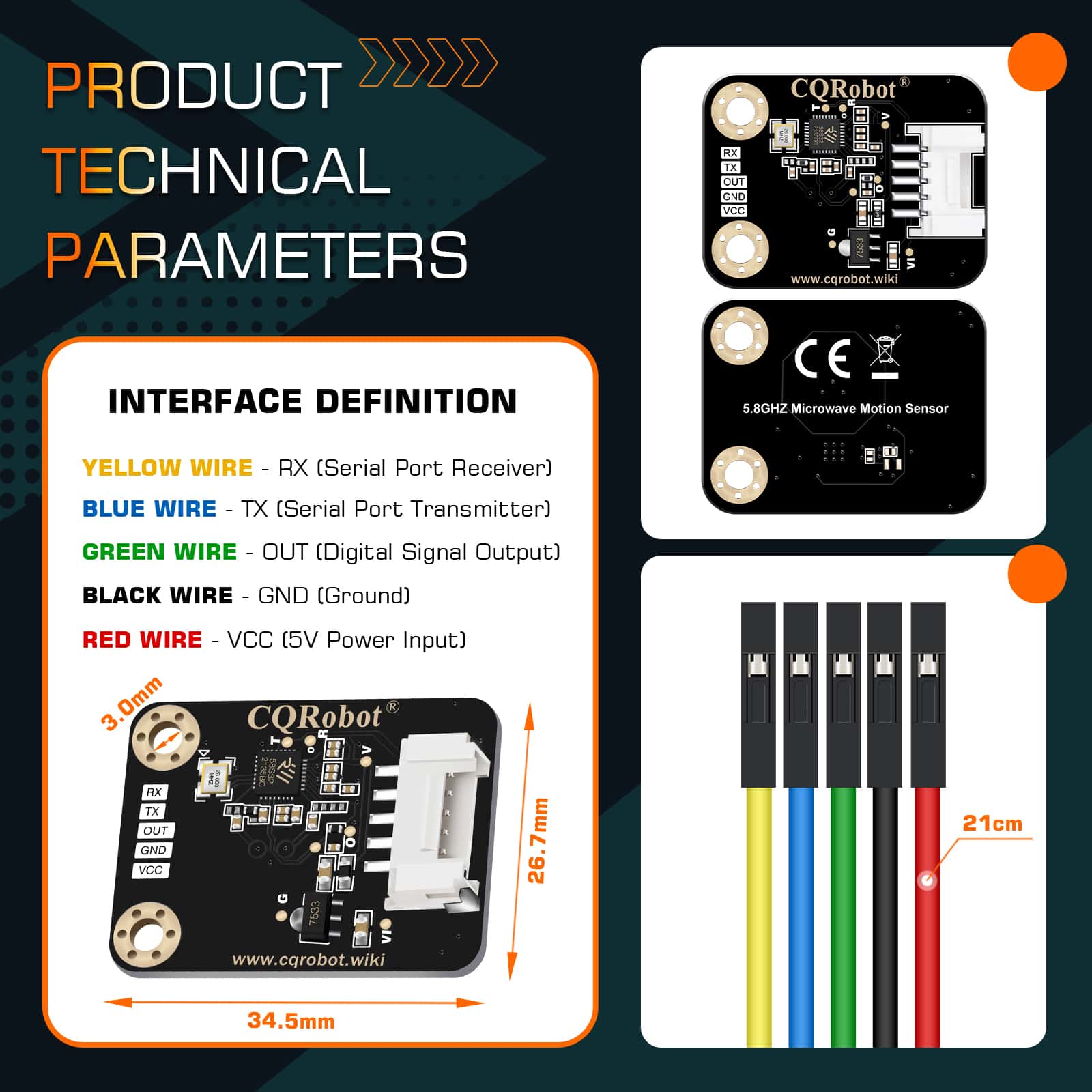

• Dimension: 34.5mm * 26.7mm
• Mounting hole size: 3.0mm

Interface Wire Specifications

• Cable Specifications: 22AWG
• Material: Silicone
• Withstand Voltage: Less Than 50V
• Withstand Current: Less Than 1000MA
• Length: 21cm

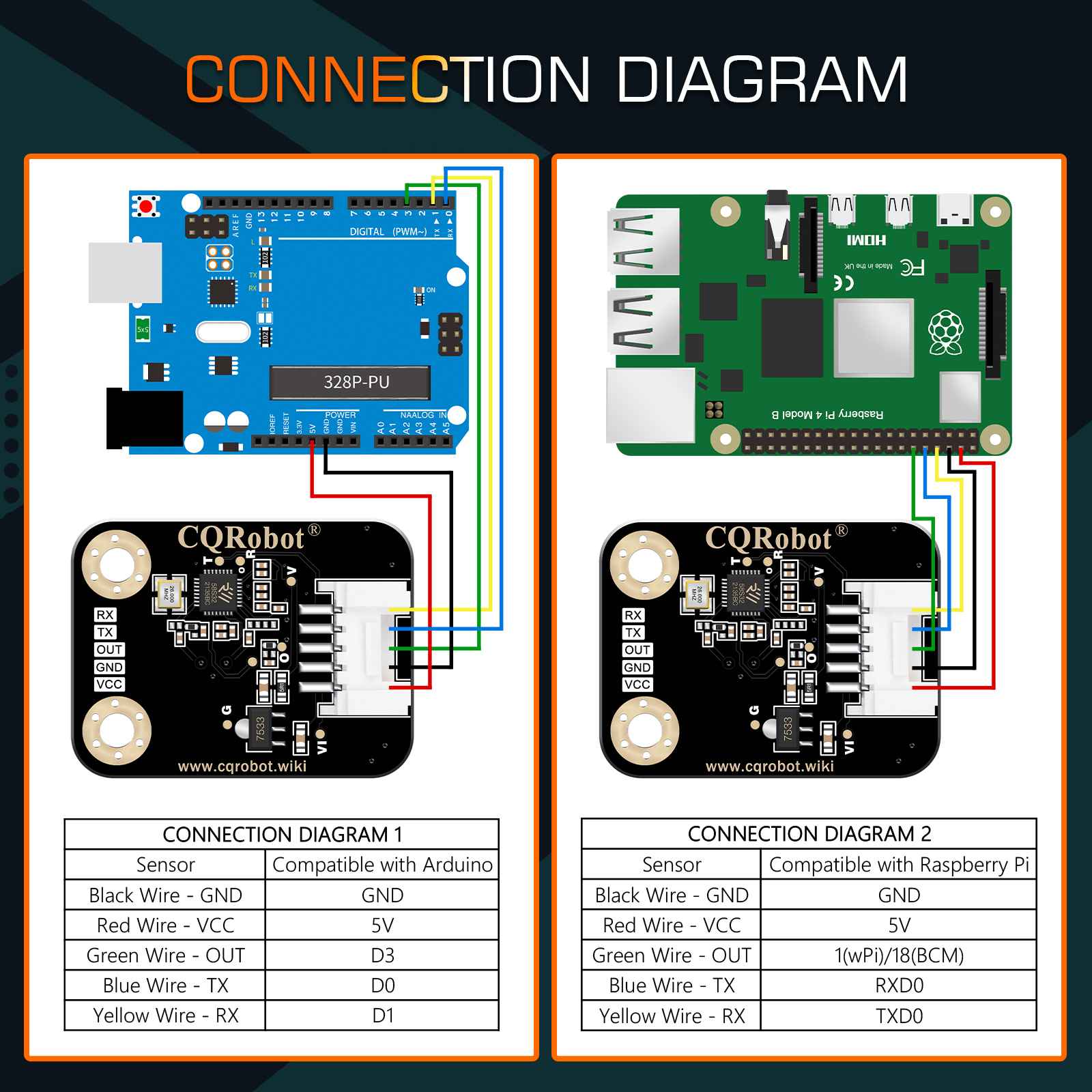

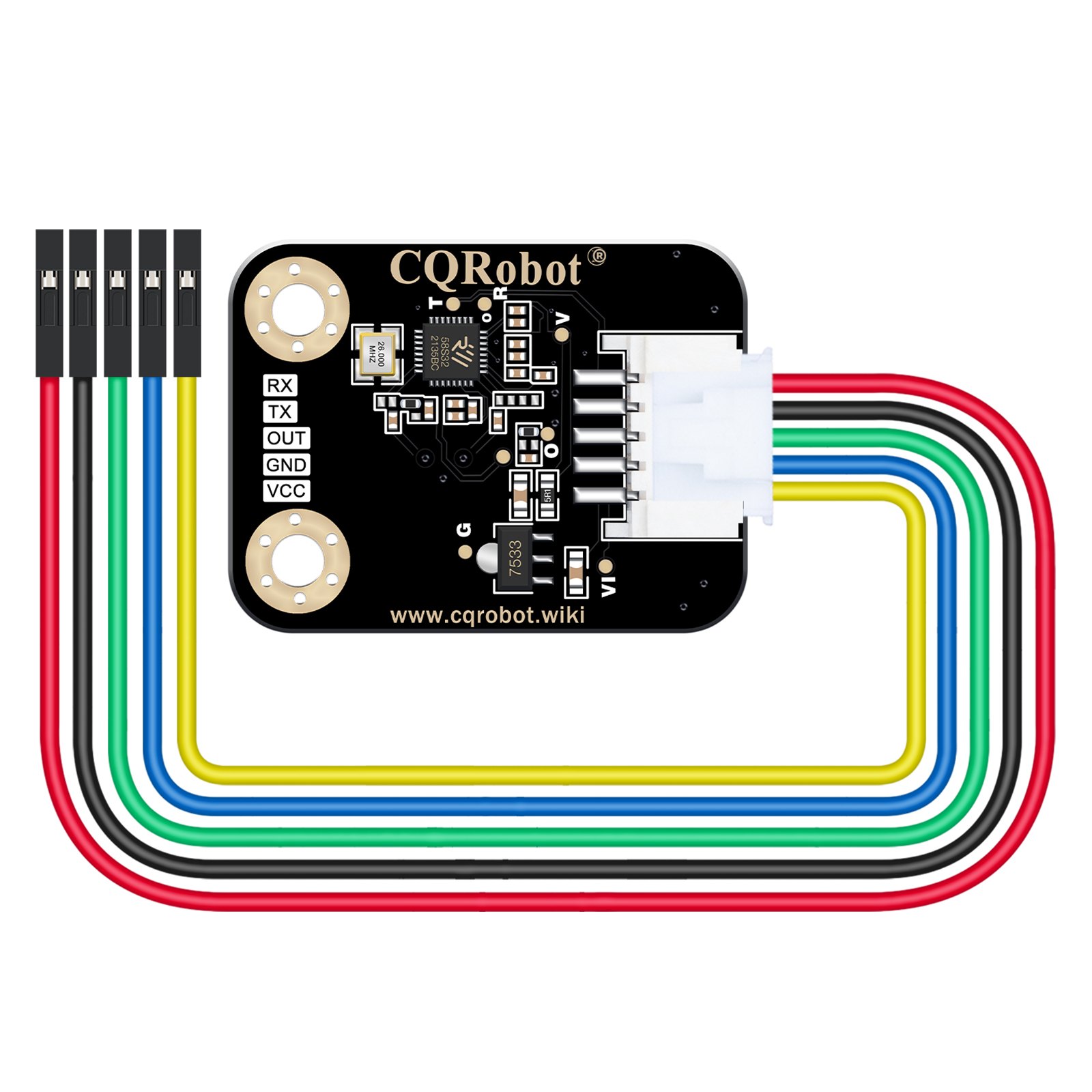

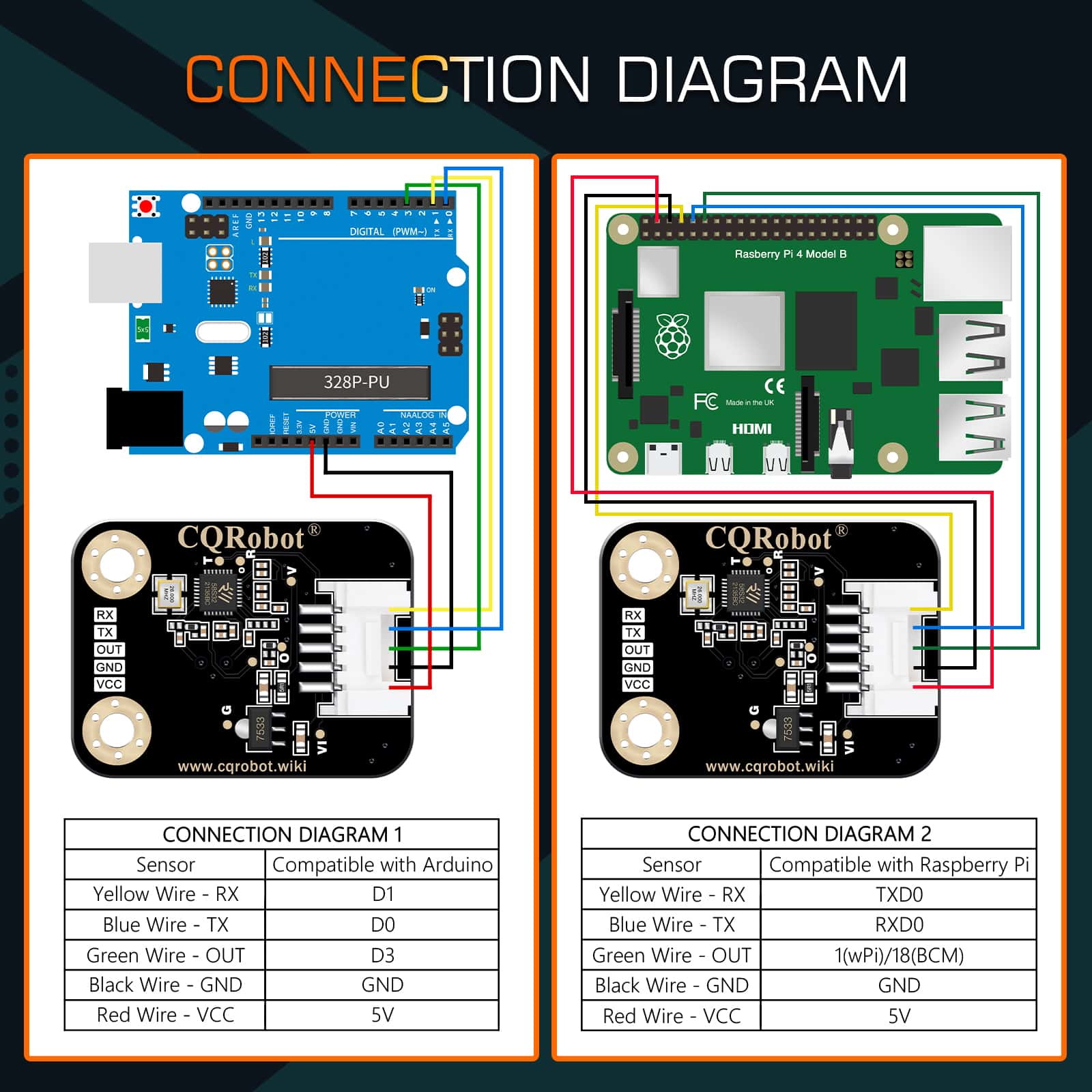

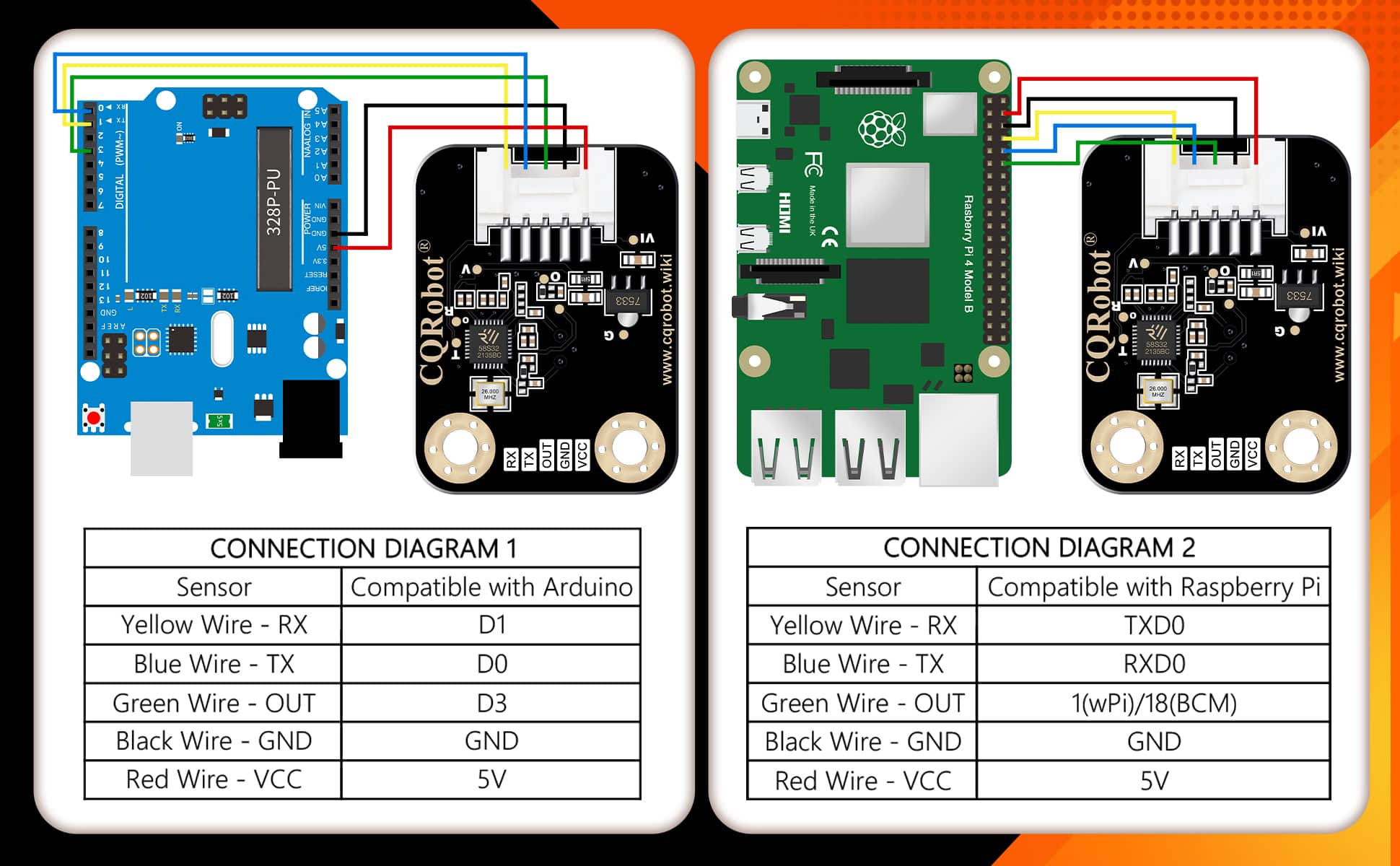

• Line Sequence: Red-VCC, Black-GND, Green-OUT, Blue-TX, Yellow-RX.
