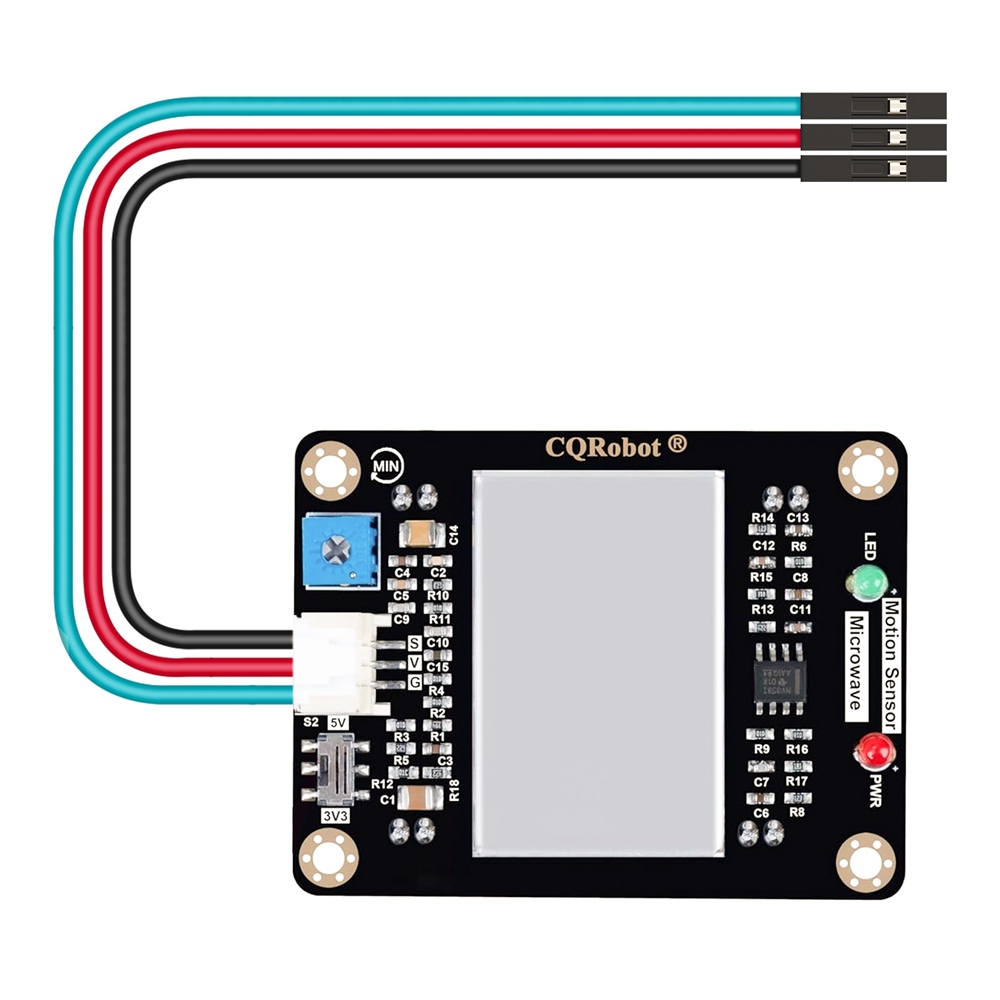

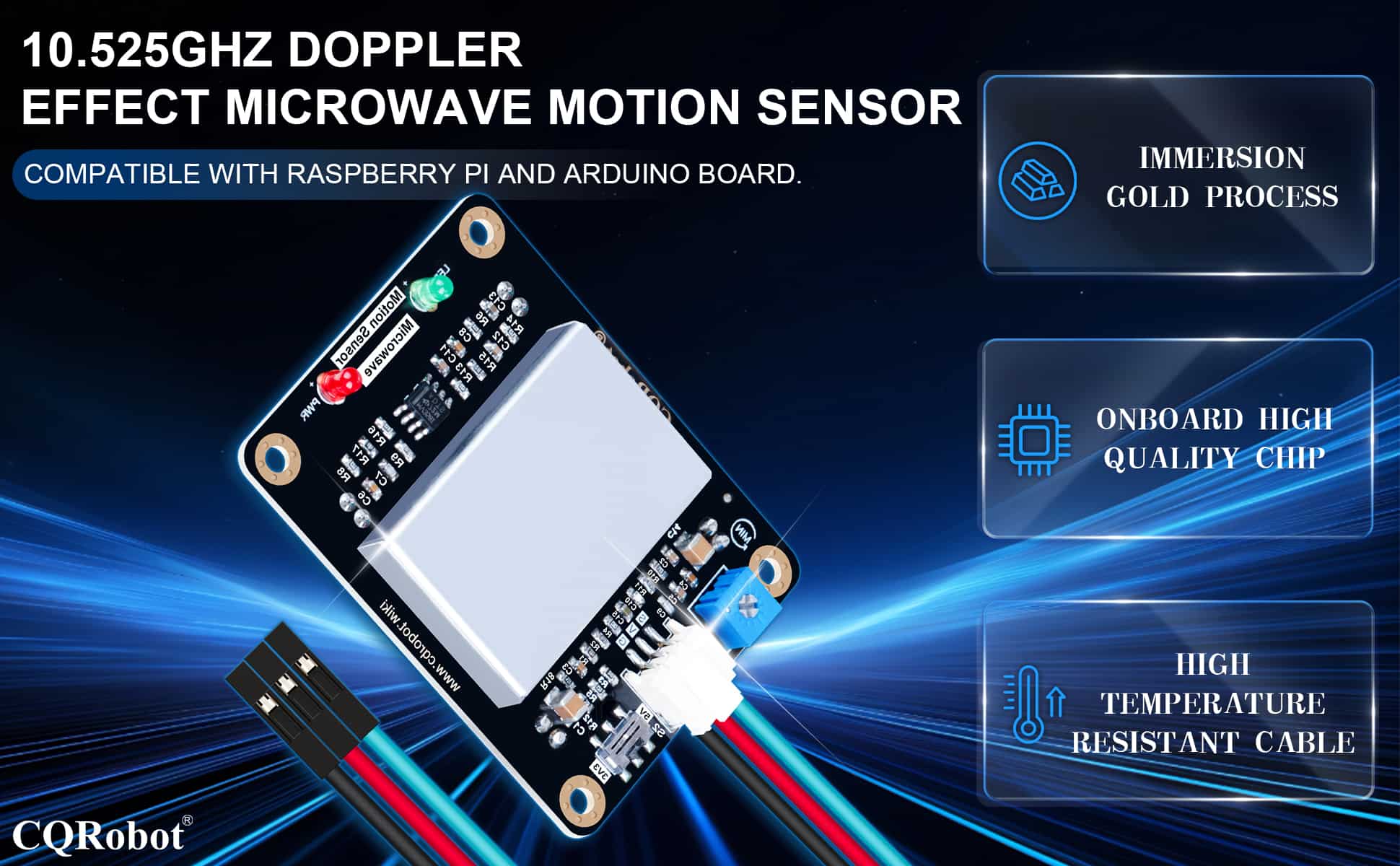

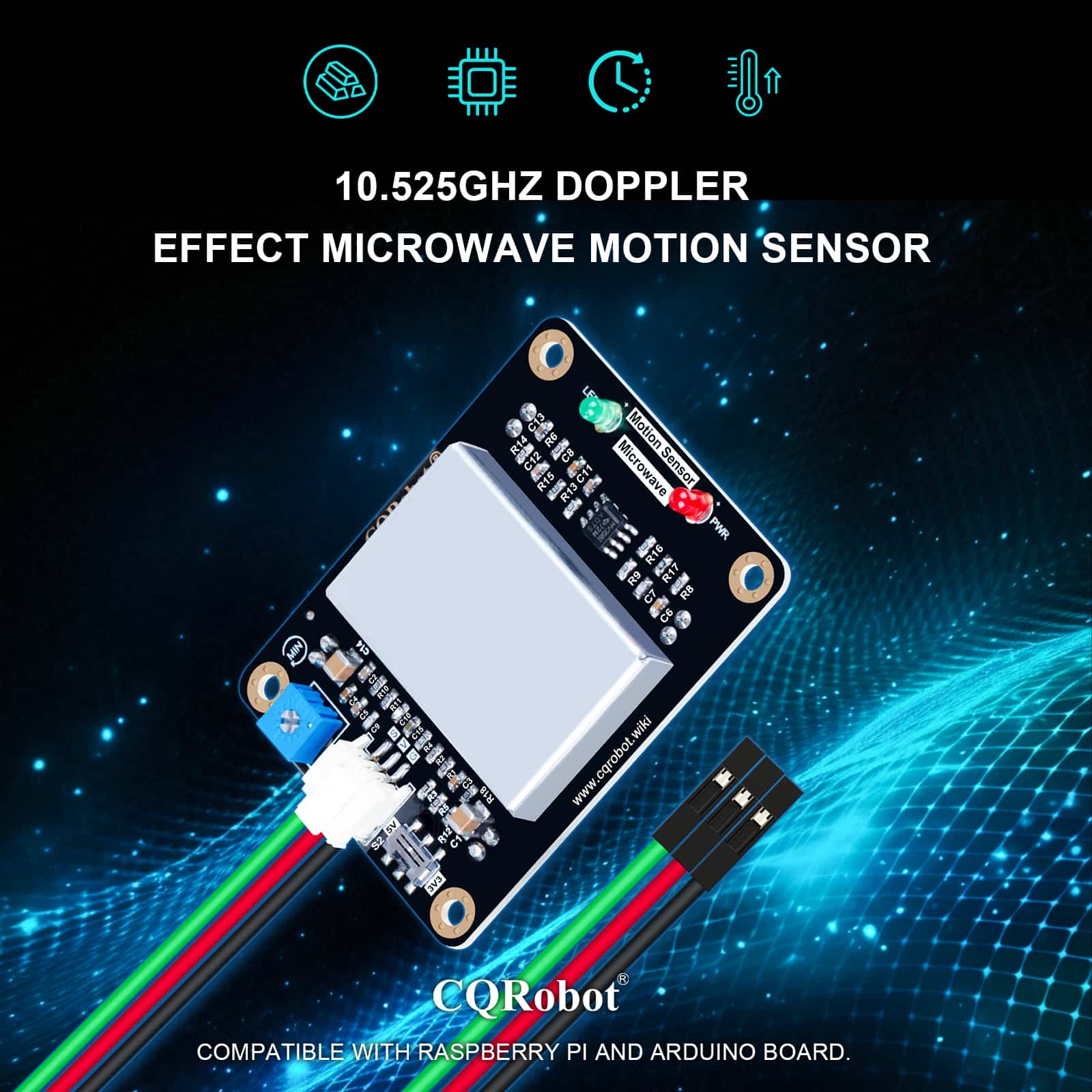

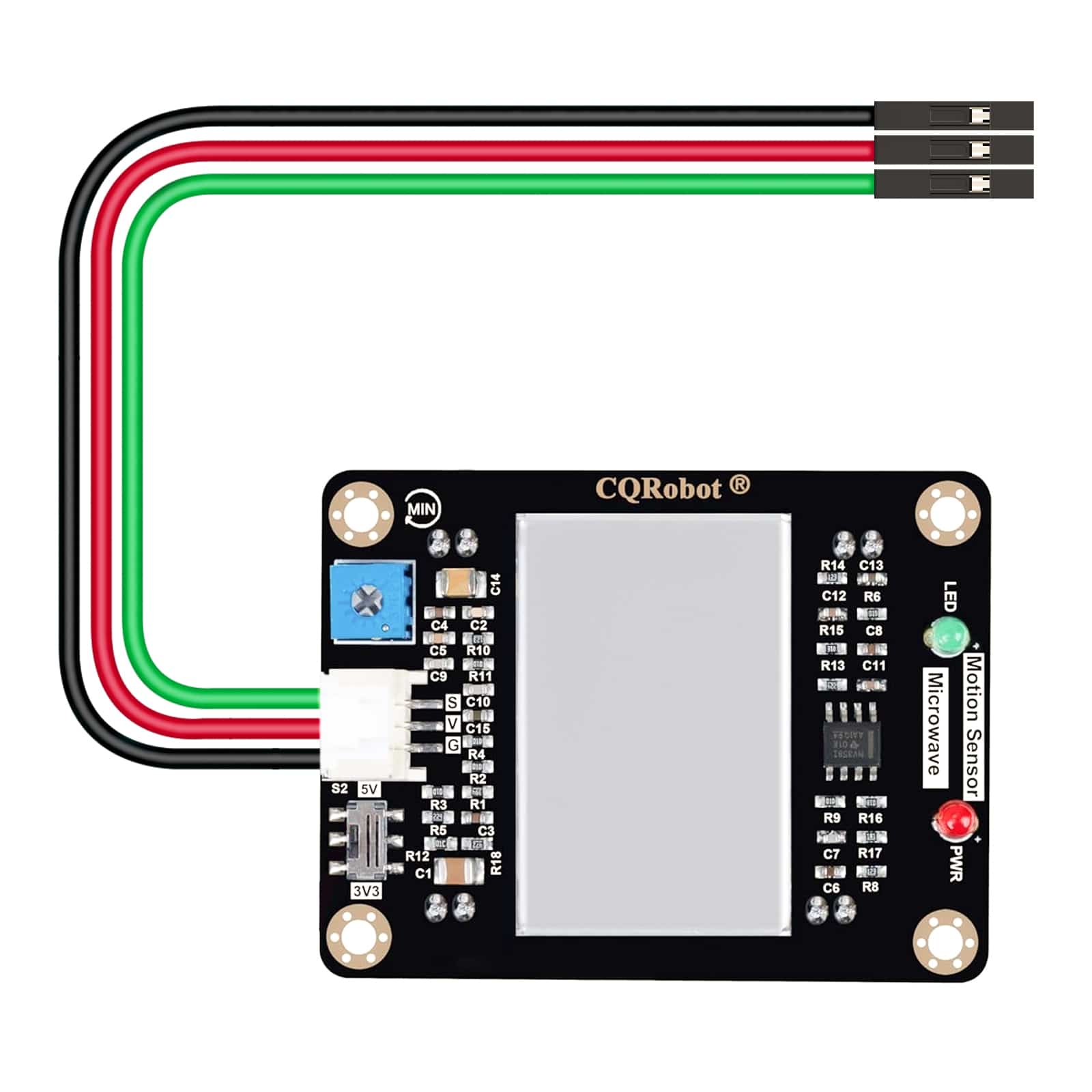

10.525GHz Doppler Effect Microwave Motion Sensor for Arduino and Raspberry Pi
$
11
.99
10+
$
11
.39
Save 5%
50+
$
10
.91
Save 9%
100+
$
10
.55
Save 12%
200+
$
10
.19
Save 15%
500+
$
9
.59
Save 20%
Product details
SPECIFICATION
- Working Pressure : 3.3V/5V Plus/Minus 0.25V
- Working Current (CW): 60mA max., 37mA typical

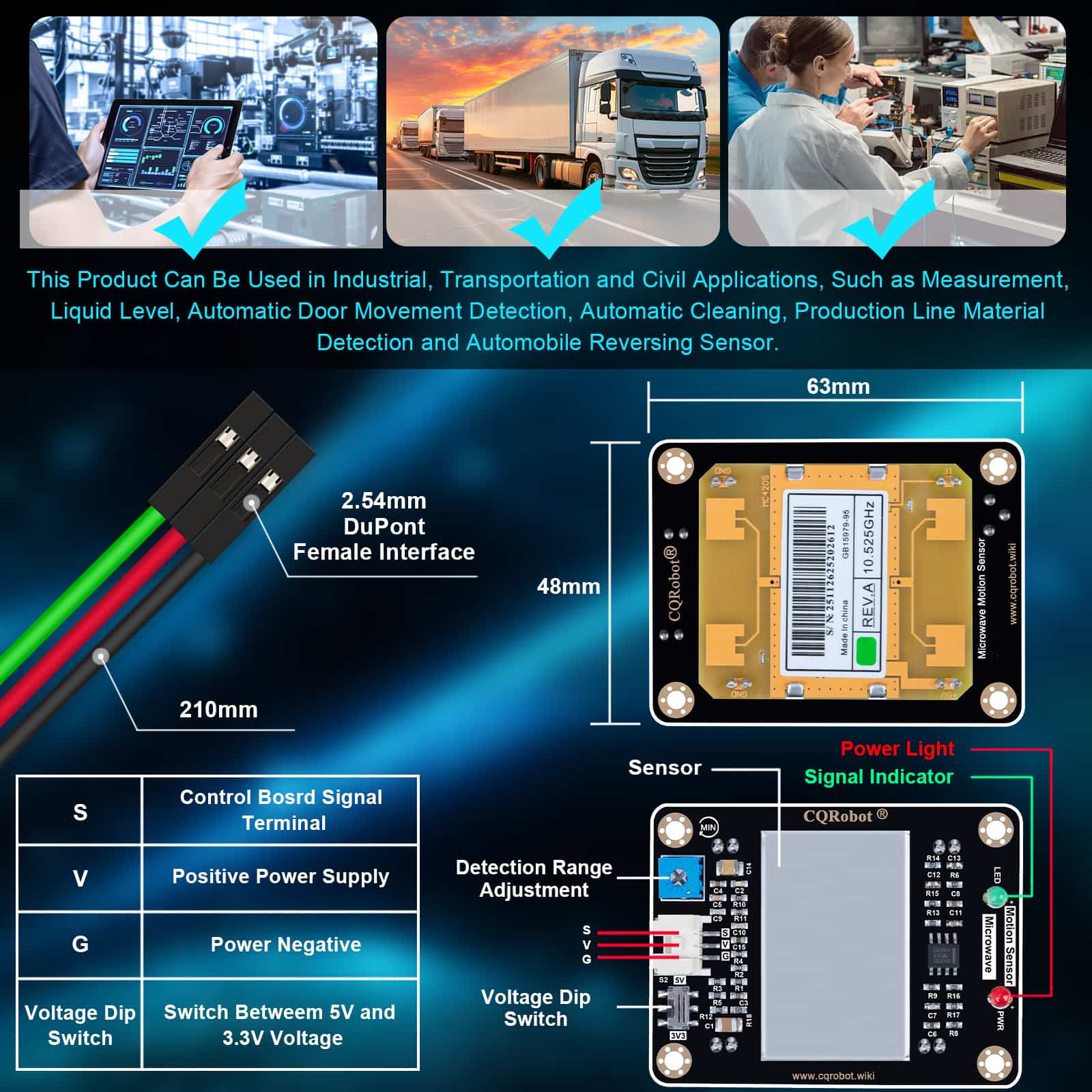

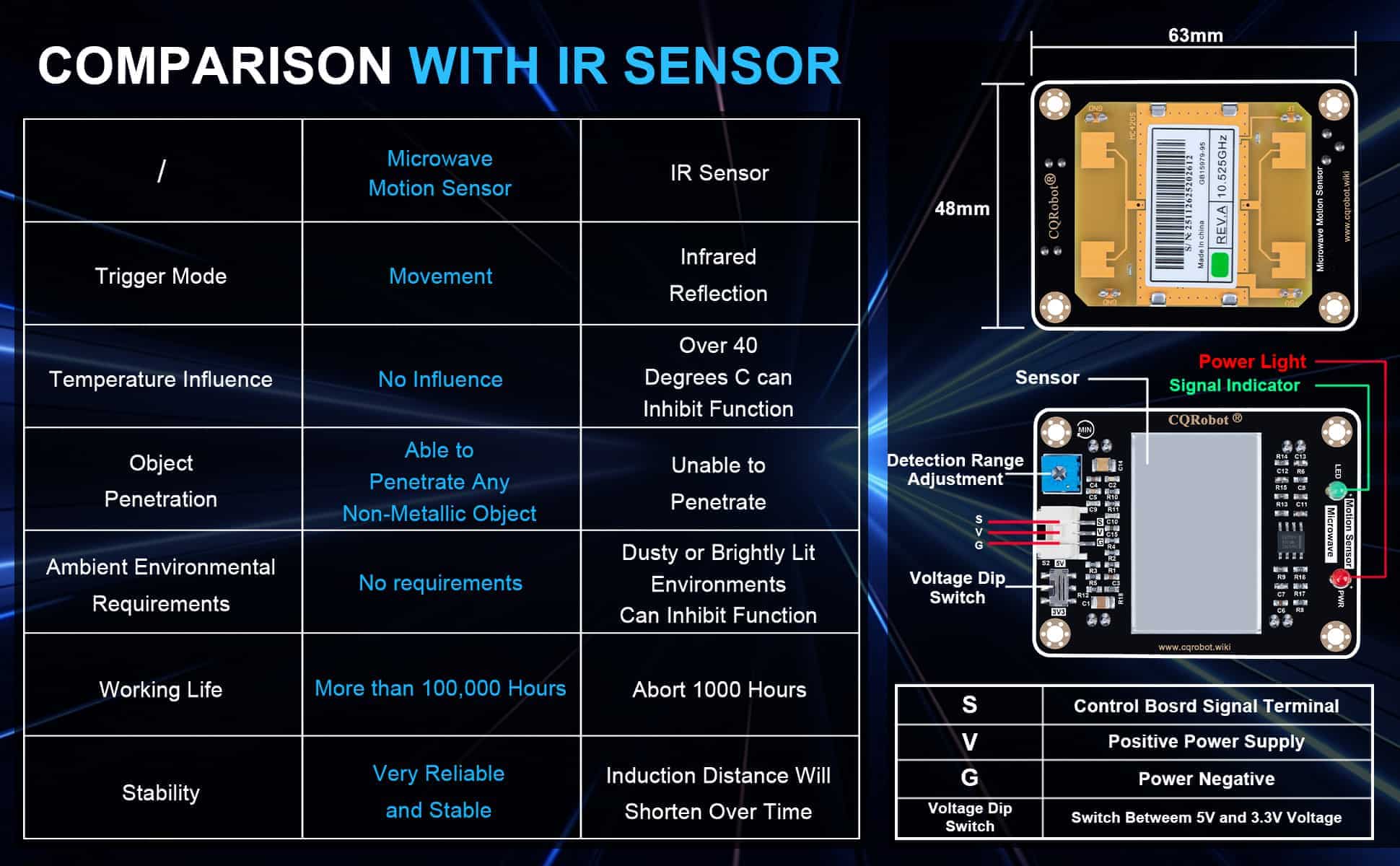

- Dimension: 63mm * 48mm
- Mounting hole size: 3.0mm
- Emission Parameter

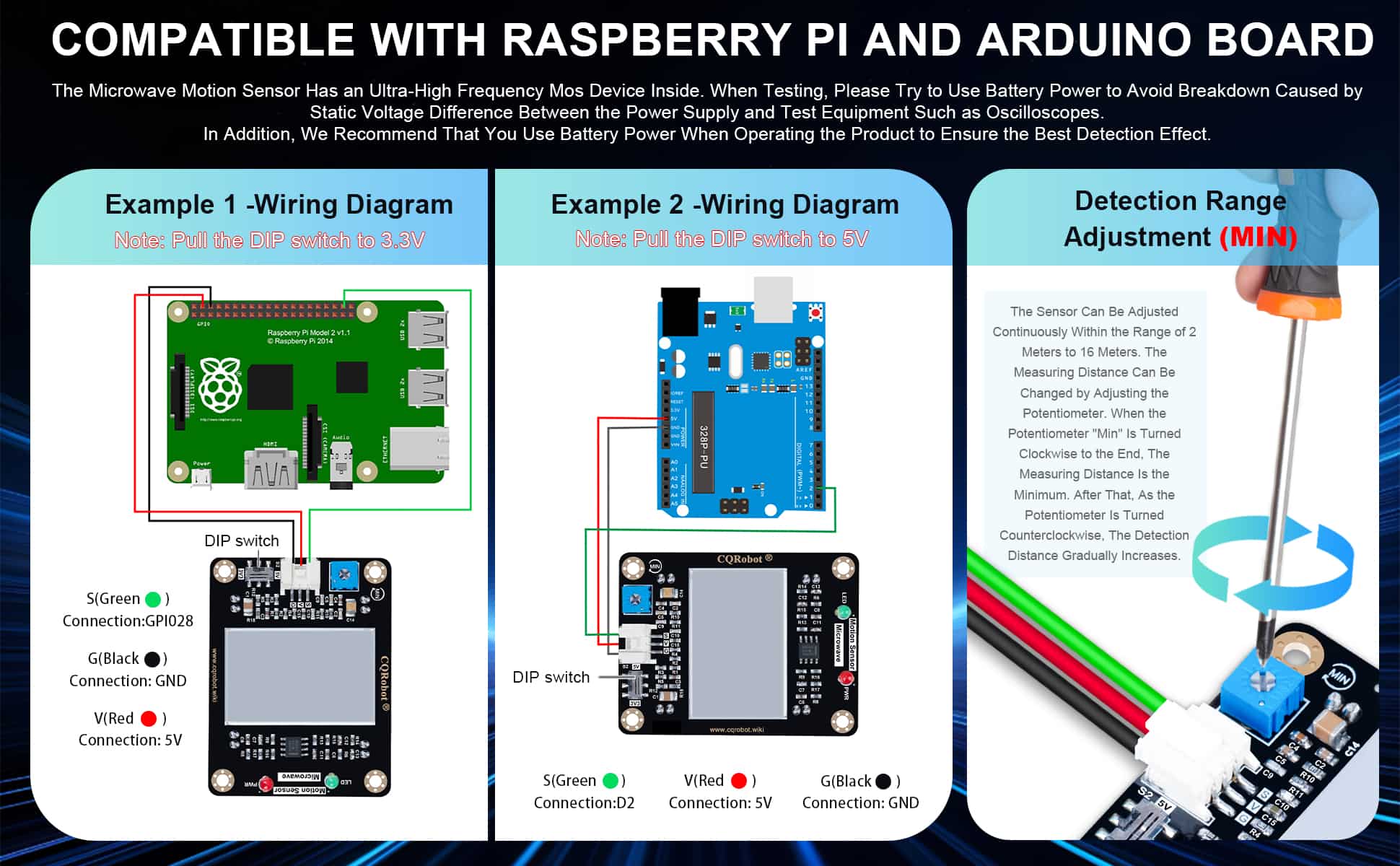

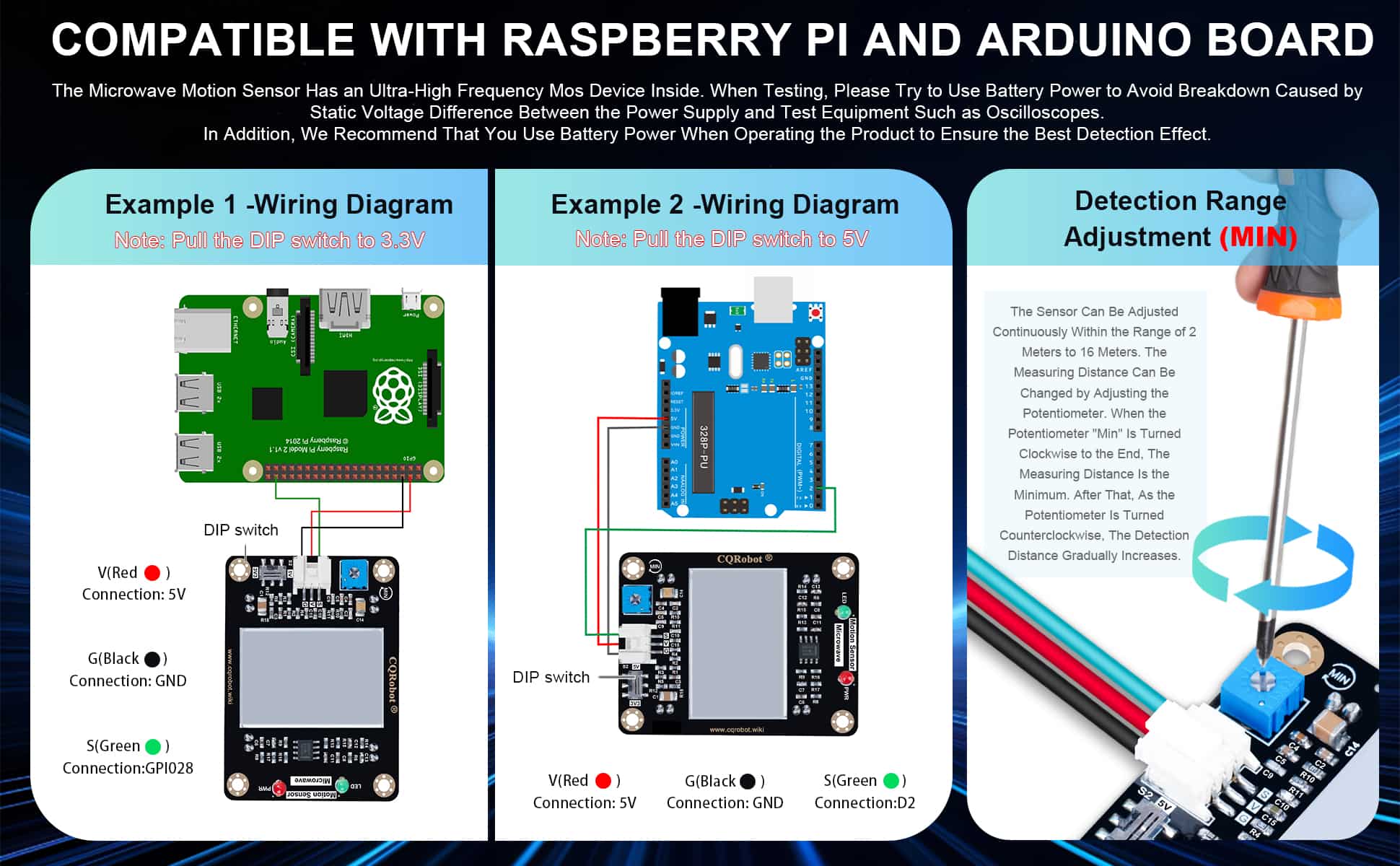

- Detection Range: 2 meters to 16 meters continuously adjustable (min: 2 meters, max: 16 meters)
- Emission Frequency: 10.525 GHz
- Frequency Accuracy: 3MHz
- Output Rate (Min): 13dBm EIRP
- Harmonic Emission: Less Than -10dBm
- Average Current (5% DC): 2mA typ.
- Pulse Width (Min): 5uSec
- Load Cycle (Min): 1%
- Receiver Parameter
- Sensitivity(10dB S/N ratio) 3Hz-80Hz Broadband: -86dBm; 3Hz-80Hz Bandwidth Clutter: 10uV.
- Antenna Gain: 8dBi

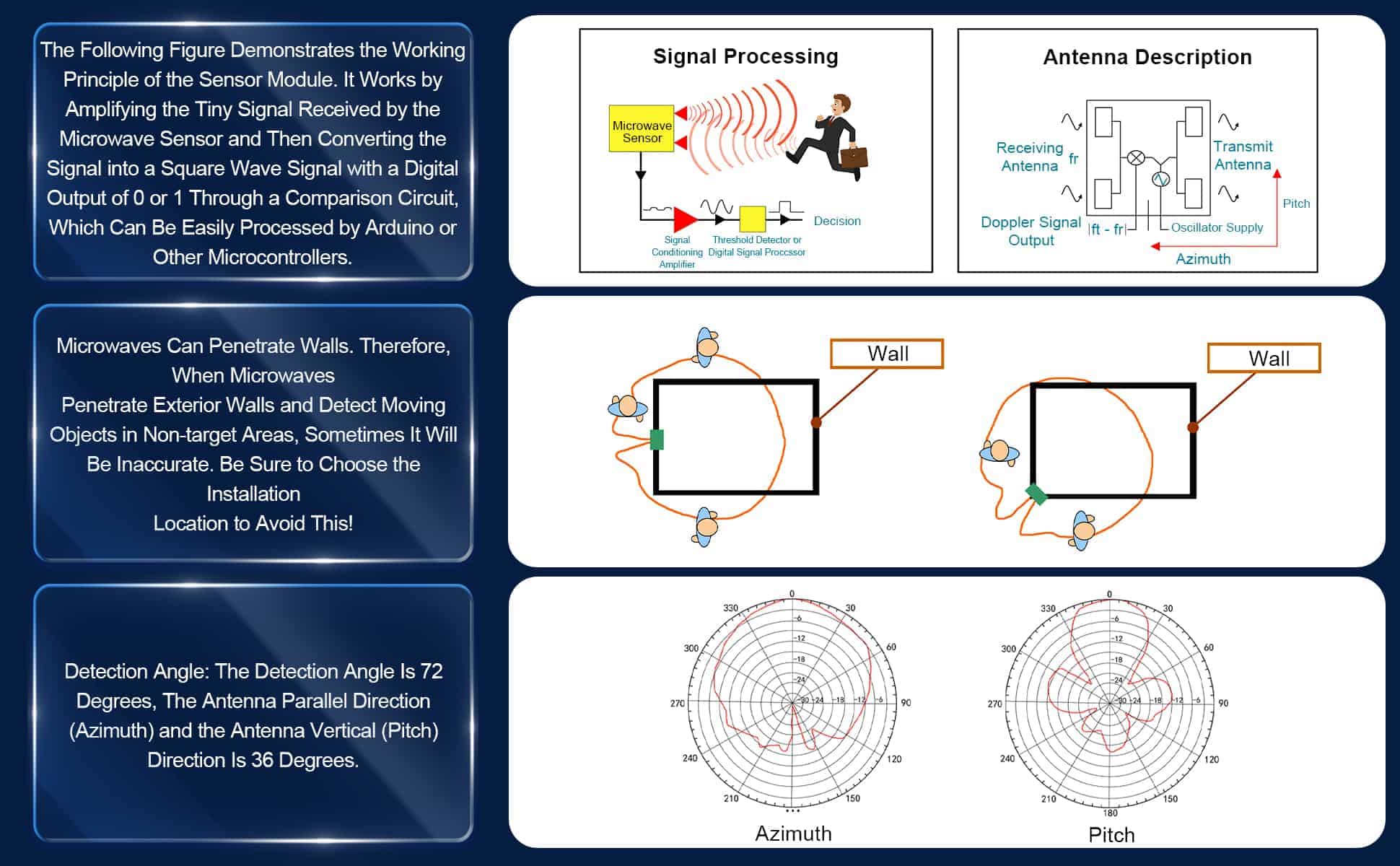

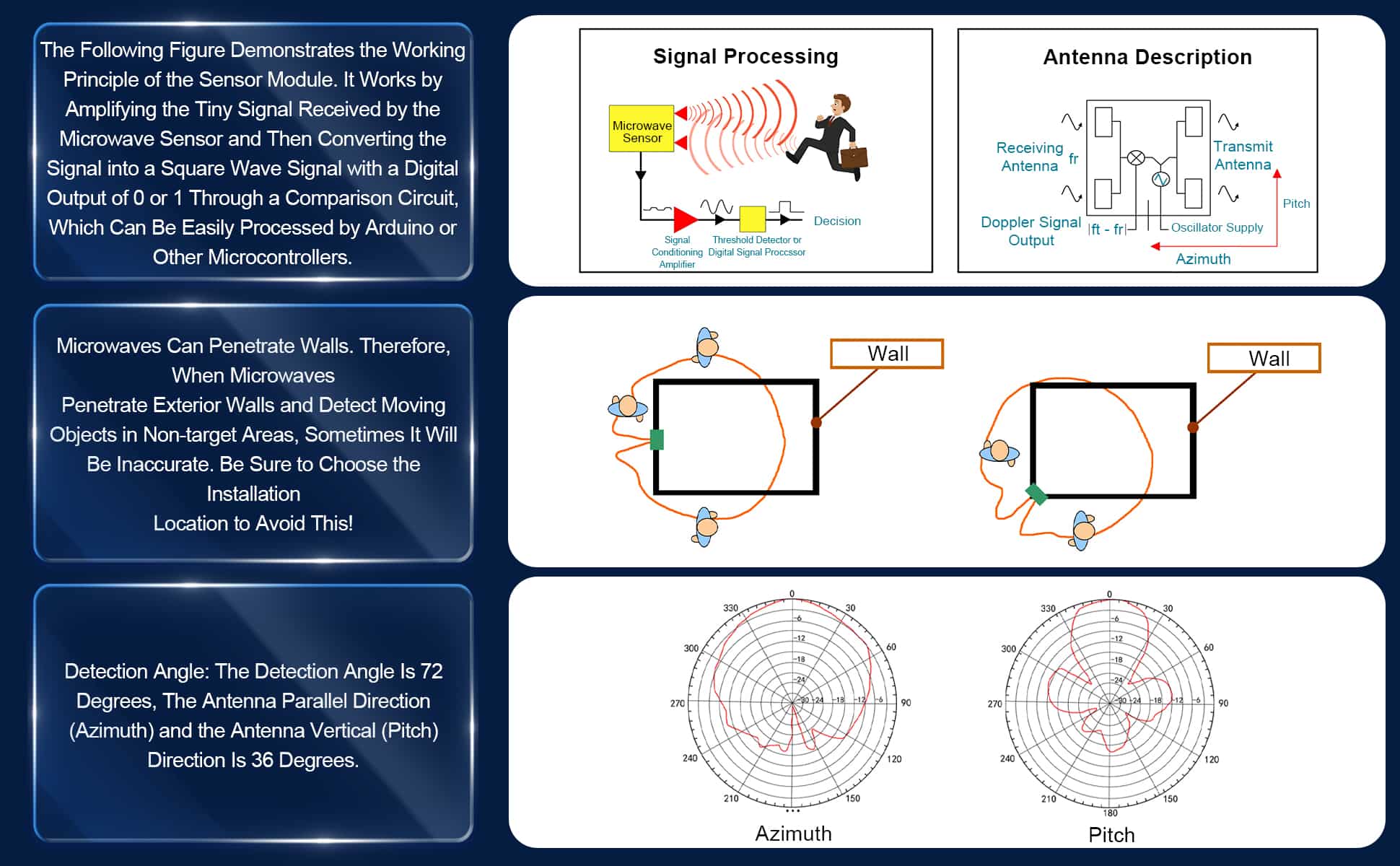

- Vertical Level: 3dB Beam-width: 36 degrees
- Horizontal Level: 3dB Beam-width: 72 degrees
- Wire Specifications
- Cable Specifications: 22AWG
- Material: Silicone
- Withstand Voltage: Less Than 50V
- Withstand Current: Less Than 1000MA
- Length: 21cm

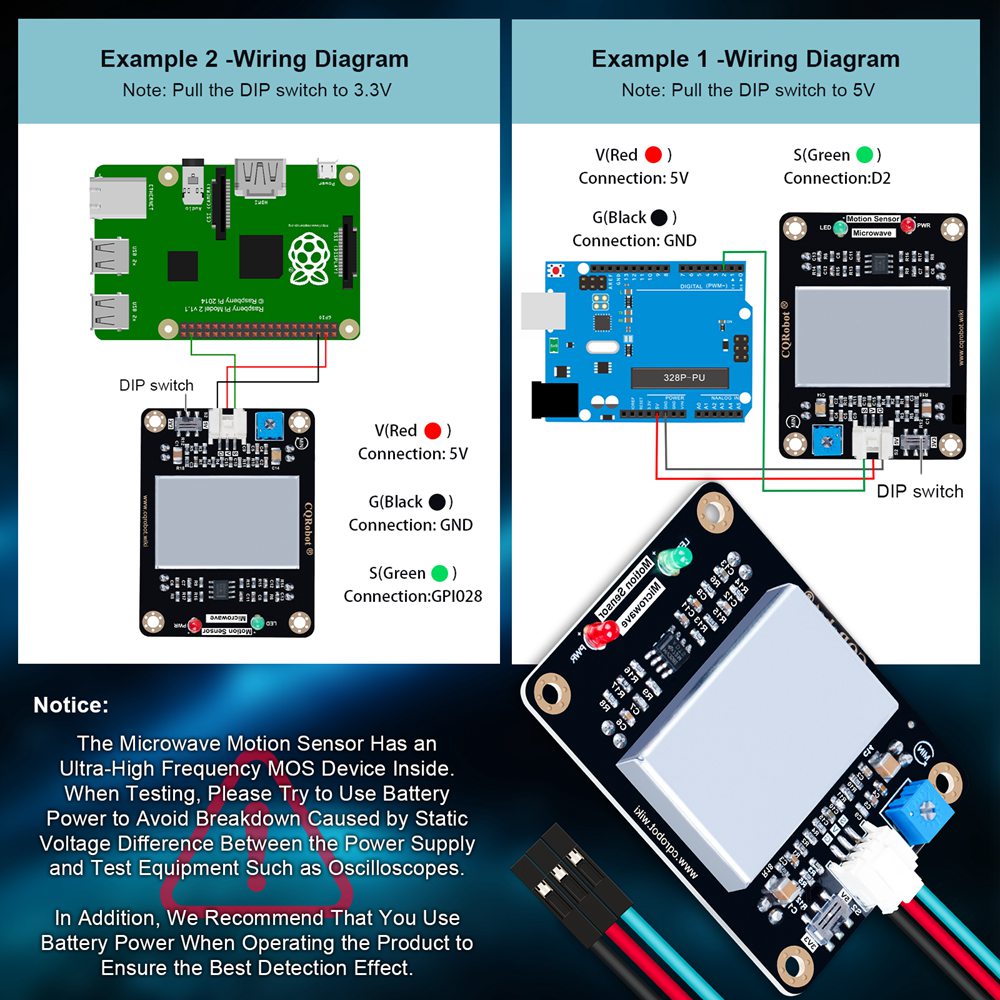

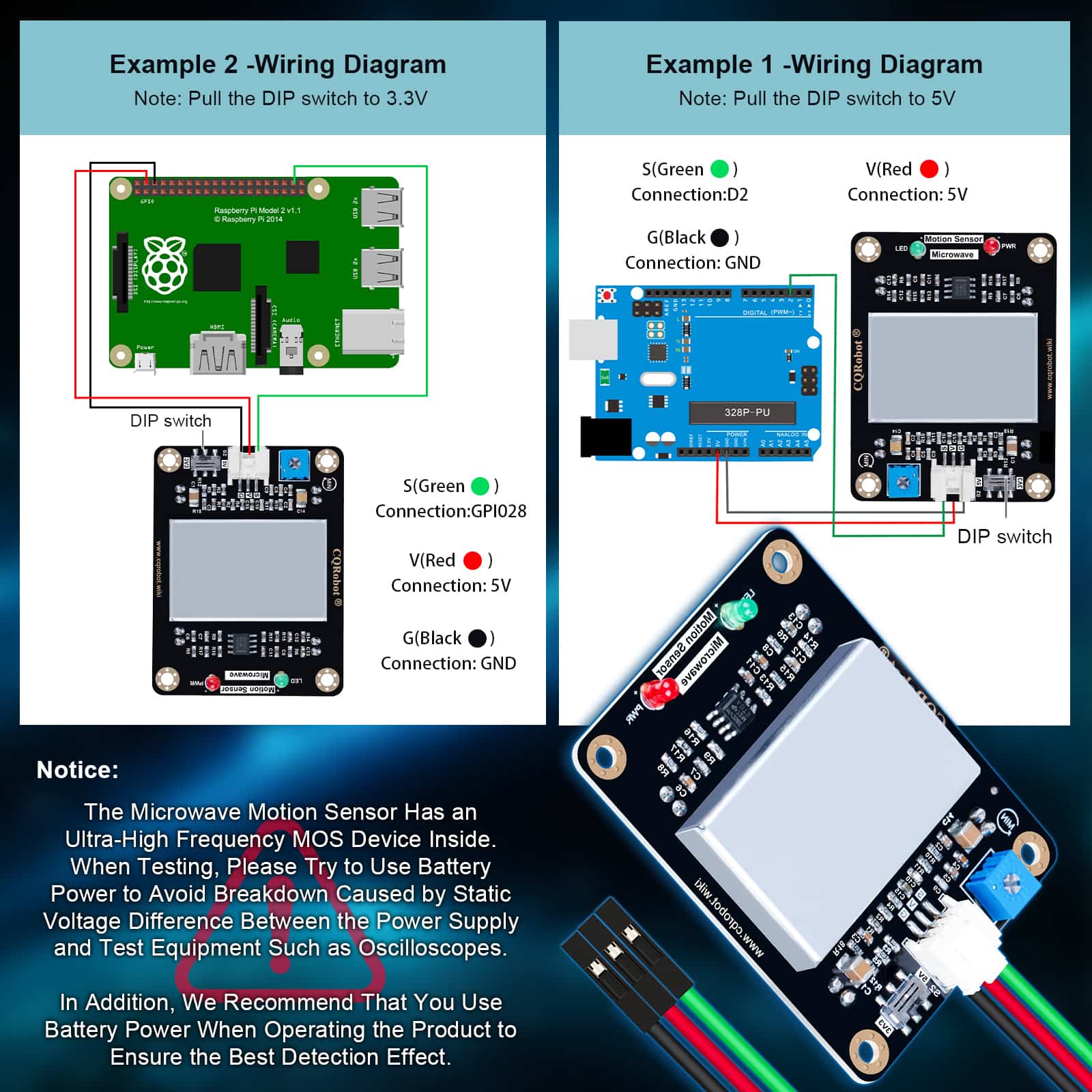

- Line Sequence: Red-Power Supply Positive, Black-Power Supply Negative, Green-Control Board Signal Terminal.
