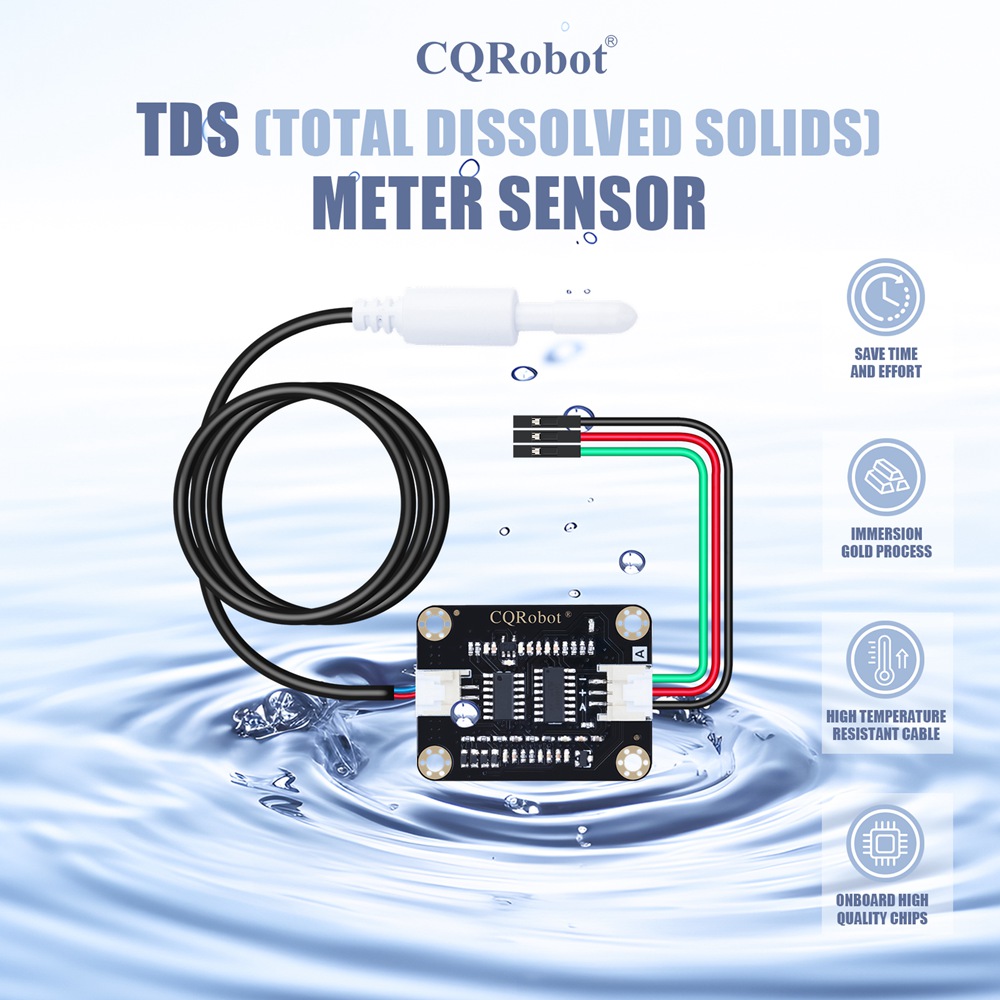

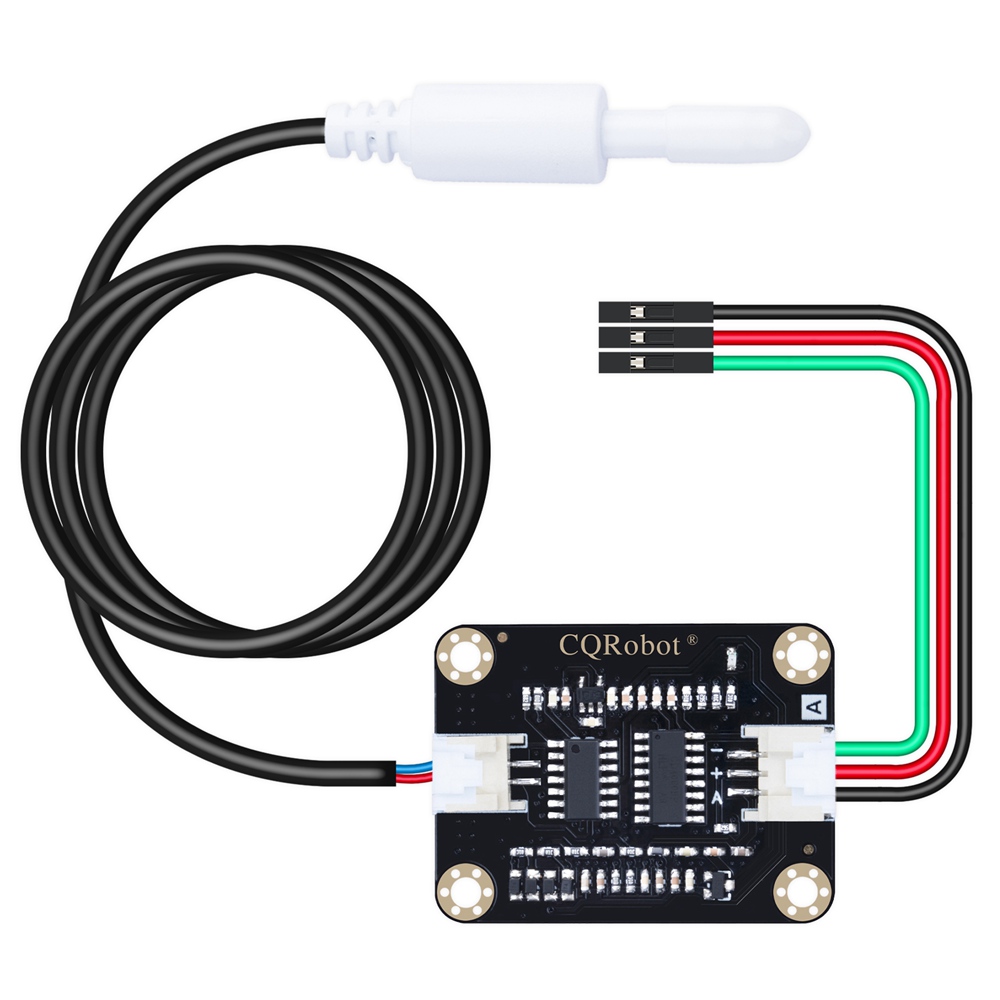

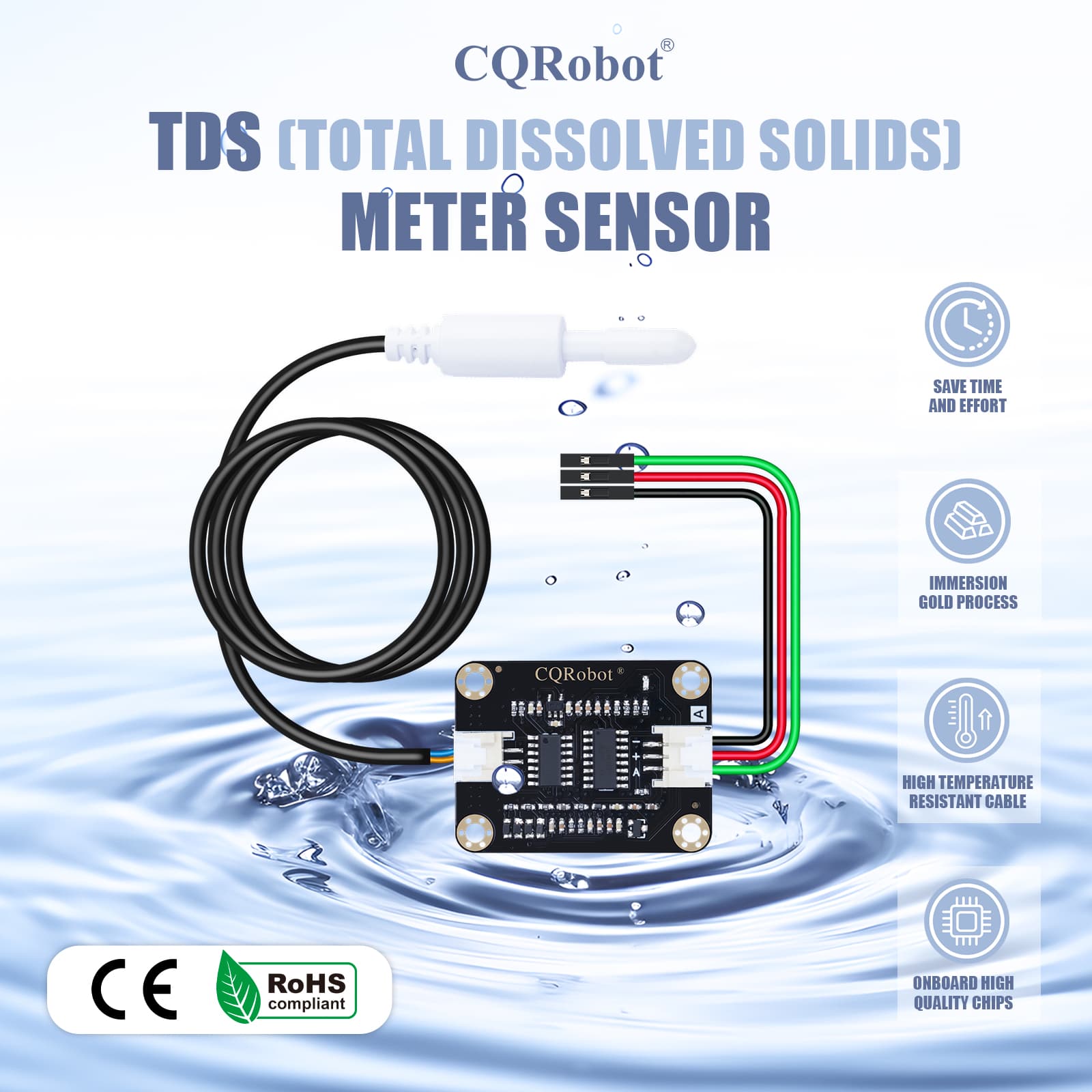

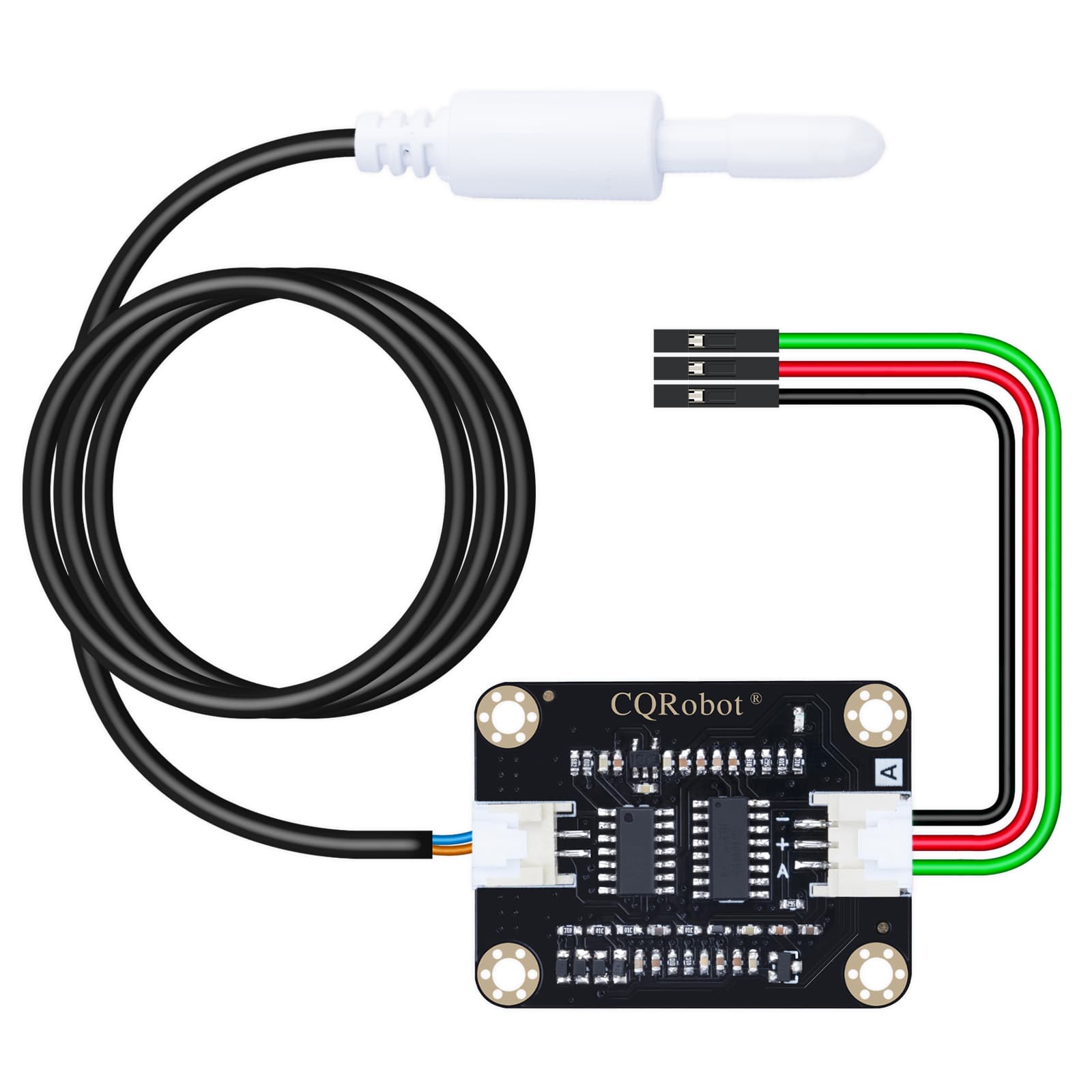

TDS (Total Dissolved Solids) Meter Sensor for Arduino and Raspberry Pi
$
5
.79
10+
$
5
.50
Save 5%
50+
$
5
.27
Save 9%
100+
$
5
.10
Save 12%
200+
$
4
.92
Save 15%
500+
$
4
.63
Save 20%
Product details

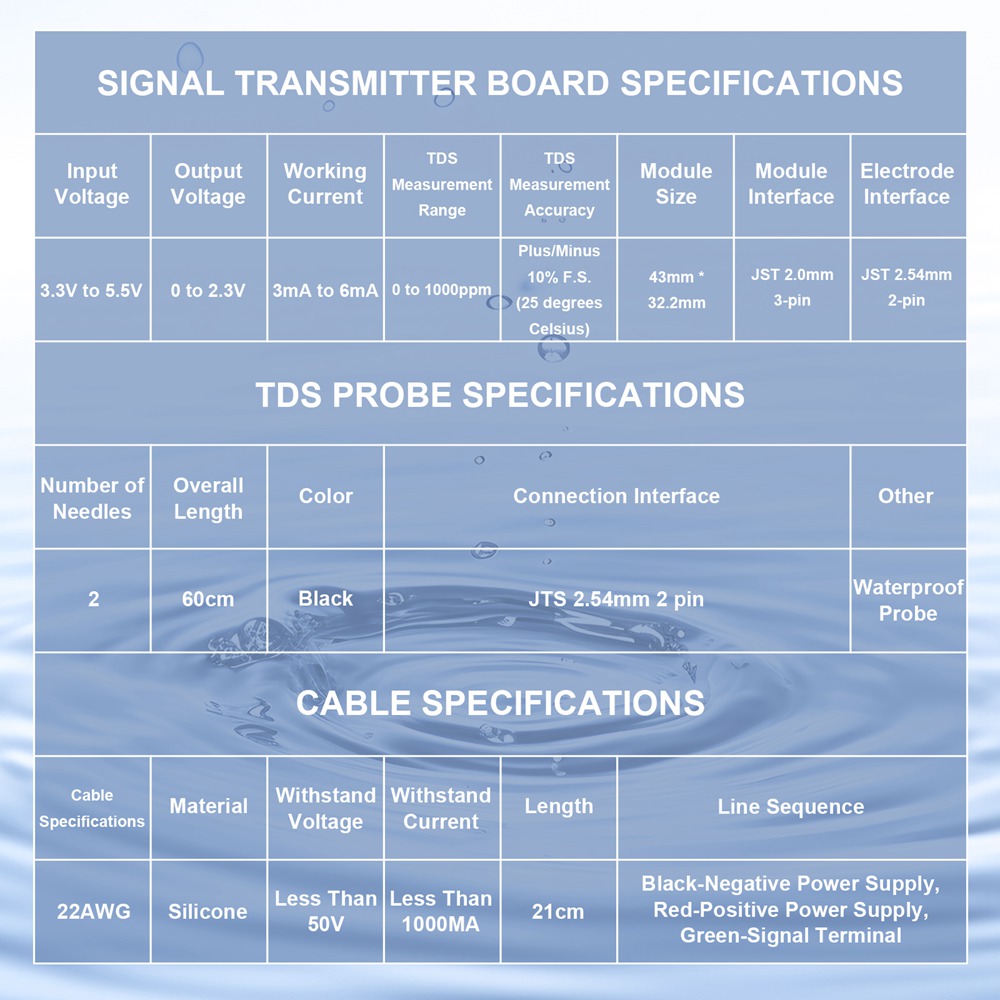

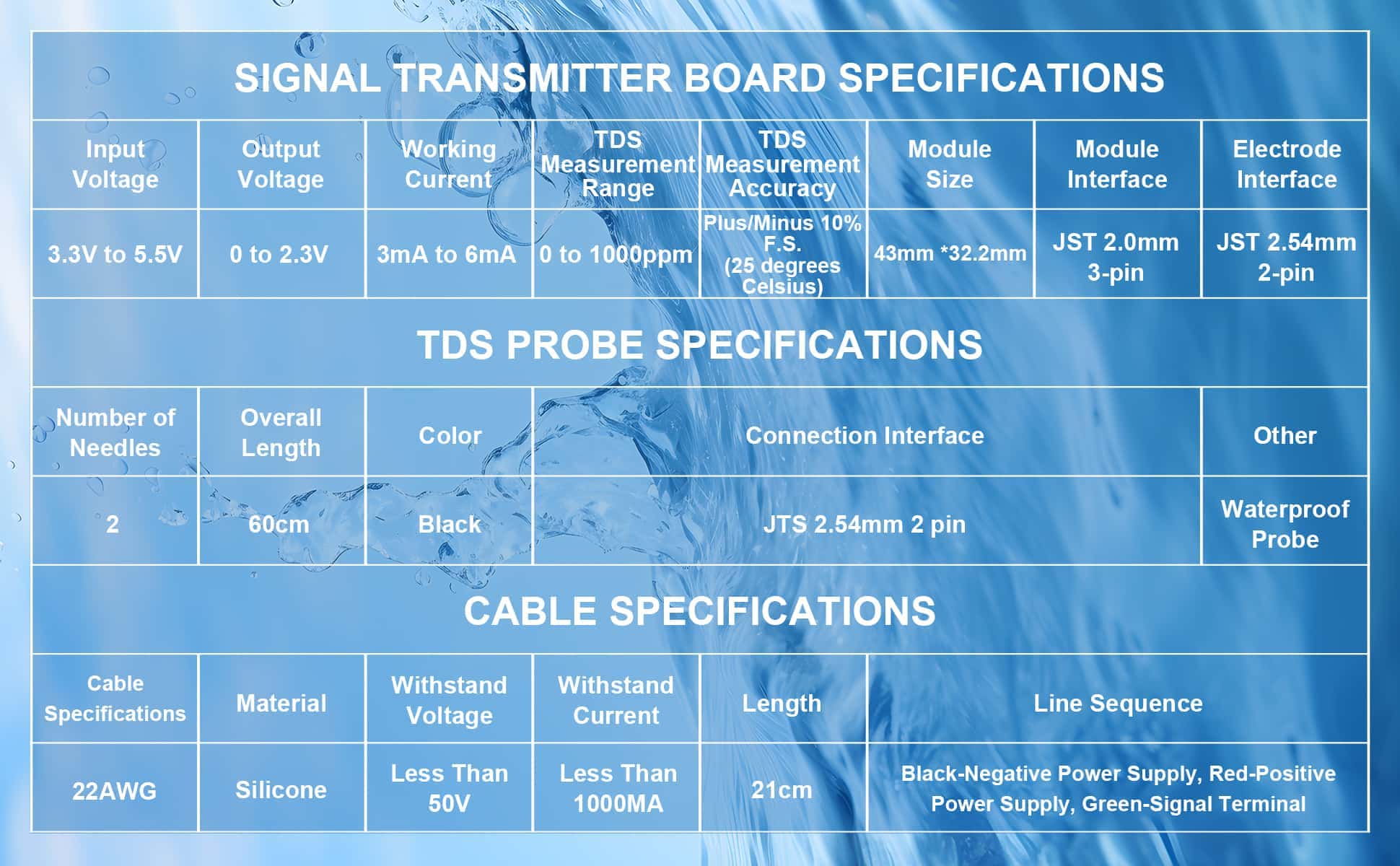

SPECIFICATION
Signal Transmitter Board Specifications
- Input Voltage: 3.3V to 5.5V
- Output Voltage: 0 to 2.3V
- Working Current: 3mA to 6mA
- TDS Measurement Range: 0 to 1000ppm
- TDS Measurement Accuracy: Plus/Minus 10% F.S. (25 Degree Celsius)

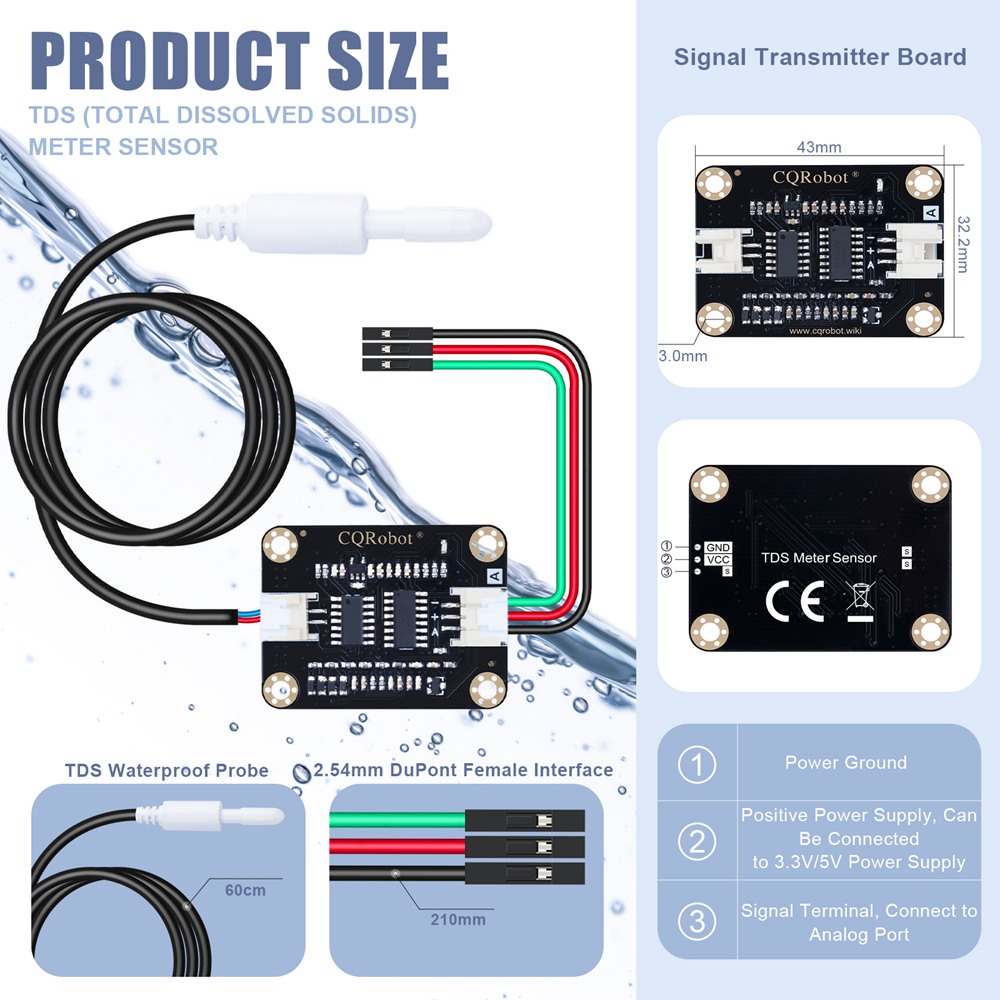

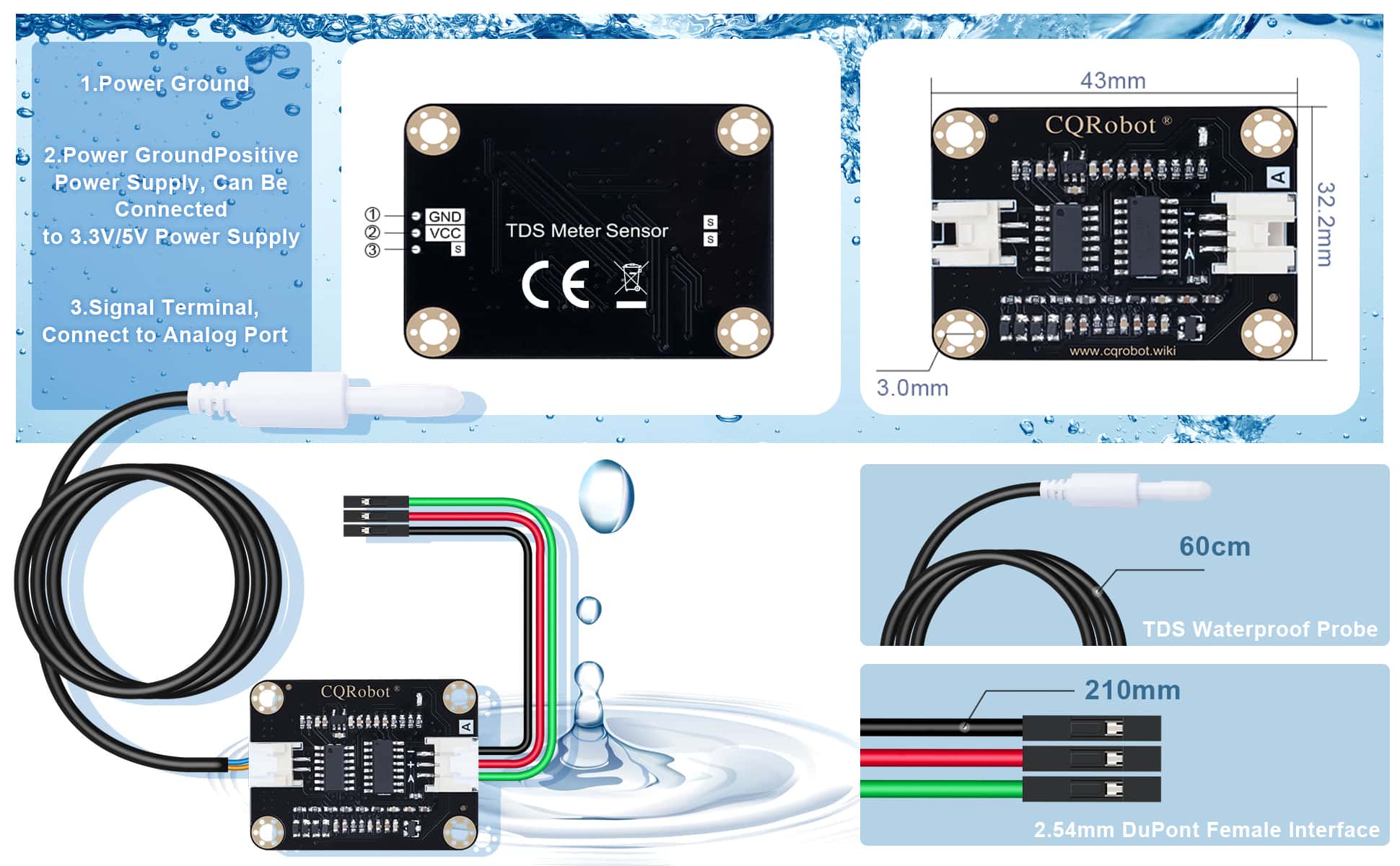

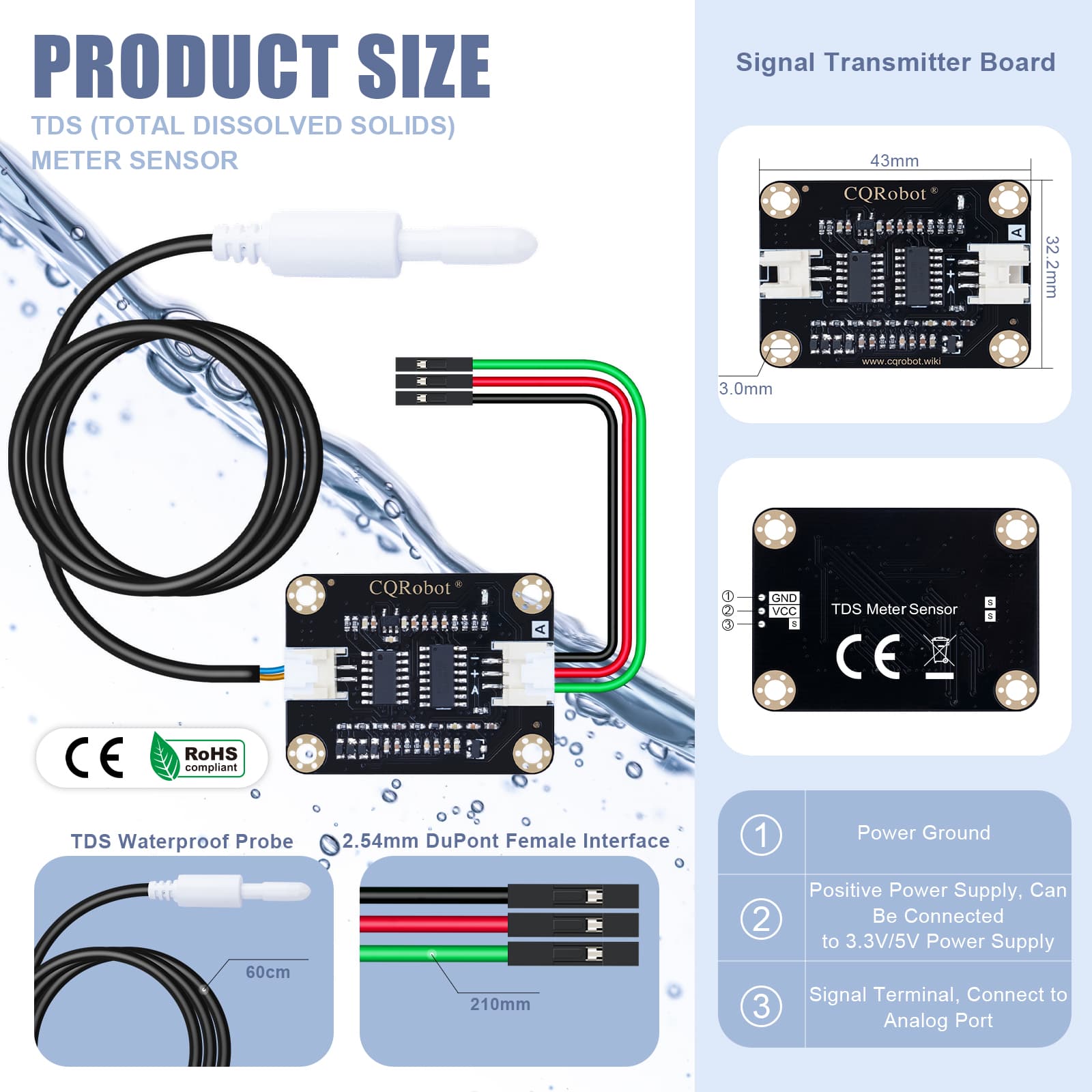

- Module Size: 43mm * 32.2mm
- Module Interface: JST 2.0mm 3-Pin
- Electrode Interface: JST 2.54mm 2-Pin
TDS Probe Specifications
- Number of Needle: 2
- Total Length: 60cm
- Connection Interface: JTS 2.54mm 2-Pin
- Color: Black
- Other: Waterproof Probe
Interface Cable Specifications
- Cable specifications: 22AWG
- Material: Silicone
- Withstand Voltage: Less Than 50V
- Withstand Current: Less Than 1000MA
- Length: 21cm

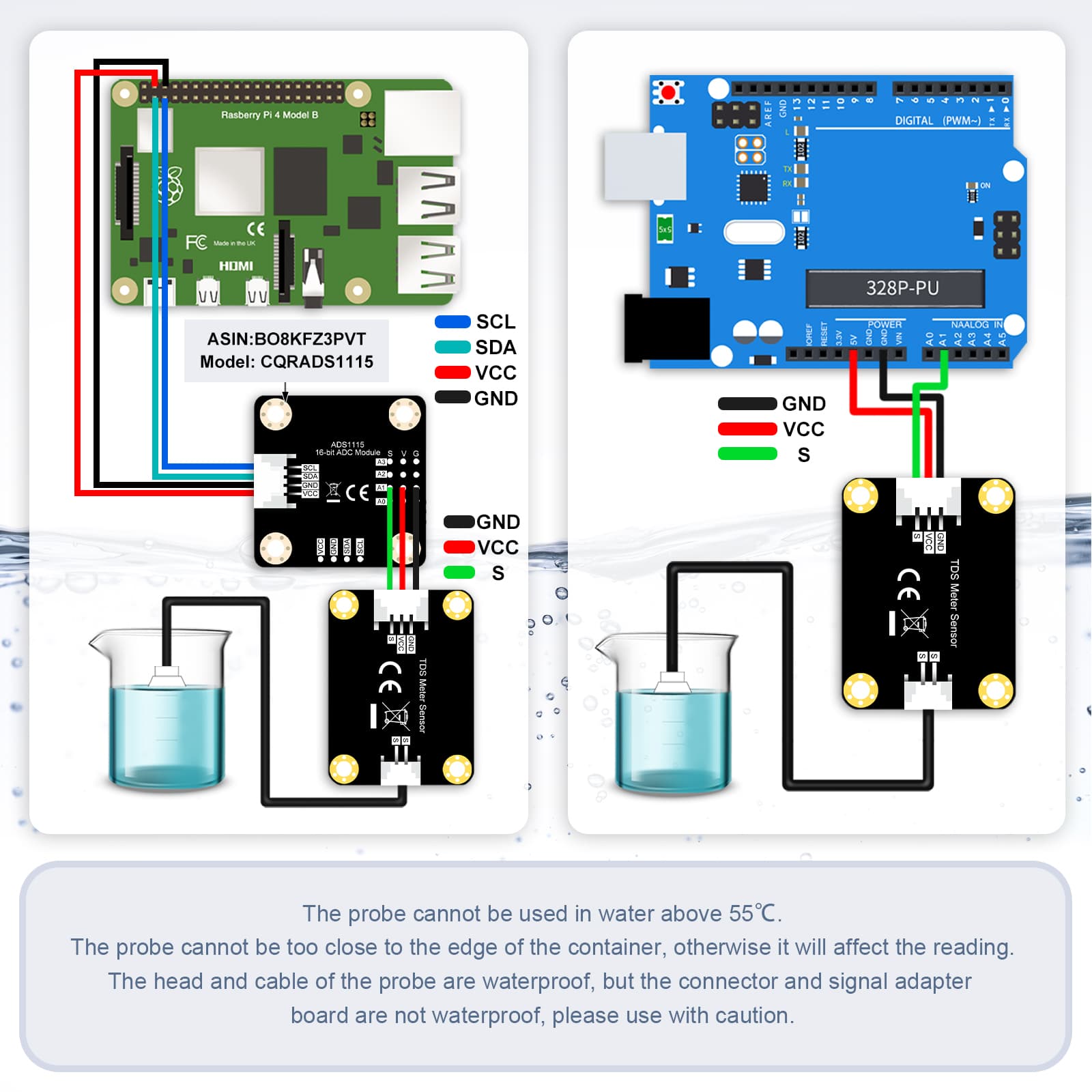

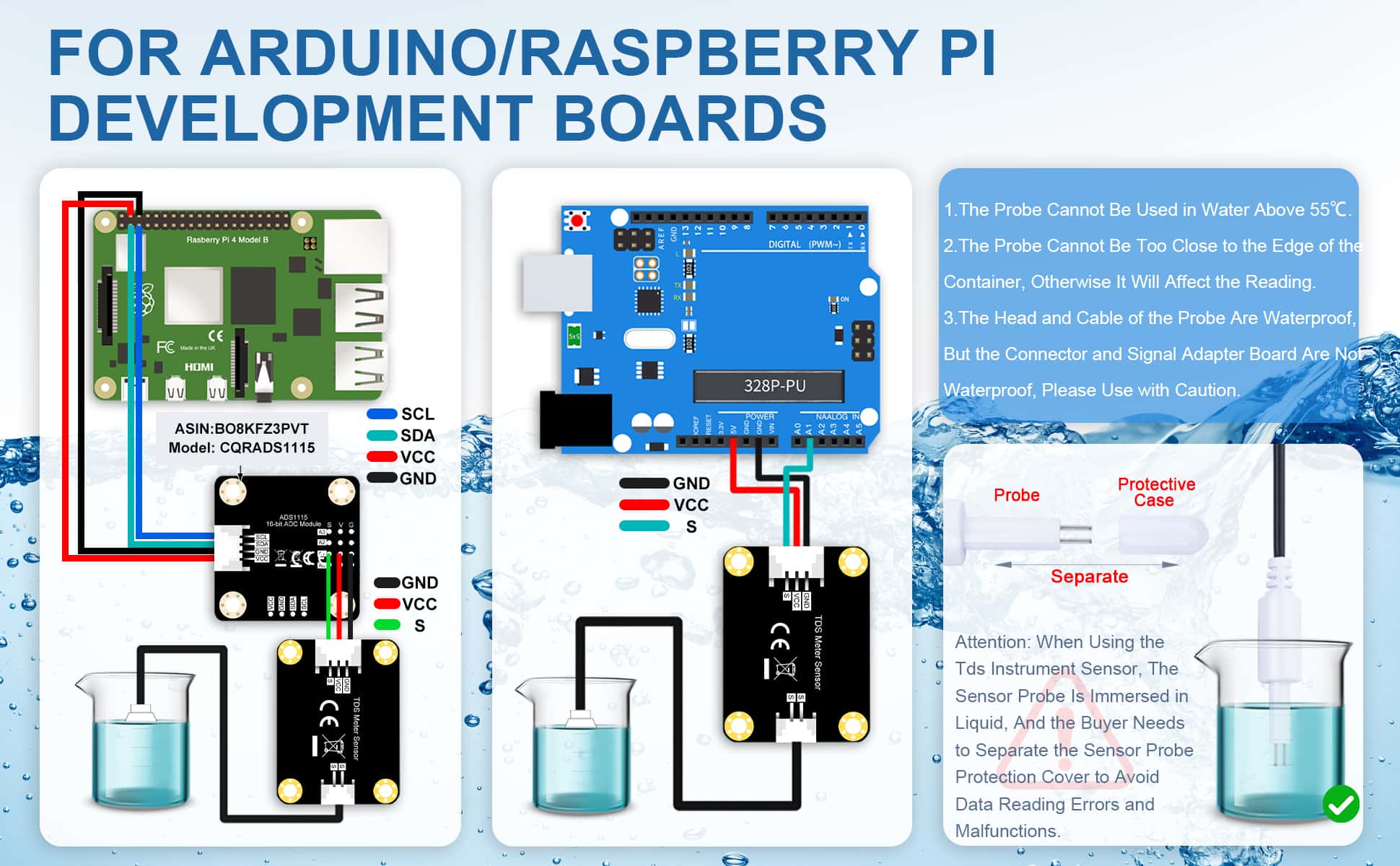

- Line Sequence: Black-Negative Power Supply, Red-Positive Power Supply, Green-Signal Terminal.
