SPECIFICATION

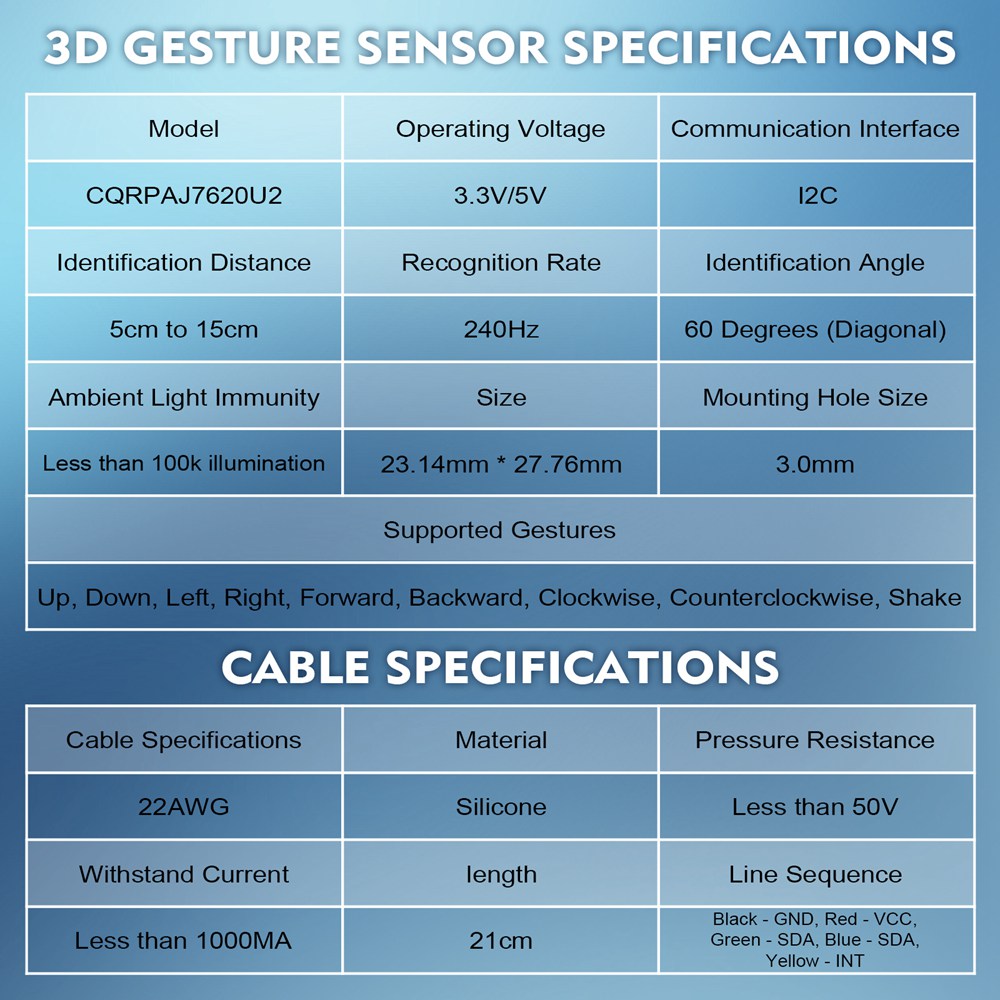

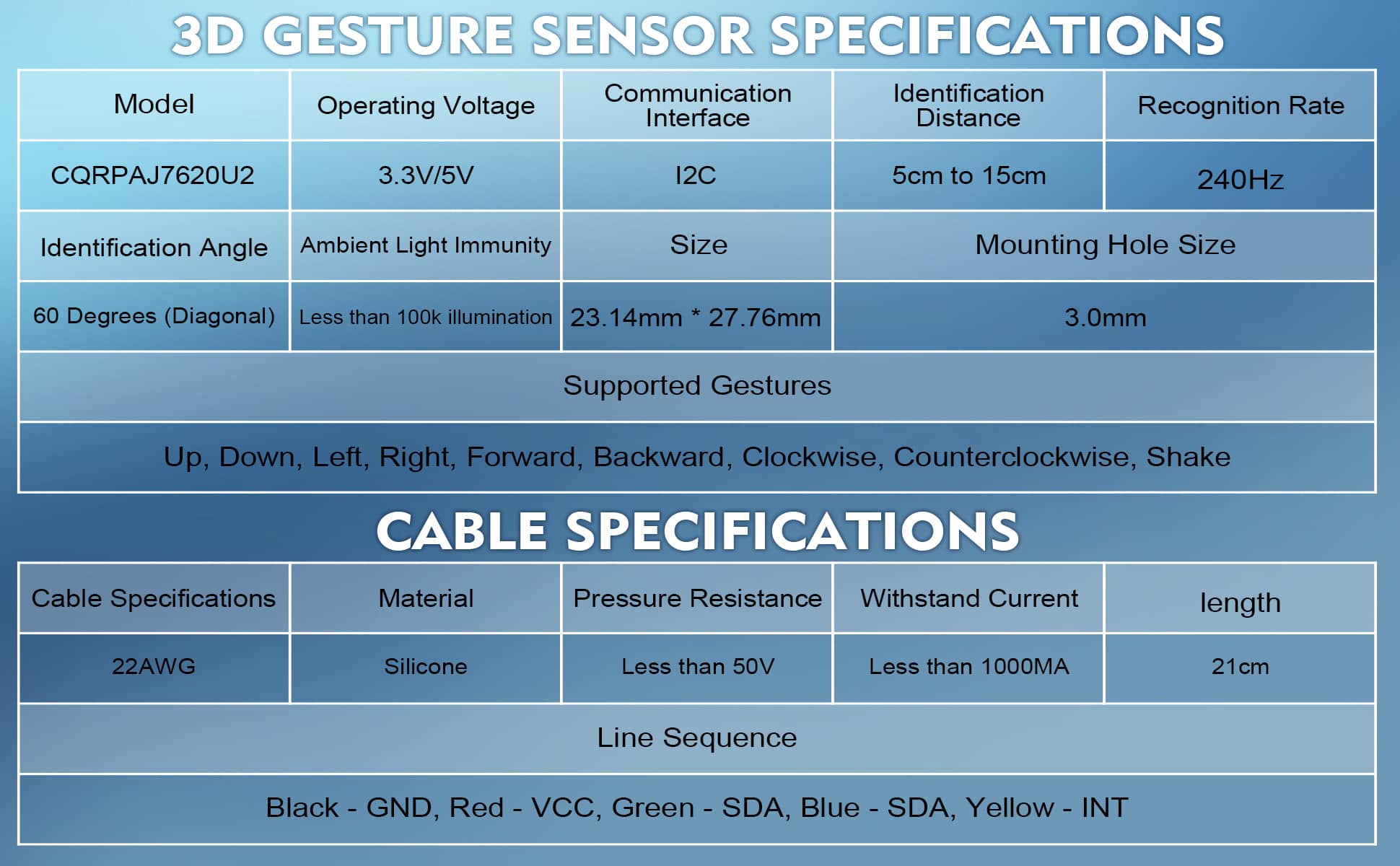

3D Gesture Sensor Specifications

• Model: CQRPAJ7620U2
• Operating Voltage: 3.3V/5V
• Communication Interface: I2C
• Recognition Distance: 5cm to 15cm
• Supported Gestures: up, down, left, right, forward, backward, clockwise, anticlockwise, shake.
• Recognition Rate: 240Hz
• Recognition Angle: 60 Degree (diagonal)
• Ambient Light Immunity: Less Than 100k Lux

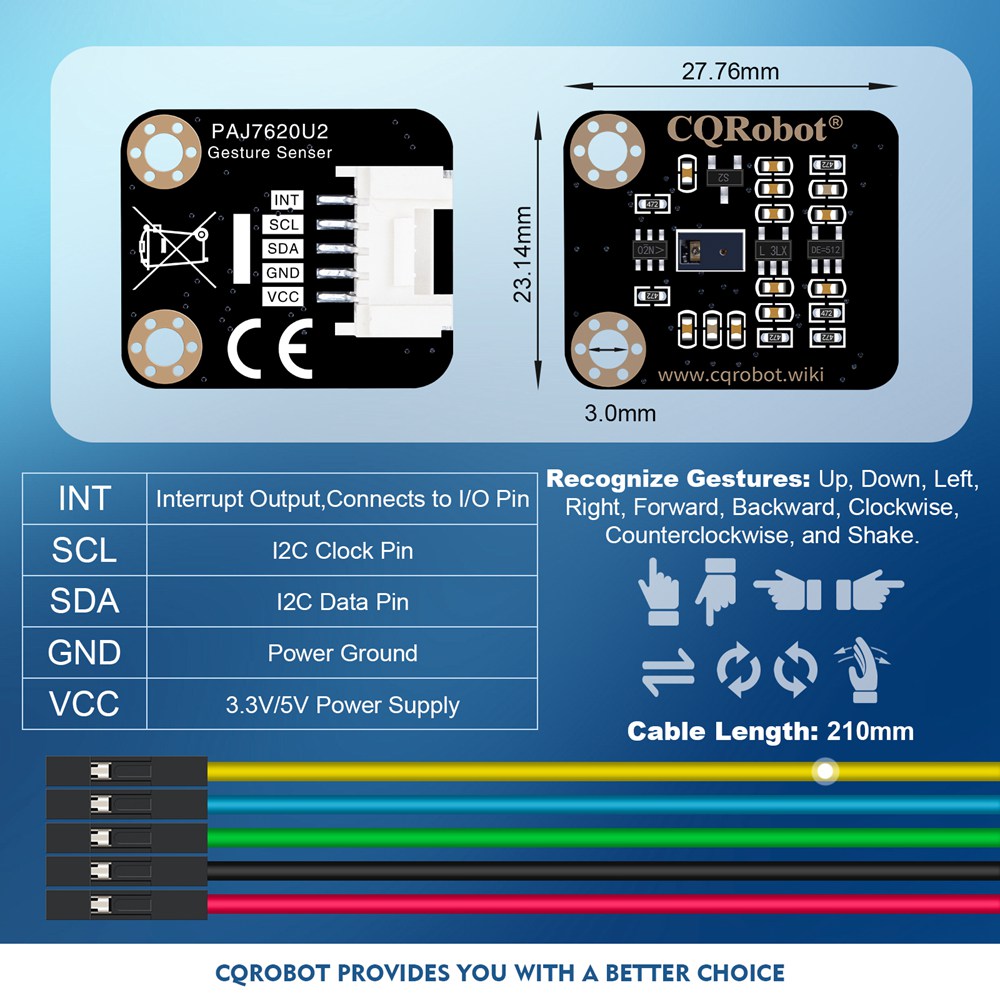

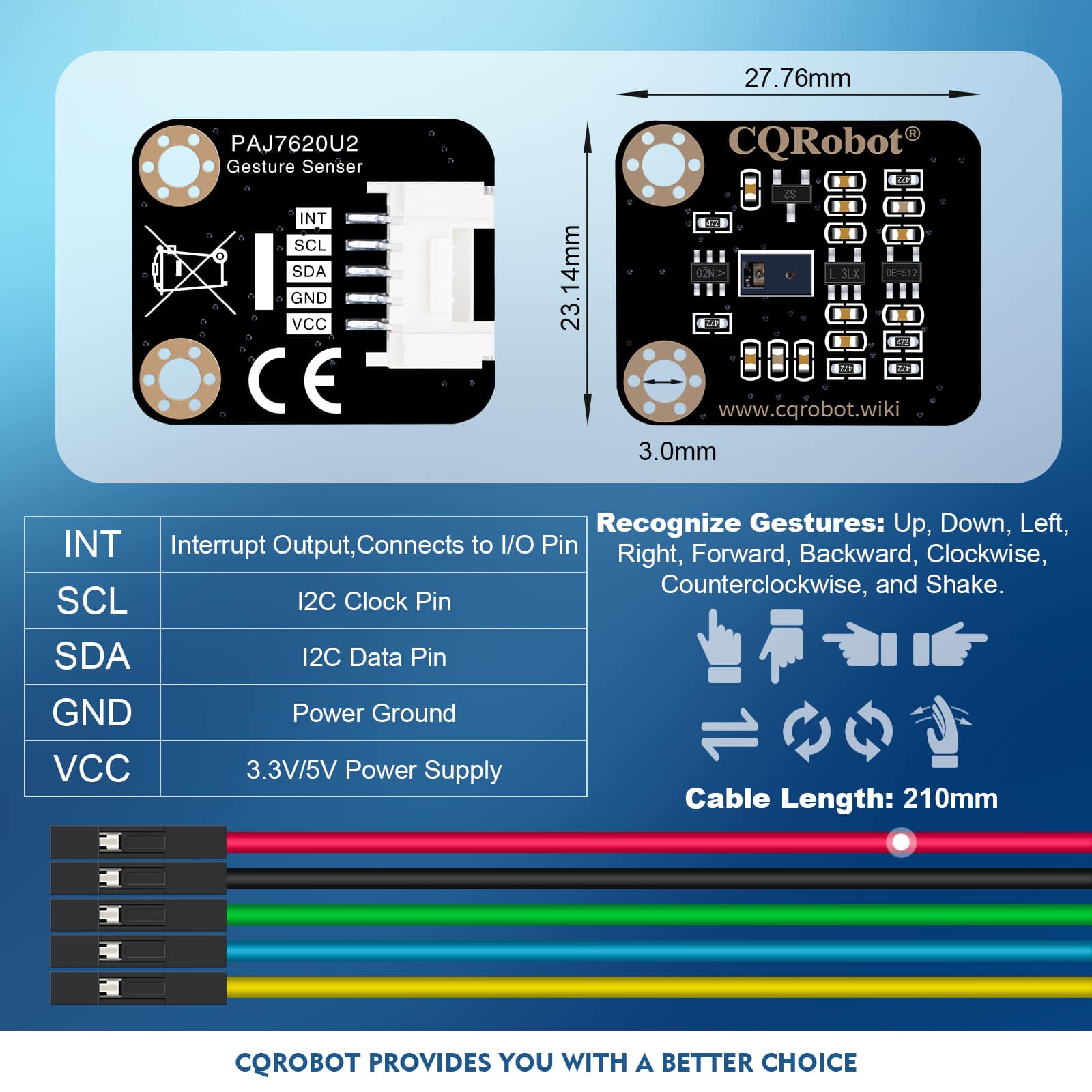

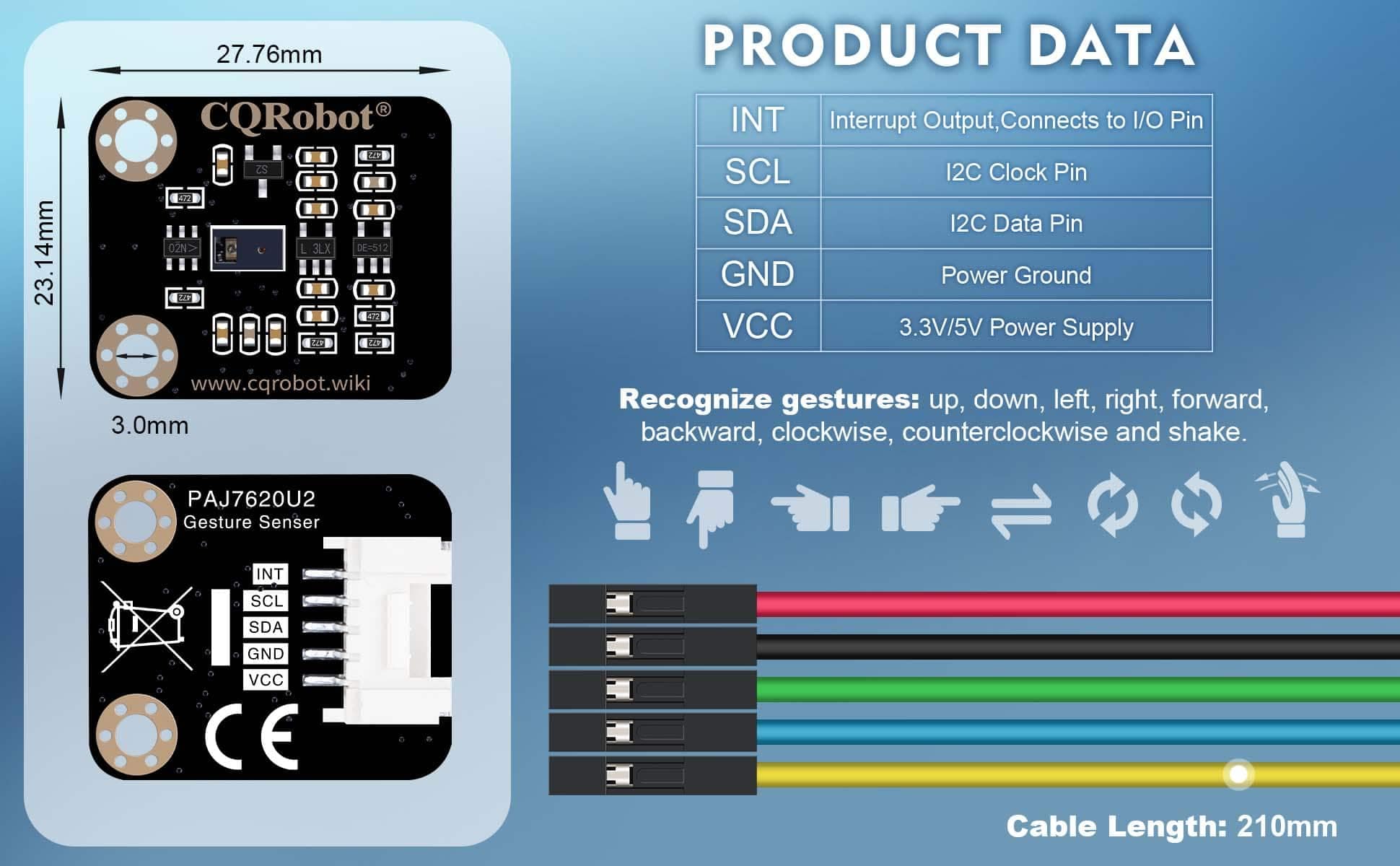

• Dimensions: 23.14mm * 27.76mm
• Mounting Hole Size: 3.0mm

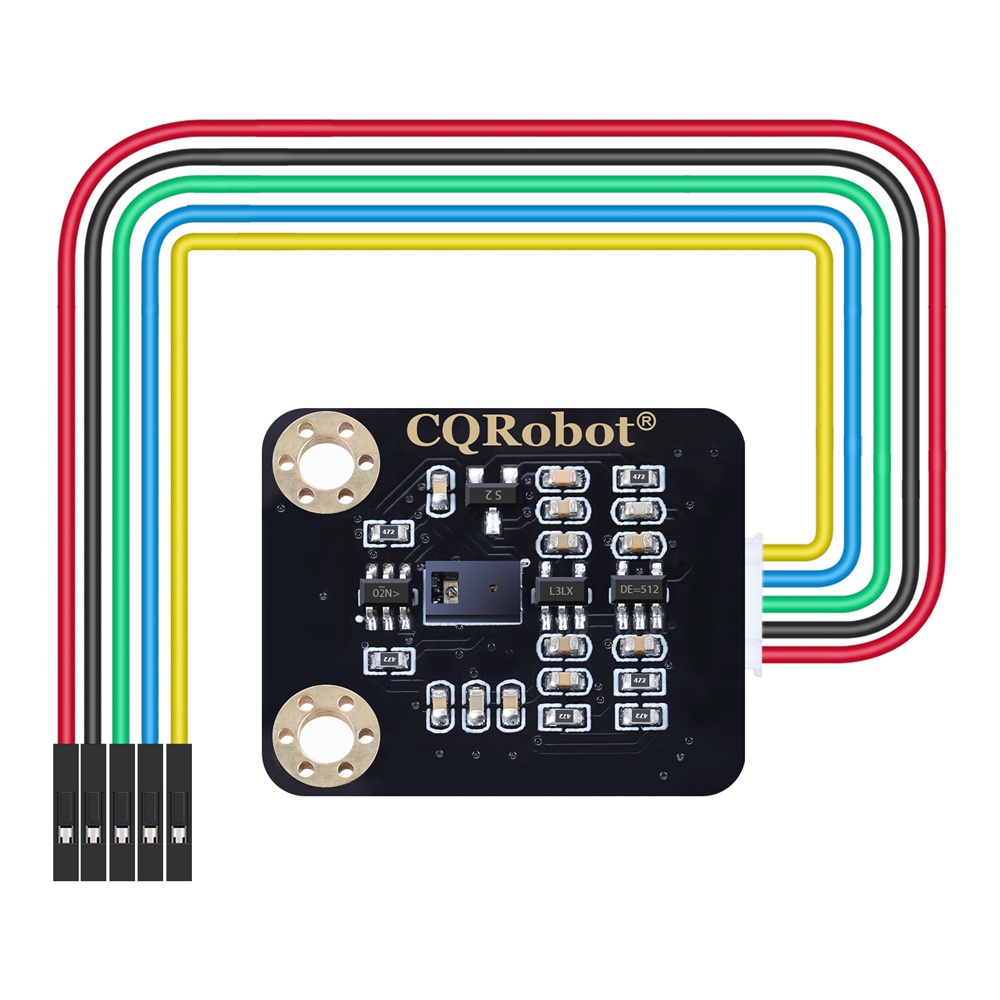

Interface Cable Specifications

• Cable specifications: 22AWG
• Material: Silicone
• Withstand Voltage: Less Than 50V
• Withstand Current: Less Than 1000MA
• Length: 21cm

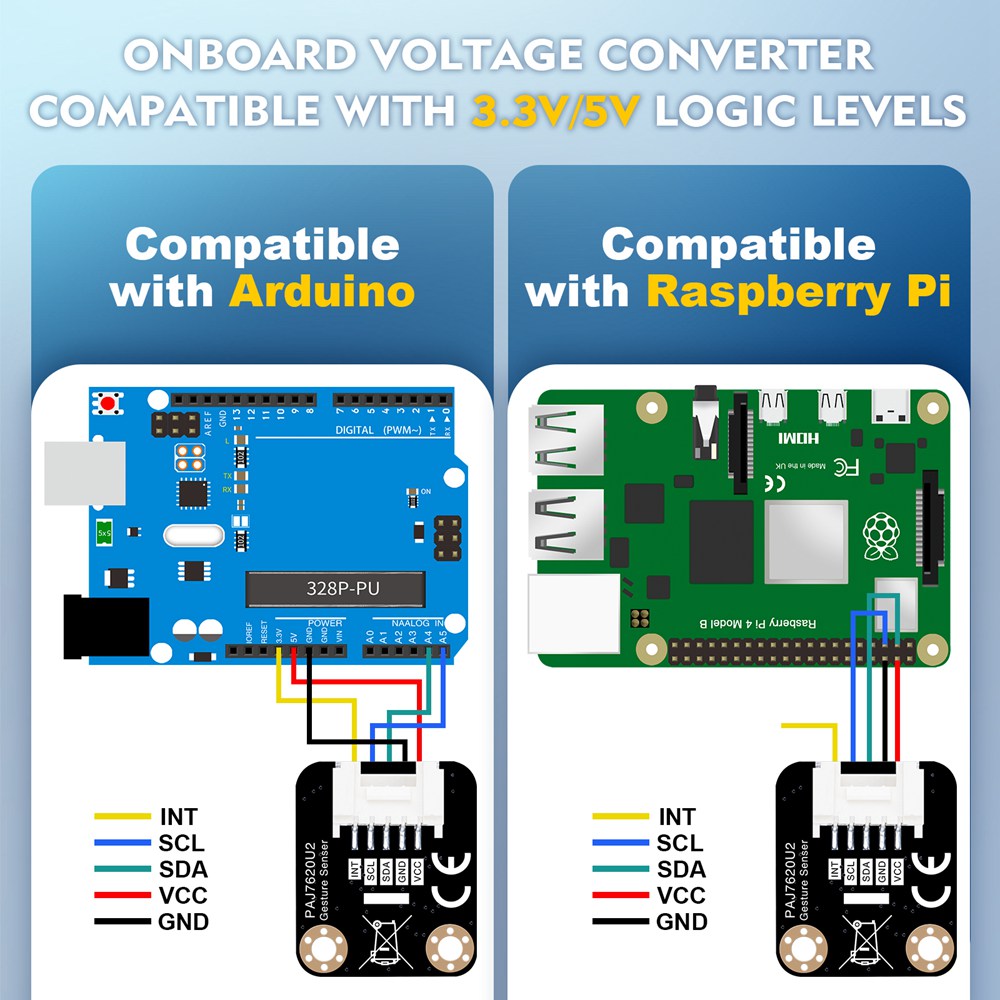

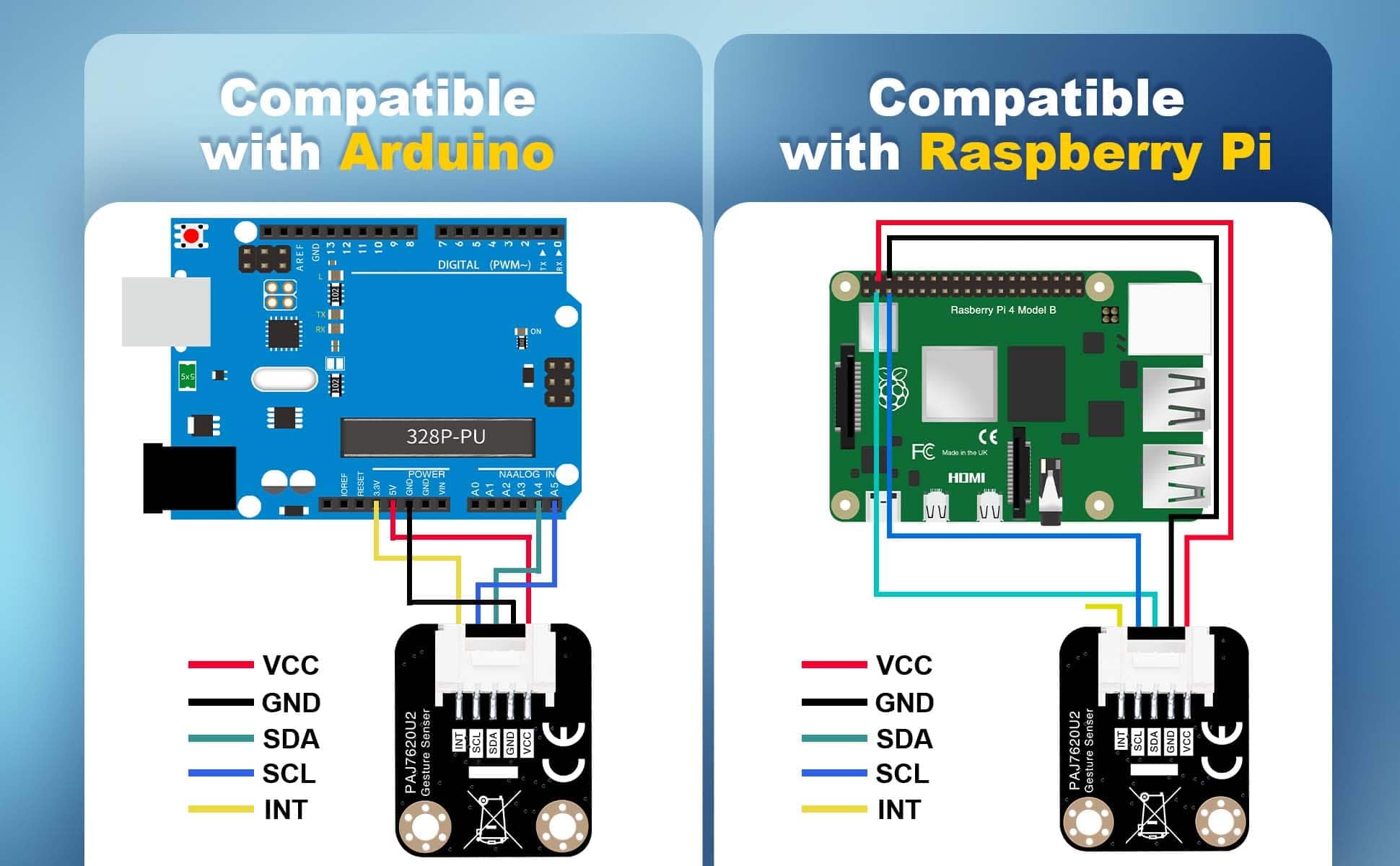

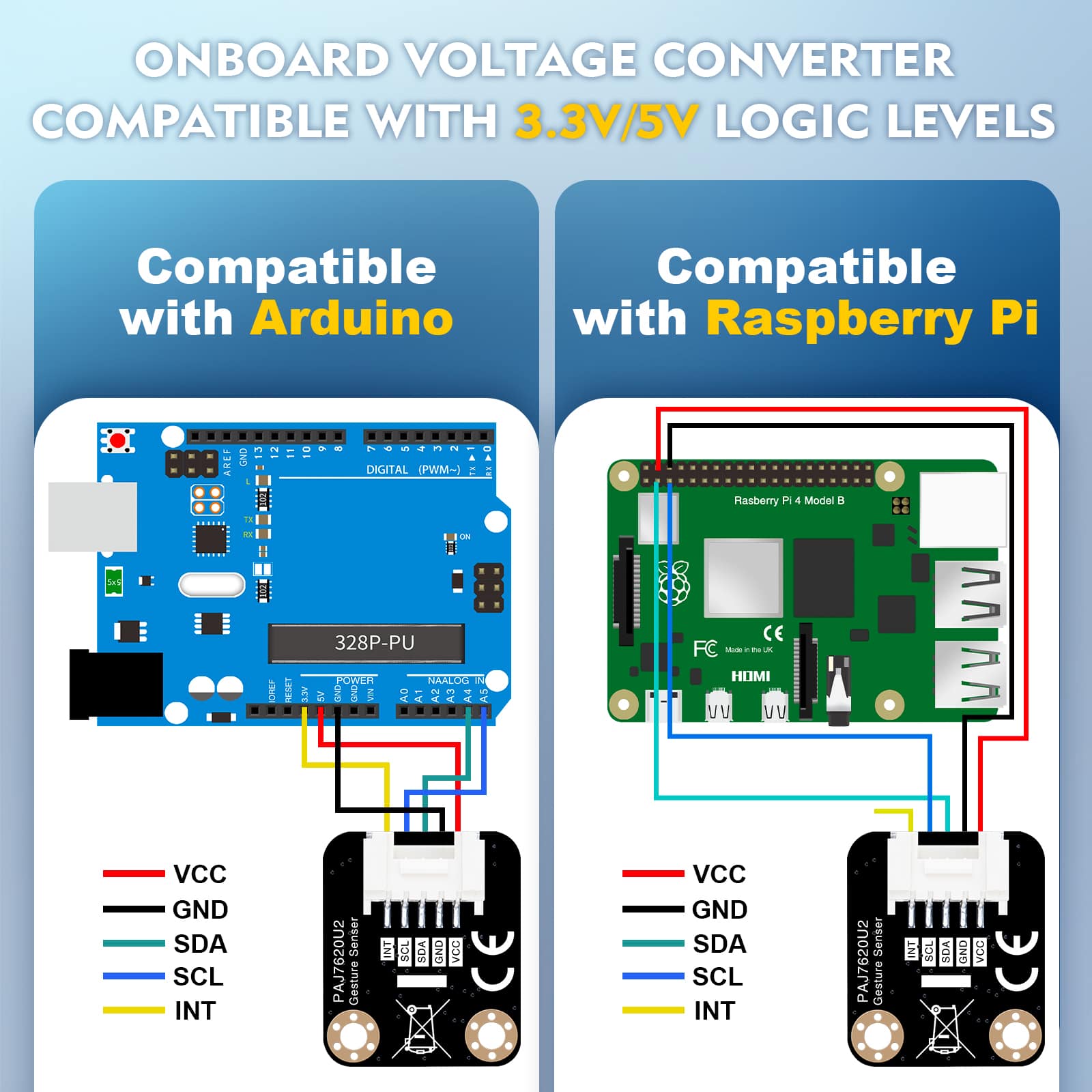

• Line Sequence: Black-Negative Power Supply, Red-Positive Power Supply, Green-SDA, Blue-SDA, Yellow-INT.
