SPECIFICATIONS

• Impedance: 8 Ohm Plus/Minus 15% at 1000Hz.1V;
• Power Rating: Rated Power / Maximum Power 5.0W / 5.5W;
• FO: 450Hz Plus/Minus 150Hz at 1.0V;
• S.P.L: 94dB Plus/Minus 3dB/1.0 Watt 0.1Meter; Average At1000, 1200, 1500, 2000Hz;
• Frequency Range: FO to 10,000Hz. Average SPL-10dB;
• Distortion: 10% Maximum at 1000Hz.1.0V.
• Abnormal Sound Test: Must be Normal Tested by 6.32, Volts.Sine wave for 50 to 5KHZ;
• Polarity: Diaphragm Shall Move Forward When Apply a Positive DC, Red "+" or "Marked" Terminal;
• Operating Temperature: -25 Degree Celsius to +65 Degree Celsius;
• Storage Temperature: -25 Degree Celsius to +65 Degree Celsius;
• High Temperature Storage Test: 65 Degree Celsius Plus/Minus 2 Degree Celsius - 96 Hours;
• Low Temperature Storage Test: -25 Degree Celsius Plus/Minus 2 Degree Celsius - 96 Hours;

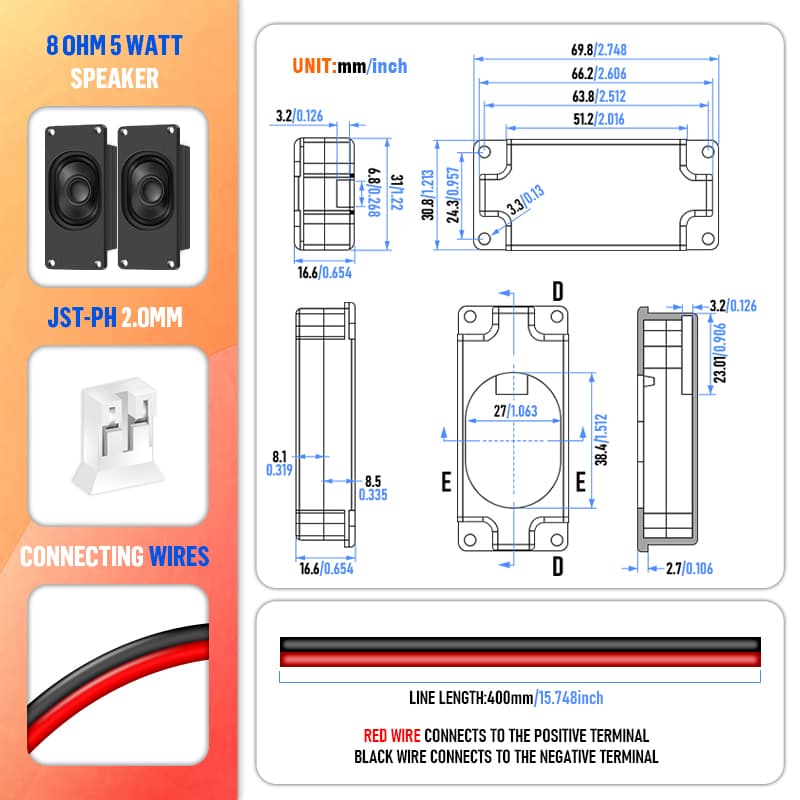

• Size: 70mm * 31mm * 16mm.
• Screw hole distance: 24mm * 63mm;
• Interface cable length: 40cm;
• Total weight: 24g.
