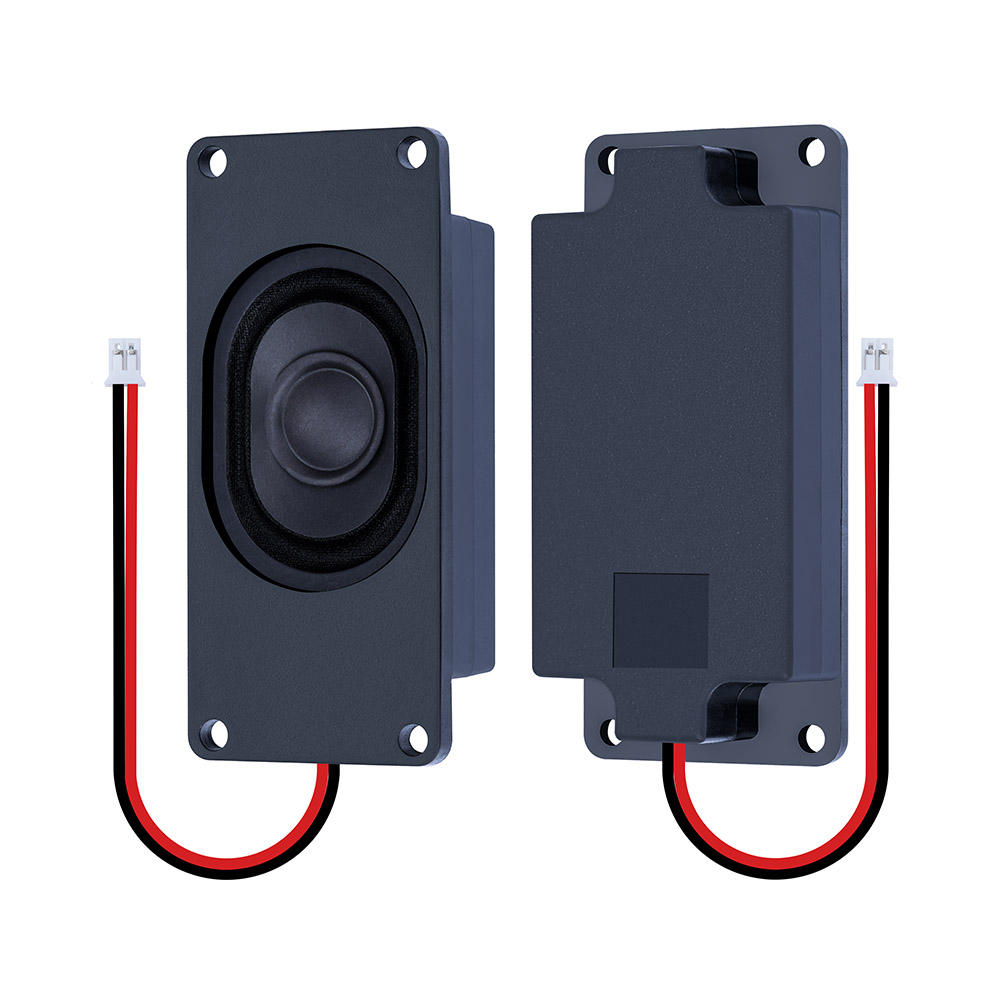

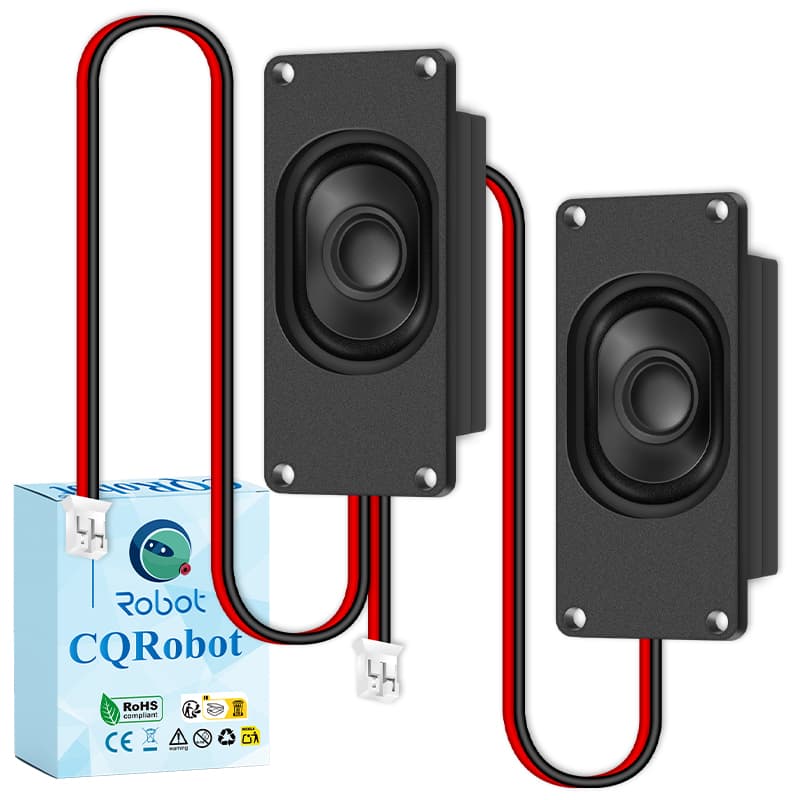

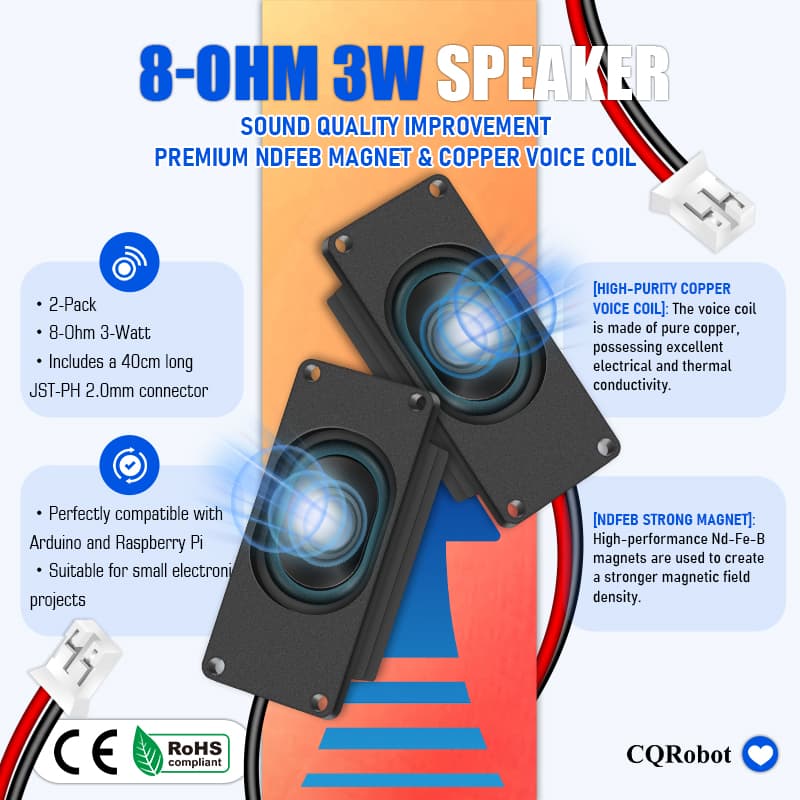

3W 8Ω Miniature Loudspeaker for Arduino, JST Interface.
$
4
.99
10+
$
4
.74
Save 5%
50+
$
4
.54
Save 9%
100+
$
4
.39
Save 12%
200+
$
4
.24
Save 15%
500+
$
3
.99
Save 20%
Product details
SPECIFICATIONS
- Impedance: 8 Ohm Plus/Minus 15% at 1000Hz.1V;
- Power Rating: Rated Power / Maximum Power 3.0W / 3.5W;
- FO: 450Hz Plus/Minus 150Hz at 1.0V;
- S.P.L: 94dB Plus/Minus 3dB/1.0 Watt 0.1Meter, Average At1000, 1200, 1500, 2000Hz;
- Frequency Range: FO to 10,000Hz, Average SPL-10dB;
- Distortion: 10% Maximum at 1000Hz.1.0V;
- Abnormal Sound Test: Must be Normal Tested by 4.9, Volts.Sine wave for 50 to 5KHZ;
- Polarity: Diaphragm Shall Move Forward When Apply a Positive DC, Red "+" or "Marked" Terminal;
- Operating Temperature: -25 Degree Celsius to +65 Degree Celsius;
- Storage Temperature: -25 Degree Celsius to +65 Degree Celsius;
- High Temperature Storage Test: 65 Degree Celsius Plus/Minus 2 Degree Celsius - 96 Hours;
- Low Temperature Storage Test: -25 Degree Celsius Plus/Minus 2 Degree Celsius - 96 Hours;

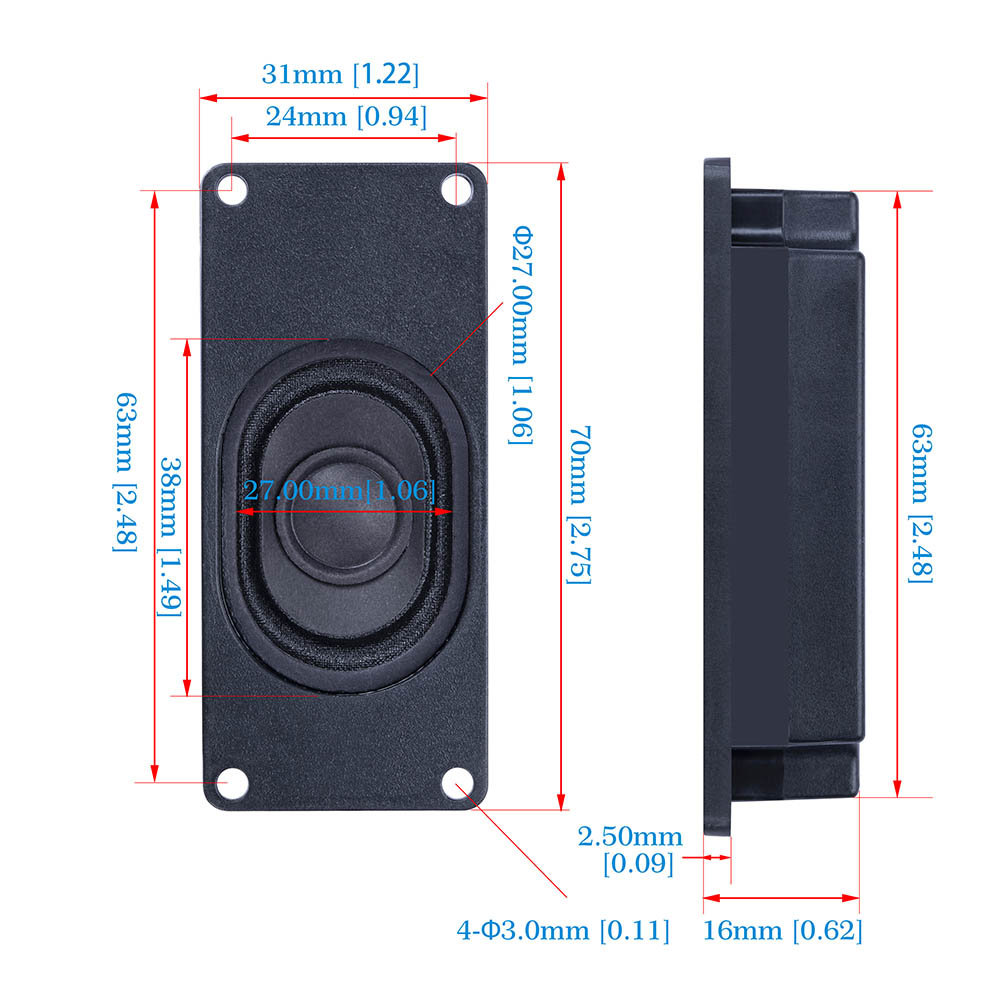

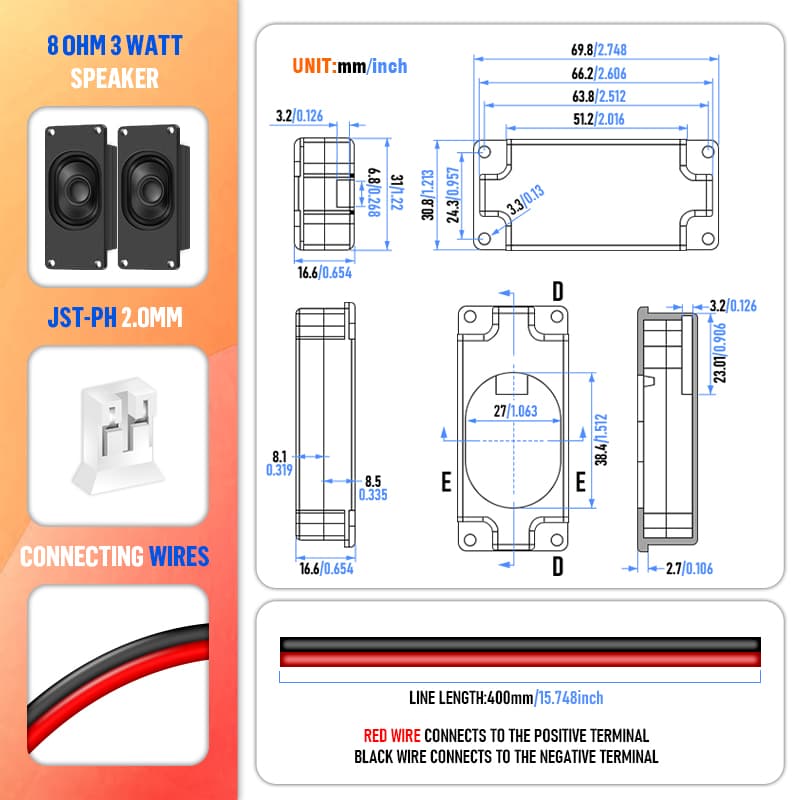

- Size: 70mm * 31mm * 16mm;
- Screw hole distance: 24mm * 63mm;

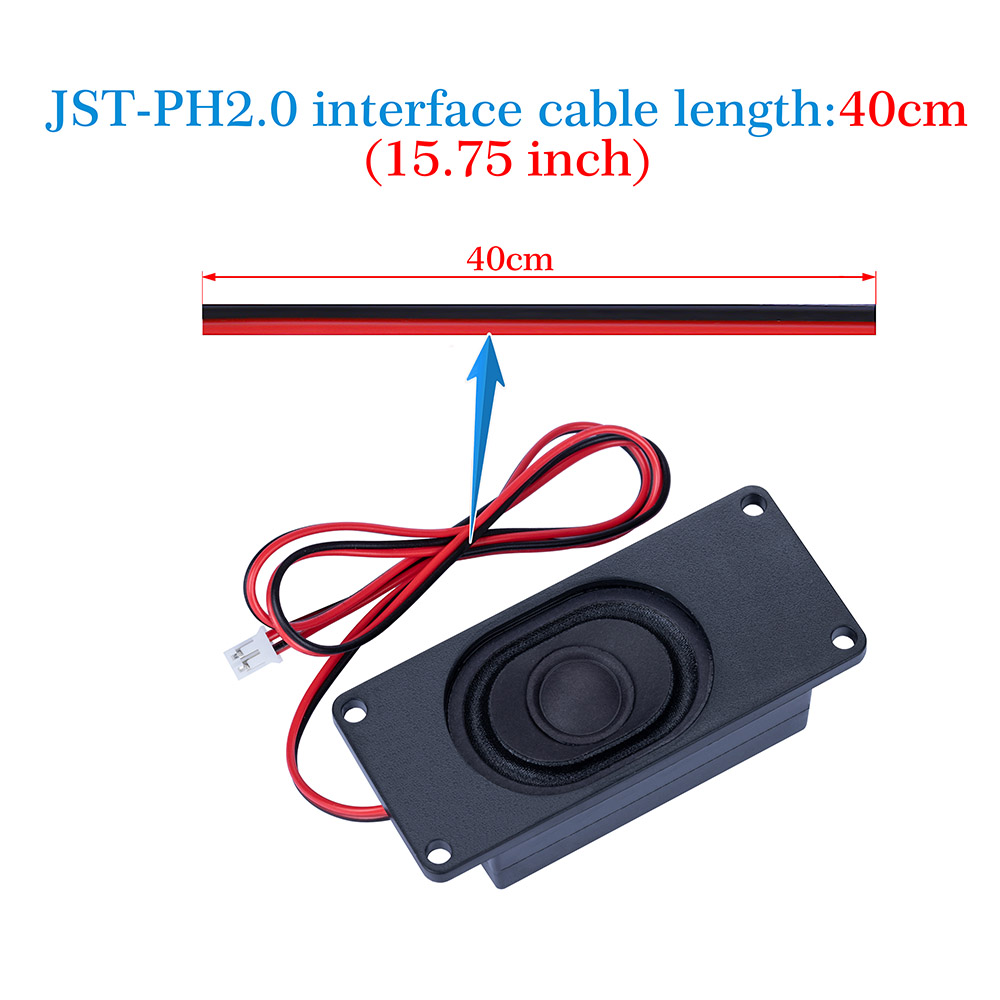

- Interface cable length: 40cm;
- Total weight: 24g.
