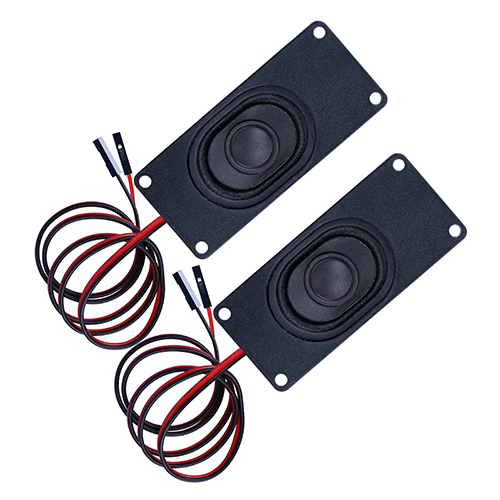

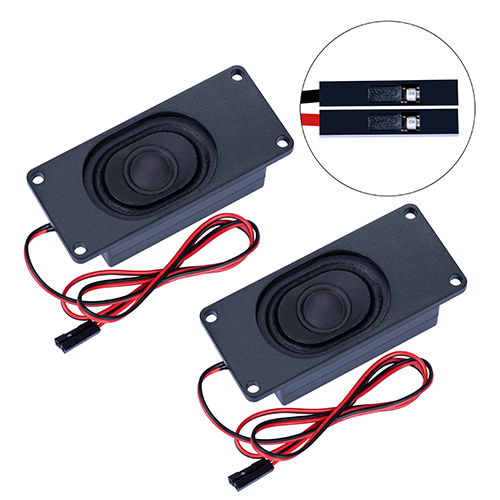

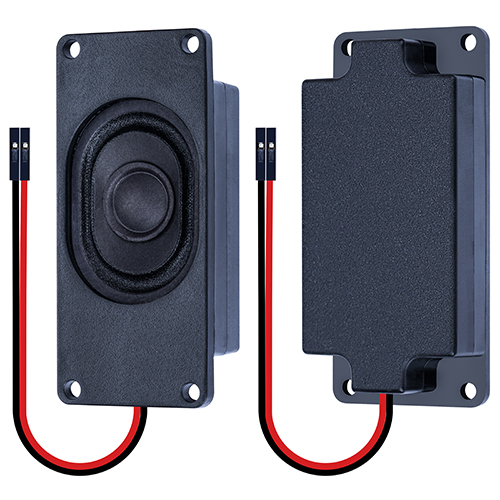

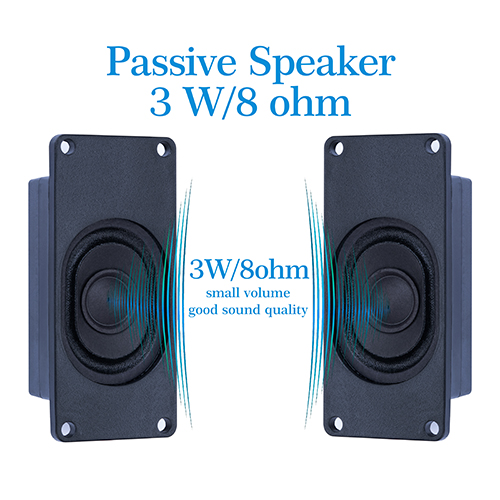

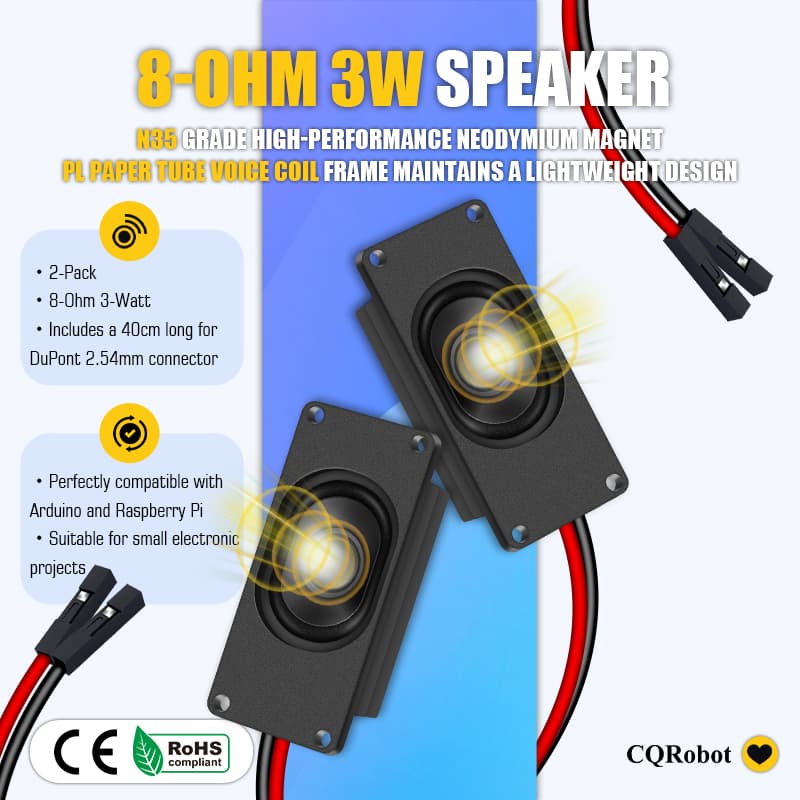

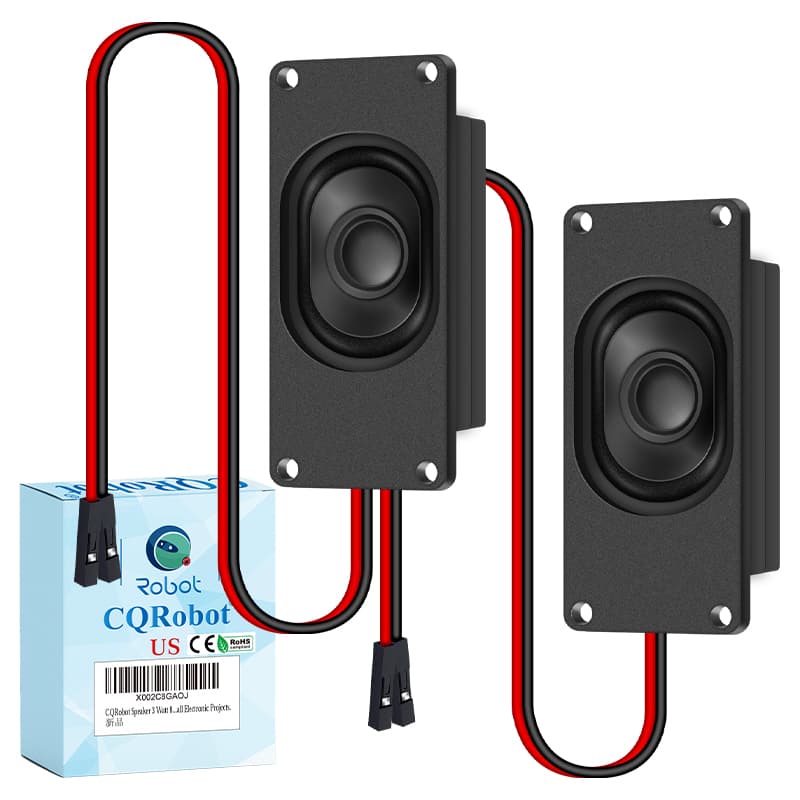

Passive Speaker 8Ω 3W, 2.54mm Dupont Interface.
$
3
.99
10+
$
3
.79
Save 5%
50+
$
3
.63
Save 9%
100+
$
3
.51
Save 12%
200+
$
3
.39
Save 15%
500+
$
3
.19
Save 20%
Product details
TECHNICAL SPECIFICATIONS
Impedance: 8 Ohm Plus/Minus 15% at 1000Hz.1V
Power Rating: Rated Power / Maximum Power 3.0W / 3.5W
FO: 450Hz Plus/Minus 150Hz at 1.0V
S.P.L: 94dB Plus/Minus 3dB/1.0 Watt 0.1Meter; Average At1000, 1200, 1500, 2000Hz.
Frequency Range: FO to 10,000Hz. Average SPL-10dB.
Distortion: 10% Maximum at 1000Hz.1.0V.
Abnormal Sound Test: Must be Normal Tested by 4.9; Volts.Sine wave for 50 to 5KHZ.
Polarity: Diaphragm Shall Move Forward When Apply a Positive DC. Red "+" or "Marked" Terminal.
Operating Temperature: -25 Degree Celsius to +65 Degree Celsius.
Storage Temperature: -25 Degree Celsius to +65 Degree Celsius.
High Temperature Storage Test: 65 Degree Celsius Plus/Minus 2 Degree Celsius - 96 Hours.
Low Temperature Storage Test: -25 Degree Celsius Plus/Minus 2 Degree Celsius - 96 Hours.

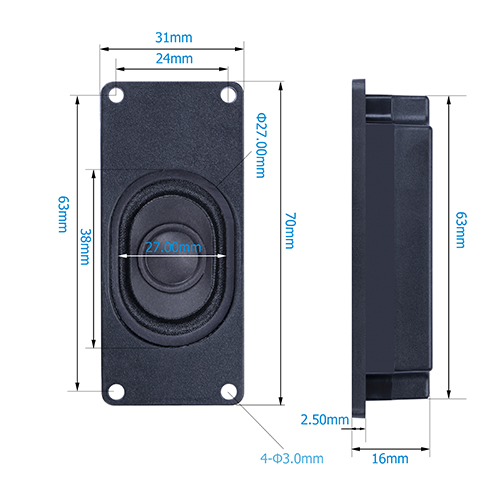

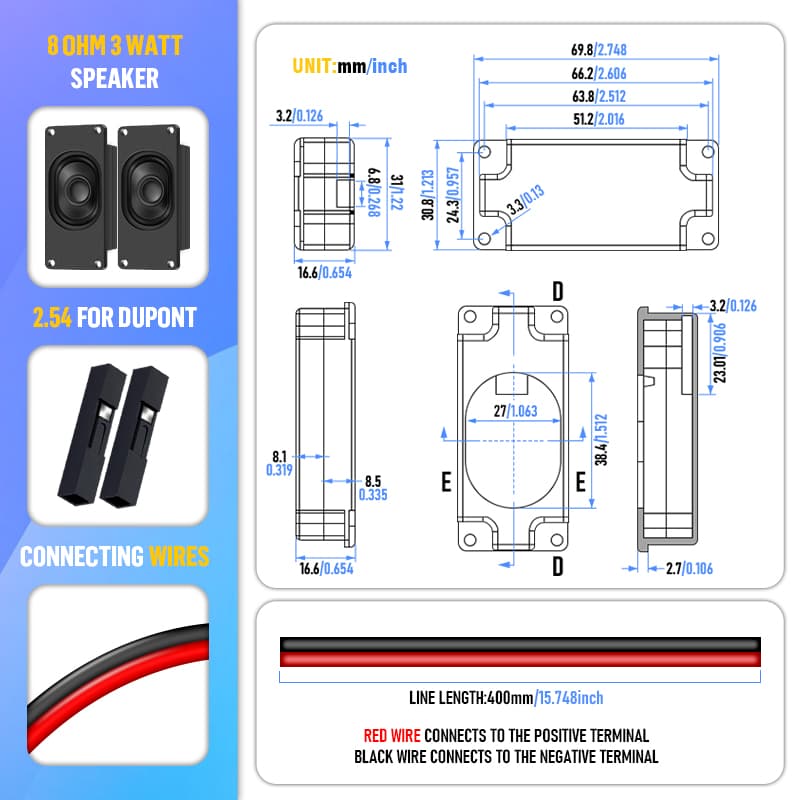

Size: 70mm * 31mm * 16mm.
Screw hole distance: 24mm * 63mm.
Interface: 2.54mm Dupont Interface.

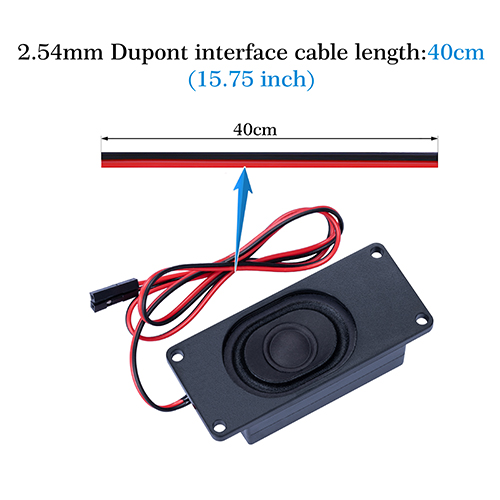

Interface cable length: 40cm.
Total weight: 24g.
