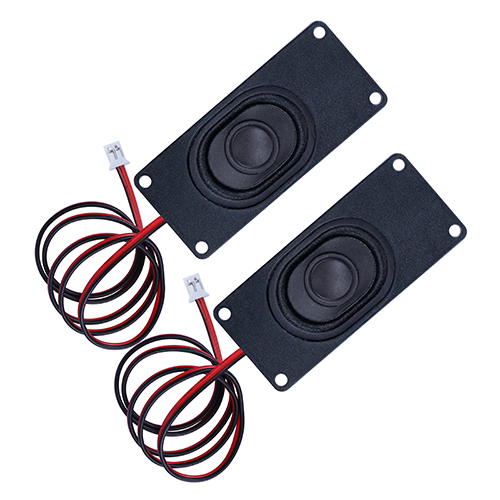

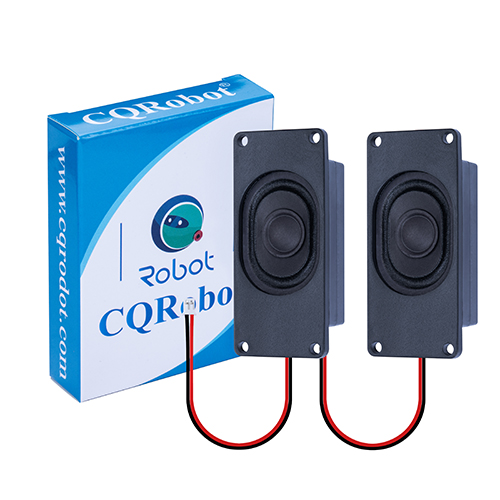

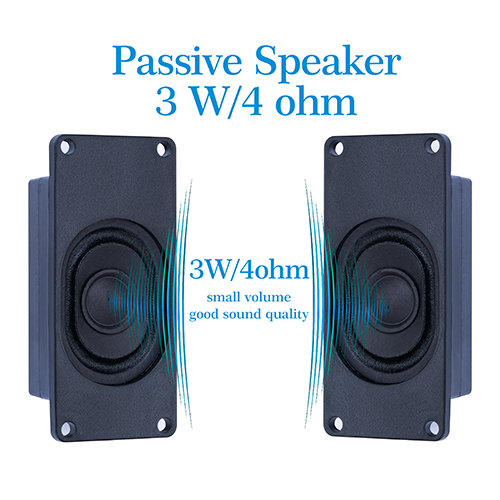

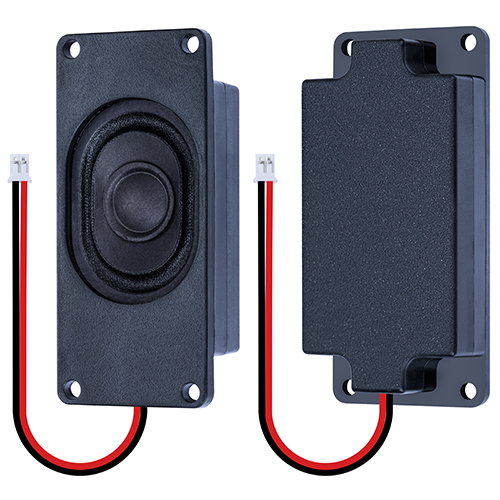

Passive Speaker 4Ω 3W, JST-PH2.0 Interface.
3
.99
10+
3
.79
Save 5%
50+
3
.63
Save 9%
100+
3
.51
Save 12%
200+
3
.39
Save 15%
500+
3
.19
Save 20%
Product details
TECHNICAL SPECIFICATIONS
- Resonance Frequency: 500 Plus/Minus 20% Hz.
- Impedance: 4 Ohm Plus/Minus 15% at 1 khz 1.0V.
- Power: rated power / maximum power 2.0W / 3.0W
- Sensitivity: 82 Plus/Minus 3dB (1w / 0.5m) at 1.0K Hz.
- Effective frequency range: FO to 15 KHz.
- Distortion factor: Less Than 5% MAX. (AT 1.0KHz 0.5W 0.5M)
- Polarity: When a positive DC current is applied to the terminal marked +, the diaphragm shall move forward.
- Buzz & rattle test: 4.0V FO to 15KHz.
- High Temperature Storage Test: 80 Degree Celsius Plus/Minus 5 Degree Celsius - 96 Hours.
- Low Temperature Storage Test: -40 Degree Celsius Plus/Minus 5 Degree Celsius - 96 Hours.
- Magnet: Nd-Fe-B, 12.5mm * 2mm.

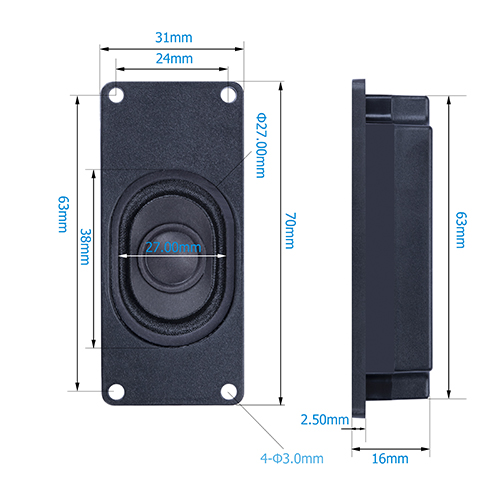

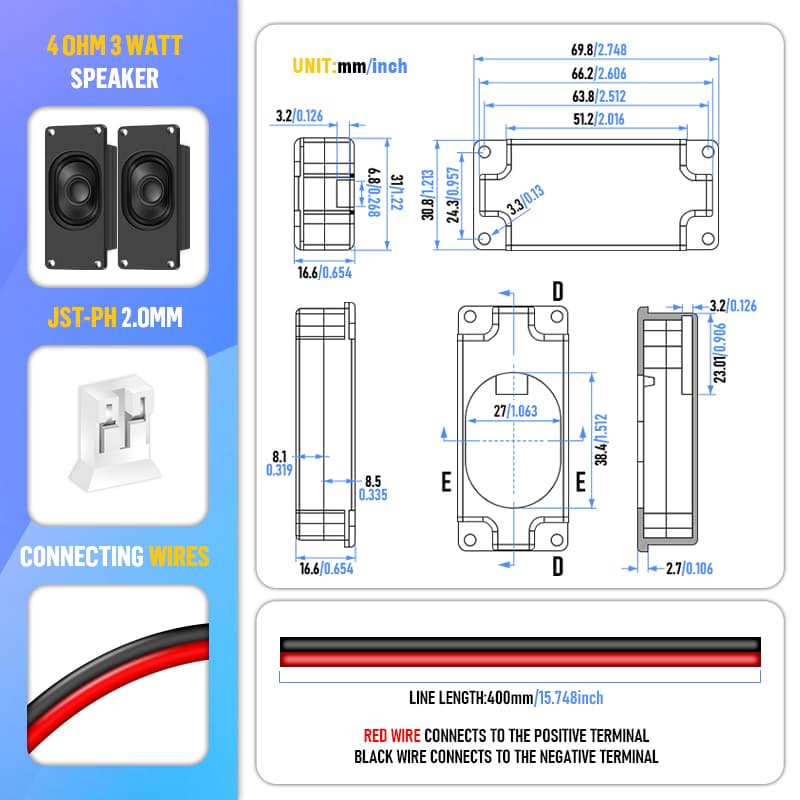

- Size: 70mm * 31mm * 16mm.
- Screw hole distance: 24mm * 63mm.

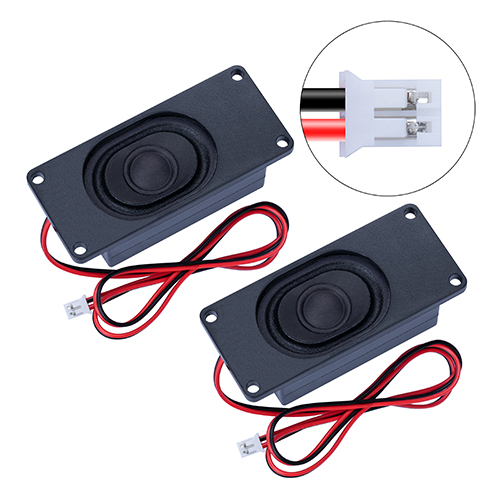

- Interface: JST PH2.0 2-Pin.

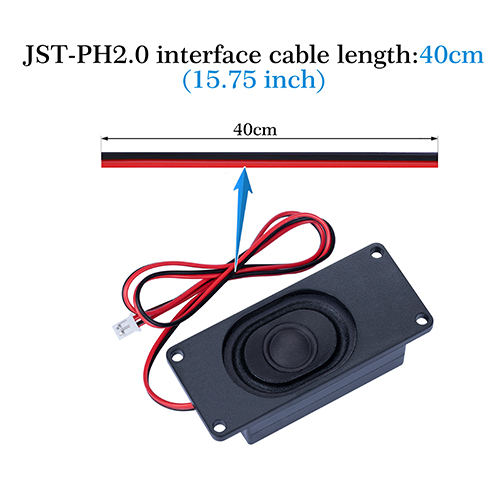

- Interface cable length: 40cm.
- Total weight: 24g.
