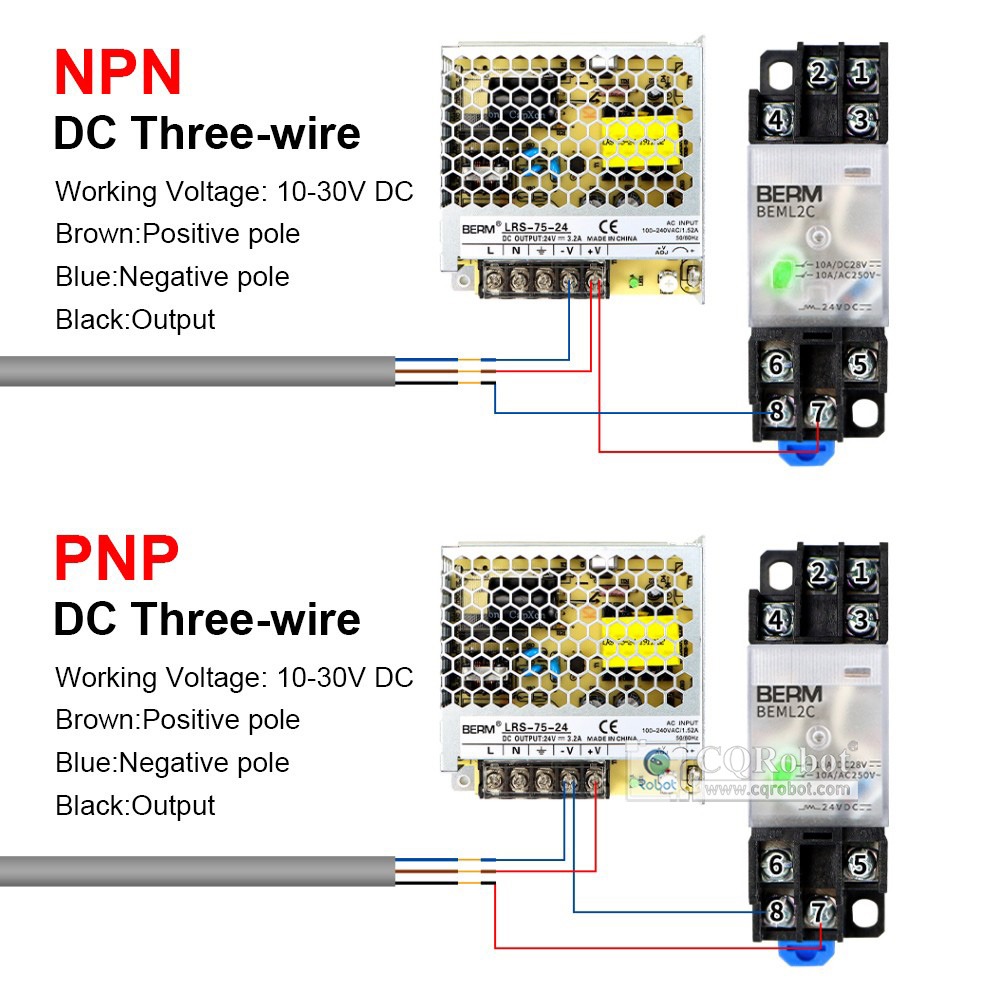

This is a DC three wire NPN square metal proximity switch designed specifically for industrial automation, supporting flexible switching between normally open/normally closed modes.

This sensor adopts ABS waterproof shell and environmentally friendly insulation design, which is sturdy, wear-resistant, waterproof and oil resistant. Equipped with an intelligent sensing chip, it can accurately sense metals such as gold, silver, and iron (with a detection distance of 4mm), achieving non-contact high response detection.

Suitable for machine tool positioning, metallurgical equipment, chemical automation, and metal object counting scenarios.

SPECIFICATION

• Product Name: Metal Proximity Switch
• Model: SN04-N2
• Shell Material: ABS plastic
• Color: Green

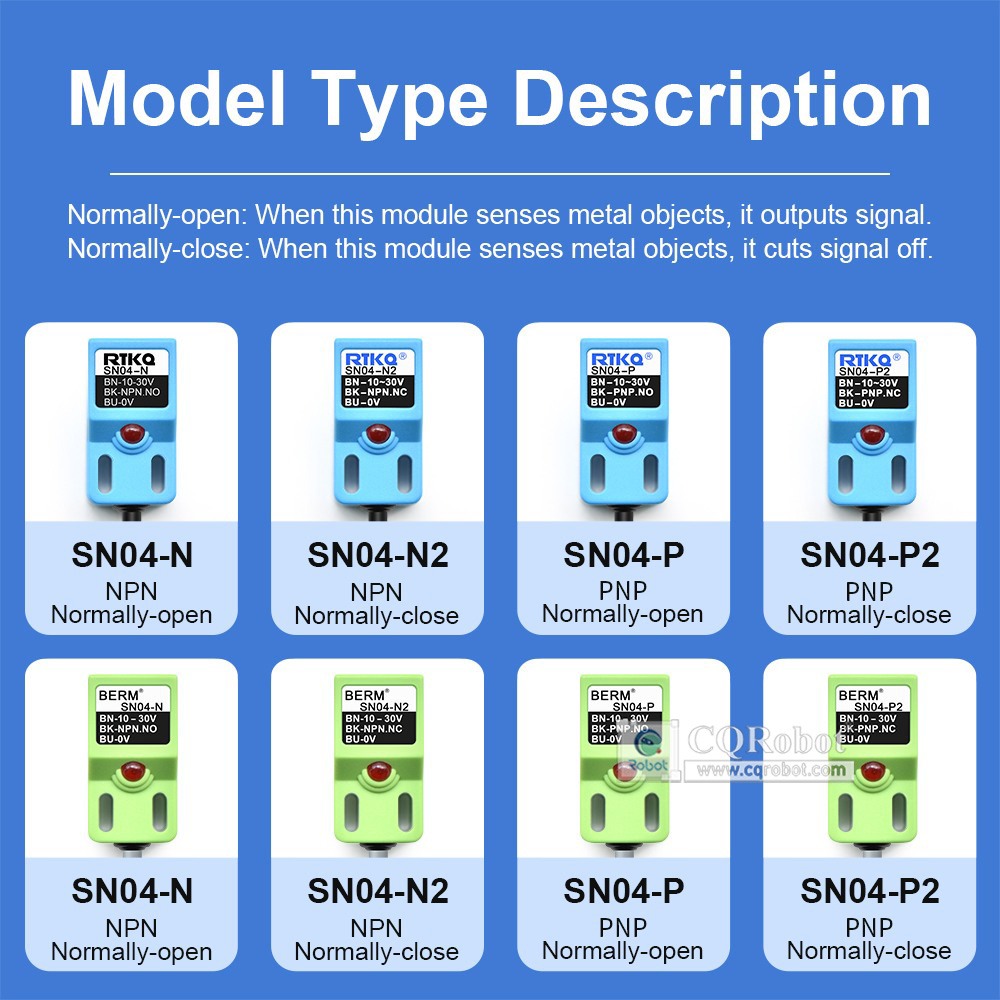

• Output Mode: NPN normally open
• Detection Distance: 4mm
• Line Length: 1.2 meters

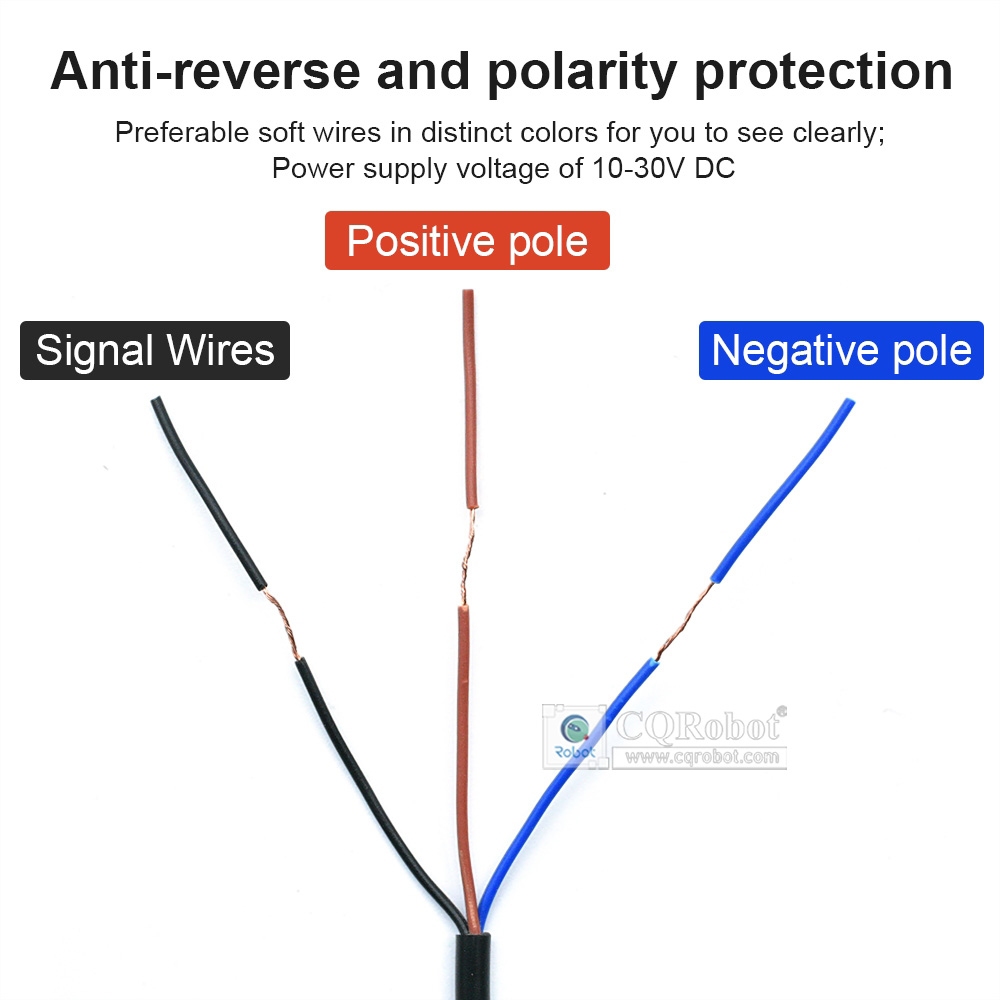

• Working Voltage: 10-30V DC
• Output Current: 300mA
• Response Time:<0.5ms
• Detecting Objects: metals (iron, gold, silver, etc.)

DISTRIBUTION LIST

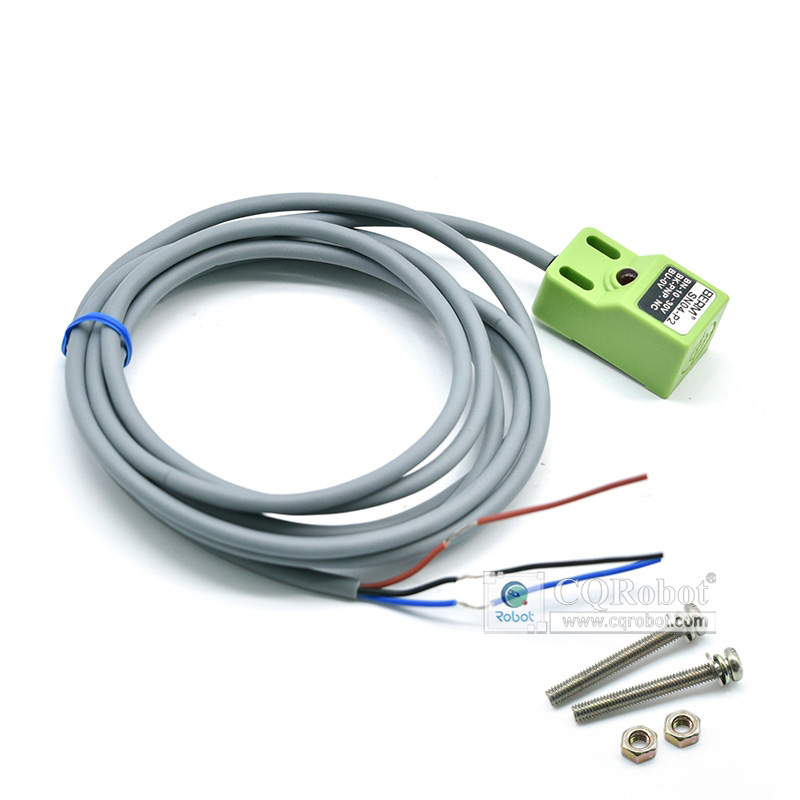

1 * SN04-N2 proximity switch NPN normally closed
