CQRJSTLJ361

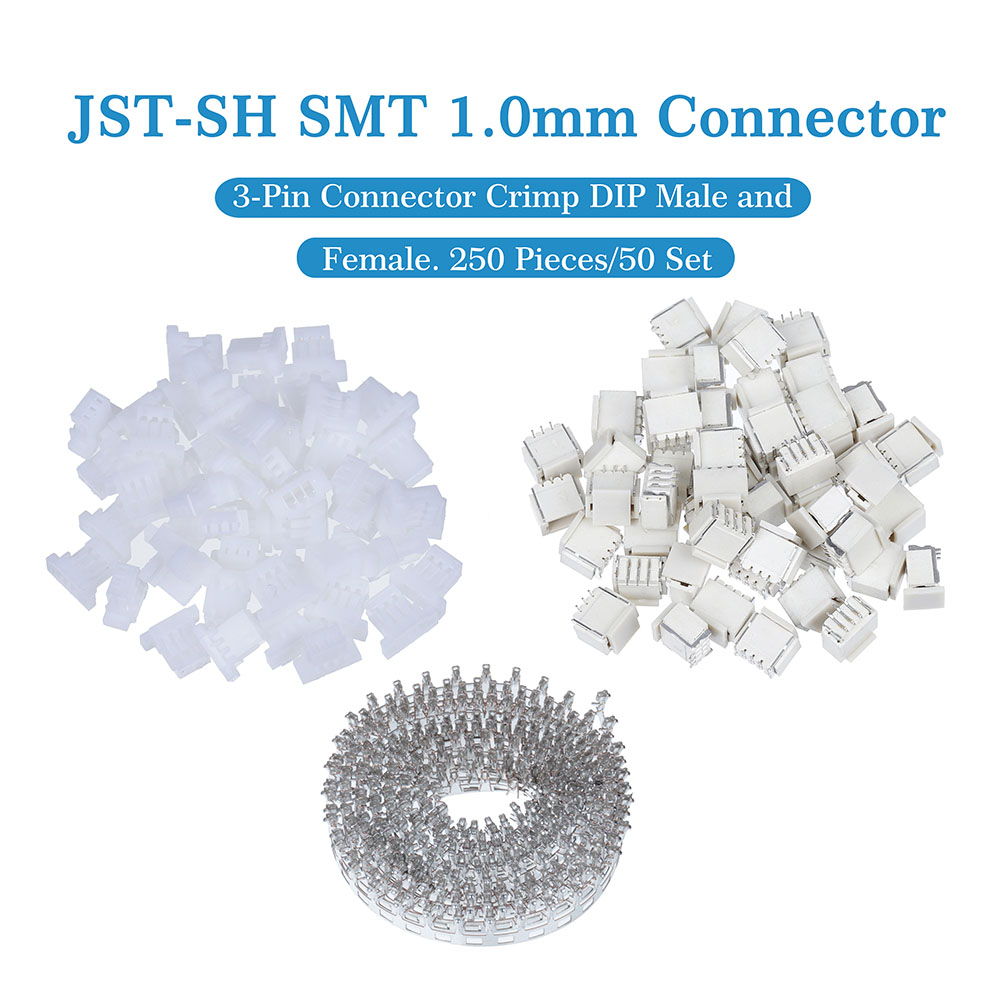

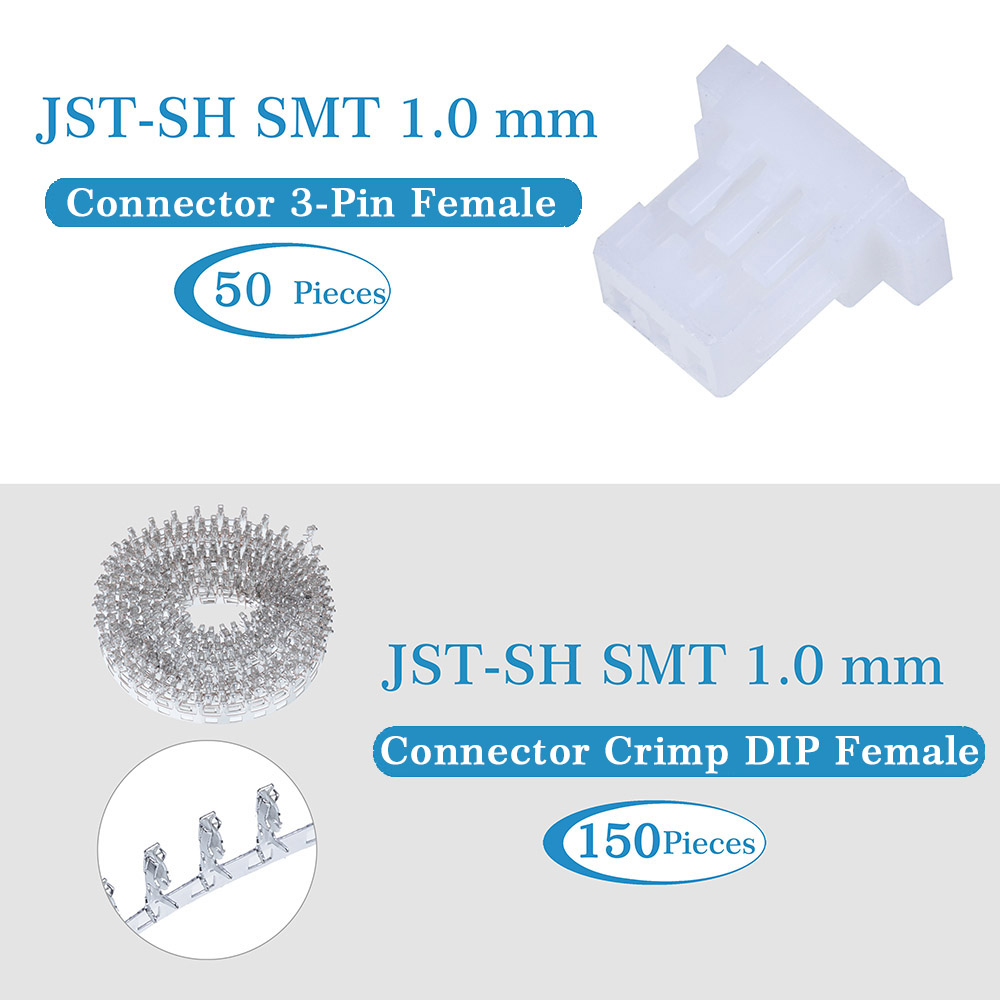

JST SH SMT 1.0mm Pitch 3 Pin JST Connector Kit
SKU
CQRJSTLJ361
Part No.
CQRJSTLJ361
Brand
CQRobot
5
.43
Style：

SH

Model：

Vertical SMT

Pin：

2P

3P

4P

5P

6P

7P

8P

9P

10P

Quantity
In Stock
Share:
10+
5
.16
Save 5%
50+
4
.94
Save 9%
100+
4
.78
Save 12%
200+
4
.62
Save 15%
500+
4
.34
Save 20%
Related Products:

Product details

SPECIFICATION

  • Model: JST SH SMT 3 Pin
  • Pitch: 1.0mm (0.039 inch)
  • Current Rating: 1.0A AC/DC (AWG #28)
  • Rated voltage: 50V AC/DC
  • Temperature range: -25 Degrees Celsius to 85 Degrees Celsius (including -temperature rise when applying electric current)
  • Contact resistance: initial value/20 milliohms max; According to environmental tests/40 milliohms max.
  • Insulation resistance: 100 megohms and more
  • Dielectric Strength: 500V AC/minute
  • Applicable Wire: Conductor Size/AWG #28 to AWG #32; Insulation O.D./0.4 to 0.8mm.

JST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-7.jpgJST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-8.jpgJST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-9.jpgJST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-10.jpgJST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-11.jpgJST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-12.jpg
