FEATURE

Strong Fingerprint Adaptability

• During the fingerprint image reading process, an adaptive parameter adjustment mechanism is used to ensure that both wet and dry fingers have good imaging quality, which is applicable to a wider range of people.

Easy to Use and Expand

• It can be applied without professional knowledge of fingerprint recognition. Users can develop a powerful fingerprint recognition application system by themselves according to the rich control commands provided by the module.

Application Scenarios

• Smart door locks, more complex access control systems;
• Fingerprint IC card recognition terminal;
• Fingerprint recognition and authentication system connected to PC.

SPECIFICATION

• Module Size: 19*19mm

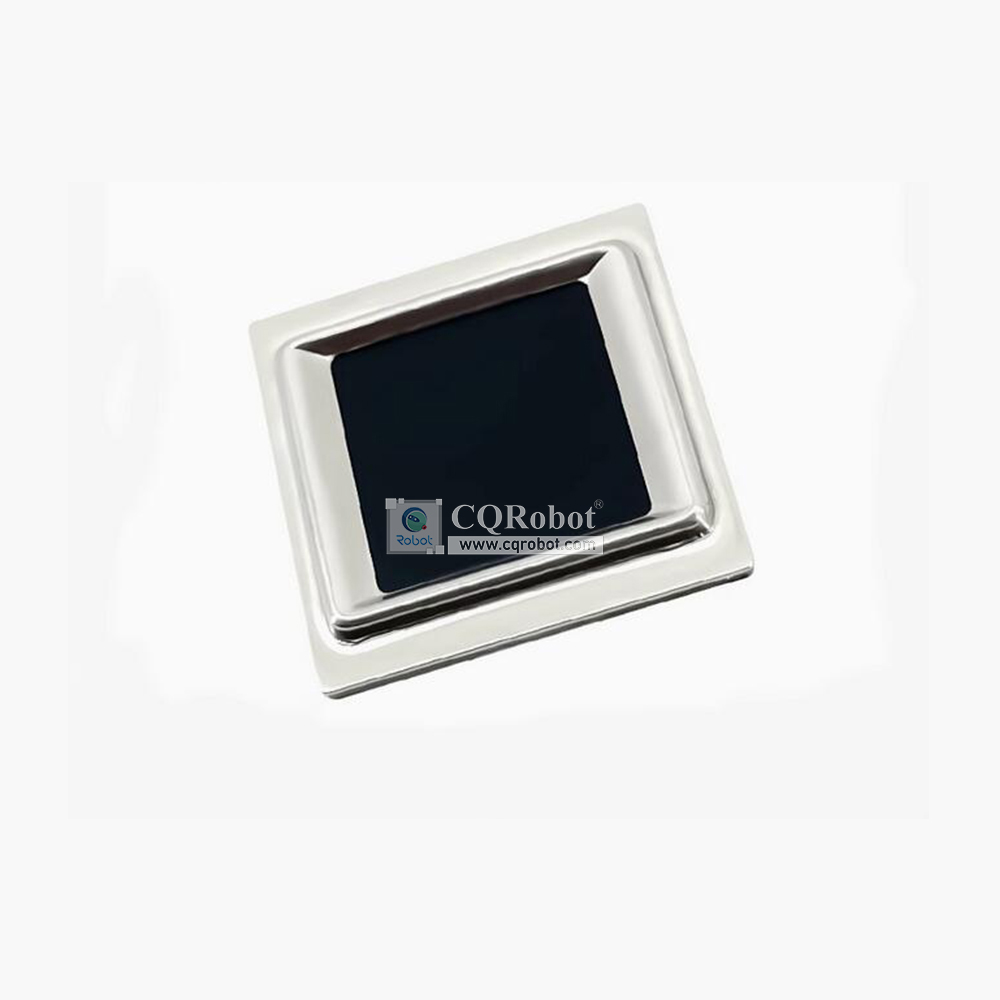

• Sensor Size: 12.05*12.05mm
• Resolution: 160*160 pixel
• Data Connection: UART
• Communication Baud Rate: default baud rate 57600bps / 1 start bit / 1 stop bit, 3.3V TTL level

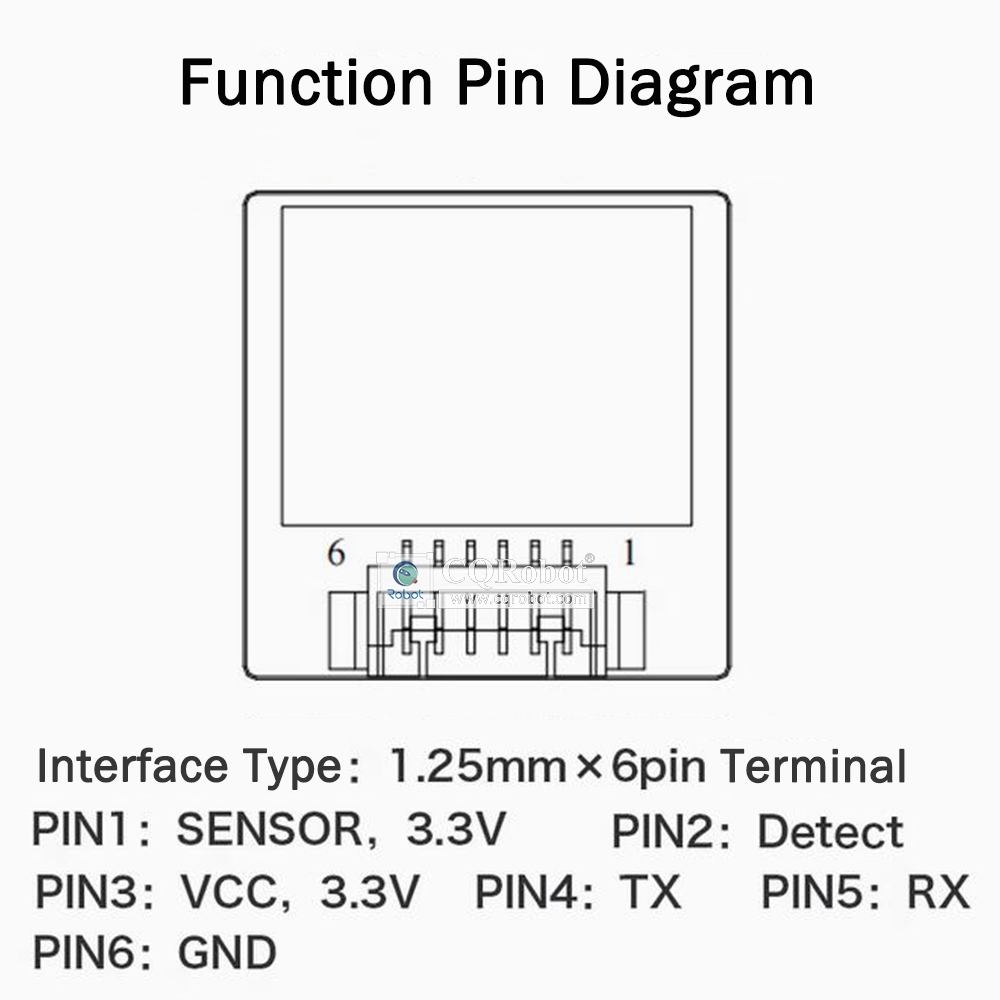

• Interface Type: 1.25mm - 6Pin
• Fingerprint Library Capacity: 100 pieces
• Storage Environment: -40℃~+85℃, 45%~95%RH
• Working Environment: -25℃~+85℃, 45%~85%RH
• FAR: <0.001%
• FRR <=1%
• Comparison method: 1: N
• Active handshake command after initialization: Supported
• Self-learning function: None
• Fingerprint unique serial number: Supported
• Fingerprint entry buffer definition: buffers CharBuffer1, CharBuffer2, CharBuffer3, respectively OxOO, Ox01, OxO2
• Security level: default level 3

SHIPPING LIST

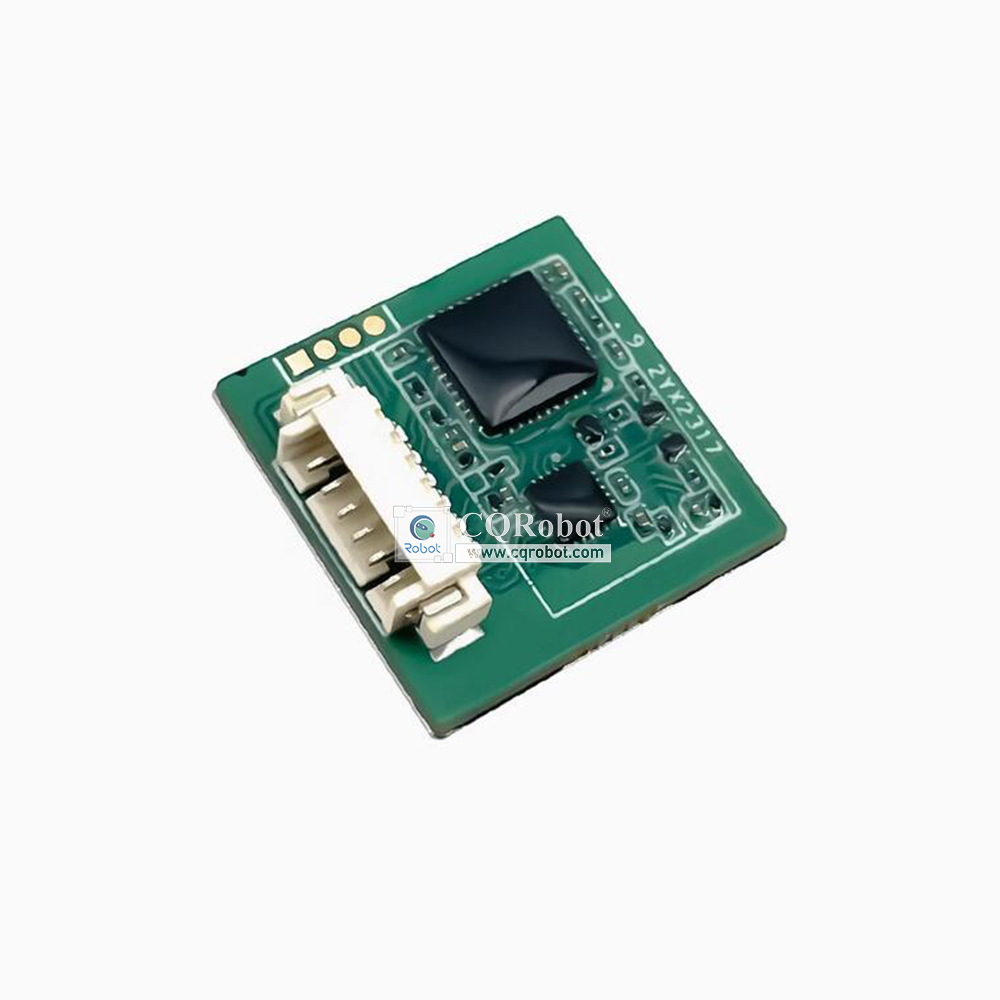

1 * ZW0608 Fingerprint Recognition Module

1 * 1.25mm - 6Pin to DuPont Cable
