INTRODUCTION

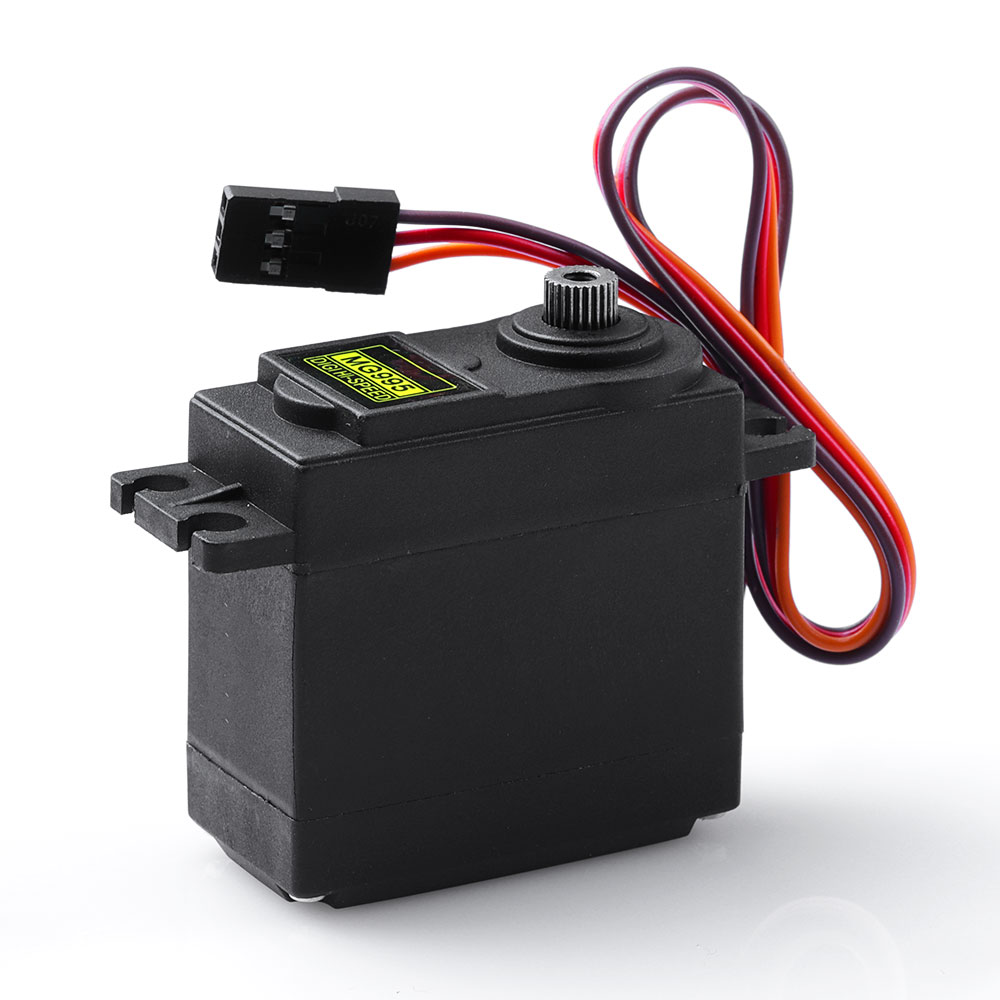

MG995 metal copper gear steering servo is an entry-level Servo-motor, suitable for bipedal robots/manipulators/remote control cars/50-90 class methanol fixed-wing aircraft and 26cc-50cc gasoline fixed-wing aircraft and other models.

SPECIFICATION

- Product Name: Metal copper gear steering servo

- Structure Material: metal copper teeth, coreless cup motor, double ball bearings

- Connecting Line: length 30 cm, signal line (yellow line), red line (power line), dark red (ground line)

- Size: 40.7*19.7*42.9mm

- Weight: 55g

- Reaction Speed: no load speed 0.17 seconds/60 degrees (4.8V); 0.13 seconds/60 degrees (6.0V)

- Working Dead Zone: 4 microseconds

- Plug Specifications: JR FUTABA universal

- Working Voltage; 3.0V-7.2V

- Working Torque: 13KG/cm

- Using Temperature: -30~~+60 degrees Celsius

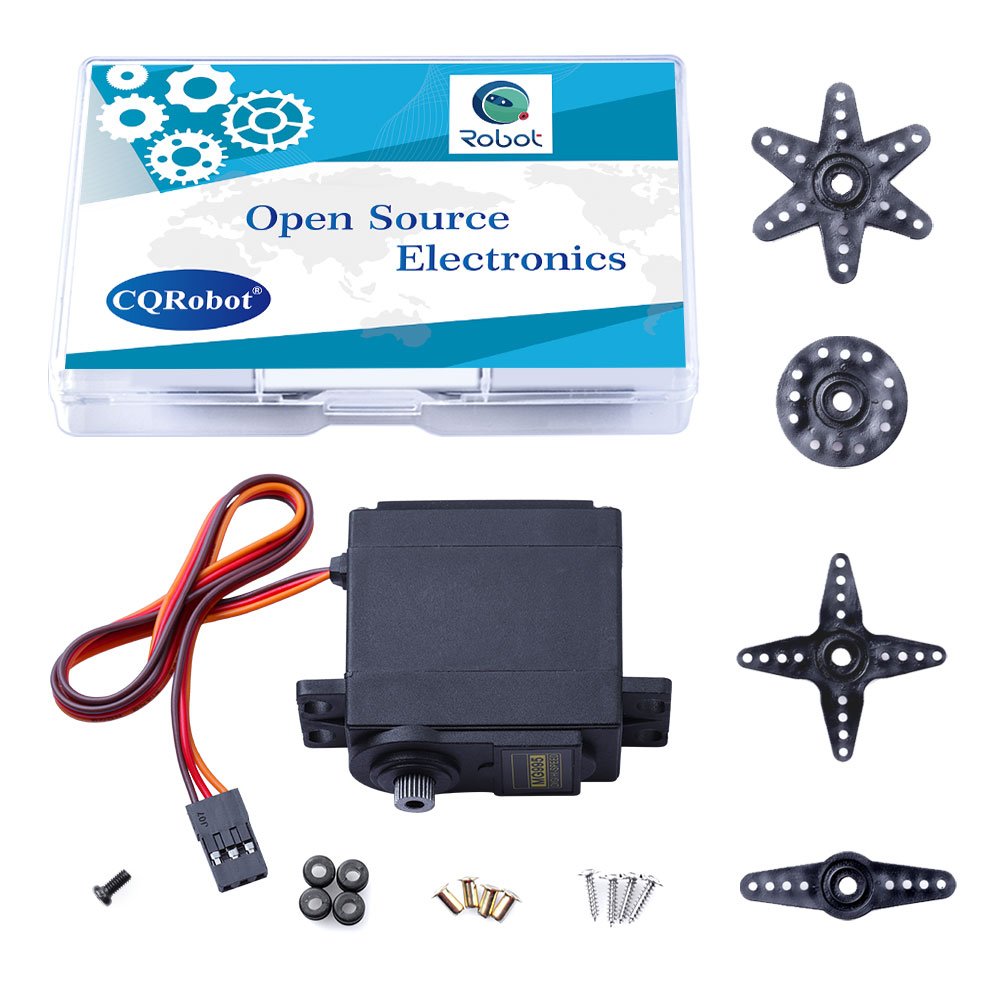

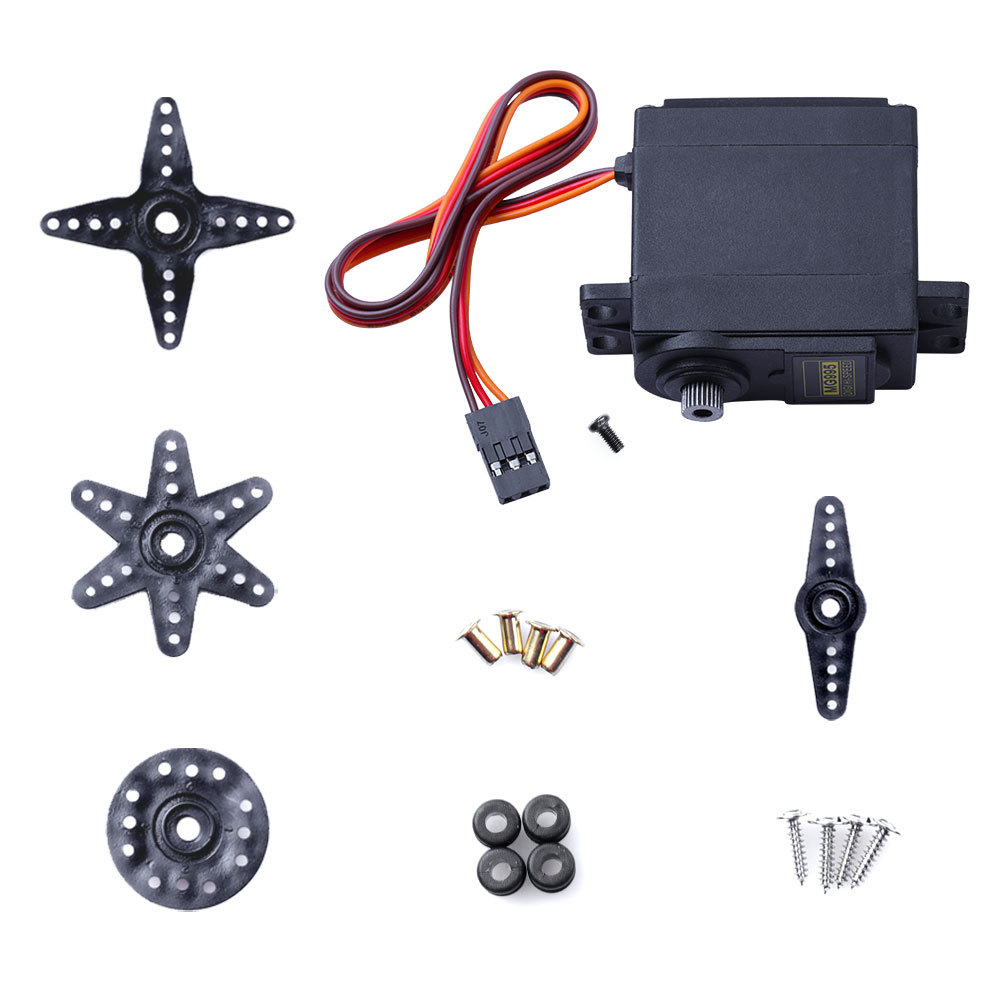

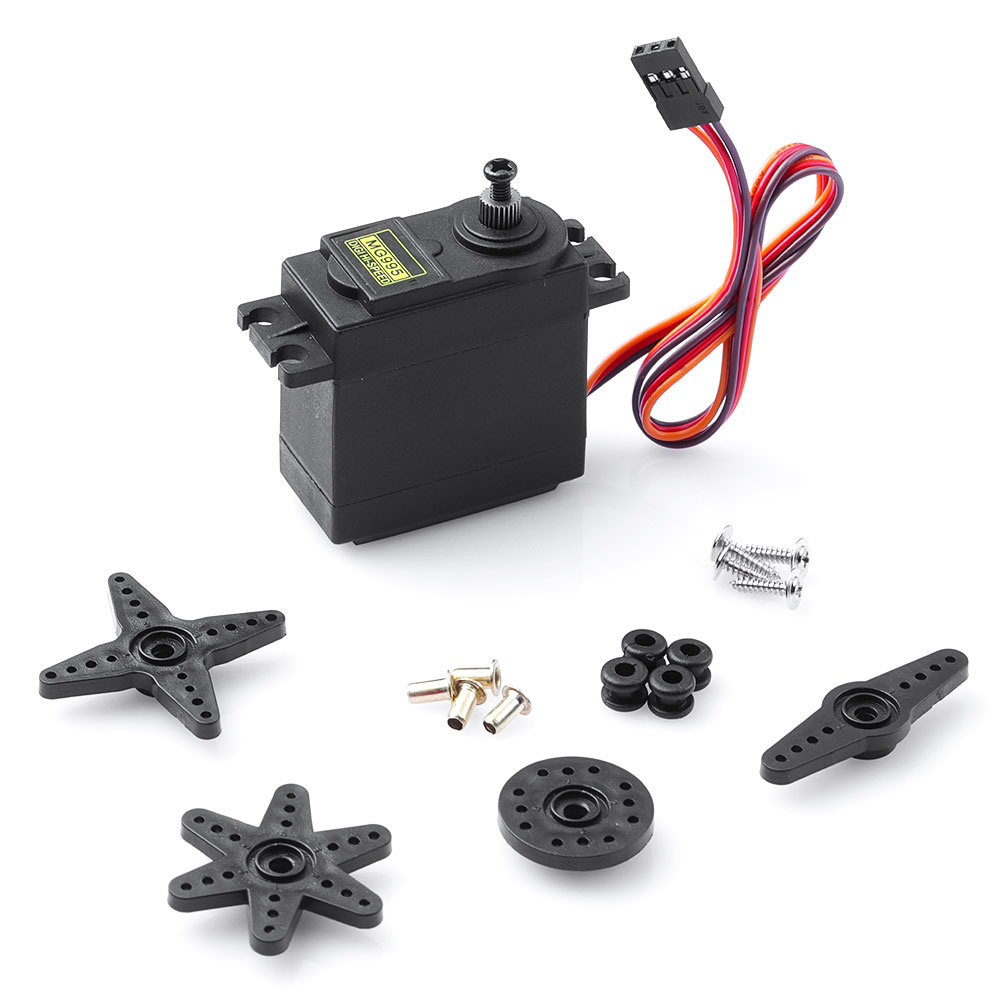

SHIPPING LIST

1 * MG995 Metal Copper Gear Steering Servo

1 * 995 Disc Servo Arm Accessory Kit
