Description

Grove - Water Atomization is a perfect module for you to quickly DIY a humidifier with Arduino. You can also develop more advanced and interesting projects with digital scent technology and any other situations in which atomization is required.

Features

• Heated with ultrasound: It has the characteristics of high humidification efficiency, low power consumption
• Easy to prototype: Detachable atomizer is more convenient for prototype development
• Well applied to vast projects: Good stability and high safety
• Easy to build: Easy to build various interesting, smart and fashionable applications
• Grove compatible interface: The product ensures "Plug and Play" and could be versatile for various applications of Grove

Applications

• Humidifier, ultrasonic mist
• Scent emitter in different situations
• For smart-house applications

Specification

• Operating Voltage: 5.0V(DC)
• Ripple(at Max power): ≤100 mV
• Max Power: 2W
• Peak Output Voltage: 65±5V
• Operating Frequency: 105±5kHz
• Chip: ETA1617、NE555

Shipping List

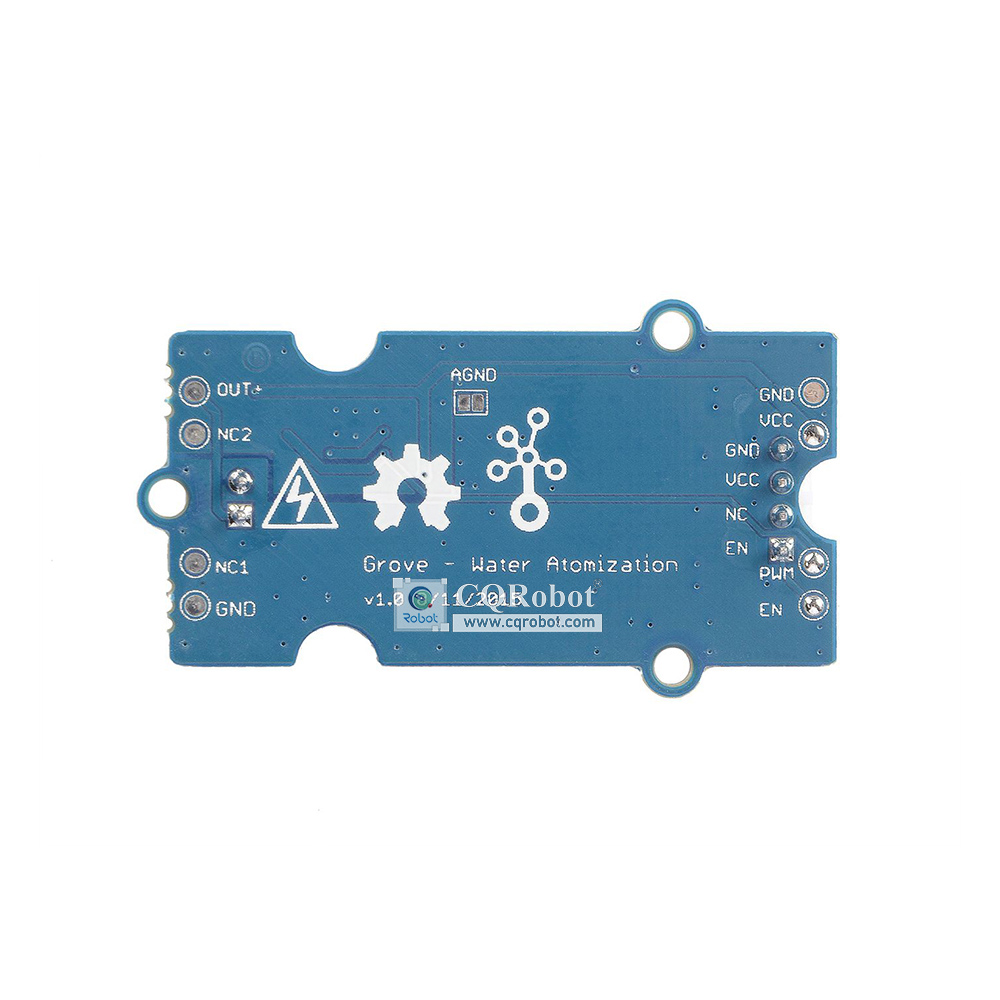

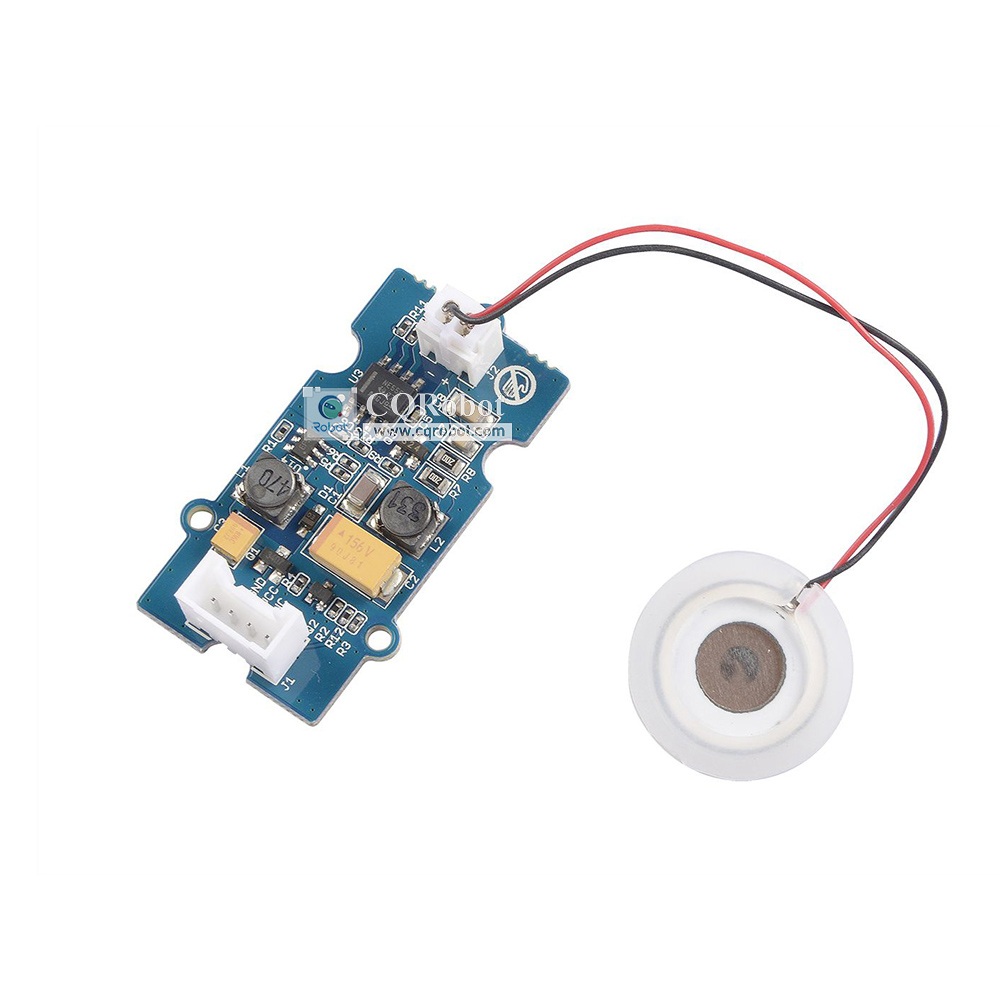

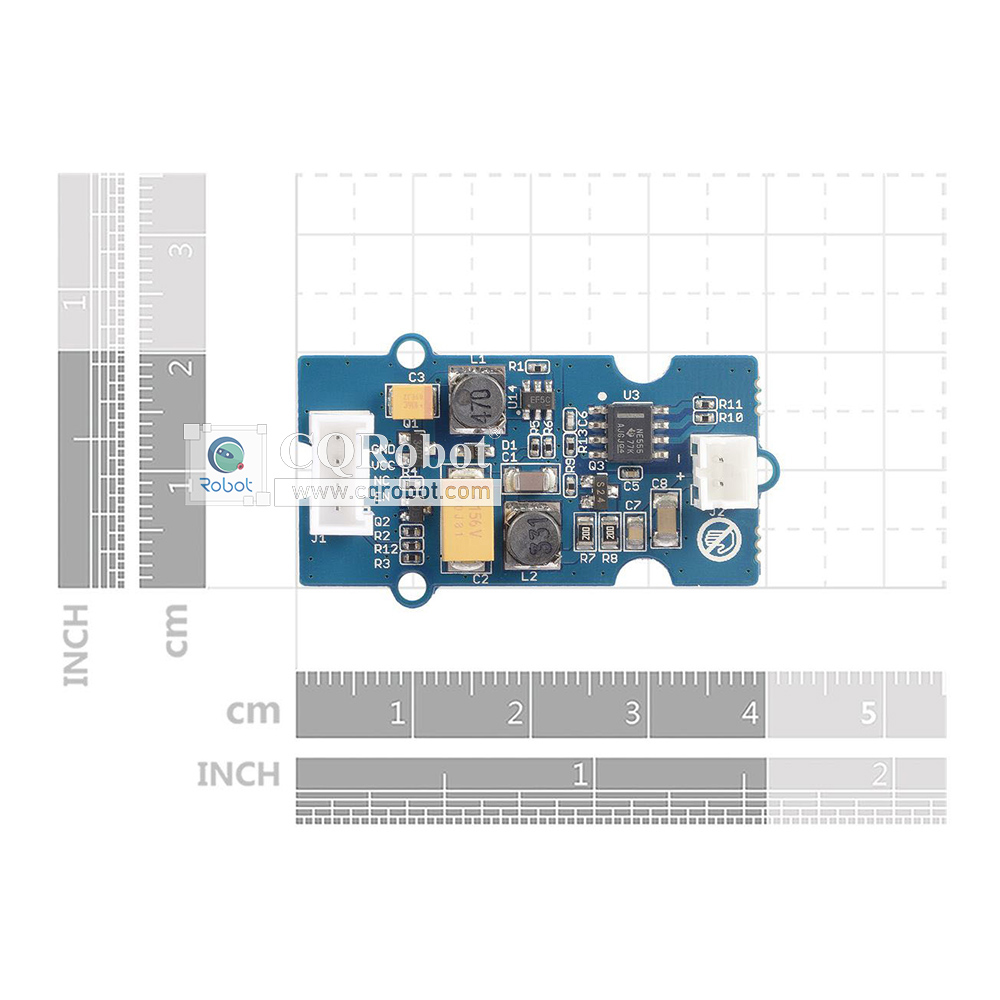

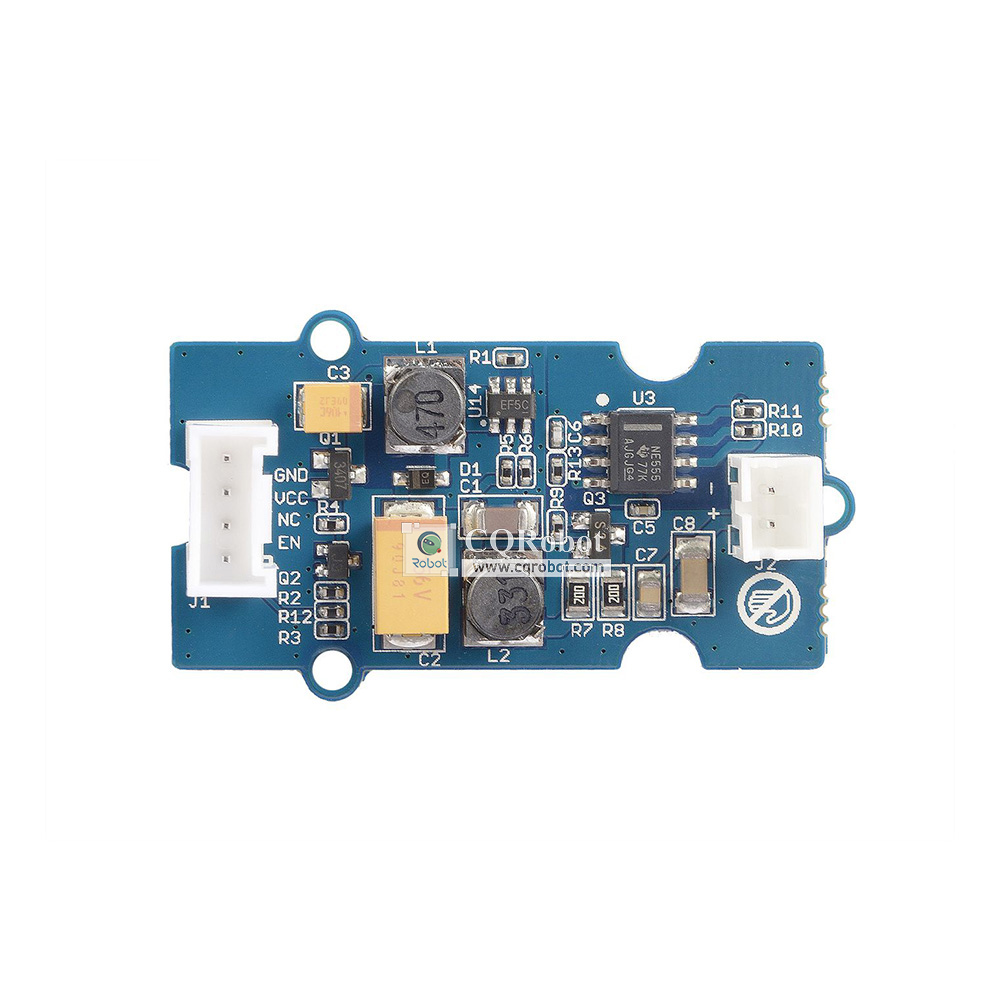

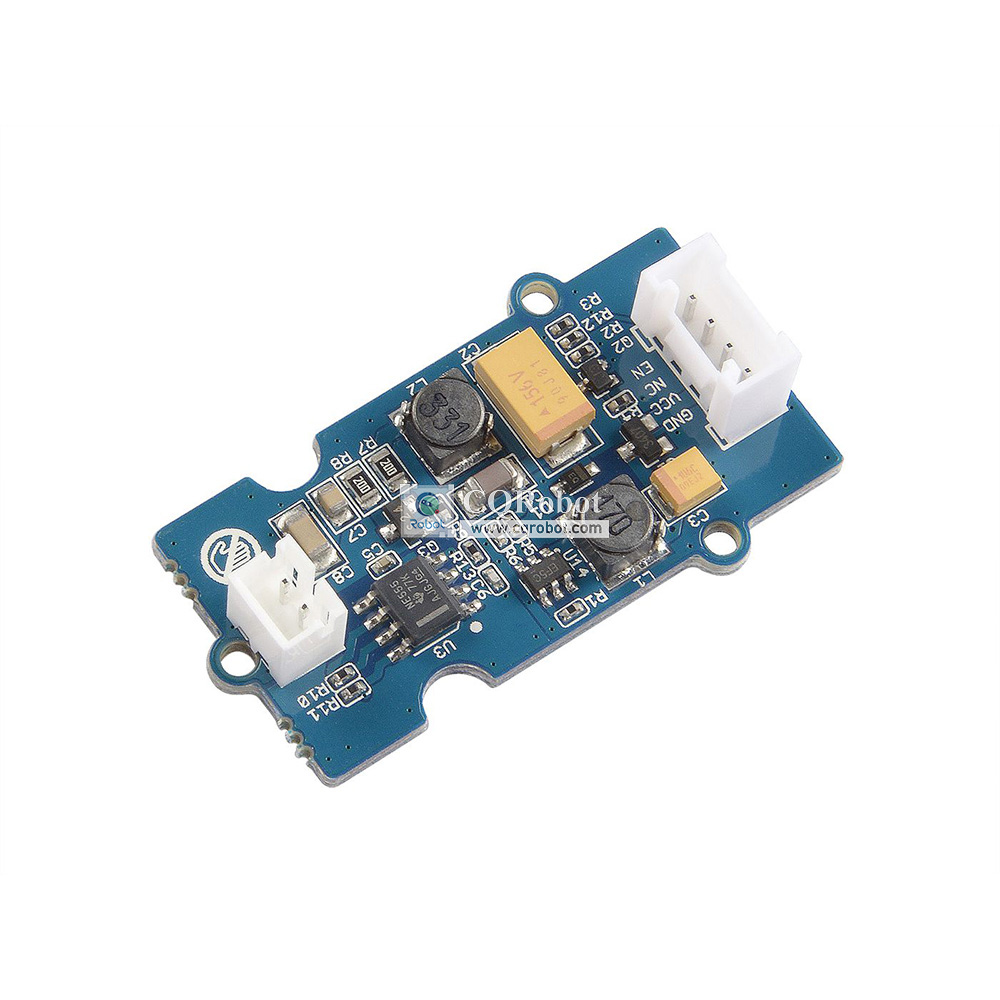

1 * Grove - Water Atomization v1.0

1 * Ultrasonic Transducer

1 * Grove Cable
