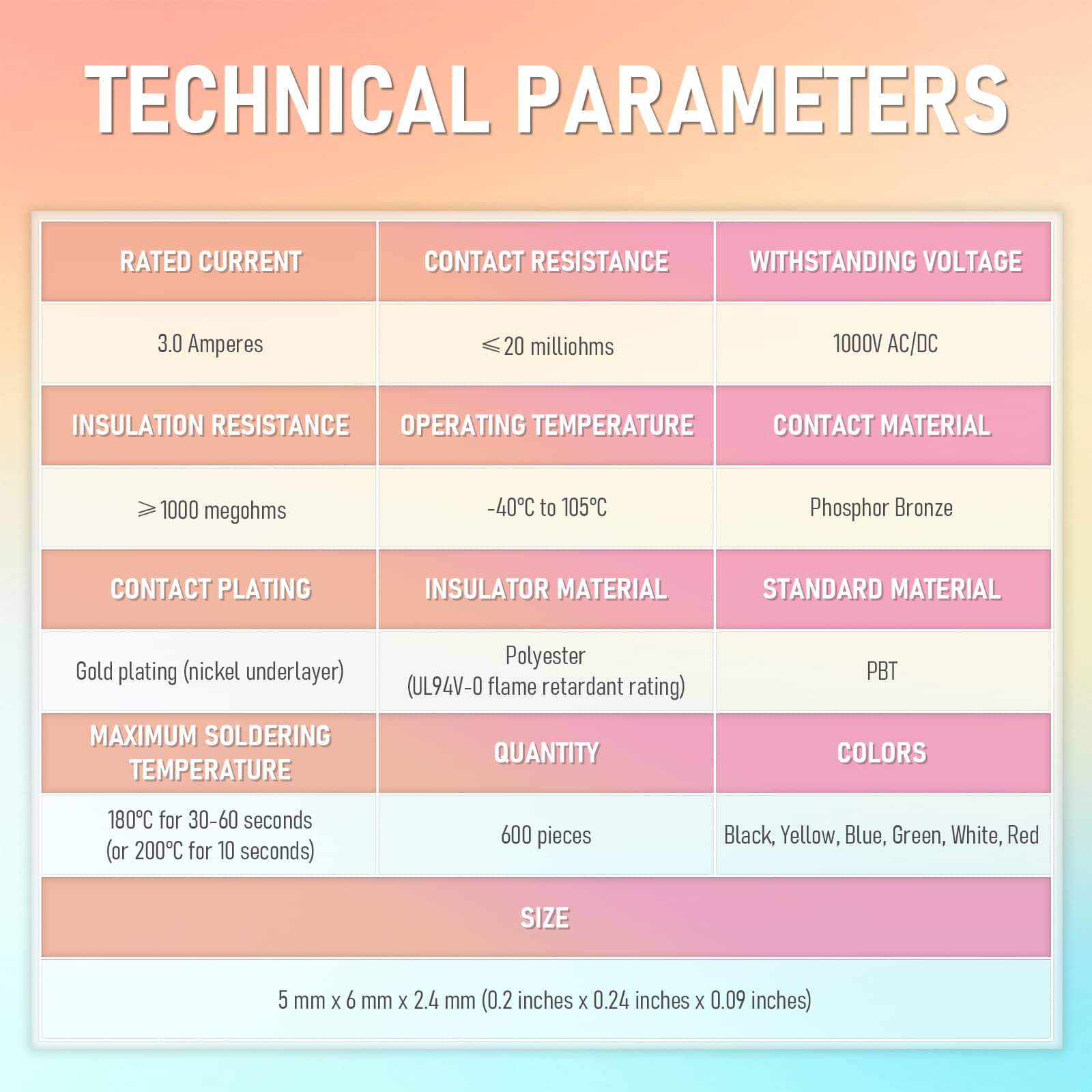

SPECIFICATION

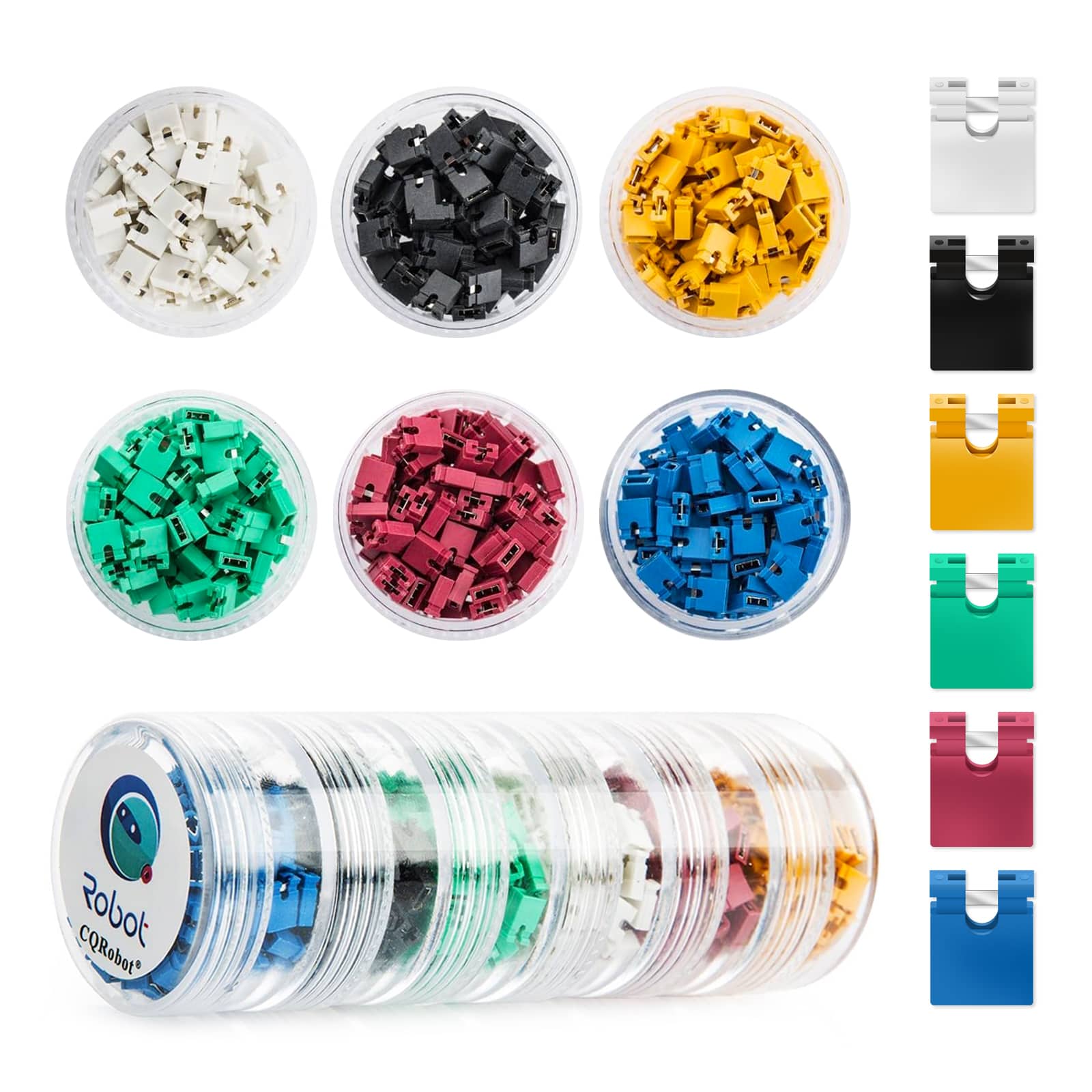

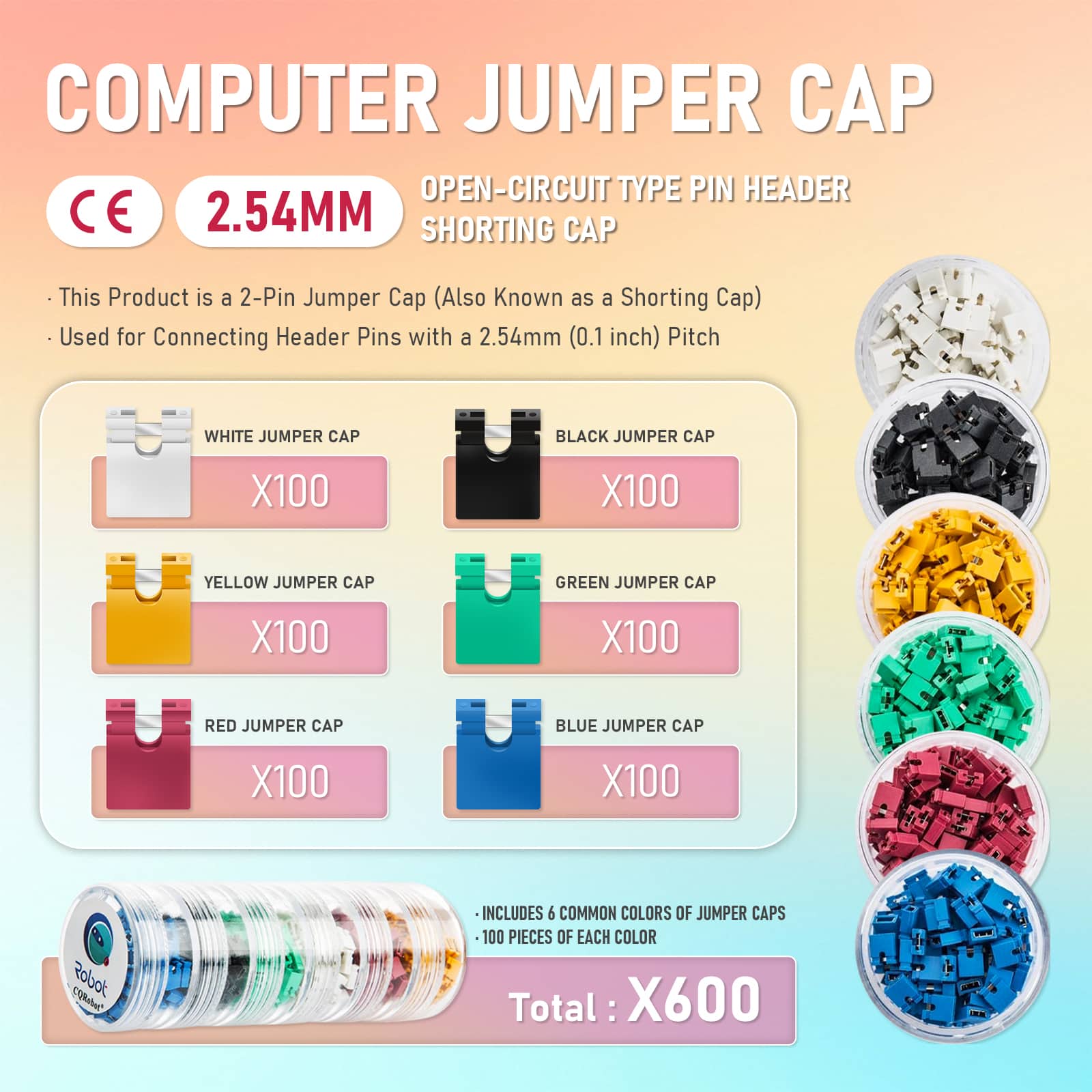

• Color: Black, Yellow, Blue, Green, White, and Red

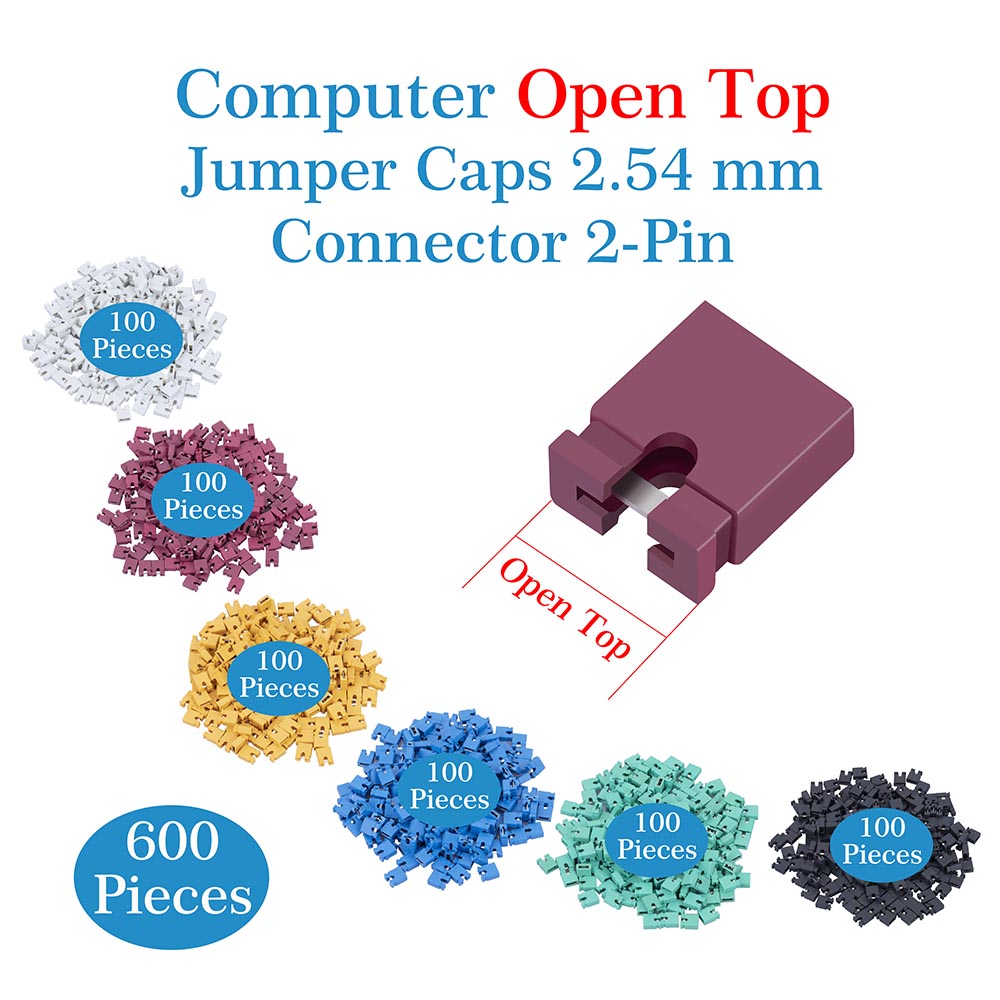

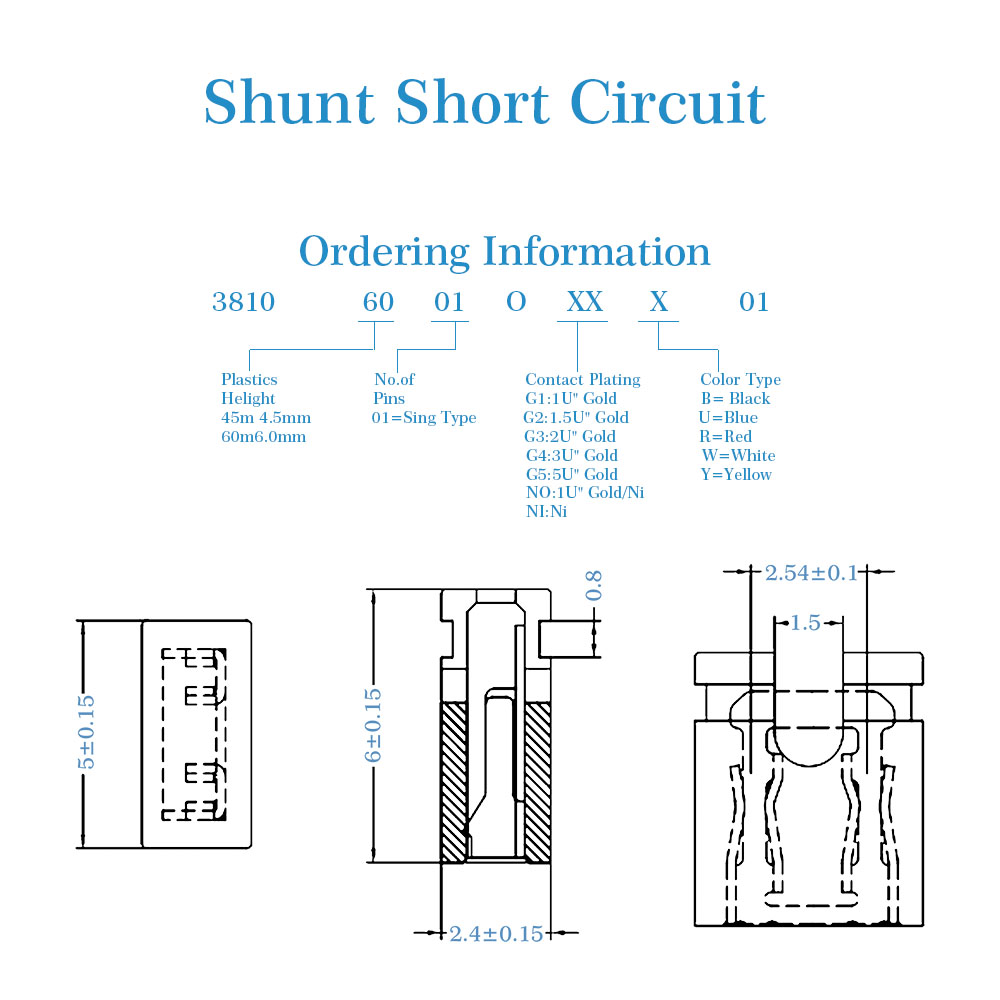

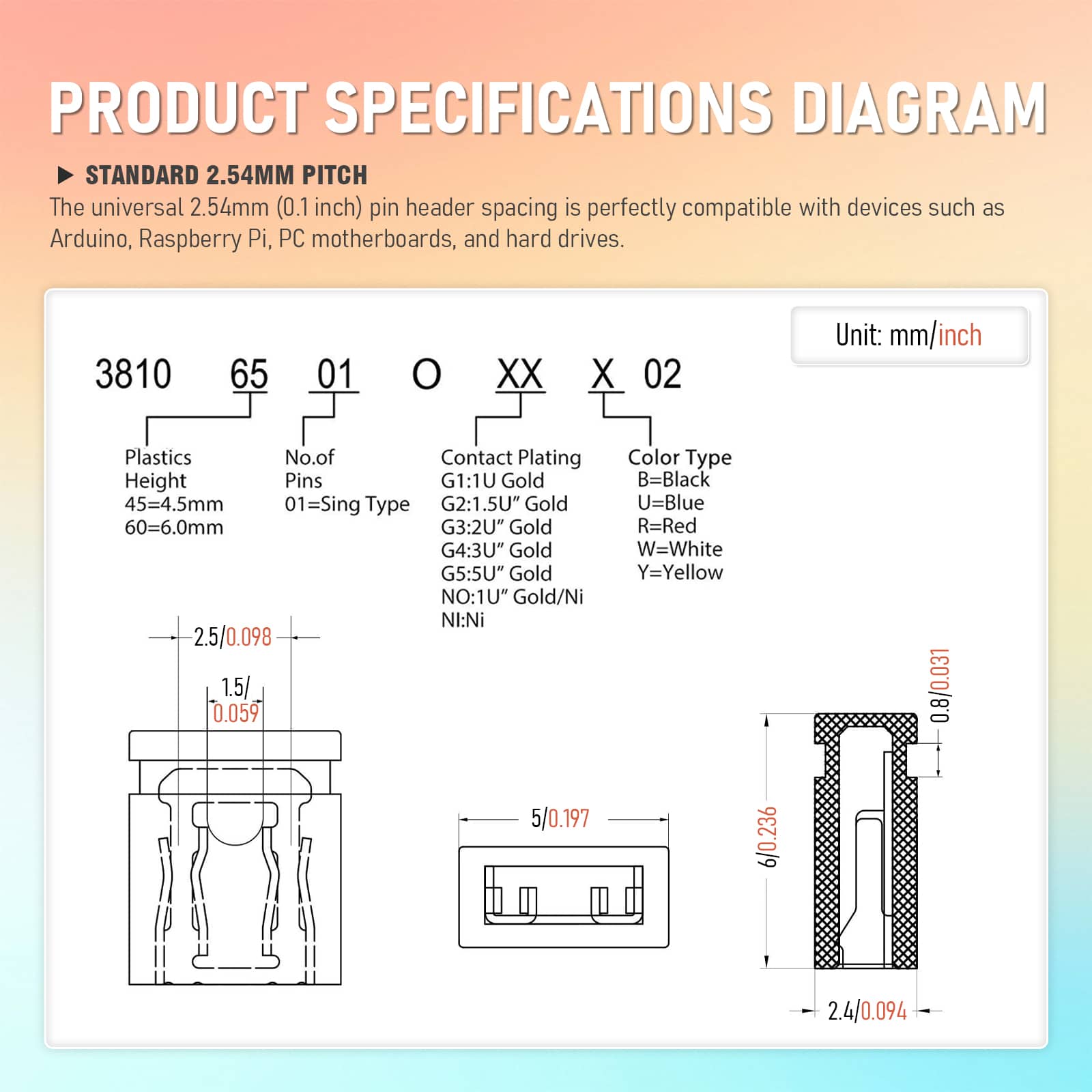

• Pitch: 2.54mm (0.1 inches)

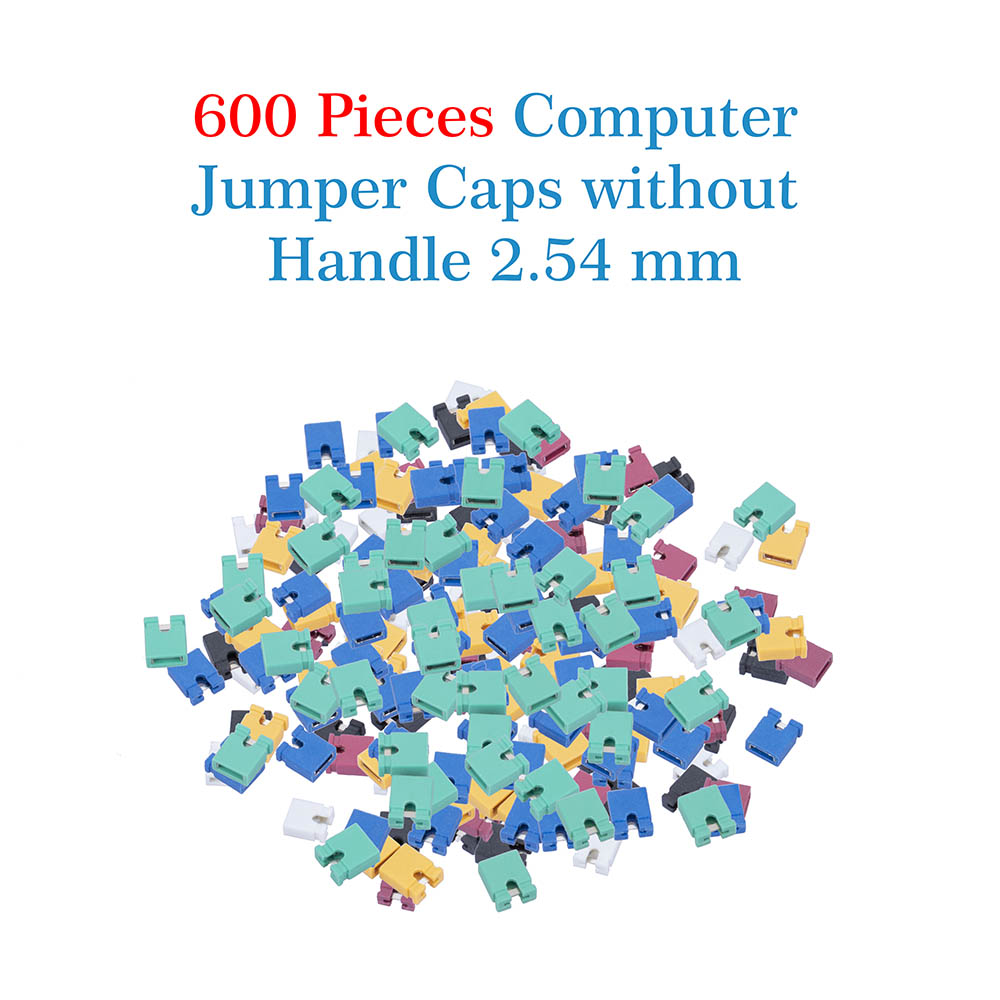

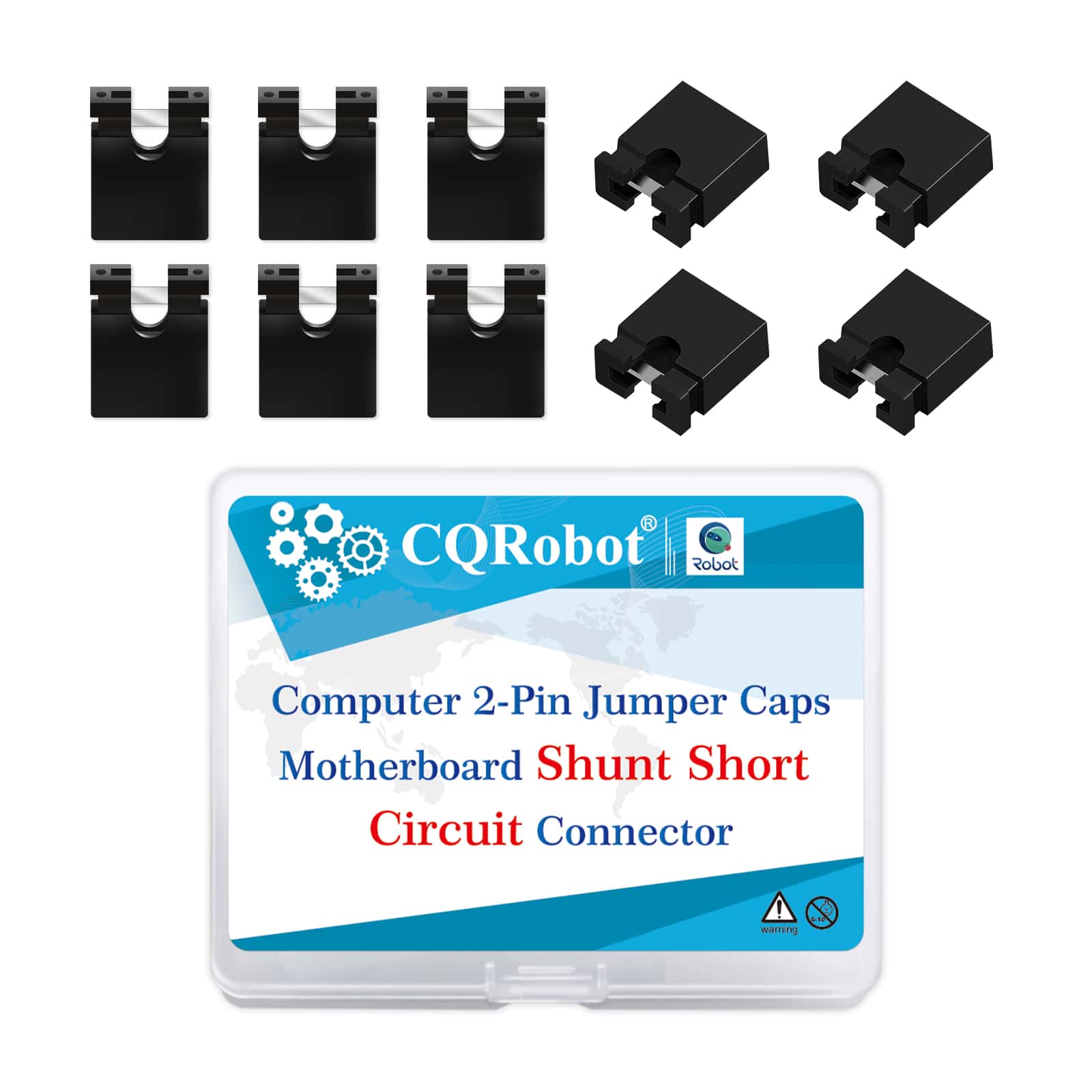

• Product Type: Jumper Cap without Handle

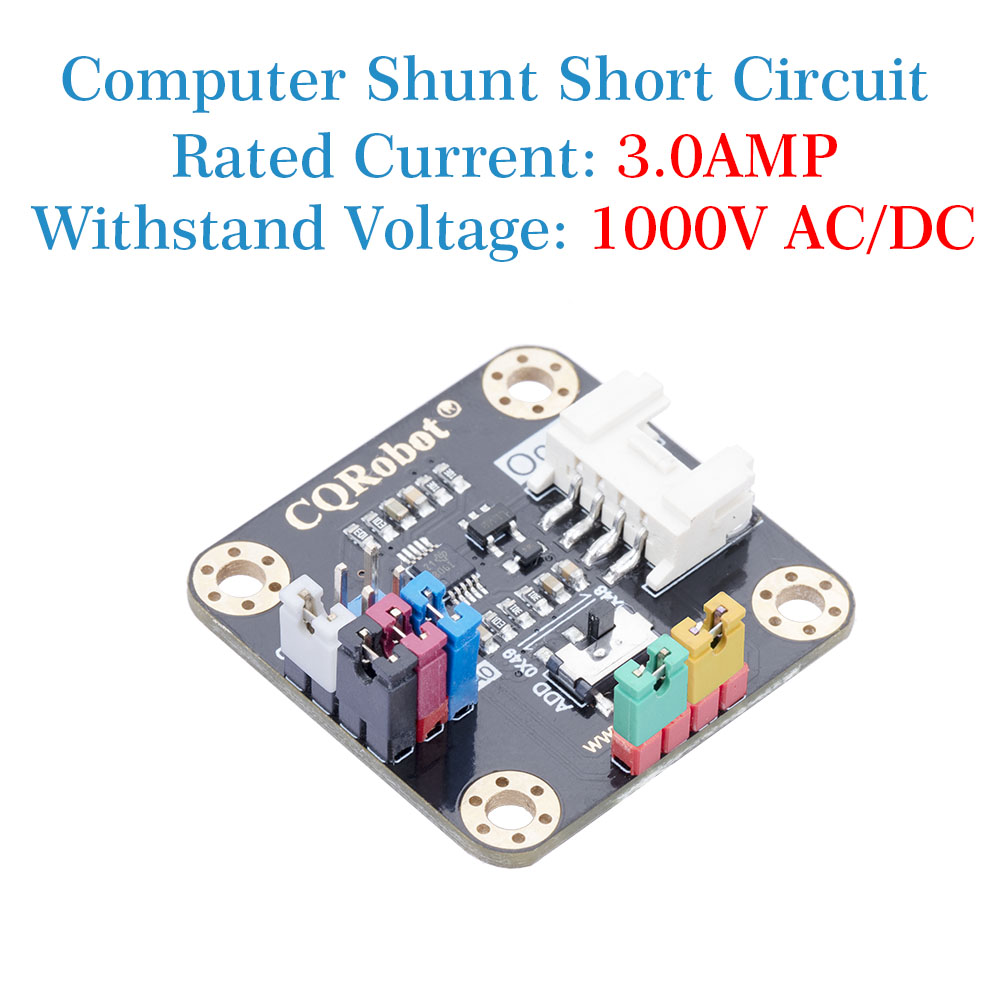

• Rated Current: 3.0AMP
• Contact Resistance: 20 Milliohms Max
• Withstand Voltage: 1000V AC/DC
• Insulation Resistance: 1000 Megohm Min

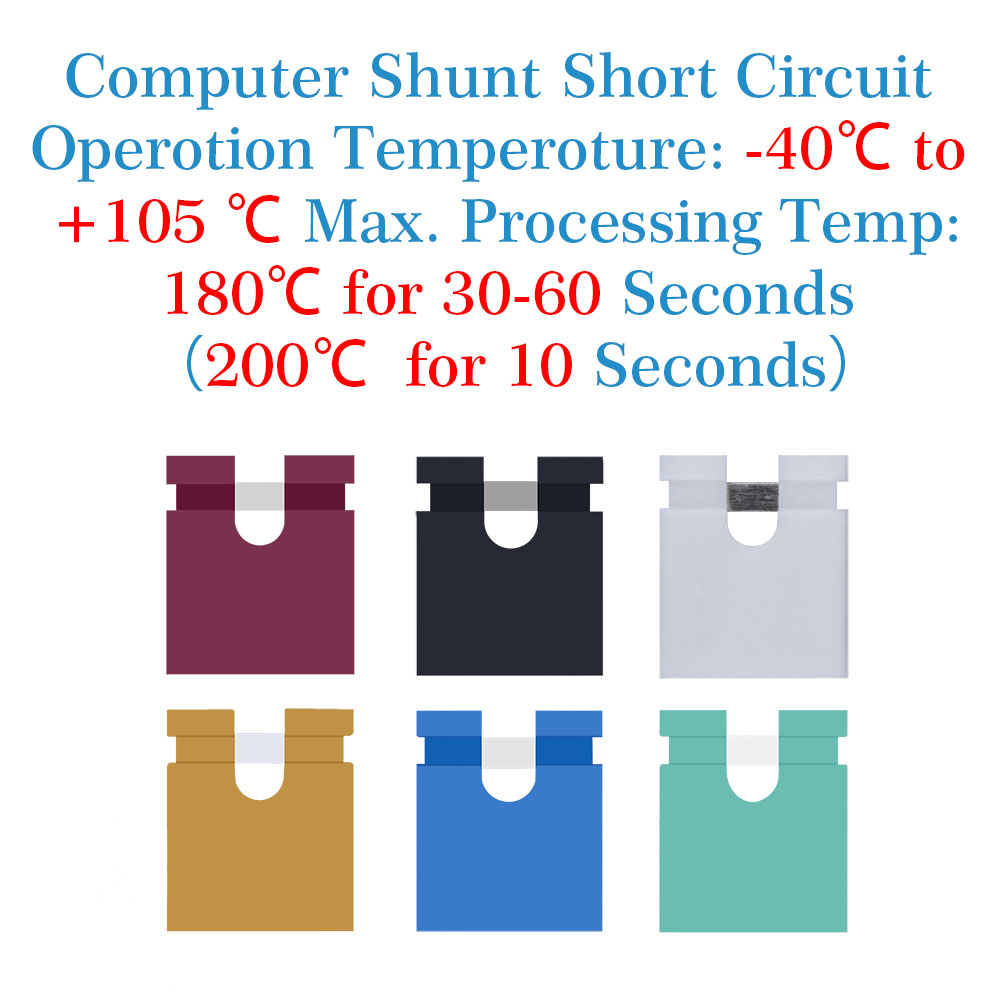

• Operotion Temperoture: -40 Degree Celsius to +105 Degree Celsius
• Contact Moteriol: Phosphor Bronze
• Coneact Plating: Au Over Ni

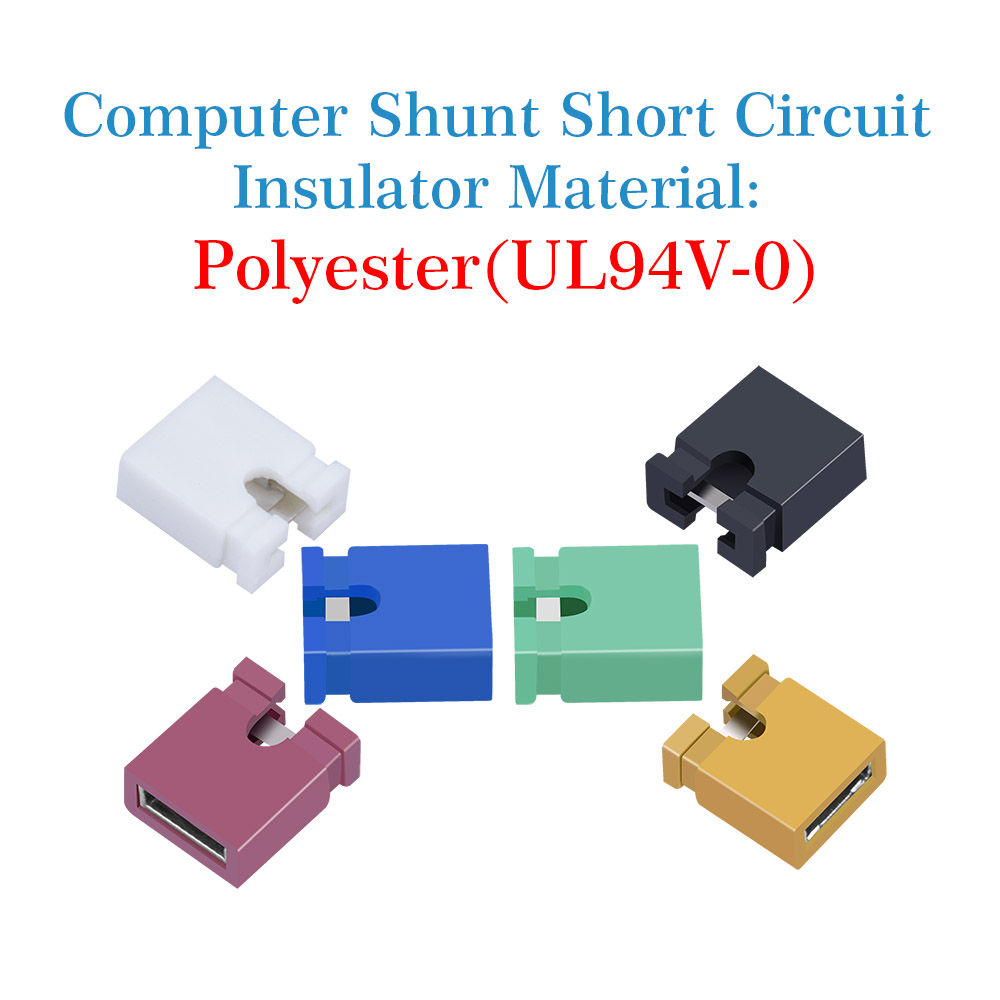

• Insulator Material: Polyester(UL94V-0)
• Standard: PBT
• Max.Processing Temp: 180 Degree Celsius for 30 Seconds to 60 Seconds (200 Degree Celsius for 10 Seconds)
