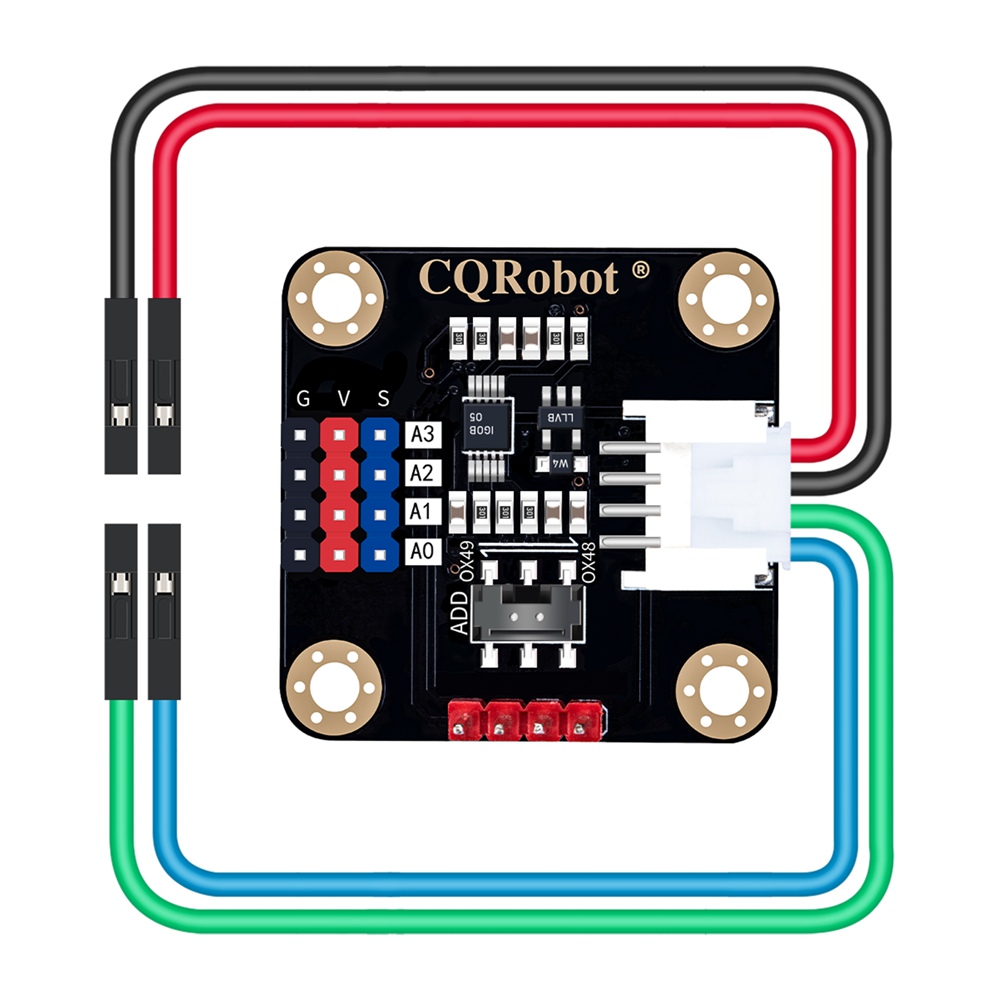

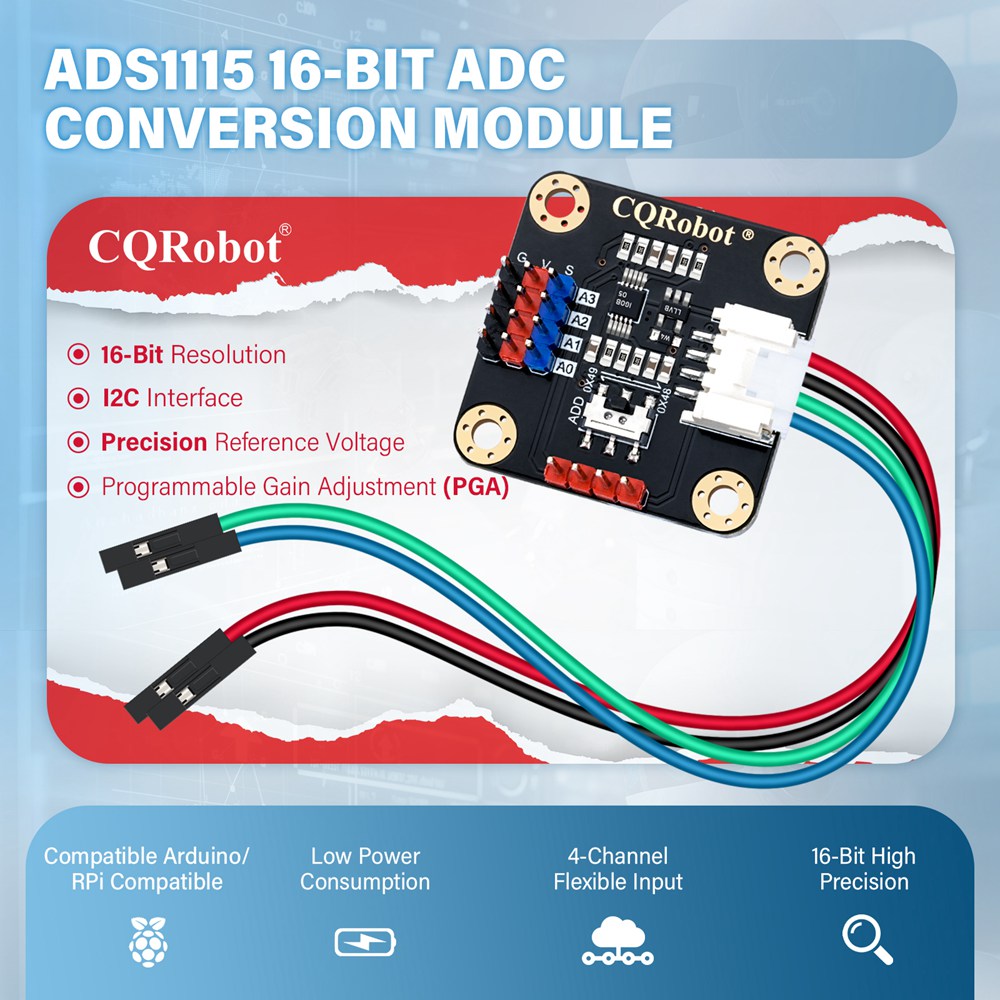

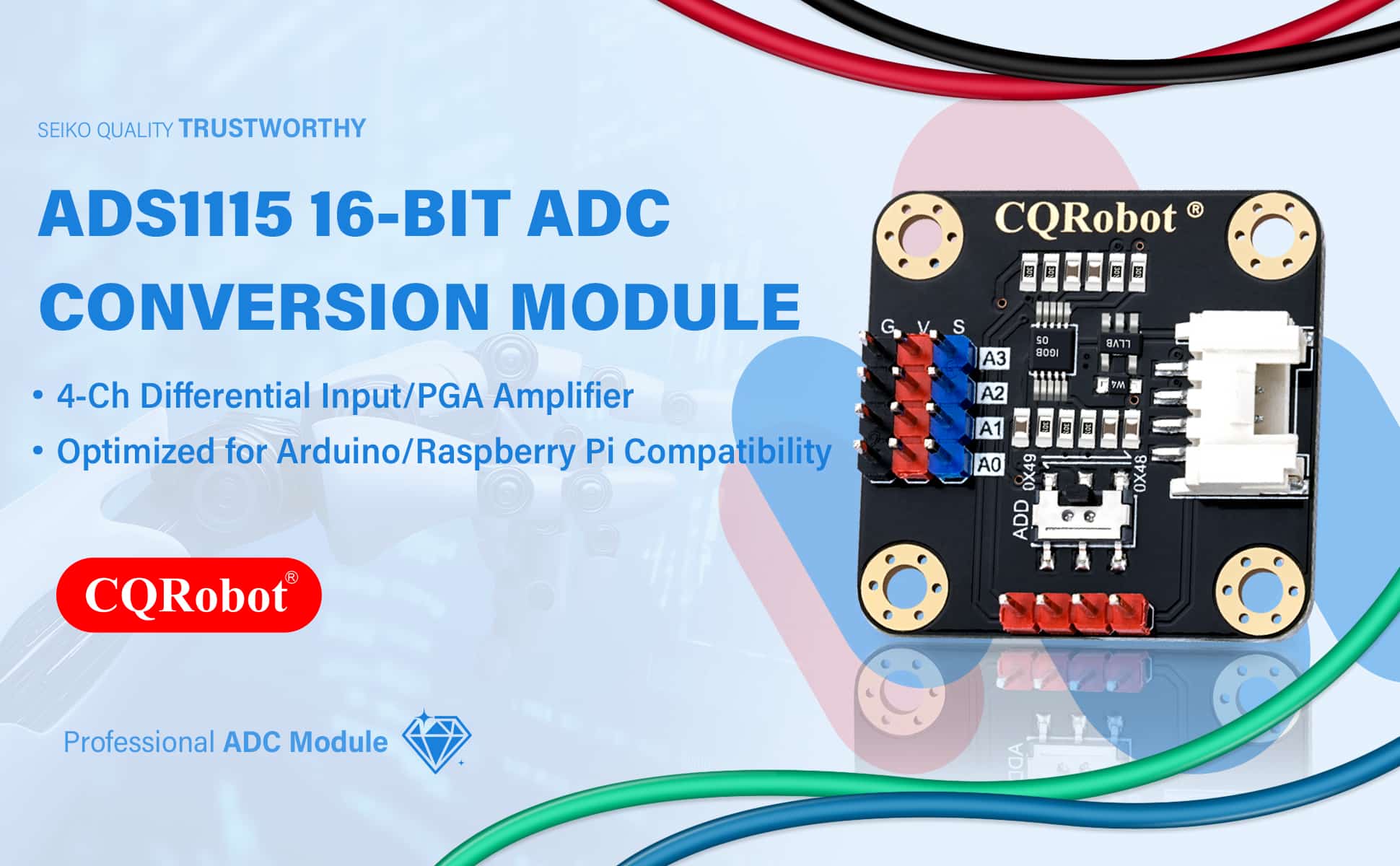

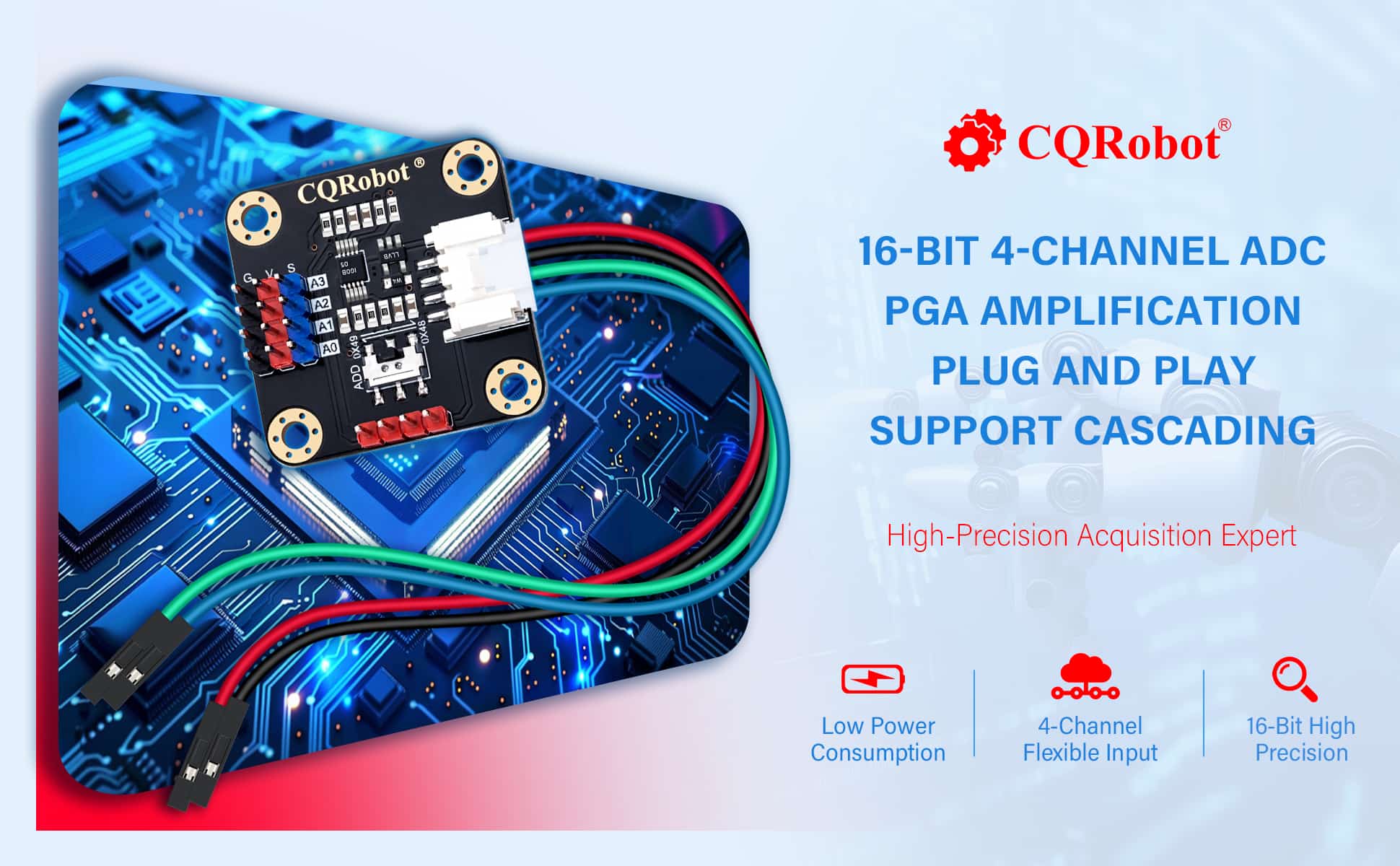

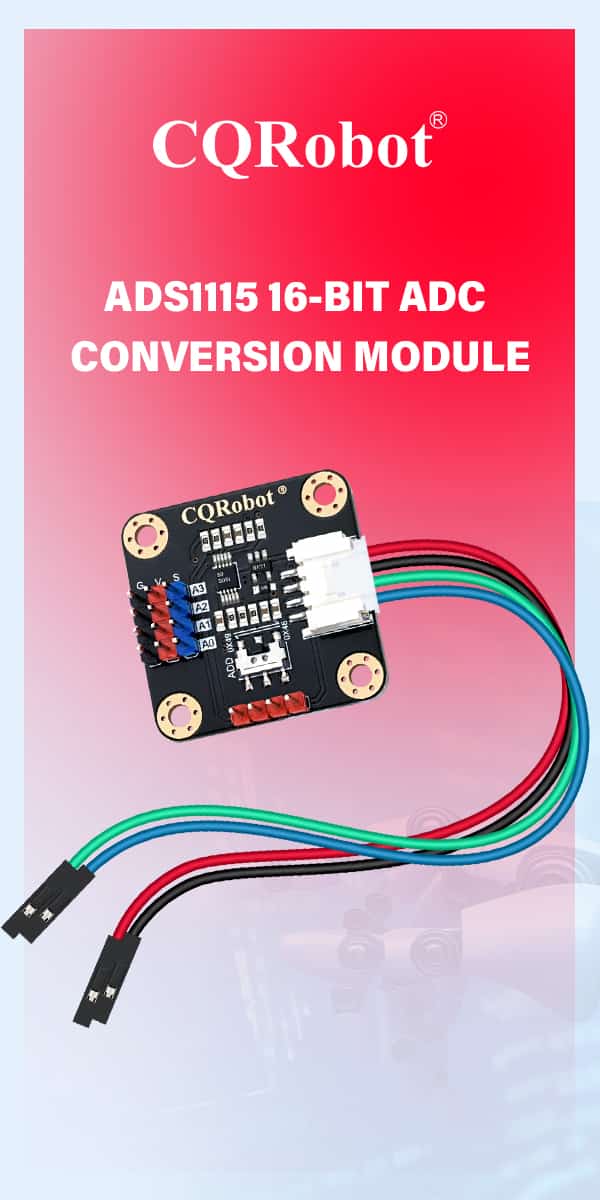

ADS1115 16-Bit ADC Module (Arduino & Raspberry Pi Compatible)
$
11
.99
QuantityIn Stock
10+
$
11
.39
Save 5%
50+
$
10
.91
Save 9%
100+
$
10
.55
Save 12%
200+
$
10
.19
Save 15%
500+
$
9
.59
Save 20%
Product details

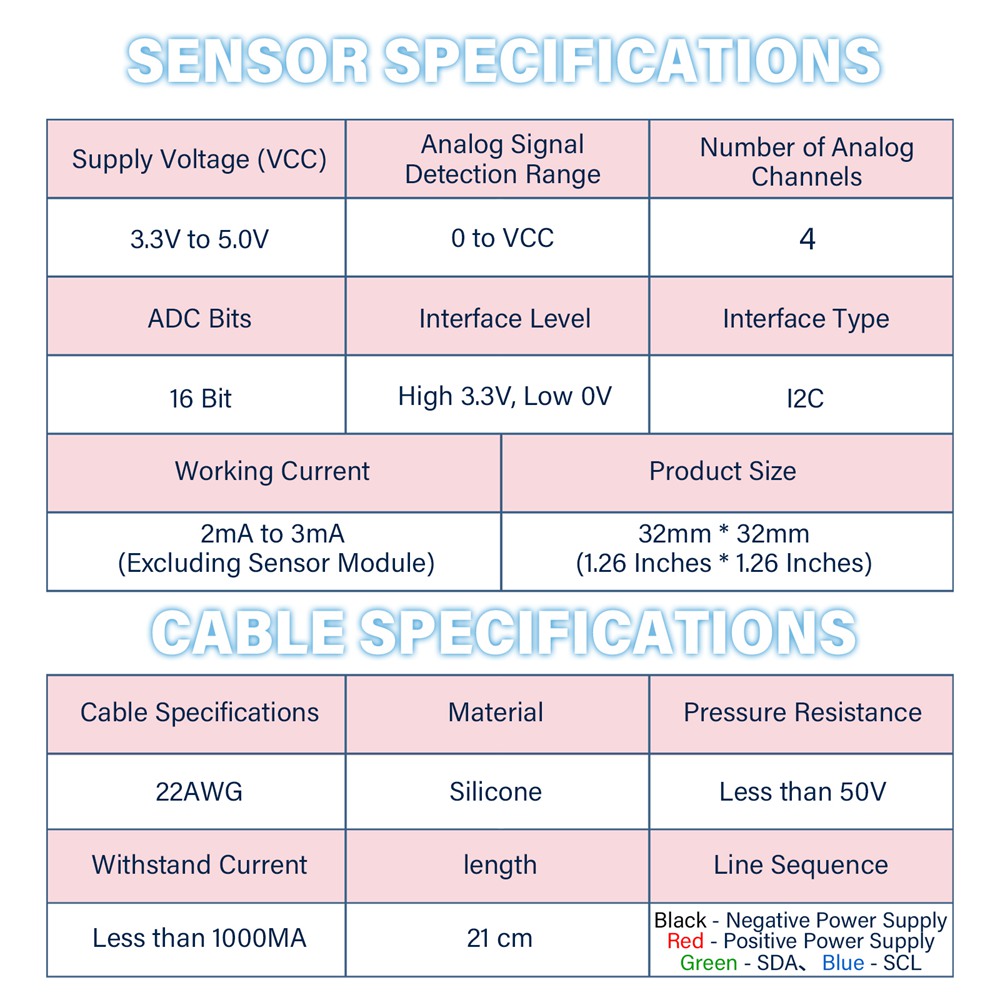

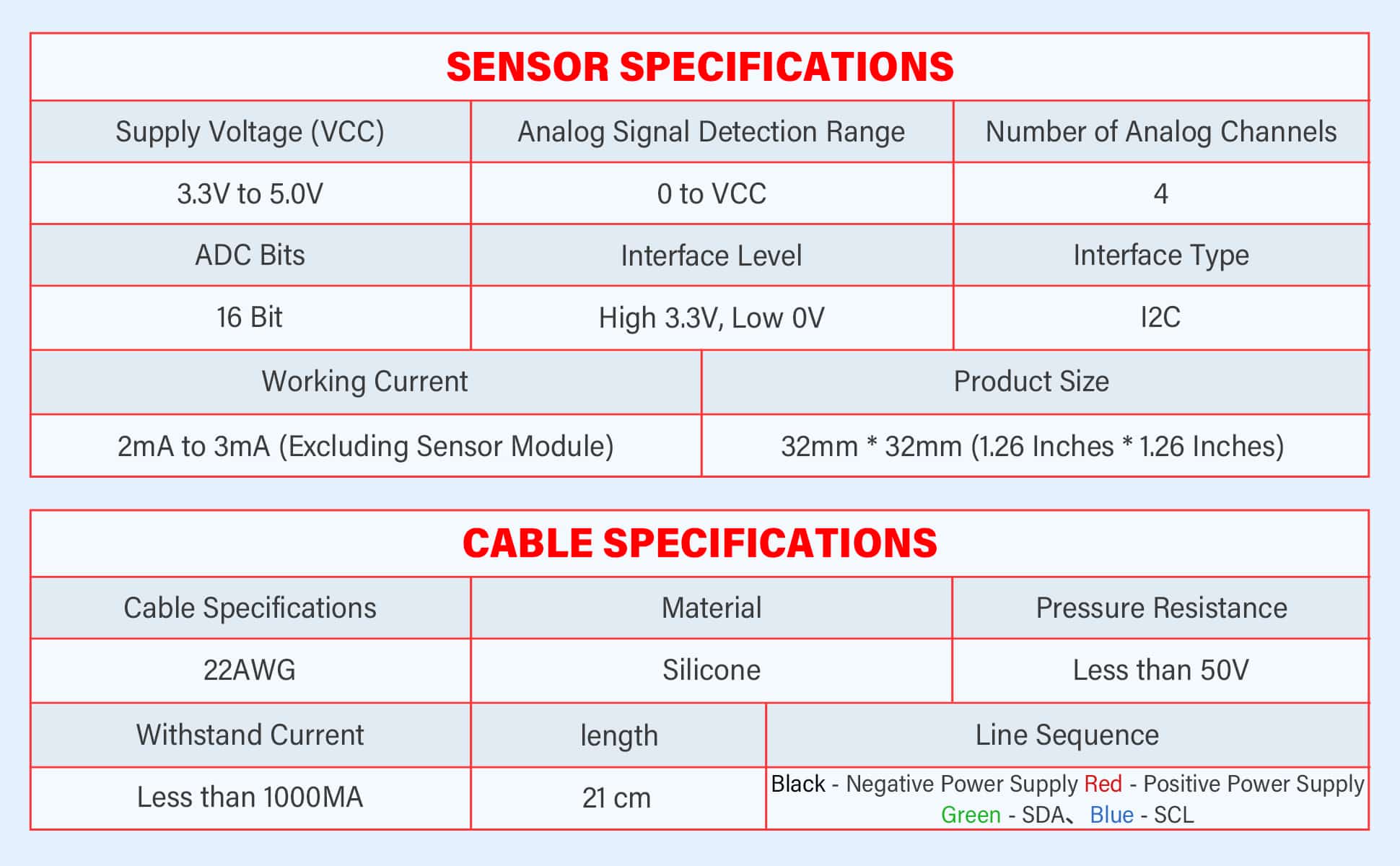

SPECIFICATION
Sensor Specifications
- Supply Voltage(VCC): 3.3V to 5.0V
- Analog Signal Detection Range: 0 to VCC
- Number of Analog Channels: 4
- ADC Bits: 16 Bit
- Operating Current: 2mA to 3mA (Not include sensor module)
- Interface Type: I2C
- Interface Level: High 3.3V, Low 0V

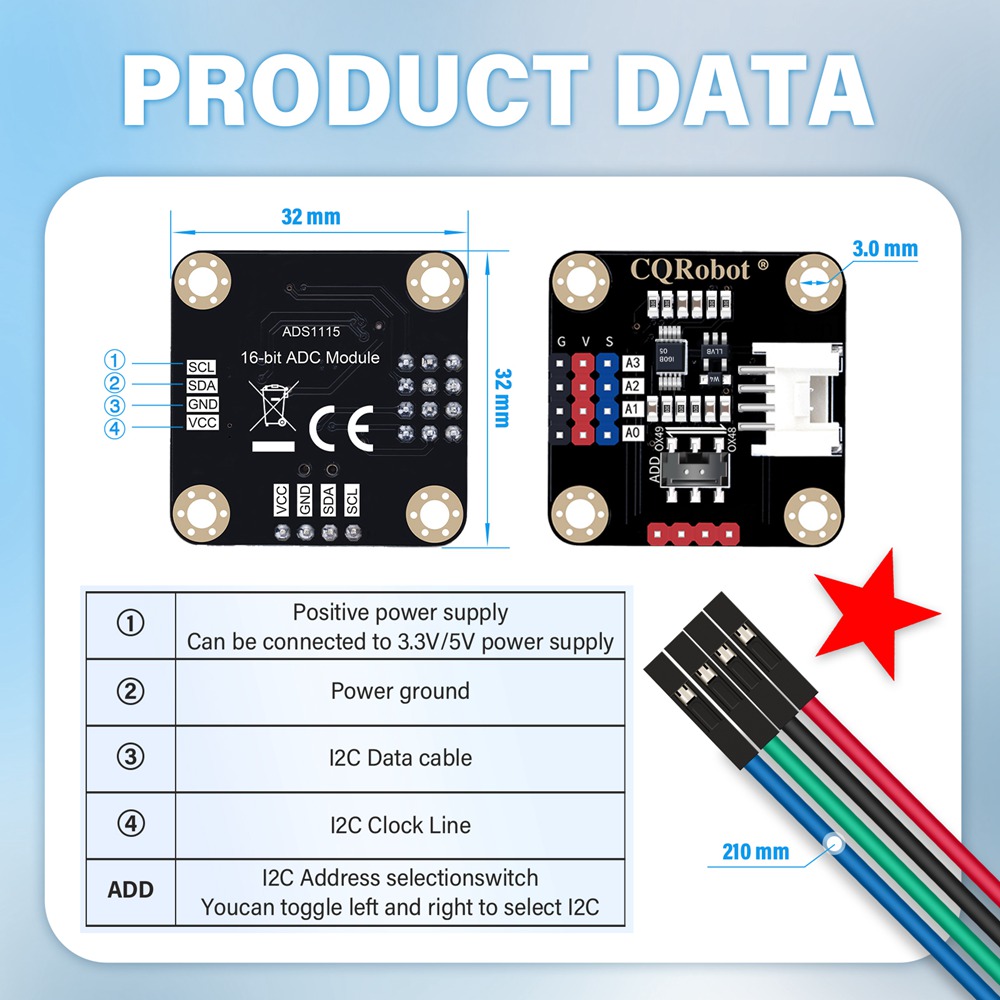

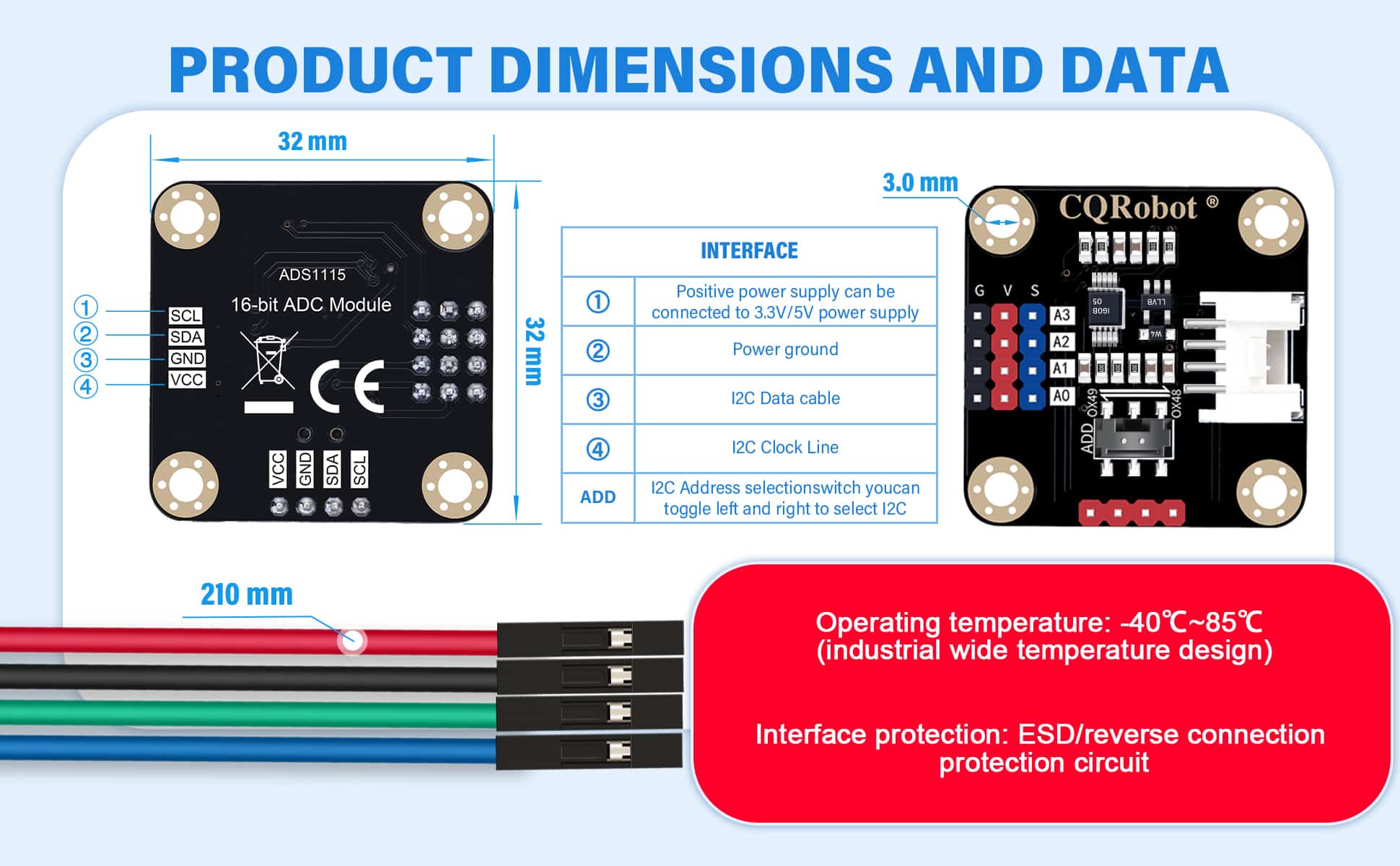

- Product Size: 32mm * 32mm(1.26in * 1.26in)
Interface Wire Specifications
- Cable specifications: 22AWG
- Material: Silicone
- Withstand Voltage: Less Than 50V
- Withstand Current: Less Than 1000MA
- Length: 21cm

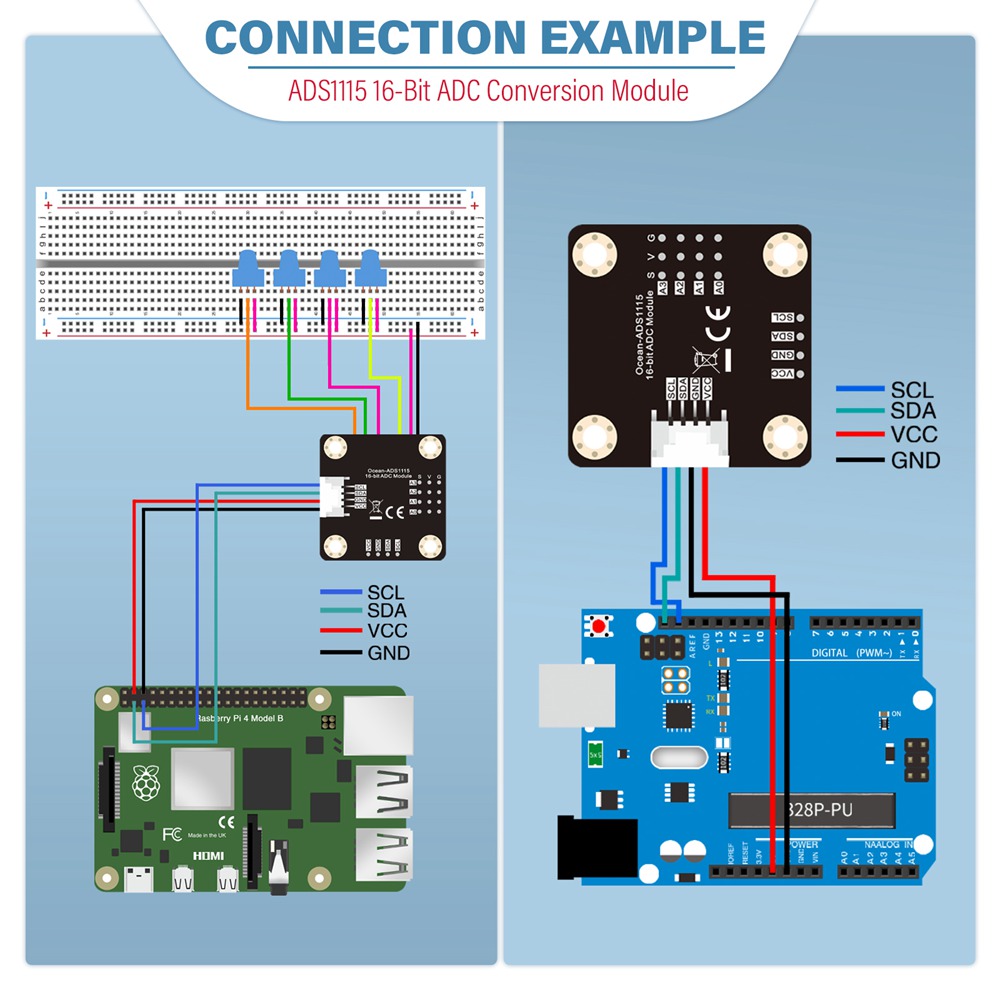

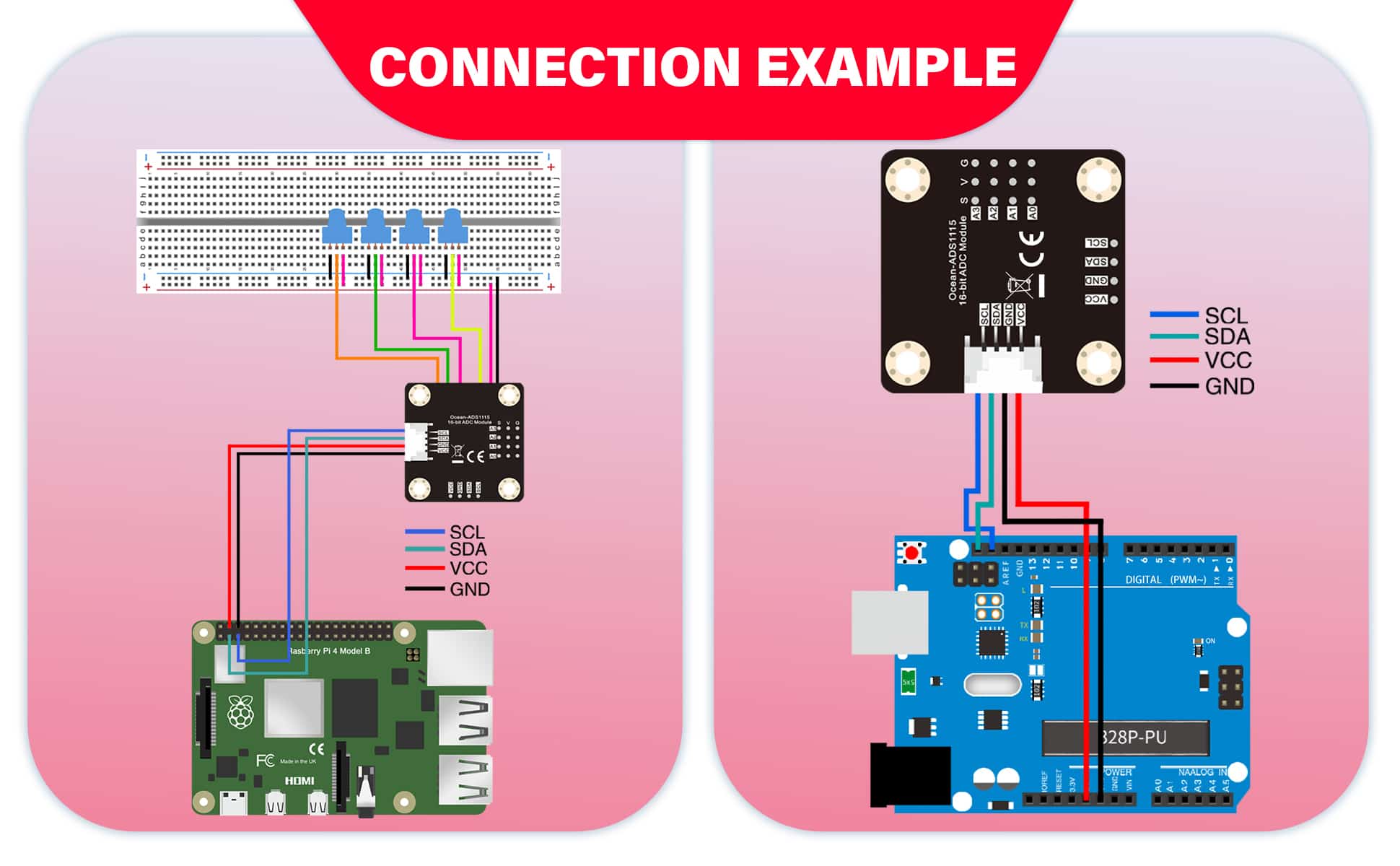

- Line Sequence: Black-Negative Power Supply, Red-Positive Power Supply, Green-SDA, Blue-SCL.
