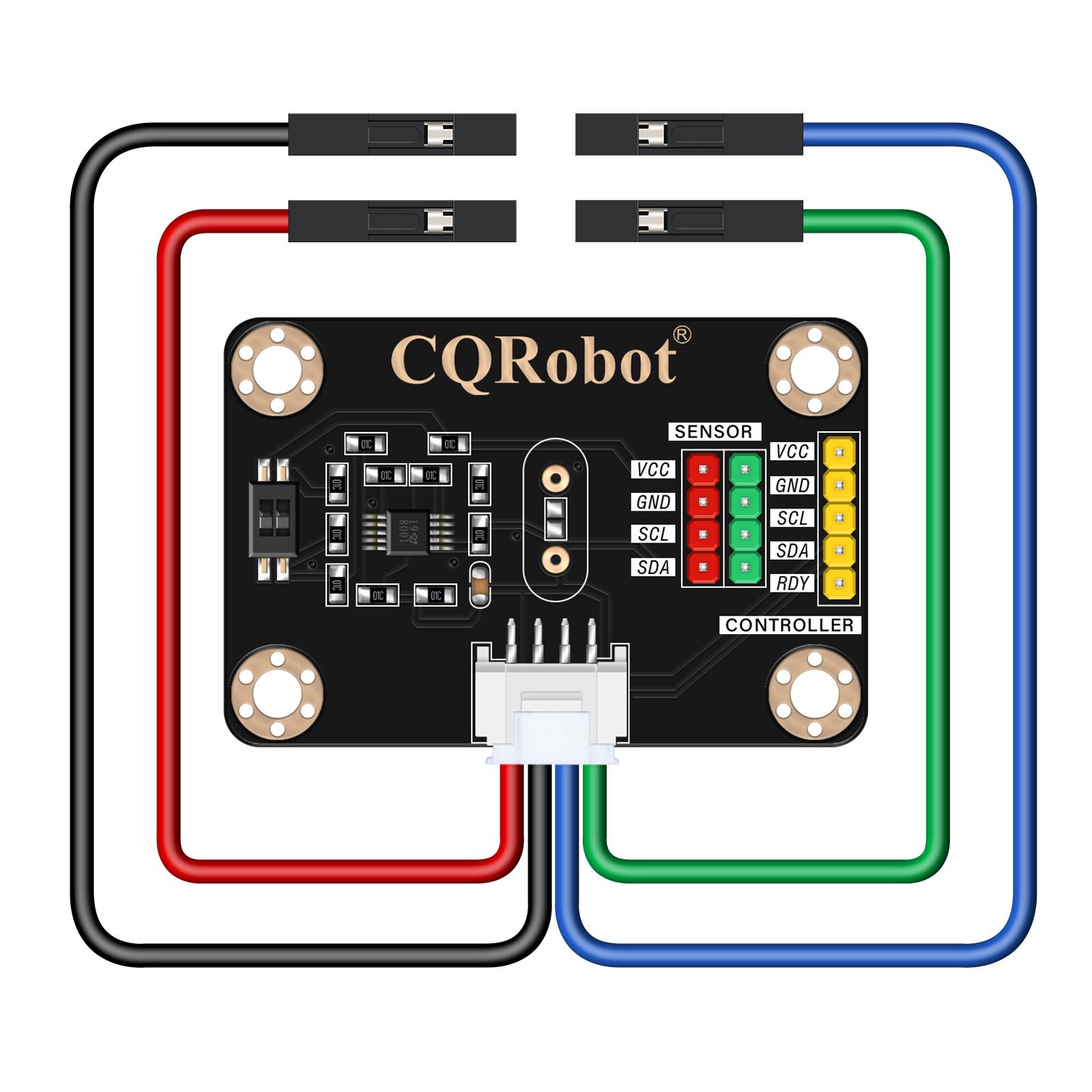

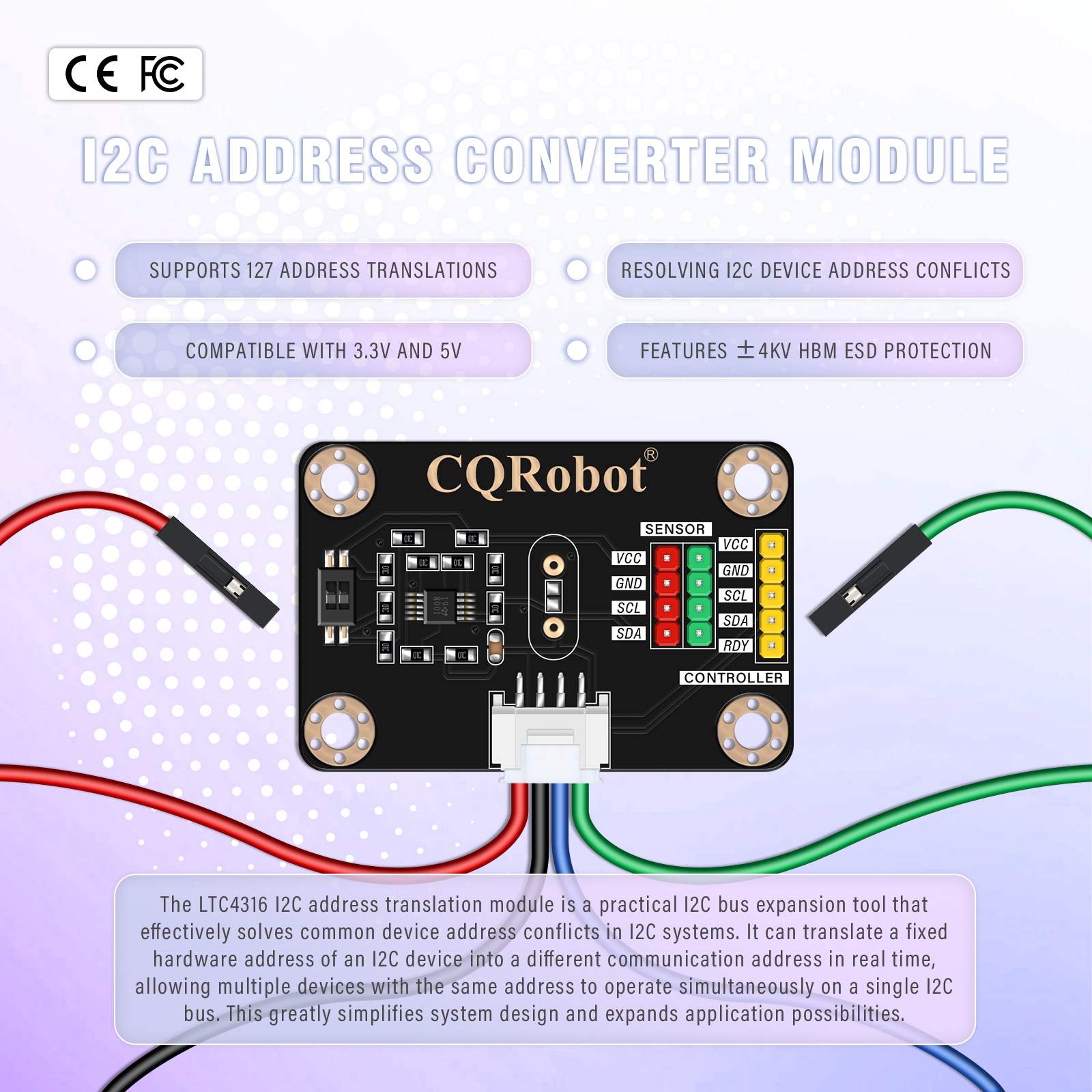

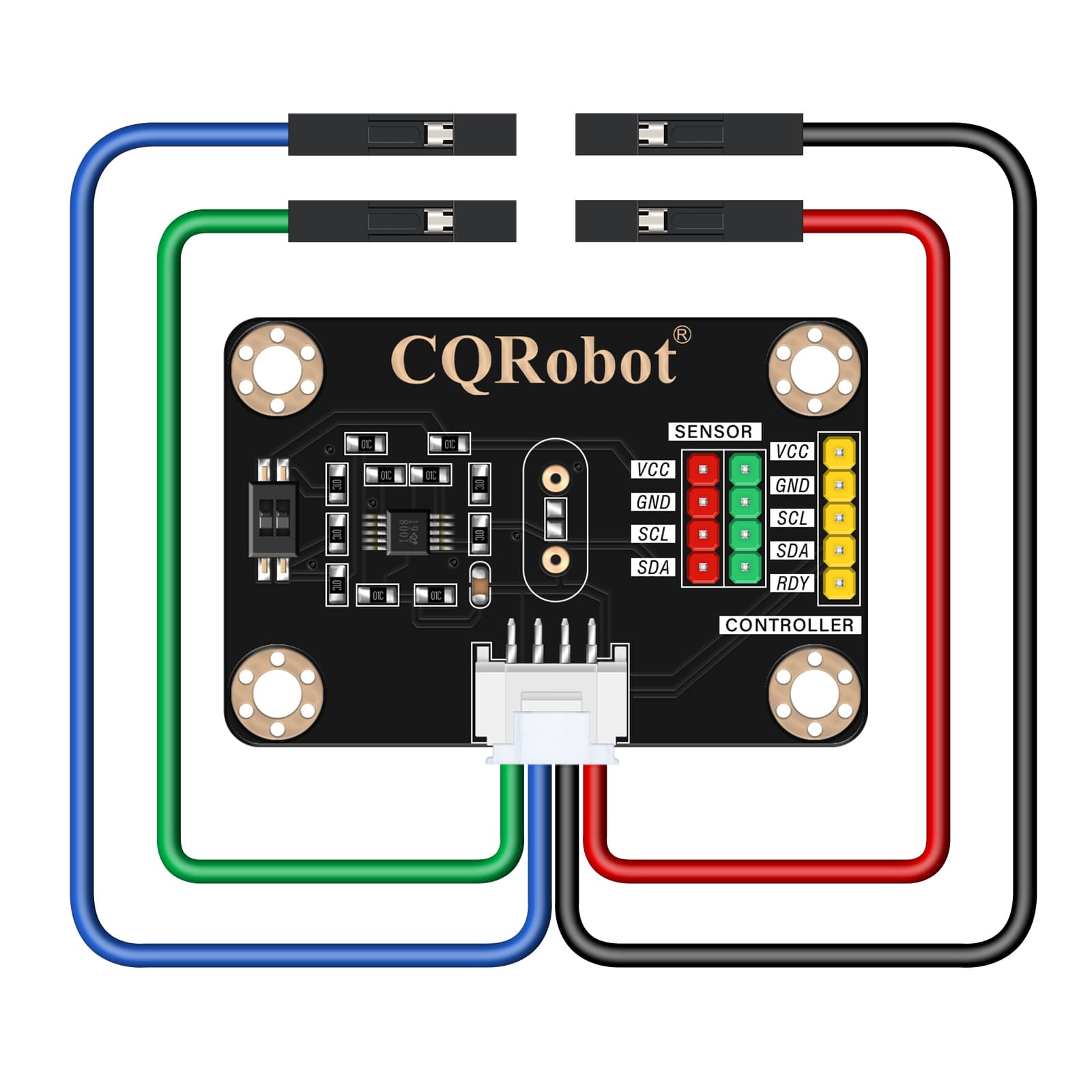

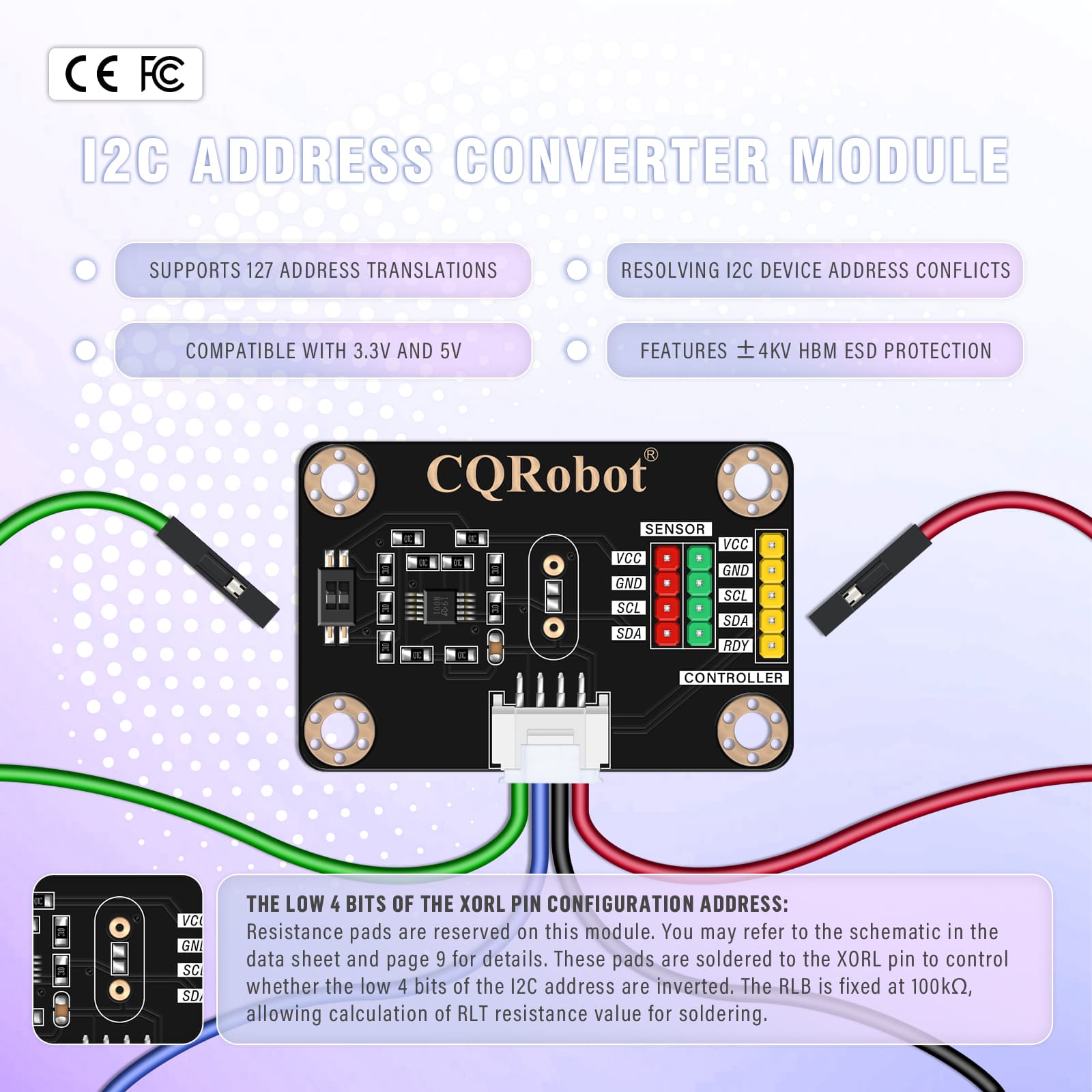

The CQRobot LTC4316 I2C Address Translation Module is a practical I2C bus expansion tool that solves I2C device address conflicts. This module can convert a fixed hardware address of an I2C device to a different communication address, allowing multiple devices with the same address to work simultaneously on a single I2C bus, greatly simplifying system design and expanding application possibilities.

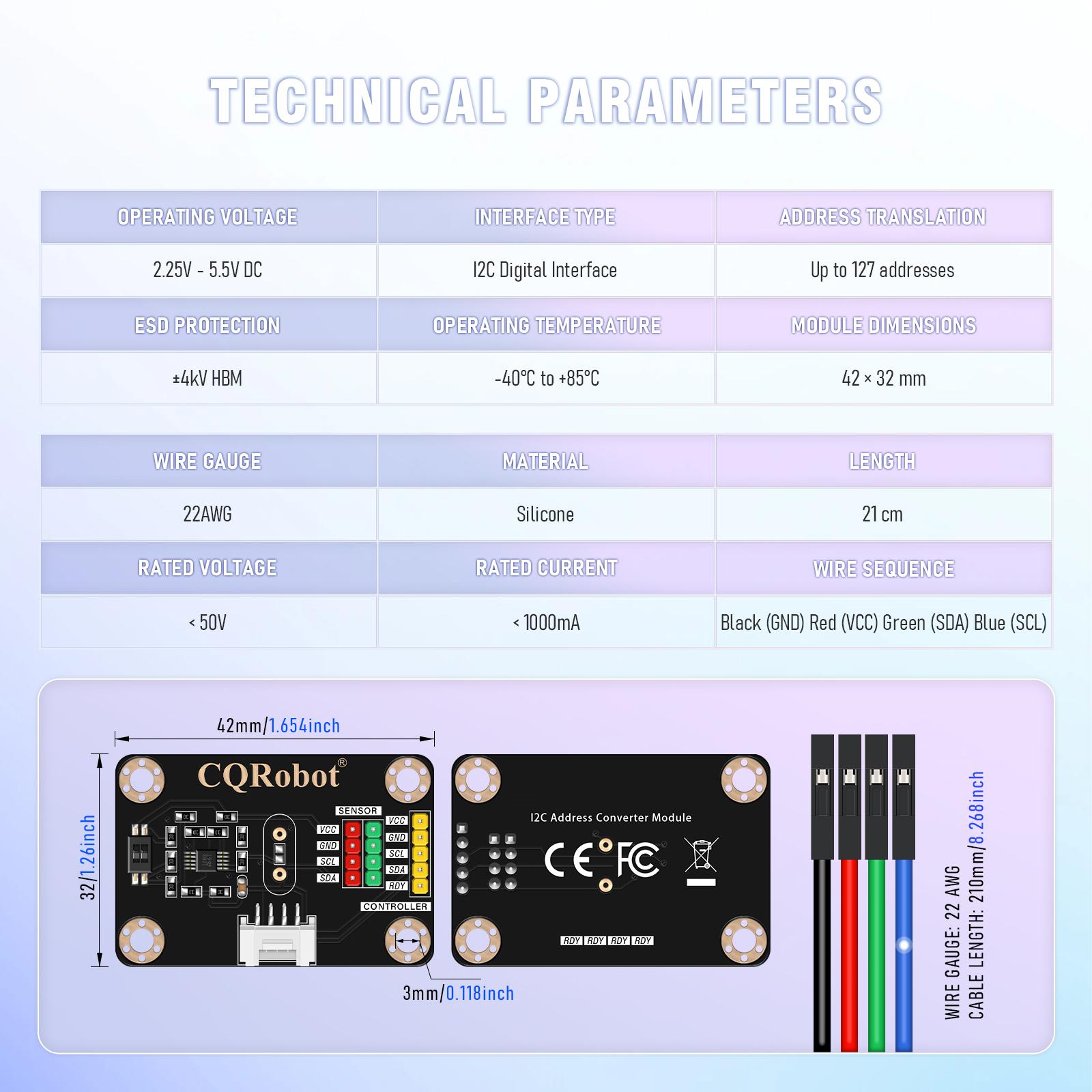

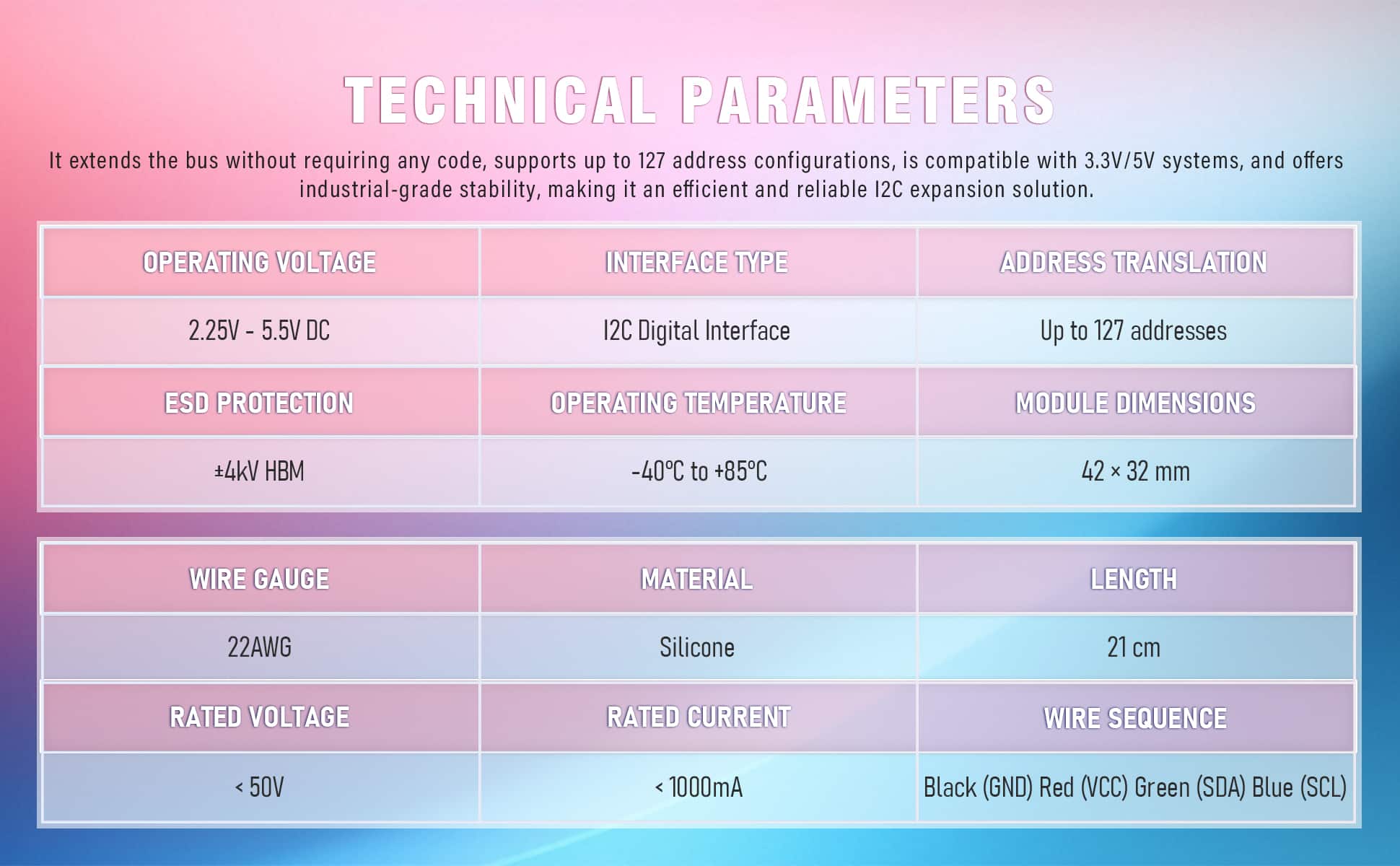

Specifications

Module Specifications

• Operating Voltage Range: 2.25V - 5.5V DC
• Interface Type: I2C Digital Interface
• Number of Convertible Addresses: Up to 127
• ESD Protection: ±4kV HBM
• Operating Temperature: -40 degrees celsius to +85 degrees celsius
• Module Dimensions: 42*32mm

Interface Cable Specifications

• Cable Specification: 22AWG
• Material: Silicone
• Length: 21 cm
• Voltage Rating: Less than 50V
• Current Rating: Less than 1000mA
• Wire Order: Black-SCL, Red-SDA, Green-GND, Blue-VCC

Package List

1 * I2C address translator module

1 * JST 4-pin interface cable
