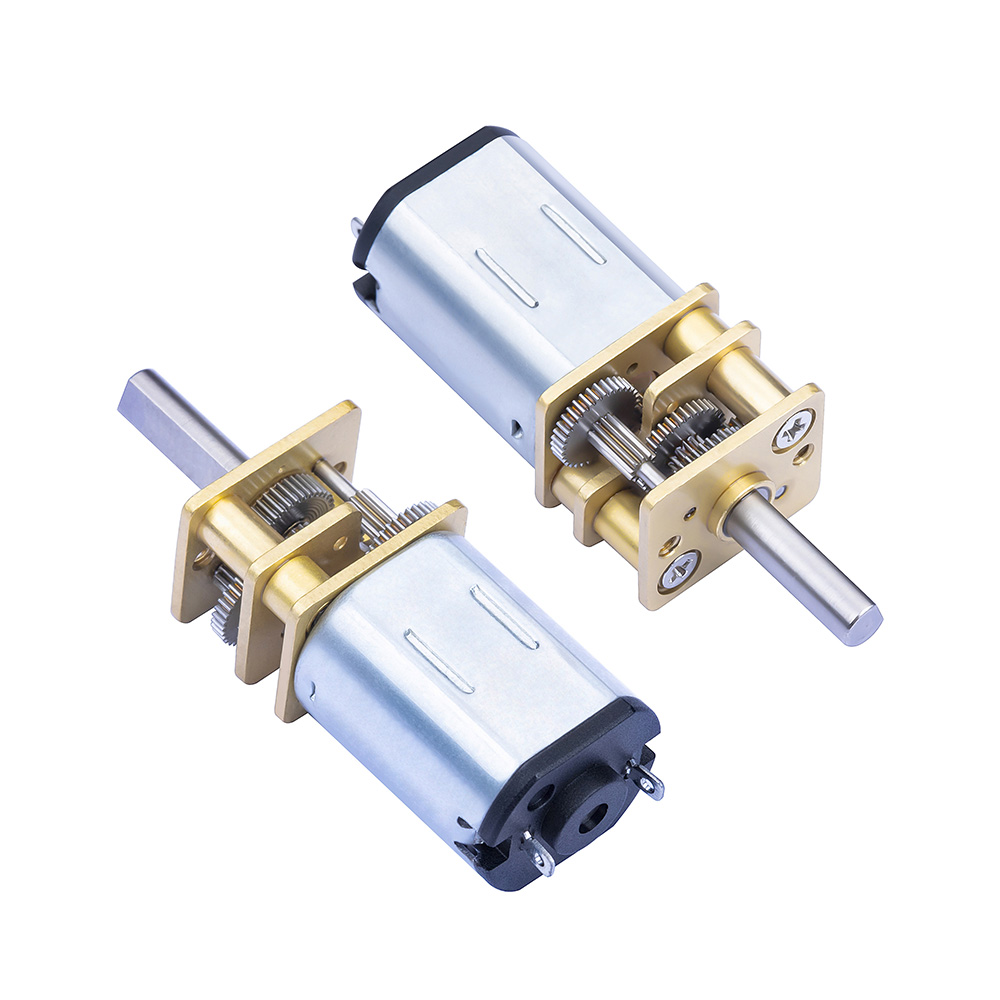

This gearmotor is a miniature low-power, 6 V brushed DC motor with a 298:1 metal gearbox. Dimensions of versions with precious metal brushes (LP), This gearmotor with Mounting Bracket. It has a cross section of 10 mm * 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.

FEATURES

• This gearmotor is a miniature low-power, 6 V brushed DC motor with a 298:1 metal gearbox.

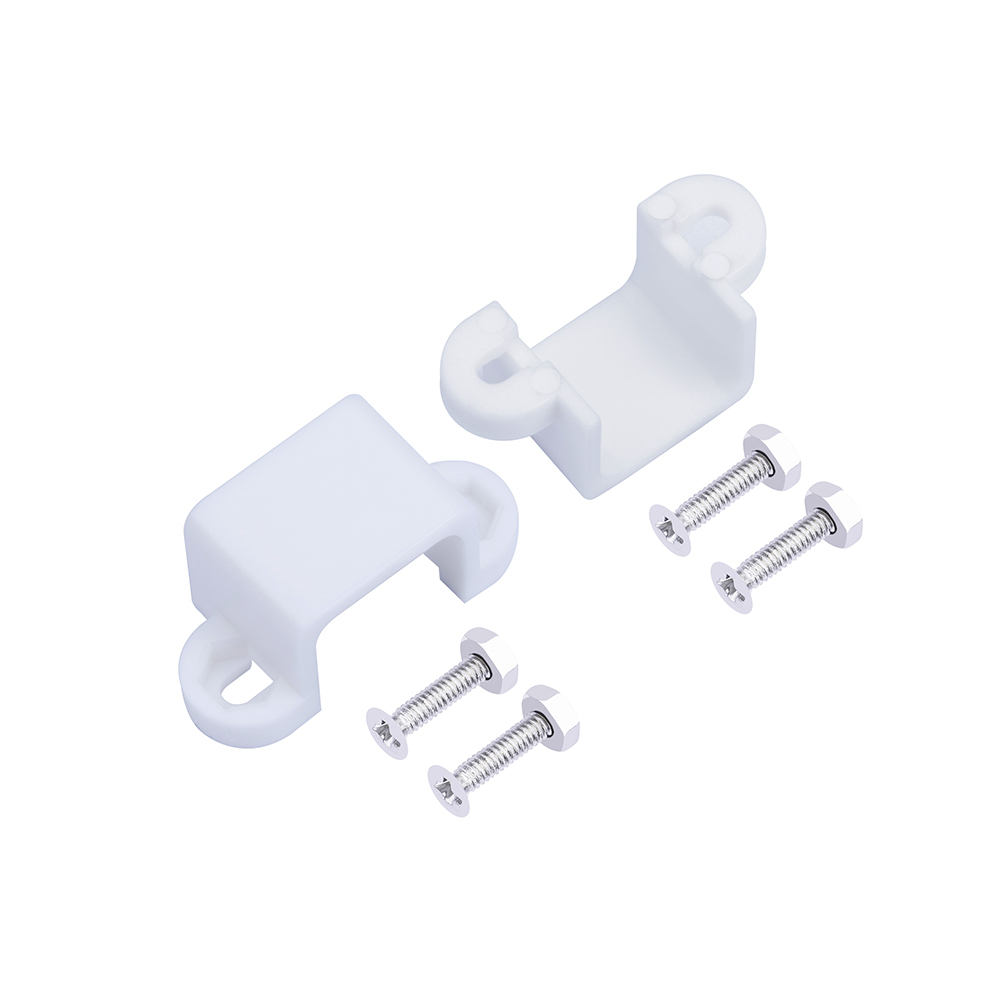

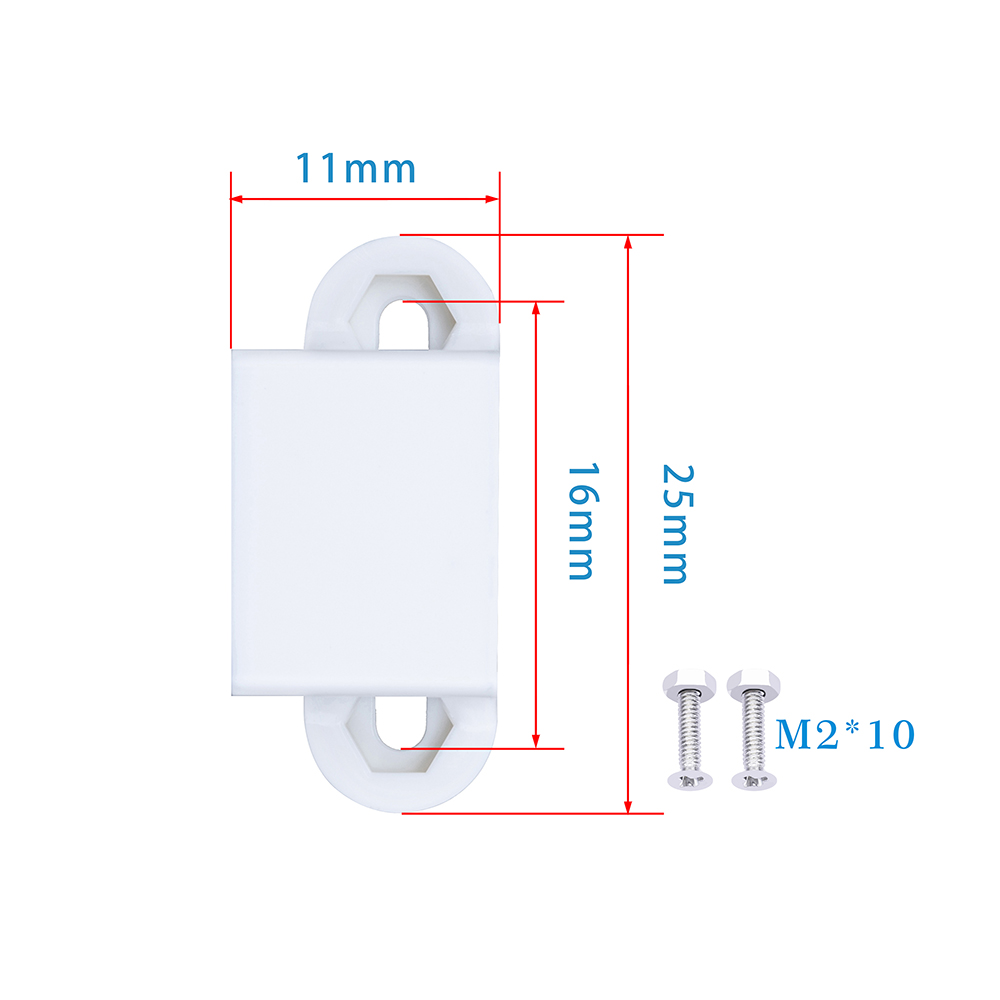

• Dimensions of versions with precious metal brushes (LP), This gearmotor with Mounting Bracket.
• It has a cross section of 10 mm * 12 mm, and the D-shaped gearbox output shaft is 9 mm long and 3 mm in diameter.
• No-load Performance: 45 RPM, 20 mA.
• Stall Extrapolation: 2.0 kg.cm (28 oz.in), 0.36 A.

General Specifications

• Gear Ratio: 298:1
• No-load Speed @ 6V: 45 rpm
• No-load Current @ 6V: 0.02 A
• Stall Current @ 6V: 0.36 A
• Stall Torque @ 6V: 2.0 kg.cm
• Max Output Power @ 6V: 0.22 W
• Extended Motor Shaft: N
• Motor Type: 0.36A stall @ 6V (LP 6V)

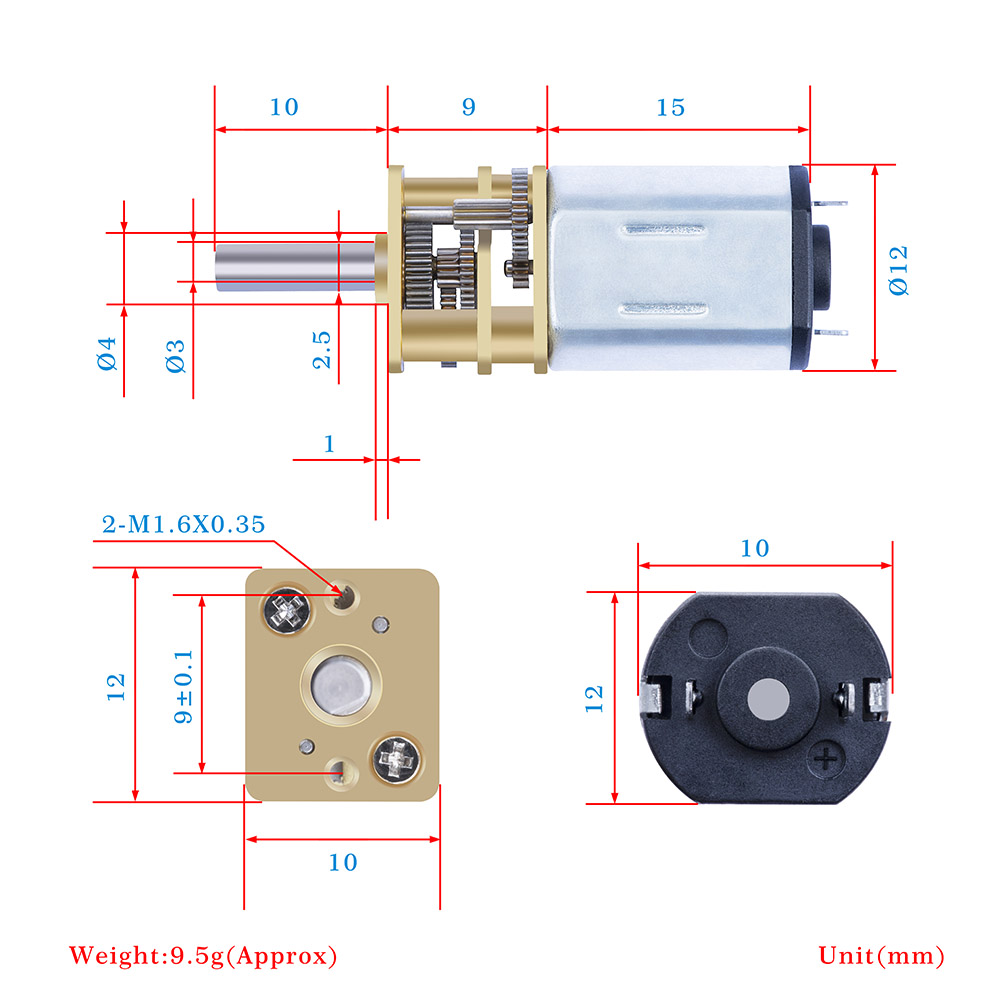

• Size: 10 mm * 12 mm * 26 mm
• Shaft Diameter: 3 mm
• Weight: 9.5 g

Performance at Maximum Efficiency

• Max Efficiency @ 6V: 27 %
• Speed at max Efficiency: 34 rpm
• Torque at max Efficiency: 0.44 kg.cm
• Current at max Efficiency: 0.09 A
• Output Power at max Efficiency: 0.15 W

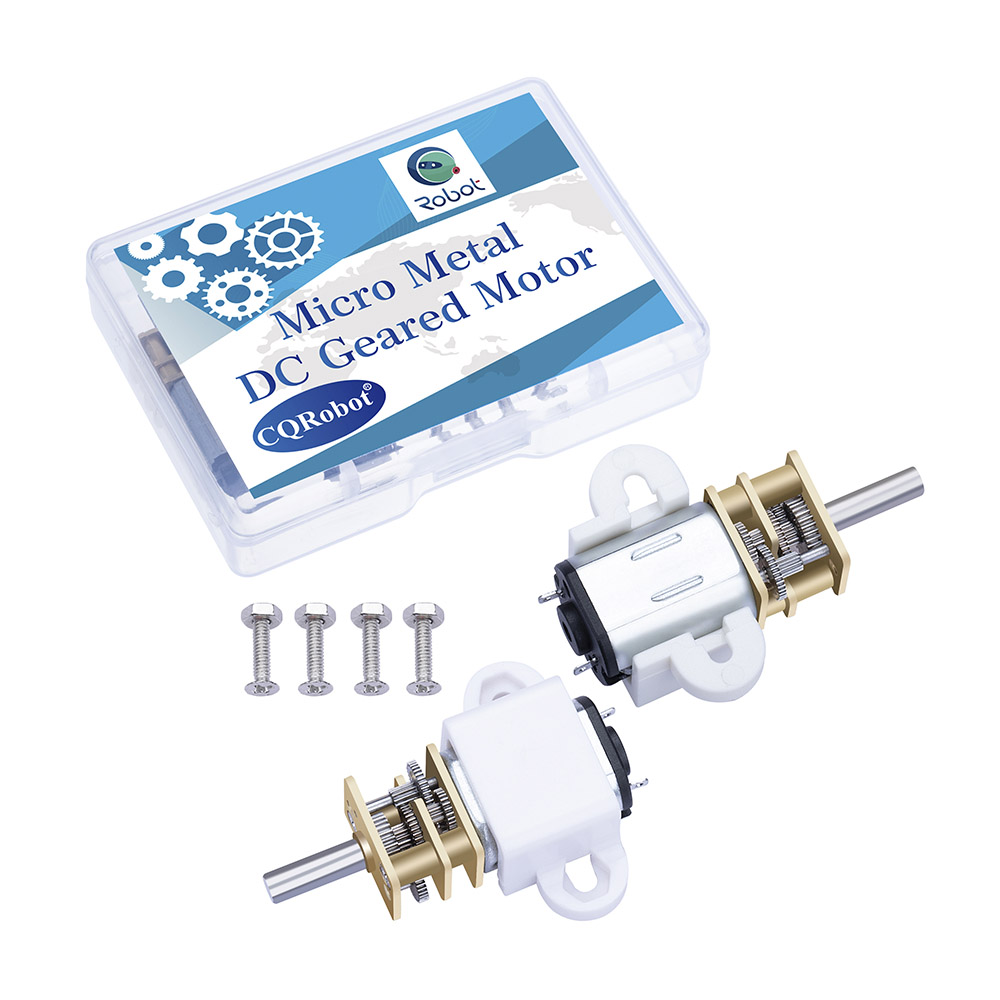

DISTRIBUTION LIST

2 * 298:1 Micro Metal Gearmotor LP 6V
