CQR37D24V-E

43.8:1 Metal DC Geared-Down Motor 37Dx49.8L mm 24V, with Mounting Bracket.
SKU
CQR37D24V-E
Part No.
CQR37D24V-E
Brand
CQRobot
$
15
.99
Style：

6V/12V

24V

Type：

With Encoder

Without Encoder

Size：

6.25:1

10:1

18.8:1

30:1

43.8:1

50:1

56.3:1

70:1

90:1

102:1

131.3:1

150:1

168.8:1

210:1

270:1

306:1

381:1

393.8:1

450:1

506.3:1

630:1

810:1

Quantity
In Stock
Share:
10+
$
15
.19
Save 5%
50+
$
14
.55
Save 9%
100+
$
14
.07
Save 12%
200+
$
13
.59
Save 15%
500+
$
12
.79
Save 20%
Related Products:

Product details

Note:

Do not screw too far into the mounting holes as the screws can hit the gears. CQRobot Manufacturer recommends screwing no further than 3mm (1/8 inch) into the screw hole.

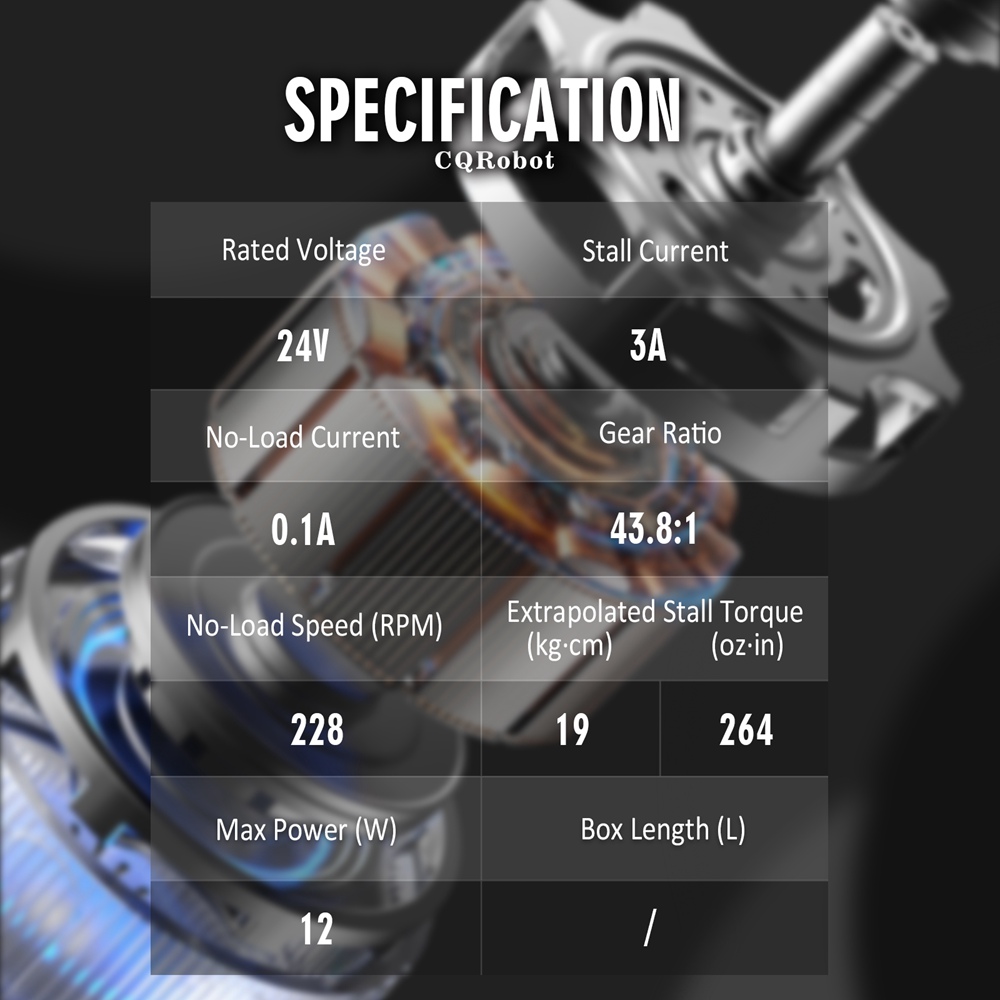

SPECIFICATION

  • Gear Ratio: 43.8:1;
  • Max Power @ 24V: 12 W;
  • No-load Speed @ 24V: 228 rpm;
  • No-load Current @ 24V: 0.1 A;
  • Stall Current @ 24V: 3 A;
  • Stall Torque @ 24V: 19 kg.cm (264 oz.in);
  • Operating Temperature: -20 Degree Celsius to +60 Degree Celsius;
  • Motor Size: 37D * 54.8L mm;
  • Mounting Bracket Size: 38 mm * 30 mm * 30 mm;
  • Weight: 205 g

DC Gearmotor-CQR37D24V-A-1.jpgDC Gearmotor-CQR37D24V-A-2.jpgDC Gearmotor-CQR37D24V-A-3.jpgDC Gearmotor-CQR37D24V-A-4.jpgDC Gearmotor-CQR37D24V-A-5.jpgDC Gearmotor-CQR37D24V-A-6.jpg
