This gearmotor consists of a high-power, 6 V brushed DC motor combined with a 98.78:1 metal spur gearbox. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox. At 6V, the speed is 10,000 rpm before the motor decelerates.

Warning: Do not screw too far into the mounting holes as the screws can hit the gears. CQRobot recommend screwing no further than 6 mm (0.24″) into the screw hole.

Wiki: http://www.cqrobot.wiki/index.php/DC_Gearmotor_SKU:_CQR25D

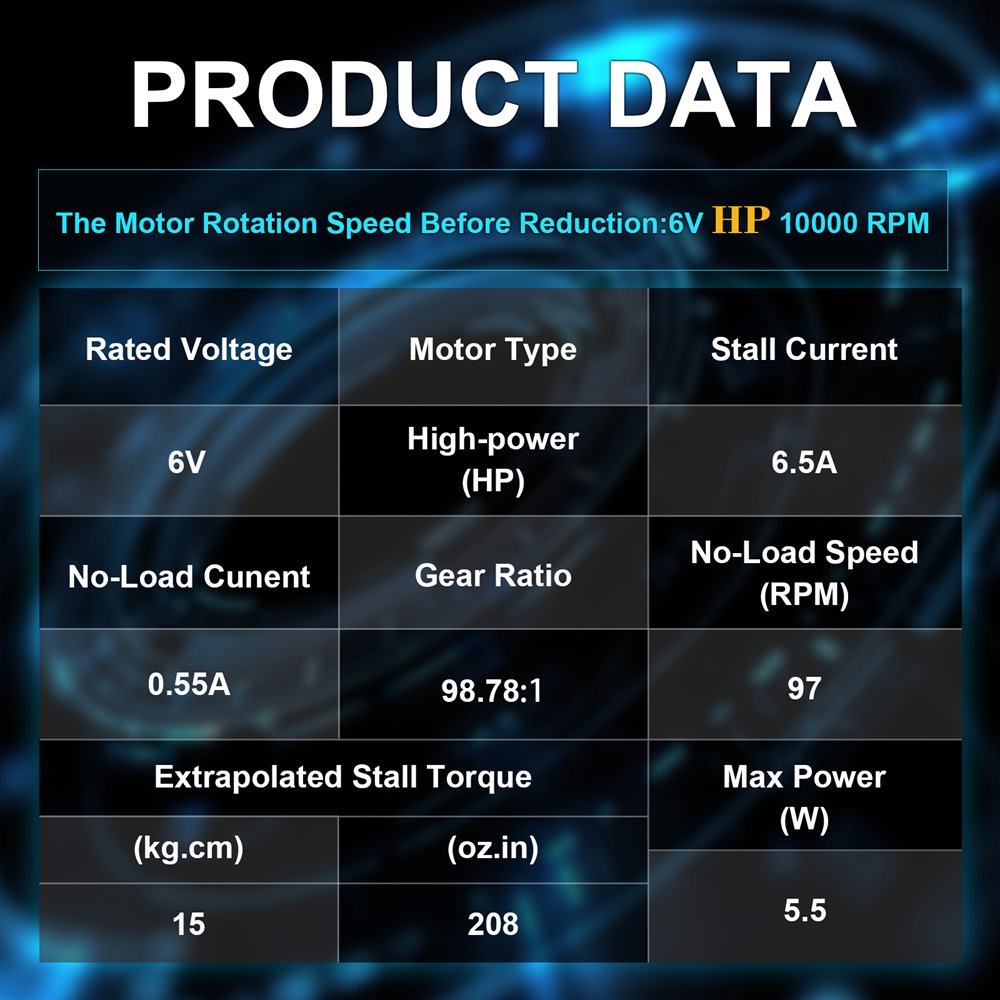

SPECIFICATION

• Gear Ratio: 98.78:1;
• Max Power: 5.5 W;
• No-load Speed @ 6V: 97 rpm;
• No-load Current @ 6V: 0.55 A;
• Stall Current @ 6V: 6.5 A;
• Stall Torque @ 6V: 15 kg.cm (208 oz.in);
• Motor Type: 6.5A stall @ 6V (High Power 6V);
• Operating Temperature: -20 Degree Celsius to +60 Degree Celsius;
• Motor Size: 25D * 53.8L mm;
• Mounting Bracket Size: 28.5 mm * 27 mm * 27 mm;
• Weight: 120 g.

SHIPPING LIST

1 * 98.78:1 Metal DC Geared-Down Motor (6V/HP)

1 * Metal Mounting Bracket Kit
