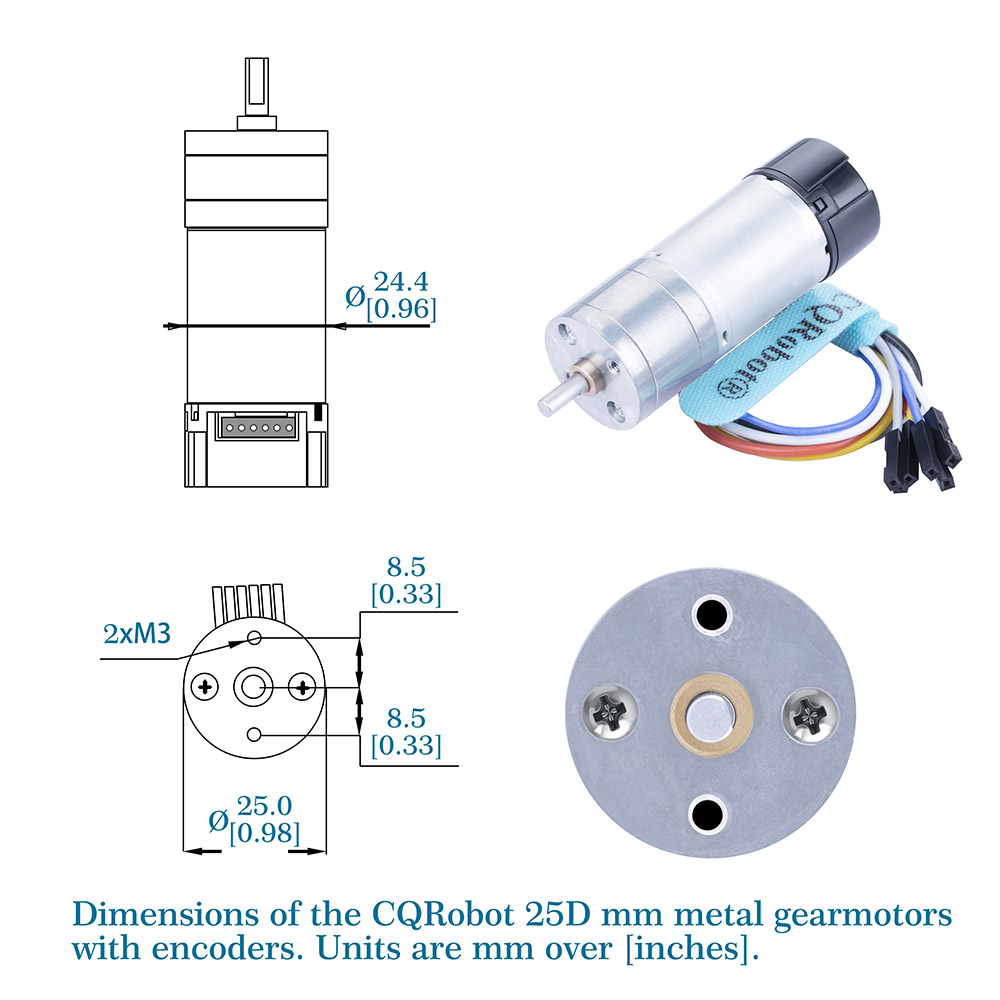

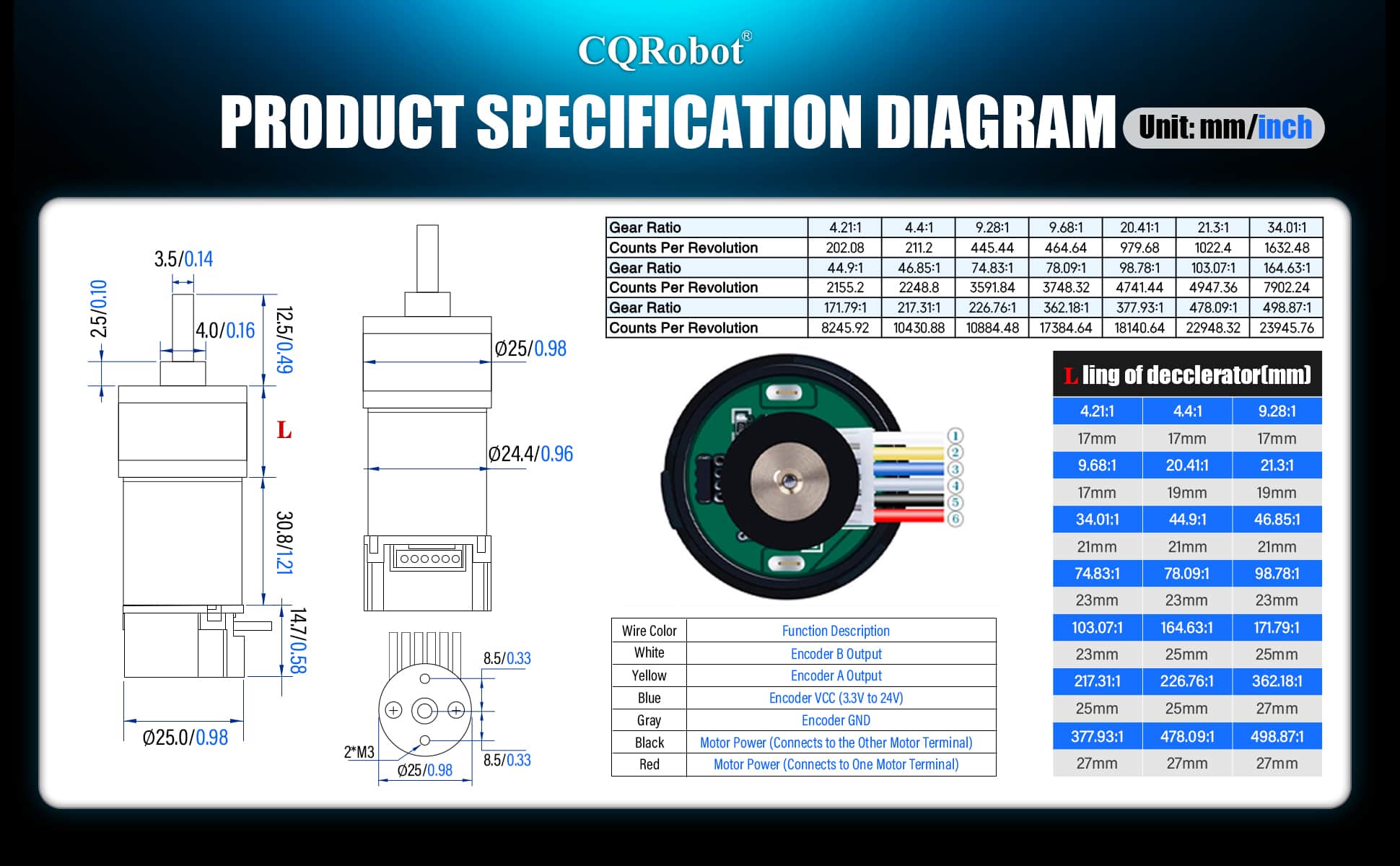

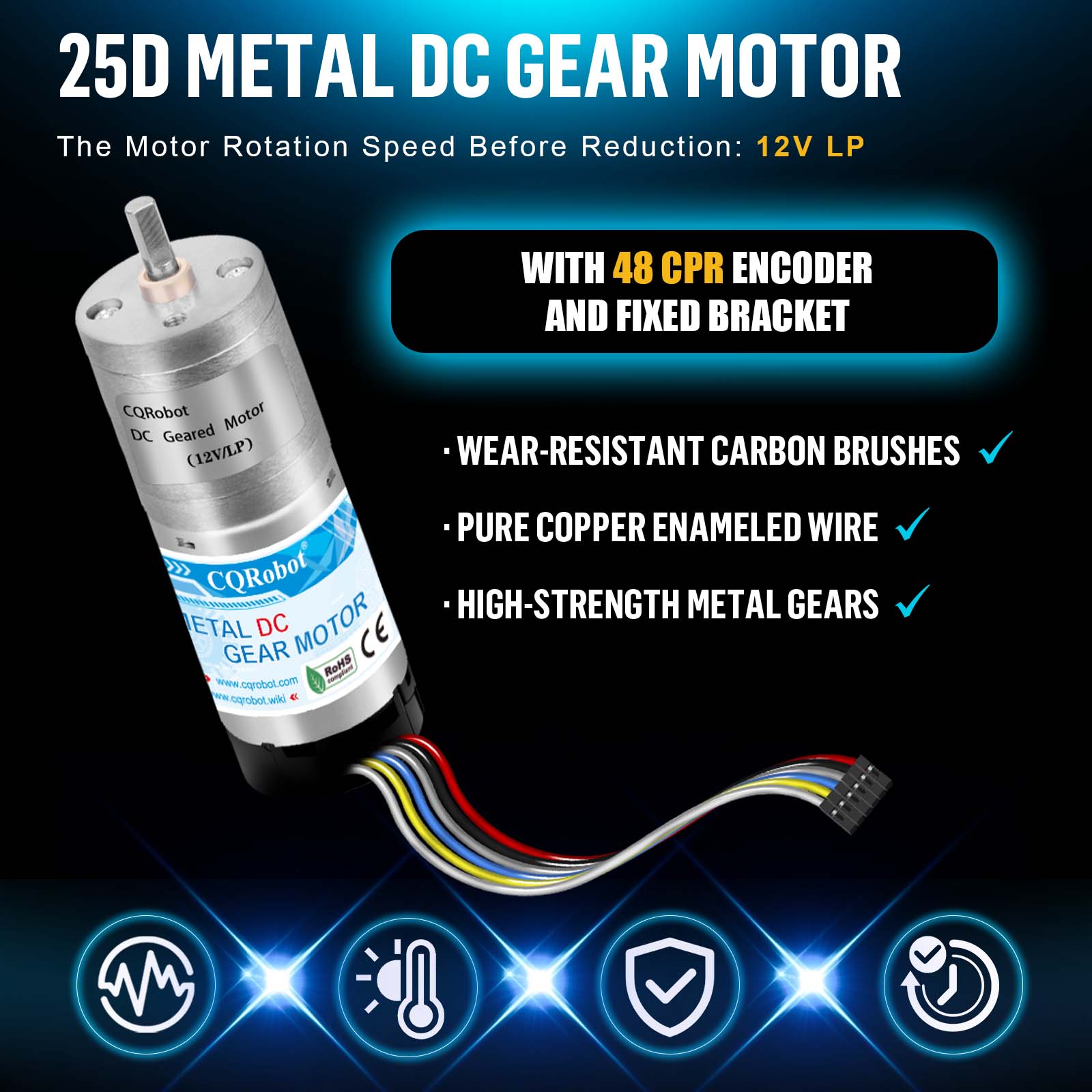

This gearmotor consists of a low-power, 12 V brushed DC motor combined with a 362.18:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 17384.64 counts per revolution of the gearbox’s output shaft. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox. At 12V, the speed is 5700 rpm before the motor decelerates.

Warning: Do not screw too far into the mounting holes as the screws can hit the gears. CQRobot recommend screwing no further than 6 mm (0.24″) into the screw hole.

Wiki: http://www.cqrobot.wiki/index.php/DC_Gearmotor_SKU:_CQR25D

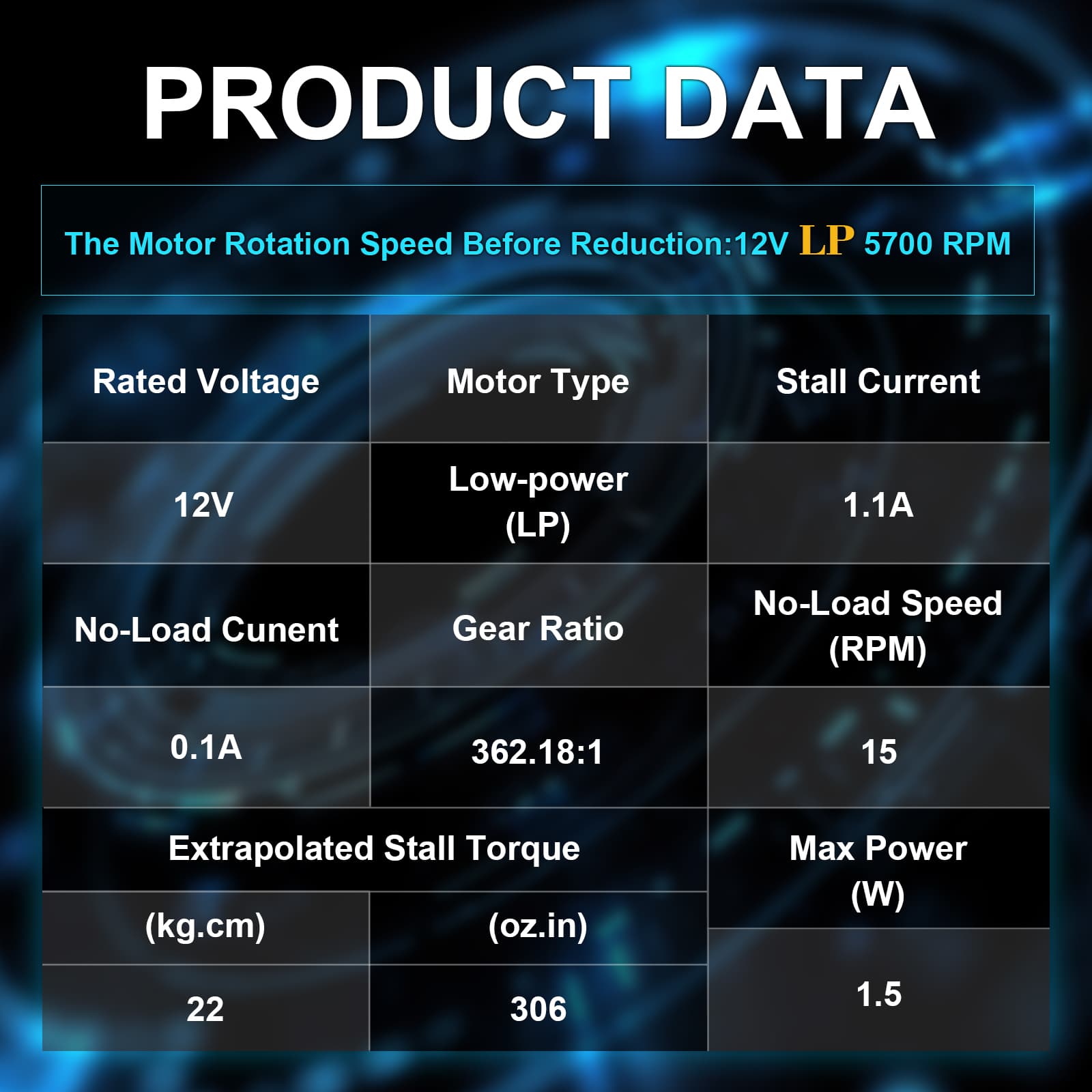

SPECIFICATION

• Gear Ratio: 362.18:1;
• Max Power: 1.5 W;
• No-load Speed @ 12V: 15 rpm;
• No-load Current @ 12V: 0.1 A;
• Stall Current @ 12V: 1.1 A;
• Stall Torque @ 12V: 22 kg.cm (306 oz.in);
• Motor Type: 1.1A stall @ 12V (Low-power 12V);
• Encoder Operating Voltage: 3.3V to 24V;
• Encoder Type: Hall (Incremental Type);
• Encoder Resolution: 48 CPR;

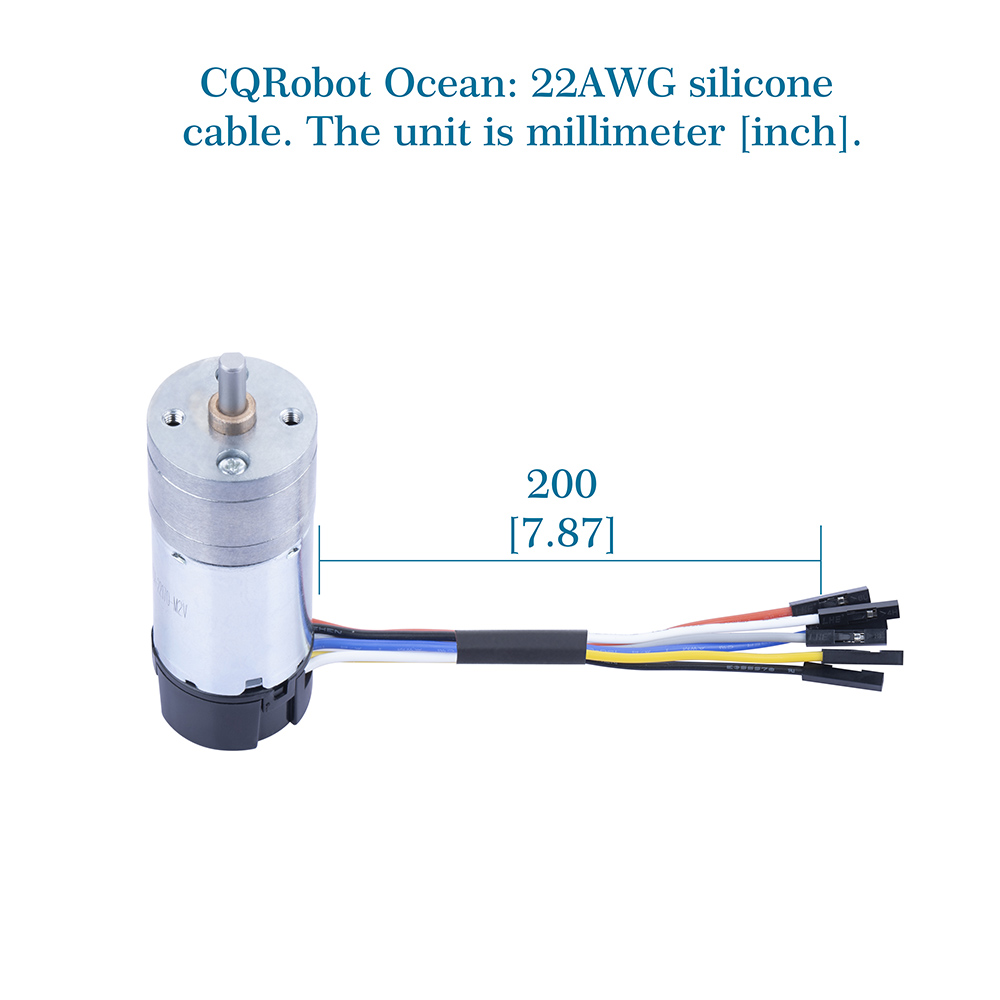

• Cable Specifications: 22AWG;
• Cable Length: 20 cm;
• Cable Material: Silicone;
• Cable Output: 2.54 mm DuPont Female;
• Line Sequence: Red: Motor Power (Connects to One Motor Terminal); Black: Motor Power (Connects to the Other Motor Terminal); Gray: Encoder GND; Blue: Encoder VCC (3.3 V to 24 V); Yellow: Encoder A Output; White: Encoder B Output;
• Operating Temperature: -20 Degree Celsius to +60 Degree Celsius;

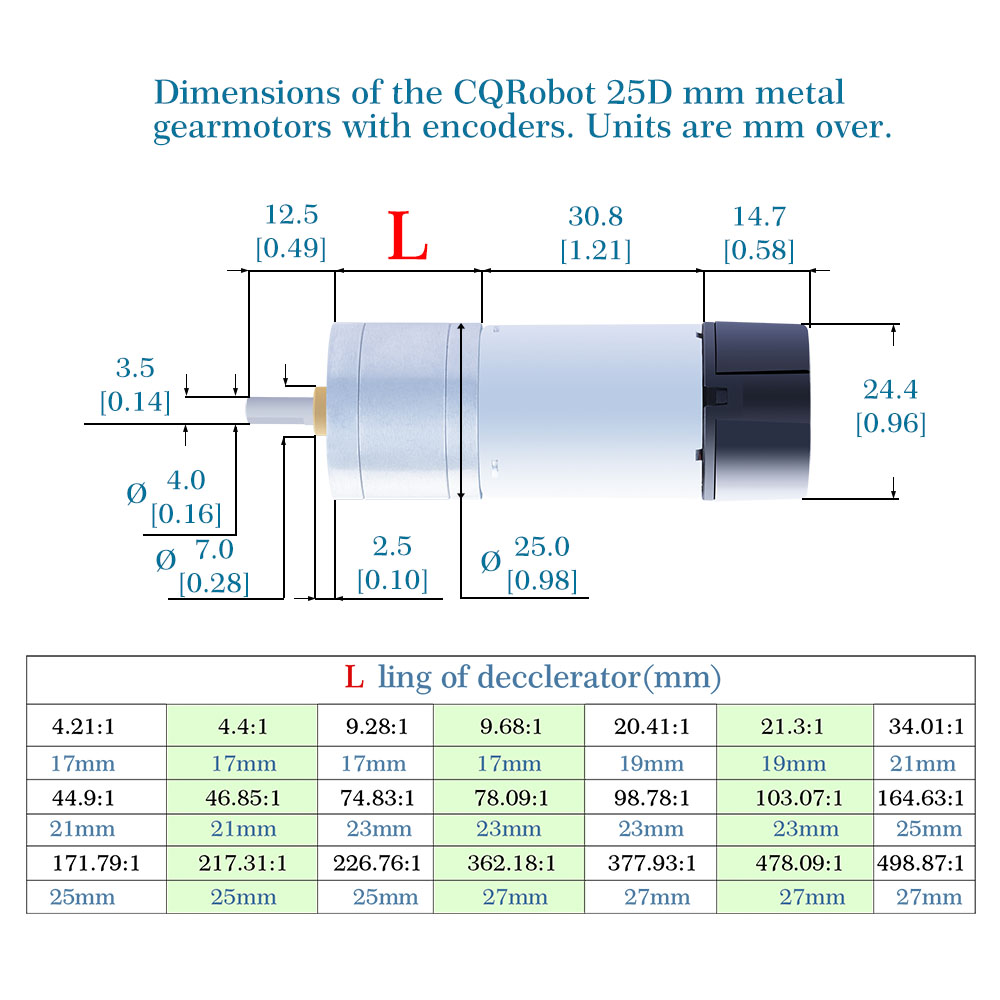

• Motor Size: 25D * 72.5L mm;

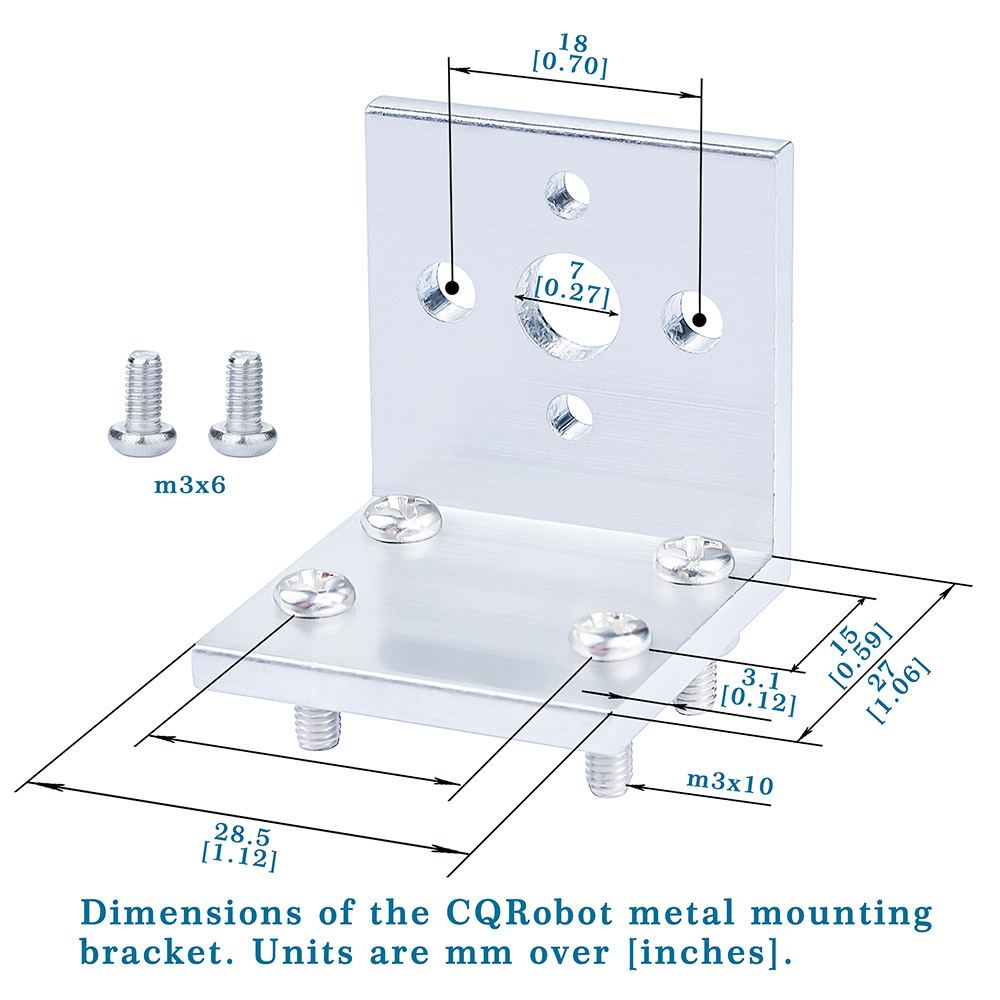

• Mounting Bracket Size: 28.5 mm * 27 mm * 27 mm;
• Weight: 120 g.

SHIPPING LIST

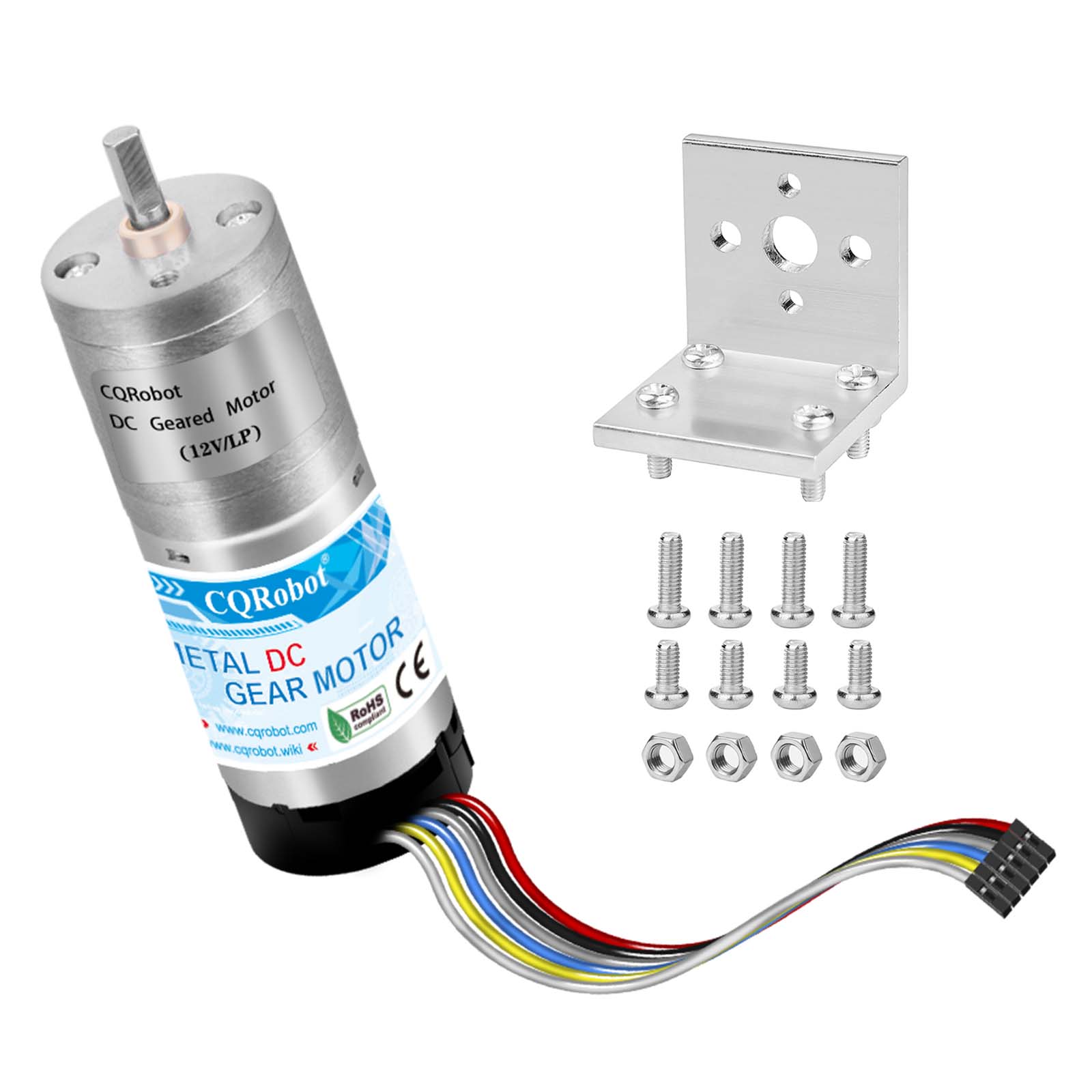

1 * 362.18:1 Metal DC Geared-Down Motor w/Encoder(12V/LP)

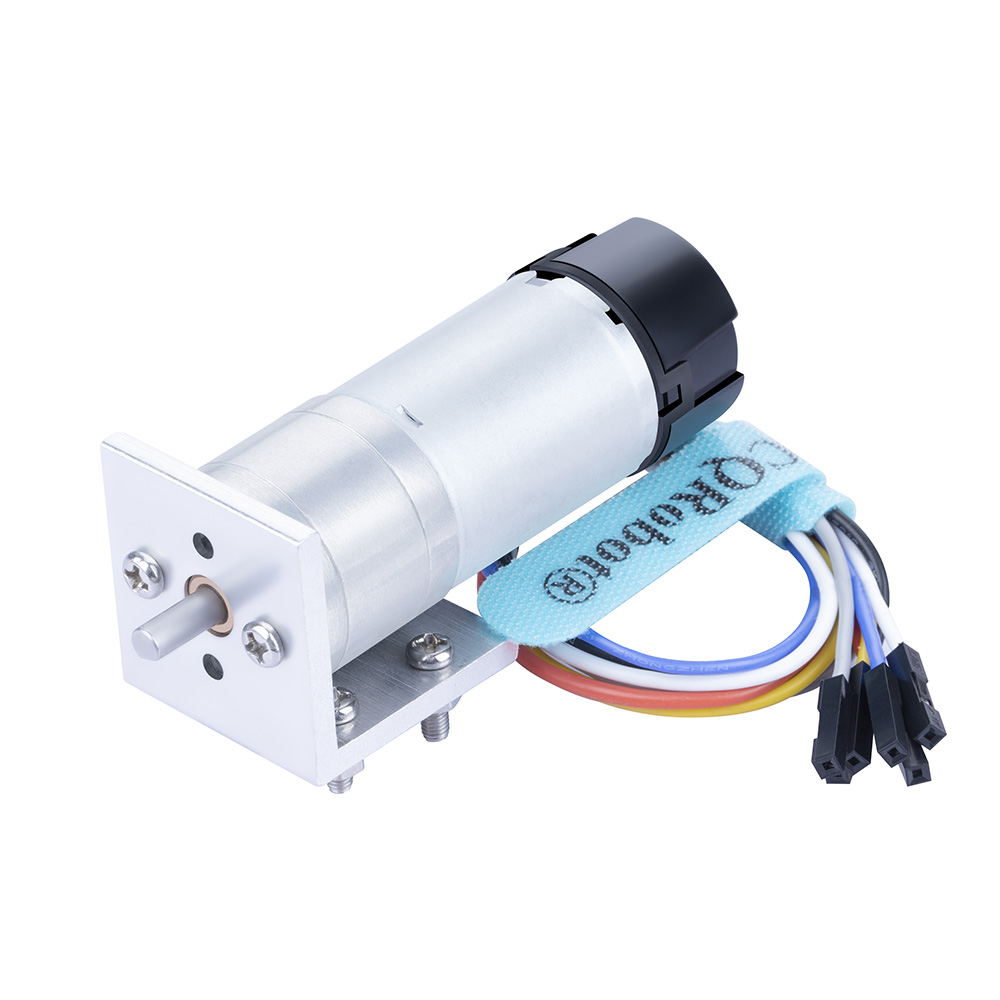

1 * Metal Mounting Bracket Kit
