164.63:1 HP Metal DC Geared-Down Motor 25Dx62.5L mm 12W/12V, with 48 CPR Encoder and Fix Bracket.
$
15
.99
10+
$
15
.19
Save 5%
50+
$
14
.55
Save 9%
100+
$
14
.07
Save 12%
200+
$
13
.59
Save 15%
500+
$
12
.79
Save 20%
Product details

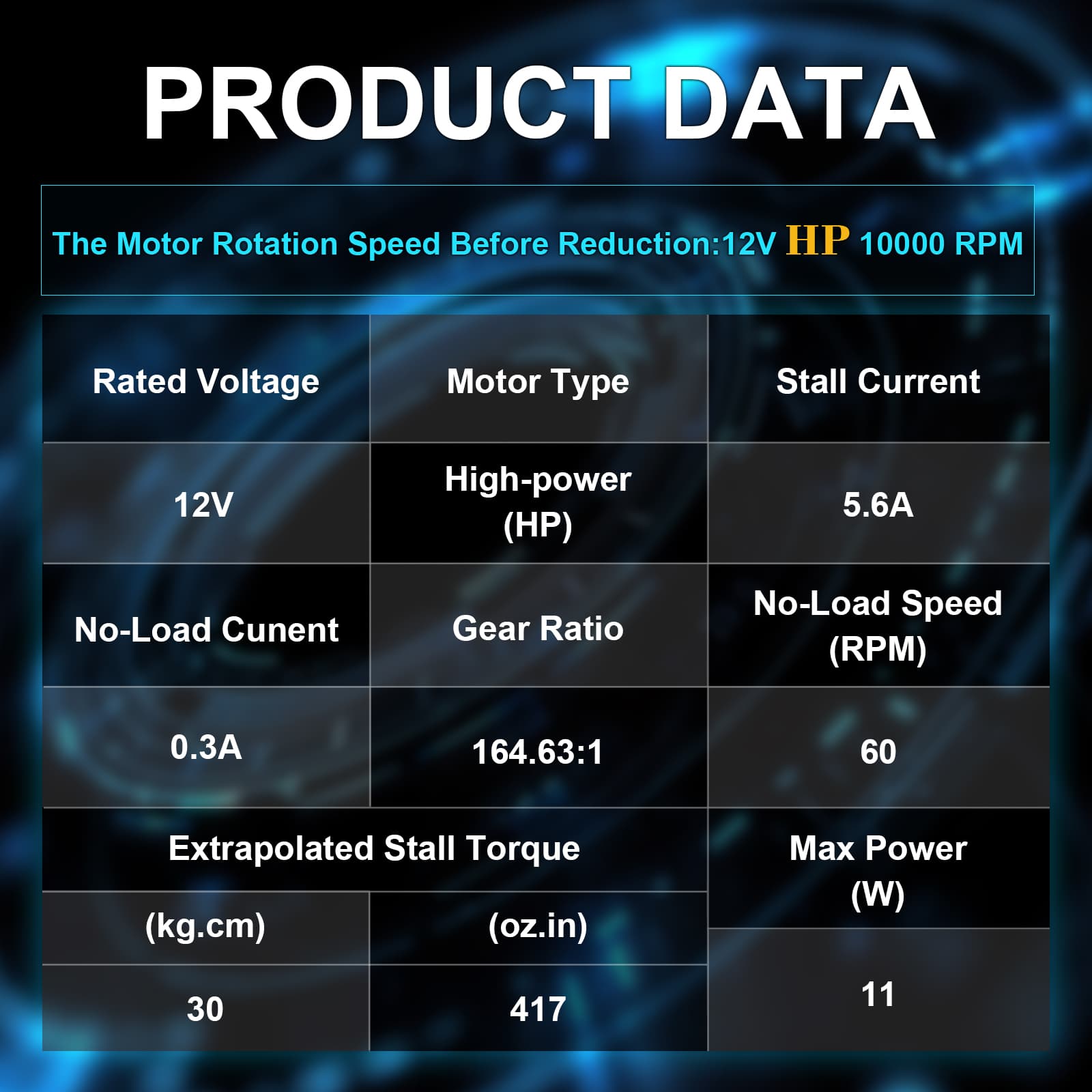

SPECIFICATION
- Gear Ratio: 164.63:1;
- Max Power: 11 W;
- No-load Speed @ 12V: 60 rpm;
- No-load Current @ 12V: 0.3 A;
- Stall Current @ 12V: 5.6 A;
- Stall Torque @ 12V: 30 kg.cm (417 oz.in);
- Motor Type: 5.6A stall @ 12V (High-power 12V);
- Encoder Operating Voltage: 3.3V to 24V;
- Encoder Type: Hall (Incremental Type);
- Encoder Resolution: 48 CPR;
- Cable Specifications: 22AWG;
- Cable Length: 20 cm;
- Cable Material: Silicone;
- Cable Output: 2.54 mm DuPont Female;
- Line Sequence: Red: Motor Power (Connects to One Motor Terminal); Black: Motor Power (Connects to the Other Motor Terminal); Gray: Encoder GND; Blue: Encoder VCC (3.3 V to 24 V); Yellow: Encoder A Output; White: Encoder B Output;
- Operating Temperature: -20 Degree Celsius to +60 Degree Celsius;
- Motor Size: 25D * 70.5L mm;
- Mounting Bracket Size: 28.5 mm * 27 mm * 27 mm;
- Weight: 120 g.
