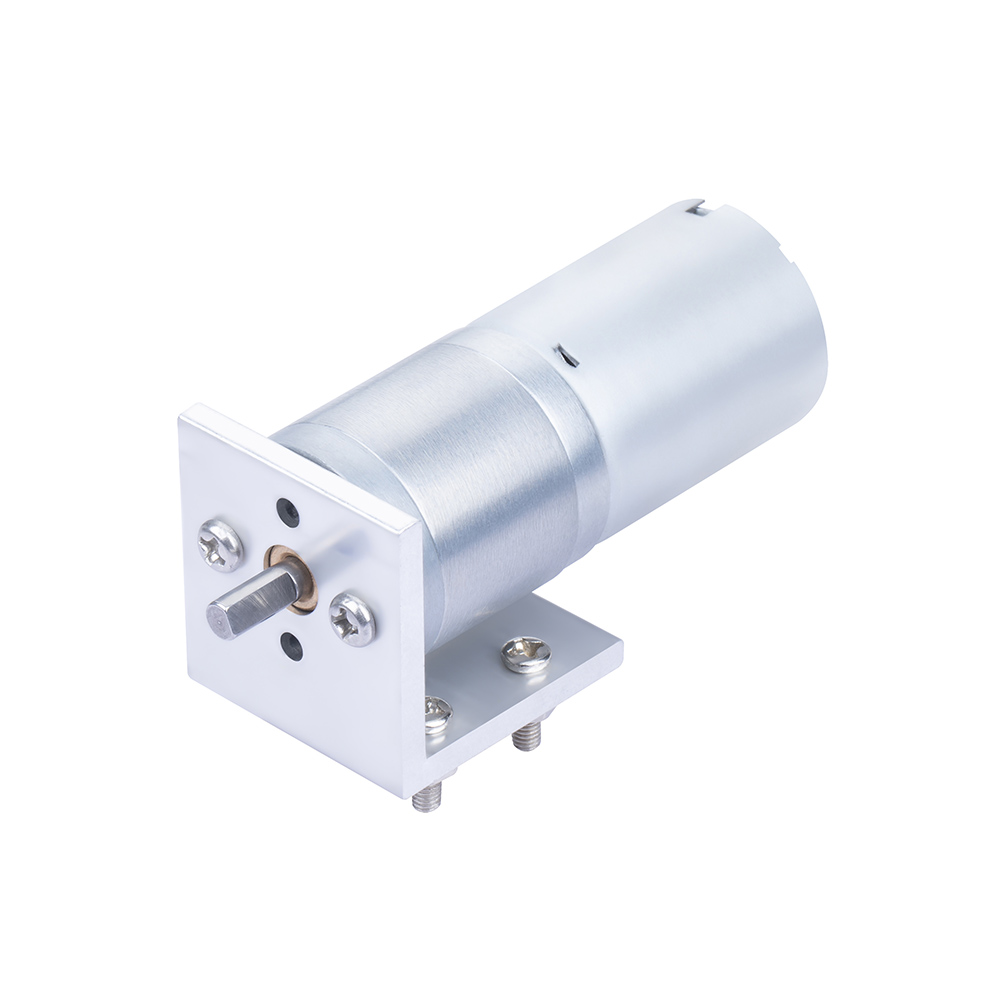

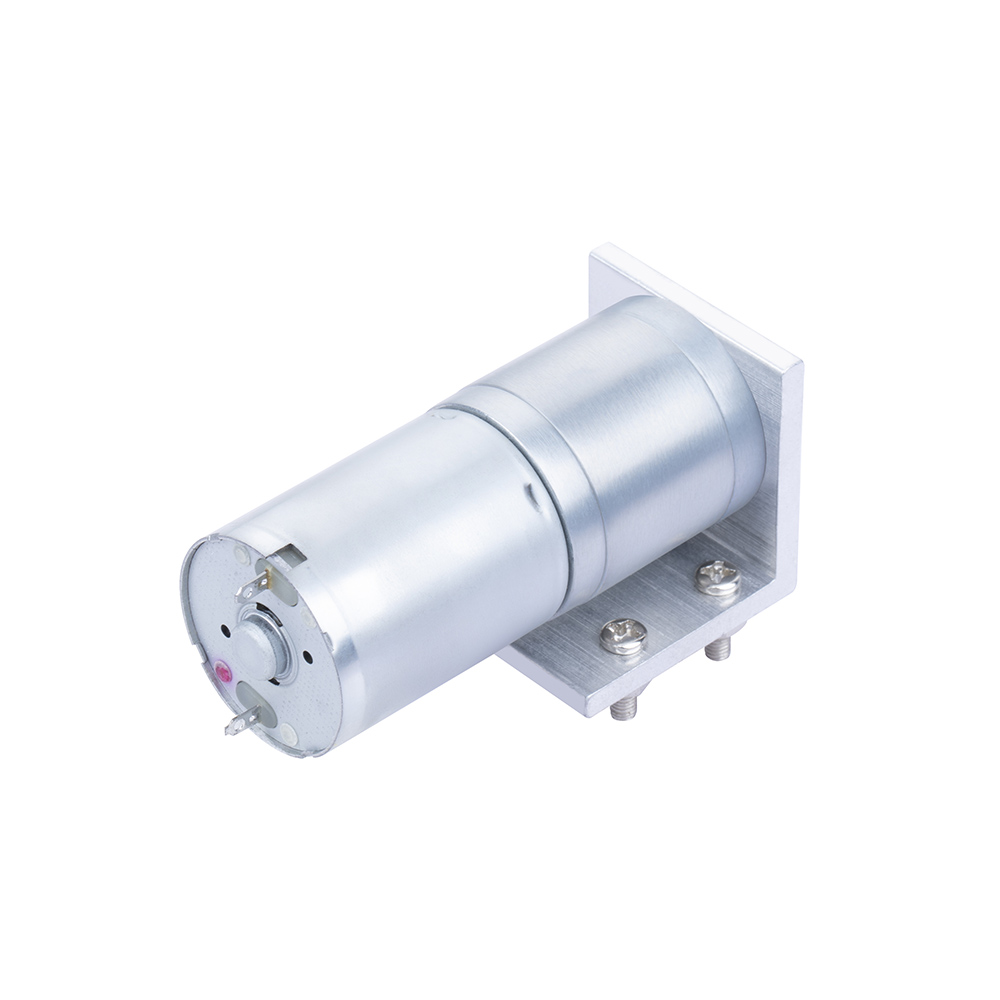

362.18:1 Metal DC Gearmotor 25Dx57.8L mm LP 12V with Mounting Bracket

362.18:1 Metal DC Gearmotor 25Dx57.8L mm LP 12V with Mounting Bracket

SKU

CQR25D12V-LP-R

Part No.

CQR25D12V-LP-R

Brand

8

.99

Style：

6V/Without Encoder

12V/Without Encoder

Type：

HP

LP

MP

Size：

4.21:1

4.4:1

9.28:1

9.68:1

20.41:1

21.3:1

34.01:1

44.9:1

46.85:1

74.83:1

78.09:1

98.78:1

103.07:1

164.63:1

171.79:1

217.31:1

226.76:1

362.18:1

377.93:1

478.09:1

498.87:1

Quantity

In Stock

Product details

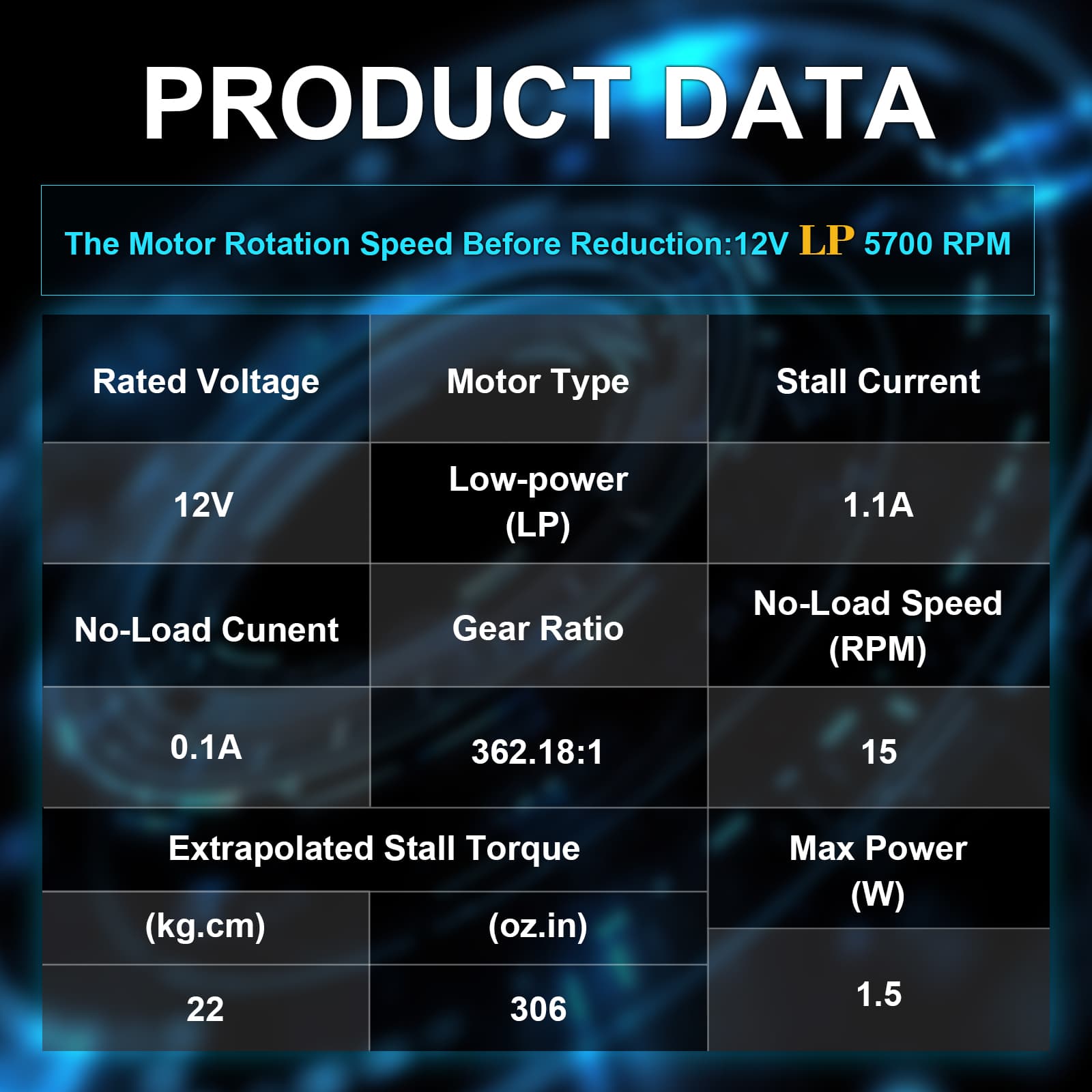

SPECIFICATION

Gear Ratio: 362.18:1;
Max Power: 1.5 W;
No-load Speed @ 12V: 15 rpm;
No-load Current @ 12V: 0.1 A;
Stall Current @ 12V: 1.1 A;
Stall Torque @ 12V: 22 kg.cm (306 oz.in);
Motor Type: 1.1A stall @ 12V (Low-power 12V);
Operating Temperature: -20 Degree Celsius to +60 Degree Celsius;

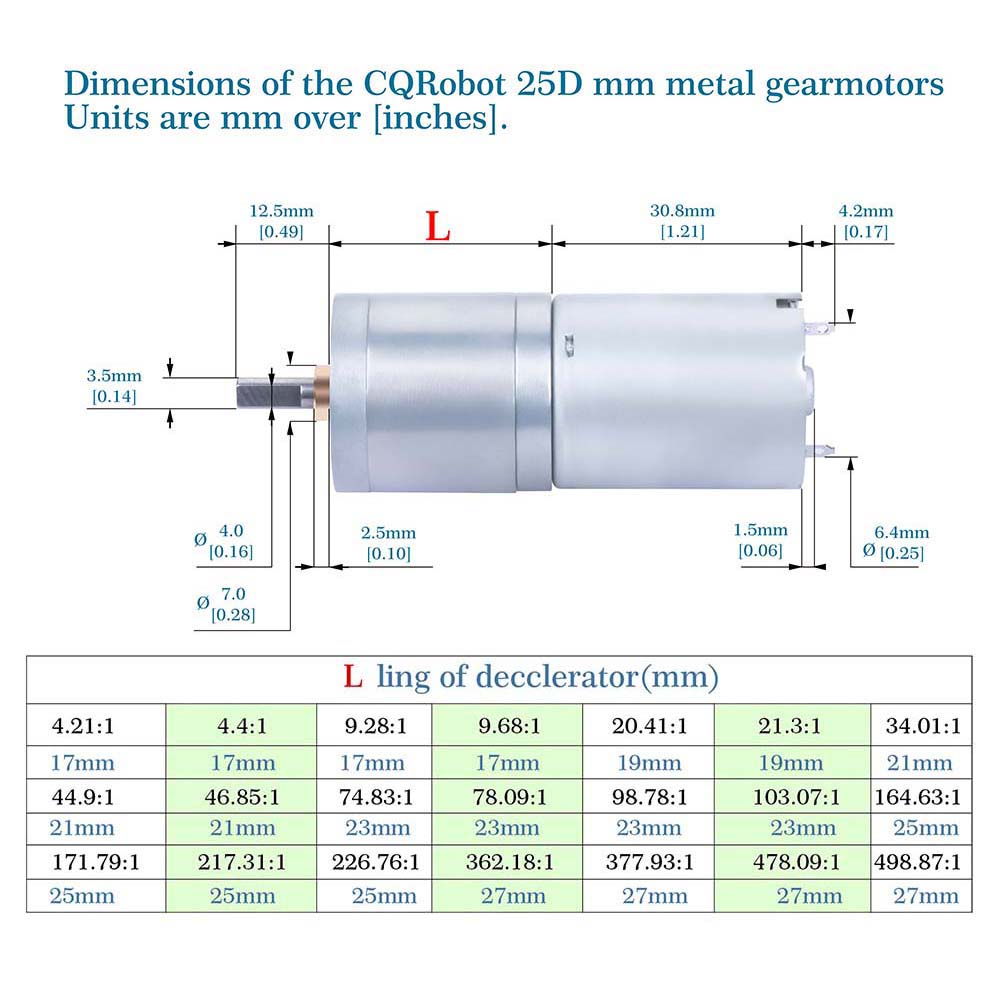

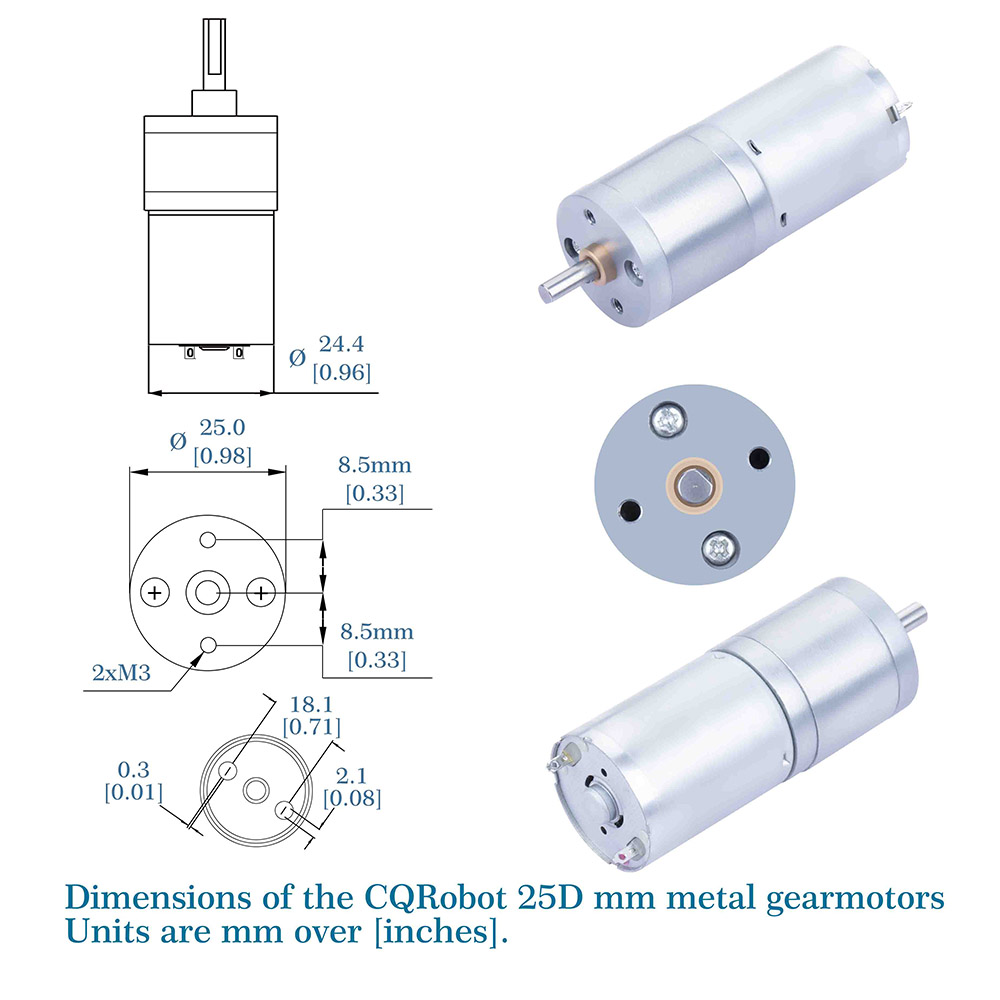

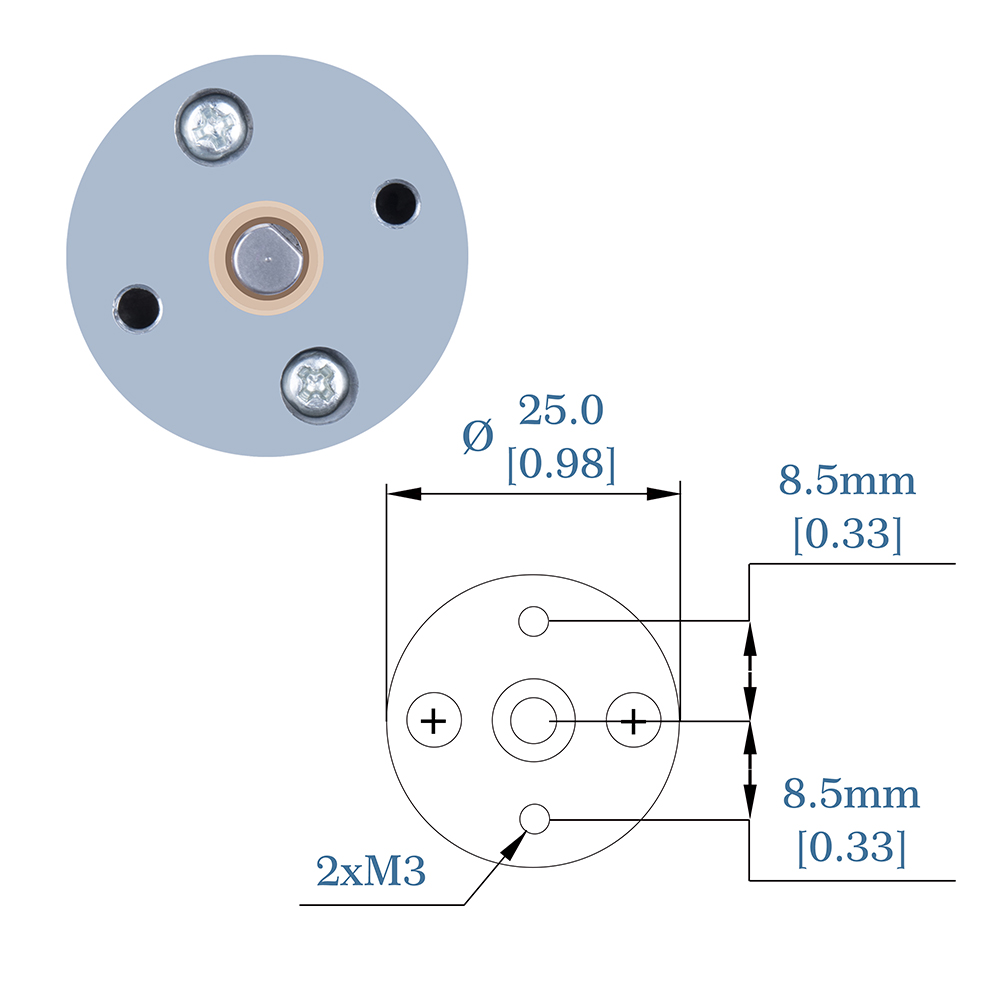

Motor Size: 25D * 57.8L mm;

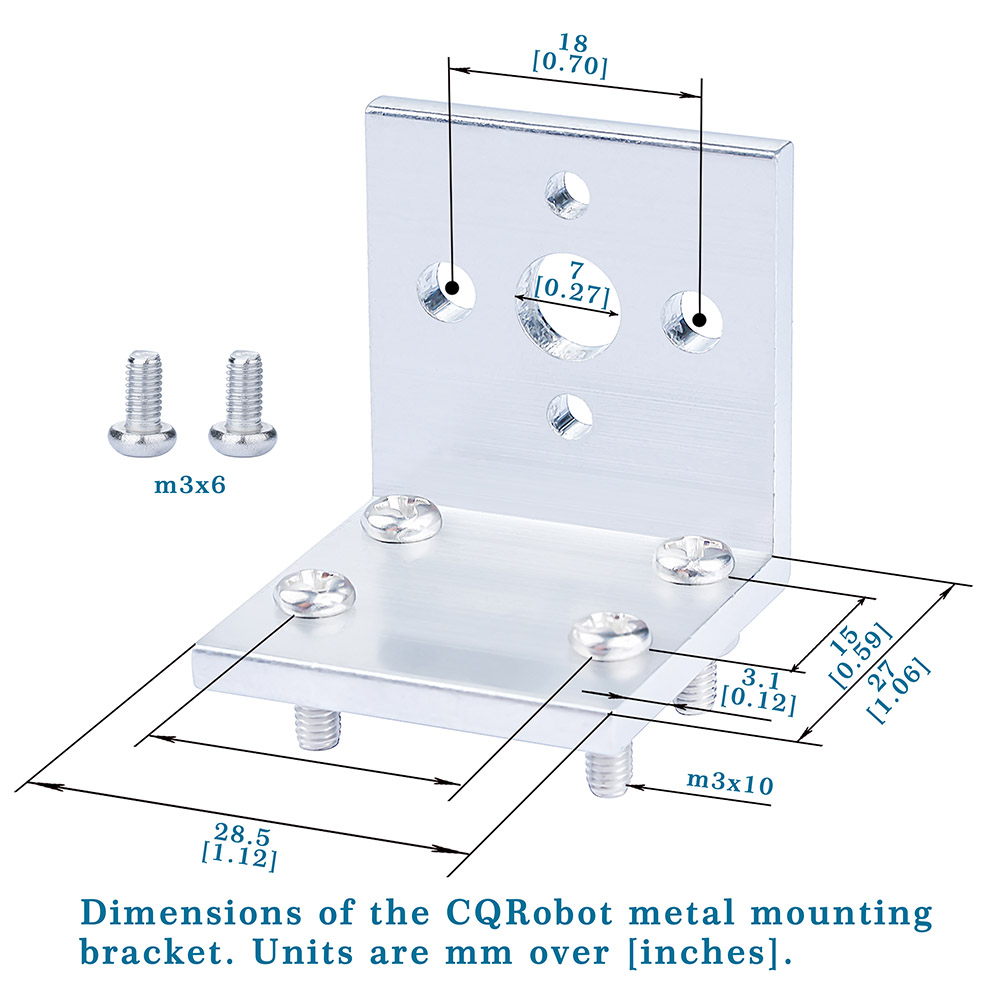

Mounting Bracket Size: 28.5 mm * 27 mm * 27 mm;
Weight: 120 g.
