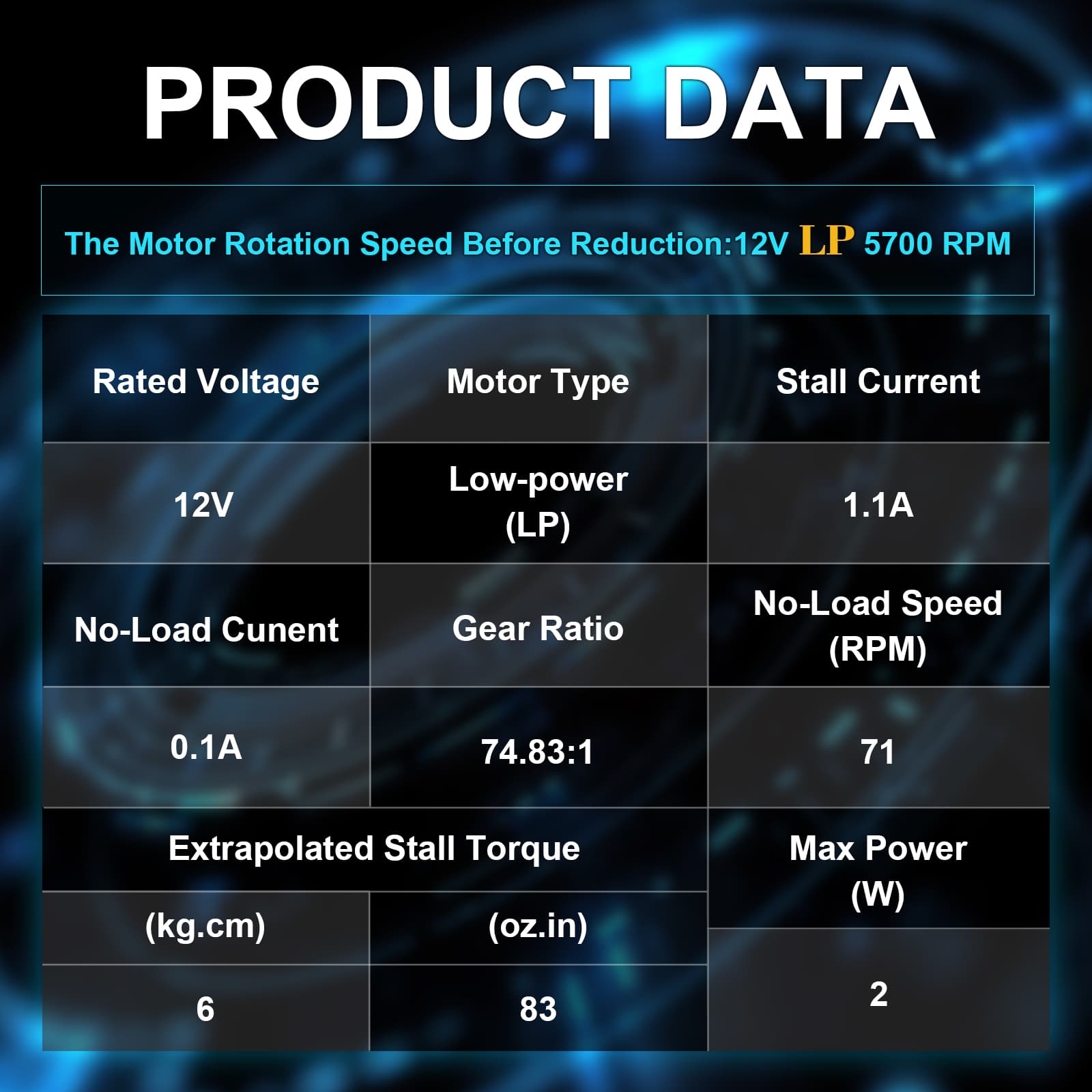

SPECIFICATION

• Gear Ratio: 74.83:1;
• Max Power: 2 W;
• No-load Speed @ 12V: 71 rpm;
• No-load Current @ 12V: 0.1 A;
• Stall Current @ 12V: 1.1 A;
• Stall Torque @ 12V: 6 kg.cm (83 oz.in);
• Motor Type: 1.1A stall @ 12V (Low-power 12V);
• Operating Temperature: -20 Degree Celsius to +60 Degree Celsius;
• Motor Size: 25D * 53.8L mm;
• Mounting Bracket Size: 28.5 mm * 27 mm * 27 mm;
• Weight: 120 g.
