CQR25D12V-HP-R

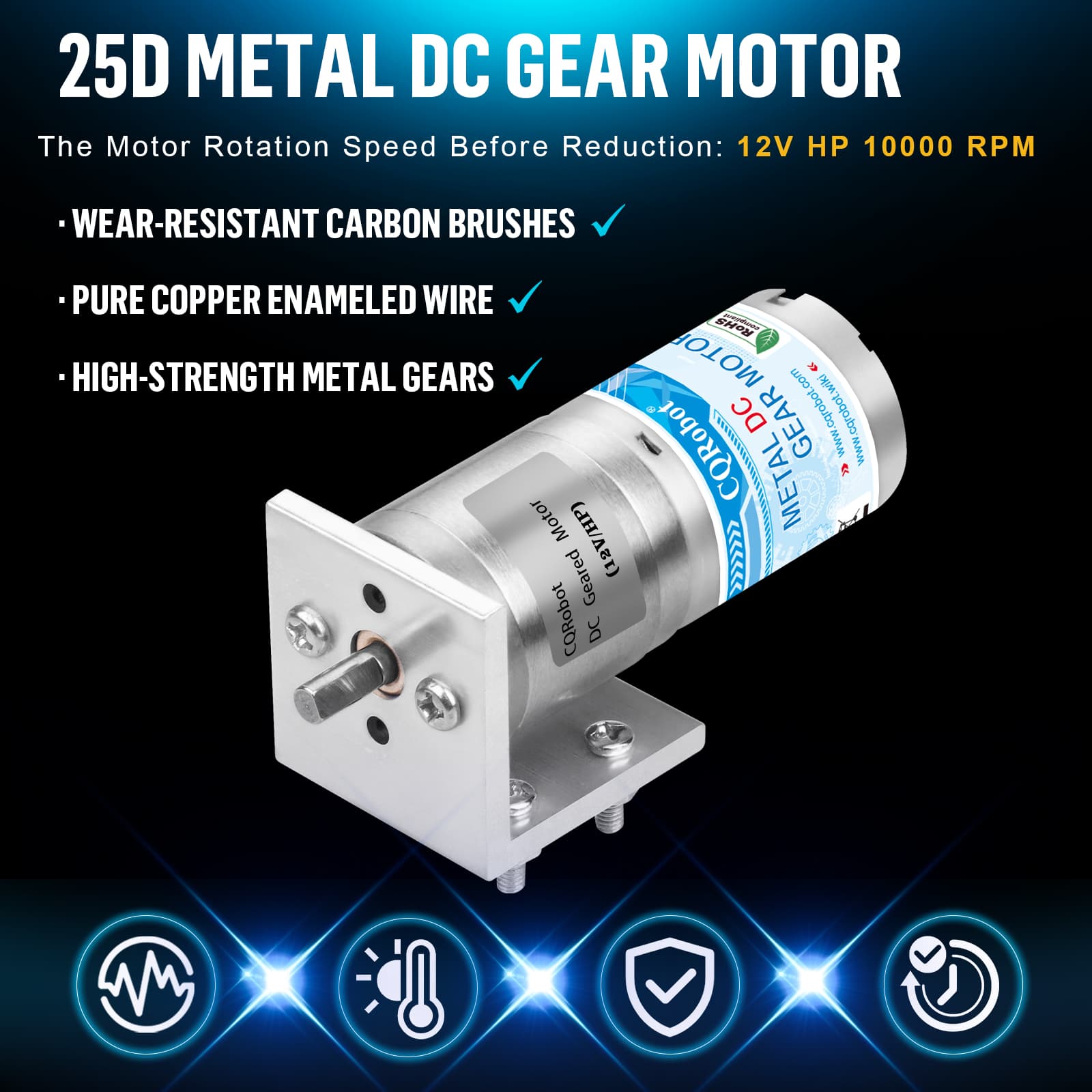

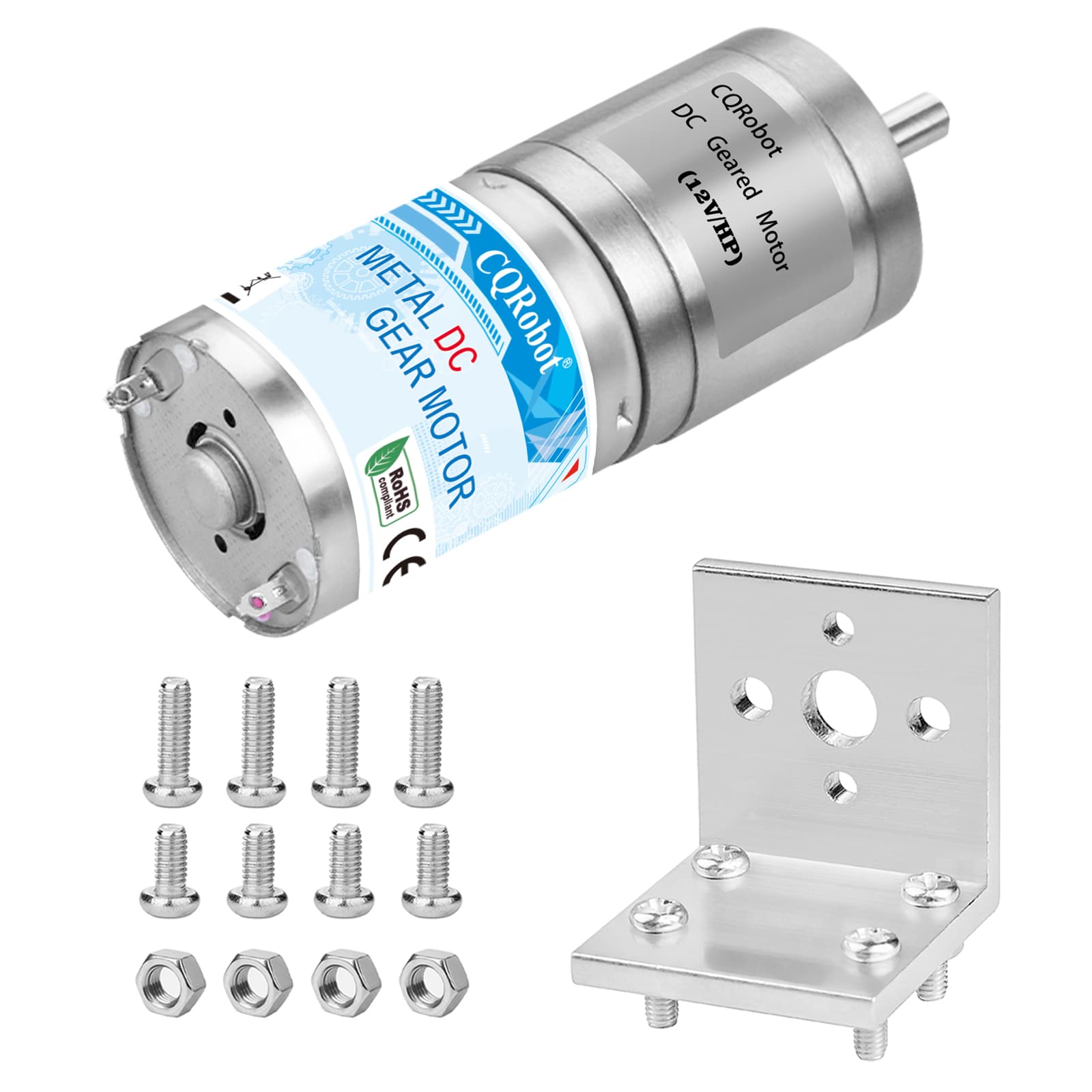

362.18:1 HP Metal DC Geared-Down Motor 25Dx47.8L mm 12W/12V, with Fix Bracket.
SKU
CQR25D12V-HP-R
Part No.
CQR25D12V-HP-R
Brand
CQRobot
$
9
.99
Style：

6V/Without Encoder

12V/Without Encoder

Type：

HP

LP

MP

Size：

4.21:1

4.4:1

9.28:1

9.68:1

20.41:1

21.3:1

34.01:1

44.9:1

46.85:1

74.83:1

78.09:1

98.78:1

103.07:1

164.63:1

171.79:1

217.31:1

226.76:1

362.18:1

377.93:1

478.09:1

498.87:1

Quantity
In Stock
Share:
10+
$
9
.49
Save 5%
50+
$
9
.09
Save 9%
100+
$
8
.79
Save 12%
200+
$
8
.49
Save 15%
500+
$
7
.99
Save 20%
Related Products:

Product details

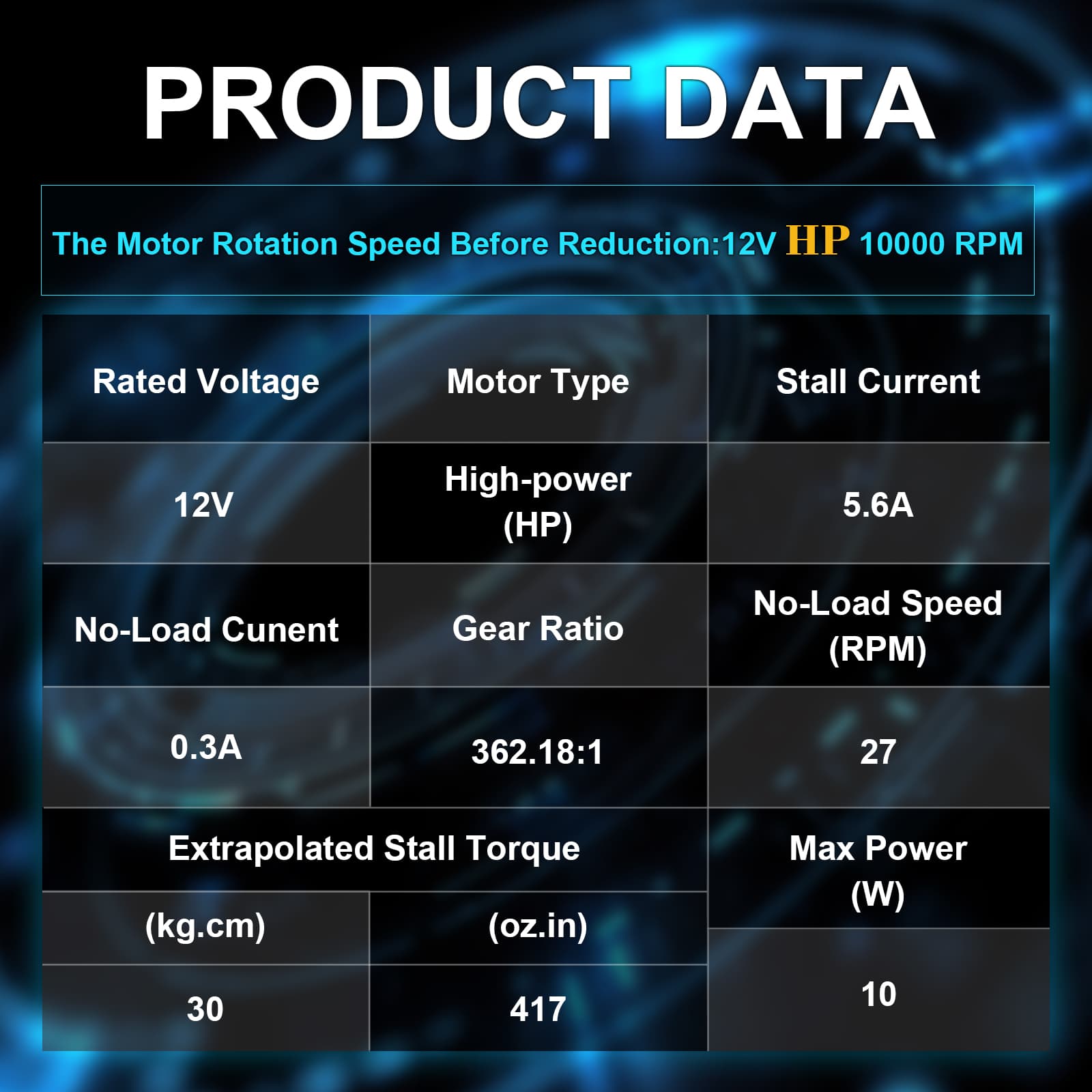

SPECIFICATION

  • Gear Ratio: 362.18:1;
  • Max Power: 10 W;
  • No-load Speed @ 12V: 27 rpm;
  • No-load Current @ 12V: 0.3 A;
  • Stall Current @ 12V: 5.6 A;
  • Stall Torque @ 12V: 30 kg.cm (417 oz.in);
  • Motor Type: 5.6A stall @ 12V (High-power 12V);
  • Operating Temperature: -20 Degree Celsius to +60 Degree Celsius;
  • Motor Size: 25D * 57.8L mm;
  • Mounting Bracket Size: 28.5 mm * 27 mm * 27 mm;
  • Weight: 120 g.

Metal DC Gearmotor-CQR25D12V-HP-A-7.jpgMetal DC Gearmotor-CQR25D12V-HP-A-8.jpgMetal DC Gearmotor-CQR25D12V-HP-A-9.jpgMetal DC Gearmotor-CQR25D12V-HP-A-10.jpgMetal DC Gearmotor-CQR25D12V-HP-A-11.jpg
