CQR-ZH-JST-A

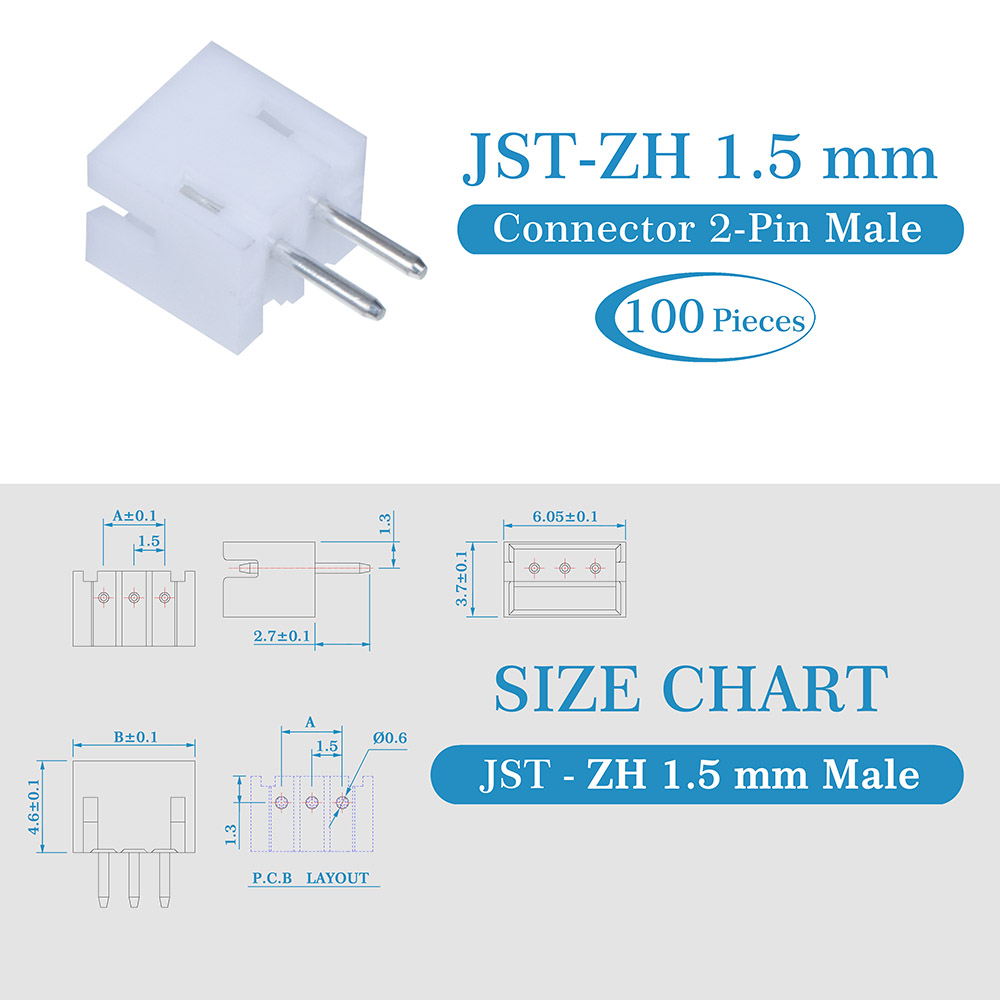

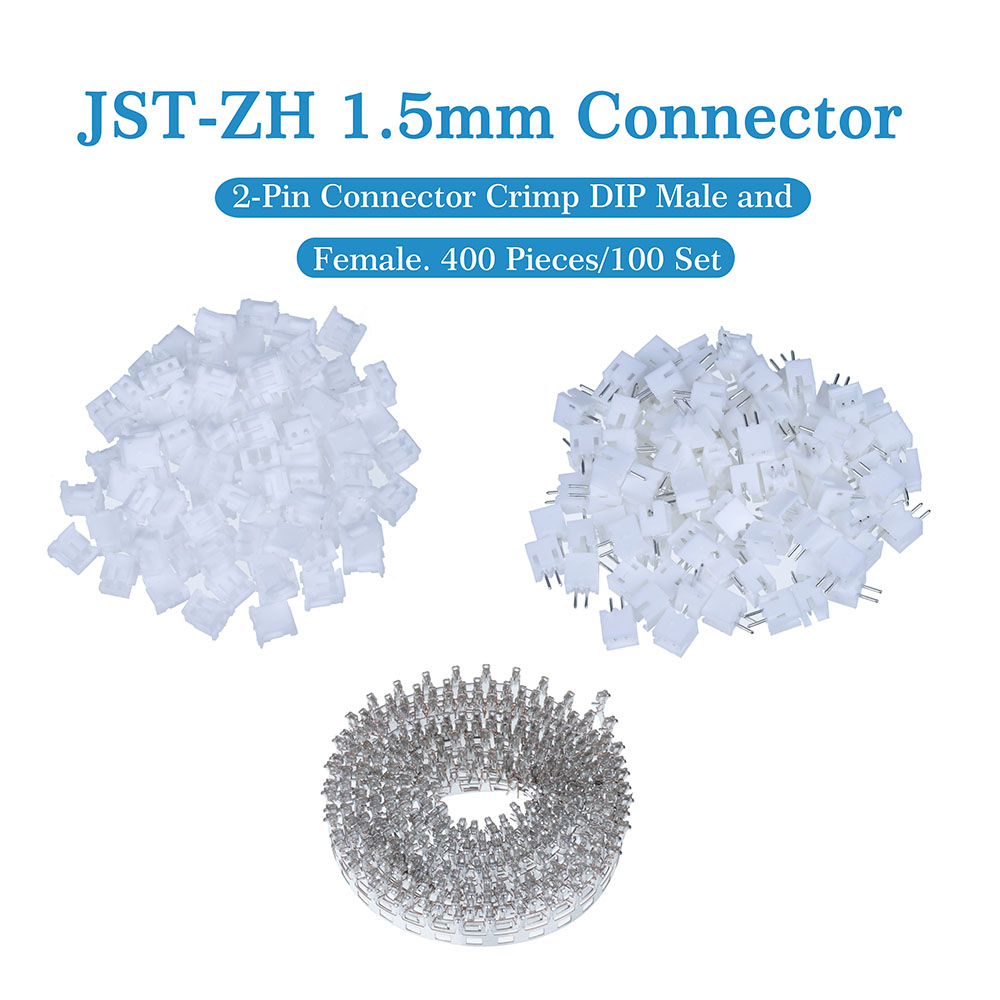

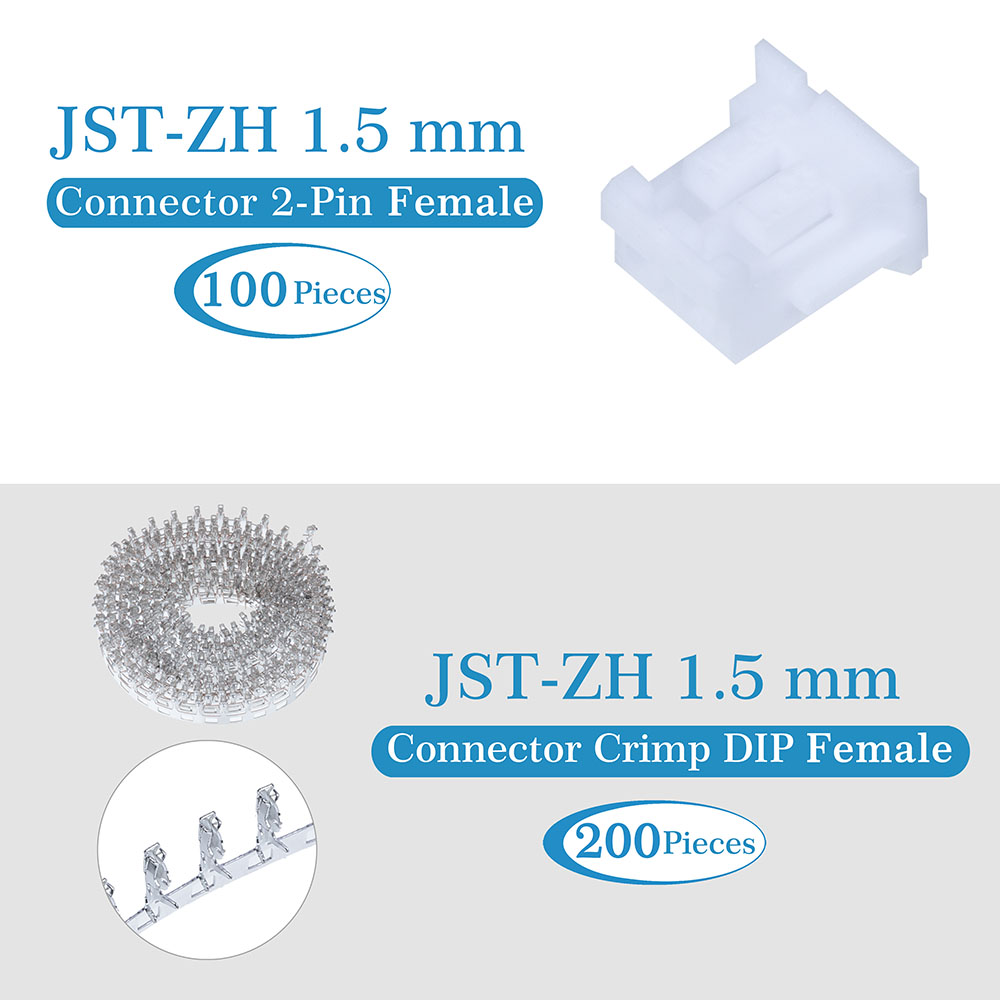

JST ZH 1.5 mm Pitch 2-Pin Connector
SKU
CQR-ZH-JST-A
Part No.
CQR-ZH-JST-A
Brand
CQRobot
$
4
.78
Style：

ZH

Model：

Right Angle DIP

Vertical DIP

Pin：

2P

3P

4P

5P

6P

7P

8P

9P

10P

Quantity
In Stock
Share:
10+
$
4
.54
Save 5%
50+
$
4
.35
Save 9%
100+
$
4
.21
Save 12%
200+
$
4
.06
Save 15%
500+
$
3
.82
Save 20%
Related Products:

Product details

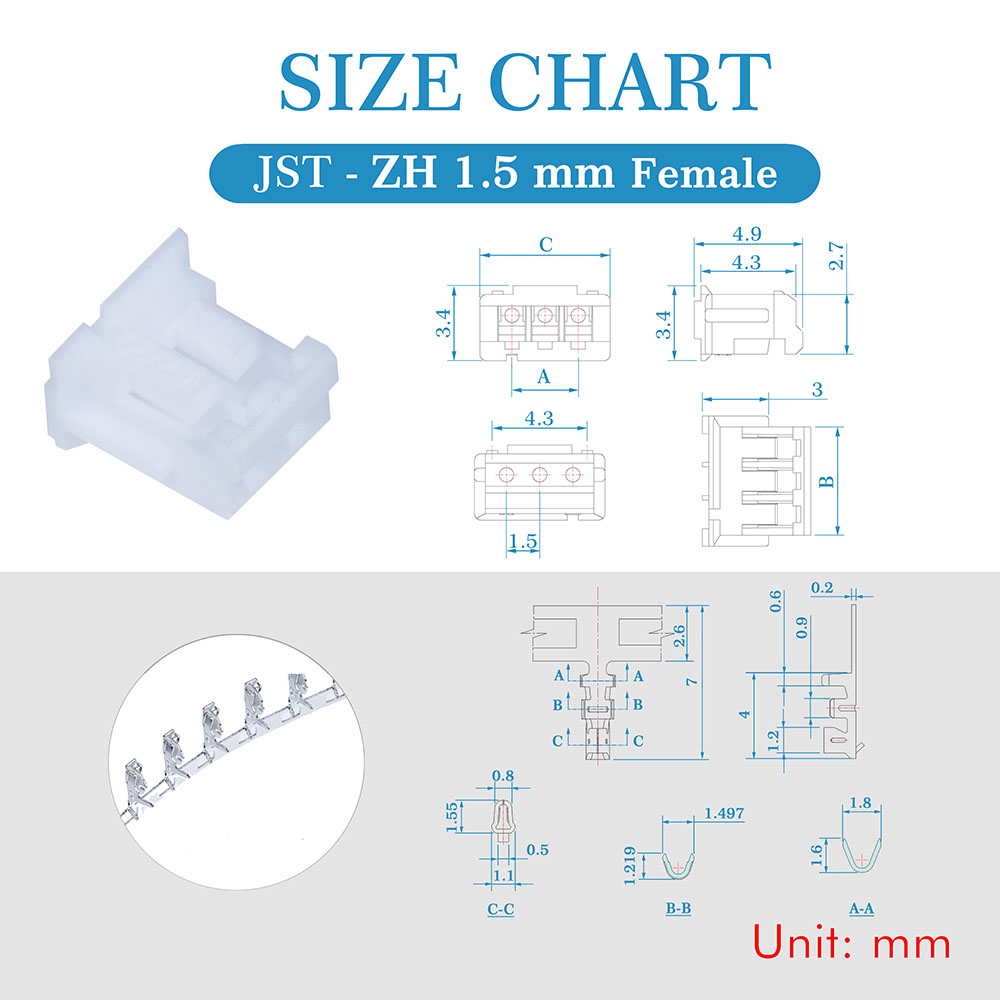

SPECIFICATION

  • Pitch: 1.5 mm (0.059 inch)
  • Current Rating: 1A AC/DC (AWG #26)
  • Voltage Rating: 50V AC/DC
  • Temperature Range: -25 Degree Celsius to 85 Degree Celsius(including temperature rise in applying electrical current)
  • Contact Resistance: Initial value/20 Milliohm max; After Environmental Testing/30 Milliohm max.
  • Insulation Resistance: 500 Megohm and above.
  • Withstanding Voltage: 500V AC/minute
  • Applicable Wire: AWG#32 to #26
  • Applicable PC Board Thickness: 0.6 mm to 1.2 mm, 1.6 mm (0.023 inch to 0.047 inch, 0.062 inch)
