CQR-XH-JST-G

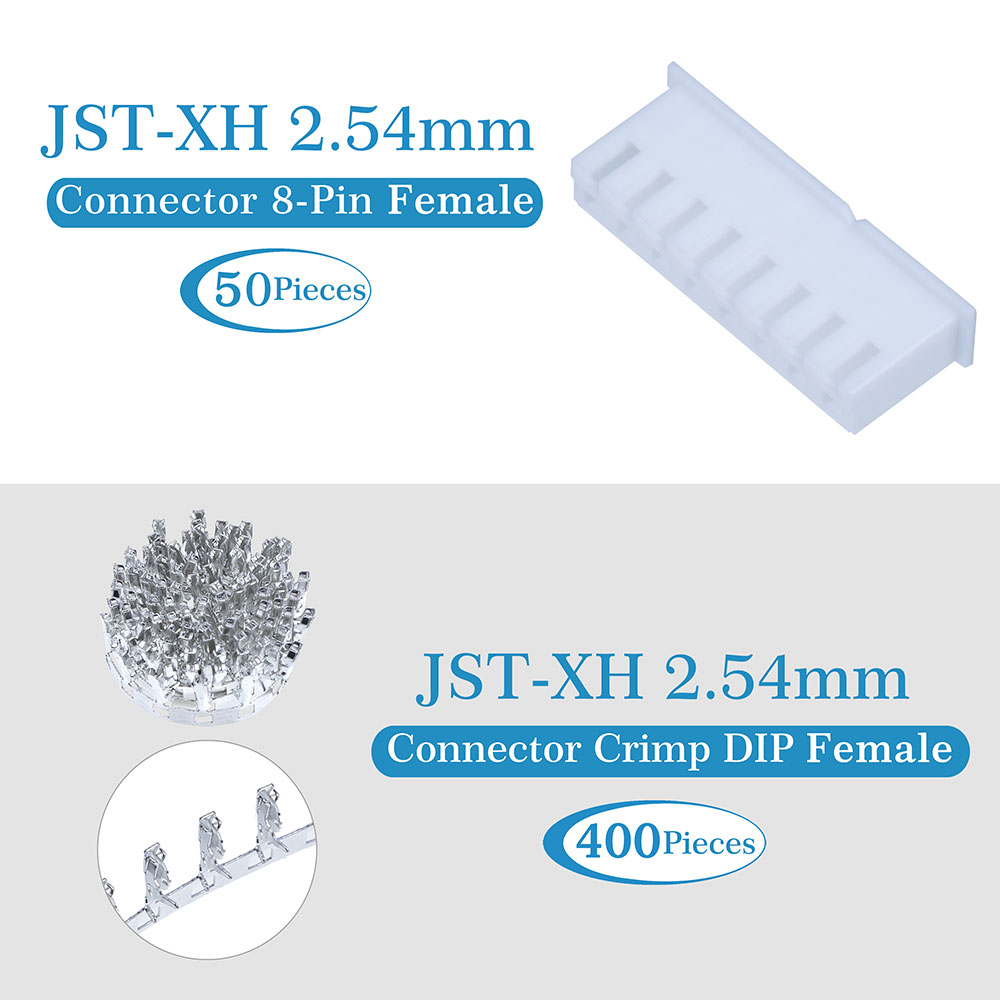

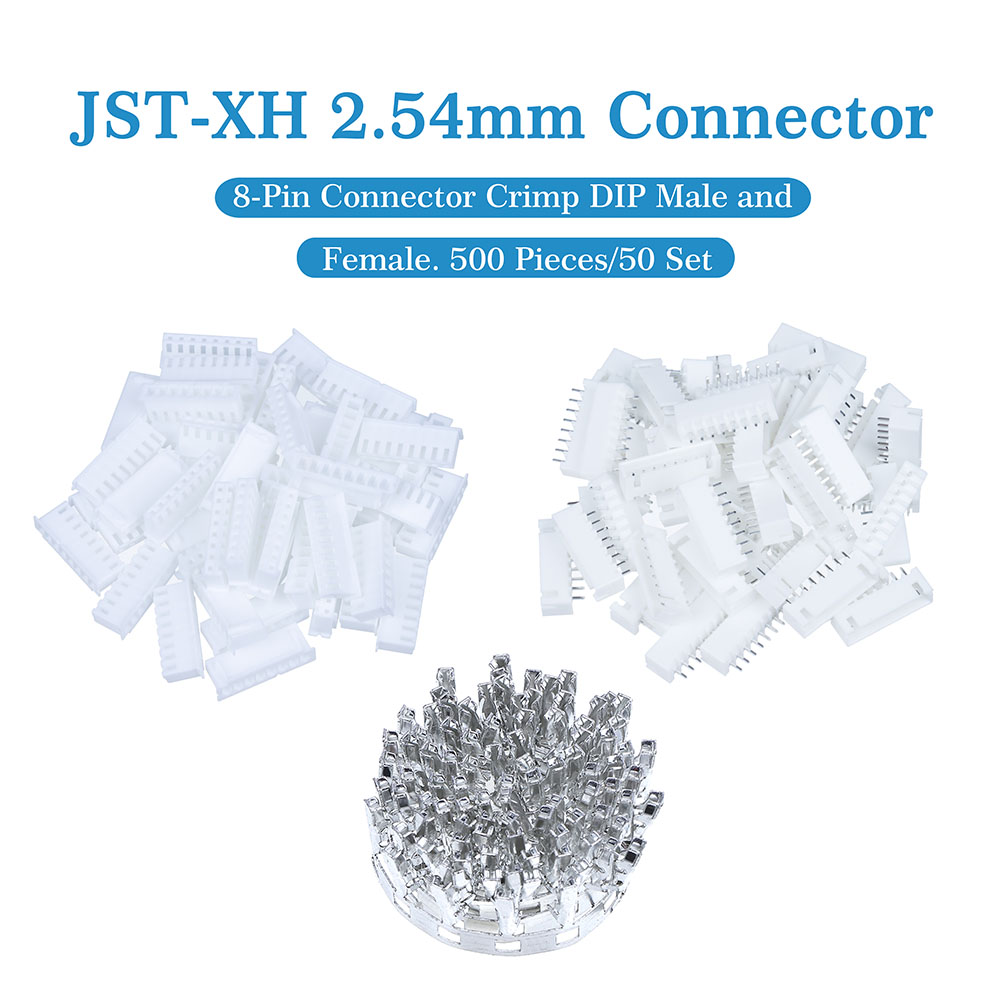

JST XH 2.54 mm Pitch 8-Pin Connector
SKU
CQR-XH-JST-G
Part No.
CQR-XH-JST-G
Brand
CQRobot
6
.48
Style：

XA

XH

XH-R

XHB

Model：

Right Angle DIP

Right Angle SMT

Vertical DIP

Pin：

2P

2P/3P/4P

3P

4P

5P

5P/6P/7P

6P

7P

8P

9P

10P

Quantity
In Stock
Share:
10+
6
.16
Save 5%
50+
5
.9
Save 9%
100+
5
.7
Save 12%
200+
5
.51
Save 15%
500+
5
.18
Save 20%
Related Products:

Product details

SPECIFICATION

  • Model: JST XH 8 Pin
  • Pitch: 2.54mm (0.1 inch)
  • Current Rating: 3A AC/DC (AWG #22)
  • Rated voltage: 250V AC/DC
  • Temperature range: -25 degrees Celsius to 85 degrees Celsius (including -temperature rise when applying electric current)
  • Contact resistance: initial value/10 milliohms max; According to environmental tests/20 milliohms max.
  • Insulation resistance: 1000 megohms and more
  • Dielectric Strength: 1000V AC/minute
  • Applicable wire: AWG#22 to AWG#30
  • Applicable PCB thickness: 1.6mm (0.06 inch)
