CQR-XH-JST-F

JST XH 2.54mm 7‑Pin Wire‑to‑Board Connector, Male Header Female Housing Crimp Terminals
SKU
CQR-XH-JST-F
Part No.
CQR-XH-JST-F
Brand
CQRobot
$
5
.99
Style：

XA

XH

XH-R

XHB

Model：

Right Angle DIP

Right Angle SMT

Vertical DIP

Vertical SMT

Pin：

2P

2P/3P/4P

3P

4P

5P

5P/6P/7P

6P

7P

8P

9P

10P

Quantity
In Stock
Share:
Related Products:

Product details

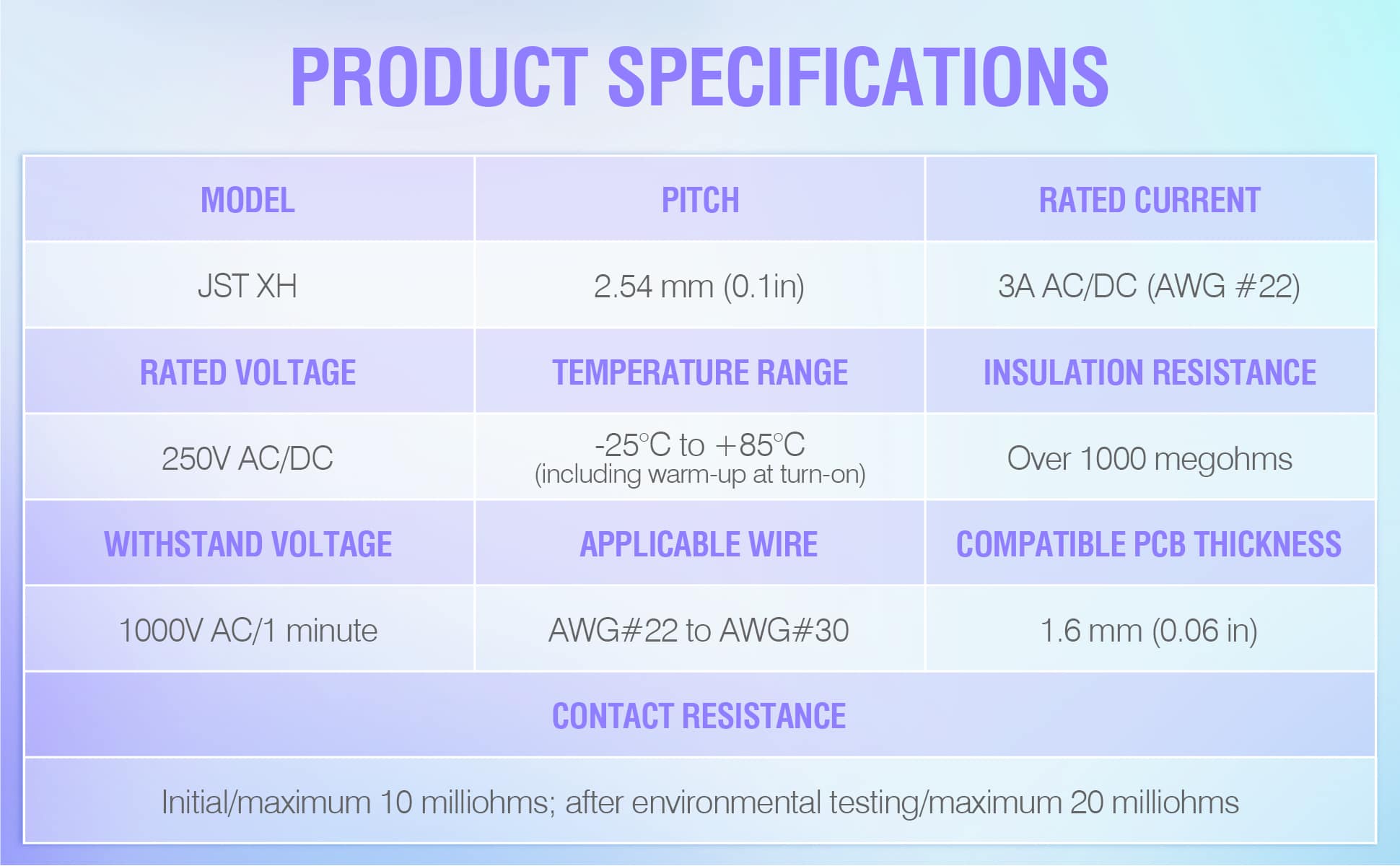

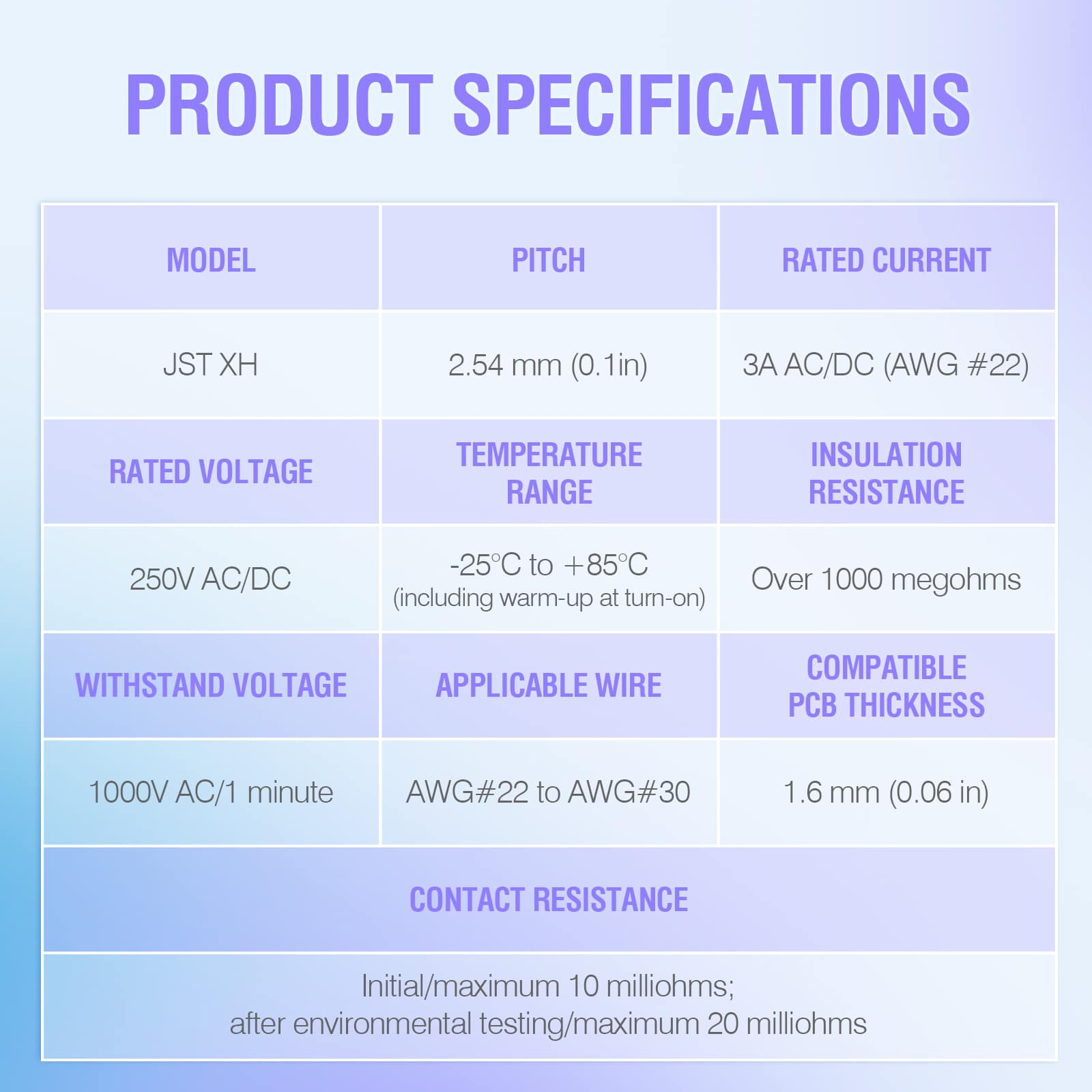

SPECIFICATION

  • Model: JST XH 7 Pin
  • Pitch: 2.54mm (0.1 inch)
  • Current Rating: 3A AC/DC (AWG #22)
  • Rated voltage: 250V AC/DC
  • Temperature range: -25 degrees Celsius to 85 degrees Celsius (including -temperature rise when applying electric current)
  • Contact resistance: initial value/10 milliohms max; According to environmental tests/20 milliohms max.
  • Insulation resistance: 1000 megohms and more
  • Dielectric Strength: 1000V AC/minute
  • Applicable wire: AWG#22 to AWG#30
  • Applicable PCB thickness: 1.6mm (0.06 inch)
