CQR-XH-JST-E

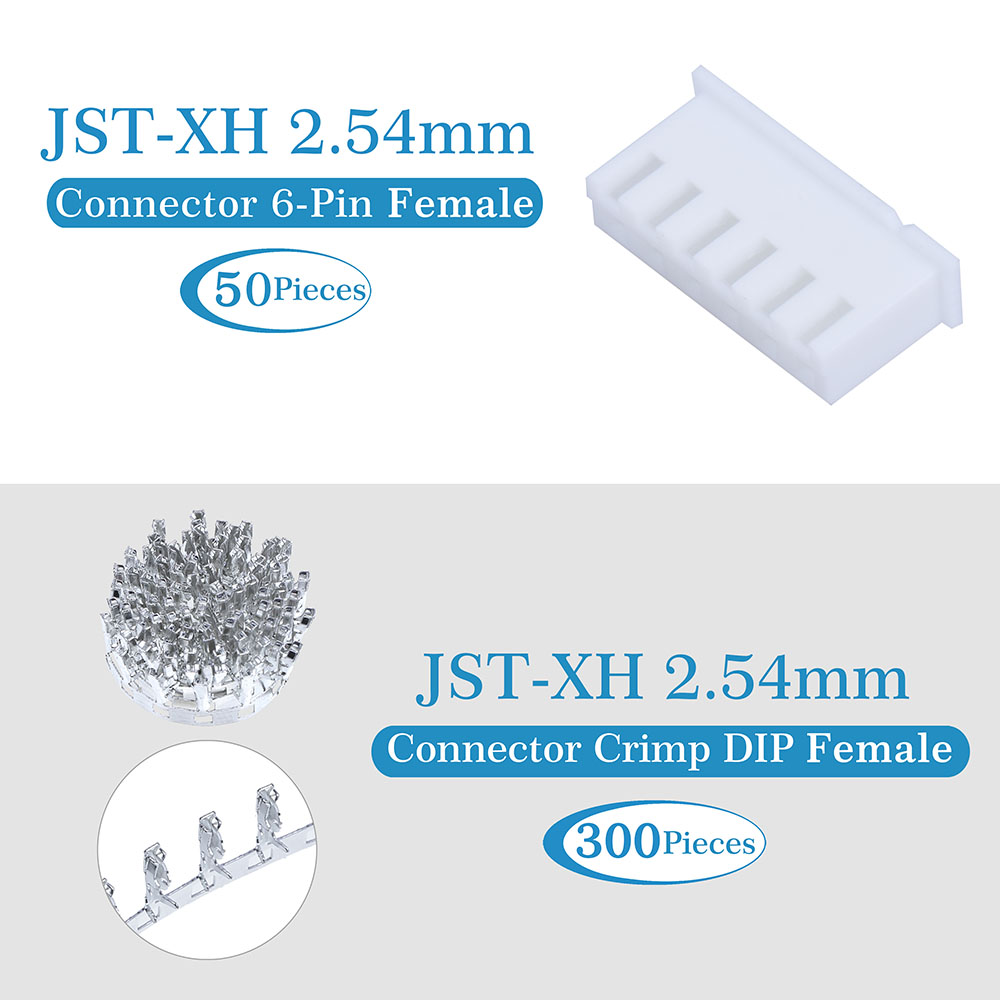

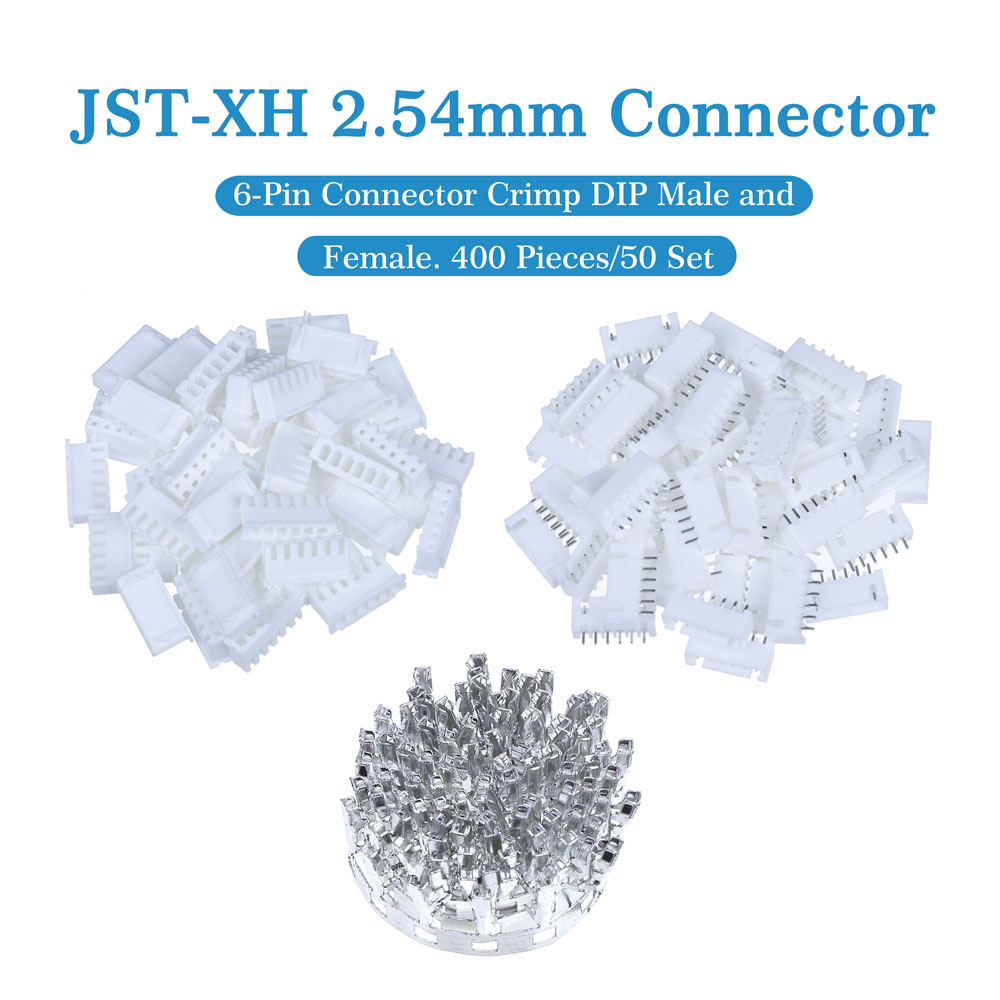

JST XH 2.54 mm Pitch 6-Pin Connector
SKU
CQR-XH-JST-E
Part No.
CQR-XH-JST-E
Brand
CQRobot
$
5
.38
Style：

XA

XH

XH-R

XHB

Model：

Right Angle DIP

Right Angle SMT

Vertical DIP

Pin：

2P

2P/3P/4P

3P

4P

5P

5P/6P/7P

6P

7P

8P

9P

10P

Quantity
In Stock
Share:
10+
$
5
.11
Save 5%
50+
$
4
.90
Save 9%
100+
$
4
.73
Save 12%
200+
$
4
.57
Save 15%
500+
$
4
.30
Save 20%
Related Products:

Product details

SPECIFICATION

  • Model: JST XH 6 Pin
  • Pitch: 2.54mm (0.1 inch)
  • Current Rating: 3A AC/DC (AWG #22)
  • Rated voltage: 250V AC/DC
  • Temperature range: -25 degrees Celsius to 85 degrees Celsius (including -temperature rise when applying electric current)
  • Contact resistance: initial value/10 milliohms max; According to environmental tests/20 milliohms max.
  • Insulation resistance: 1000 megohms and more
  • Dielectric Strength: 1000V AC/minute
  • Applicable wire: AWG#22 to AWG#30
  • Applicable PCB thickness: 1.6mm (0.06 inch)

JST XH 2.54 mm Pitch Connector-CQR-XH-JST-A-7.jpgJST XH 2.54 mm Pitch Connector-CQR-XH-JST-A-8.jpgJST XH 2.54 mm Pitch Connector-CQR-XH-JST-A-9.jpgJST XH 2.54 mm Pitch Connector-CQR-XH-JST-A-10.jpgJST XH 2.54 mm Pitch Connector-CQR-XH-JST-A-11.jpgJST XH 2.54 mm Pitch Connector-CQR-XH-JST-A-12.jpg
