SPECIFICATION

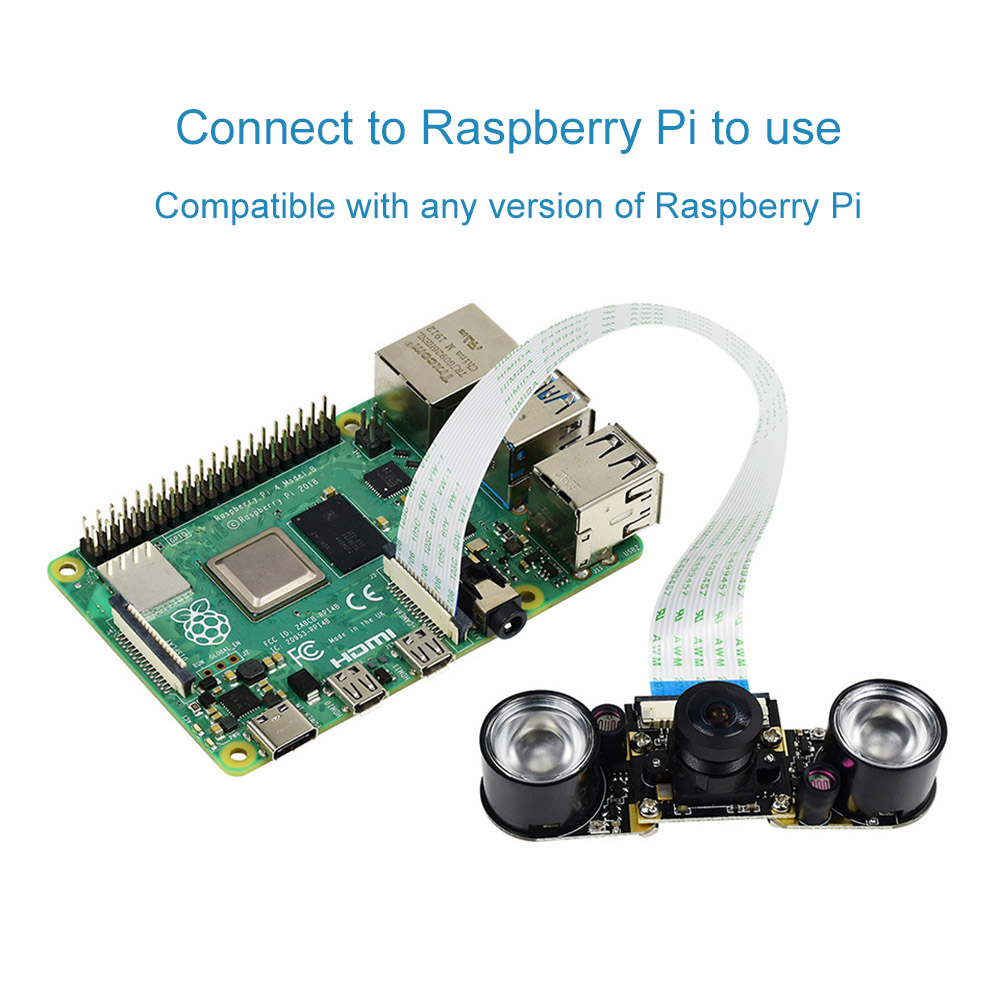

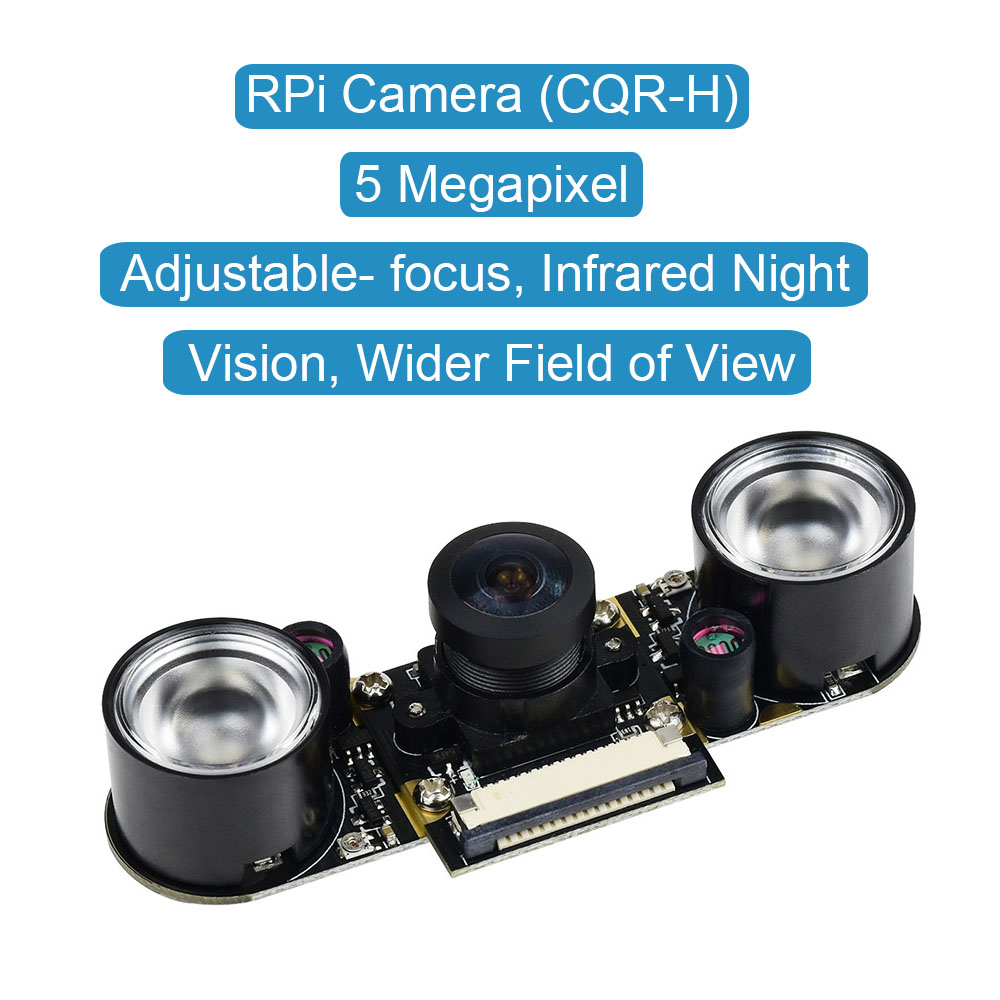

Raspberry Pi Camera, supports all revisions of the Pi

Fisheye Lens, offers wider field of view

Comes with infrared LED, supports night vision

5 megapixel OV5647 sensor

Adjustable focus distance

Camera specifications

• CCD size : 1/4inch
• Aperture (F) : 2.35
• Focal Length : 3.15mm
• Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
• Sensor best resolution : 1080p

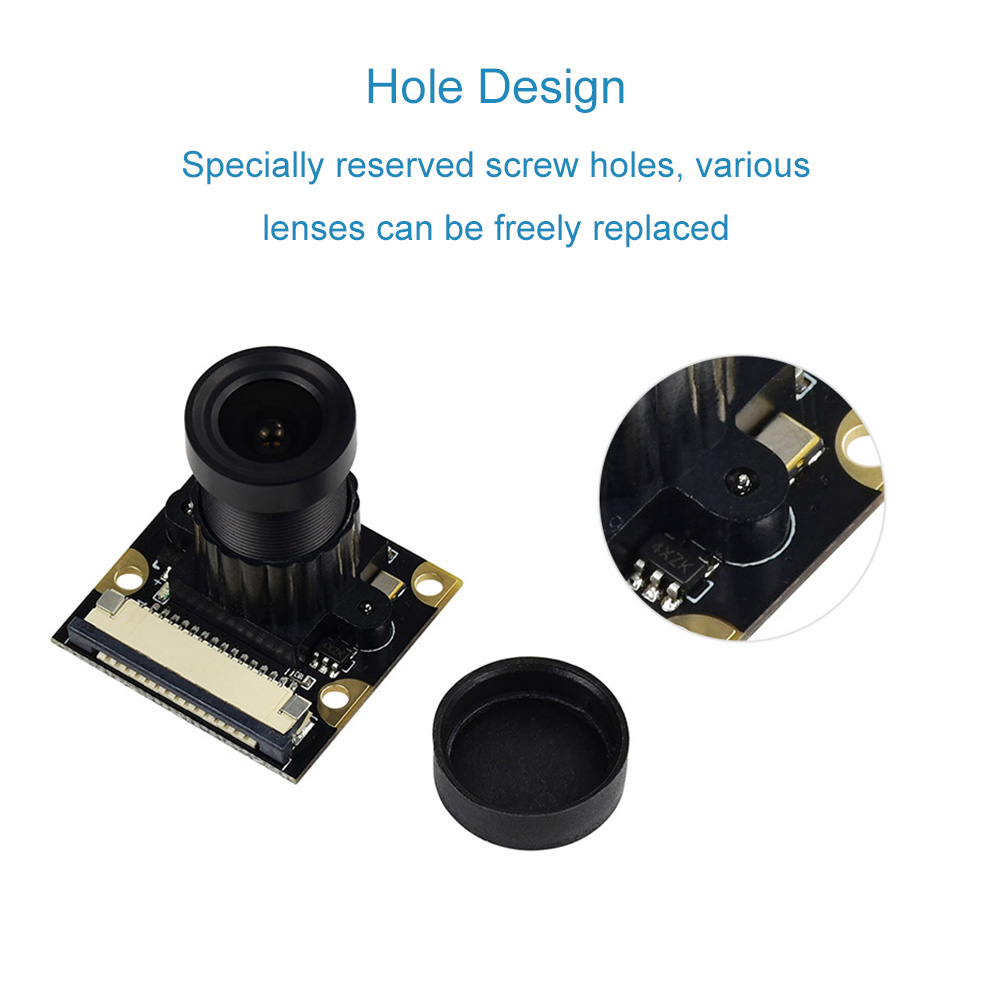

4 screw holes

• Used for attachment

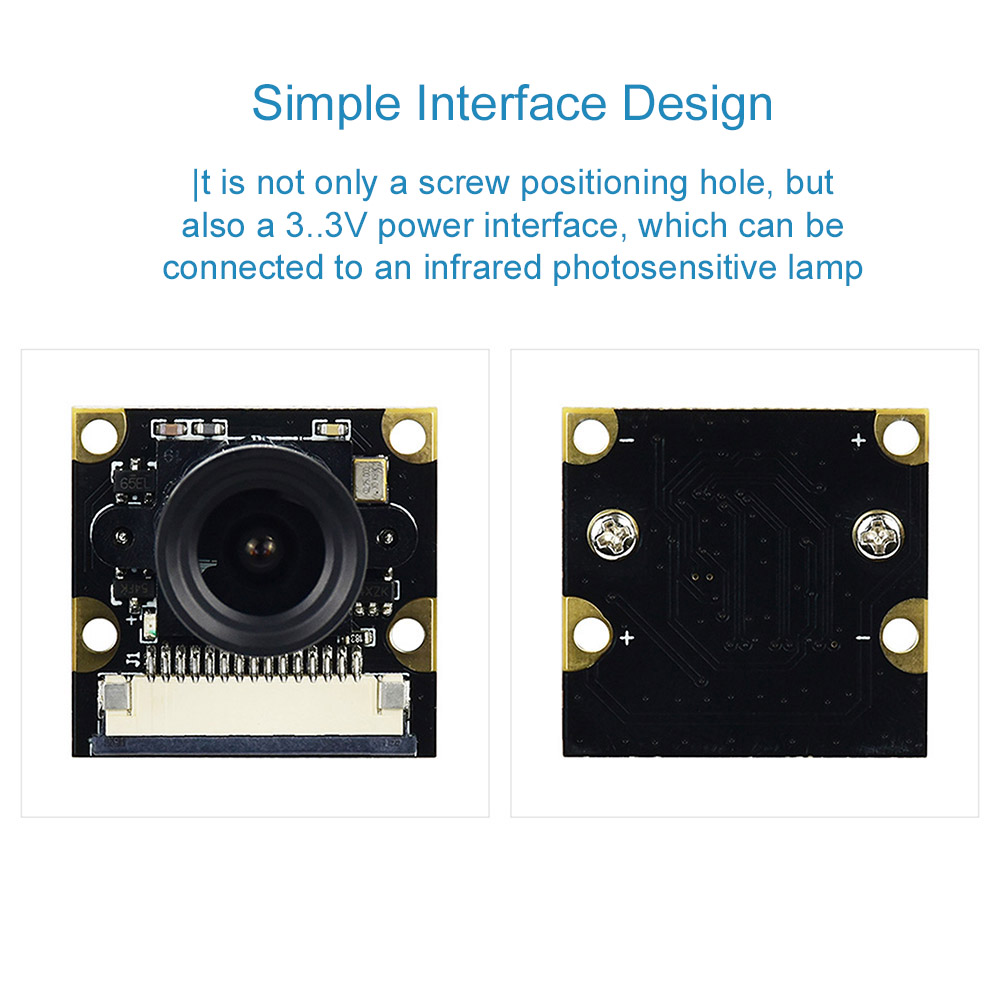

• Provides 3.3V power output

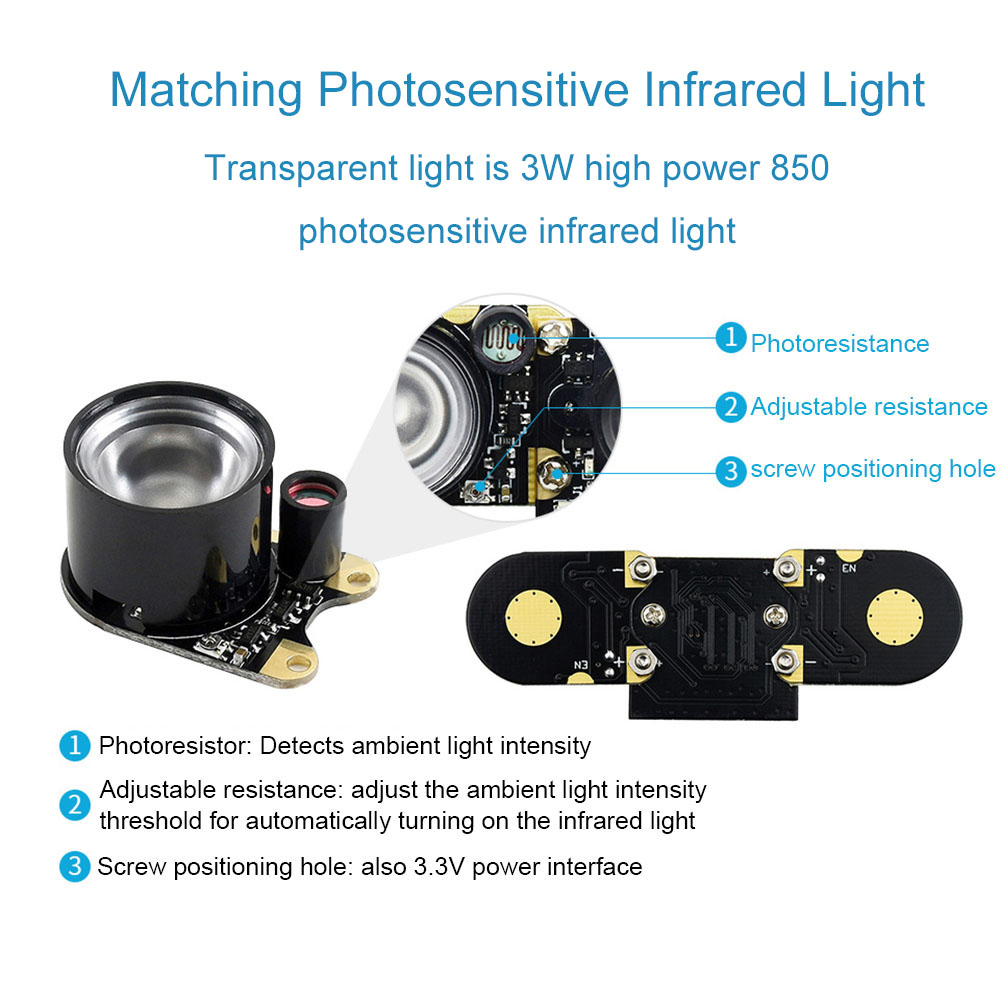

• Supports connecting infrared LED and/or fill flash LED

Dimension: 25mm x 24mm

SHIPPING LIST

1 * RPi Camera (CQR-H)

2 * Infrared LED Board

1 * 15-pin FFC (Opposite Sides Contact)
