SPECIFICATION

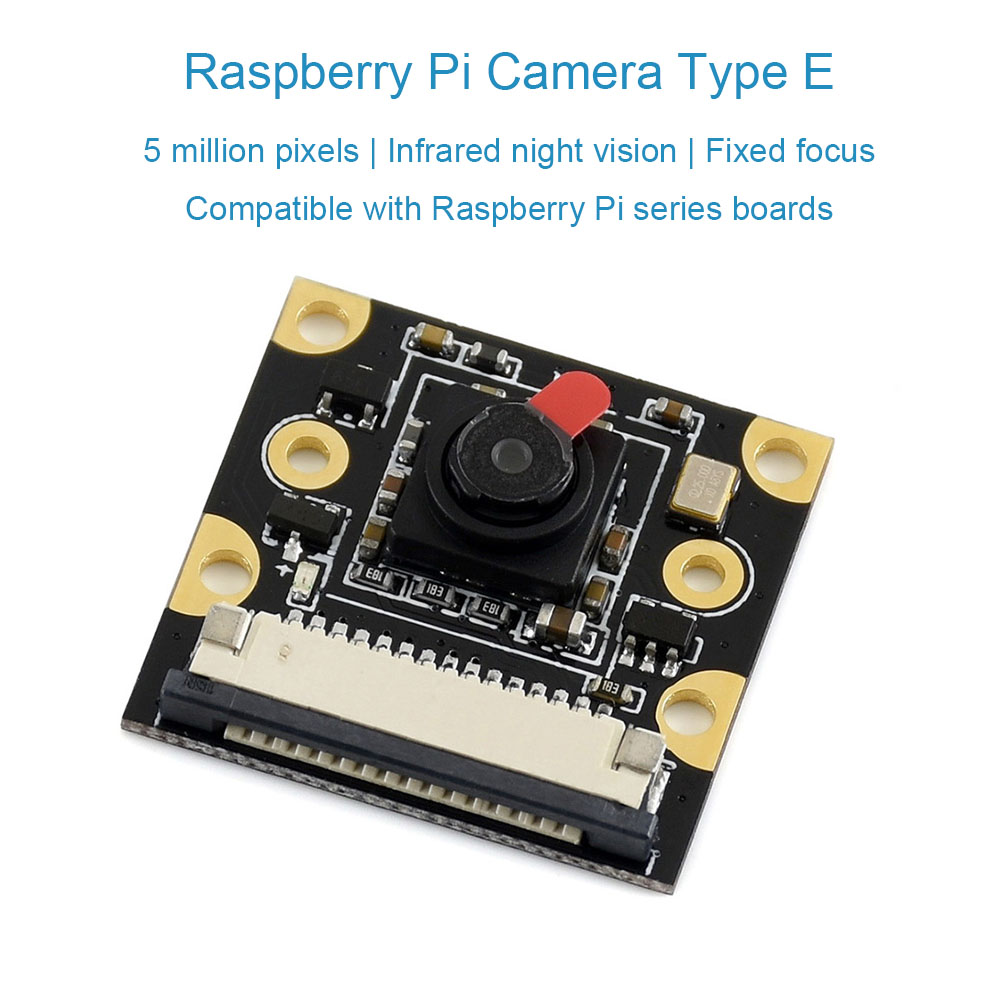

Raspberry Pi Night Vision Camera, supports all revisions of the Pi

5 megapixel OV5647 sensor

Camera specifications

• CCD size : 1/4inch
• Aperture (F) : 2.8
• Focal Length : 3.21mm
• Angle of View (diagonal) : 69.8 degree
• Sensor best resolution : 1080p

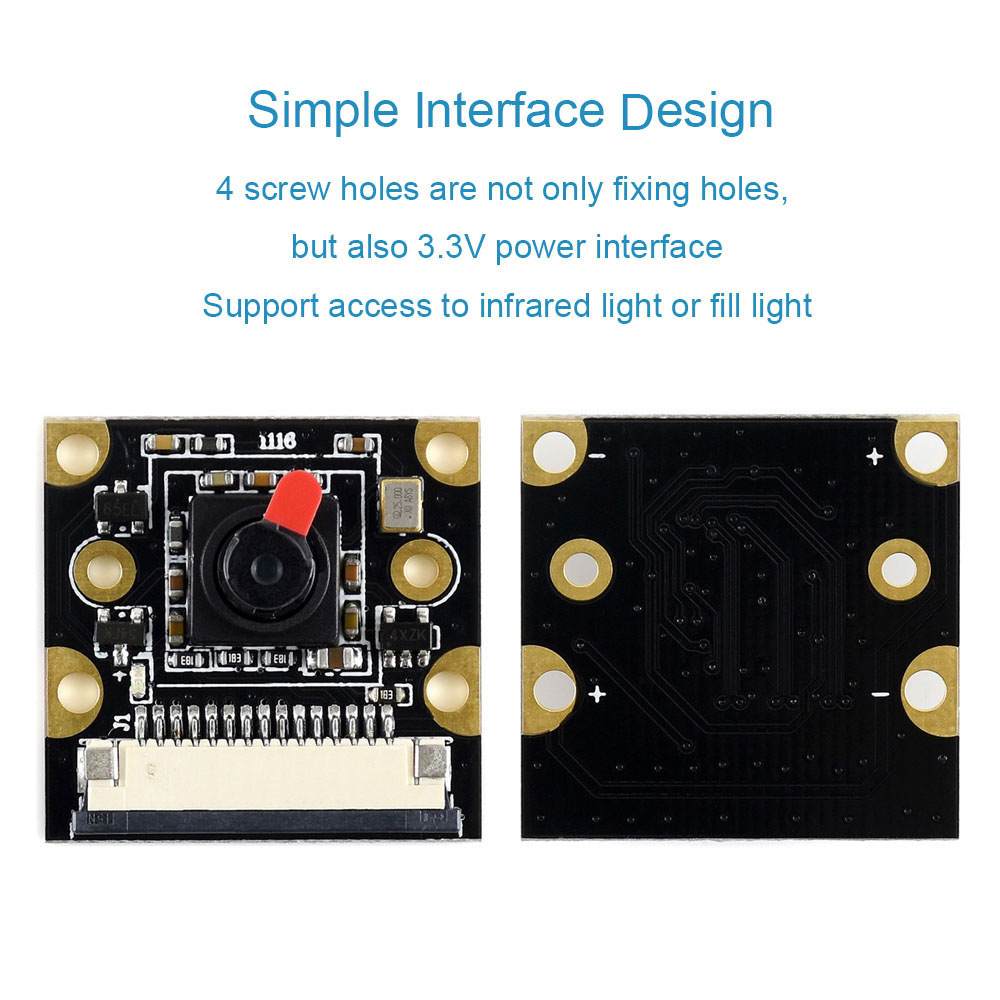

4 screw holes

• Used for attachment
• Provides 3.3V power output

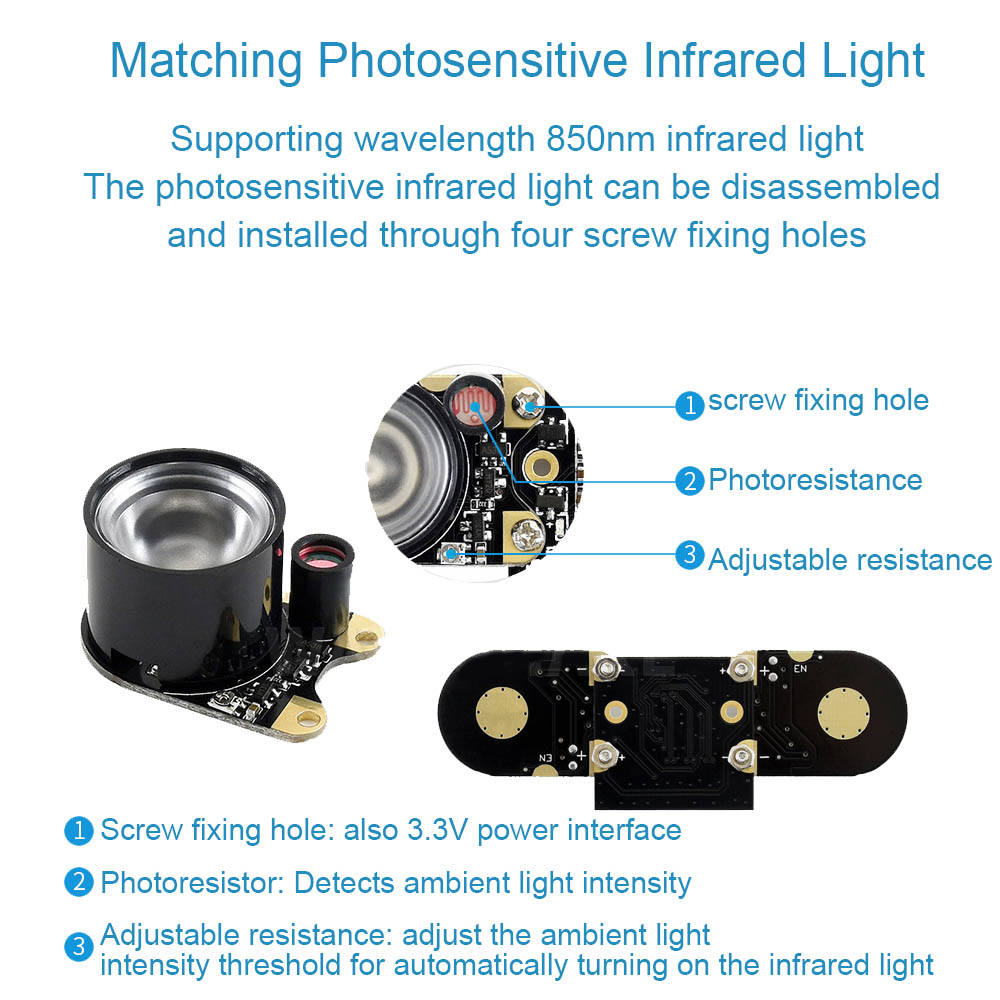

• Supports connecting infrared LED and/or fill flash LED

Dimension : 25mm x 24mm x 6mm

SHIPPING LIST

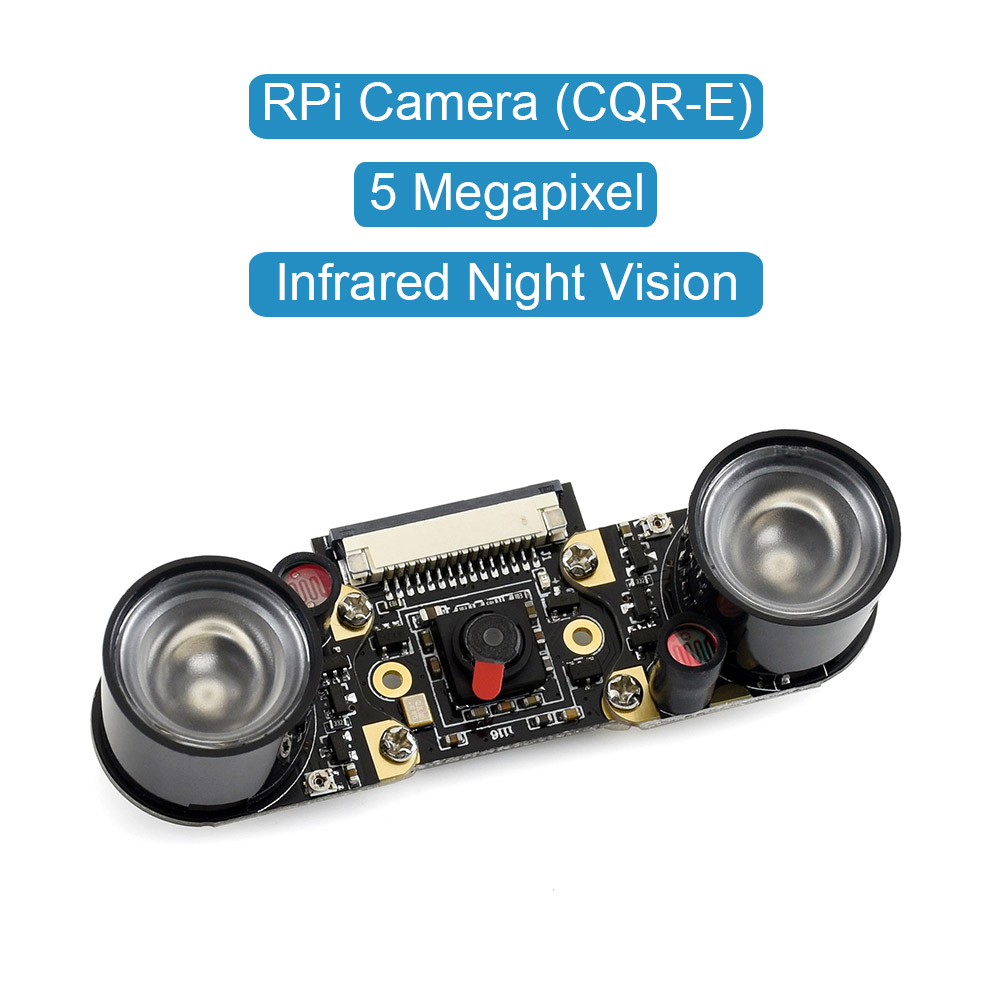

1 * RPi Camera (CQR-E)

2 * Infrared LED Board

1 * 15-pin FFC (Opposite Sides Contact)
