CQR-SM-JST-A

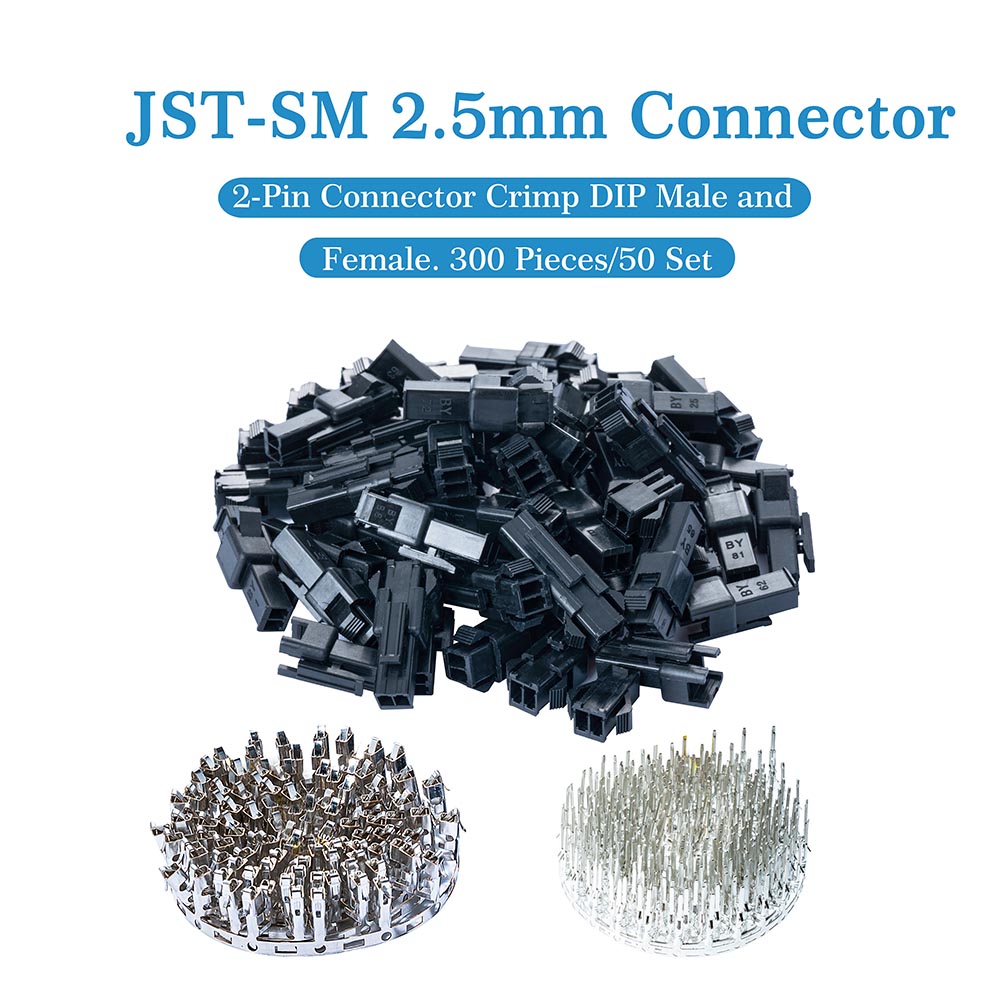

JST SM 2.5 mm Pitch 2-Pin Connector
SKU
CQR-SM-JST-A
Part No.
CQR-SM-JST-A
Brand
CQRobot
$
2
.68
Style：

SM

SYP

Model：

Vertical DIP

Pin：

2P

3P

4P

5P

Quantity
In Stock
Share:
10+
$
2
.55
Save 5%
50+
$
2
.44
Save 9%
100+
$
2
.36
Save 12%
200+
$
2
.28
Save 15%
500+
$
2
.14
Save 20%
Related Products:

Product details

SPECIFICATION

  • Pitch: 2.5mm (0.098 inch)
  • Current Rating: 3A AC, DC max
  • Voltage Rating: 250V AC, DC max
  • Temperature Range: -25 Degree Celsius to 85 Degree Celsius (including temperature rise in applying electrical current)
  • Contact Resistance: Initial value/10m Ohm max. After Environmental Testing/20 m Ohm max.
  • Insulation Resistance: 500M Ohm min
  • Withstanding Voltage: 1500V AC/minute
  • Applicable Wire: AWG#28 to #22, 0.8mm to 0.33 Square millimeter
  • Applicable panel thickness:0.5mm to 2.0mm

JST SM 2.5 mm Pitch Connector-CQR-SM-JST-A-7.jpgJST SM 2.5 mm Pitch Connector-CQR-SM-JST-A-8.jpgJST SM 2.5 mm Pitch Connector-CQR-SM-JST-A-9.jpgJST SM 2.5 mm Pitch Connector-CQR-SM-JST-A-10.jpgJST SM 2.5 mm Pitch Connector-CQR-SM-JST-A-11.jpgJST SM 2.5 mm Pitch Connector-CQR-SM-JST-A-12.jpg
