CQR-SH SMT-JST-H

JST SH SMD 1.0 mm Pitch 9 Pin JST Connector
SKU
CQR-SH SMT-JST-H
Part No.
CQR-SH SMT-JST-H
Brand
CQRobot
$
7
.53
Style：

SH

Model：

Vertical SMT

Pin：

2P

3P

4P

5P

6P

7P

8P

9P

10P

Quantity
In Stock
Share:
10+
$
7
.15
Save 5%
50+
$
6
.85
Save 9%
100+
$
6
.63
Save 12%
200+
$
6
.40
Save 15%
500+
$
6
.02
Save 20%
Related Products:

Product details

SPECIFICATION

  • Model: JST SH SMT 9 Pin
  • Pitch: 1.0mm (0.039 inch)
  • Current Rating: 1.0A AC/DC (AWG #28)
  • Rated voltage: 50V AC/DC
  • Temperature range: -25 Degrees Celsius to 85 Degrees Celsius (including -temperature rise when applying electric current)
  • Contact resistance: initial value/20 milliohms max; According to environmental tests/40 milliohms max.
  • Insulation resistance: 100 megohms and more
  • Dielectric Strength: 500V AC/minute
  • Applicable Wire: Conductor Size/AWG #28 to AWG #32; Insulation O.D./0.4 to 0.8mm.

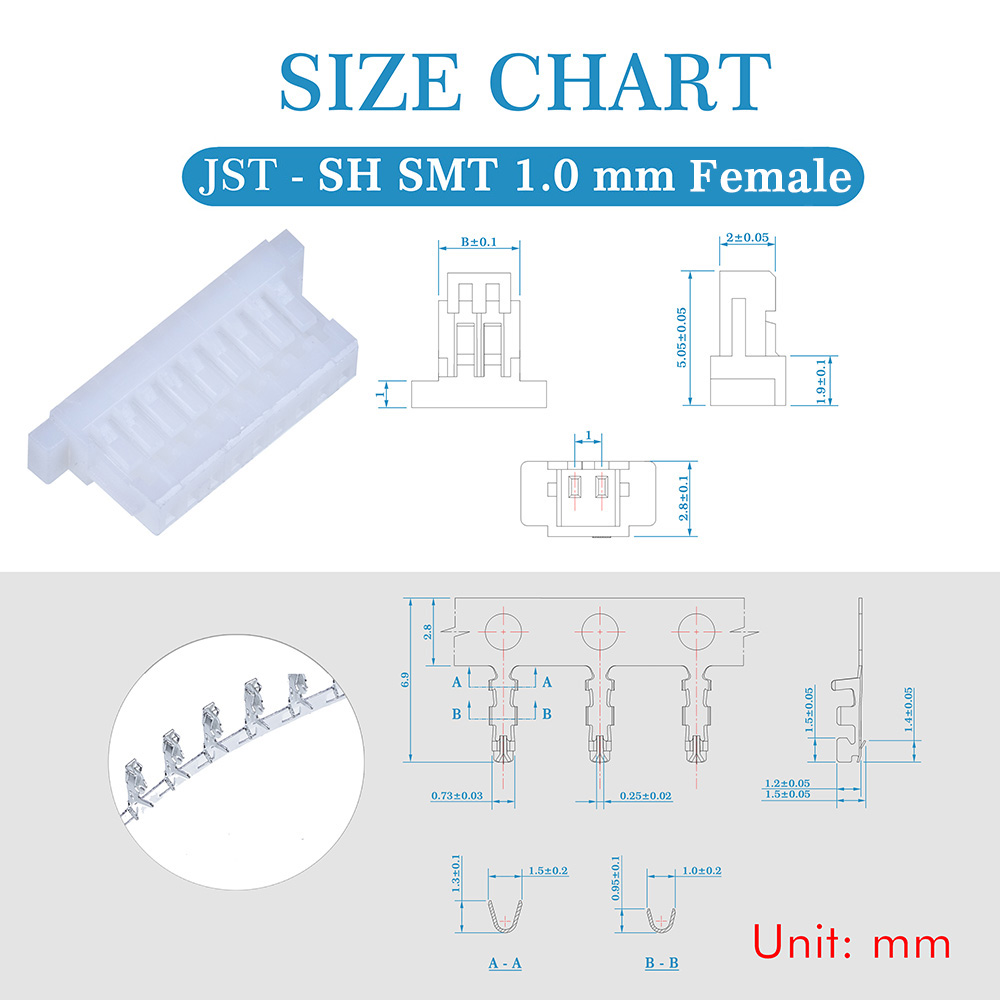

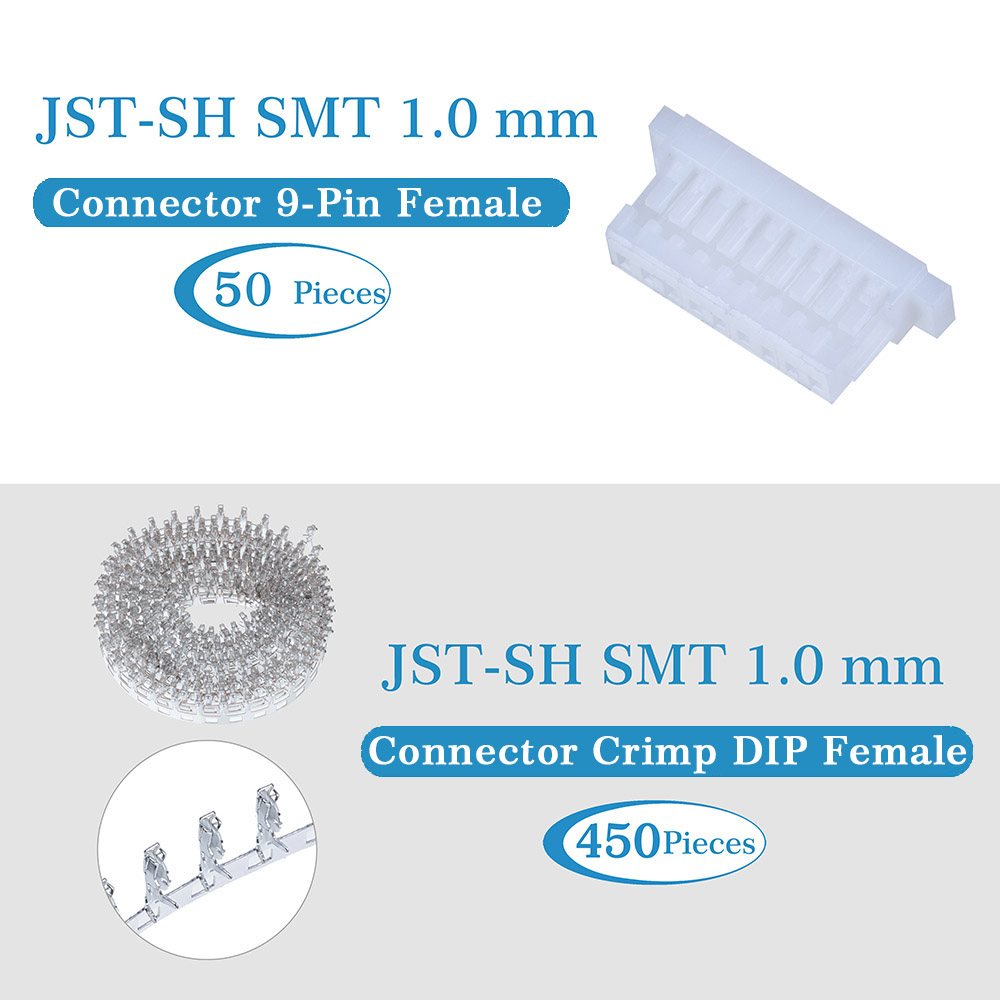

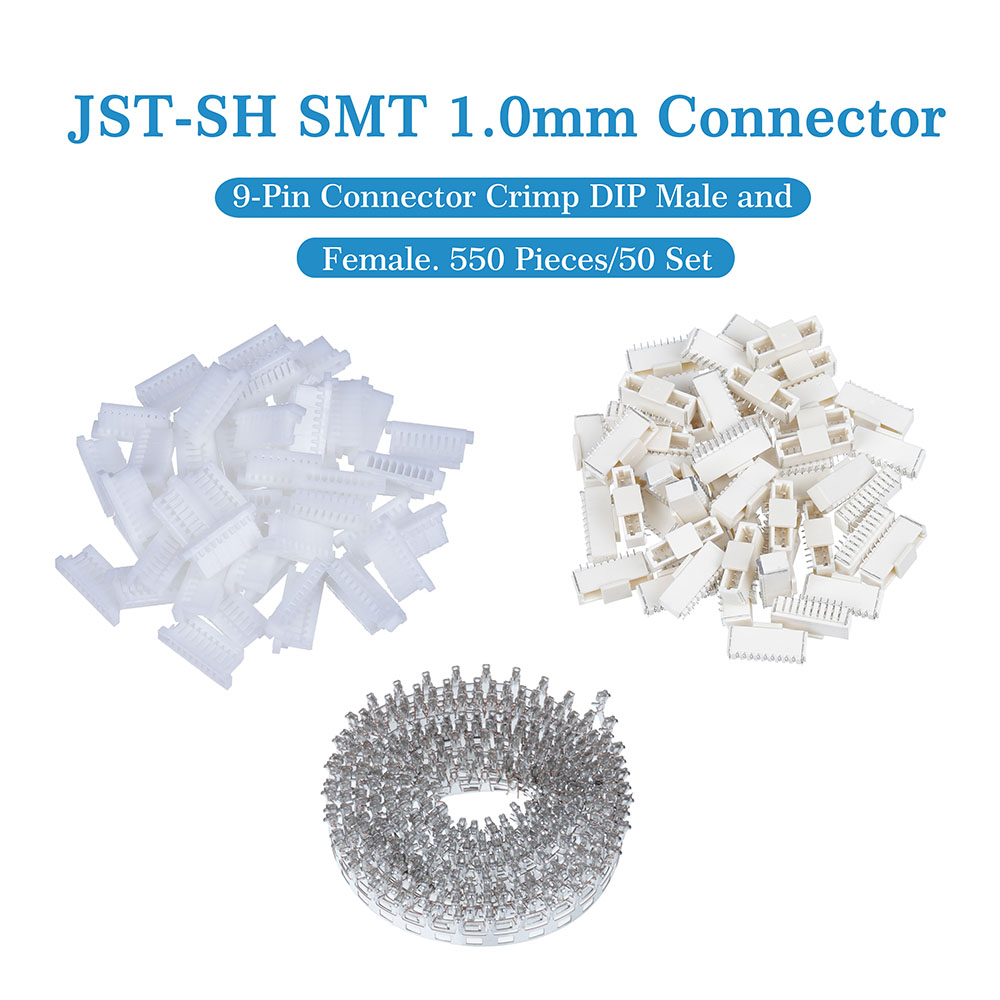

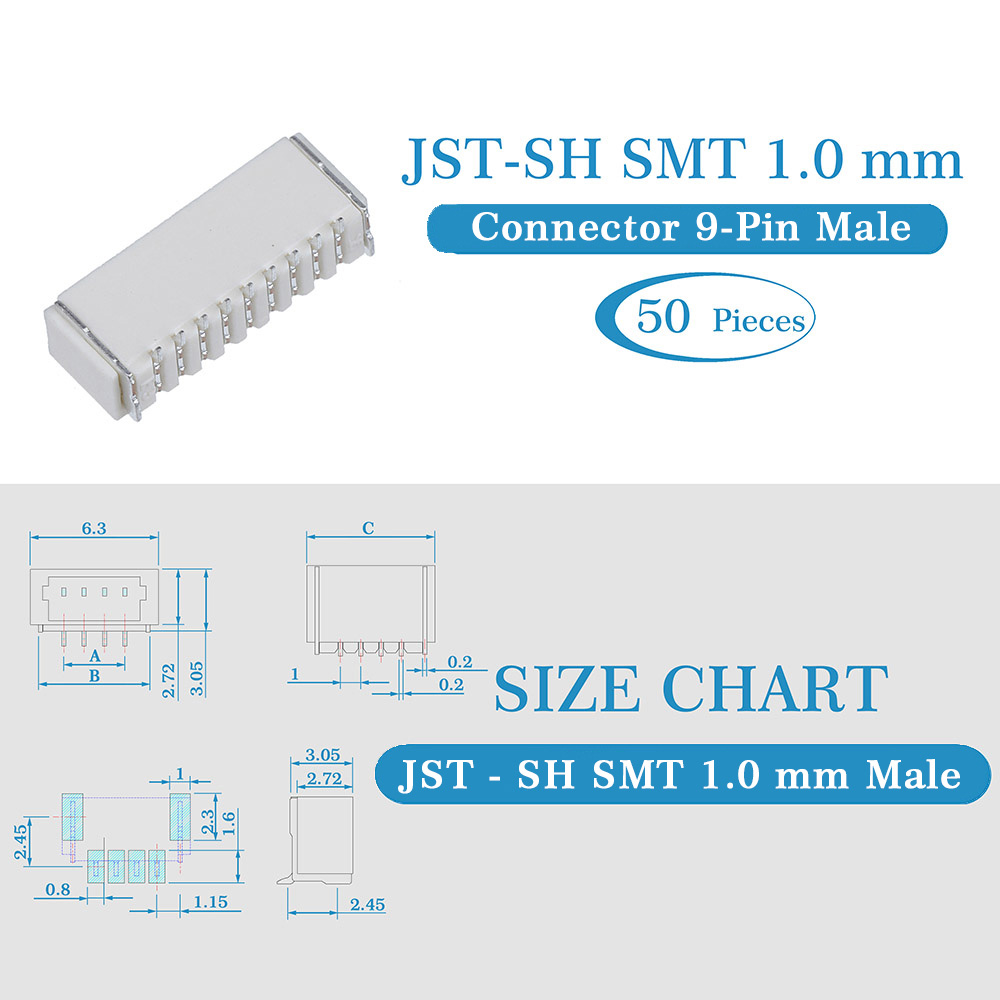

JST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-7.jpgJST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-8.jpgJST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-9.jpgJST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-10.jpgJST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-11.jpgJST SH SMD 1.0 mm Pitch Connector-CQRJSTLJ360-12.jpg
