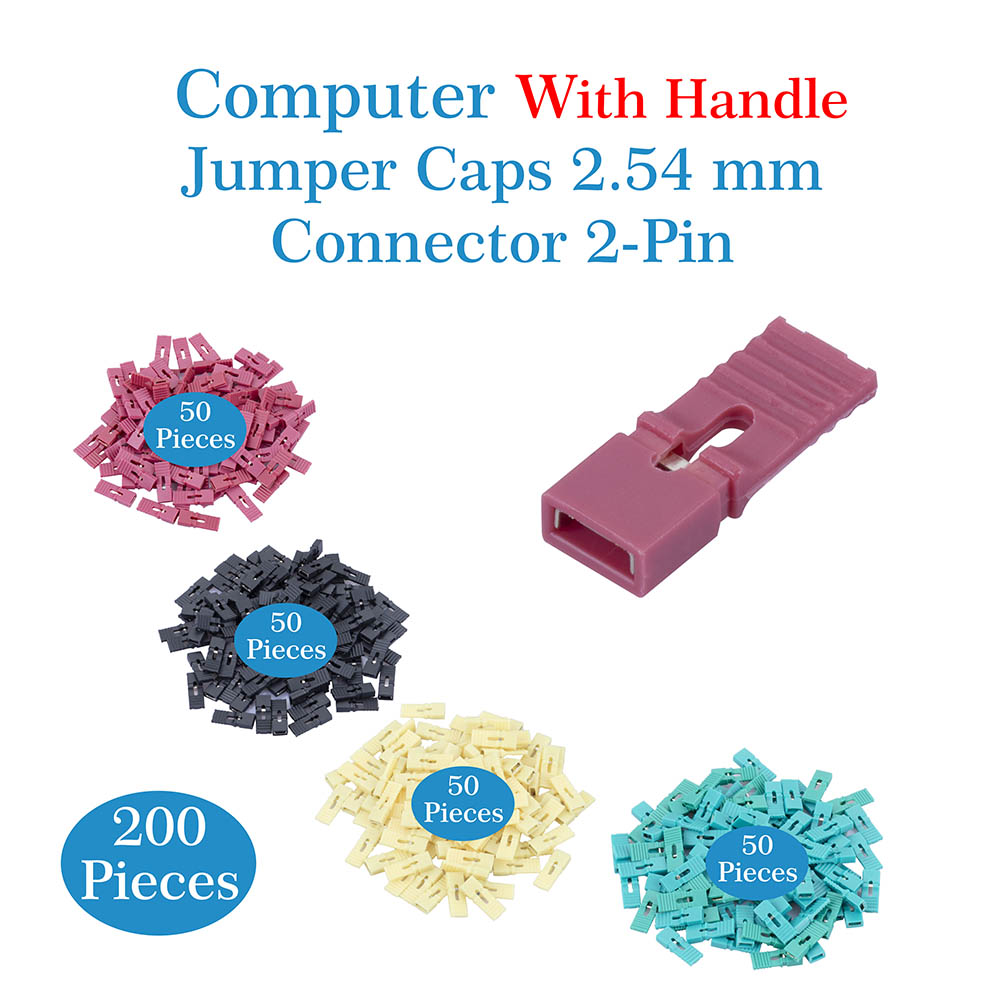

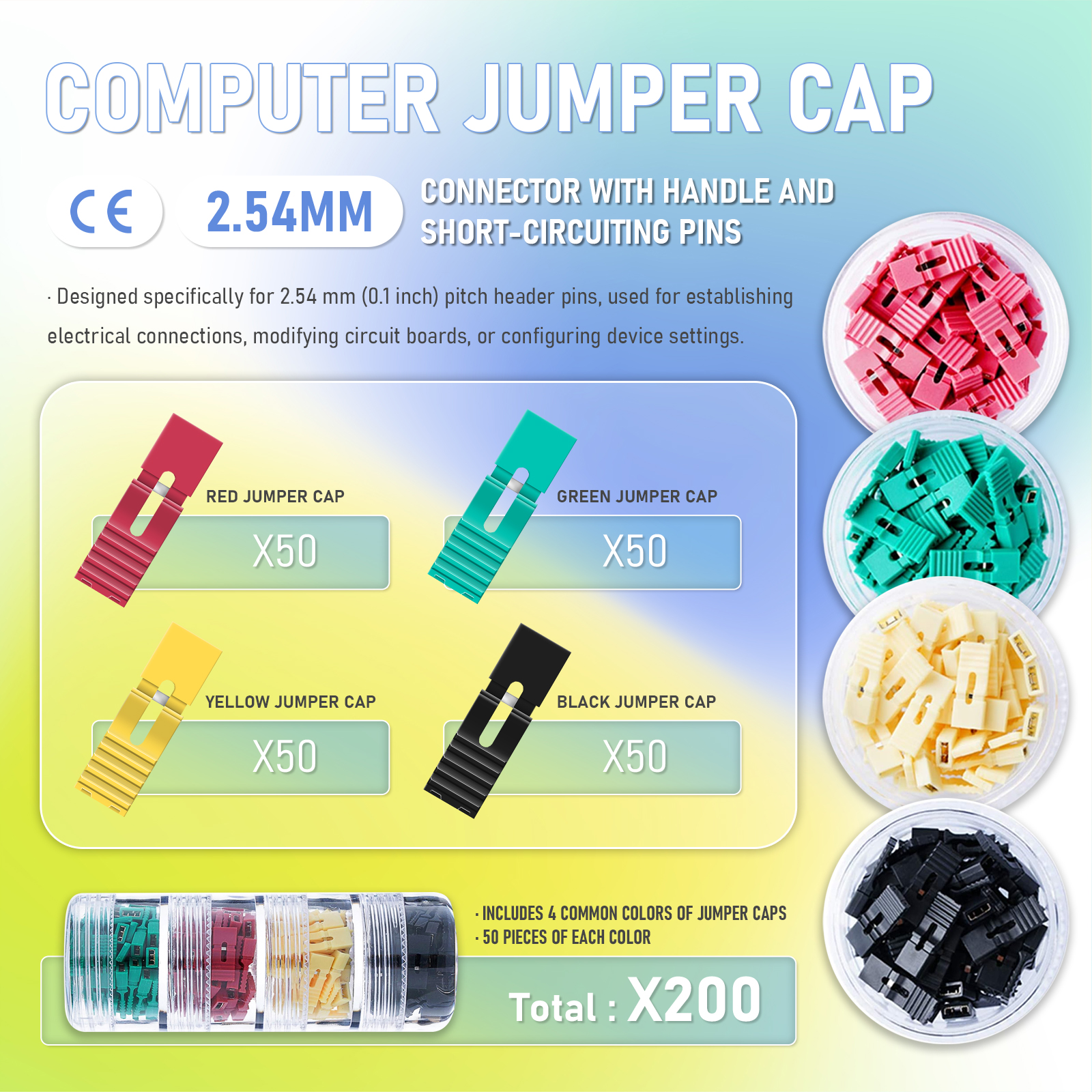

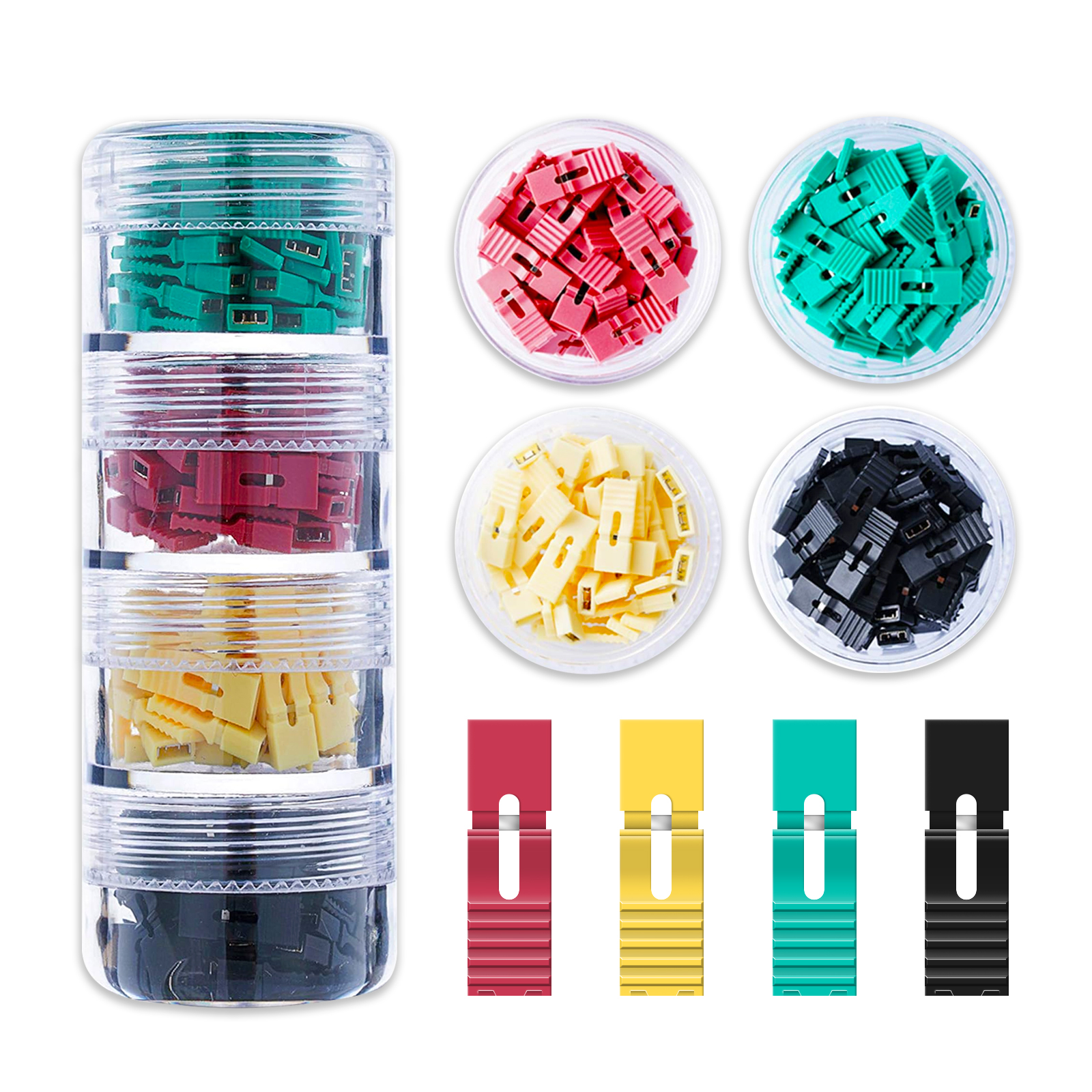

Standard Computer RGB Jumper Caps with Handle Pin Shunt Short Circuit 2-Pin Connector 2.54mm Kit
SKU
CQ20181106US
Part No.
CQ20181106US
Brand
CQRobot
$
4
.99
Quantity
In Stock
Share:
10+
$
4
.74
Save 5%
50+
$
4
.54
Save 9%
100+
$
4
.39
Save 12%
200+
$
4
.24
Save 15%
500+
$
3
.99
Save 20%
Related Products:

Product details

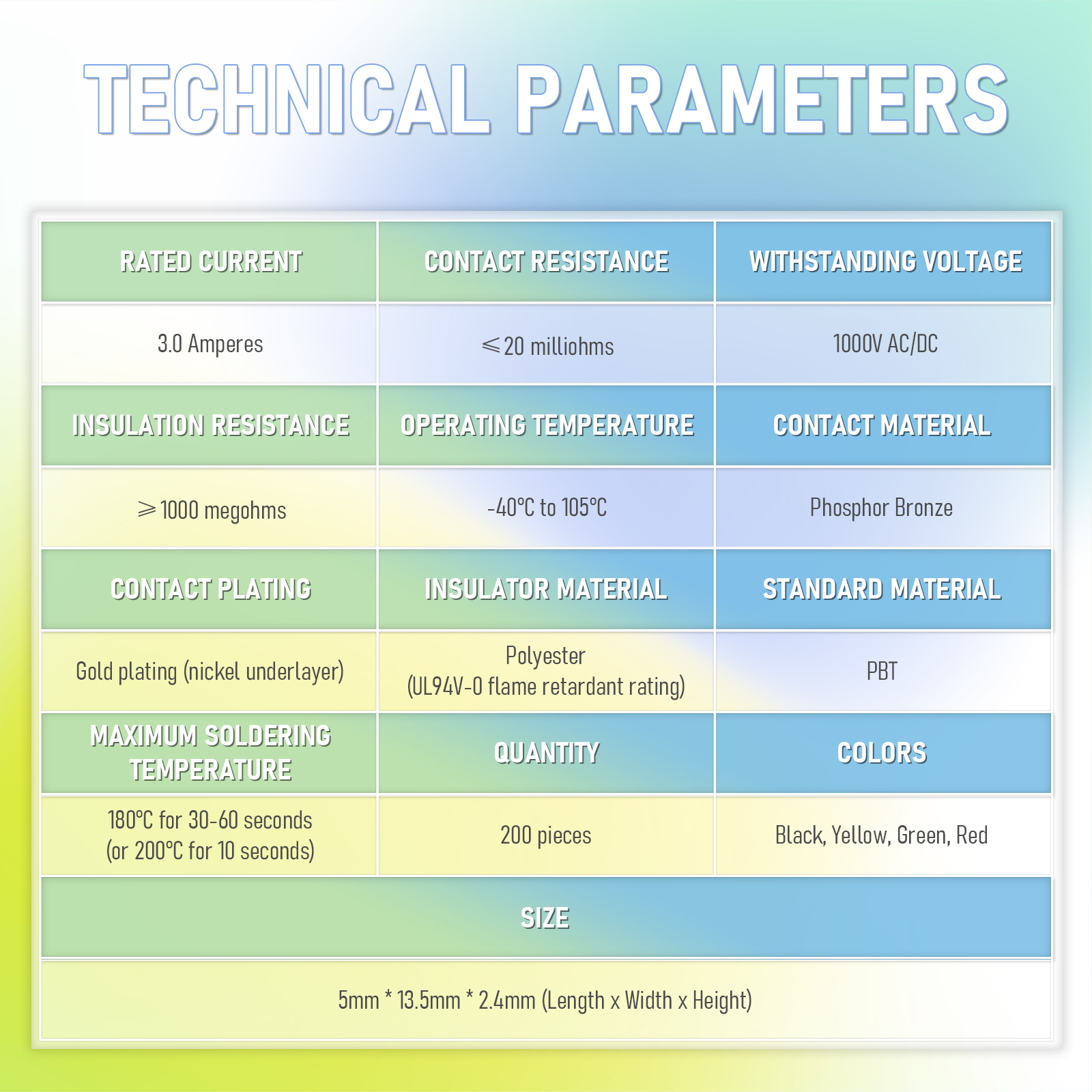

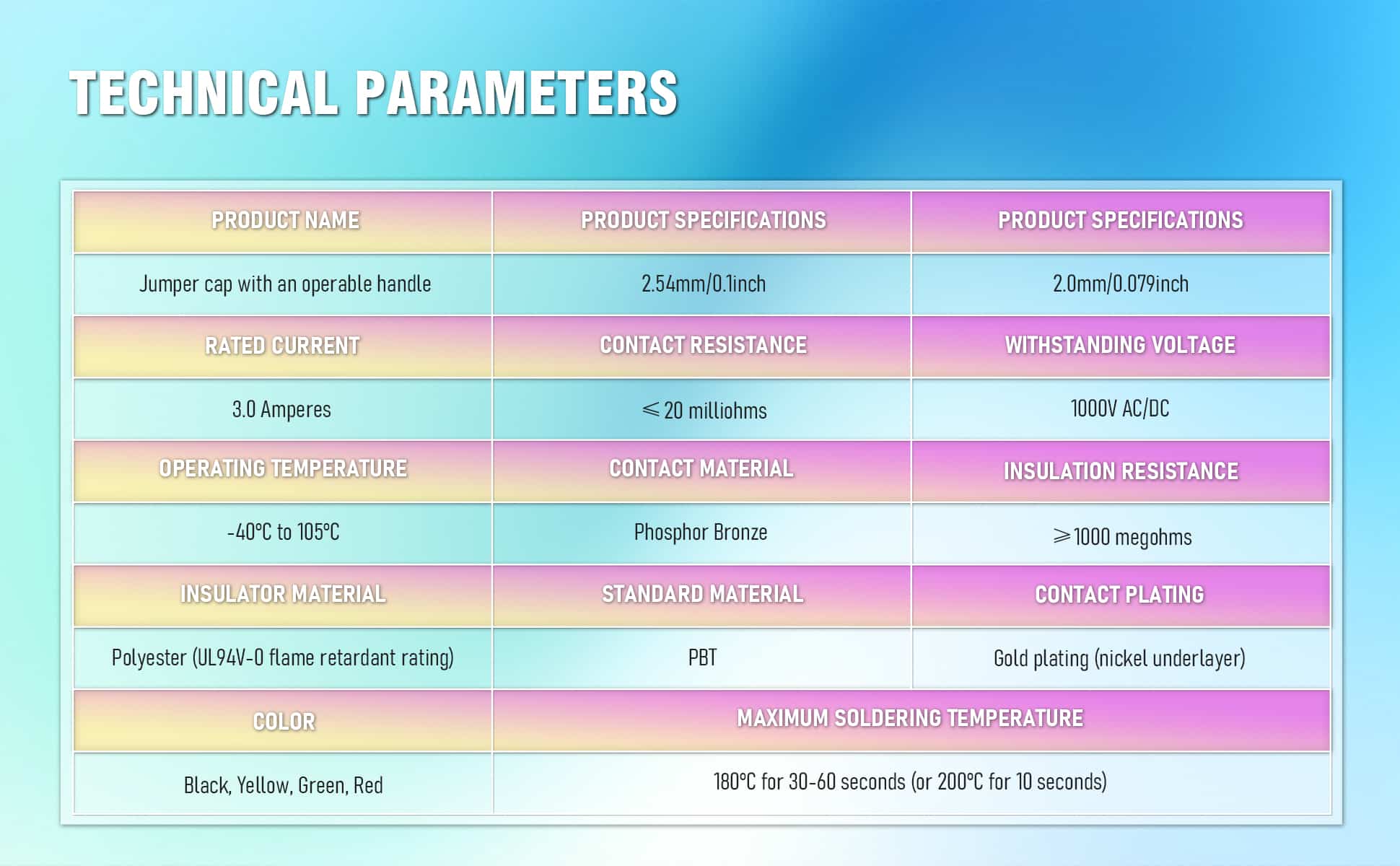

SPECIFICATION

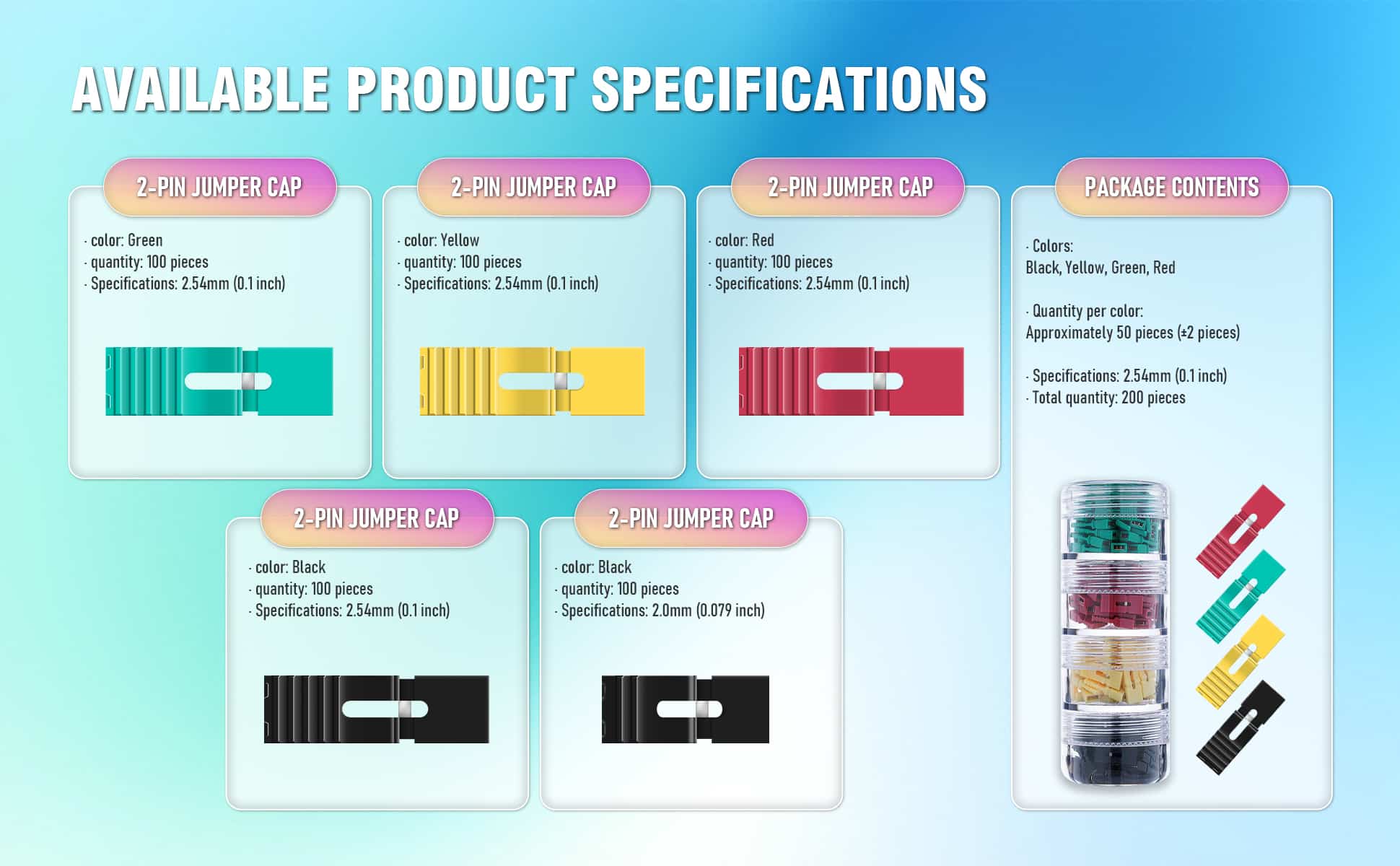

  • Color: Black, Yellow, Green and Red

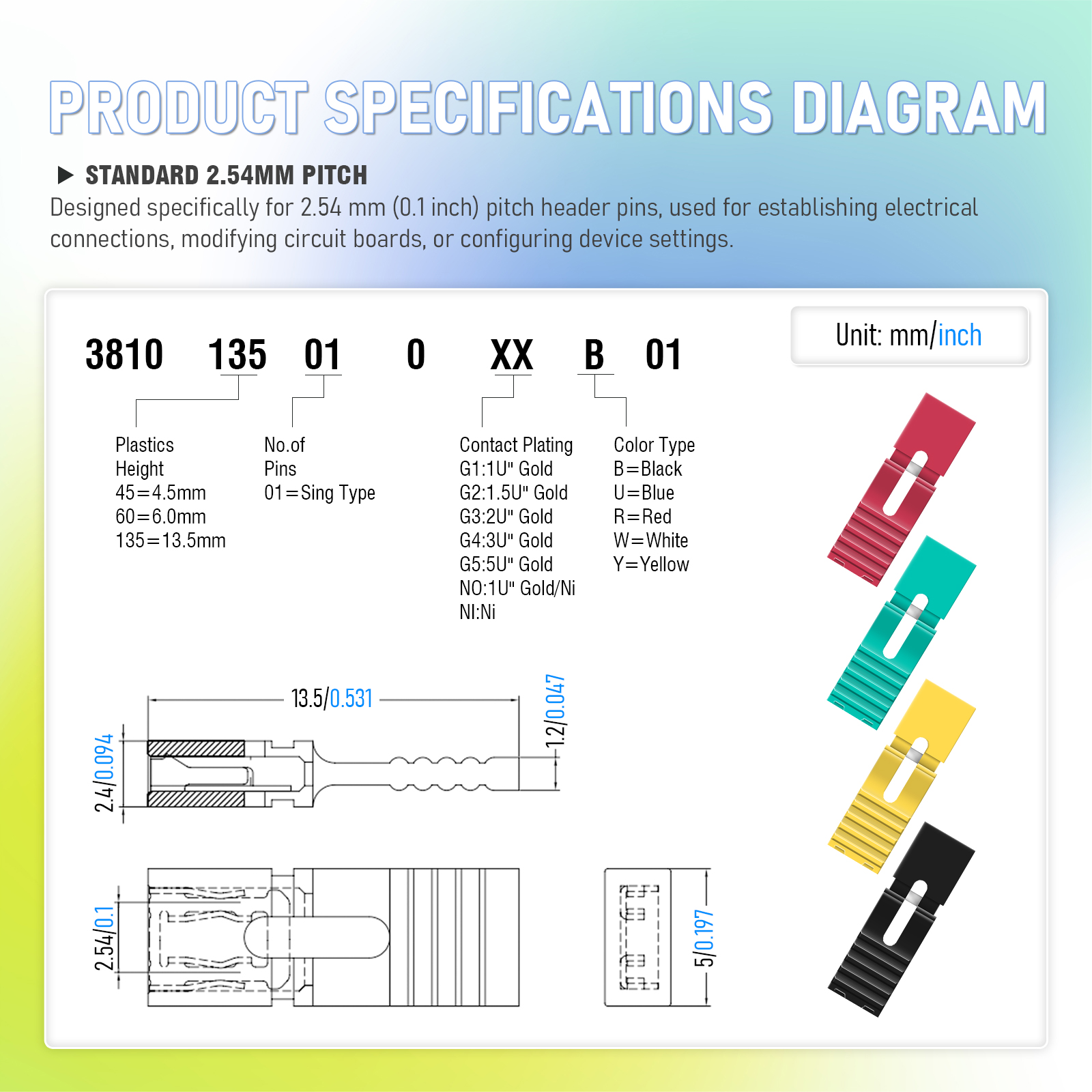

  • Pitch: 2.54mm (0.1 inches)

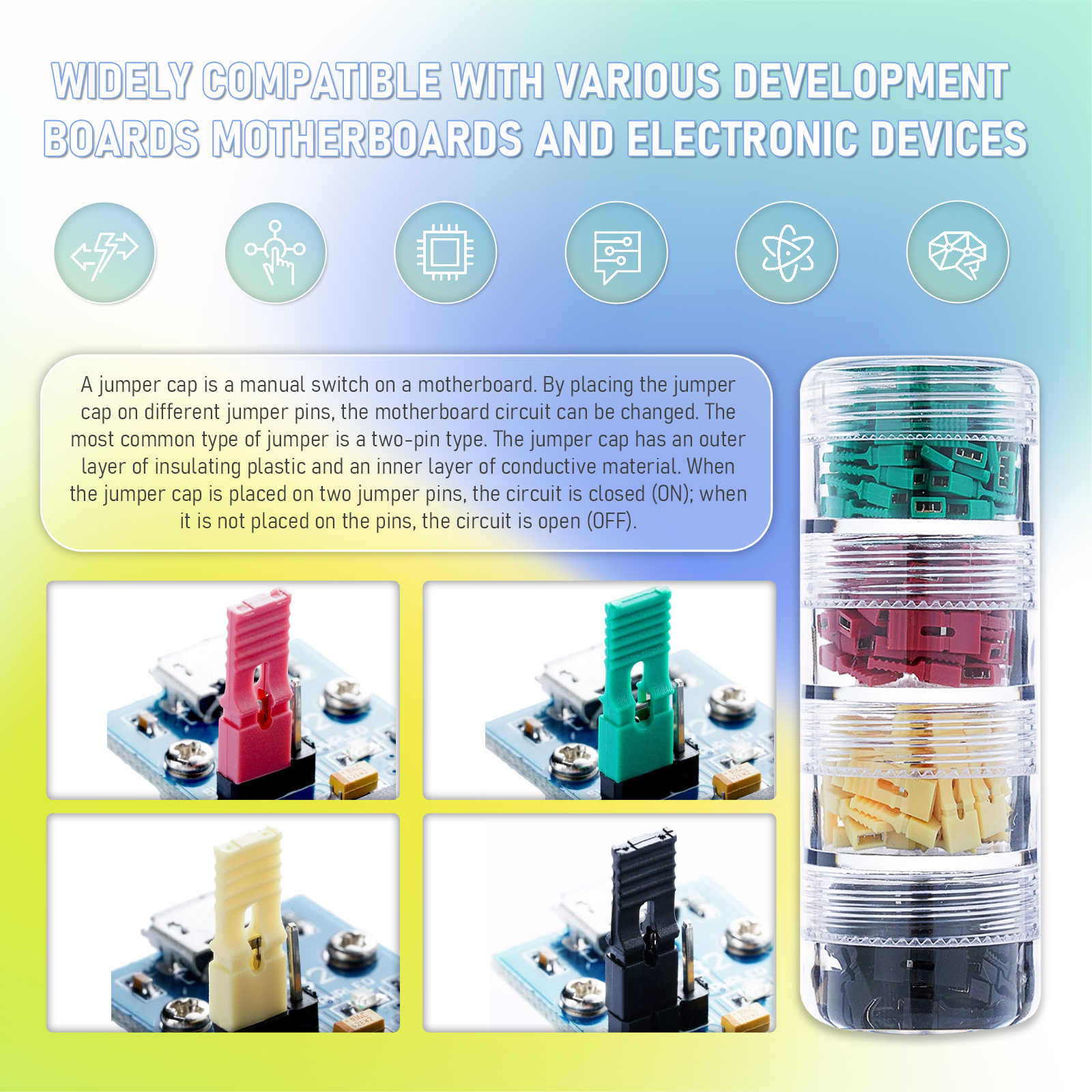

  • Product Type: Jumper Cap with Handle

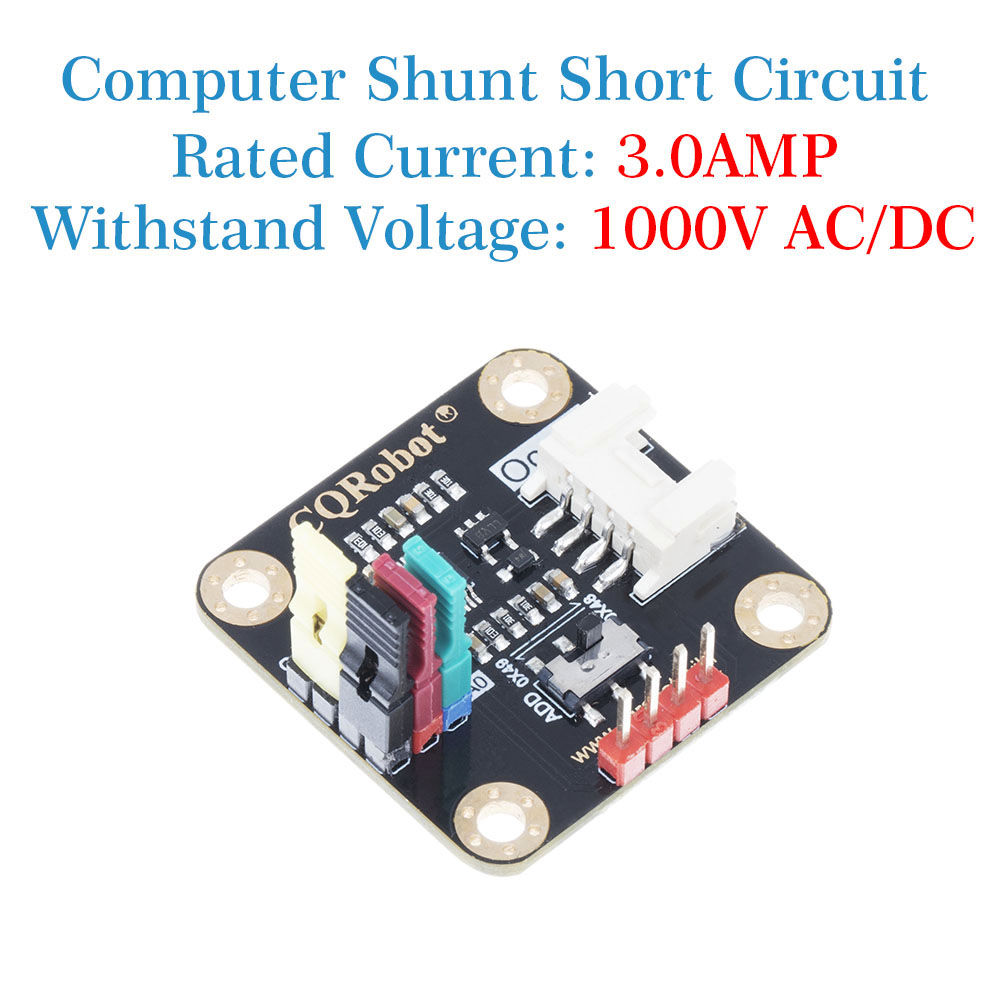

  • Rated Current: 3.0AMP
  • Contact Resistance: 20 Milliohms Max
  • Withstand Voltage: 1000V AC/DC
  • Insulation Resistance: 1000 Megohm Min

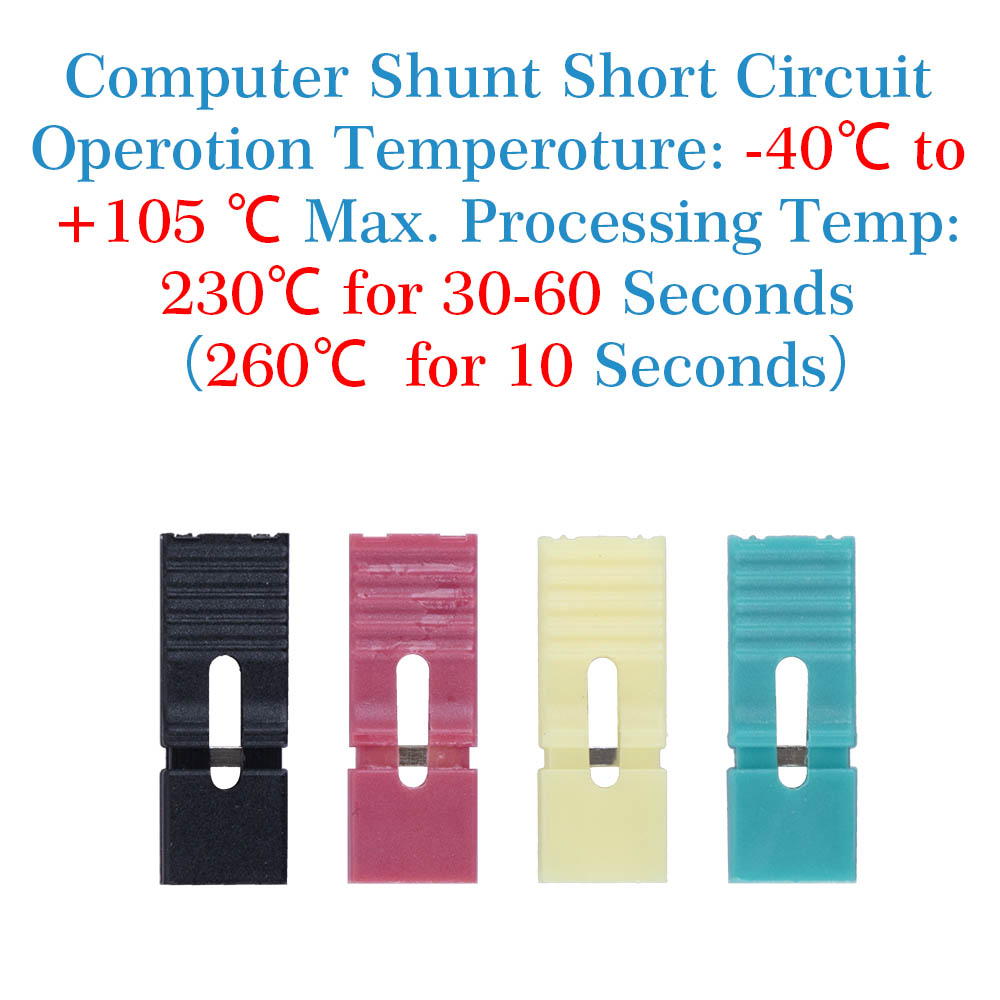

  • Operotion Temperoture: -40 Degree Celsius to +105 Degree Celsius
  • Contact Moteriol: Phosphor Bronze
  • Coneact Plating: Au Over Ni

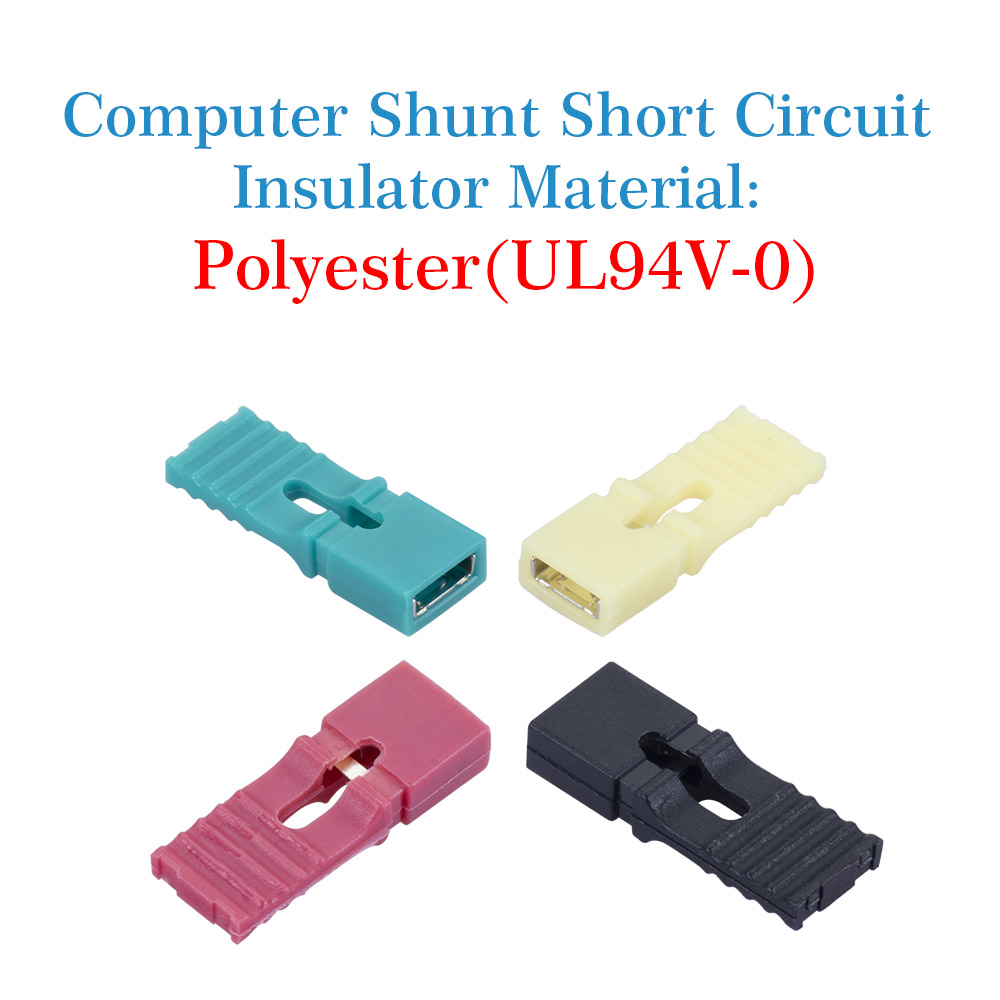

  • Insulator Material: Polyester(UL94V-0)
  • Standard: PA66
  • Max.Processing Temp: 230 Degree Celsius for 30 Seconds to 60 Seconds (260 Degree Celsius for 10 Seconds)

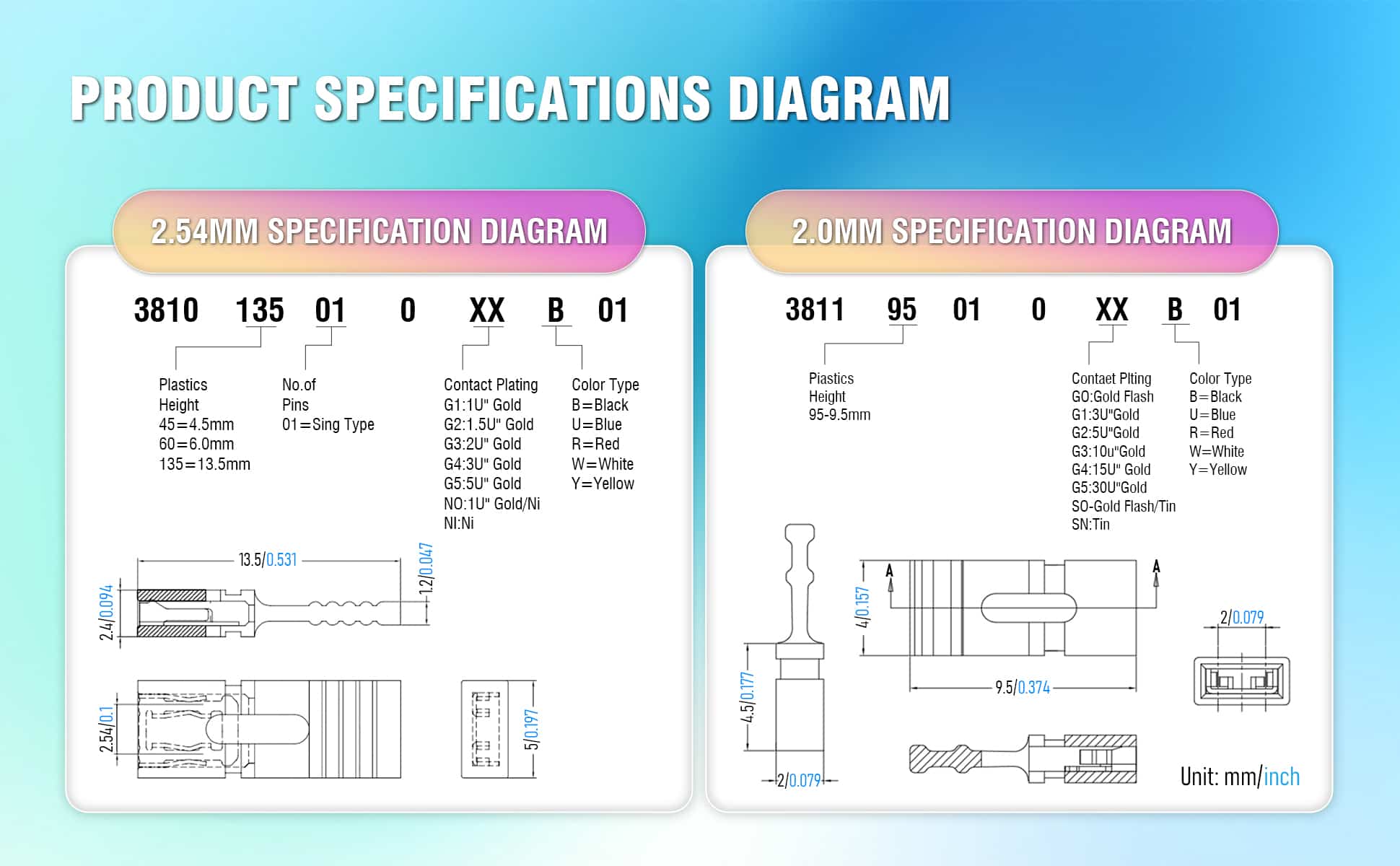

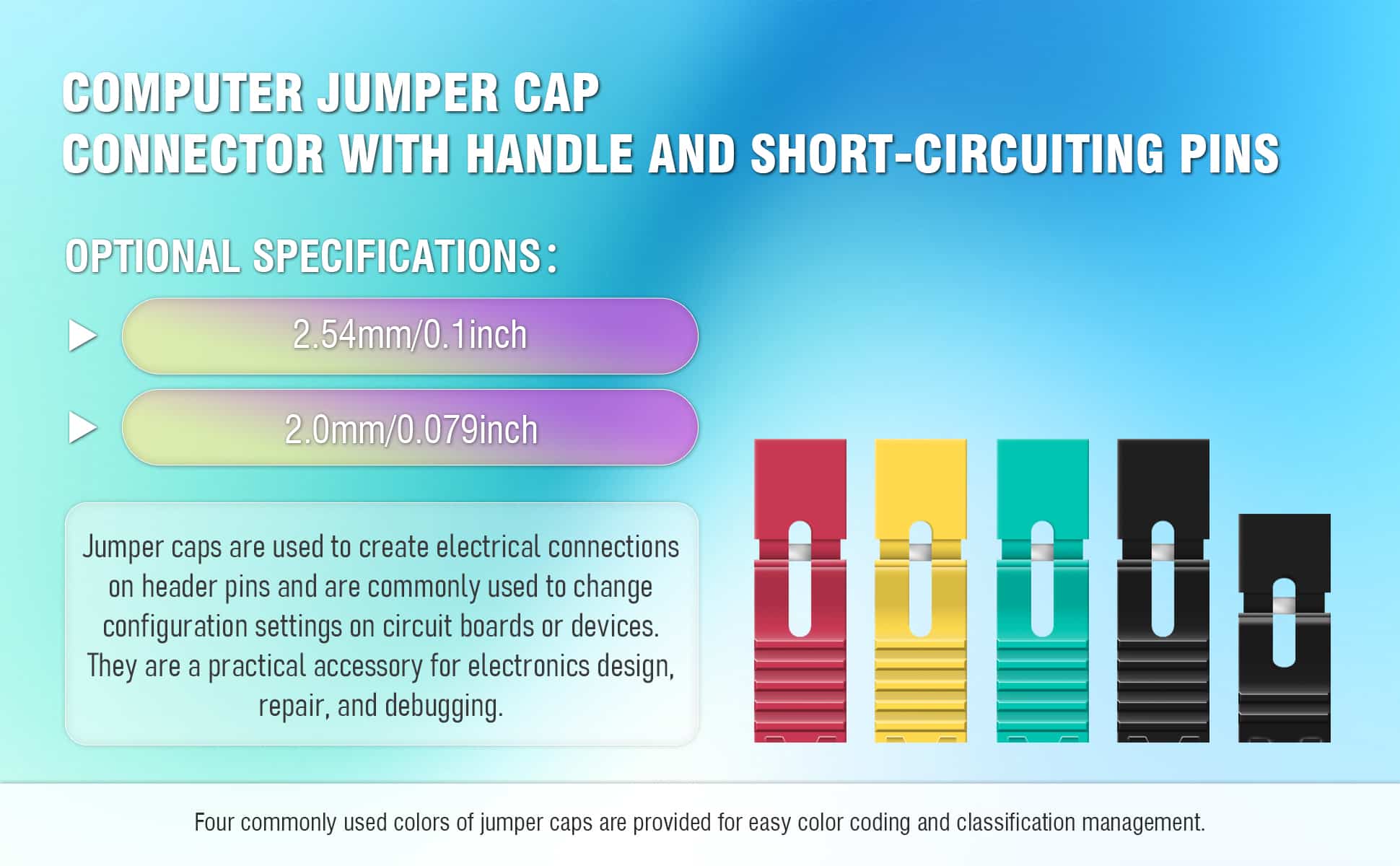

Jumper Caps with Handle-CQR-JC2.0-A-7.jpgJumper Caps with Handle-CQR-JC2.0-A-8.jpgJumper Caps with Handle-CQR-JC2.0-A-9.jpgJumper Caps with Handle-CQR-JC2.0-A-10.jpgJumper Caps with Handle-CQR-JC2.0-A-11.jpgJumper Caps with Handle-CQR-JC2.0-A-12.jpg
