SPECIFICATIONS

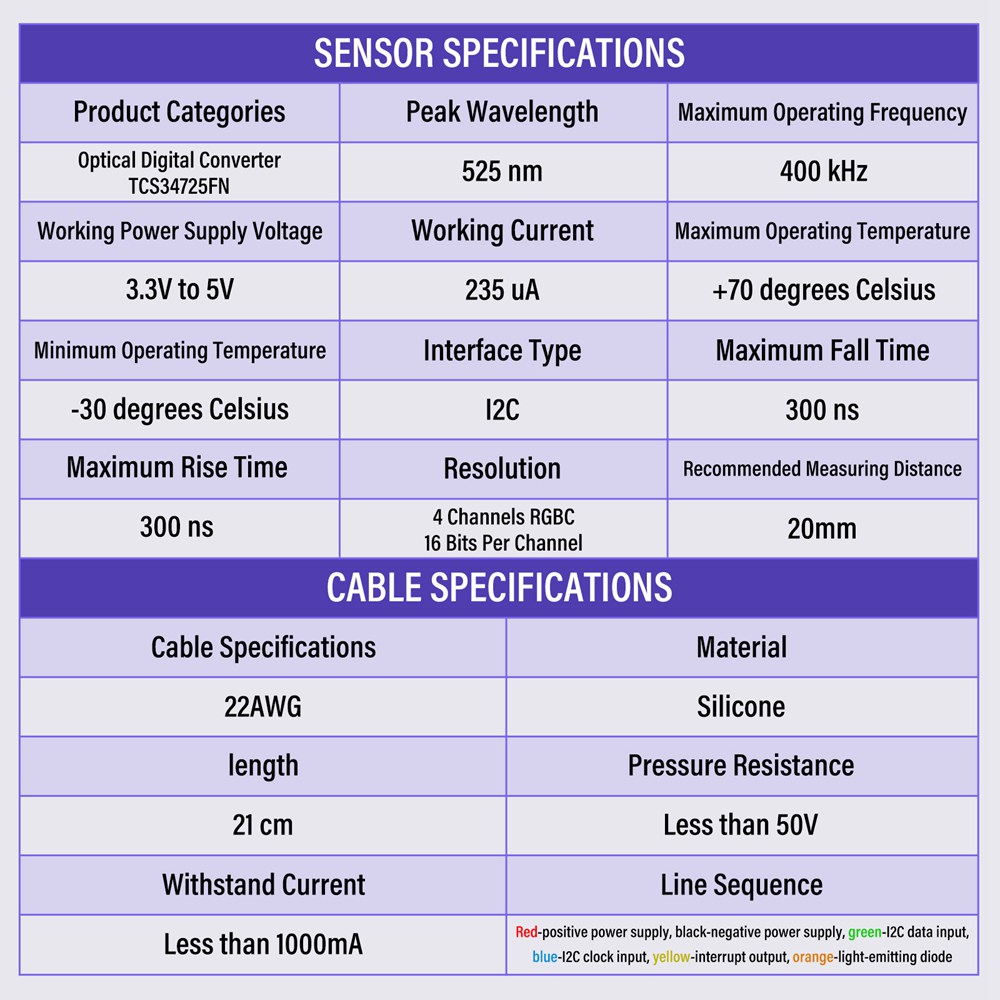

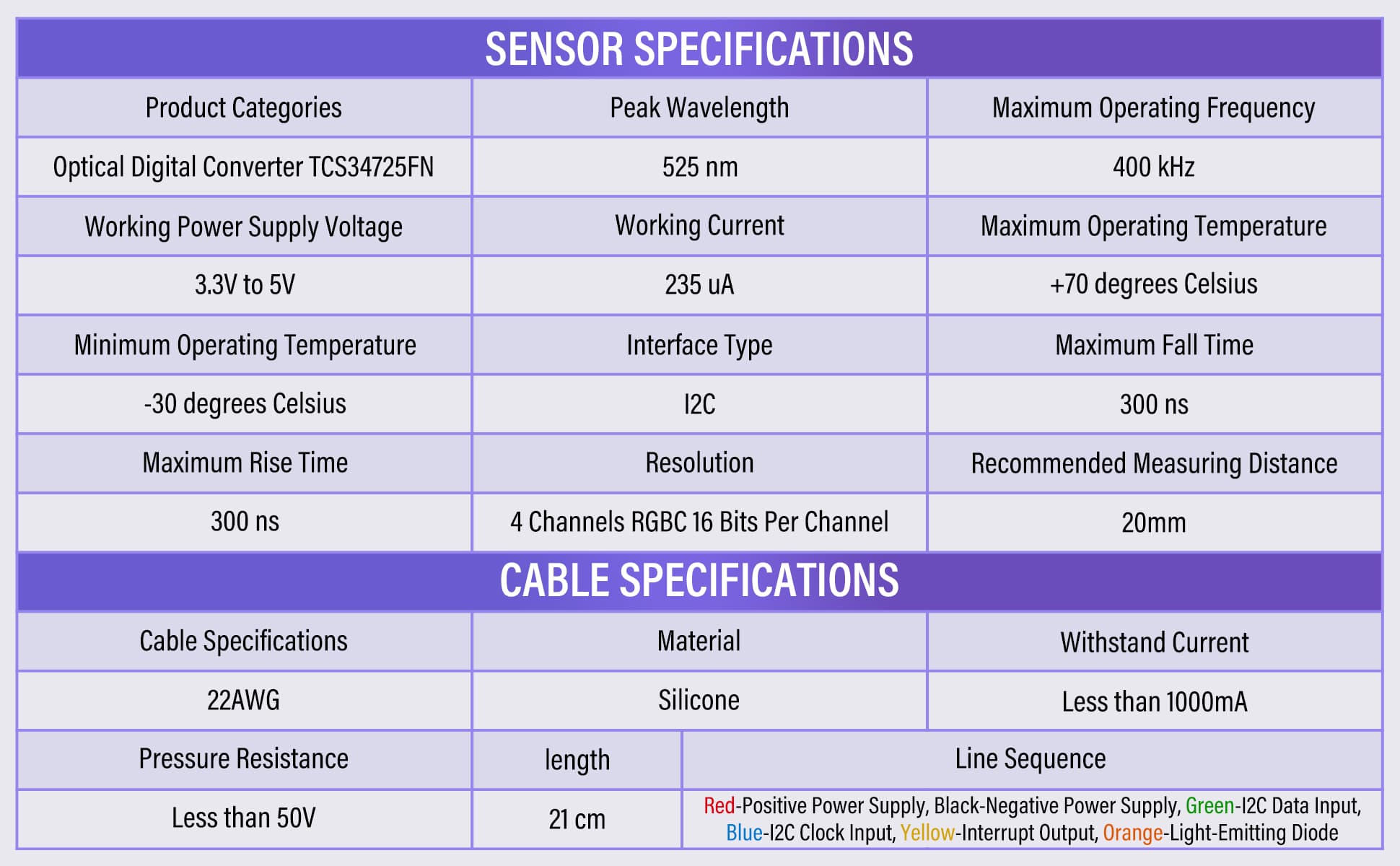

Sensor Specifications

• Product Category: Light to Digital Converters/TCS34725FN
• Peak Wavelength: 525 nm
• Maximum Operating Frequency: 400 kHz
• Operating Supply Voltage: 3.3V to 5V
• Operating Current: 235 uA
• Maximum Operating Temperature: +70 Degree Celsius
• Minimum Operating Temperature: -30 Degree Celsius
• Interface Type: I2C
• Maximum Fall Time: 300 ns
• Maximum Rise Time: 300 ns
• Resolution: 4-ch RGBC, 16-bit per ch
• Recommended Measuring Distance: 20mm

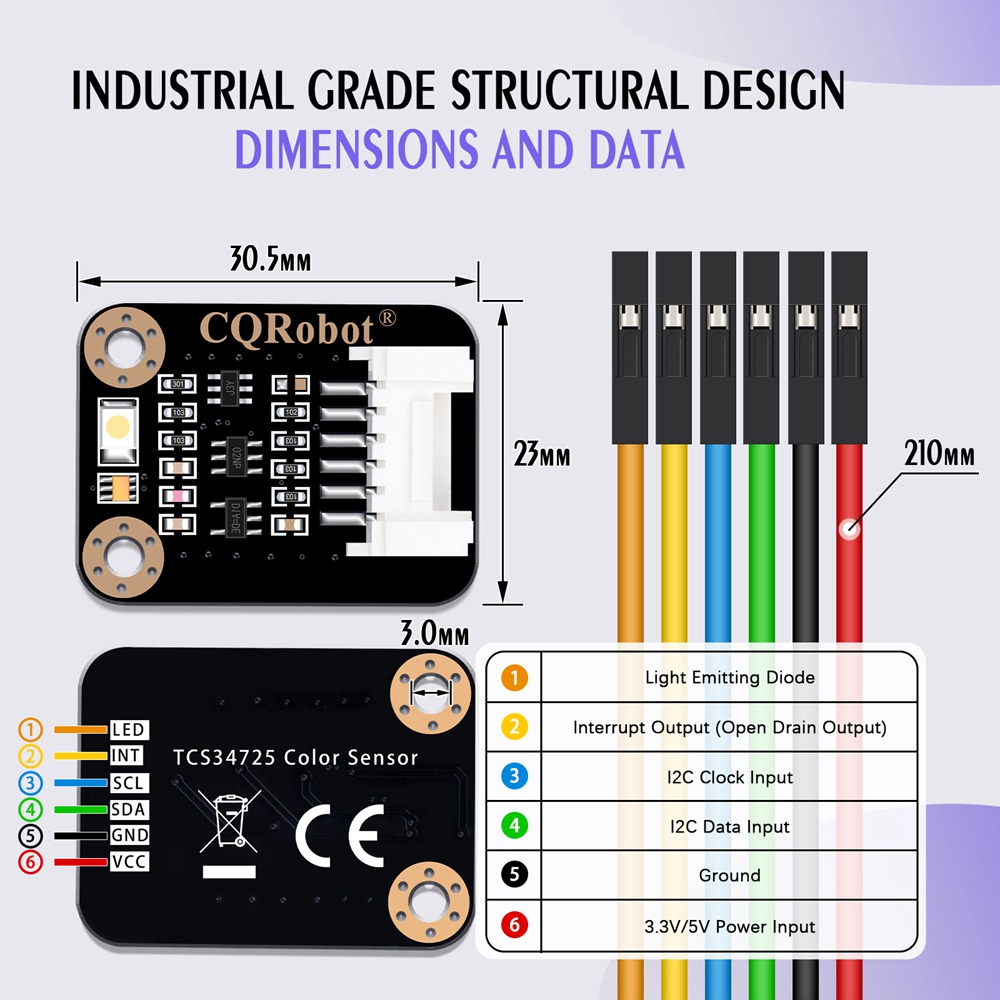

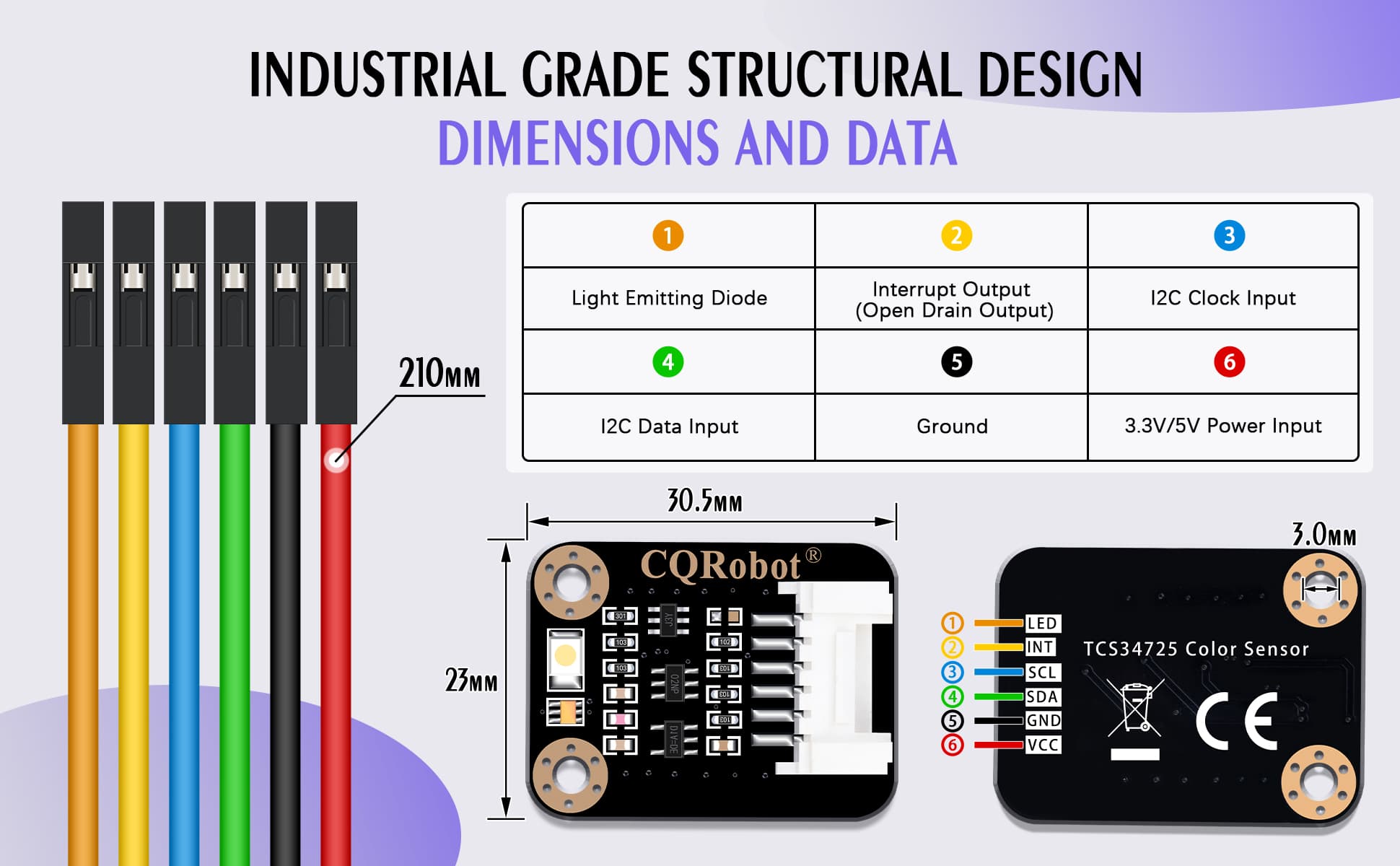

• Dimension: 30.5mm * 23mm
• Mounting hole size: 3.0mm

Interface Cable Specifications

• Cable Specifications: 22AWG
• Material: Silicone
• Length: 21cm
• Withstand Voltage: Less Than 50V
• Withstand Current: Less Than 1000MA

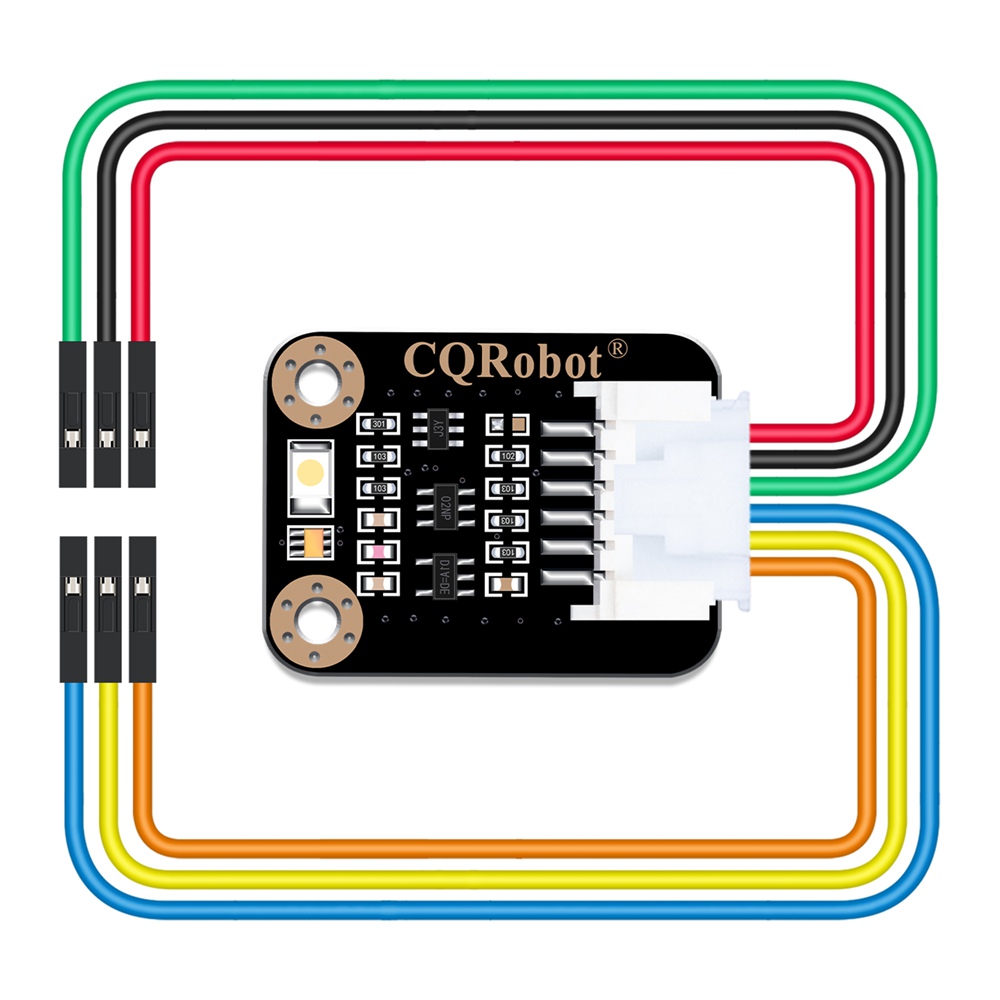

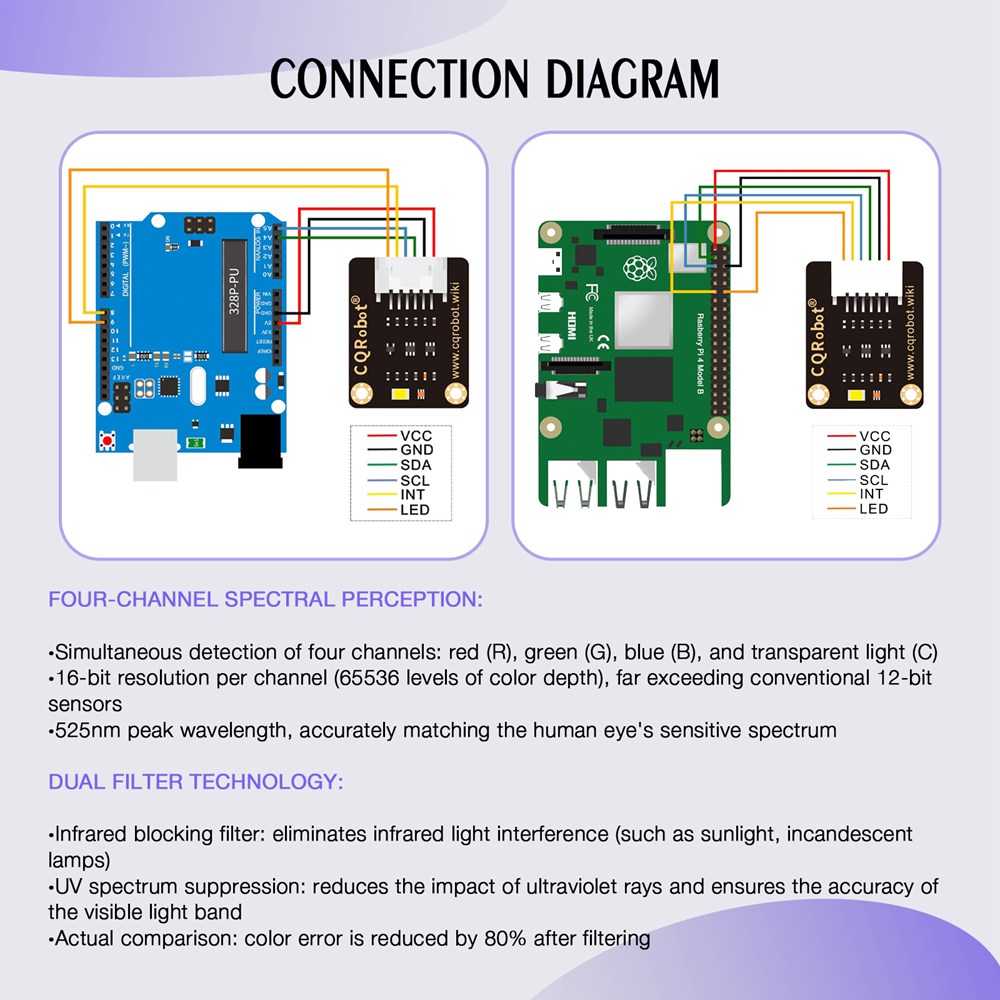

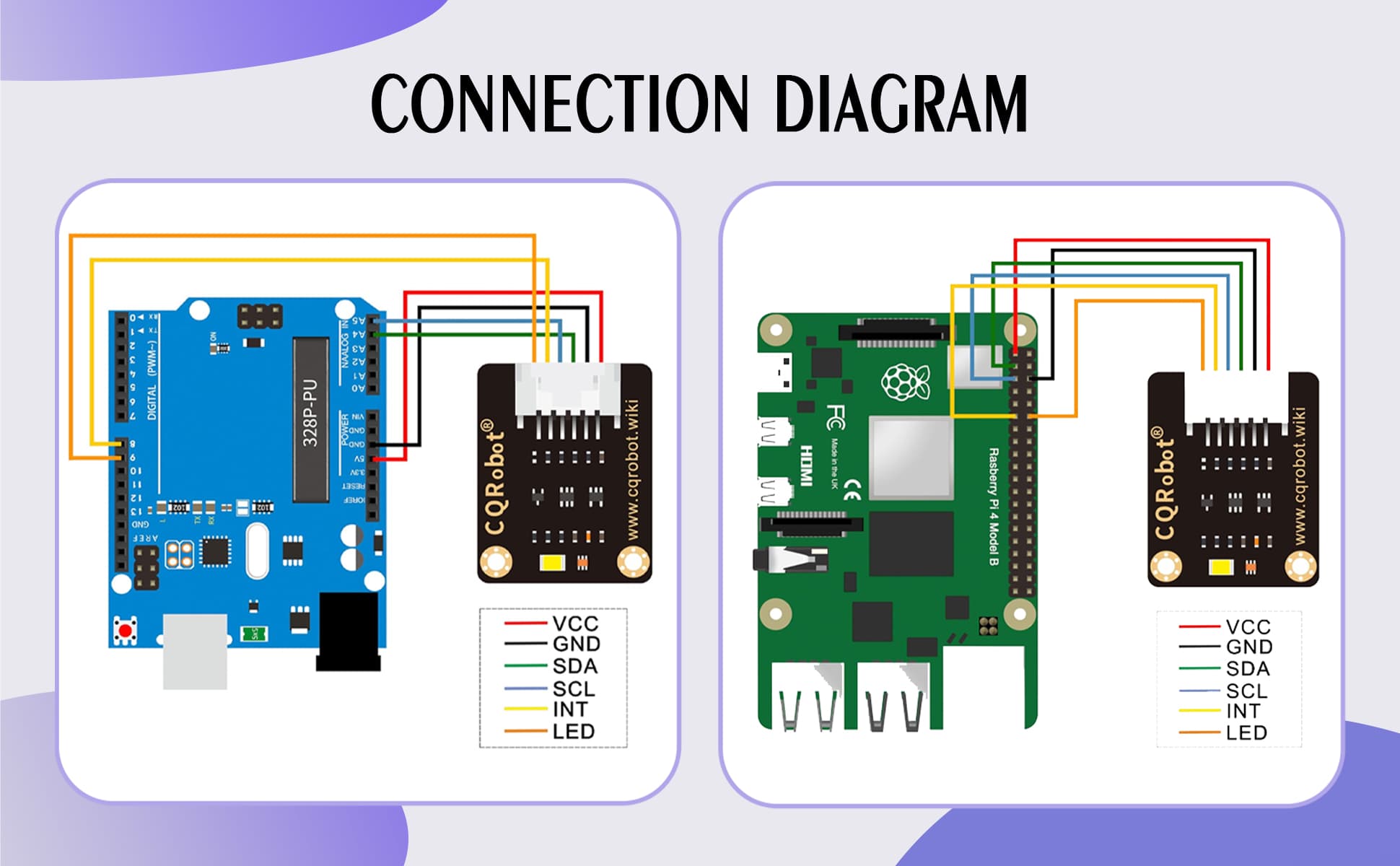

• Line Sequence: Red-Positive Power Supply; Black-Negative Power Supply; Green-I2C Data Input; Blue-I2C Clock Input; Yellow-Interrupt Output; Orange-Light Emitting Diode.
