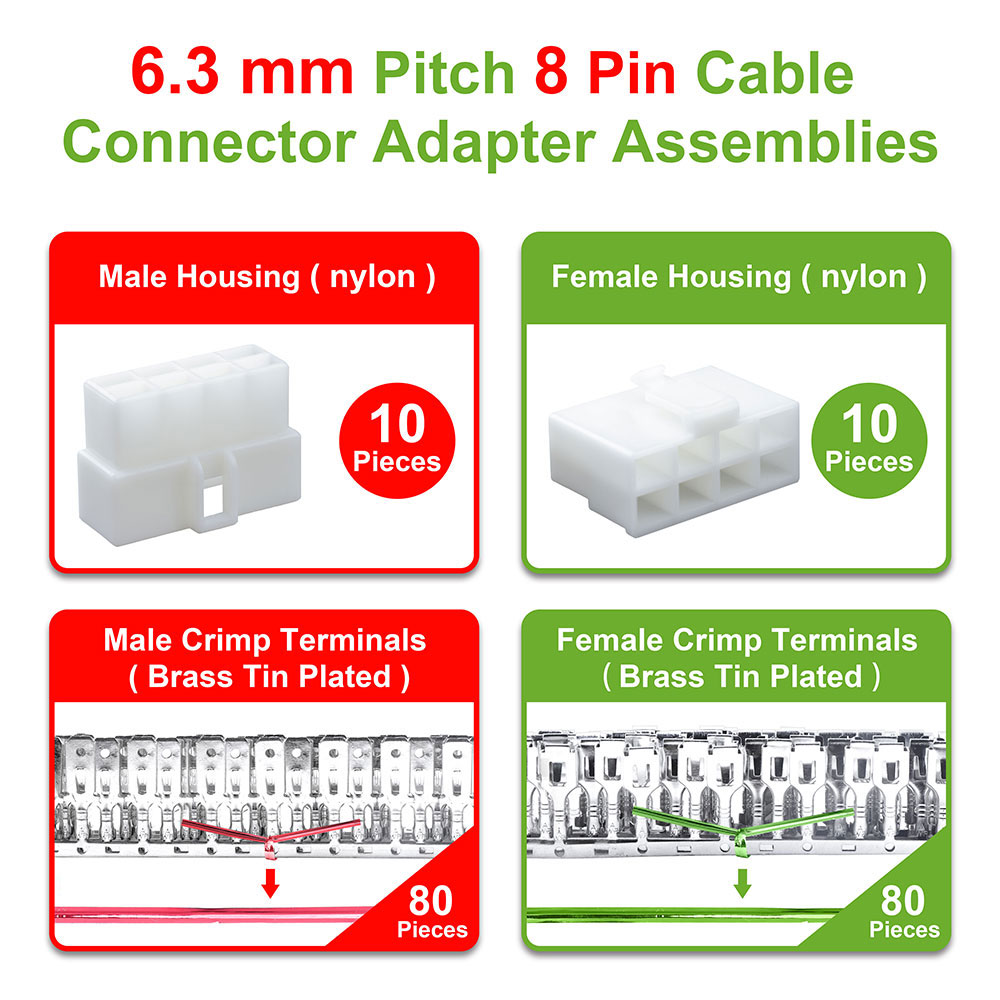

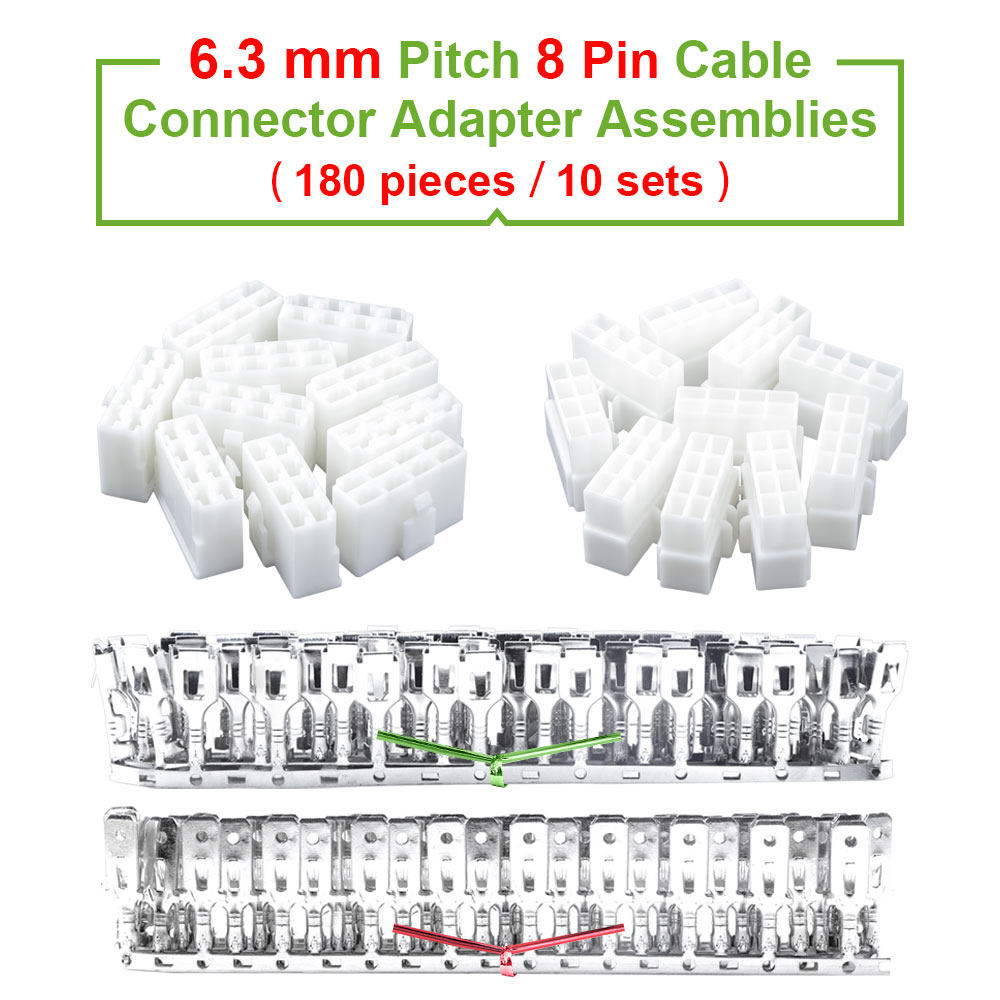

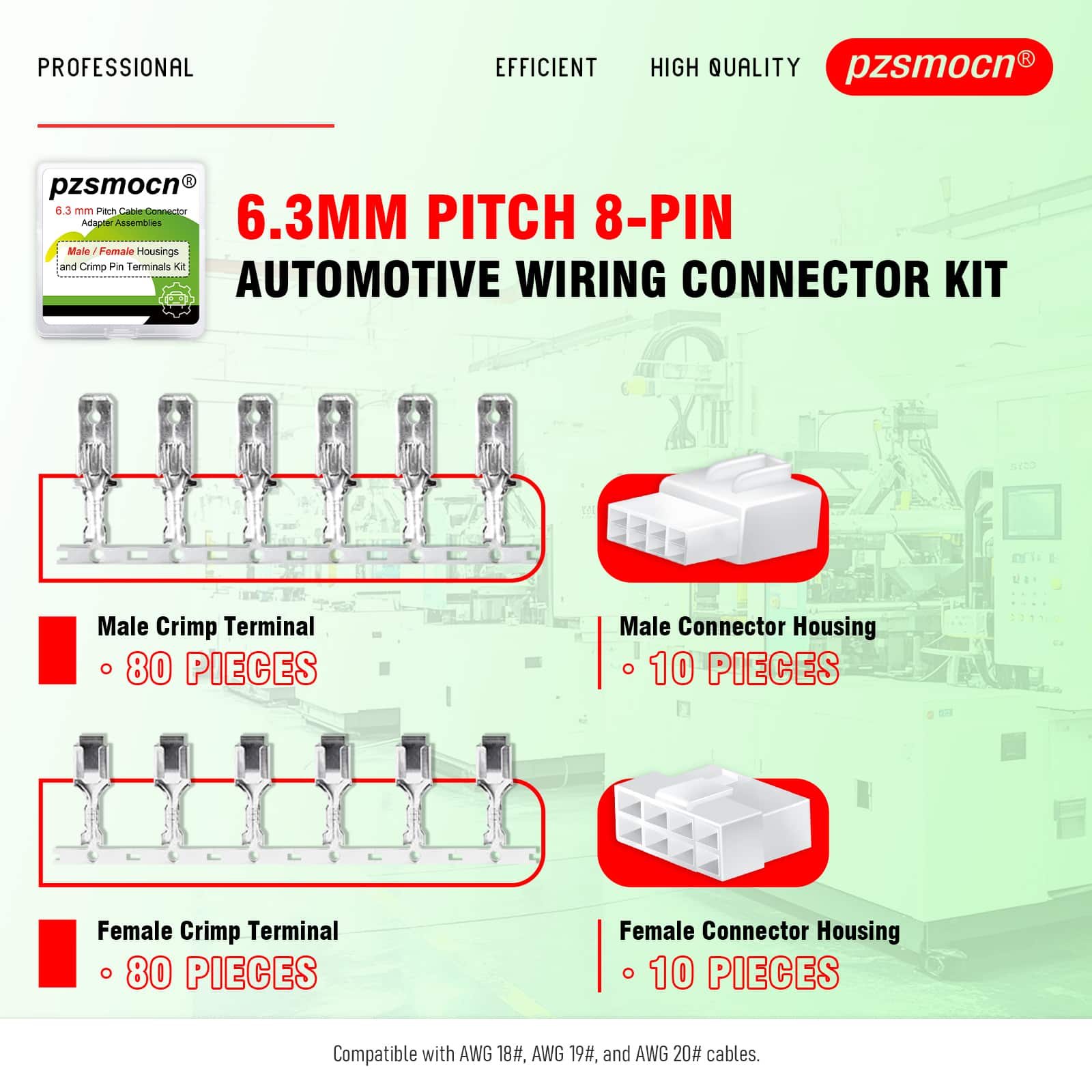

Automotive Cable Connector Adapter Assemblies 6.3 mm Pitch 8 Pin
6
.89
10+
6
.55
Save 5%
50+
6
.27
Save 9%
100+
6
.06
Save 12%
200+
5
.86
Save 15%
500+
5
.51
Save 20%
Product details

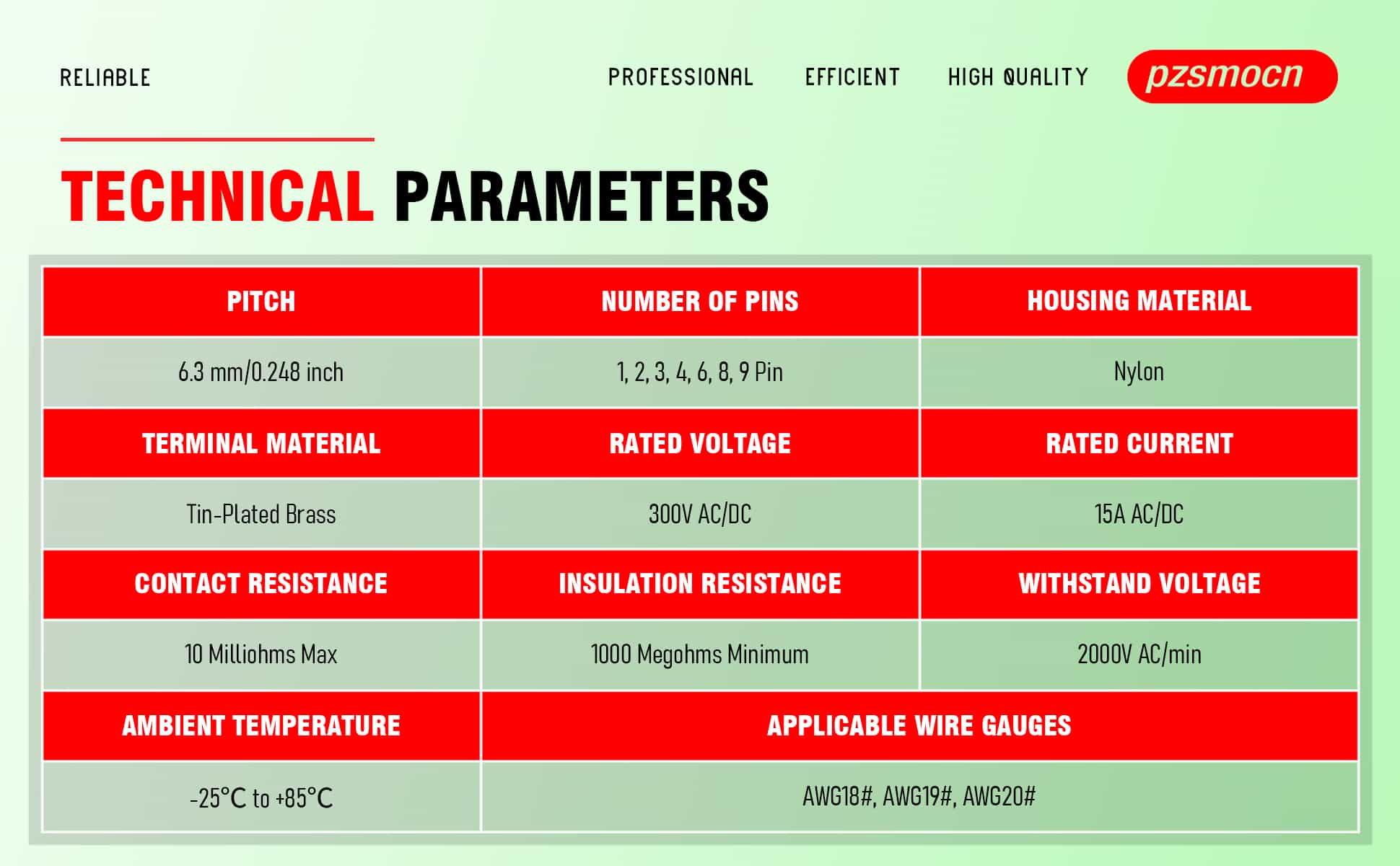

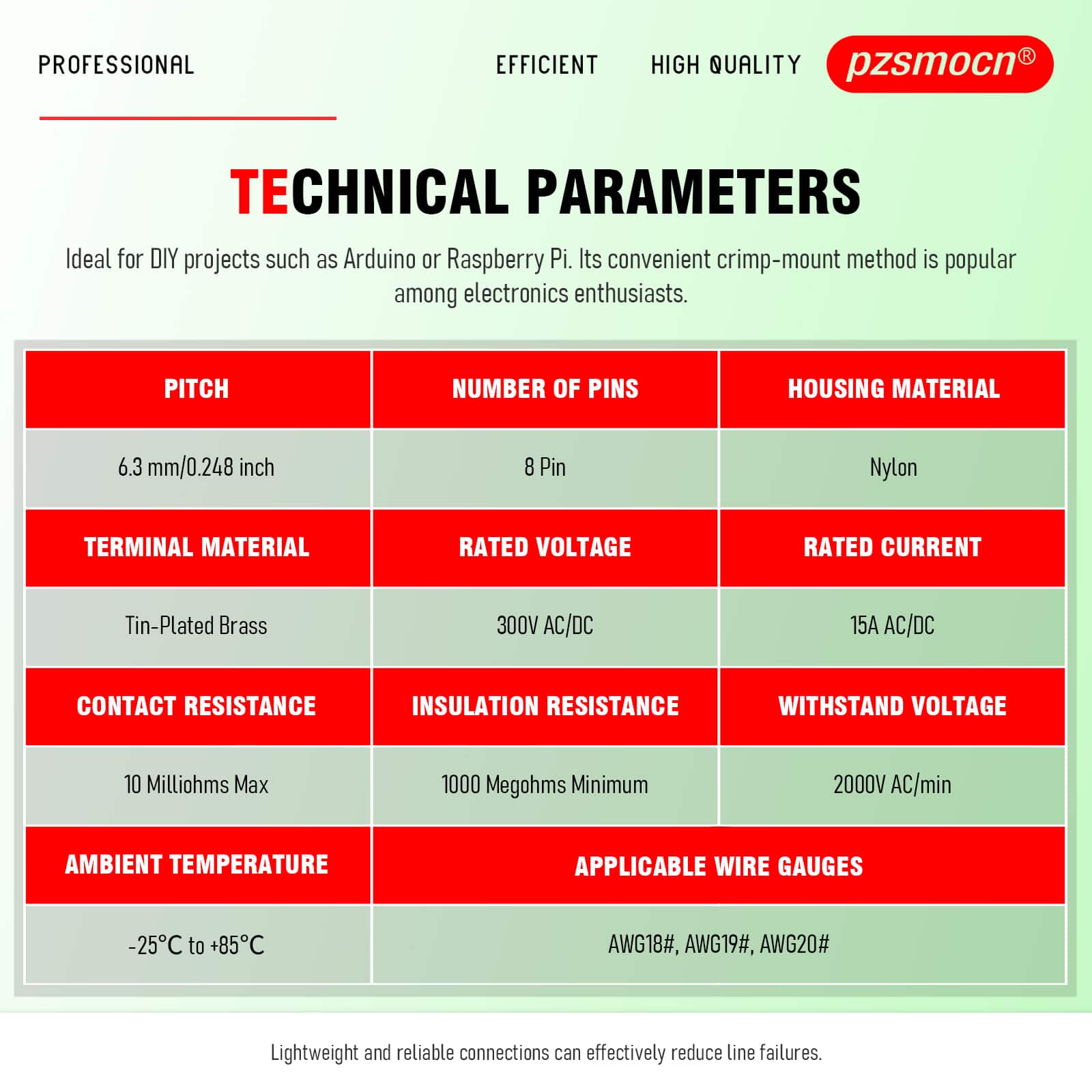

Specification
- Pitch: 6.3 mm
- Pin Number: 8 pin
- Housing Material: Nylon
- Terminal Material: Brass Tin Plated
- Rated Voltage: 300V AC, DC
- Rated Current: 15A AC, DC
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1000 megohm minimum
- Withstanding Voltage: 2000V AC/minute
- Ambient Temperature: -25 degrees celsius to +85 degrees celsius

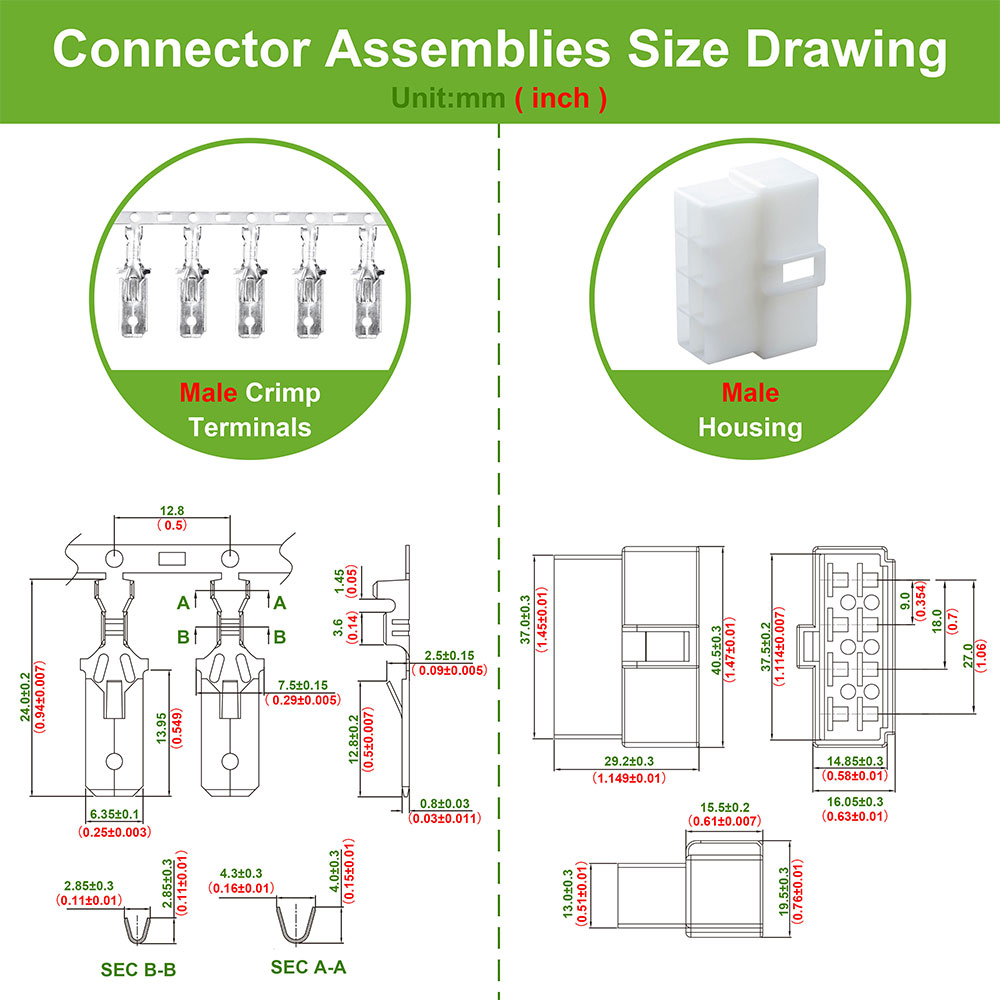

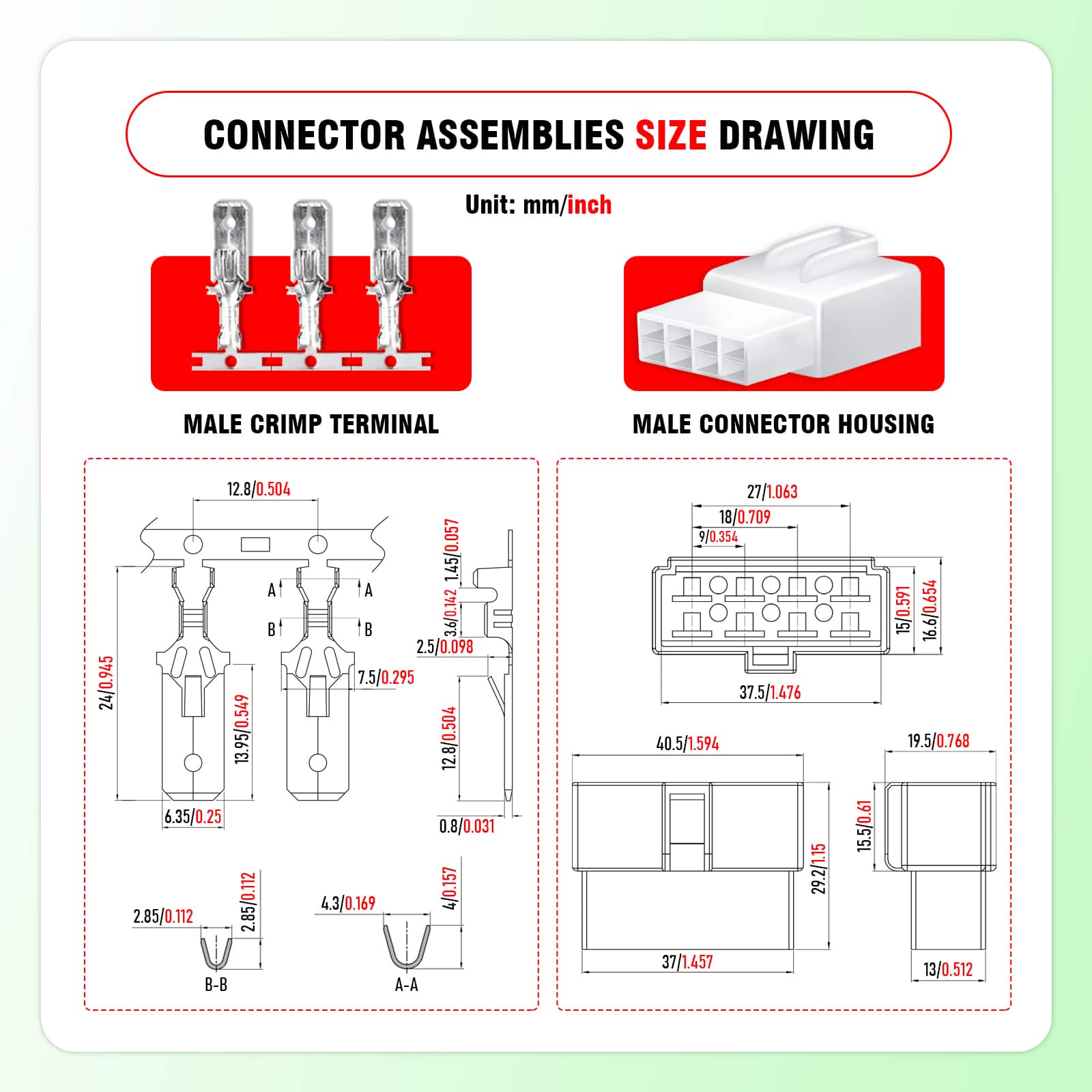

- Male Housing Length: 29.2±0.3 mm

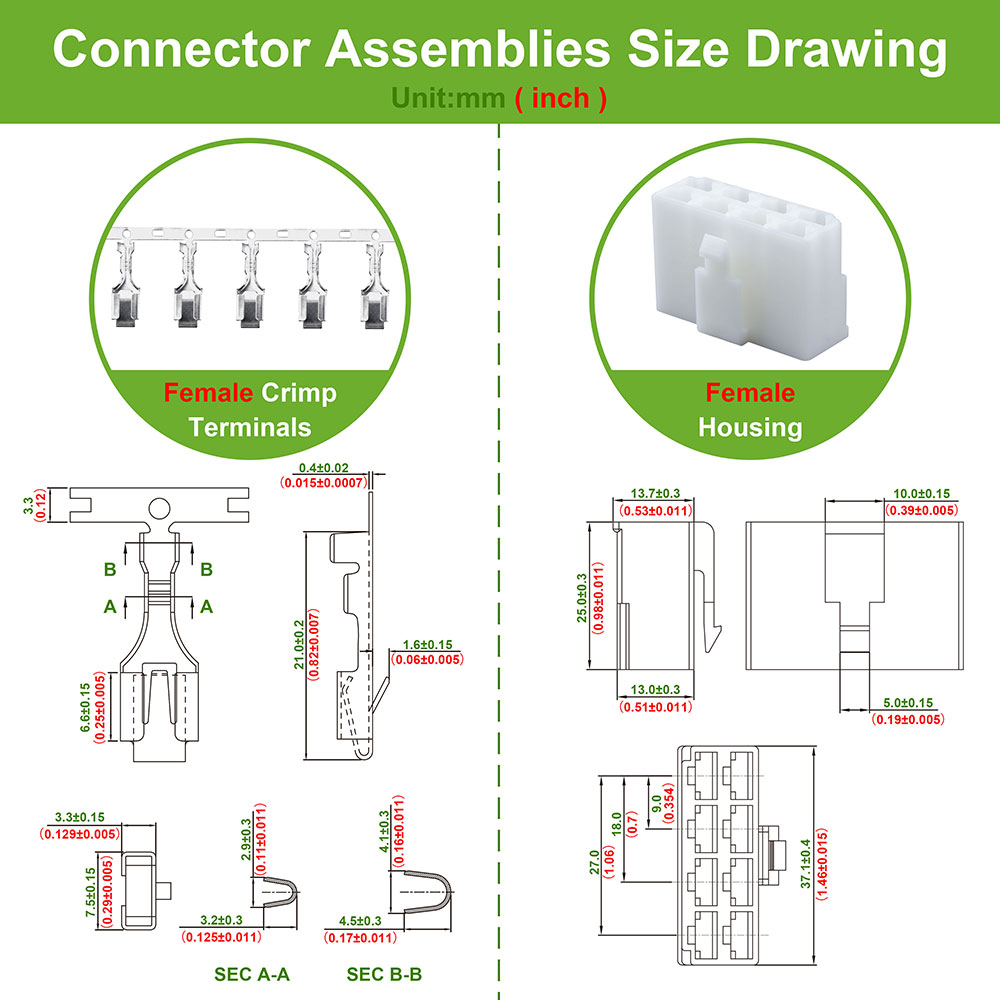

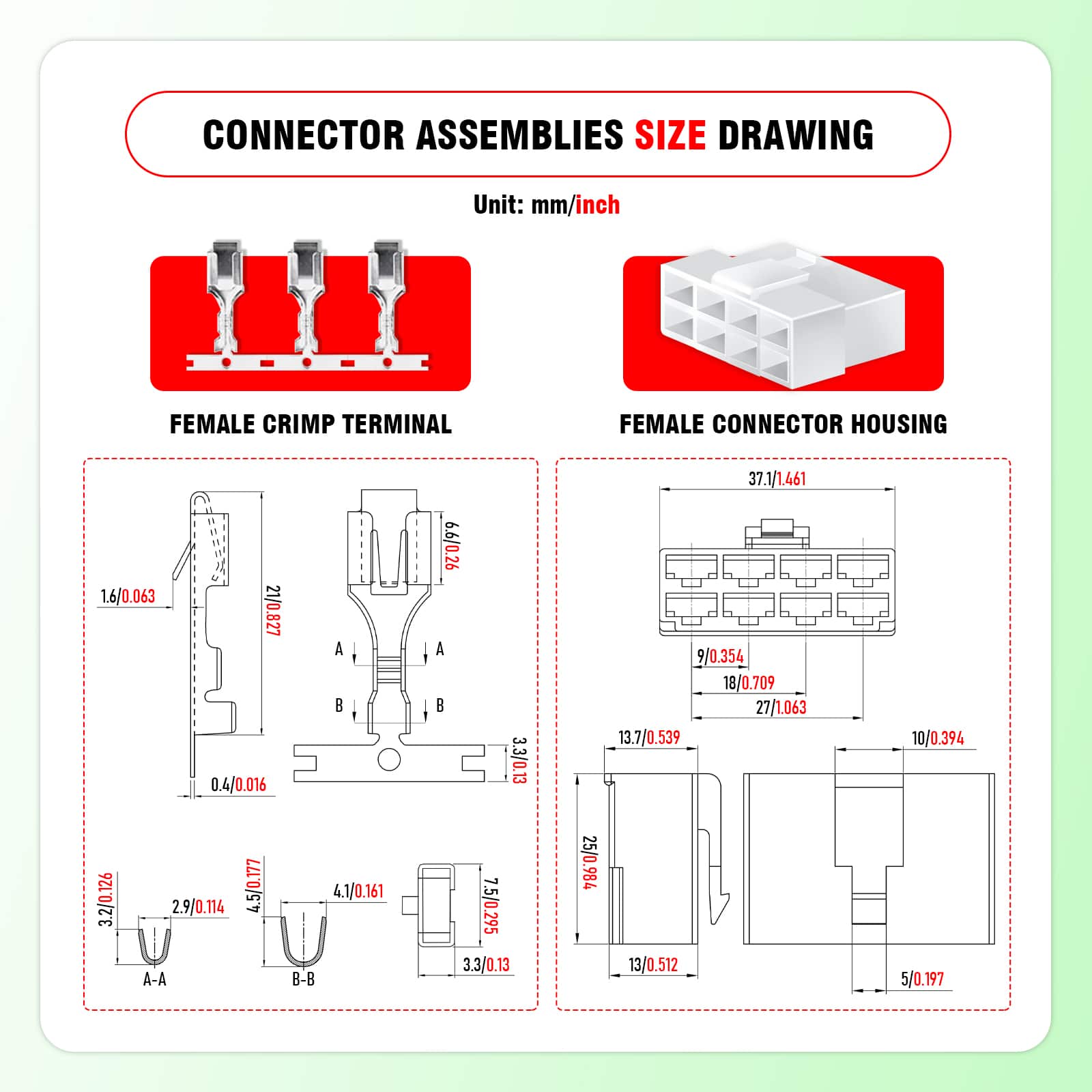

- Female Housing Length: 25±0.3 mm
- Male Crimp Terminal Length: 24±0.2 mm
- Female Crimp Terminal Length: 21±0.2 mm

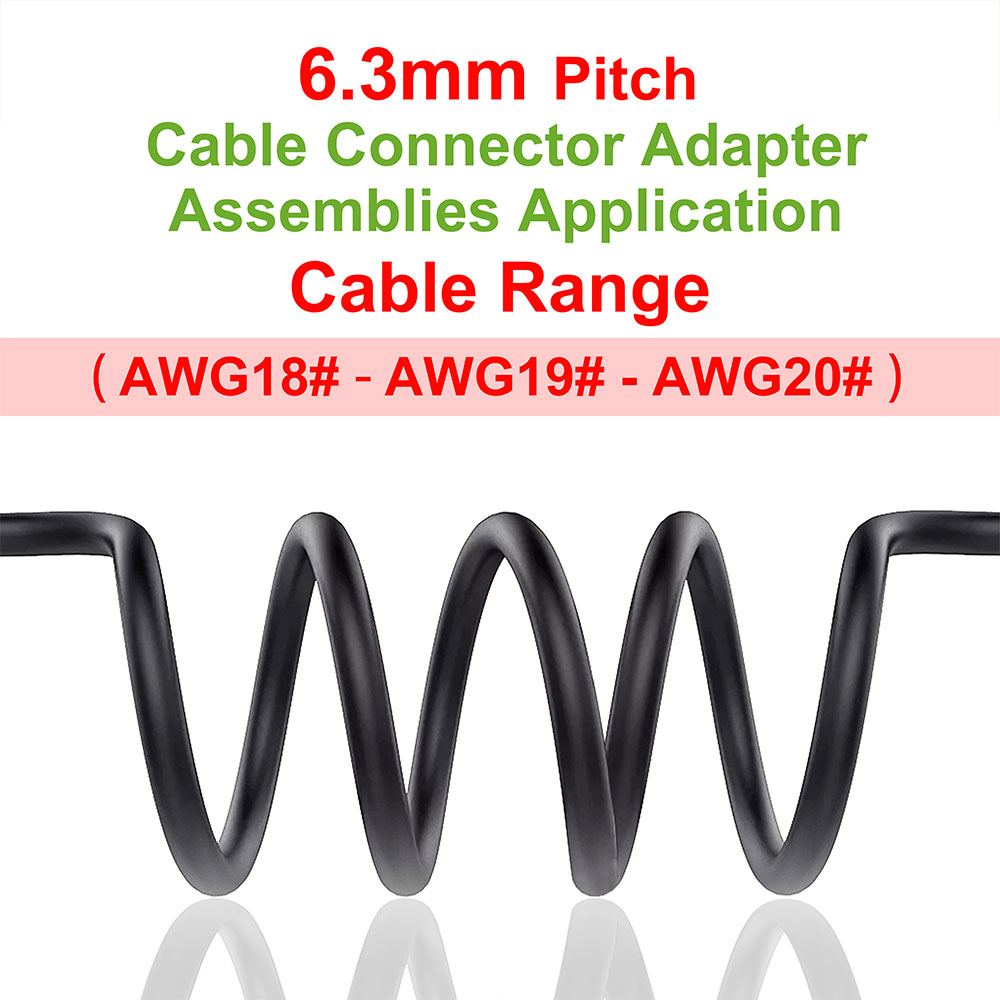

- Applicable Cable Range: AWG18#, AWG19# and AWG20#
