PZSQC4.200F

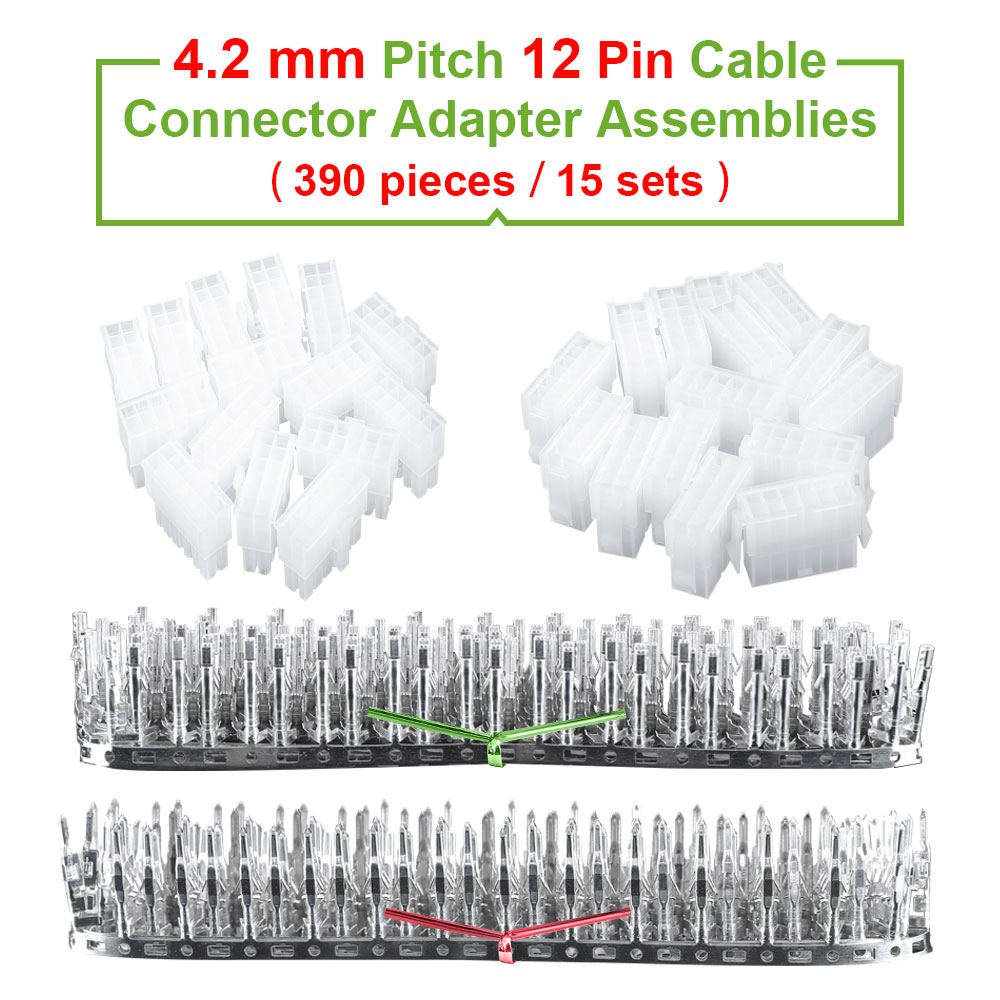

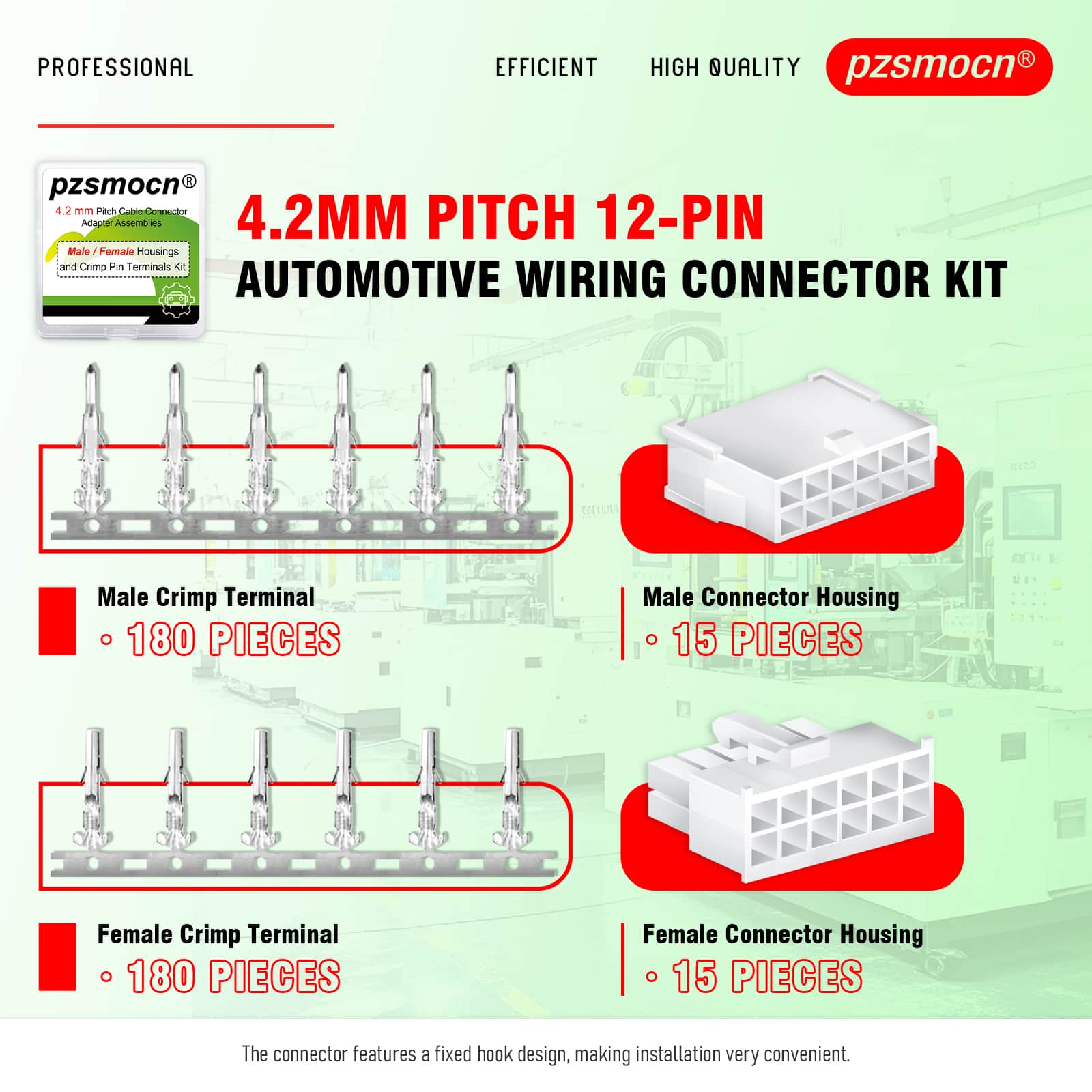

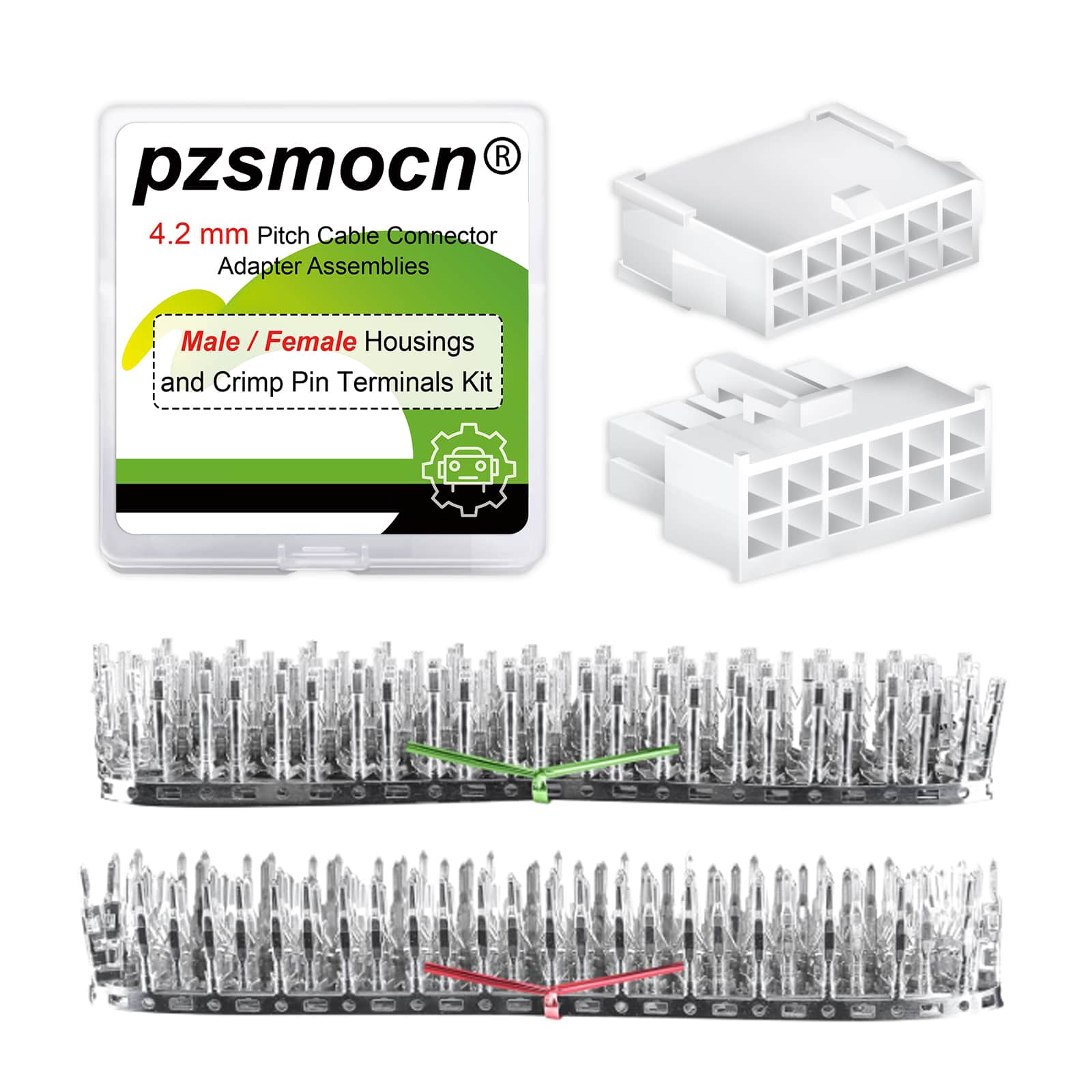

Automotive Cable Connector Adapter Assemblies 4.2 mm Pitch 12 Pin
SKU
PZSQC4.200F
Part No.
PZSQC4.200F
Brand
pzsmocn
7
.59
Type：

Cable Connector

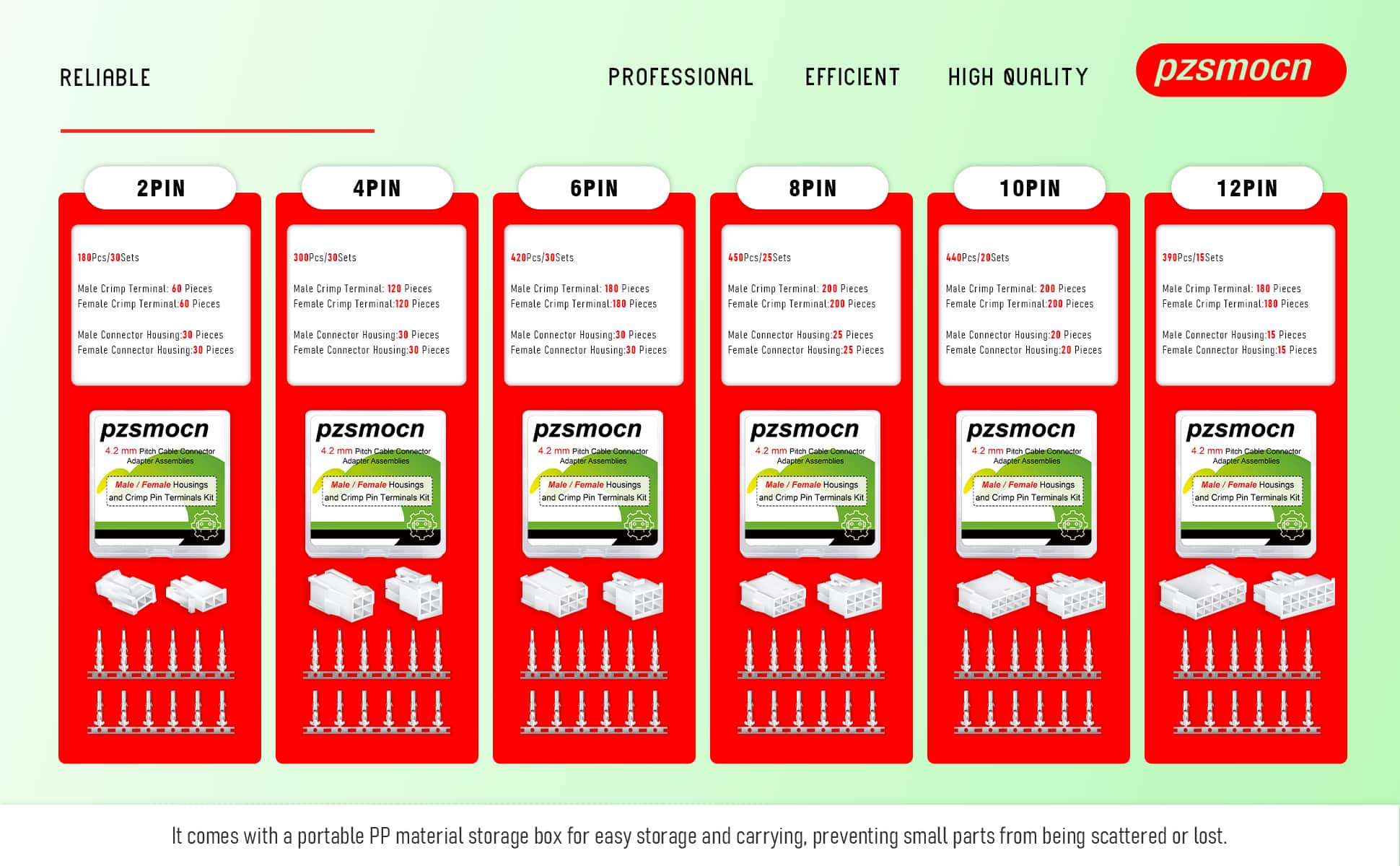

Pin：

2P

4P

6P

8P

10P

12P

Quantity
In Stock
Share:
10+
7
.21
Save 5%
50+
6
.91
Save 9%
100+
6
.68
Save 12%
200+
6
.45
Save 15%
500+
6
.07
Save 20%
Related Products:

Product details

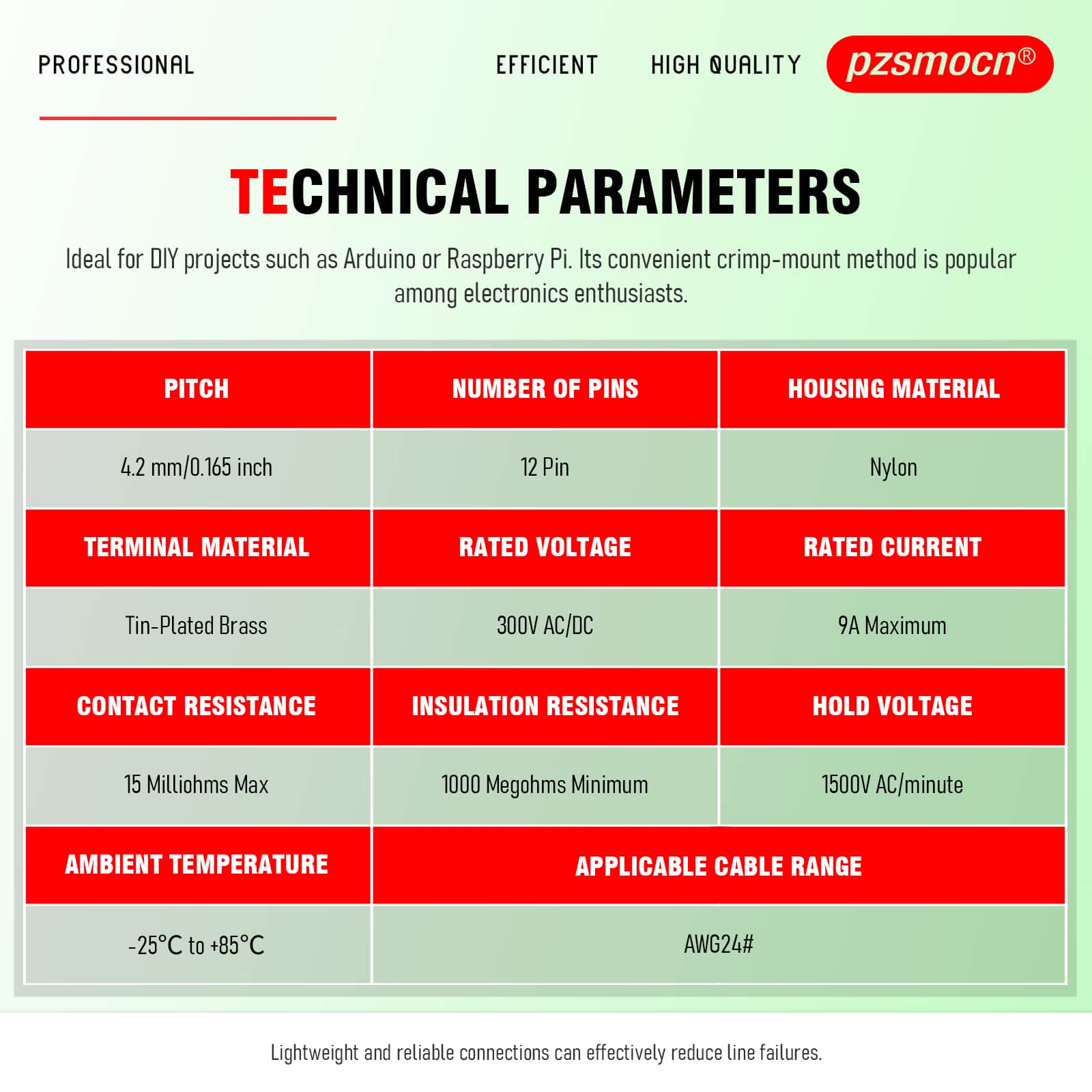

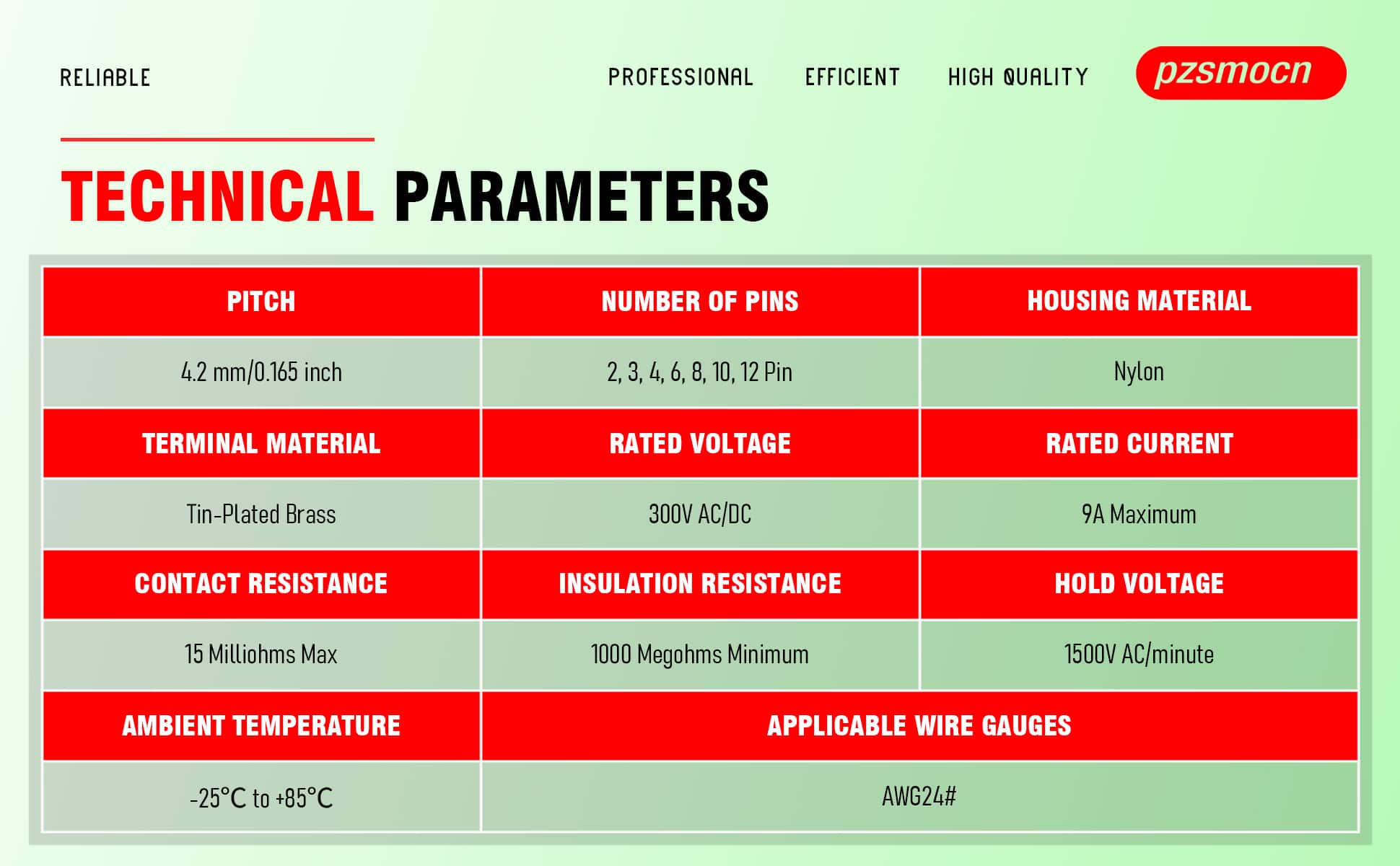

Specification

  • Pitch: 4.2 mm
  • Pin Number: 12 pin

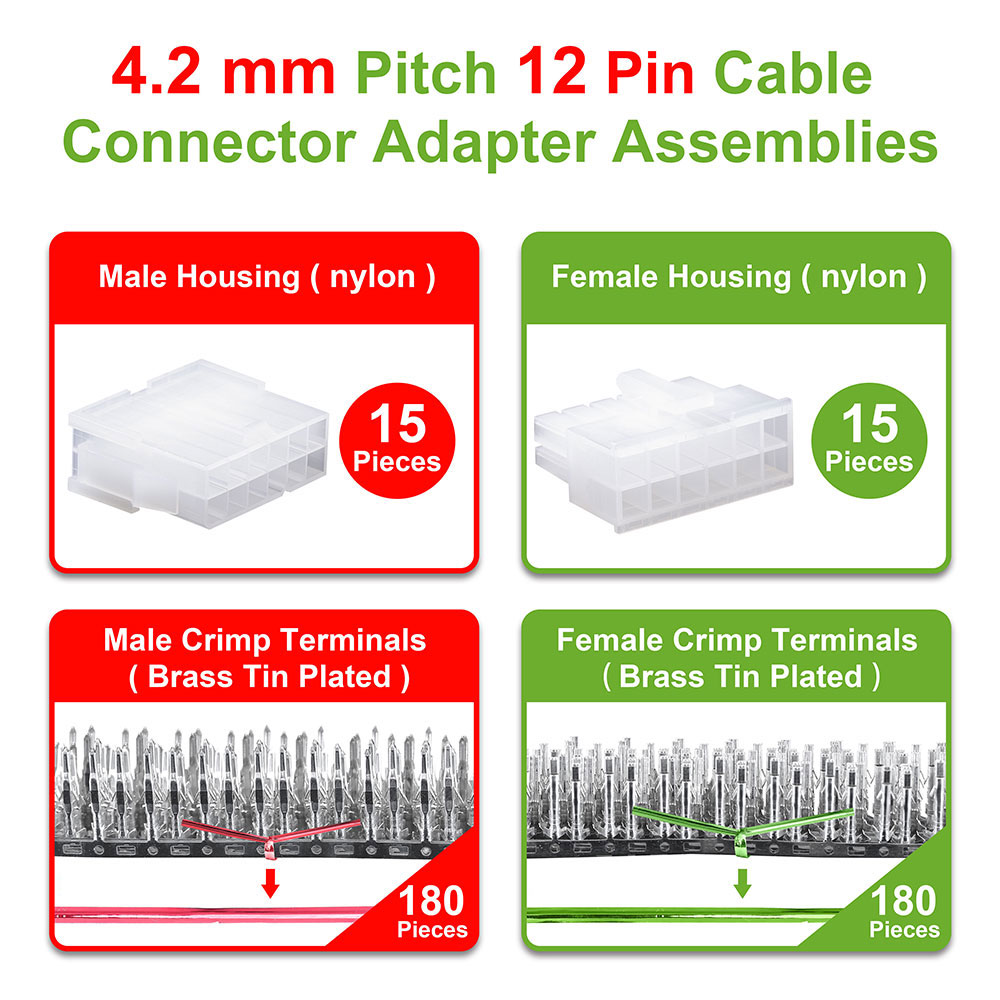

  • Housing Material: Nylon
  • Terminal Material: Brass Tin Plated
  • Rated Voltage: 300V AC/DC
  • Rated Current: 9A maximum
  • Contact Resistance: 15 milliohms maximum
  • Insulation Resistance: 1000 megohm minimum
  • Withstanding Voltage: 1500V AC/minute
  • Temperature Range: -25 degrees celsius to +85 degrees celsius

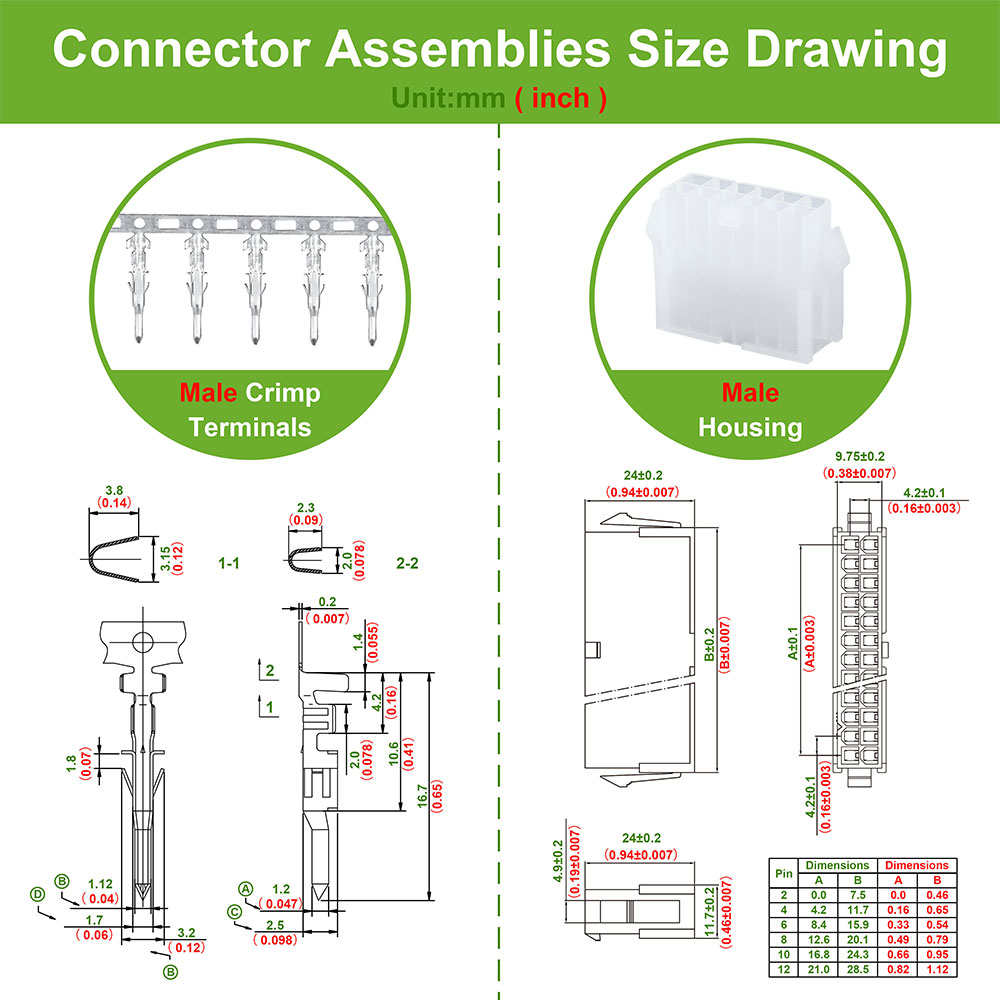

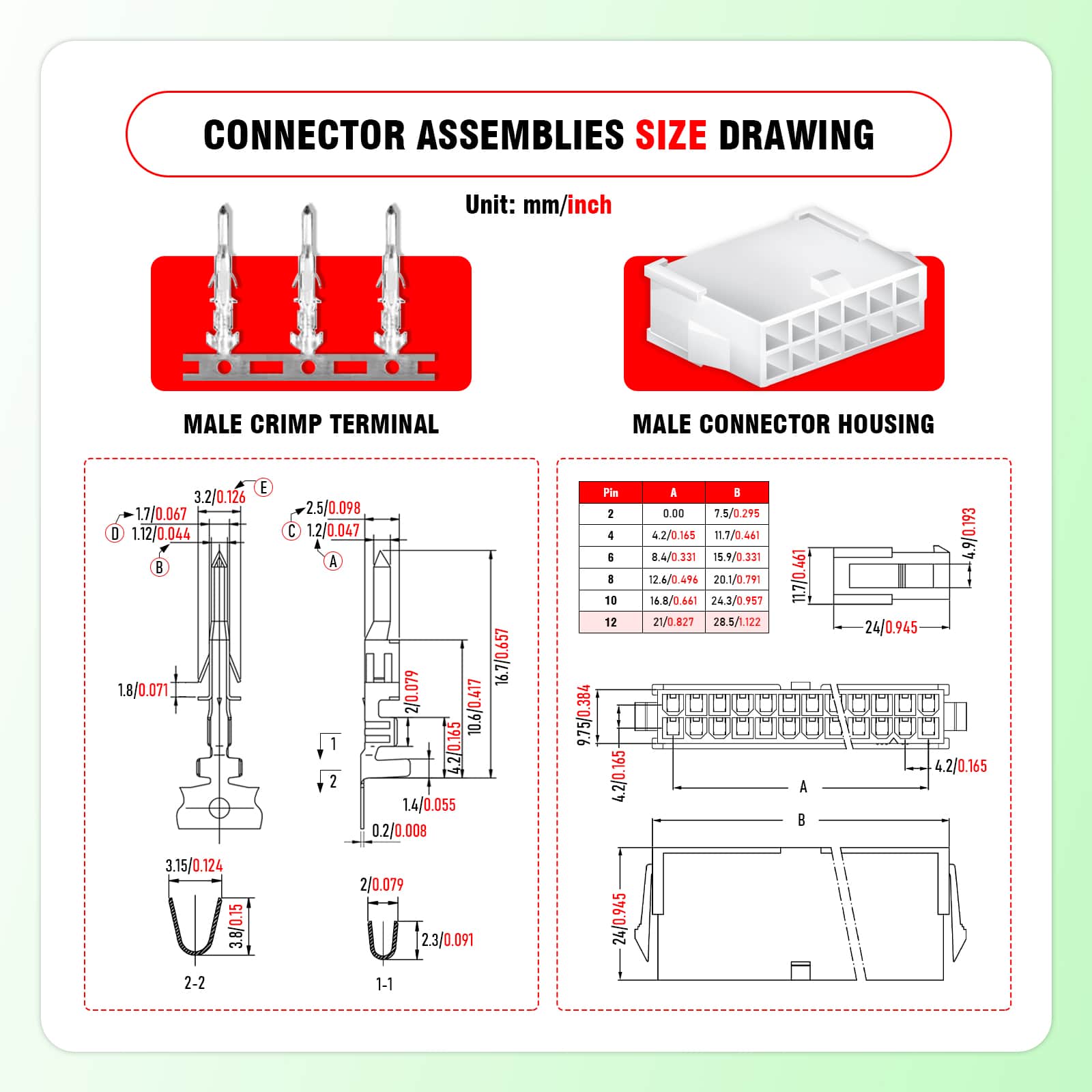

  • Male Housing Length: 24.0±0.2 mm

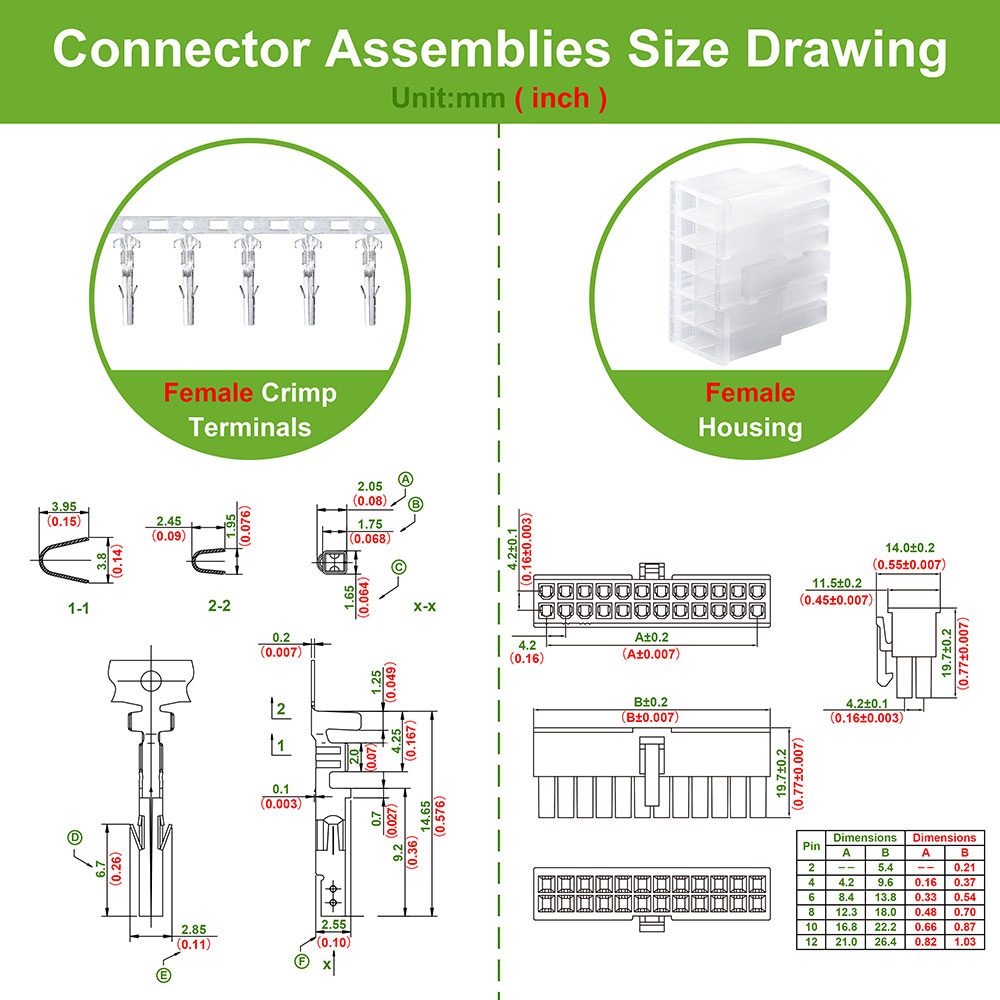

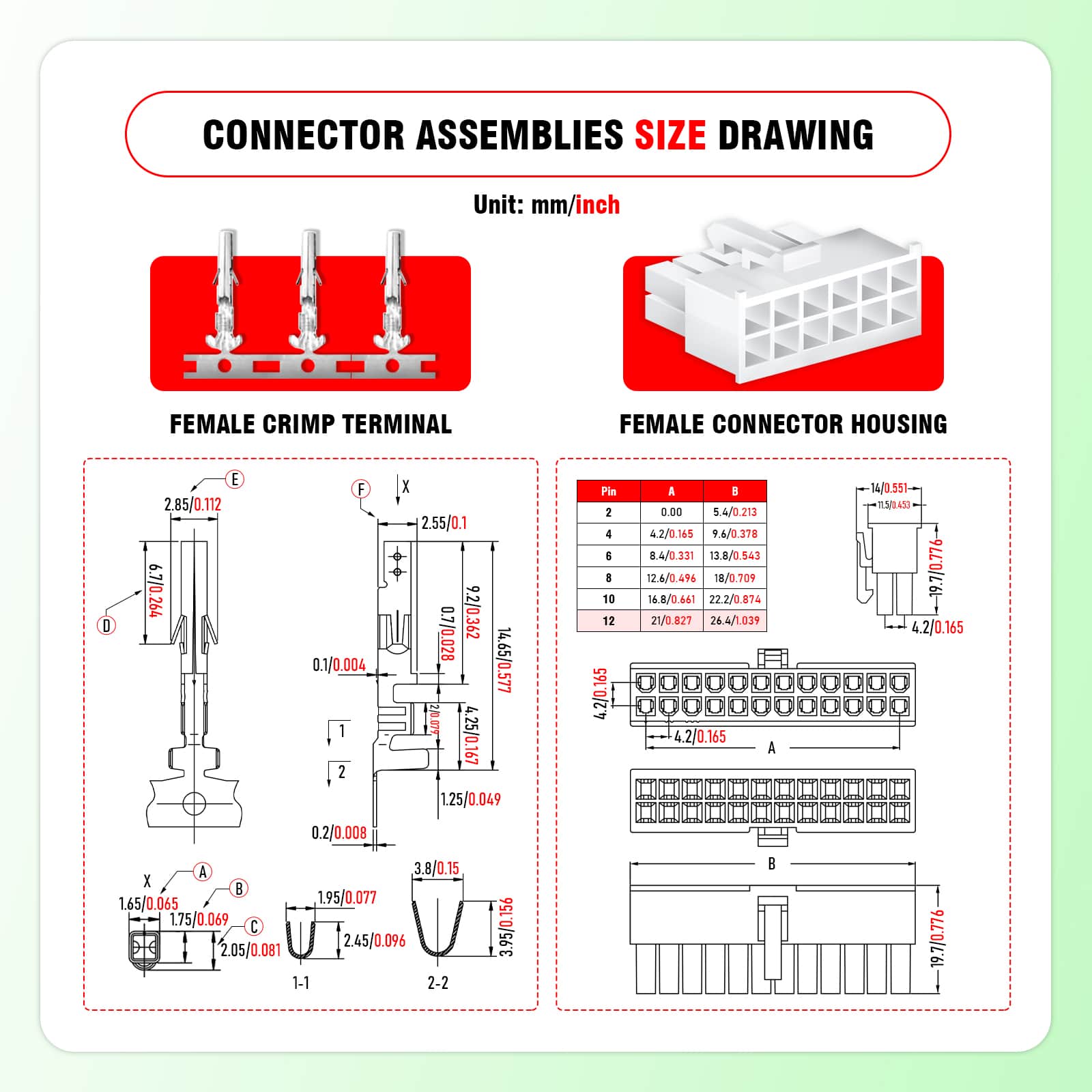

  • Female Housing Length: 19.7±0.2mm
  • Male Crimp Terminal Length: 16.7±0.2 mm
  • Female Crimp Terminal Length: 14.65±0.2 mm
  • Applicable Cable Range: AWG24#
