PZSJN2.5400K

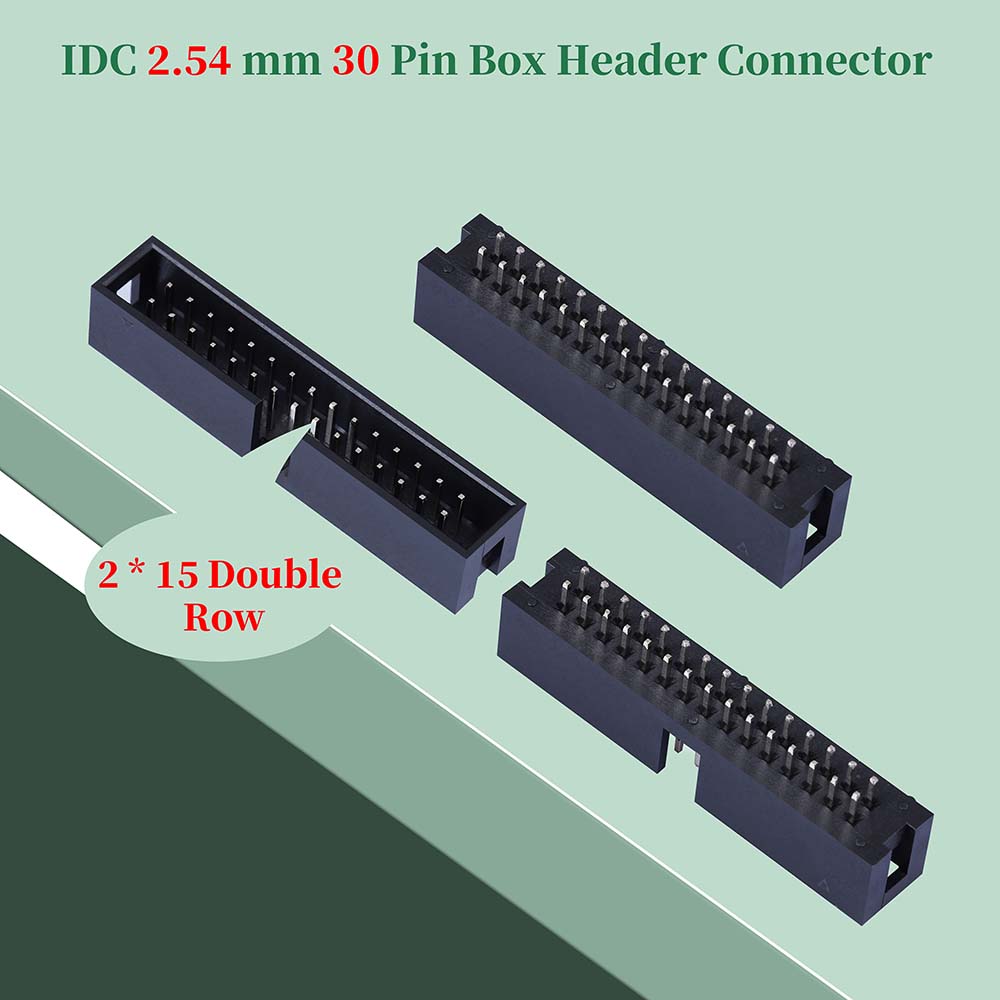

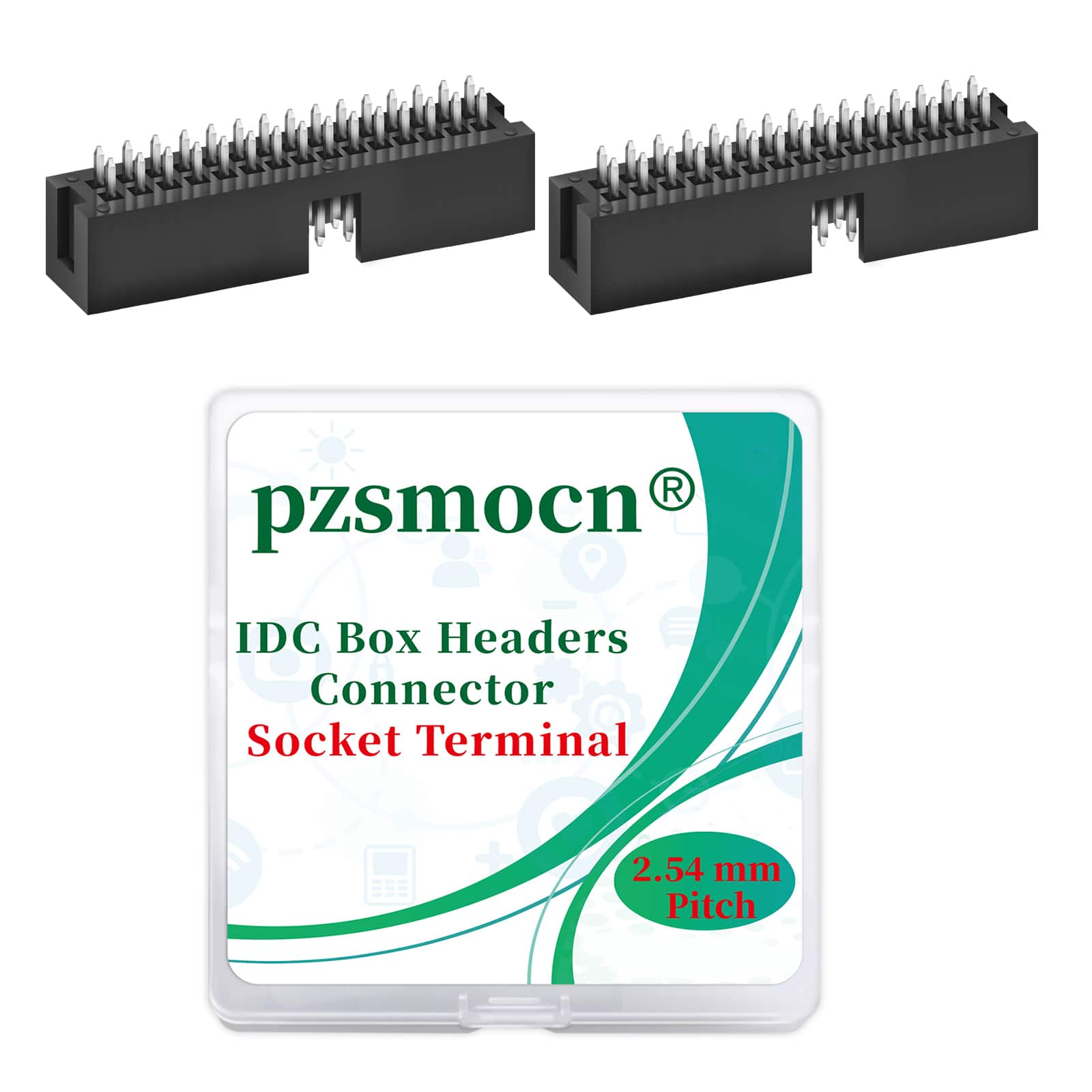

IDC Box Header Connector 2.54 mm 2*15 Double Row 30 Pin
SKU
PZSJN2.5400K
Part No.
PZSJN2.5400K
Brand
pzsmocn
5
.39
Pin：

6P

6P SMT

8P

8P SMT

10P

10P SMT

12P

12P SMT

14P

14P SMT

16P

16P SMT

18P

18P SMT

20P

20P SMT

24P

24P SMT

26P

26P SMT

30P

30P SMT

34P

34P SMT

40P

40P SMT

50P

50P SMT

Quantity
In Stock
Share:
10+
5
.12
Save 5%
50+
4
.9
Save 9%
100+
4
.74
Save 12%
200+
4
.58
Save 15%
500+
4
.31
Save 20%
Related Products:

Product details

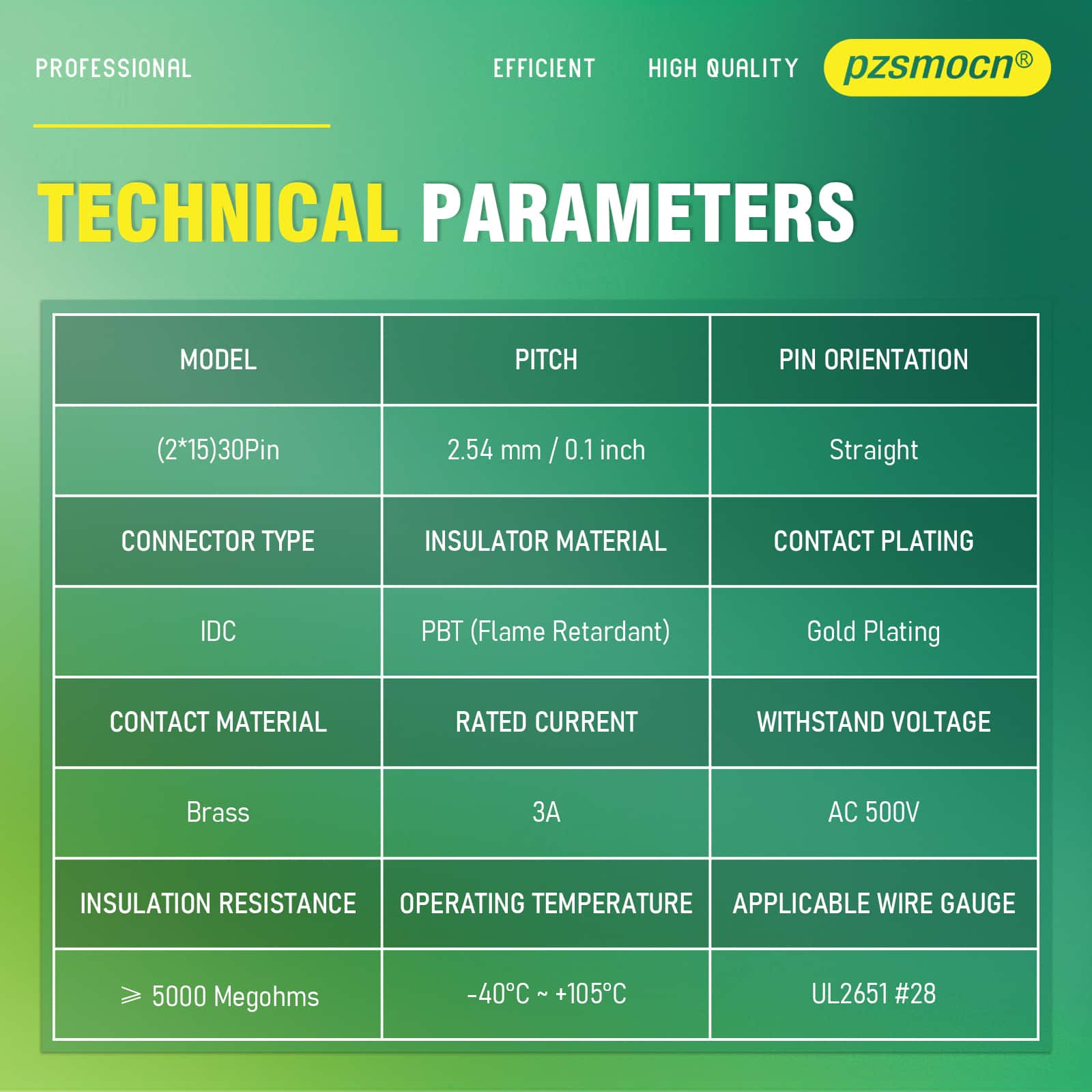

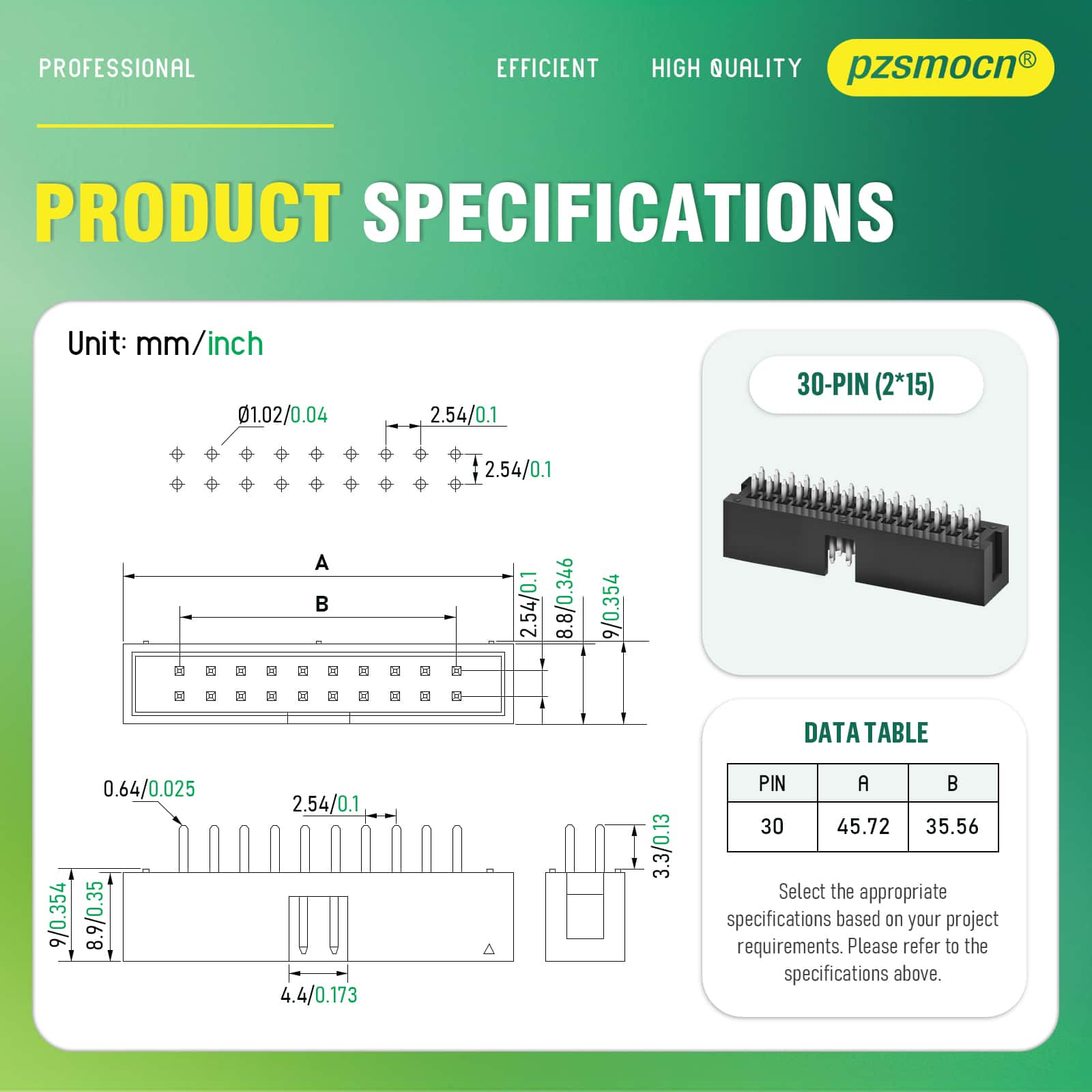

SPECIFICATION

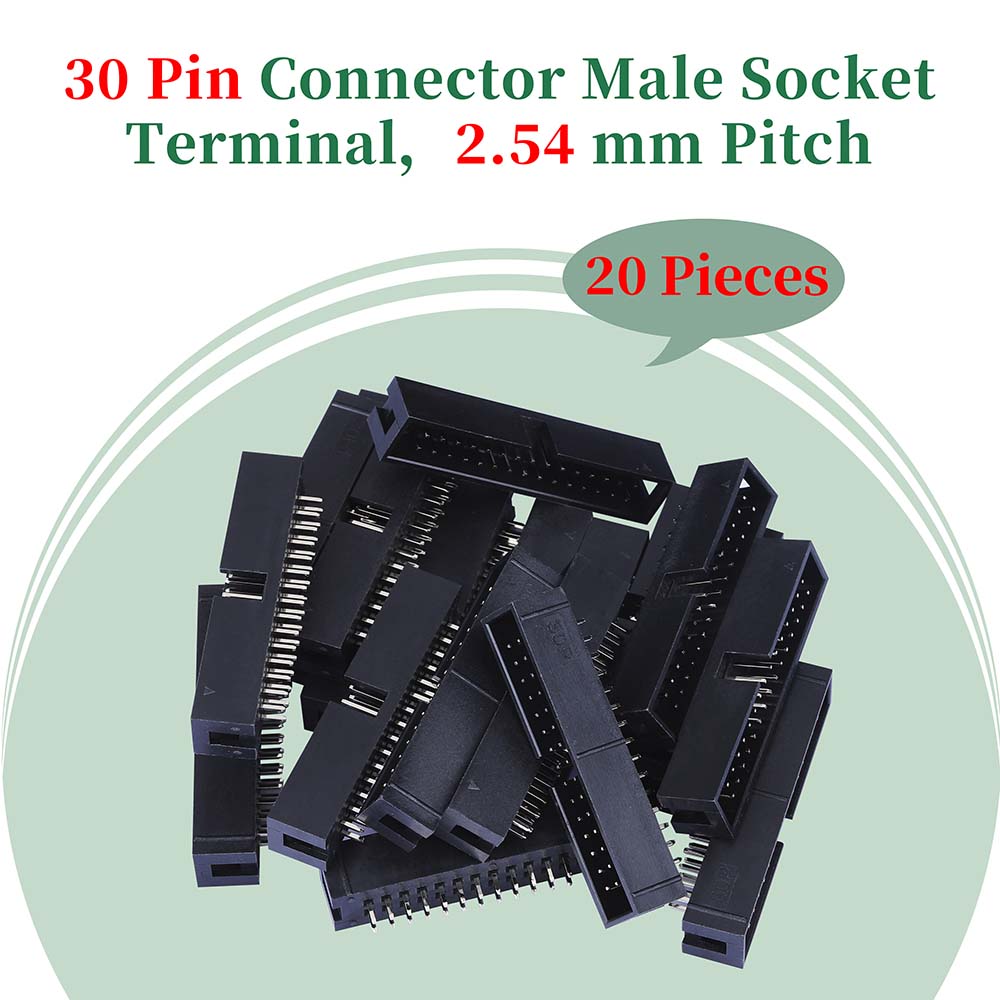

  • Model: IDC 2 * 15 Pin Male Socket Terminal
  • Pitch: 2.54 mm / 0.1 inch

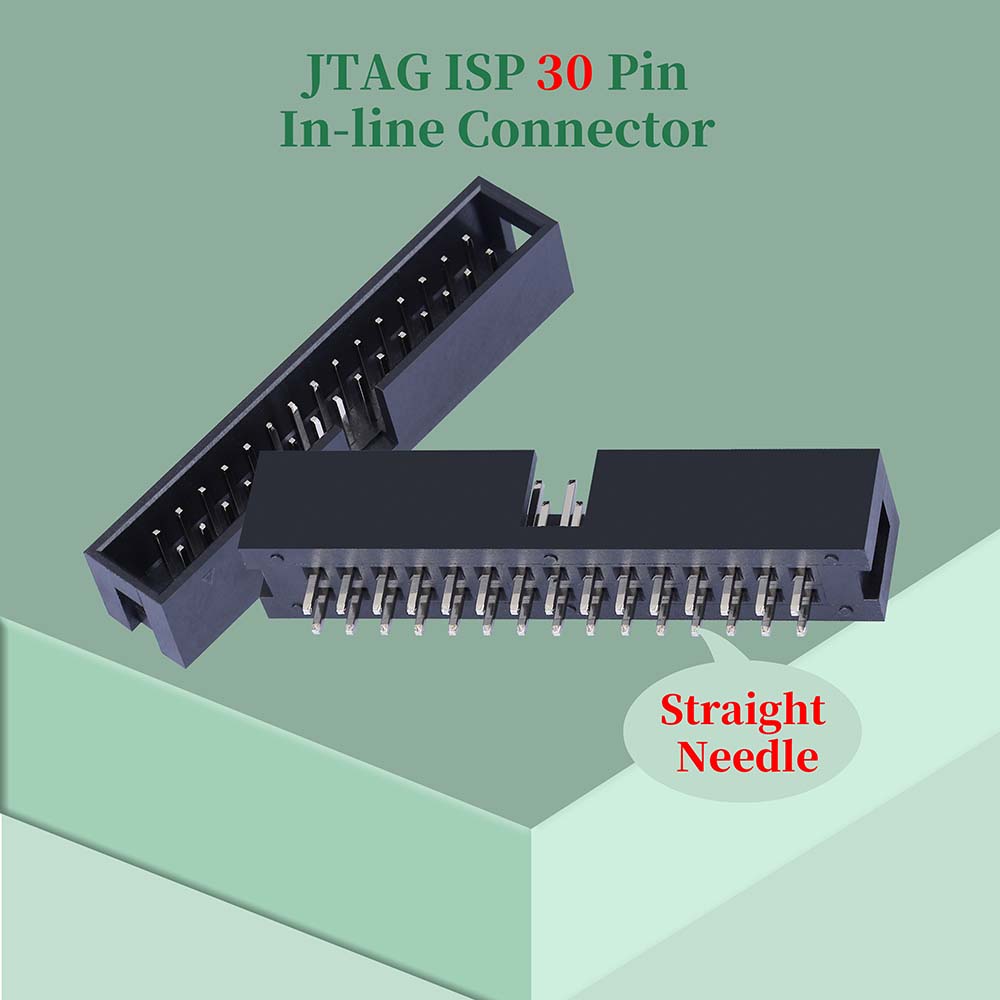

  • Body Orientation: Straight
  • Row Type: Double Row
  • Connector Type: IDC

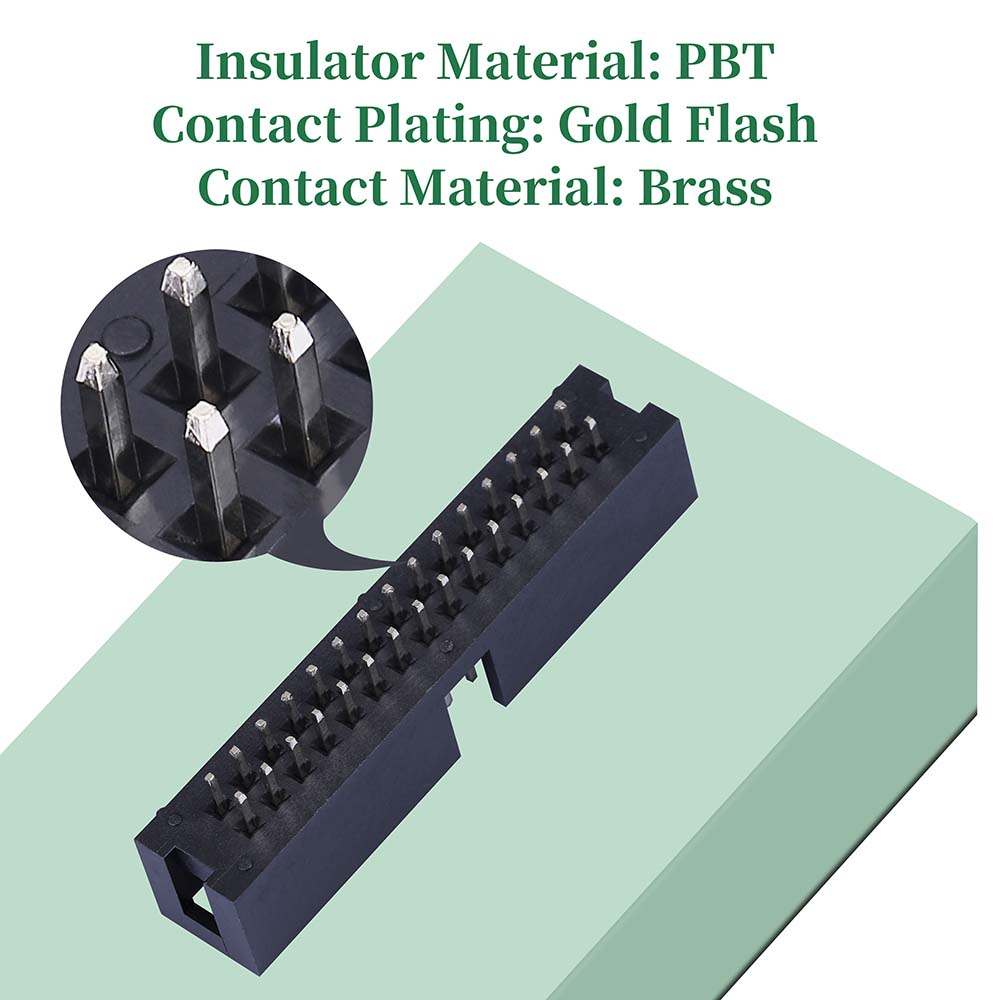

  • Insulator Material: PBT
  • Contact Plating: Gold Flash
  • Contact Material: Brass
  • Current Rating: 3 Ampere
  • Withstand Voltage: AC 500V
  • Insulator Resistance: 5000 Megohm Minimum

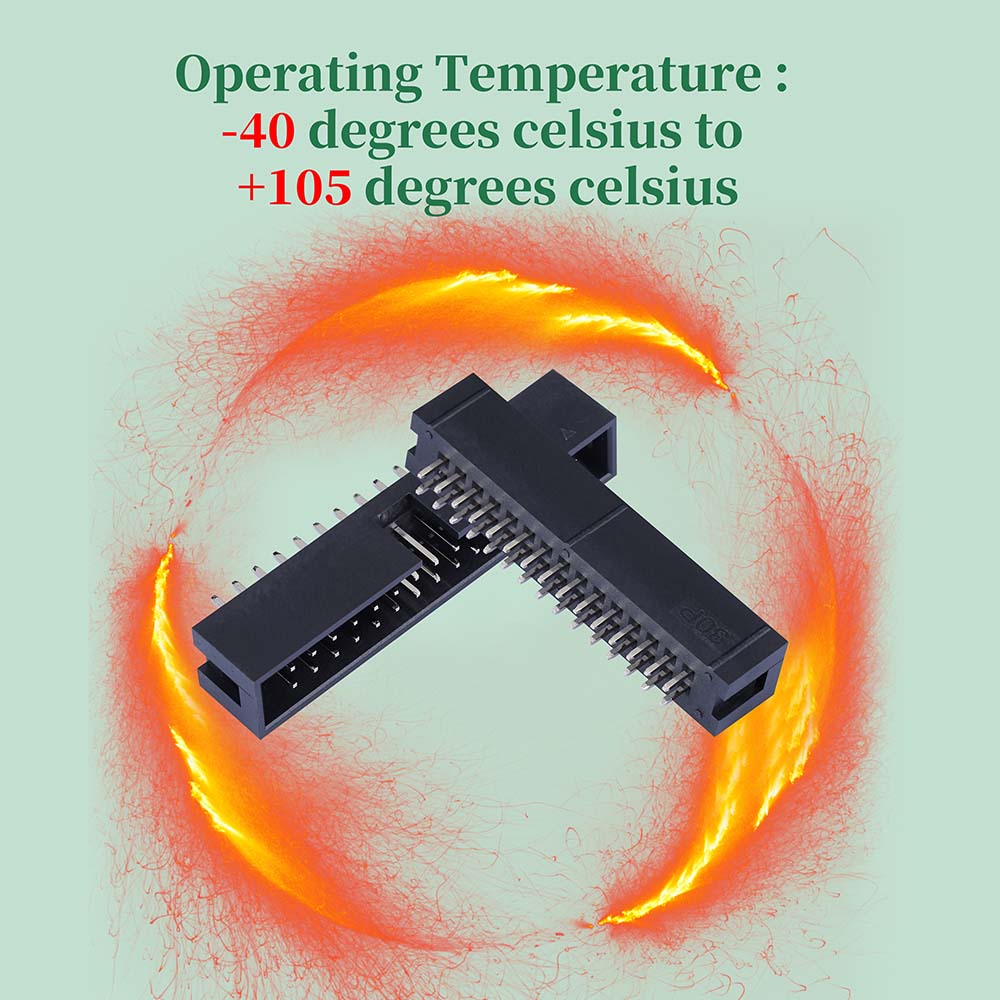

  • Operating Temperature: -40 Degrees Celsius to +105 Degrees Celsius
  • Applicable Wire Gauge: UL2651#28
  • Properties: Fire / Flame Retardant

Header Connector 2.54mm Pitch-PZSJN2.5400A-7.jpgHeader Connector 2.54mm Pitch-PZSJN2.5400A-8.jpgHeader Connector 2.54mm Pitch-PZSJN2.5400A-9.jpgHeader Connector 2.54mm Pitch-PZSJN2.5400A-10.jpgHeader Connector 2.54mm Pitch-PZSJN2.5400A-11.jpgHeader Connector 2.54mm Pitch-PZSJN2.5400A-12.jpg
