PZSJN2.000I

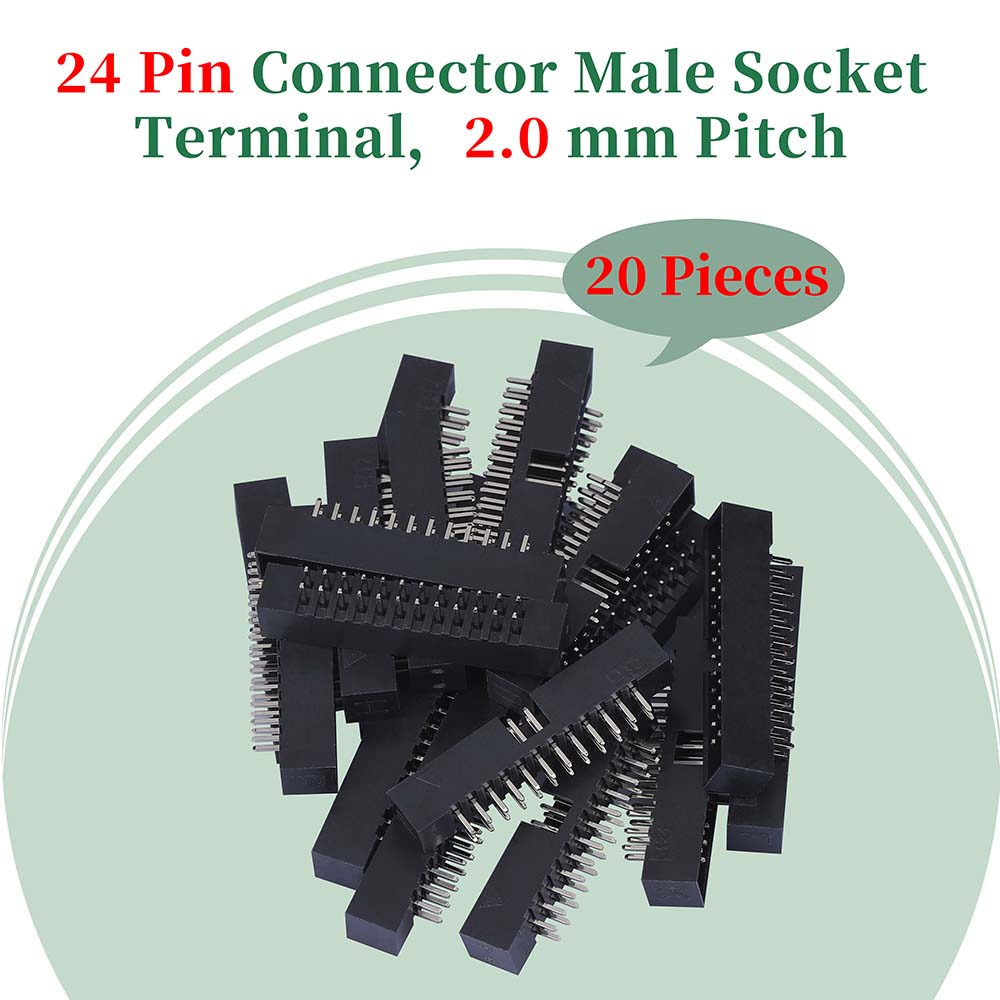

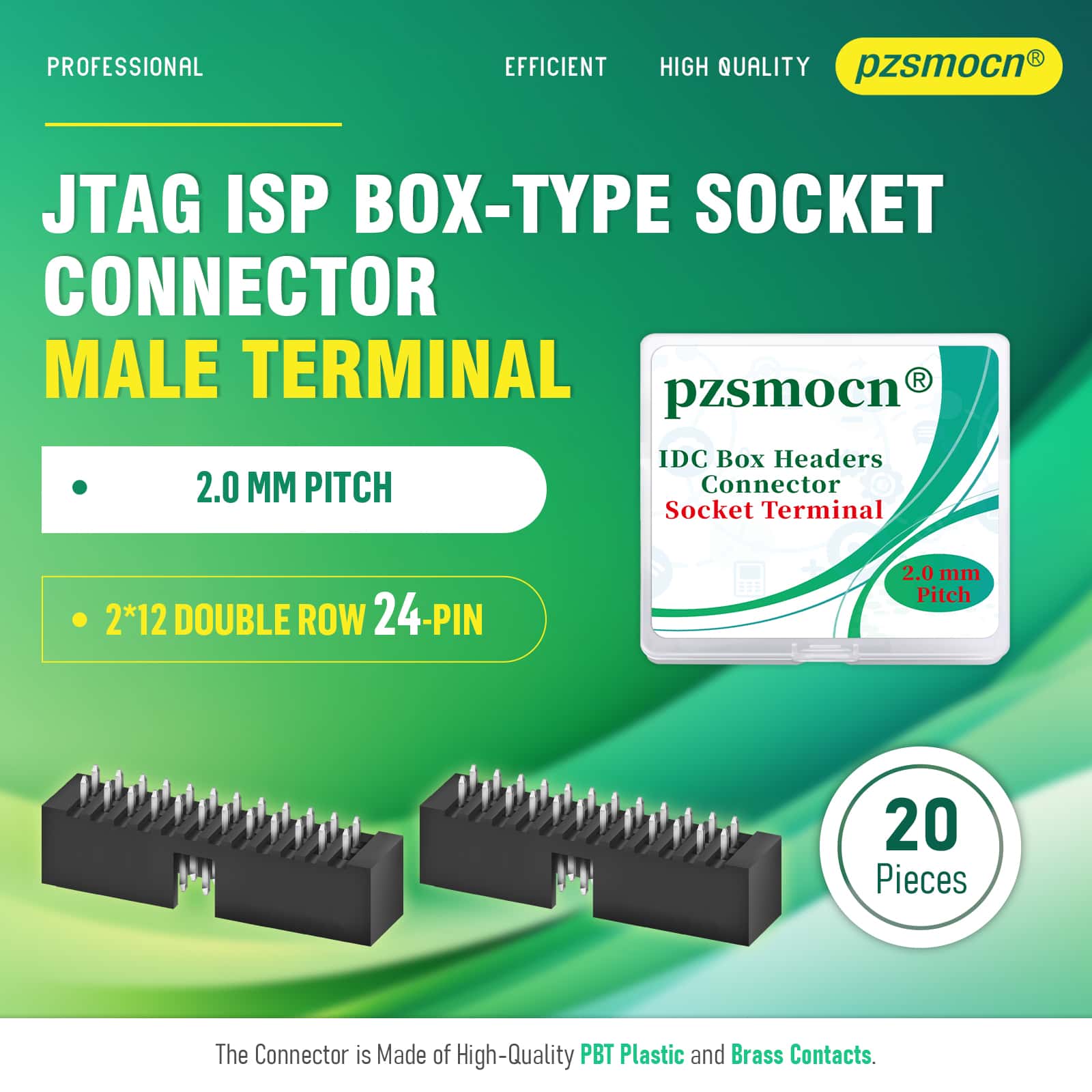

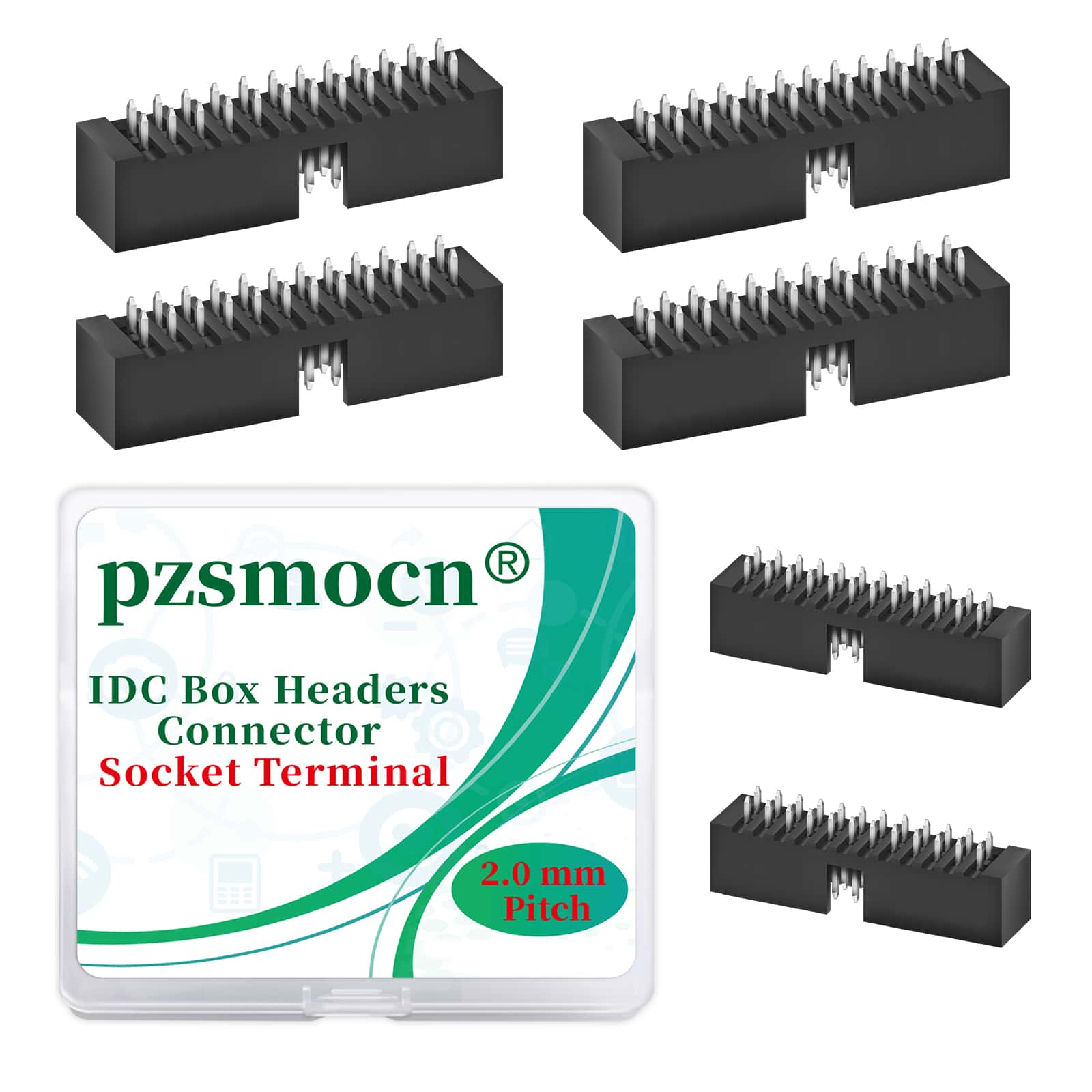

IDC Box Header Connector 2.0 mm 2*12 Double Row 24 Pin
SKU
PZSJN2.000I
Part No.
PZSJN2.000I
Brand
pzsmocn
7
.09
Pin：

6P

6P SMT

8P

8P SMT

10P

10P SMT

12P

12P SMT

14P

14P SMT

16P

16P SMT

18P

18P SMT

20P

20P SMT

24P

24P SMT

26P

26P SMT

30P

30P SMT

34P

34P SMT

40P

40P SMT

50P

50P SMT

Quantity
In Stock
Share:
10+
6
.74
Save 5%
50+
6
.45
Save 9%
100+
6
.24
Save 12%
200+
6
.03
Save 15%
500+
5
.67
Save 20%
Related Products:

Product details

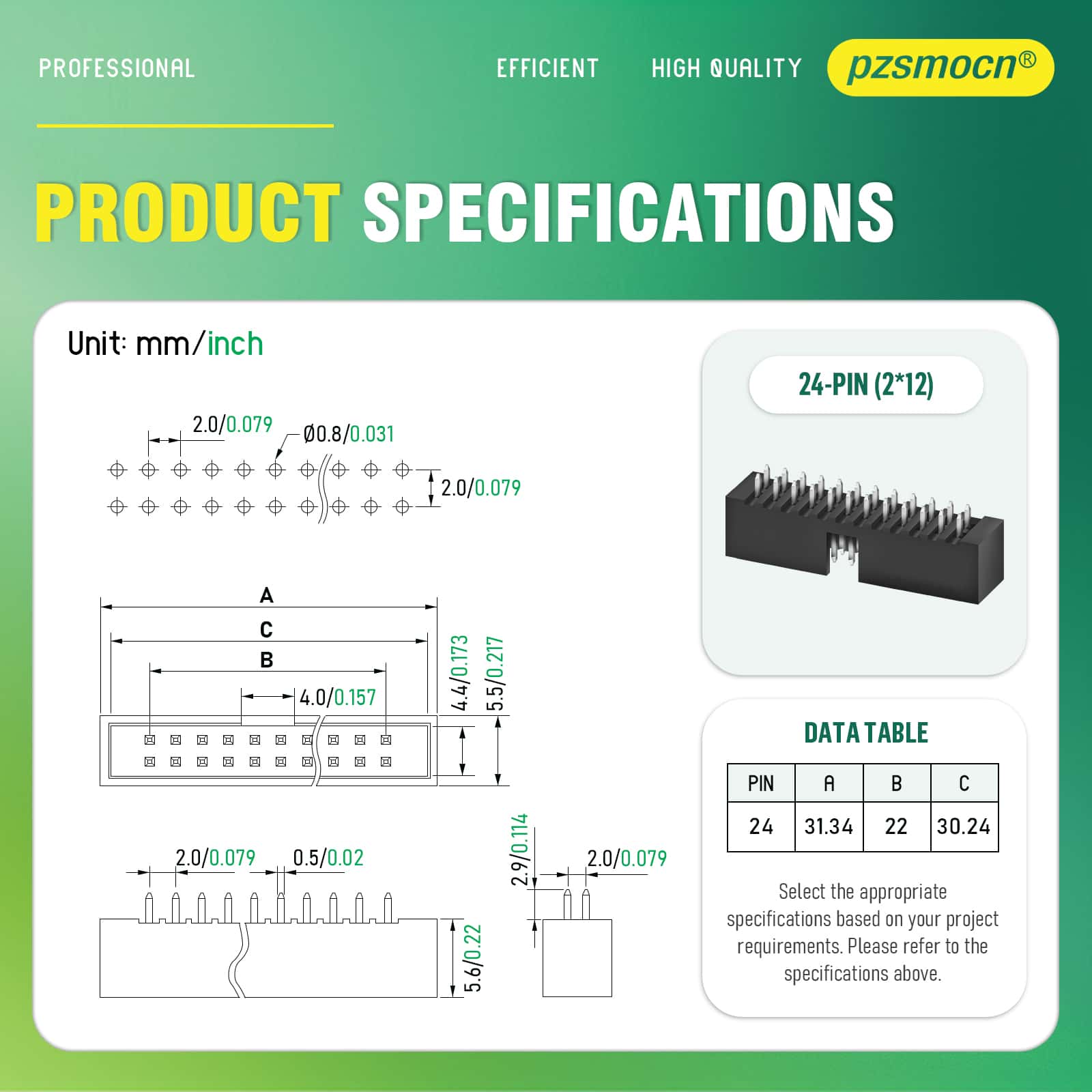

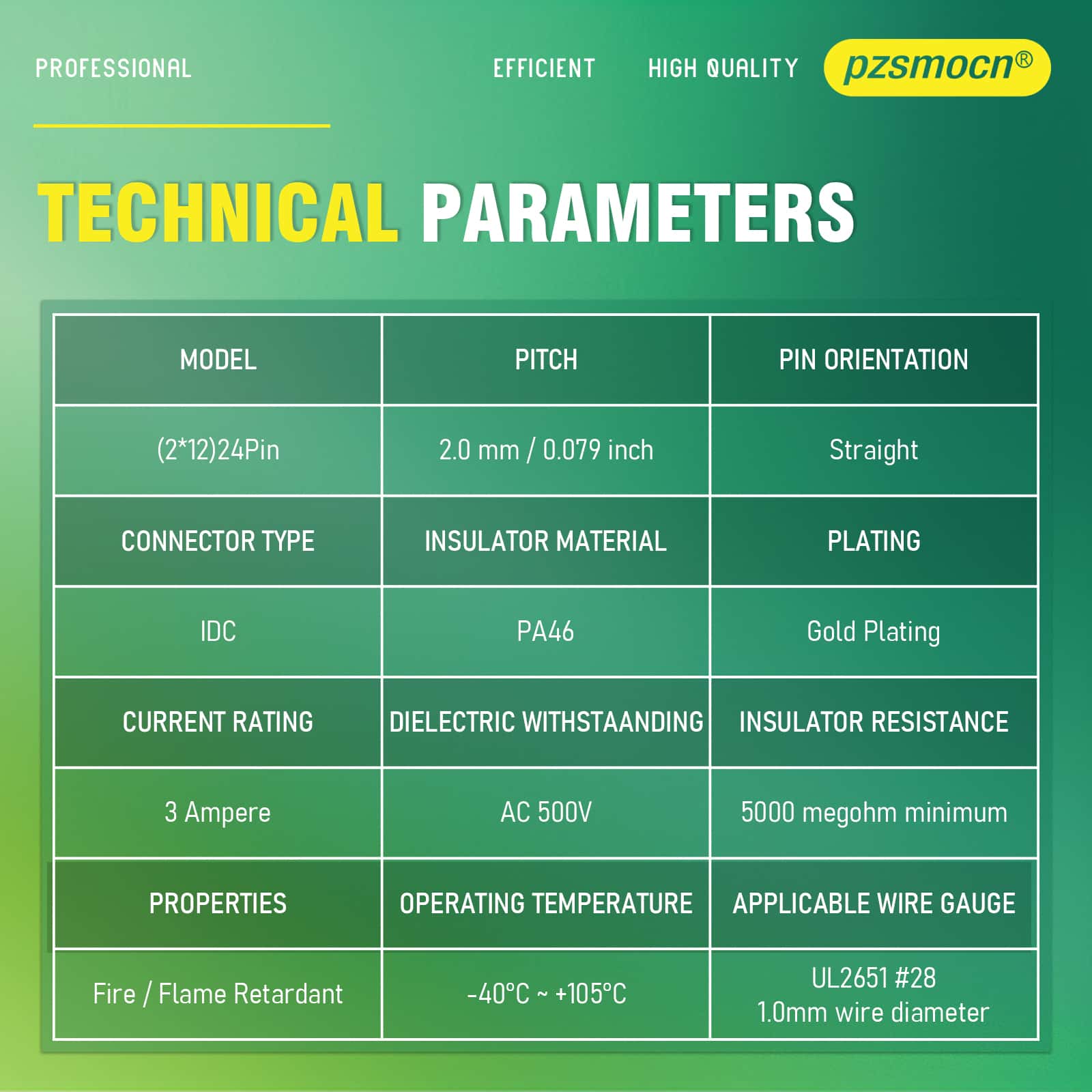

SPECIFICATION

  • Model: IDC 2 * 12 Pin Male Socket Terminal

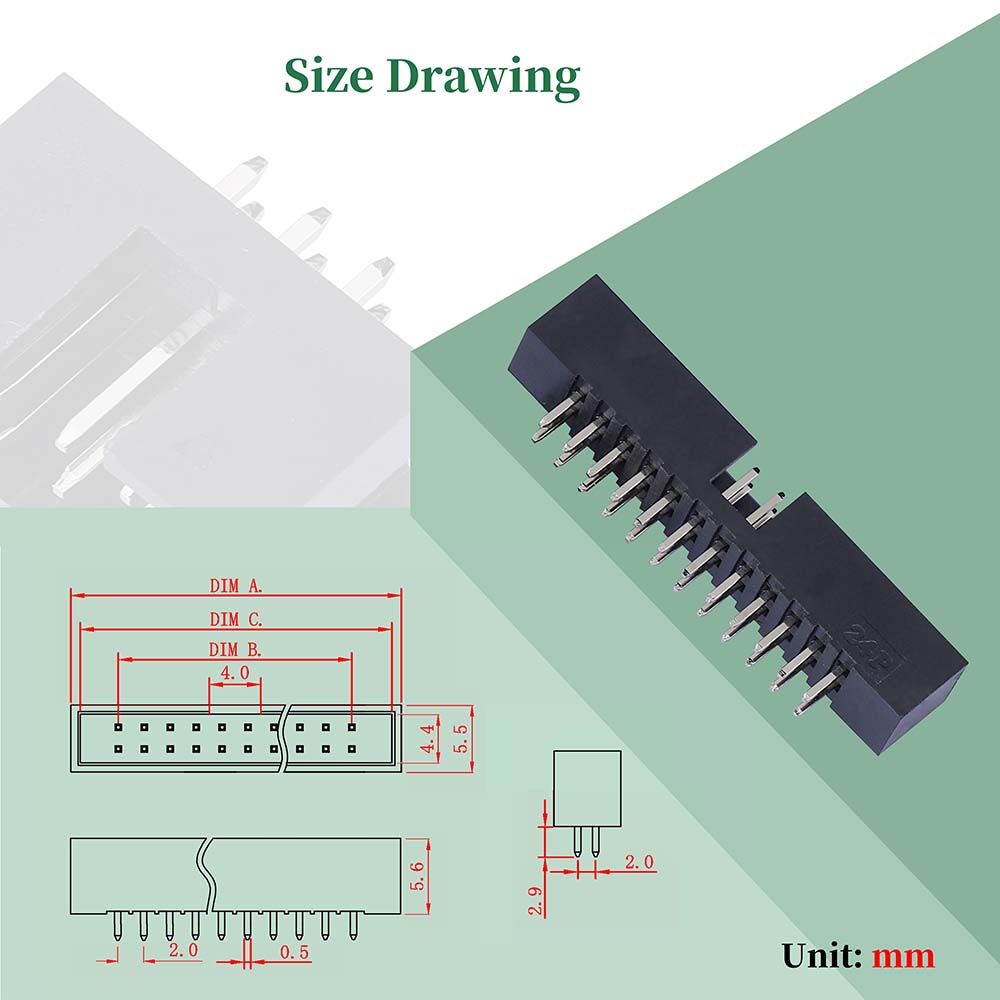

  • Pitch: 2.0 mm / 0.079 inch

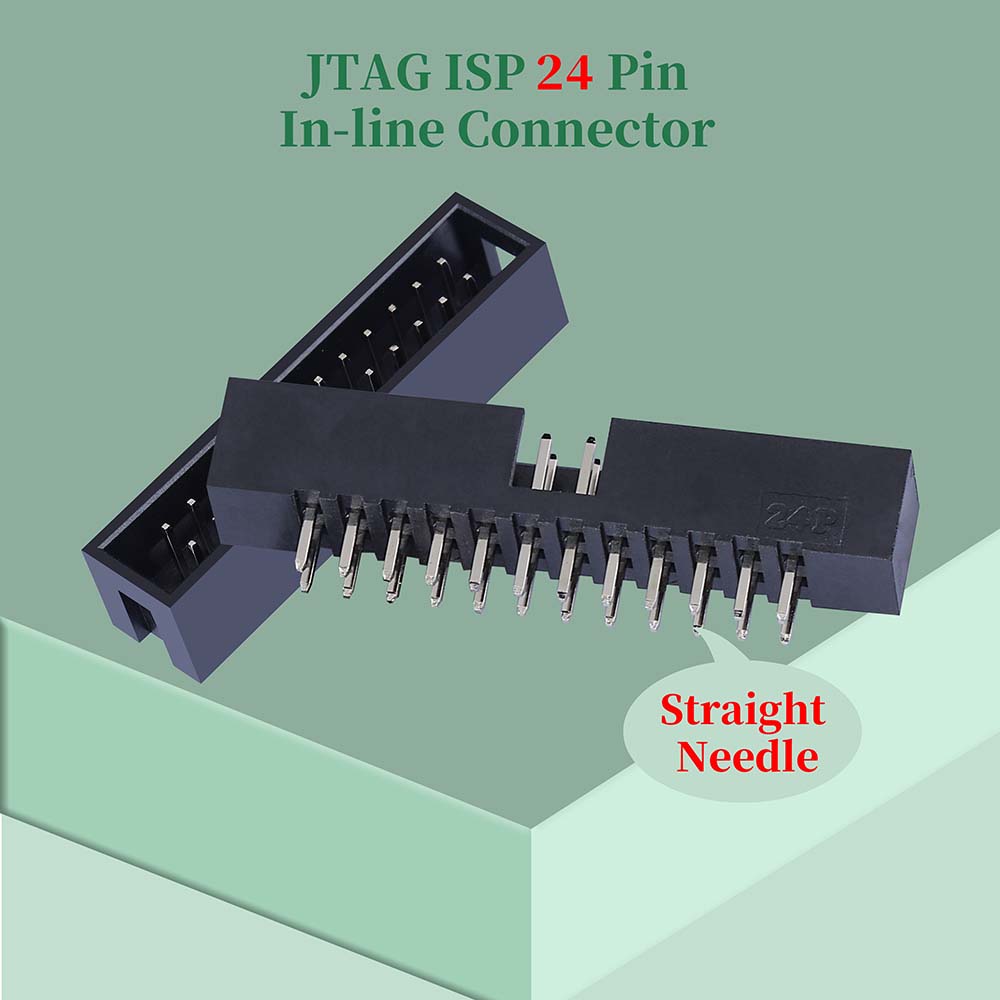

  • Body Orientation: Straight

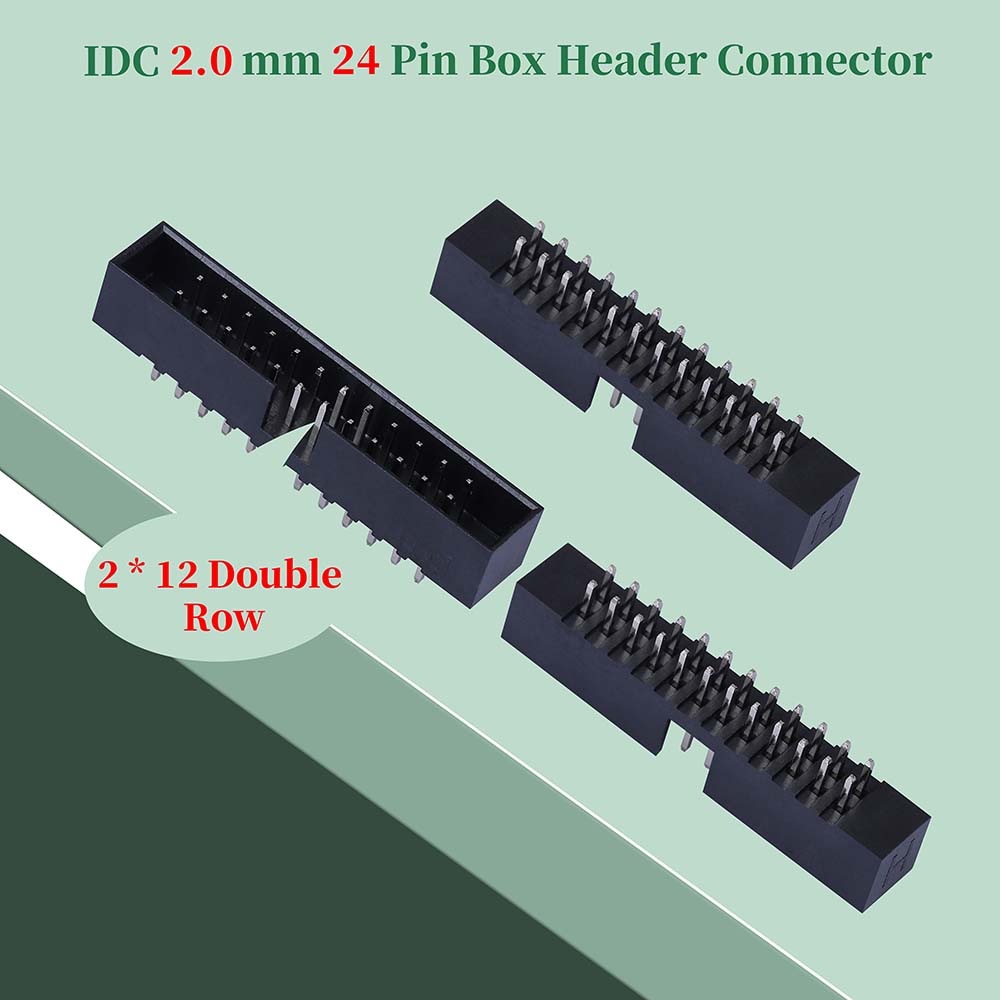

  • Row Type: Double Row
  • Connector Type: IDC

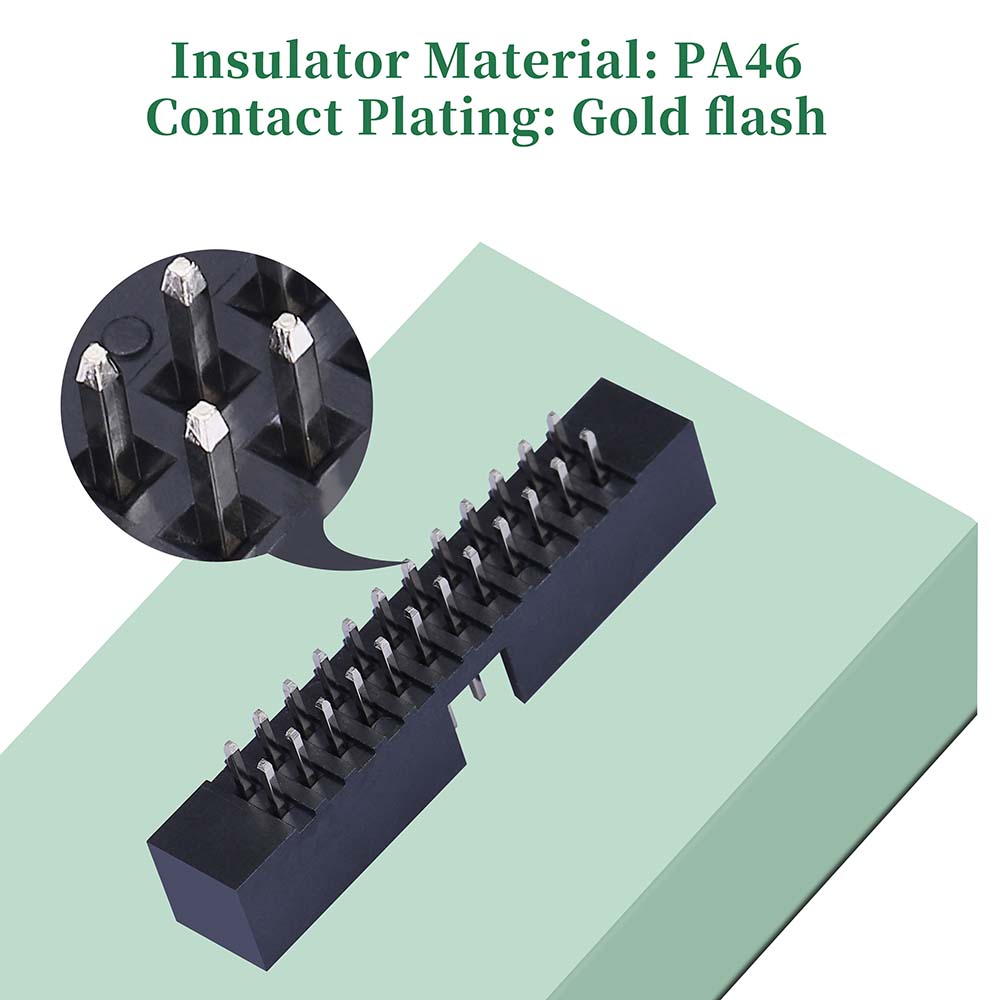

  • Insulator Material: PA46
  • Plating: Gold flash
  • Current Rating: 3 Ampere
  • Dielectric Withstaanding: AC 500V
  • Insulator Resistance: 5000 megohm minimum

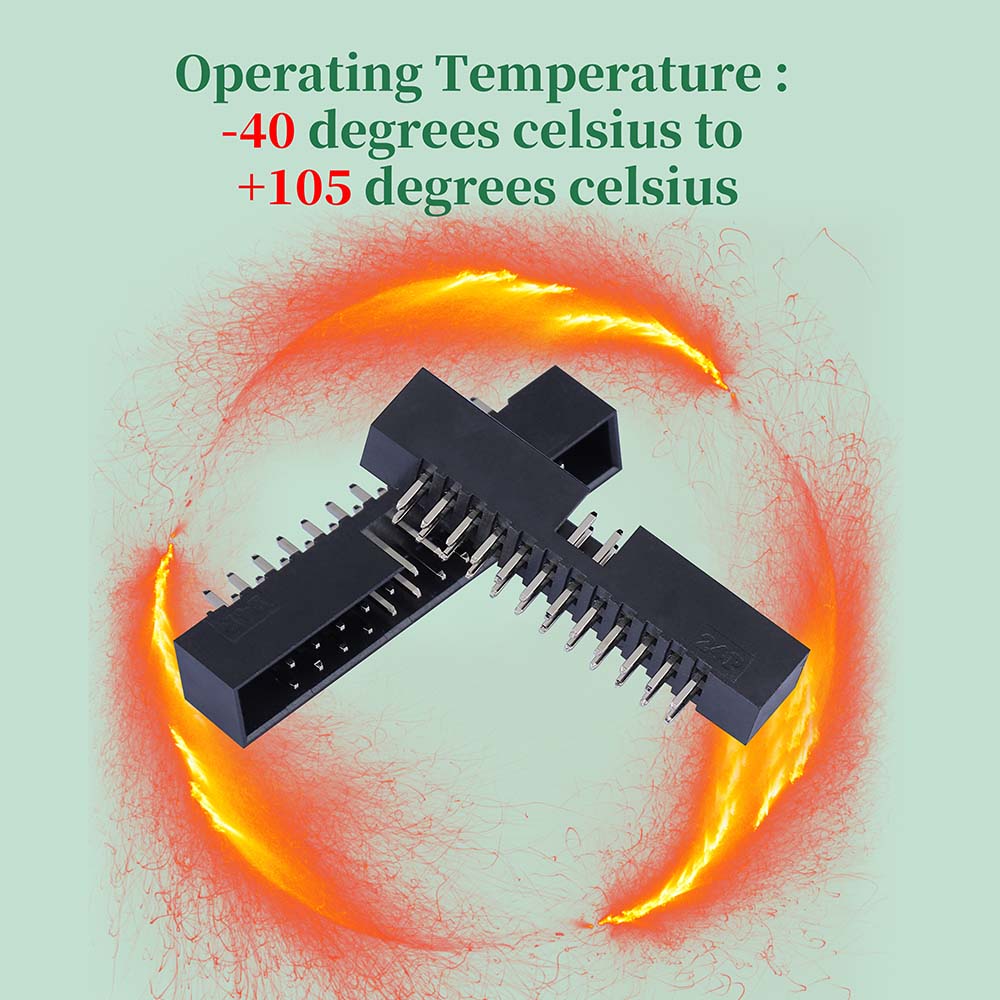

  • Operating Teaperature: -40 degrees celsius to +105 degrees celsius
  • Applicable Wire Gauge: UL2651#28, 1.0mm wire diameter
  • Properties: Fire / Flame Retardant
